FE60 - Oven GIRMI - Free user manual and instructions

Product type	Oven
Brand	Girmi
Model	FE60
Power supply	AC 230 V ~ 50-60 Hz
Power	2000 W
Capacity	60 L
Temperature range	100 °C to 230 °C
Timer	0 to 60 minutes
Cooking functions	Bottom, Grill, Combined, Convection, Rotisserie
Heating elements	Top and bottom, with ventilation
Included accessories	Rack, tray, rotisserie spit, tray handle, spit handle
Cleaning	Unplug and allow to cool before cleaning; use a soft cloth and non-abrasive products; do not immerse in water
Safety	Do not use if cable or plug damaged; do not touch hot surfaces; do not leave unattended
Disposal	Compliant with WEEE directives (2002/96/EC, 2012/19/EC); do not dispose with household waste

Frequently Asked Questions - FE60 GIRMI

What are the power and capacity of the Girmi FE60 oven?

The oven has a power of 2000 W and a capacity of 60 liters, ideal for families.

What cooking functions are available?

It offers 3 main functions: bottom, grill and combined, as well as options with convection and rotisserie (positions 4, 5, 6).

How to use the rotisserie?

Assemble the spit, insert the tip into the food, then place the other end into the left groove of the oven. Use the provided handle to manipulate the hot spit. Select position 1 or 6 on the function selector.

How to clean the oven?

Unplug the appliance and let it cool completely. Clean the interior with a soft cloth and a non-abrasive cleaner. Never immerse the oven in water and avoid splashing liquid on the appliance.

What is the adjustable temperature range?

The temperature can be set from 100 °C to 230 °C via the temperature selector.

How to preheat the oven?

Set the timer to 15 minutes, choose the desired temperature and function. Once preheating is complete, an audible signal sounds.

What accessories are included with the oven?

The oven comes with a rack, a tray, a rotisserie spit, a tray handle and a spit handle.

What to do if the power cord is damaged?

Do not use the appliance. Contact the manufacturer or an authorized technical service for replacement. Any repairs must be carried out by a qualified professional.

Can the oven be used with an external timer?

No, the appliance is not designed to be used with an external timer or remote control.

How to dispose of the oven at the end of its life?

Do not dispose of it with household waste. Take it to a WEEE collection center in accordance with local regulations (directives 2002/96/EC, 2012/19/EC).

USER MANUAL FE60 GIRMI

Technical model: DN60G-RML

Electric oven with convection and rotisserie

ITA: INDICE

Simbologia. p. 2

Safety Instructions p. 8

General information. p. 10

FE60. p. 11

Operating. p. 11

Control knobs. p. 12

Preheating p. 12

Cooking. p. 12

Rotisserie. p. 12

Cleaning. p. 12

Technical features. p. 13

Waste of electric and electronic equipment (WEEE

Directive) p. 34

PORTUGUESE p. 13

ESPAÑOL p. 18

DEUTSCH p. 23

FRANCAIS p. 28

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected.

Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or

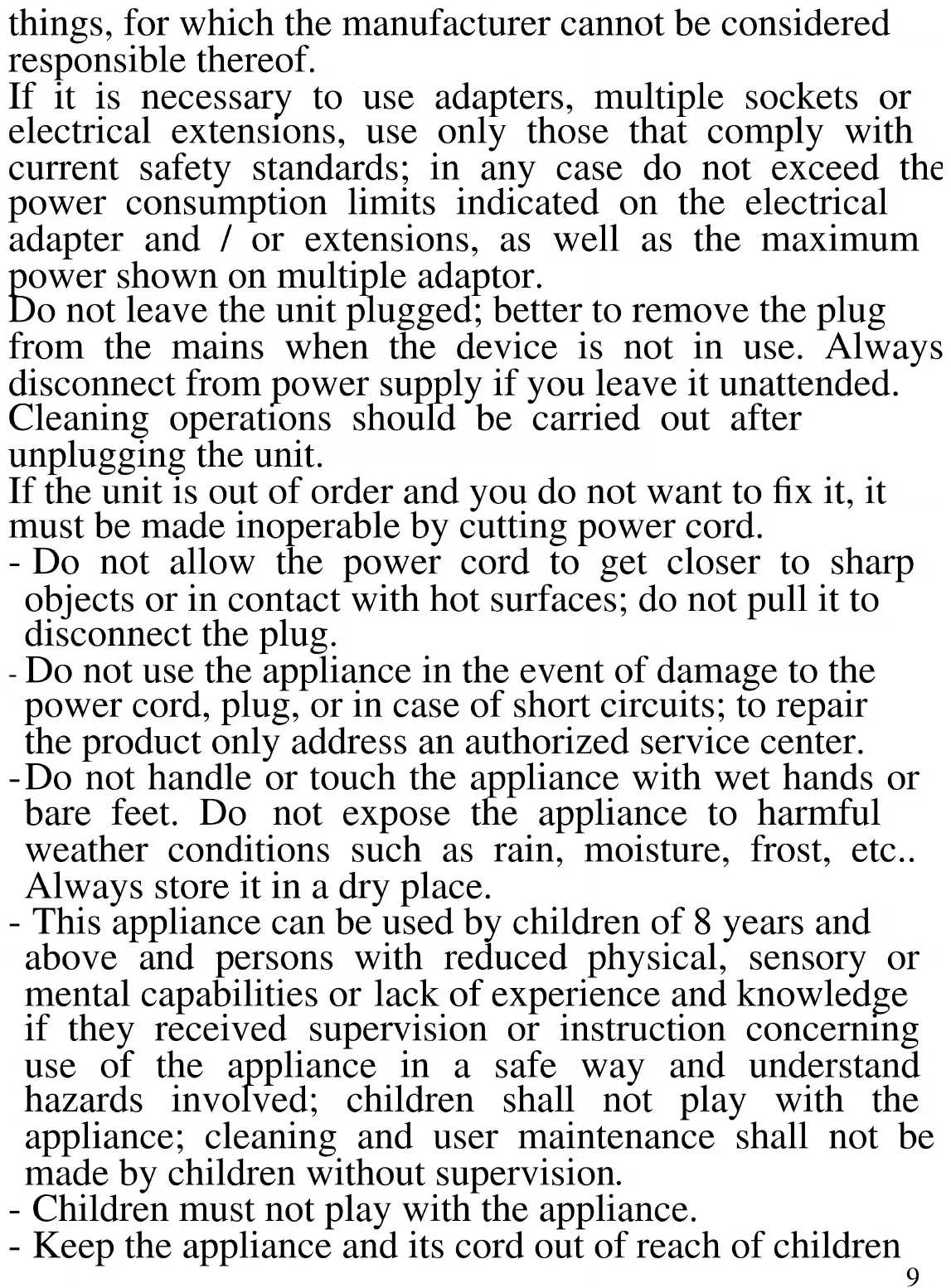

things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.
• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children

less than 8 years old.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household as similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

The rear surface of appliances shall be placed against wall.

Only use containers suitable for high temperatures.

Do not place anything on the door when it is open, as the door may be damaged or the oven may fall and break.

Always use the grill handle to remove the grill and the pan.

Do not wash or throw water on the glass when it is hot, as it may break.

Do not use the oven if there is any damage to the door or its seals.

Handle with care fresh-cooked food to avoid risk of burning.

Never leave the appliance unattended while it is running.

Remove the plug after each use.

Do not place the oven in water or other liquids and avoid splashing of liquids on the unit.

Never use plastic containers for traditional oven cooking.

Before every use, unroll the power cord.

Do not use the appliance as a heating unit.

Do not insert anything in the ventilation windows.

Before cleaning, always unplug the unit from the electrical outlet and wait for the complete cooling of each part of the appliance.

Remove all packaging materials from the cooking compartment.

Put the oven on solid and stable surfaces only.

Always leave enough space at every side of the oven when the unit is working.

Do not use the oven as shelf support for objects or as place to store food, pots, containers, etc..

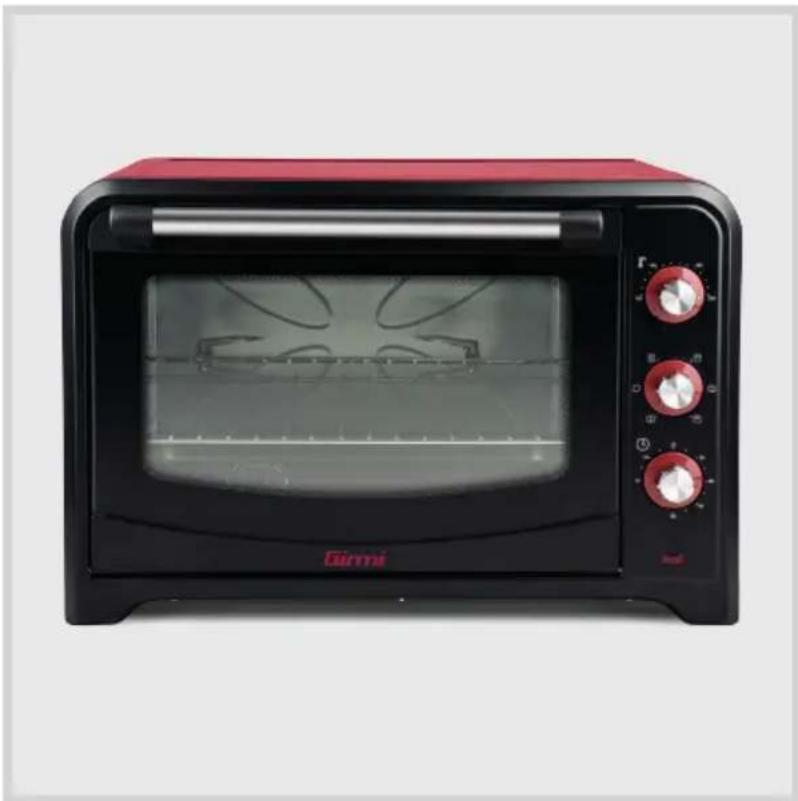

DESCRIPTION FE60

1 Power plug and cable

2 Timer knob

3 Cooking selection switch

4 Working light

5 Temperature control knob

6 Top cover

7 Handle

8 Oven rack

9 Tray

10 Heating elements (up and low)

11 Tray handle

12 Rotisserie

13 Rotisserie handle

OPERATING

Carefully wash all accessories and the inner housing first. Allow to ventilate the internal compartment keeping the door open for about 30 minutes and subsequently operate the empty oven for few minutes keeping the door open. Before starting with the first cooking, turn on the oven for 10 minutes at the maximum power with both heating elements working.

CONTROL KNOBS

Moving the cooking selection switch (3) allows to select upper heating elements, lower heating elements or both:

1: Enable the upper heating element (GRILL cooking), and the rotisserie.
2: Enable the lower heating element.
3: Enable both the upper and the lower heating elements.
4: Enable the upper heating element and the fan
5: Enable the lower heating element and the fan
6: Enable both the upper and the lower heating elements, the fan and the rotisserie.

The temperature control knob (5) allows you to set a temperature between 100 and 230 degrees

Celsius. The timer control knob (2) allows you to set the cooking time between 0 and 60 minutes. The inner light automatically switches on when the oven is working.

PREHEATING

Before inserting the food, always preheat the oven for about 15 minutes to allow the unit to reach the selected temperature. Preheat the oven without food.

• Set the timer control knob (2) up to 10 minutes.
• Set the desired temperature using the temperature control knob (5).
• Turn cooking selection switch (3) to the desired position.
• At timer acoustic signal, preheating process is completed and the oven is ready for cooking.

COOKING

• Place the food on the pan or on the oven tray, set the temperature (control knob 5), time (2) and type of cooking (2) and place the grill or the rack inside oven at the right height.
• Always place tray (9) under grill (8) to avoid dripping on lower heating element when cooking.
• The working light (4) will switch on, indicating that the unit is running.
• Periodically check the condition of the food during cooking. In case you need to open the door for any reason, close it as quick as possible to avoid losing heat.
• At the end of cooking process, the light will turn off and the timer will beep. If the cooking is not complete, reset the timer control knob.
• Always remove the oven tray and grill using the handle (11). Turn the temperature control knob (5) to the minimum position.

ROTISSERIE (12)

• Assemble the skewers (C) with the
  rotisserie (D) and secure them by tightening the lock nut (B).
• Place the tips of the skewers in the chicken (or roast or whatever) and lock securely.
• Insert the end (E) into the hole on the right of the wall inside the cooking chamber.
• Insert the head (A) in the guide on the left wall of the compartment.
• Make sure the rotisserie is properly secured.

Now close the oven door and set the cooking type as explained in the previous paragraphs. Use of the rotisserie requires that the cooking selector switch (3) is in position 1 or 6.

Caution: do not handle the rotisserie set with your hands, risk of burns. Always use provided rotisserie handle (13).

CLEANING

Unplug the unit from the electrical outlet and allow each part to cool down before starting any cleaning procedure.

• Do not place the oven in water. In any case prevent splashes of water or other liquids from reaching the unit.
• Regular cleaning of the internal chamber ensure better performances and prevents unpleasant odors. Use a

soft cloth and non-abrasive cleaner for the cooking compartment.

• Grill, tray, oven rack and other accessories can be washed as everyday crockery.
• Don't use abrasive or metallic sponges to clean the outside of oven as may jeopardize the paint.
• Be careful not to drop any liquid or soap in the ventilation openings during cleaning.

Crumbs, oils and cooking residues fall to the bottom of the unit. For faster cleaning, remove the crumb tray and clean it separately.

TECHNICAL FEATURES

Power supply: AC 230V~50-60Hz. Power 2000W
- Capacity: 60L
- Convection, rotisserie, inner light, 60 minutes timer
3 cooking functions: low, grill, combined
- Adjustable temperature from 100^ up to 230^

PORTUGUES: ADVERTÉNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RESIDUOS DE APARELHIOS ELECTRICOS E ELECTRONICOS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.
