Product Type	Electric Oven
Brand	Girmi
Model	FE10
Power Supply	230 V ~ 50/60 Hz
Power	800 W
Capacity	10 L
Adjustable Temperature	100 °C to 230 °C
Timer	0 to 60 minutes with audible signal
Functions	Traditional cooking, preheating
Provided Accessories	Grid, baking tray
Maintenance and Cleaning	Clean the interior with a soft, non-abrasive cloth; do not immerse in water; the tray is not dishwasher safe
Safety	Hot surfaces; use by children over 8 years under supervision; do not use with an external timer
Intended Use	Domestic and similar applications (staff kitchens, hotels, etc.)
General Information	Instruction manual included; do not use as heater; do not obstruct ventilation slots

Frequently Asked Questions - FE10 GIRMI

What is the capacity of the Girmi FE10 oven?

The Girmi FE10 oven has a capacity of 10 litres, ideal for small preparations.

How to adjust the temperature and cooking time?

Use the temperature selector (5) to choose between 100°C and 230°C, and the timer (2) to set from 0 to 60 minutes.

Should I preheat the oven before cooking?

Yes, it is recommended to preheat the empty oven for 5 minutes at the desired temperature before placing food inside.

Can I use plastic containers in the oven?

No, only use heat-resistant containers, never plastic, as they could melt or release harmful substances.

How to clean the inside of the oven?

Unplug the appliance and let it cool. Clean the cavity with a soft cloth and non-abrasive detergent. Never immerse the oven in water.

Is the baking tray dishwasher safe?

No, the tray should not be washed in the dishwasher. Wash it by hand with a soft sponge.

What to do if the power cord is damaged?

Do not use the appliance. Take it to an authorized service center to have the cord replaced by a professional.

Can the oven be used by children?

Yes, by children over 8 years under supervision. Children under 8 years must be kept away from the appliance and its cord.

What is the power of the Girmi FE10 oven?

The nominal power is 800 W at 230 V~50/60 Hz.

How to open the bottom of the cooking compartment for cleaning?

Turn the oven over and pull the handle on the base to open the bottom. This facilitates cleaning of the interior cavity.

USER MANUAL FE10 GIRMI

Black Girtri brand toaster oven with control knobs and a red indicator button (no visible text or symbols on the device itself)

Forno Elettrico

Electric oven

ITA: INDICE

Simbologia.... p. 2

Safety Instructions.... p. 7

General information.... p. 9

FE10....p. 10

Operating.... p. 10

Control knobs.... p. 10

Preheating....p. 10

Cooking.... p. 11

Cleaning....p. 11

Technical features....p. 11

Waste of electric and electronic equipment (WEEE

Directive).... p. 29

PORTUGUESE...... p. 11

ESPAÑOL ...... p. 16

DEUTSCH p. 20

FRANCAIS p. 24

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Labeled diagram of a black microwave oven with numbered parts for identification

FUNZIONAMENTO

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum

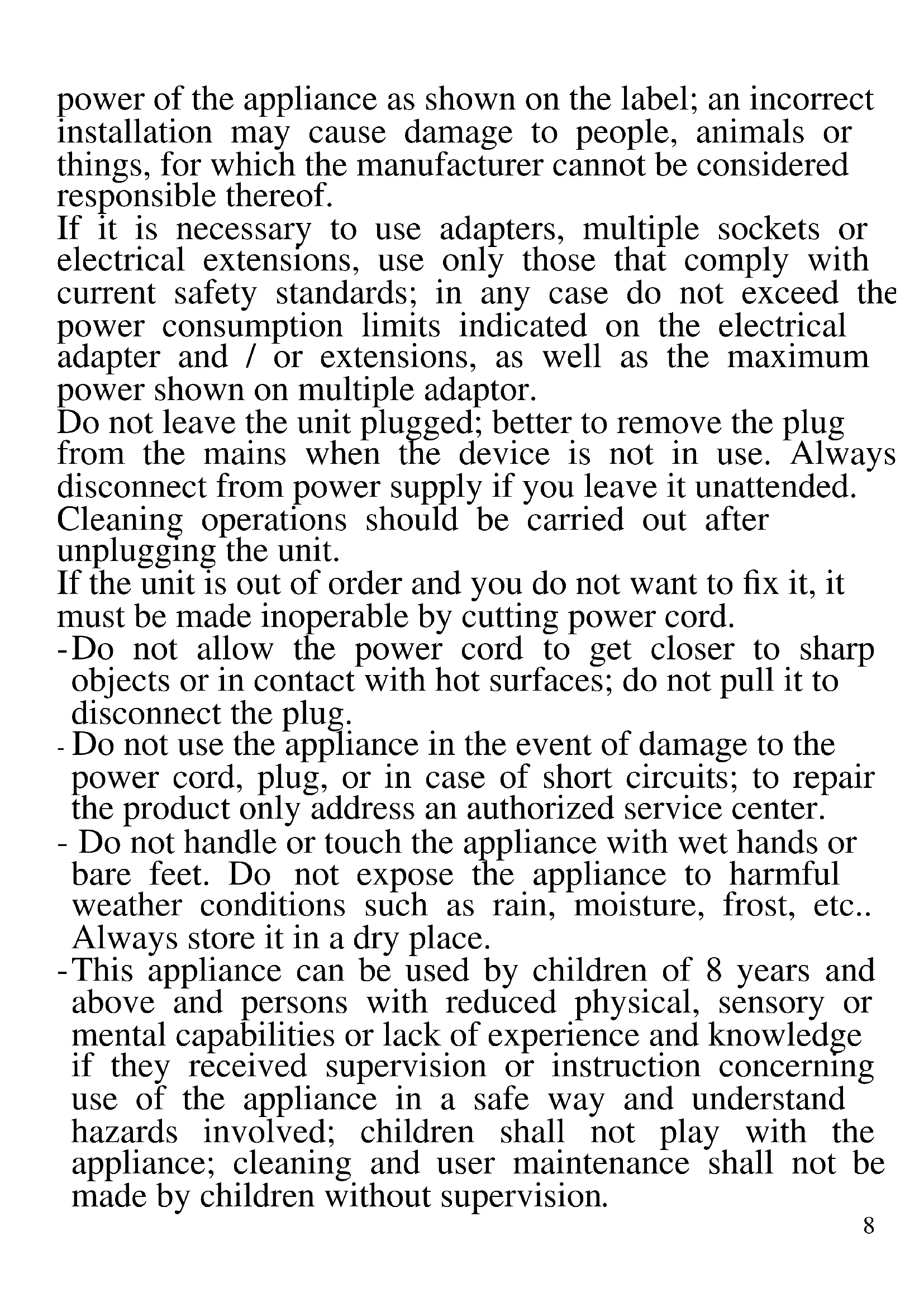

power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

-Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Children must not play with the appliance. - Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• Before every use, unroll the power cord.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

Rear surface of appliance shall be placed against a wall.

Only use containers suitable for high temperatures.

Do not place anything on the door when it is open, as the door may be damaged or the oven may fall.

Always use kitchen gloves to remove the grill or the tray

Do not wash or throw water on the glass when it is hot, as it may break. Do not use the oven if there is any damage to the door or its seals.

Handle with care fresh-cooked food to avoid risk of burning. Never leave the appliance unattended while it is running. Remove the plug after each use.

Do not place the oven in water or other liquids and avoid splashing of liquids on the unit.

Never use plastic containers for traditional oven cooking. Before every use, unroll the power cord.

Do not use the appliance as a heating unit. Do not insert anything in the ventilation windows.

Before cleaning, always unplug the unit from the electrical outlet and wait for the complete cooling of each part of the appliance.

Put on solid and stable surfaces only. Leave enough space at every sides of the oven when the unit is working.

Do not use the oven as shelf support for objects or as place to store food, pots, containers, etc..

DESCRIPTION FE10

1 Air vents 2 Timer knob 3 Housing

4 Working light 5 Temperature control knob 6 Heating elements (up and low) 7 Handle

OPERATING

Carefully wash all accessories and the inner housing first. Allow to ventilate the internal compartment keeping the door open for about 30 minutes and subsequently operate the empty oven for few minutes keeping the door open. Before starting with the first cooking, turn on the oven for 10 minutes at the maximum power.

CONTROL KNOBS

The temperature control knob (5) allows you to set a temperature between 100 and 230 degrees Celsius. The timer control knob (2) allows you to set the cooking time between 0 and 60 minutes.

PREHEATING

Before inserting the food, always preheat the oven for about 5 minutes to allow the unit to reach the selected temperature. Preheat the oven without food.

• Set the timer control knob (2) up to 5 minutes.
• Set the desired temperature using the temperature control knob (5).
• At timer acoustic signal, preheating process is completed and the oven is ready for cooking.

COOKING

• Place the food on the grill or on the tray, Place the grill inside oven at the right height. The tray, if used, must be placed over the grill.
• Set temperature (control knob 5) and time (2) of cooking.
• The working light (4) will switch on, indicating that the unit is running.
• Periodically check the condition of the food during cooking. In case you need to open the door for any reason, close it as quick as possible to avoid losing heat. At the end of cooking process, the light will turn off and the timer will beep. If the cooking is not complete reset the timer control knob.
• Always remove the oven tray and grill using kitchen gloves. Turn the temperature control knob (5) to the minimum position.

CLEANING - Unplug the unit from the electrical outlet and allow each part to cool down before starting any cleaning procedure.

• Do not place oven in water. In any case prevent splashes of water or other liquids from reaching the unit.
• Regular cleaning of the internal chamber ensure better performances and prevents unpleasant odors. Use a soft cloth and non-abrasive cleaner for the cooking compartment.
• The bottom of the cooking compartment can be opened to facilitate cleaning. To open it, turn the oven upside down and pull the handle under the base.
• Grid and tray can be washed like normal dishes. DO NOT WASH THE TRAY IN THE DISHWASHER.
• Do not use abrasive or metallic sponges to clean the outside of the oven. This may jeopardize the paint.
• Be careful not to drop any liquid or soap in the ventilation openings during cleaning.

TECHNICAL FEATURES

• Power supply: AC 230V\~50-60Hz. Power 800W
- Capacity: 10L
- 60 minutes timer - Adjustable temperature from 100^ up to 230^

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
