Product Type	Air Purifier
Brand	PureGuardian
Model	AP2200CA
Power Supply	120 V AC
Frequency	60 Hz
Fan Speeds	3 (Low, Medium, High)
Filtration Type	Pre-filter/carbon filter + HEPA filter
Filter Lifespan	Approximately 6 months depending on usage
Replacement Filter Model	FLT4825 (Filter B)
Pre-filter Cleaning	Vacuum with brush
Filter Replacement	When filter turns gray or black
Warranty	Limited 3-year warranty
Certifications	ENERGY STAR
Plug	Polarized (shock-proof)
Usage	Indoor only
Carrying Handle	At the back of the unit
Minimum Wall Distance	30 cm (1 foot)
Recommended Room Size	Medium-sized room (CADR data available)
Power Consumption	Energy-efficient (ENERGY STAR certified)
Customer Service	1.866.603.5900

Frequently Asked Questions - AP2200CA PureGuardian

How to turn on the AP2200 air purifier?

Turn the power knob clockwise. The operation light turns on and the unit starts at Low speed. Turn further to Medium, then High. To turn off, turn to the Off position (•).

How to clean the pre-filter and carbon filter?

Use the brush attachment of your vacuum cleaner to clean the external pre-filter. Gently remove the filter combination, then the pre-filter/carbon filter. Vacuum out lint and dirt. Do not wash the HEPA filter.

When to replace the HEPA filter?

Replace the filter when it turns from white to gray or black. Under normal use, this corresponds to approximately every 6 months. Use only genuine Guardian Technologies filters (ref. FLT4825).

What to do if the unit does not turn on?

Check that the unit is plugged into a working 120 V outlet. Ensure the filter is properly installed and the rear cover is securely locked. If the problem persists, contact customer service.

Can I use an extension cord?

Only use an extension cord if the polarized plug fits completely. Do not modify the plug. It is recommended not to use an extension cord; plug directly into a wall outlet.

Where to buy replacement filters?

Purchase genuine Guardian Technologies filters (ref. FLT4825) on the website www.guardiantechnologies.com or call customer service at 1.866.603.5900.

What is the warranty for the PureGuardian AP2200CA?

The limited warranty is 3 years from the original purchase date. It covers defects in materials and workmanship. Keep your sales receipt.

The unit is making abnormal noise, what should I do?

Make sure the filters are clean. Clean the pre-filter. If the noise persists, check that nothing is blocking the air inlet or outlet. Replace the filter if necessary.

Can I wash the HEPA filter?

No, never wash the HEPA filter. It must be replaced when dirty. Only the pre-filter/carbon filter can be vacuumed.

How to reset the filter change indicator?

On the AP2200 model, there is no filter replacement indicator. The lifespan is estimated at 6 months. For the AP2800 model, press the Power button for 5 seconds after changing the filter.

USER MANUAL AP2200CA PureGuardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to GuardianTechnologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

©2016 Guardian Technologies LLC

guardian

technologies™

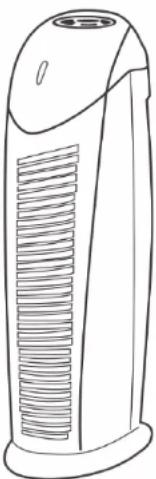

USE & CARE INSTRUCTIONS

Line drawing of a portable air conditioner with a grid-patterned body (no text or symbols)

Air Purifier

Model No. AP2200

3-Year Limited Warranty

Model No. AP2800

5-Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only. REV0920

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: - Read all instructions before using appliance.

• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Extreme caution is necessary when any appliance is used by or near children or people with disabilities and whenever the appliance is left operating unattended.
• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
  • DO NOT run cord under carpeting.
• DO NOT cover cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service for assistance.
• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
• DO NOT use outdoors.
  • DO NOT place anything on top of unit.
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

- WARNING: To reduce the risk of fire or electric shock, do not use this appliance with any solid-state speed control device.

WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.

This product earned the ENERGY STAR label by meeting strict energy efficiency guidelines set by the U.S. EPA. Room air cleaners have demonstrated the potential for improving air quality and providing health benefits. EPA does not endorse manufacturer claims regarding the degree to which a specific product will produce healthier indoor air. The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model's CADR for Smoke and the electrical energy it consumes, or CADR/Watt.

PRODUCT SPECIFICATIONS

MODEL NUMBER SERIES: AP2200

DIMENSIONS: 5.5"L x 9.25"W x 21.5"H

WEIGHT: 8 pounds

INPUT VOLTAGE: 120 V, 60Hz, 50W, 0.5 Amps

REPLACEMENT FILTER: Filter B (FLT4825)

WARRANTY: 3-Year Limited Warranty

MODEL NUMBER SERIES: AP2800

DIMENSIONS: 6.1"L x 9.5"W x 27.25"H

WEIGHT: 10.2 pounds

INPUT VOLTAGE: 120 V, 60Hz, 55W, 0.5 Amps

REPLACEMENT FILTER: Filter C (FLT5000)

WARRANTY: 5-Year Limited Warranty

PRODUCT SPECIFICATIONS AND PARTS
AP2200 & AP2800

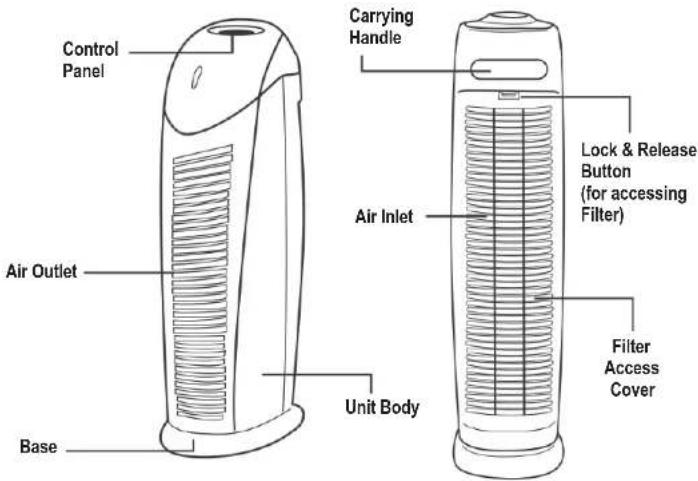

FRONT OF UNIT BACK OF UNIT

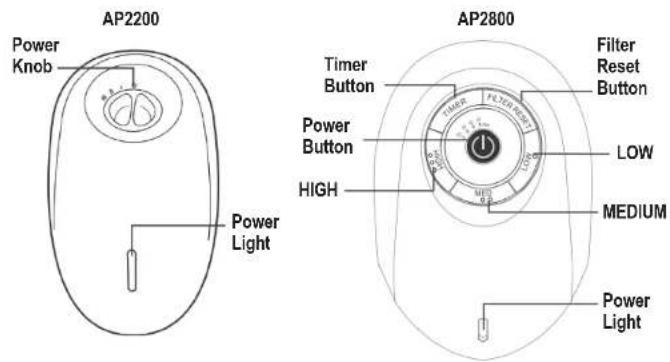

CONTROL PANEL

AP2200 REPLACEMENT PARTS

FILTER:
Filter B
Model No.
FLT4825

REPLACEMENT
CARBON FILTER
4-PACK:
Model No. FLT22CB4

AP2800 REPLACEMENT PARTS

FILTER:
Filter C
Model No.
FLT5000
Model No. FLT28CB4

REPLACEMENT
CARBON FILTER
4-PACK:

Check out our
AutoShip & Save
Filter Replacement Program
www.guardiantechnologies.com

IMPORTANT: To maintain the performance of the air purifier, use Guardian Technologies GENUINE Replacement Parts only. To Purchase Contact Customer Service

What is CADR?

CADR stands for "Clean Air Delivery Rate," which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room.

Clean Air Delivery Rate

From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

Refer to website for individual model CADR numbers.

AIR PURIFIER

Improve your indoor air quality with your new Guardian Technologies® Air Purifier. Multiple levels of cleaning include a combination filter that captures allergens, and Charcoal filter to remove odors.

Pre-Filter / Charcoal Layer - Captures initial dust and allergen particles.

Filter - Reduces dust and allergens.

OPERATING INSTRUCTIONS

1. Carefully remove your air purifier from box and bag.
2. Select a firm, level and at location for the air purifier

- For proper air flow, locate the unit at least 1 foot from any wall or furniture.

• Make sure none of the grills are blocked.

1. Plug the power cord into a 120V AC outlet.

IMPORTANT: When moving the air purifier, always lift unit by the carrying handle located on back.

1. Turn the air purifier ON by rotating POWER KNOB clockwise.
2. Upon turning the air purifier ON, the power indicator will be lit and the unit will be in LOW mode (I).
3. Rotate the POWER KNOB clockwise to set the air purifier to MEDIUM (II) or High mode (III).
4. To turn the unit OFF, rotate the POWER KNOB counter-clockwise to OFF mode (•).

OPERATING THE AIR PURIFIER - AP2800 SERIES:

1. Select the POWER button on the control panel to turn unit ON. Power light will illuminate when running.
2. Select FAN SPEED by pressing either low, medium or high control button. NOTE: The higher the speed the faster the air is circulated through the unit.
3. Optional TIMER button can be selected. Unit can be set to turn OFF after 2, 4, 6 or 8 hours by pressing the TIMER button and selecting the preferred hours when lit.
4. FILTER RESET - see below - FILTER REPLACEMENT.
5. SOUND ON/OFF: This unit has been designed to provide audio feedback when the buttons are pressed. You will hear a 'beep' each time you select a control button. If you prefer to disable this feature, hold down BOTH the HIGH and MEDIUM setting buttons at the same time. NOTE: The unit sound will reset if unplugged.

FILTER REPLACEMENT

CHANGE FILTER INDICATOR

The green power light on the air cleaner will turn red and flash continuously indicating that it is time to replace the filter. Replace the filter according to the directions then press the filter reset button and hold for 5 seconds to restart the system. The light will turn back to green. Depending on usage, filter will last approximately 6 months.

REPLACE FILTER

Line drawing of a portable device with a handle and spout, showing a curved arrow indicating rotation (no text or symbols)

1. Turn off and unplug the unit. Press the Lock & Release Button and remove the Rear Cover from the unit.

Line drawing of a portable device with a handle and spout, showing internal components (no text or symbols)

1. Remove the used Combination Filter.

Illustration of a cylindrical device with a lid and two separate clamps, one showing an arrow indicating rotation (no text or symbols)

1. Insert new Combination Filter into the unit. Consult the arrow on the filter for correct installation direction.

2. Reattach the Rear Cover of the unit and securely latch into place.

3. Push and hold filter reset button for 5 seconds to reset Filter Change Indicator.

CLEANING & MAINTAINING COMBINATION FILTER

The air purifier should be cleaned at least once every month and the outer Pre-/Charcoal Filter attached to the Filter should be cleaned every month. More frequent cleaning may be required depending on environmental conditions.

AIR PURIFIER

Use a clean, dry, soft cloth to wipe the external surface of the unit.

PRE-/CHARCOAL FILTER

Clean with the brush attachment of your vacuum cleaner. This will remove lint and dirt.

FILTER

Remove the Combination Filter from the back of the unit. Remove the Pre-/Charcoal Filter to expose the Filter. When the Filter turns from white to grey or black it should be replaced with a new one. If the Filter is still white, it does NOT need to be replaced.

IMPORTANT: Use only genuine Guardian Technologies replacement parts to maintain product performance. DO NOT try to wash and re-use the Combination Filter. Please contact Customer Service or visit us at www.guardiantechnologies.com to purchase a replacement filter.

NOTE: The Combination Filter is one filter system.

The multiple layers include: Pre-/Charcoal Filter and the Filter.

NOTE: Do NOT stick any foreign objects or your fingers inside of the unit. CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Unit does not operate.	Check that the unit is plugged in.Check that filter is in place.Confirm that filter is Genuine Replacement FilterCall Customer Service.
Unit shuts off unexpectedly.	Check that unit is plugged into a working electrical outlet.Check that filter is firmly in place.Check that the Rear Cover is latched firmly in place.Call Customer Service.
No air circulating from unit.	Unplug unit. Check Pre-/Carbon and filters.Clean Pre-/Carbon Filter if necessary.Replace filter if necessary.
Increase in noise level. Make sure the filters are clean. Replace if necessary.

GARANTIE LIMITÉE

Guardian Technologies LLC

26251 Bluestone Blvd

Euclid, Ohio 44132

1 866 603-5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

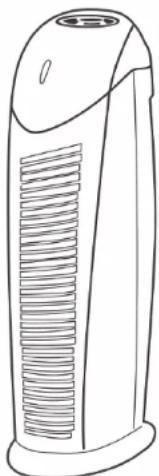

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

Line drawing of a portable air conditioner with a grid of tubes (no text or symbols)

Purificateur D'Air

Modèle n° AP2200

SPÉCIFICATIONS DU PRODUIT

REPLACEMENT DU FILTRE

INDICATEUR DE REMPLACEMENT DE FILTRE

Line drawing of a blender with a handle and spout, showing a curved arrow indicating rotation (no text or symbols)

Line drawing of a portable electronic device with a handle and spout, showing no text or symbols

Line drawing of a portable device with two inserted blades, one showing an arrow indicating rotation (no text or symbols)

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

Line drawing of a portable air conditioner with a coiled tube and top handle (no text or symbols)

Purificador de aire

AP2200 REPLACEMENT PARTS

AP2800 REPLACEMENT PARTS

AutoShip & Save

Illustration of a cylindrical device with a handle and a separate inset showing a water drop (no text or symbols)

Line drawing of a portable device with a handle and a separate cylindrical component (no text or symbols)

Line drawing of a blender with two plastic cups, one open and one closed, showing internal structure (no text or symbols)
