Brand	Audizio
Model	SB90
Product type	Soundbar / Speaker
Power supply	220-240 V AC, 50 Hz
Audio inputs	HDMI (ARC), USB, Line (3.5 mm), Optical, Coaxial, Bluetooth
Playback modes	Line, Optical, Coaxial, BT, USB, HDMI (ARC)
Remote control	Included (Standby, Mute, Volume, EQ, modes)
Supported audio formats (USB)	MP3
Bluetooth	Yes, device name "SB90"
Equalizer	3 modes (EQ)
Repeat function	Single track, all tracks
Cleaning	Dry cloth, no chemicals
Operating temperature	5 °C to 35 °C
Repairs	Only by a qualified technician, original parts
Warranty	Void if unauthorized modification or improper use

Frequently Asked Questions - SB90 Audizio

How to connect the soundbar via Bluetooth?

Activate BT mode on the soundbar (press the Mode button until 'bt' flashes red). On your source device, enable Bluetooth and search for 'SB90'. Select it to pair. The soundbar will emit a sound to confirm the connection.

What to do if the sound is cut off?

Check that the volume is not at minimum and that the device is not in Mute mode (press the Mute button to reactivate the sound). Also ensure that the selected input mode matches the audio source.

How to use the optical input?

Connect an optical cable (included) between the optical output of your source and the optical input of the soundbar. Make sure to set your TV's audio output to PCM. Press the OPT button on the remote or select the optical mode via the Mode button.

The remote control does not work, what to do?

Check that the batteries are inserted correctly and are not discharged. Make sure there are no obstacles between the remote and the soundbar's sensor. If the problem persists, try moving closer to the device.

How to repeat a track in USB mode?

Press the 'Repeat' button on the remote. First press repeats the current track, second press repeats all tracks, third press cancels repeat.

What equalizer modes are available?

The device has 3 equalizer modes (EQ). Press the EQ button on the remote to switch between these modes and adjust the sound according to your preferences.

Can I use the soundbar with a TV via HDMI ARC?

Yes, connect an HDMI (ARC) cable (not included) between the TV's HDMI ARC output and the soundbar's HDMI ARC input. Select HDMI (ARC) mode by pressing the ARC button on the remote or by navigating via the Mode button. Ensure your TV's audio source is set to HDMI.

Why does the indicator flash red in Bluetooth mode?

The red flashing indicates that the soundbar is in pairing mode and waiting for a Bluetooth connection. If no device is paired, the indicator continues to flash. Once connected, the indicator becomes steady.

How to clean the soundbar?

Use a dry, soft cloth to clean the surface. Never use chemicals, solvents, or abrasive cleaners that could damage the finish.

What to do if the device has been exposed to temperature variations?

If the device has undergone a significant temperature change (e.g., after transport in winter), do not turn it on immediately. Leave it off until it reaches room temperature to prevent internal condensation.

USER MANUAL SB90 Audizio

OPTICAL-OR COAXIAL INPUT 6

BT MODE 6

NEDERLANDS 7

UITPAKKEN 8

OVERZICHT 8

AFSTANDSBEDIERING 8

USB 9

HDMI 9

LIJN-INGANG 9

OPTISCHE-OF COAXIALEINGANG. 9

BT MODUS. 9

DEUTSCH 10

AUSPACKEN 11

ÜBERBLICK 11

FERNBEDIENUNG. 11

USB 12

HDMI 12

LINE EINGANG 12

OPTISCHER-ODER KOAXIALER EINGANG 12

BT MODUS. 12

ESPAÑOL 13

INSTRUCCIONES DE DESEMBALAJE 14

VISION GENERAL 14

CONTROL REMOTO 14

USB 15

HDMI 15

LINE IN 15

OPTICAL O COAXIAL 15

BT MODE 15

FRANÇAIS 16

DEBALLAGE 17

VUE GLOBALE DU PRODUIT 17

TELECOMMANDE 17

USB 18

HDMI 18

LINE IN 18

OPTIQUE OU COAXIALE 18

BT MODE 18

POLSKI 19

iNSTRUKCJA ROZPAKOWYWANIA 20

PRZEGLAD PRODUKTOW 20

PILOT 20

USB 21

HDMI 21

LINE IN 21

OPTICAL-OR COAXIAL INPUT 21

BT MODE 21

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCHE DATEN / ESPECIFCACIONES TECNICAS /

SPECIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA 23

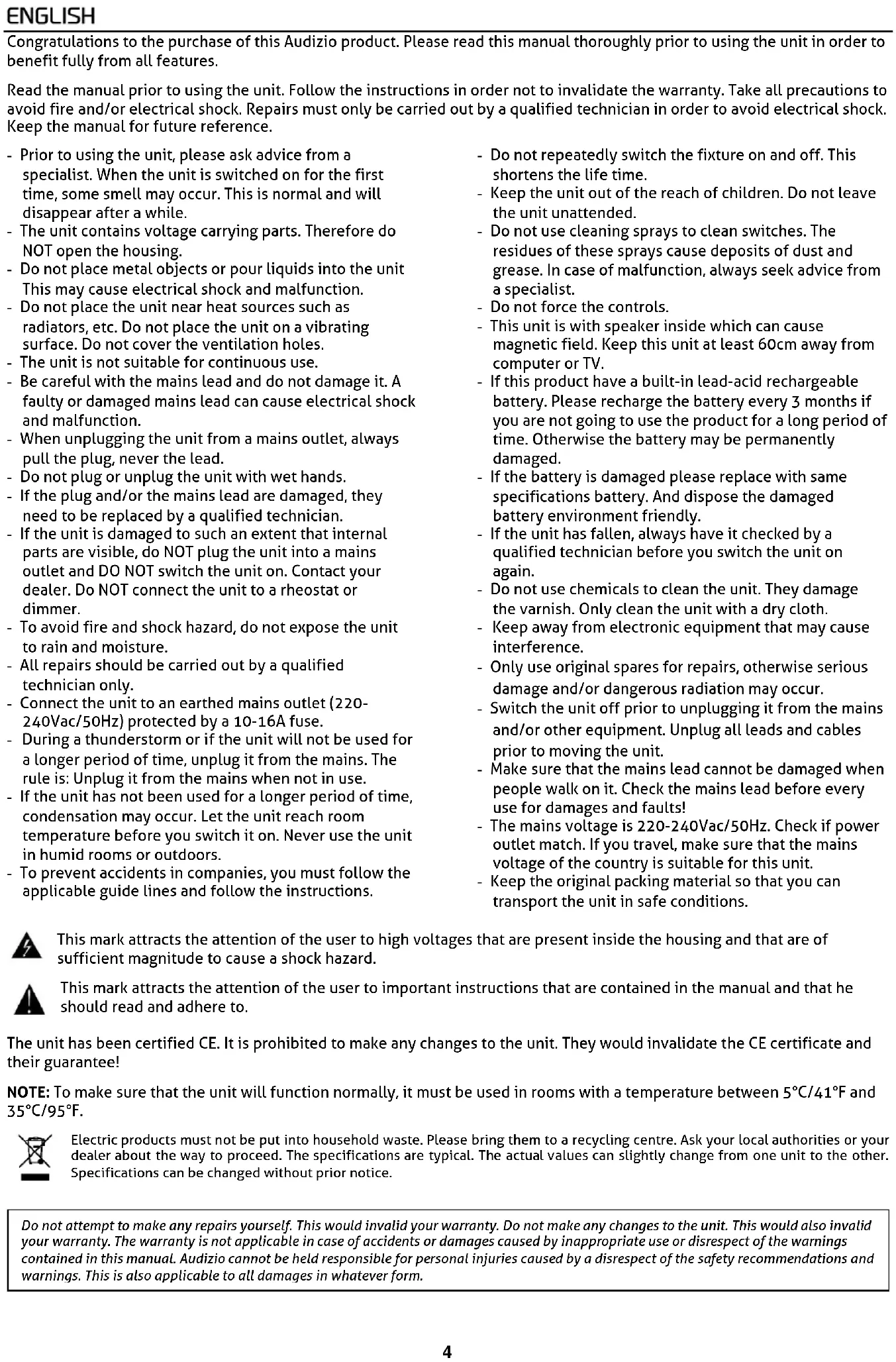

ENGLISH

Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit. This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

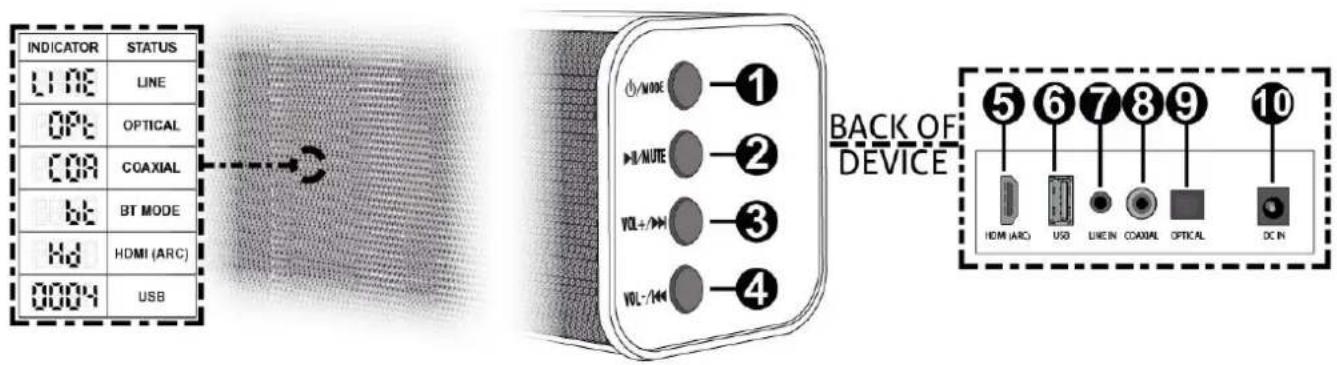

PRODUCT OVERVIEW

1. Standby / Mode Press to cycle through all available modes (line, optical, coaxial, BT, USB and HDMI (ARC)). Long press to turn the device on/off.
2. Play/pause / Mute Press to mute the device. Long press to (re)start or pause playback.
3. VOL+ / Next Press to skip to next track. Long press to increase the volume level.
4. VOL - / Previous Press to go to previous track. Long press to decrease the volume level.
5. HDMI (ARC) input
6. USB input USB slot for inserting USB flash drives.
7. LINE input 3.5mm auxiliary jack.
8. Coaxial input
9. Optical input For using optical input: please change your TV audio output to PCM (PCM is a form of digital signal that is used to represent analogue data, and is an optional audio format on many TVs).
10. DC power input Connector for inserting the supplied power adapter.

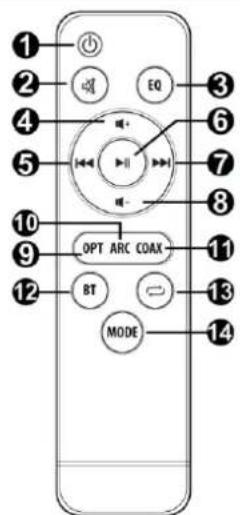

REMOTE CONTROL

1. Standby Press to turn the device on/off.
2. Mute Press to (un)mute the device.
3. EQ Press to switch between 3 different equalizer modes.
4. VOL + Press to increase the volume level.
5. Previous Press to change to previous track.
6. Play/pause Press to (re)start or pause playback.
7. Next Press to change to next track.
8. VOL - Press to decrease the volume level.
9. OPT Press to change to optical input mode directly.

1. ARC

Press to change to HDMI (ARC) input mode directly.

11.COAX

Press to change to coaxial input mode directly.

12.BT

Press to change to BT input mode directly.

1. Repeat

Press to repeat a single track. Press again to repeat all tracks. Press again to cancel repeat.

14.Mode

Press to switch modes. Cycle through line, optical, coaxial, BT, USB and HDMI (ARC).

USB

1. Ensure that the files stored on the flash drive are in MP3 format.
2. Insert the USB flash drive in the designated USB slot on the back of the device.
3. Press the mode key repeatedly until USB mode has been reached.
4. Use the operational buttons (volume, play/pause, etc.) on the device or remote to control the playback.

HDMI

An HDMI (ARC) cable is needed (not included).

1. Connect one end of the HDMI(ARC) connecting cable to the HDMI output of the source device and the other end to the HDMI input of the soundbar.
2. Press the mode key repeatedly until HDMI mode has been reached or press the ARC button on the remote to directly initiate HDMI mode (the LED indicator will show "Hd").
3. Make sure the source audio is set to HDMI settings.
4. Use the operational buttons (volume, play/pause, etc.) on the device or remote to control the playback.

LINE IN

A 3.5mm audio connecting cable is needed (included).

1. Connect one end of the 3.5mm connecting cable to the line output (AUX) of the source device and the other end to the line input (AUX) of the soundbar.
2. Press the mode key repeatedly until line mode has been reached (the LED indicator will show "LINE").
3. Use the operational buttons (volume, play/pause, etc.) on the device or remote to control the playback.

OPTICAL-OR COAXIAL INPUT

An optical- or coaxial connecting cable is needed (optical is included).

1. Connect one end of the optical or coaxial connecting cable to the according output of the source device and the other end to the according input of the soundbar.
2. Press the mode key repeatedly until the optical or coaxial mode has been reached or press the OPT or COAX button on the remote to directly initiate the desired mode (the LED indicator will show "OPt" or "COA", depending on the chosen mode).
3. Make sure the source audio is set to OPT or COA settings. Use the operational buttons (volume, play/pause, etc.) on the device or remote to control the playback.

BT MODE

1. Press the mode key repeatedly until BT mode has been reached or press the BT button on the remote to directly initiate BT mode (the LED indicator will blink "bt" in red color).
2. Turn on the BT function on your source device and search for "SB90" to pair. When the pairing has been successful, the soundbar will emit a sound to indicate the successful pairing.
3. Use the operational buttons (volume, play/pause, etc.) on the device or remote to control the playback.

NEDERLANDS

OPTICAL- OR COAXIAL INPUT

Number of Midrange : 2

Diameter Subwoofer : 5.25"

Frequency Response : 50Hz - 16KHz

SPLMax :125dB

Power Supply : 100-240VAC 50/60Hz (19V Adapter)

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

Low Voltage (LVD) 2014/35/EU
Electromagnetic Compatibility (EMC) 2014/30/EU
Radio Equipment Directive (RED) 2014/53/EU
- Restriction of Hazardous Substances (RoHS) 2011/65/EU

Specifications and design are subject to change without prior notice.
