USER MANUAL VSA12BT Vonyx

VSA BT Series Active Speaker 12" & 15"

Ref. nr.: 170.372; 170.374

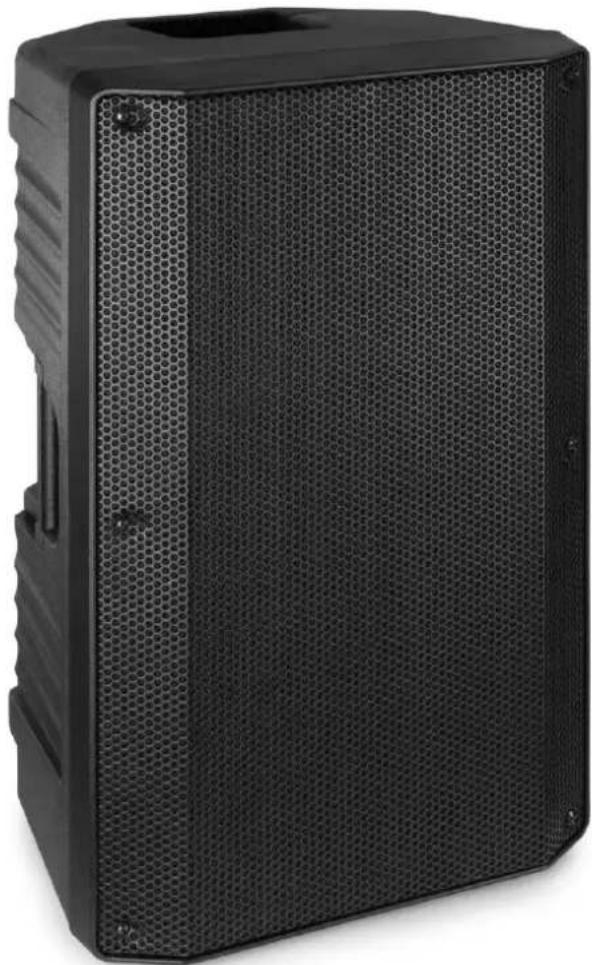

Black rectangular electronic device with hexagonal grille and ventilation slots (no visible text or symbols)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI NÁVOD K POUŽITÍ

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWER SUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

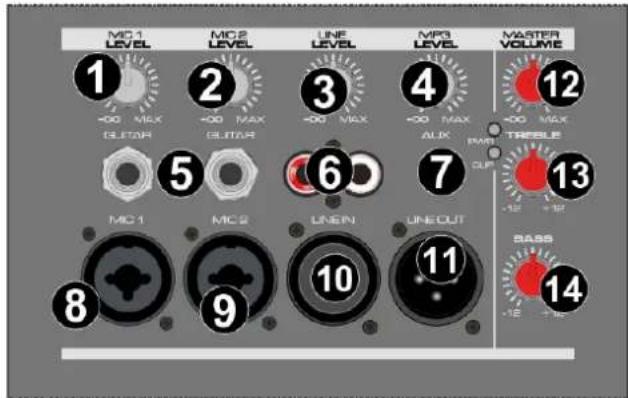

REAR PANEL

1. MIC 1 VOLUME LEVEL

Controls the microphone input volume

1. MIC 2 VOLUME LEVEL

Controls the microphone input volume

1. LINE VOLUME LEVEL

Controls the line input volume

1. MP3 VOLUME LEVEL

Controls the MP3 input volume

1. GUITAR

Two 6.3mm jack inputs for connecting guitars

1. RCA LINE IN

RCA connectors for line signal input

1. AUX IN

Auxiliary 3.5mm input connector

1. MIC 1 IN

This connector can either take a 6.3mm Jack balanced or an XLR balanced cabled microphone

1. MIC 2 IN

This connector can either take a 6.3mm Jack balanced or an XLR balanced cabled microphone

1. XLR LINE IN

XLR connector for line signal input

1. XLR LINE OUT

XLR connector for line signal output

1. MASTER VOLUME

This knob controls the master volume

1. TREBLE CONTROL

Adjust the high frequencies of the corresponding channel

1. BASS CONTROL

Adjust the low frequencies of the corresponding channel

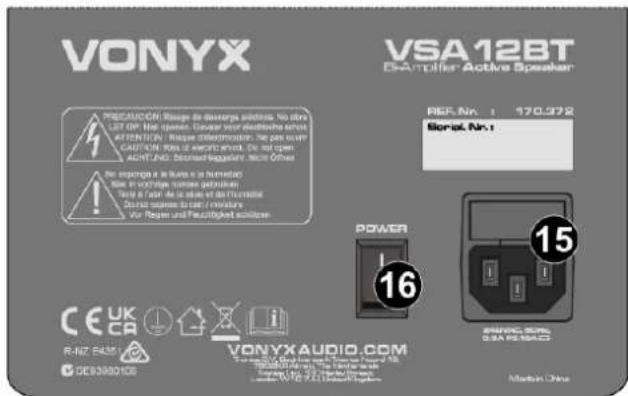

1. AC IN AND FUSE HOLDER

Socket for plugging in the supplied power cord. For instructions on how to change the fuse, see "REPLACING THE FUSE"

1. POWER SWITCH

Turn the device ON or OFF

MEDIAPLAYER

1. USB SLOT

You can play media files from a USB device by connecting the device to this slot

1. DISPLAY

The display shows multiple forms of information, for example current MODE, elapsed time, etc

1. MODE BUTTON

Press to change modes (AUX, USB, MP3 and BT)

1. PLAY/PAUSE BUTTON

Press this button to start or pause play

1. FOLDER BUTTON

Press this button to enter FOLDER selection

1. PREVIOUS BUTTON

Press this button to go to the previous track. Press and hold to scan backwards within tracks

1. NEXT BUTTON

Press this button to go to the next track.

Press and hold to scan forwards within tracks


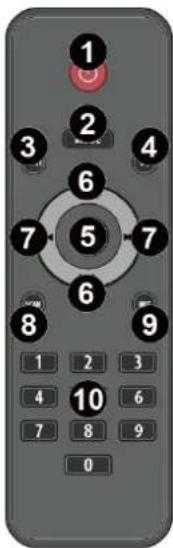

REMOTE CONTROL

1. Power

On/Off

1. Mode

Press to switch between modes:AUX, USB, MP3 and BT

1. Un(Mute)

Press to mute or unmute

1. EQ

Press to change EQ preset settings

1. Pause/Play

Press to pause/play

1. Vol +/vol -

Press to increase/decrease volume

1. Previous/Next

Press to go to previous or next track

1. Scan

No Function

1. Repeat

Press to repeat track

1. Number pad

Numbers (0-9) to select numbers for songs

CONNECTING WITH BT

1. Activate the BT-function on your device (Mobile phone, tablet etc.) from which you want to play the music. See the operating instructions for that device.
2. Press the "BT" button and activate BT-function.
3. Select "VONYX" on your BT-device and make the BT-connection.

If password is required, you can enter "0000".

Attention: The BT distance is approx. 10 meter without any barrier.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

Diagram of a device with two cylindrical components connected to a rectangular housing, showing internal structure and directional arrows (no text or symbols)

NEDERLANDS

MEDIASPELER

1. USB POORT

Diagram of a device with two cylindrical components and an open panel, showing internal structure (no text or symbols)

DEUTSCH

FERNBEDIENUNG

1. Power

Ein/Aus

1. Mode

Diagram of a device with two cylindrical components and an open panel, showing internal structure and directional arrows (no text or symbols)

ESPAÑOL

MANDA A DISTANCIA

1. Power

Encendido/Apagado

1. Mode

Diagram of a device with two cylindrical components and an open screen, showing internal structure (no text or symbols)

FRANÇAIS

TÉLÉCOMMANDE

1. Power

Marche/Arrêt

1. Mode

REPLACEMENT DU FUSIBLE

Diagram of a device with two cylindrical components connected to a rectangular panel, showing internal structure and directional arrows (no text or symbols)

POLSKI

PILOT ZDALNEGO STEROWANIA

1. Power

Włączony/Wyłączony

1. Mode

Diagram of a device with two connectors and a central housing, showing internal components (no text or symbols)

ČESKY

MEDIAPLAYER

1. USB SLOT

Diagram of a device with two connectors and a cabinet, no text or symbols present

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES

	VSA12BT	VSA15BT
Ref. nr.	170.372	170.374
Input connections	3.5mm jack, 6.3mm jack, RCA, USB, XLR (3-pin)
Output connections	XLR (3-pin)
Speaker type	Amplified
Amplifier type	Class AB
Output power max	800W	1000W
Output power	400W	500W
Frequency response	40Hz - 20KHz	35Hz - 20KHz
Diameter tweeter	1"	1,35"
Tweeter type	High Compression Driver	Titanium Compression Driver
Diameter woofer	12"	15"
Magnet type	Ferrite
Impedance	4Ohm
SPL max	125dB	129dB
Power supply	220-240VAC 50Hz
Dimensions (L x W x H)	315 x 380 x 595mm	360 x 420 x 680mm
Weight (kg)	12,90	16,40

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2024 by Tronios The Netherlands
