USER MANUAL VX822 Vonyx

VX822 Column Speaker Set

Ref. nr.: 170.198

Black vertical stand with a tall cylindrical top and rectangular base (no visible text or symbols)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI NÁVOD K POUŽITÍ

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

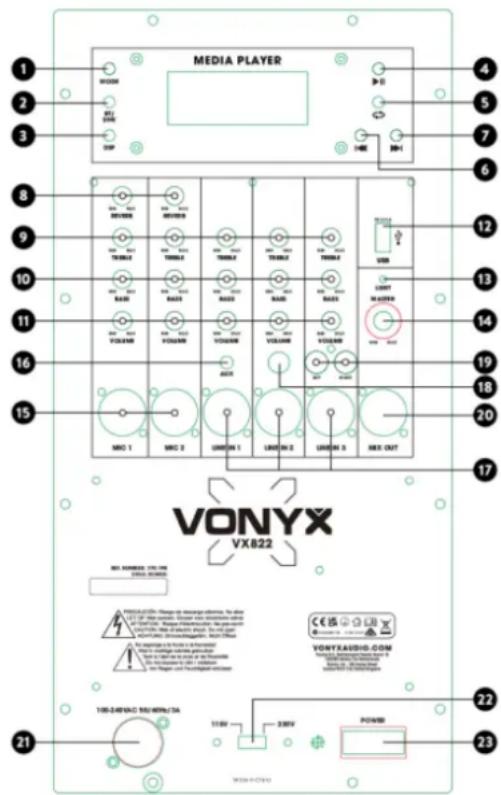

OVERVIEW

1. MODE
   Press this button to switch between BT and USB modes
2. BT/LINK
   Press this button to connect/disconnect BT Press and hold this button to set up STEREO LINK function
3. DSP PRESETS
   Press to switch between presets (LIVE / DJ / SPEECH / MONITOR)
4. PLAY/PAUSE
   Press this button to play/pause (only in USB/BT mode)
5. LOOP PLAYBACK
   Press this button to continuously reply (only in USB/BT mode)
6. PREVIOUS
   Press this button to play previous track (only in USB/BT mode)
7. NEXT
   Press this button to play next track (only in USB/BT mode)
8. REVERB
   Microphone REVERB volume adjustment
9. TREBLE
   Rotate this knob to adjust the treble (high tones) level of the corresponding channel
10. BASS
    Rotate this knob to adjust the bass (low tones) level of the corresponding channel
11. VOLUME
    Rotate this knob to adjust the volume level of the corresponding channel

12. USB PORT
    Slot to insert USB-stick

13. LIMIT

Limit indicator LED. Lights up when the output limiter is active. The output limiter will operate in order to protect the speaker and amp, attenuating the output signal to the amplifier. If this indicator stays lit, lower the level of the input signal

1. MASTER LEVEL

Rotate this knob to adjust the master output level

1. MIC 1 AND 2 INPUT

XLR and 6.3 mm combo jack input connectors for connecting microphones

1. AUX INPUT

3.5 mm auxiliary input jack to connect an external audio device

1. LINE IN 1, 2 AND 3 INPUT

XLR line input sockets to connect an external audio device

1. LINE IN

6,3 mm jack line input to connect an external audio device

1. RCA input

Left and Right RCA stereo input jacks to connect an external audio device

1. MIX OUTPUT

XLR connector for mix signal output

1. POWER CONNECTOR

Socket for plugging in powercord. Use a 3-core power cord with ground wire and rotate Clockwise can lock, rotate counterclockwise can unlock

1. VOLTAGE SWITCH

Switch the voltage switch (be sure to confirm that the voltage is consistent with the local voltage

1. POWER SWITCH

Press to turn the device on/off

MEDIA PLAYER VONYX VX622 100-249VAC 250/40VCA 110V 23V POWER VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM VONYKAUDIO.COM WOMA 1 WOMA 2 WOMA 3 WOMA 4 WOMA 5 WOMA 6 WOMA 7 WOMA 8 WOMA 9 WOMA 10 WOMA 11 WOMA 12 WOMA 13 WOMA 14 WOMA 15 WOMA 16 WOMA 17 WOMA 18 WOMA 19 WOMA 20 WOMA 21 WOMA 22 WOMA 23 WOMA 24 WOMA 25 WOMA 26 WOMA 27 WOMA 28 WOMA 29 WOMA 30 WOMA 31 WOMA 32 WOMA 33 WOMA 34 WOMA 35 WOMA 36 WOMA 37 WOMA 38 WOMA 39 WOMA 40 WOMA 41 WOMA 42 WOMA 43 WOMA 44 WOMA 45 WOMA 46 WOMA 47 WOMA 48 WOMA 49 WOMA 50 WOMA 51 WOMA 52 WOMA 53 WOMA 54 WOMA 55 WOMA 56 WOMA 57 WOMA 58 WOMA 59 WOMA 60 WOMA 61 WOMA 62 WOMA 63 WOMA 64 WOMA 65 WOMA 66 WOMA 67 WOMA 68 WOMA 69 WOMA 70 WOMA 71 WOMA 72 WOMA 73 WOMA 74 WOMA 75 WOMA 76 WOMA 77 WOMA 78 WOMA 79 WOMA 80 WOMA 81 WOMA 82 WOMA 83 WOMA 84 WOMA 85 WOMA 86 WOMA 87 WOMA 88 WOMA 89 WOMA 90 WOMA 91 WOMA 92 WOMA 93 WOMA 94 WOMA 95 WOMA 96 WOMA 97 WOMA 98 WOMA 99 WOMA 100

BT FUNCTIONALITY

1. Activate the BT on your device (mobile phone, tablet etc.) which you want to play the music. See the operating instructions for that device.
2. Press the [BT/LINK] button to activate the BT-function.
3. Select "VX822" on your BT device and pair.

Attention: BT distance is approx. 10 meter without any barrier.

LINK (TWS/STEREO PAIRING) FUNCTIONALITY

When having two VX822 column speaker systems, it's possible to initiate a link (pairing) between the two. Both portable systems will receive the same signal from the streaming audio source. To set up this stereo pairing, please follow the below steps:

1. Turn on the power on both VX822 column speaker systems.
2. Press and hold the [BT/LINK] button on both systems.
3. Press the BT button and connect a streaming device (mobile phone, tablet etc.), input the signal to play on VX822.
4. To cancel the function, press and hold the [BT/LINK] button.

NEDERLANDS

MEDIA PLAYER VONYX VX822 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 100-248VAC 95/40W/3A POWER POWER OUT VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM VONTRASID.COM MDC 1 MDC 2 MDC 3 MDC 4 MDC 5 MDC 6 MDC 7 MDC 8 MDC 9 MDC 10 MDC 11 MDC 12 MDC 13 MDC 14 MDC 15 MDC 16 MDC 17 MDC 18 MDC 19 MDC 20 MDC 21 MDC 22 MDC 23 MDC 24 MDC 25 MDC 26 MDC 27 MDC 28 MDC 29 MDC 30 MDC 31 MDC 32 MDC 33 MDC 34 MDC 35 MDC 36 MDC 37 MDC 38 MDC 39 MDC 40 MDC 41 MDC 42 MDC 43 MDC 44 MDC 45 MDC 46 MDC 47 MDC 48 MDC 49 MDC 50 MDC 51 MDC 52 MDC 53 MDC 54 MDC 55 MDC 56 MDC 57 MDC 58 MDC 59 MDC 60 MDC 61 MDC 62 MDC 63 MDC 64 MDC 65 MDC 66 MDC 67 MDC 68 MDC 69 MDC 70 MDC 71 MDC 72 MDC 73 MDC 74 MDC 75 MDC 76 MDC 77 MDC 78 MDC 79 MDC 80 MDC 81 MDC 82 MDC 83 MDC 84 MDC 85 MDC 86 MDC 87 MDC 88 MDC 89 MDC 90 MDC 91 MDC 92 MDC 93 MDC 94 MDC 95 MDC 96 MDC 97 MDC 98 MDC 99 MDC WARNING: Please note that this is an exception to the above. The following instructions are to be provided: 1. Please note that this is an exception to the above. 2. Please note that this is an exception to the above. 3. Please note that this is an exception to the above. 4. Please note that this is an exception to the above. 5. Please note that this is an exception to the above. 6. Please note that this is an exception to the above. 7. Please note that this is an exception to the above. 8. Please note that this is an exception to the above. 9. Please note that this is an exception to the above. 10. Please note that this is an exception to the above. 11. Please note that this is an exception to the above. 12. Please note that this is an exception to the above. 13. Please note that this is an exception to the above. 14. Please note that this is an exception to the above. 15. Please note that this is an exception to the above. 16. Please note that this is an exception to the above. 17. Please note that this is an exception to the above. 18. Please note that this is an exception to the above. 19. Please note that this is an exception to the above. 20. Please note that this is an exception to the above. 21. Please note that this is an exception to the above. 22. Please note that this is an exception to the above. 23. Please note that this is an exception to the above. 24. Please note that this is an exception to the above. 25. Please note that this is an exception to the above. 26. Please note that this is an exception to the above. 27. Please note that this is an exception to the above. 28. Please note that this is an exception to the above. 29. Please note that this is an exception to the above. 30. Please note that this is an exception to the above. 31. Please note that this is an exception to the above. 32. Please note that this is an exception to the above. 33. Please note that this is an exception to the above. 34. Please note that this is an exception to the above. 35. Please note that this is an exception to the above. 36. Please note that this is an exception to the above. 37. Please note that this is an exception to the above. 38. Please note that this is an exception to the above. 39. Please note that this is an exception to the above. 40. Please note that this is an exception to the above. 41. Please note that this is an exception to the above. 42. Please note that this is an exception to the above. 43. Please note that this is an exception to the above. 44. Please note that this is an exception to the above. 45. Please note that this is an exception to the above. 46. Please note that this is an exception to the above. 47. Please note that this is an exception to the above. 48. Please note that this is an exception to the above. 49. Please note that this is an exception to the above. 50. Please note that this is an exception to the above. 51. Please note that this is an exception to the above. 52. Please note that this is an exception to the above. 53. Please note that this is an exception to the above. 54. Please note that this is an exception to the above. 55. Please note that this is an exception to the above. 56. Please note that this is an exception to the above. 57. Please note that this is an exception to the above. 58. Please note that this is an exception to the above. 59. Please note that this is an exception to the above. 60. Please note that this is an exception to the above. 61. Please note that this is an exception to the above. 62. Please note that this is an exception to the above. 63. Please note that this is an exception to the above. 64. Please note that this is an exception to the above. 65. Please note that this is an exception to the above. 66. Please note that this is an exception to the above. 67. Please note that this is an exception to the above. 68. Please note that this is an exception to the above. 69. Please note that this is an exception to the above. 70. Please note that this is an exception to the above. 71. Please note that this is an exception to the above. 72. Please note that this is an exception to the above. 73. Please note that this is an exception to the above. 74. Please note that this is an exception to the above. 75. Please note that this is an exception to the above. 76. Please note that this is an exception to the above. 77. Please note that this is an exception to the above. 78. Please note that this is an exception to the above. 79. Please note that this is an exception to the above. 80. Please note that this is an exception to the above. 81. Please note that this is an exception to the above. 82. Please note that this is an exception to the above. 83. Please note that this is an exception to the above. 84. Please note that this is an exception to the above. 85. Please note that this is an exception to the above. 86. Please note that this is an exception to the above. 87. Please note that this is an exception to the above. 88. Please note that this is an exception to the above. 89. Please note that this is an exception to the above. 90. Please note that this is an exception to the above. 91. Please note that this is an exception to the above. 92. Please note that this is an exception to the above. 93. Please note that this is an exception to the above. 94. Please note that this is an exception to the above. 95. Please note that this is an exception to the above. 96. Please note that this is an exception to the above. 97. Please note that this is an exception to the above. 98. Please note that this is an exception to the above. 99. Please note that this is an exception to the above. 100-248VAC N/S/40W/3A POWER

FUNKCJONALNOŚĆ BT

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2025 by TRONIOS the Netherlands
