USER MANUAL VX1080BT Vonyx

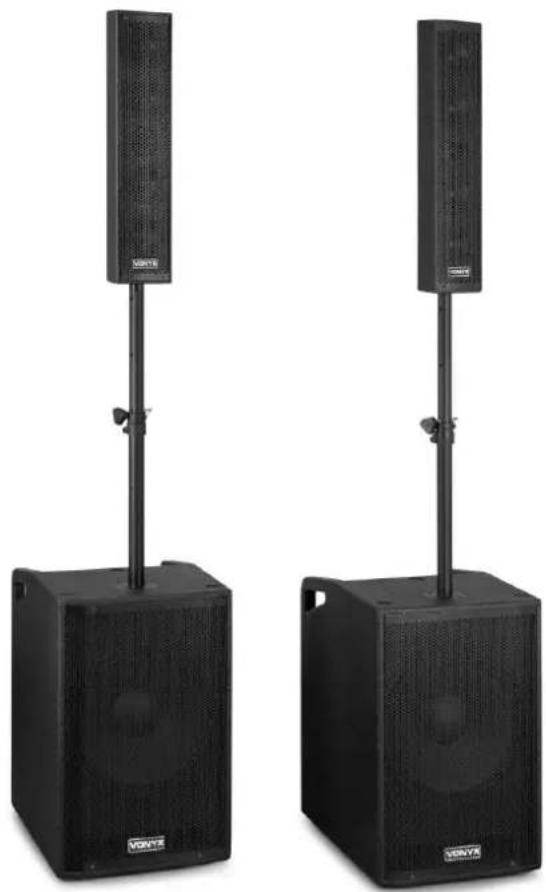

VX1080BT 2+2 Act. System 2x15sub + tops

Ref. nr.: 170.206

INSTRUCTION MANUAL
GEBRUKSAANWIJZING
GEBRAUCHSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
INSTRUKCJA OBSLUGI
NAVOD K POUZITI

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore, do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guidelines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the lifetime.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product has a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged, please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

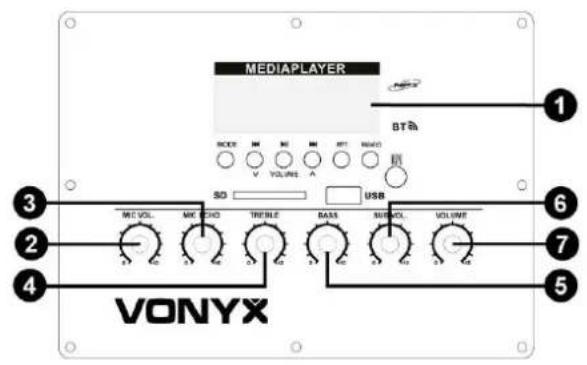

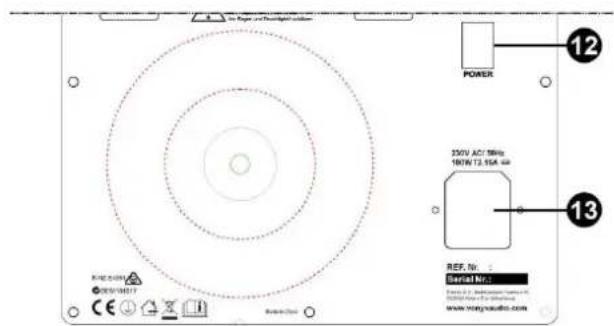

TOP AND BACK PANEL

1. Media player with MP3 and BT for audio streaming: Mode: Press to switch between different modes (BT, AUX, LINE IN, USB, SD) Previous / Volume down: Press for previous track in BT/ MP3 Press and hold for Volume down in BT/ MP3 Play/Pause: Press to start/resume in BT/ MP3 Next / Volume up: Press for next track in BT/ MP3 Press and hold for Volume up in BT/ MP3 Repeat: Press to switch between repeat modes (current song, all songs or random) in BT/MP3 Mute: Press to mute/unmute in BT/ MP3 SD port USB port

2. Mic vol Rotate this knob to adjust the microphone Volume level

3. Mic echo Rotate this knob to adjust the microphone Echo level

4. Treble Rotate this knob to adjust the Treble level

5. Bass Rotate this knob to adjust the Bass level

6. Sub Vol Rotate this knob to adjust the volume of the subwoofer

7. Volume Rotate this knob to adjust the volume of the satellite speaker

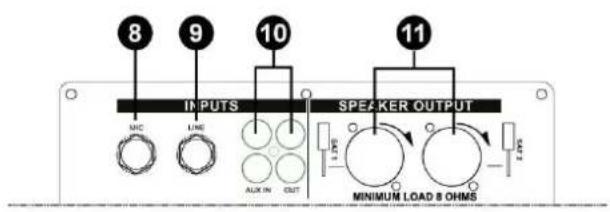

8. MIC Microphone Jack 6.3mm (1/4") input to insert a microphone

9. LINE IN RCA Jack 6.3 mm (1/4") input for connecting audio units with line output (e.g. DVD, CD player)

10. LINE OUT Connect this line output signal to the input of another active speaker

11. Speaker output Output for connecting the active and the passive subwooers with the orange NL2 connector Output for connecting the subwooers with the satellite speakers with the blue NL2 connectors

12. Power switch Switch to turn the device on/off

13. AC Connection and fuse holder This connector is used to supply main power to the unit. For instructions on how to change the fuse (bottom), see "REPLACING THE FUSE"

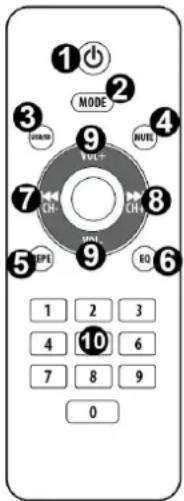

REMOTE CONTROL

1. POWER

Press to turn the device ON/OFF

1. MODE

Press to toggle between different modes

1. USB/SD

Press to quickly switch input mode between USB and SD inputs

1. MUTE

Press to mute/unmute

1. REPEAT

Press to toggle repeat modes (current track, all tracks or random)

1. EQ

Press to toggle between all equalization presets

1. PREVIOUS

Press this button to go back to previous track.

1. NEXT

Press this button to skip to next track

1. VOLUME CONTROLS

Press either of these keys to decrease or increase the main (master) volume

1. NUM PAD

CONNECT BT-DEVICE

1. Set the search function on of the BT device you want to play the music. See the operating instructions for that device.
2. Press the [MODE] button until "AUX" will show in display and activate BT-function.
3. Find on your BT-device "VX1080BT" and make the connection.

If password is required, you can enter "0000".

Note: The BT has a range of approximately 10 meters without any barrier.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

NEDERLANDS

REEMPLACEMENT DU FUSIBLE

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual is conforming European and UK legislation directives to which they are subject:

European Union

United Kingdom

Trionios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

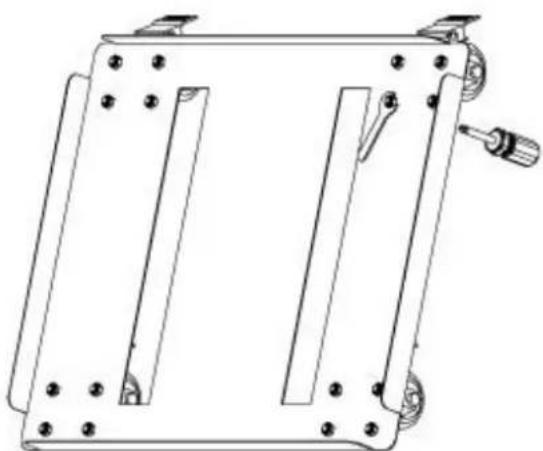

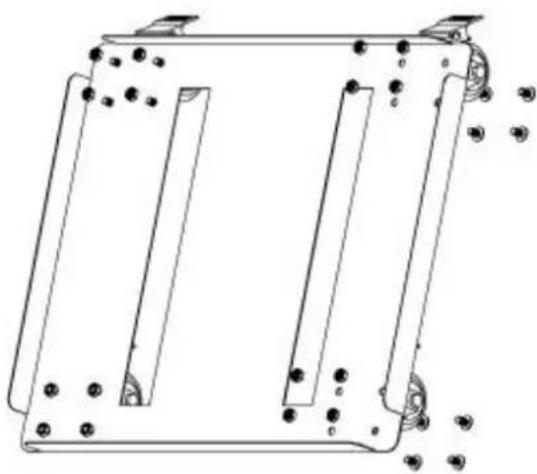

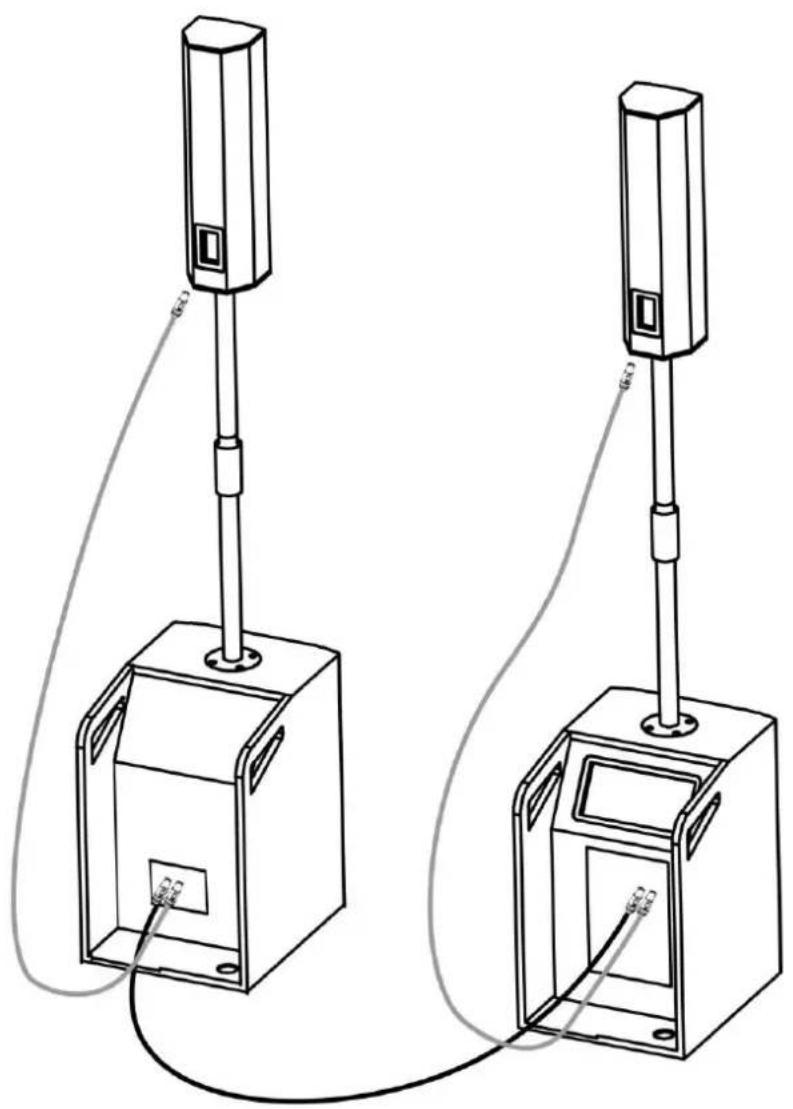

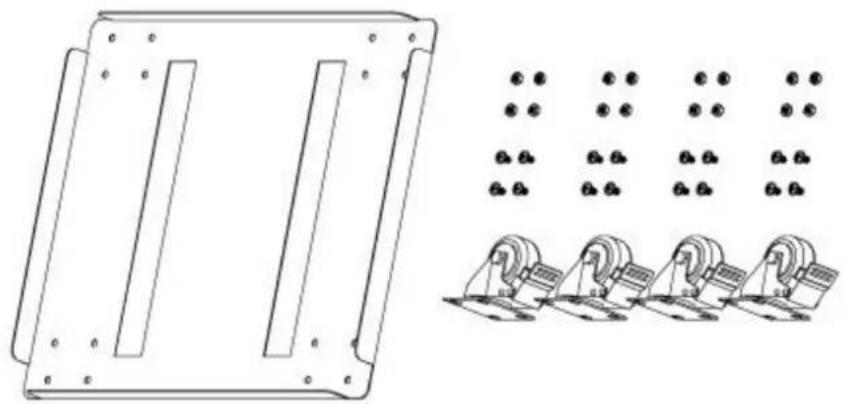

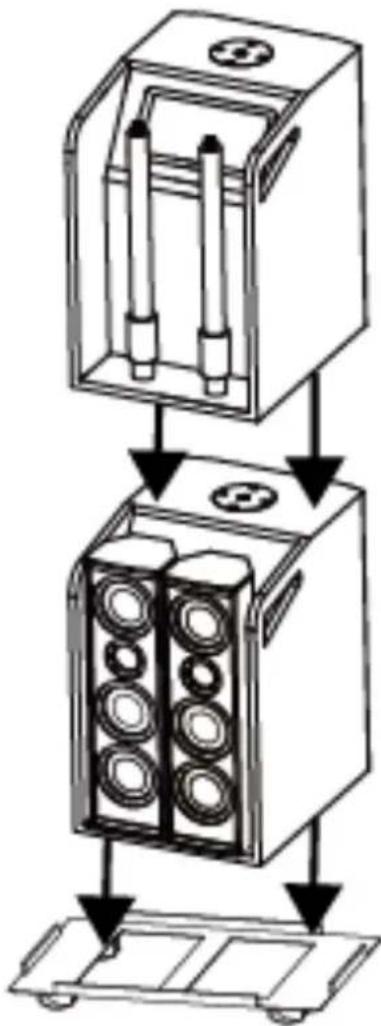

SET UP / OPSTELLING / KONFIGURATION / PREPARAR / INSTALLER / USTAWIAĆ

1

2

3

Specifications and design are subject to change without prior notice.
