USER MANUAL VX820 Vonyx

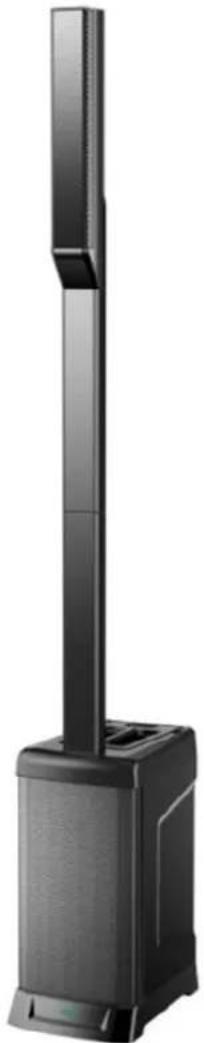

VX820 Column Speaker Set

Ref. nr.: 170.200

Black industrial vertical stacker device with a flat top and base (no visible text or symbols)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI NÁVOD K POUŽITÍ

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

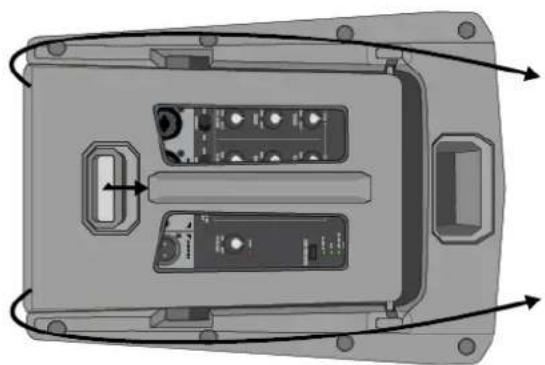

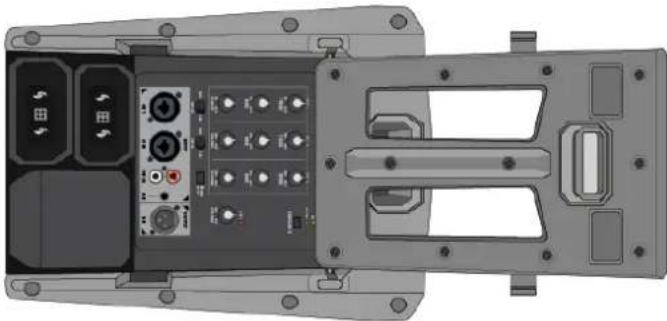

OPENING THE LID

Slide the locking handle to the inside, unlocking the lid. Turn over the lid to expose the control panel and column storage.

Top-down view of a device chassis showing internal components and directional arrows (no text or symbols)

Top-down view of a mechanical or electronic device casing with internal components and mounting holes (no visible text or symbols)

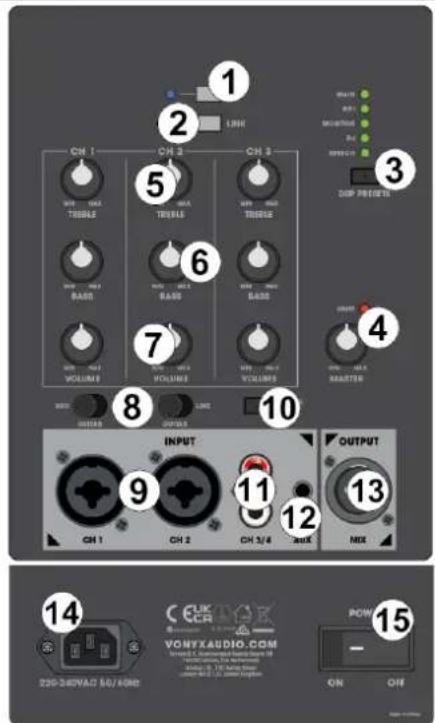

OVERVIEW

1. BT PAIR

Press to make BT streaming connection possible. When pressed, the VX820 is findable on the streaming device.

2. LINK (TWS/STEREO PAIRING)

When having two VX820 column speaker systems, it's possible to initiate a link (pairing) between the two by pressing this button on both systems. Both portable systems will be emitting the same signal from the streaming audio function.

3. DSP PRESETS

Press to switch between presets (main, hifi, monitor, dj and speech).

4. MASTER LEVEL

Rotate to adjust the master output level.

5. TREBLE

Rotate to adjust the treble (high tones) level of the corresponding channel.

6. BASS

Rotate to adjust the bass (low tones) level of the corresponding channel.

7. CHANNEL VOLUME

Rotate to adjust the channel output volume level.

8. INPUT SWITCH

Toggle switch to change between different inputs for channel 1 and 2 (mic, guitar and line).

9. CHANNEL 1 AND 2 INPUT

XLR and 6.3mm combo jack input connectors for connecting microphones, guitars or to use as line input.

10. LINE/BT SWITCH

Press to toggle between line- and BT input modes.

11. CHANNEL 3/4 INPUT

RCA line input sockets for channel 3 and 4.

12. AUX INPUT

3.5mm auxiliary input jack to connect an external audio device (CD- or MP3 players, etc.).

13. MIX OUTPUT

XLR mix output socket.

14. POWER INPUT

Socket for plugging in the supplied power cord.

15. POWER SWITCH

Press to turn the device on/off.

1 2 3 DIP PRESENT 4 5 6 7 8 9 10 INPUT OUTPUT 11 12 CN 1 CN 2 CN 3/4 NOK NOK ON ON OFF 220-340VAC 56/60Hz VOMYKAUDIO.COM CEUK COCK VOMYKAUDIO.COM POWER ON OFF

BT FUNCTIONALITY

1. Activate the BT on your device (mobile phone, tablet etc.) which you want to play the music. See the operating instructions for that device.
2. Press the "BT" button to activate the BT-function.
3. Select "VX820" on your BT device and pair.
   Attention: BT distance is approx. 10meter without any barrier.

LINK (TWS/STEREO PAIRING) FUNCTIONALITY

When having two VX820 column speaker systems, it's possible to initiate a link (pairing) between the two. Both portable systems will be emitting the same signal from the streaming audio function. To set up this stereo pairing, please follow the below steps:

1. Turn on the power on both VX820 column speaker systems.
2. Press the TWS button on both systems.
3. A sound will be emitted to confirm the pairing.
4. Press the BT button and connect a streaming device (mobile phone, tablet etc.), input the signal to play on VX820.
5. To cancel the function, press and hold the TWS button.

NEDERLANDS

Top-down view of a device casing with internal components and directional arrows indicating flow or movement (no text or symbols)

Top-down view of a mechanical or electronic device casing with multiple ports and control panels (no visible text or symbols)

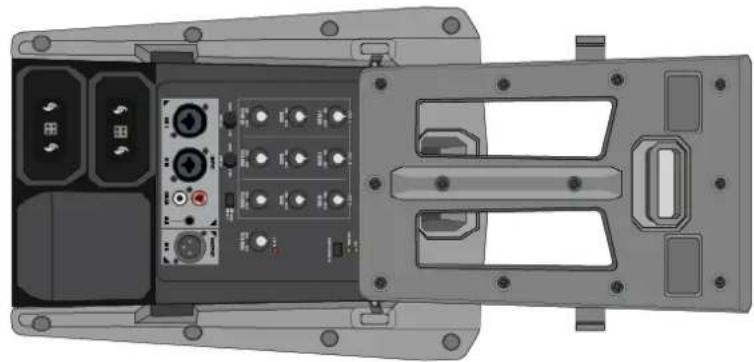

OVERZICHT

1. BT PAIR

Top-down view of a vehicle chassis showing internal components and directional arrows (no text or symbols)

Top-down view of a mechanical device showing internal components and mounting brackets (no text or symbols visible)

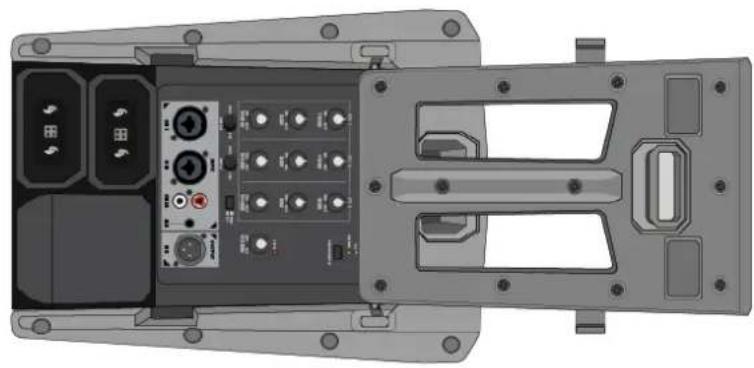

ÜBERBLICK

Top-down view of a device chassis showing internal components and directional arrows indicating flow or movement (no text or symbols present)

Top-down view of a mechanical device showing internal components and mounting brackets (no text or symbols visible)

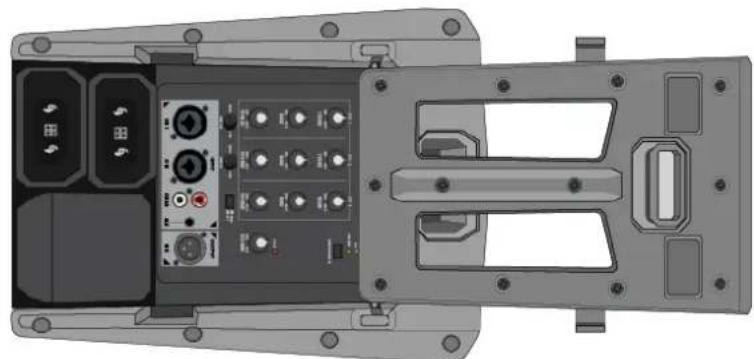

VISIÓN GENERAL

Top-down view of a device chassis showing internal components and directional arrows (no text or symbols)

Top-down view of a mechanical device showing internal components and mounting holes (no text or symbols visible)

VUE D'ENSEMBLE

1. BT PAIR

Top-down view of a device rear panel showing internal components and directional arrows (no text or symbols)

Top-down view of a mechanical or electronic device casing with labeled ports and connectors (no readable text or symbols)

PRZEGLAD

1. BT PAIR

Top-down view of a device chassis showing internal components and directional arrows (no text or symbols)

Top-down view of a device chassis showing front panel, internal components, and mounting hardware (no text or symbols visible)

PŘEHDLED

LINK CH 1 THRSLE VOLUME CH 2 THRSLE VOLUME CH 3 THRSLE VOLUME CH 4 DIP PASETS 6 7 VOLUME VOLUME CH 5 VOLUME CH 6 VOLUME CH 7 VOLUME CH 8 VOLUME CH 9 INPUT CH 10 OUTPUT CH 11 CH 12 CH 13 MAX

14 220-240WAC 5/7/69Hz VONYKAUDIO.COM Power 15 ON OFF

Input connections : 3.5mm Jack, 6.3mm Jack, RCA, XLR (3-pin)

Output connections : XLR (3-pin)

Output power: Max : 400W

Output power: RMS : 200W

Tweeter type : High Compression Driver

Diameter tweeter : 2.5"

Diameter woofer : 8"

Voice coil : 2"

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2023 by TRONIOS the Netherlands
