| Product Type | Portable Bluetooth Speaker |
| Brand | Vonyx |
| Model | VX1000BT |
| Dimensions (W x H x D) | 300 x 200 x 150 mm |
| Weight | 2.1 kg |
| Power Source | AC 100-240V, 50/60Hz or built-in rechargeable battery |
| Battery Capacity | 2600 mAh (est.) |
| Battery Life | Up to 6 hours at moderate volume |
| Charging Time | Approx. 4 hours |
| Bluetooth Version | 5.0 |
| Wireless Range | Up to 10 meters (33 feet) |
| Audio Output Power | 20 W RMS (est.) |
| Frequency Response | 80 Hz – 20 kHz (est.) |
| Impedance | 4 Ohms |
| Driver Size | 1 x 5.25" woofer, 1 x 1" tweeter (est.) |
| Audio Inputs | Bluetooth, AUX (3.5mm), USB (for playback) |
| Additional Features | Built-in FM radio, microphone input (est.) |
| Controls | Power, Volume, Play/Pause, Mode, EQ presets |
| Cabinet Material | Wood/plastic composite (est.) |
| Grille Material | Metal mesh |
| Safety Features | Overheat protection, short-circuit protection |
| Maintenance | Wipe with a dry cloth; do not use harsh chemicals |
| Spare Parts Availability | Contact Vonyx support for replacement parts |
| User Manual | Free PDF download at notice-facile.com |
Frequently Asked Questions - VX1000BT Vonyx
User questions about VX1000BT Vonyx
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Speaker in PDF format for free! Find your manual VX1000BT - Vonyx and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VX1000BT by Vonyx.
USER MANUAL VX1000BT Vonyx

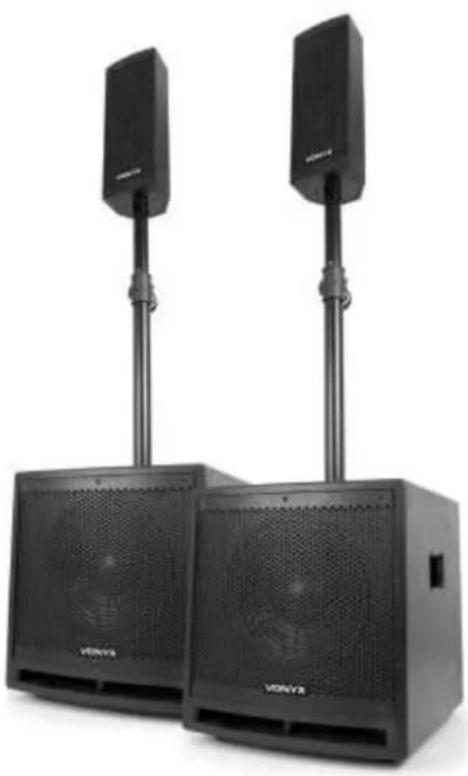

VX1000BT Active Speaker kit 2.2
Ref. nr.: 170.104
ENGLISH
Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.
Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.
- Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
- The product contains voltage carrying parts. Therefore do NOT open the housing.
- Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
- Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
- The product is not suitable for continuous use.
- Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
- When unplugging the product from a mains outlet, always pull the plug, never the lead.
- Do not plug or unplug the product with wet hands.
- If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
- If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
- To avoid fire and shock hazard, do not expose the product to rain and moisture.
- All repairs should be carried out by a qualified technician only.
- Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
- If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.
-
To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
-
Do not repeatedly switch the product on and off. This shortens the life time.
- Keep the product out of the reach of children. Do not leave the product unattended.
- Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
- Do not force the controls.
- If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
- If the product has built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
- If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
- If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
- Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
- Keep away from electronic equipment that may cause interference.
- Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
- Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
- Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
- The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
- Keep the original packing material so that you can transport the product in safe conditions.
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.
The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!
NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.


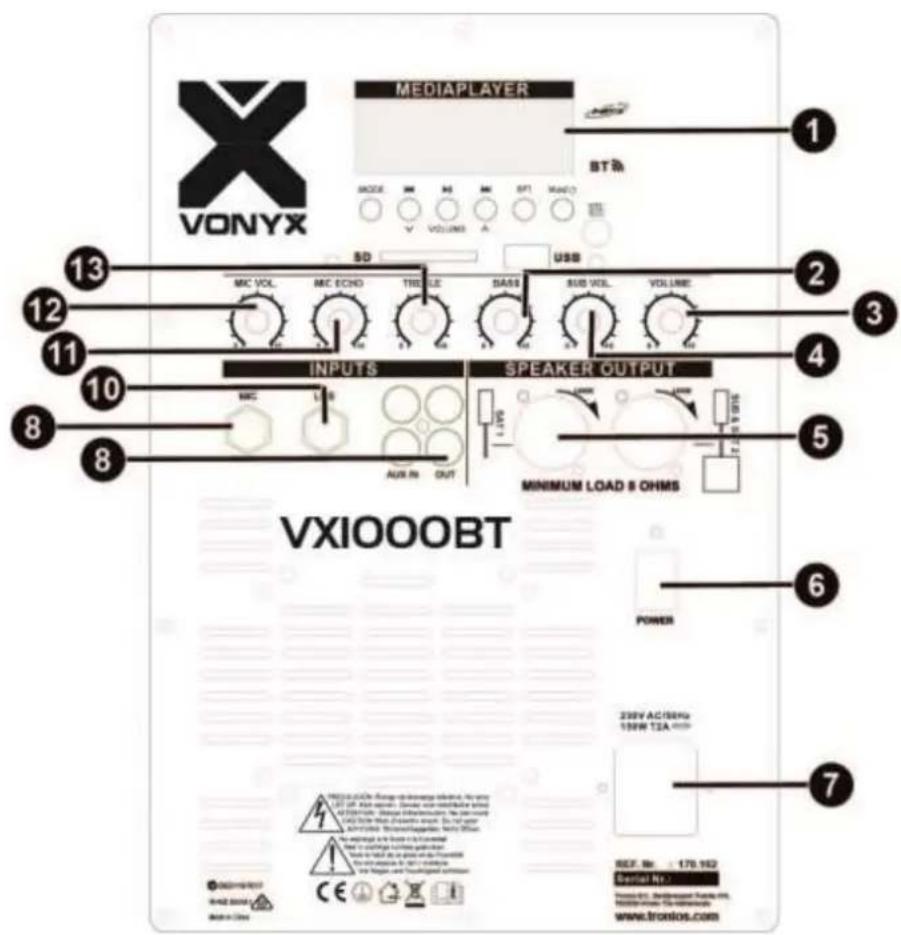

VONYX MEDIAPLAYER STA 1 2 3 4 5 6 7 8 9 10 11 12 13 SD USB MIC VOL MIC ECHO THREELE BASE SUB VOL VOLUME INPUTS SPEAKER OUTPUT MAX. IN AUX. IN OUT MINIMUM LOAD & OHMS VXIOOOBT POWER 236V AC/100Hz 100W TDA SEC. No.: 170.162 Special Note: www.tronios.com- Media player with MP3 and BT for audio streaming
- Bass volume control
- Master volume control
- Subwoofer volume control
- Speaker output satellite 1 and satellite 2
- Power switch
- 230VAC / 50Hz
- AUX in-/output RCA connector
- Microphone input for Jack 6.3mm
- Line input for Jack 6.3mm
- Microphone echo volume control
- Microphone volume control
- Treble volume control
BT CONNECTION
Press on button mode till you see "BT". Then use your mobile or computer to search a Bluetooth device. When you find the "VX1000BT", then connect. There's no code needed.
NEDERLANDS
Sound & Light
CE Declaration of Conformity
Manufacturer: TRONIOS BV
Product Description: VX1000BT Active Speaker kit 2.2
Trade Name: VONYX
Regulatory Requirement: EN 60065:2002 + A1:2006+A11:2008+A2:2010+A12:2011
EN 55020:2007+A11:2011
EN 55013:2013
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2013
I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU, R&TTE Directive (1999/5/EC) and conforms to the above mentioned Declarations.
Almelo,
01-01-2016
Name : M. Velders
Signature :
Specifications and design are subject to change without prior notice..
www.tronios.com
Copyright © 2016 by TRONIOS the Netherlands
