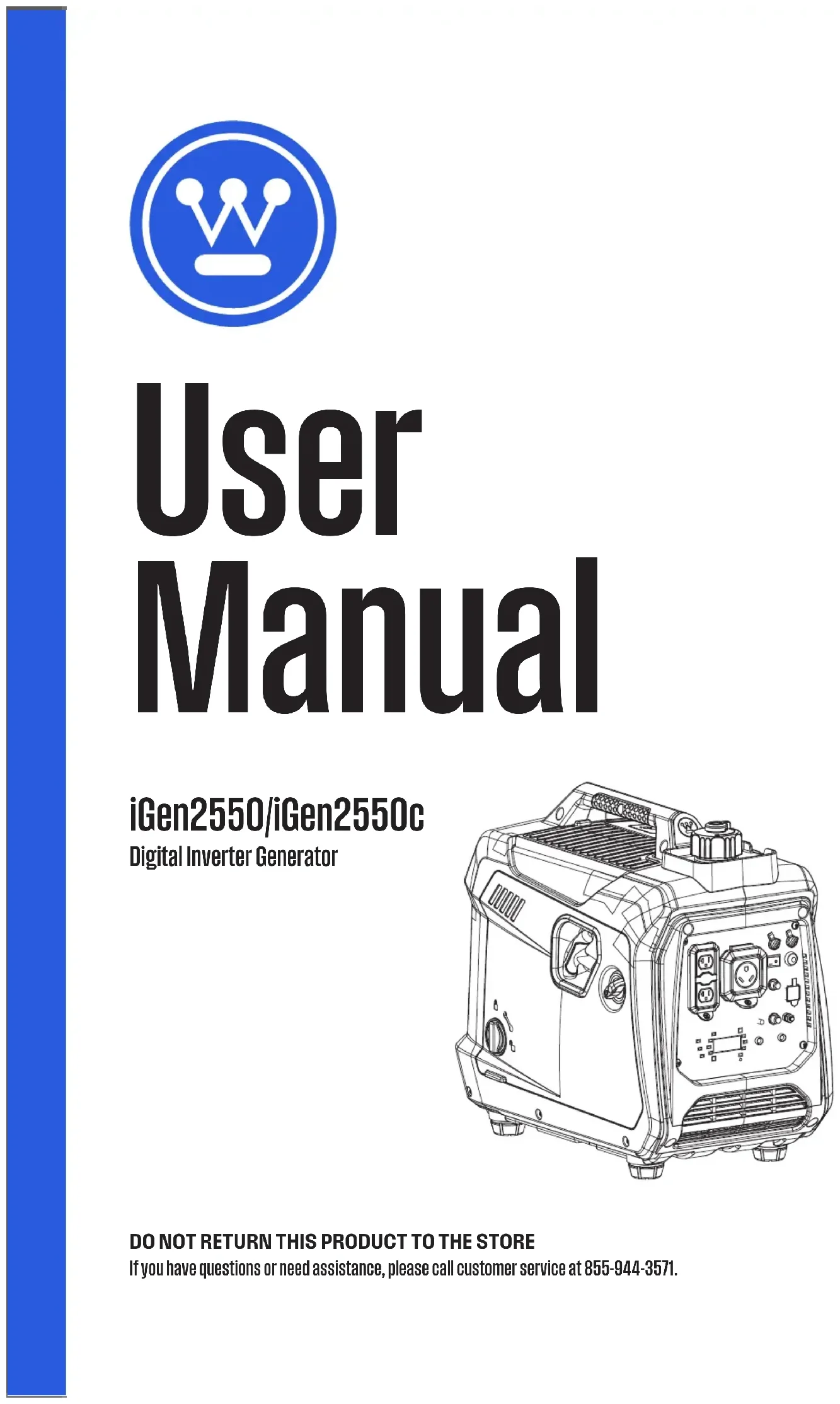

USER MANUAL iGen2550 WESTINGHOUSE

DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571. User Manual iGen2550/iGen2550c Digital Inverter Generator2 | English

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment. DANGER Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death. UPDATES The latest User Manual for your Westinghouse products can be found under our support tab at wpowereq.com/ pages/manuals Or scan the following QR code with your smartphone cam- era to be directed to the link. PRODUCT REGISTRATION For trouble-free warranty coverage, it is important to register your Westing- house product. You can register by: l Completing and mailing the product registration card included in the carton. l Registering your product on-line at: wpowereq.com/ pages/warranty-registration l Scanning the above QR code with your smartphone camera to be directed to the mobile registration link. For Your Records Date of Purchase: Model Number: Serial Number: Place of Purchase: l Sending the following product information to: Westinghouse Outdoor Power Warranty registration 777 Manor Park Drive Columbus, OH 43228 IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage.English | 3 INTRODUCTION SPECIFICATIONS AC Voltage.................................................................120V Power (Running).....................................................1900W Power (Peak) ..........................................................2550W AC Current................................................................15.8A DC Voltage ....................................................................5V DC Current ............................................................. 2x2.1A Frequency.................................................................60 Hz Phase ...................................................................... Single RPM

UCT FOR ANY REASON. If you have a question or experience a prob- lem with your Westinghouse purchase, call us at 1-855-944-3571 to speak with an agent.

FOR FUTURE REFERENCE. NOTICE This product is designed and rated for continuous operation at ambient temperatures betweem 23°F (–5°C) and 104°F (40°C). If need- ed, this product can be operated in extremely hot or extremely cold temperatures for short periods. If the product is exposed to extreme temperatures during storage, it should be brought back within the optimal temperature range before operation. This product must always be operated outdoors in a well-ventilated area and far away from doors, win- dows, and other vents. Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc. Maxi- mum power decreases about 3.5% for each 1,000 feet above sea level, and will also decrease about 1% for each 10°F (6°C) above 60°F (16°C) ambient tempera- ture. HAVE QUESTIONS? Email us at [e-mail] or call 1-855-944-35714 | English SAFETY SAFETY SYMBOLS Follow all safety information contained in this user’s manual as well as the information on the product labeling. SYMBOL DESCRIPTION Safety Alert Symbol Fire Hazard Electrical Shock Hazard Burn Hazard. Do not touch hot surfaces. Asphyxiation Hazard Do Not Operate in Wet Conditions Read Manufacturer’s Instructions 5 FEET (1.5m)MINIMUMFROM OBJECTS Maintain Safe Distance Ground. Consult with electrician to determine grounding requirements before operation. CARBON MONOXIDE

Carbon Monoxide SAFETY DEFINITIONS The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important information. Make sure that the meanings of this safety in- formation is known to all who operate, perform maintenance on, or are near the generator. This safety alert symbol appears with most safety statements. It means at- tention, become alert, your safety is involved! Please read and abide by the message that follows the safety alerts symbol. DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious in- jury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moder- ate injury. NOTICE Indicates a situation which can cause damage to the generator, personal property, and/or the environment, or cause the equipment to operate improperly. NOTE: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended.English | 5 SAFETY

IMPORTANT SAFETY INSTRUCTIONS

DANGER Generator exhaust contains high levels of carbon monoxide (CO), an invisible, odor- less, and extremely poisonous gas. If you smell ex- haust fumes, you are breathing carbon monoxide. But, even if you do not smell exhaust fumes you may be inhaling CO. ONLY operate generators outside, in a well-ventilated area. NEVER operate generators indoors, doing so CAN KILL YOU IN MINUTES.

• Correct Use – ONLY use generators outside and downwind, far away from windows, doors and vents. ALWAYS direct exhaust away from occupied spaces. ALWAYS install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. See Figure 1.

• Incorrect Use – NEVER use a generator in your home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. An open door or a run- ning fan WILL NOT provide adequate ventilation. See Figure 2. If you start feeling dizzy, weak, or sick while using the generator, move to fresh air IMMEDIATELY. Contact a doctor. You may be experiencing carbon monoxide poisoning. DANGER Fire and electrocution hazard. DO NOT connect to a building’s electrical system un- less the generator and a transfer switch have been properly installed and the electrical output has been veried by a qualied electrician. The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes. Failure to properly isolate the generator power could cause property damage and create a dangerous backfeed of electricity which could kill or seriously in- jure utility workers. DANGER Electrocution hazard. NEVER use the generator in a location that is wet or damp. NEVER expose the generator to rain, snow, water spray, or standing water while in use. Protect the gen- erator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. WARNING Familiarize yourself with all the instructions, safety warnings, illustrations, and spec- ications provided with this product. Failure to follow the manufacturer’s instructions may result in electric shock, re, and/or carbon monoxide poisoning that can lead to death or serious injury. 5 FE ET (1.5m)MINIMUMFROM OBJ

FIG. 1 FIG. 2 A - Exhaust (CO) - Only use OUTSIDE and FAR AWAY from windows, doors, and ventsC - CO detectors in living areasA - Exhaust (CO) - Living AreaC - Basement CrawlspaceD - Entryway/Porch/MudroomE - Garage NOTICE Install battery-powered carbon mon- oxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. l This product should ONLY be used outdoors. l NEVER use a generator in your home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. Carbon monoxide (CO), an invisible, odorless, and extremely poisonous gas CAN KILL YOU IN MINUTES. l Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specic home and/or wind conditions may require additional distance. l The National Electrical Code requires the use of a transfer switch or other suitable transfer equipment whenever a portable generator is connected to a building’s electrical system. Transfer switches isolate generator power from utility power and prevent backfeeding of electric power into the utility system. NOTE: A transfer switch must be installed by a qualied electrician in accordance with applicable electrical codes. Some jurisdictions may require the installation to be in-6 | English SAFETY spected by local authorities. Keep all relevant installation, inspection, and maintenance information. l Never use the generator to power medical support equipment. l Never expose the generator to rain, snow, water spray, or standing water while in use. Store and operate the unit in a dry or covered (but not enclosed) location. l Do not let children or untrained individuals operate the generator. l Keep children, bystanders, and pets a minimum of 10 ft. away from a running generator. l Maintain Safe Distance. While operating and storing, keep at least ve feet of clearance on all sides of the generator, including overhead. Turn the unit off and allow it to cool a minimum of 30 minutes before storage. Heat created by the mufer and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects. l Do not operate the unit in areas where combustible or hazardous materials are stored including gasoline and natural gas lling stations. l Do not operate the generator while barefoot, with wet hands or feet, while standing in water or in wet conditions. l Do not use this unit when you are tired or under the in- uence of drugs, alcohol, or medication. l Burn Hazard. Do not touch hot surfaces. l Do not contact the mufer or engine. They are very HOT and will cause severe burns. Do not put body parts or any ammable or combustible materials in the direct path of the exhaust. l Keep hands, ngers, feet, and other body parts away from all moving parts of the generator. l Do not connect worn or damaged electrical cords to the generator. NEVER touch frayed or exposed wires. l Do not operate the generator on an incline. The unit should always be placed on a at stable surface. l Check the physical condition of the product prior to each use. Look for loose bolts, uid leaks, and other signs of wear. Replace all damaged items. For replacement parts or assistance, contact our customer service team. l For optimal performance, use the generator in tempera- tures between 23°F (–5°C) and 104°F (40°C) with a maximum relative humidity of 90%. l Before starting the generator, check all uids (oil and gasoline). l Do not remove the oil dipstick or fuel cap when the gen- erator is running.

Securely tighten the oil dipstick after adding oil and the fuel cap after adding gasoline. l Avoid skin contact with engine oil or gasoline. Wear pro- tective clothing and equipment. Wash all exposed skin with soap and water. Prolonged skin contact with gasoline or engine oil may cause severe skin irritation and other adverse reactions. l Generator’s vibrate and bounce during normal operation. Check the generator and all of the cords connected to it for any damage that may have resulted from the vibration. Replace or repair damaged items as needed. Do not use the generator or any items that show signs of damage. l All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be double-insulated. l Before transporting the generator, disconnect the spark plug boot, drain the fuel tank and properly restrain the unit. l Fuel or oil may leak from the generator during transport. Place a towel, plastic sheet, or absorbent pad beneath the unit to protect your vehicle. l To prolong the life of this product, follow the instructions in the Maintenance section of this manual. l Replace damaged or worn items with recommended or equivalent replacement parts. Using an incorrect or incompatible part might create a hazard that could result in serious personal injury. l Always remove any tools or other service equipment used during maintenance away from the generator before operating. GROUNDING See Figure 3. WARNING Shock hazard. Failure to properly ground the generator can result in electric shock. NOTICE Only use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances. The generator neutral is oating. The generator ground ter- minal is connected to the frame of the generator, the metal non-current-carrying parts of the generator, and the ground terminals of each receptacle. The generator (stator winding) is isolated from the frame and from the AC receptacle ground pin. Electrical devices that require a grounded receptacle pin connection may not function properly.English | 7 SAFETY If this generator will be used only with cord and plug equipment connected to the receptacles mounted on the generator, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution. Before using the ground terminal, consult a qualied electri- cian, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

DANGER Fire and explosion hazard. Gas- oline is highly explosive and ammable and can cause severe burns or death. WARNING Fire and Burn Hazard. NEVER loosen or remove the fuel cap while the generator is running. Turn the unit off and allow it to cool for at least ve minutes before adding gasoline. Loosen the fuel cap slowly. WARNING In case of a gasoline re, do not attempt to extinguish the ame unless the engine/fuel control switch is in the OFF position. Introducing an extinguisher to a generator with an open fuel switch could create an explosion hazard. l Fire Hazard. Gasoline is highly ammable. Handle with care. l Never use gasoline as a cleaning agent. l Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin. l Do not store gasoline near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions. l Keep gasoline away from sparks, open ames, pilot lights, heat, and other sources of ignition. l Store any containers containing gasoline in a well-ven- tilated area, away from any combustibles or source of ignition. l ALWAYS store gasoline in a container approved for gas- oline. Unapproved containers can break or deteriorate allowing gasoline or gasoline vapors to escape which can create a serious hazard. l Gasoline has a distinctive odor, this will help detect po- tential leaks quickly. FIG. 3 A - Ground Terminal

l Gas vapors can cause a re if ignited. l Do not smoke when handling fuel, adding fuel to the generator, or emptying the gas tank. l Wear eye protection while refueling. l Before adding fuel to the generator, turn the unit off and allow it to cool a minimum of ve minutes. If necessary, move the unit to level ground. l Do not remove the fuel tank cap when the generator is running. l Loosen the fuel cap slowly to safely release pressure, keep gasoline from escaping around the cap, and to avoid the heat from the mufer igniting fuel vapors. l NEVER ll the generator’s gasoline tank beyond the maximum ll ring on the fuel screen. Keeping gasoline levels at or below the ll ring will allow for fuel expansion. Overlling the fuel tank can result in a sudden overow of gasoline and result in spilled gasoline coming in contact with HOT surfaces. l Spilled fuel can ignite. Wipe up spills immediately and allow area to dry before operating the generator. NEVER attempt to burn off spilled fuel. l Securely tighten the fuel cap after adding gasoline. l Do not cover the fuel cap while the generator is in oper- ation. Covering the cap may cause the engine to fail or damage the product. l Drain fuel before storing the unit. Store the unit and the fuel separately in well-ventilated areas away from sparks, open ames, pilot lights, heat, and other sources of ignition. l Turn the unit off and allow it to cool a minimum of 30 minutes before draining fuel.8 | English SAFETY

IMPORTANT INFORMATION FOR THE

CO SENSOR (iGen2550c Only) The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine. The CO Sensor will also detect the accumulation of carbon monoxide from other fuel burning sources used in the area of operation. For example, if the exhaust of fuel burning tools is pointed at a CO Sensor-equipped generator, a shut-off may be initiated due to rising CO levels. This is not an error. Hazardous carbon monoxide has been detected. Move and redirect any additional fuel burning sources to dissipate car- bon monoxide away from personnel and occupied buildings. NOTE: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs. Generators are intended to be used outdoors, far from occupied buildings and the exhaust pointed away from per- sonnel and buildings. If misused and operated in a location that results in the accumulation of CO, like in a partially enclosed area, the CO Sensor shuts off the engine and the RED indicator light will ash notiying the user that there are unsafe levels of carbon monoxide. If the generator shuts off and the RED indicator light ashes, leave the area immediately. Wait for the carbon monoxide to dissipate and the RED indicator light to turn off before returning to the affected area. Once it is safe to return, read the Action Label for further steps to take. The CO Sensor DOES NOT replace carbon monoxide alarms. Install bat- tery-powered carbon monoxide alarm(s) in your home. WARNING Automatic shutoff accompanied with a ashing RED light in the CO Sensor portion of the control panel is an indication that the generator was improperly located which allowed carbon mon- oxide to accumulate to unsafe levels. If you start to feel sick, dizzy, weak, or carbon monoxide detectors in your home indicate an alarm, get to fresh air immedi- ately. Call emergency services. You may have carbon monoxide poisoning.

UNDERSTANDING THE CO SENSOR’S

INDICATOR LIGHTS See Figure 4. COLOR DESCRIPTION RED Unsafe levels of carbon mon- oxide accumulated around the generator. After shut-off, the RED indicator light in the CO Sensor area of the control panel will ash to provide notication that the gen- erator was shut-off due to carbon monoxide levels rising above a safe threshold. The RED light will ash for at least ve minutes after a CO shut-off. When it is safe to do so, move the generator to an open, outdoor area far away from occupied spaces with exhaust pointed away. Once relocated to a safe area and the red light is off, the generator can be restarted. Introduce fresh air and ventilate the area where the generator had shut down. YELLOW A CO sensor system fault oc- curred. When a system fault oc- curs, the generator is automatically shut down and the YELLOW indi- cator light in the CO auto-shutoff area of the control panel will ash to provide notication that a fault has occurred. The YELLOW light will ash for at least ve minutes after a fault. The generator can be restarted but may continue to shutoff. A CO sensor fault can only be diagnosed and repaired by an authorized Westinghouse service center. FIG. 4 A - Service Generator LED B - Automatic Shutoff LED

The following information is on your genera- tor’s labels and decals.

Action Label If unsafe levels of carbon monoxide accumu- late around the generator, automatic shutoff will occur. If the unit shuts off, leave the area immediately. When it is safe to return, do the following: l Move the generator to an open, outdoor area. l Point exhaust away. l Don’t run generator in enclosed areas (e.g. not in house or garage). l Move to fresh air. l Get medical help if sick, dizzy or weak. l WARNING -Tampering with carbon mon- oxide sensor could result in hazardous condition.

Exhaust Direction Point exhaust away from body parts and ammable or combustible materials.

Safety Symbols (See page 4)

California Proposition 65 Cancer and reproductive harm - www.P65Warnings.ca.gov/product

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. l NEVER use inside a home or a garage, EVEN IF doors and windows are open.

Hot Surface Do not touch.

610 | English ELECTRICAL GENERATOR CAPACITY NOTICE Do not overload the generator’s ca- pacity. Exceeding the generator’s wattage/amperage capacity can damage the generator and/or electrical devices connected to it. Review the Specications for this generator and record the running (continuous) and peak (starting) watts. In general the higher the wattage, the more devices can be powered at the same time. The total power requirements of all con- nected devices must be considered. Power requirements are often listed on a device’s data label or nameplate. To determine power requirements:

Choose the devices you want to power simultaneously. l Record and total the running (continuous) watts of each device. The generator must continuously produce this amount of wattage to keep the devices running. l Record the peak (starting) watts for each device. This is the momentary surge of power required to start electric motors in some tools and appliances. l Select the device with the highest peak (starting) wattage. Add the peak (starting) watts for that device to the total running (continuous) watts for all the connected devices to determine the total peak wattage requirement for the generator. NOTE: Total peak wattage requirement assumes intermit- tent starting of devices. Adjust estimate if devices reach peak wattage at the same time.

MANAGING GENERATOR POWER

To extend the service life of the generator, use caution when adding electrical loads. Disconnect all loads before starting the generator. The safest way to manage generator power is to add loads sequentially by doing the following: l Remove all loads and start the generator as described later in this manual. l Connect and start the largest device or appliance. Power requirements are often listed on a device’s data label or nameplate. l Allow the generator output to stabilize. Once stable, the engine should run smoothly and the device should function properly. l Connect and start the next largest device or appliance. l Allow the generator output to stabilize. l Repeat this process for each additional load. EXTENSION CORDS WARNING Asphyxiation hazard. Extension cords running directly into the home increase the risk of carbon monoxide poisoning through any openings. If an extension cord running directly into your home is used to power indoor items, there is a risk of carbon monoxide poisoning to people inside the home. Al- ways use battery-powered carbon monoxide detector (s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector (s) battery. WARNING Asphyxiation hazard. When op- erating the generator with extension cords, make sure the generator is located in an open, outdoor area far away from occupied spaces with exhaust pointed away. WARNING Fire and electrocution hazard. Never use worn or damaged extension cords. Dam- aged or overloaded extension cords could overheat, arc, and burn resulting in death or serious injury. Before connecting an AC appliance or power cord to the generator: l Use grounded 3-prong extension cords, tools, and appli- ances, or double-insulated tools and appliances. l Make sure the tool or appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock. l Make sure the electrical rating of the tool or appliance does not exceed the rated power of the generator or the receptacle being used. NOTICE Do not exceed the unit’s capacity. Overloading the generator’s wattage and/or amperage capacity could damage connected devices and critical generator components.

EXTENSION CORD SIZING

Make sure your extension cord can carry the required load. Cables that are too small may cause a voltage drop that can cause the cord to overheat or cause property damage. Refer to the cord manufacturer’s guidelines for the appro- priate size and length.English | 11

UNDERSTANDING YOUR GENERATOR

See Figures 5 - 6. To reduce the risk of injury and product failure, read and understand the information in this user’s manual as well as the information on the product labeling.

120 VOLT AC RECEPTACLES

This unit has a 120V, 30 amp RV receptacle and duplex 120V, 20A receptacles capable of powering a variety of appliances, tools, and equipment. ACCESSORY TRAY The accessory tray is ideal for storing cell phones, tablets, and other devices while they charge. DO NOT stand near generator while your device charges. Always maintain a safe distance while the generator is in use. CIRCUIT BREAKERS The circuit breakers protect devices and equipment con- nected to the receptacles from electrical overload.

CO SENSOR INDICATOR LIGHTS

(iGen2550c Only) The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas. If increasing levels of CO gas are de- tected, the CO Sensor automatically shuts down the engine.

Eco mode minimizes fuel consumption and noise by ad- justing the engine RPM to the minimum required for the current load.

ENGINE/FUEL CONTROL SWITCH

Rotate the engine/fuel control switch to set the choke and start or stop the ow of fuel.

ENGINE SERVICE PANEL

Turn the lock knob to unlock and remove cover to service the oil, spark plug, and air lter. FUEL TANK The generator has a fuel tank with a capacity of 1.11gallons. GROUND TERMINAL The ground terminal is used to externally ground the generator.

Displays remaining run time (F), power output inkW(P), fuel level in liters (L), voltage output (V), and lifetime hours.

Indicates low oil level. When the oil level in the crankcase falls below the safe operating limit, the low oil level indicator will illuminate and the generator will automatically shut off the engine. FIG. 5 A - Engine/Fuel Control Switch B - Recoil Handle

The spark arrestor prevents sparks from exiting the mufer. It must be removed for servicing. NOTICE The spark arrestor is a safety device that prevents sparks from exiting the mufer and cre- ating a re hazard. In certain locations a spark arrestor may be required by law. It is the operator’s responsi- bility to know and follow all local laws and regulations related to re prevention requirements. OIL DIPSTICK Unscrew the oil dipstick to check oil levels and add oil when needed.

Illuminates when the generator is operating normally. In- dicates the generator is producing electrical power at the receptacles. OVERLOAD LED Indicates that the generator is overloaded. OVERLOAD RESET The generator will automatically switch OFF all AC output to protect the generator if overloaded or if there is a short circuit in a connected appliance.

PANEL LIGHTS ON/OFF BUTTON

Depress this button to turn the lights on both sides of the panel on and off.

PARALLEL OPERATION OUTLETS

A parallel cord (not included) can be used to connect a compatible Westinghouse inverter generator for additional power output. RECOIL HANDLE Use the recoil handle (and the engine/fuel control switch) to start the generator.

SPARK PLUG SERVICE DOOR

Lift the spark plug service door to access the spark plug. USB PORTS Two-port 5V/2.1A USB outlet. Accepts Type A USB plugs.

The fuel cap has a vent that can be opened and closed. The vent should be open when the engine is running and closed when the engine is off. COMPONENTS

- Reset Button F - 20 Amp Circuit Breaker G - USB Ports H - Panel Lights On/Off Button I - 30 Amp Circuit Breaker J - Ground Terminal K - Low Oil LED L - Overload LED M - Output Ready LED N - Data Center O - Service Generator LED (iGen2550c only) P - Automatic Shutoff LED (iGen2550c only) FIG. 6English | 13 ASSEMBLY

REMOVING CARTON CONTENTS

WARNING This product does not require assembly. Do not attempt to operate this product if it is not completely assembled. Using an improperly as- sembled product can be hazardous and could result in serious personal injury. l Remove and inspect the carton contents. Verify that all the items in the INCLUDED LIST are present and undamaged. l Recycle or dispose of the packaging materials properly. INCLUDED LIST Generator, Engine Oil (SAE 10W 30), Funnel, Spark Plug Socket Wrench, Parallel Cables, Quick Start Guide, User Manual If any parts are missing, contact our service team at [e-mail] or call 1-855-944-3571. WARNING Do not alter or modify this prod- uct unless instructed to so in this manual or by the manufacturer. Do not use attachments or accessories that are not recommended for use with this product. Making unauthorized modications and using incom- patible accessories can damage the unit and may void your warranty. OVERVIEW This portable generator can provide power to a wide range of items including household appliances, job-site tools, camping equipment, tailgating essentials, and much more. NOTICE

THIS GENERATOR HAS BEEN

SHIPPED WITHOUT OIL. Do not attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage that is not covered under warranty. OPERATION DANGER Generator exhaust contains high levels of carbon monoxide (CO), an invisible, odor- less, and extremely poisonous gas. If you smell ex- haust fumes, you are breathing carbon monoxide. But, even if you do not smell exhaust fumes you may be inhaling CO. ONLY operate generators outside, in a well-ventilated area. NEVER operate generators indoors, doing so CAN KILL YOU IN MINUTES.

• Correct Use – ONLY use generators outside and downwind, far away from windows, doors and vents. ALWAYS direct exhaust away from occupied spaces. ALWAYS install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. See Figure 1.

• Incorrect Use – NEVER use a generator in your home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. An open door or a run- ning fan WILL NOT provide adequate ventilation. See Figure 2. If you start feeling dizzy, weak, or sick while using the generator, move to fresh air IMMEDIATELY. Contact a doctor. You may be experiencing carbon monoxide poisoning. WARNING Do not alter or modify this prod- uct unless instructed to so in this manual or by the manufacturer. Do not use attachments or accessories that are not recommended for use with this product. Making unauthorized modications and using incom- patible accessories can damage the unit and may void your warranty. WARNING Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water. Prolonged skin contact with gasoline or engine oil may cause se- vere skin irritation and other adverse reactions. NOTICE In certain circumstances, the National Electric Code may require the generator to be ground- ed to an approved earth. Consult with a qualied elec- trician to determine grounding requirements before operation. NOTICE Check the physical condition of the product prior to each use. Look for loose bolts, uid leaks, and other signs of wear. Replace all damaged items.14 | English OPERATION

KNOW HOW TO SAFELY LOCATE AND

OPERATE YOUR GENERATOR

DANGER Asphyxiation hazard. Place the generator in a well-ventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or conned spaces. Carefully consider wind and air currents when posi- tioning the generator. WARNING Electrocution hazard. Never use the generator in a location that is wet or damp. Nev- er expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Using a generator or electrical appli- ance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution. WARNING Fire hazard. Only operate the generator on a solid, level surface. Operating the gen- erator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could block cooling vents or the air intake system. Allow the generator to cool for 30 min- utes before transport or storage. l Read and understand all safety information before starting the generator (see pages 4 - 9). l NEVER use a generator in your home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. Carbon monoxide (CO), an invisible, odorless, and extremely poisonous gas CAN KILL YOU IN MINUTES. l DO NOT operate the generator in the back of a SUV, camper, trailer, truck bed (regular, at, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the mufer. Operating the generator in enclosed or partially enclosed areas will allow dangerous levels of CO to accumulate. l DO NOT contain generators during operation. l Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specic home and/or wind conditions may require additional distance.

Do not operate the generator on an incline. The unit should always be placed on a at stable surface. l The generator should be on a at, level surface at all times (even while not in operation). l The generator must have at least 5 ft. (1.5 m) of clearance from all combustible material.

Consider where and how you intend to use your generator, and familiarize yourself with any local, state, or federal ordi- nances concerning your intended use. It may be necessary to contact a qualied electrician or local governing agency for a full list of requirements.

ADDING OIL/CHECKING OIL LEVEL

See Figures 7 - 8. If your product has a separate engine manual, disregard the information in this section and follow the instruc- tions in the engine manual. NOTICE

THIS GENERATOR HAS BEEN

SHIPPED WITHOUT OIL. Do not attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage that is not covered under warranty. NOTICE Use of 2-stroke/cycle oil or other un- approved oil types can cause severe engine damage that is not covered under warranty. The included, recommended oil type for typical use is 10W- 30 engine oil. If running the generator in extreme tempera- tures, refer to the following chart. -20 0 20 40 60 80 100 120-28.9

FIG. 8 A - Oil DipstickB - Safe Operating Range

l Turn the generator off and allow the engine to cool for at least ve minutes. l Place the generator on a level surface in a well-ventilated area. l Turn the lock knob to the unlocked position. l Remove the engine service cover. l Clean the area around the oil dipstick. Forinitialoilll: l Slowly unscrew and remove the oil dipstick. l Using the funnel, slowly pour the supplied engine oil into the oil ll hole. Stop frequently to make sure you do not overll. NOTE: Your generator was functionally tested in the factory and may contain minimum residual oil. Additional oil is required to operate the unit. Do not overll. l Replace and tighten the oil dipstick. l Install the engine service cover and turn the lock knob to the locked position to secure. To check oil level:

Slowly unscrew and remove the oil dipstick. l Clean the dipstick and re-seat it inside the oil ll hole. Do not thread the dipstick. l Remove the dipstick and verify that the oil level is within safe operating range. l If the oil level is low, add recommended engine oil in- crementally and recheck until the level is within the safe operating range. l Replace the oil dipstick and hand-tighten. l Install the engine service cover and turn the lock knob to the locked position to secure. GASOLINE REQUIREMENTS NOTICE Do not use E15 or E85 fuel in this product. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warran- ty. Only use unleaded gasoline containing up to 10% ethanol. l ALWAYS use CLEAN, FRESH, unleaded gasoline (87–93 octane) in this unit. NEVER use OLD, STALE, or CONTAMINATED gasoline. l Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended). l DO NOT use E85 or E15. l DO NOT use a gas oil mix. l DO NOT modify the engine to run on alternate fuels. E85 E1516 | English OPERATION

USING FUEL STABILIZER

Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer’s instructions for use. Always mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for ve minutes to allow the stabilizer to treat the entire fuel system. ADDING GASOLINE See Figures 9 - 10. DANGER Fire and explosion hazard. Nev- er remove the fuel cap or refuel the generator while the engine is running. Do not smoke or create sparks while fueling. Always turn the engine off and allow the generator to cool for at least ve minutes before refu- eling. DANGER Fire and explosion hazard. Do not overll fuel tank. Fill only to the red maximum ll ring on the fuel screen. Overlling may cause fuel to spill onto engine causing a re or explosion hazard. WARNING Never use a gasoline container, gasoline tank, or any other fuel item that is broken, cut, torn or damaged. NOTICE Only ll the tank from an approved gas- oline container. Make sure the gasoline container is internally clean and in good condition to prevent fuel system contamination. l Turn the generator off and allow the engine to cool for at least ve minutes. l Place the generator on a level surface in a well-ventilated area. DO NOT fuel indoors. l Clean area around fuel cap and remove the cap slowly. l Slowly add the recommended fuel. Do not overll. NOTE: The gasoline level should NOT be higher than the red maximum ll ring on the fuel screen. l Install the fuel cap. Tighten securely. l Clean up any spilled fuel. l Move at least 30 ft. away from refueling area before re- starting the engine. NOTICE Fuel can damage paint and plastic. Use caution when lling the fuel tank. Damage caused by spilled fuel is not covered under warranty. NOTICE Clean the fuel screen lter of debris be- fore and after each fueling. Remove the fuel screen lter by slightly compressing it while removing it from the fuel tank.

HIGH ALTITUDE OPERATION

Engine power is reduced the higher you operate above sea level. Output will be reduced approximately 3.5% for every 1,000 feet of increased altitude from sea level. High altitude adjustment is required for operation at altitudes over 5,000 ft. (1524 m). Operation without this adjustment will cause decreased performance, increased fuel consump- tion, and increased emissions. NOTICE DO NOT operate the generator at alti- tudes below 2,000 ft. (762 m) with the high altitude kit installed. Engine damage may occur. High Altitude Carburetor Kit Part# 518921-1 FIG. 9 FIG. 10

A - Vented Fuel CapB - Max Fill LineC - Screen FilterA - Vented Fuel CapEnglish | 17 FIG. 11 OPERATION DATA CENTER See Figure 11. Push the mode button to cycle through the data display modes. Voltage: Displays current voltage output. Frequency (Hz): Displays power output frequency in Hertz. Lifetime Hours: Displays the lifetime run hours. Fuel Level: Indicates how much gasoline remains in the fuel tank. Run Time/Maintenance: Displays current run time. Resets to zero when shut down. Maintenance reminder displayed when required. Maintenance Codes: P25 - Change engine oil P50 - Clean air lter, Change engine oil P100 - Change engine oil, clean air lter, replace fuel lter BREAK-IN PERIOD For proper break-in, do not exceed 50% of the rated running watts during the rst ve hours of operation. Use supplied oil until rst recommend oil change. Do not use full synthetic oil during break in period. Full synthetic oil may prevent proper breaking and seating of the piston rings. Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings.

The generator is placed in a safe, appropriate location. l The generator is on a dry, at, and level surface. l Oil and fuel levels are within safe operating range. l All loads are disconnected from the control panel recep- tacles. l The ECO mode switch is in the OFF position. DANGER Fire and explosion hazard. DO NOT move or tip the generator during operation.

STARTING THE GENERATOR

See Figures 12 - 14. l Place the generator in a safe, appropriate location. l Unplug all loads. l Make sure the ECO mode switch is in the OFF position. l Check oil and fuel levels. If needed, add fuel or oil as described earlier. l Turn the vent knob on the fuel cap to the ON position. FIG. 12 A - Vent Knob B - On C - Off

C18 | English OPERATION l For cold starting, turn the engine/fuel control switch to the CHOKE position. NOTE: If you are re-starting the generator, turn engine/ fuel control switch to the RUN position. l Firmly grasp and pull the recoil handle slowly until you feel increased resistance. At this point, pull the recoil handle rapidly away from the generator until the engine starts. NOTE: Gently return the recoil handle into place after starting the unit. Do not let it snap back against the unit. During initial starting, additional pulls may be required to prime the fuel pump. l After the engine starts turn the engine/fuel control switch to the RUN position. l When the OUTPUT READY LED illuminates, you can safely connect loads to the control panel receptacles. NOTE: Verify that all devices are turned off before con- necting them to the generator. NOTE: Make sure that the wattage requirements for all connected devices are in line with your generator’s capabilities. FIG. 13 A - Engine/fuel control switch B - Choke C - Run D - Off E - Pull recoil handle

l Connect and start the largest device or appliance. l Allow the generator output to stabilize. Once stable, the engine should run smoothly, and the device should function properly. l Connect and start the next largest device or appliance. l Allow the generator output to stabilize. l Repeat this process for each additional load.

STOPPING THE GENERATOR

See Figures 12 - 14. l Remove any connected loads from the control panel receptacles. l Allow the generator to run at “no load” to reduce and stabilize engine and alternator temperatures. l Turn the engine/fuel control switch to the OFF position l Turn the vent knob on the fuel cap to the OFF position. To stop the unit quickly in an emergency:

Turn the engine/fuel control switch to the OFF position

See Figure 14. The LOW OIL LED on the control panel will illuminate when the unit is low or out of oil. The generator will not start when the indicator is lit. To resume normal operation, add engine oil as described earlier in this section. Do not attempt to crank or start engine before it has been properly ser- viced with recommended oil. ECO MODE See Figure 14. NOTICE Always start the generator with the ECO mode switch in the OFF position. Allow the en- gine speed to stabilize and the OUTPUT READY LED to illuminate before putting the ECO mode switch in the ON position. NOTICE Do not use ECO mode when in parallel operation with another Westinghouse inverter gener- ator. ECO mode minimizes fuel consumption and noise by ad- justing the engine RPM to the minimum required for the current load. Turn ECO mode ON when powering small appliances with continuous loads such as a computer or electric light. Turn ECO mode OFF when powering large surge loads such as an air conditioner or electric pump. To turn on ECO mode, verify that the OUTPUT READY LED is illuminated, then push the switch to the ON position. If no load is present, the generator RPM will drop to idle speed. The generator will detect loads as they are applied and increase engine RPM. To run the generator at maximum power and RPM, push the ECO mode switch to the OFF position. OVERLOAD RESET See Figure 14. Do not overload the generator. If the generator is ap- proaching or has reached an overload condition, the OVER- LOAD LED on the control panel will illuminate. If the generator is close to overloading, the OVERLOAD LED will blink. Turn off and remove one or more connected devices to decrease the load and resume normal operation. If the load is not reduced, the unit will reach an overload condition. To extend the service life of the generator, avoid running the unit near capacity. If the generator is overloaded or if there is a short circuit in a connected device, the OVERLOAD LED will turn solid, and the unit will automatically disconnect from the load. The engine will continue to run, but there will not be any electrical output. To restore electrical output after an overload:

Remove any connected loads from the control panel receptacles. l Push the RESET button on the control panel until the OVERLOAD LED goes OFF and the OUTPUT READY LED is illuminated. l Reset the circuit breaker(s) if activated. l Verify that the intended running and surge loads do not exceed the generator’s capacity. l Reconnect electrical loads sequentially, allowing the generator to stabilize after each load is connected. CIRCUIT BREAKERS See Figure 14. The 20 amp circuit breaker protects devices and equipment connected to the 120V, 20 amp receptacles from electrical overload. The 30 amp circuit breaker protects devices and equipment connected to the 120V, 30 amp receptacles. If a circuit breaker activates, turn off the connected device, remove it from the port or outlet, and press the circuit breaker to reset. USB PORTS See Figure 14. Use the USB ports and USB cables (not included) to charge USB-compatible devices such as phones, tablets, and speakers (up to 2.1 Amps). NOTE: The USB ports are designed for charging only and do not have data transfer or communication capabilities. PARALLEL OPERATION See Figure 14. Parallel operation gives you the ability to link another compatible Westinghouse inverter generator for combined running and peak power output. DANGER Fire and electrocution hazard. Never connect or disconnect the parallel cable leads when a generator is running. Failure to follow this rule may lead to serious personal injury or death. WARNING Correct connection of the cables is very important when the generators are used with a transfer switch to supply power to a building. To avoid serious personal injury or damage to electrical devices, including the generators, do not try to power an electrical system in a building without using an ap- proved transfer switch. NOTICE Connecting to a generator that is not compatible can cause a low voltage output that may damage tools and appliances powered by the generator.20 | English MAINTENANCE WARNING Accidental start-up. Disconnect the spark plug boot (see gure 17) from the spark plug when performing maintenance on the generator. WARNING Replace damaged or worn items with recommended or equivalent replacement parts. Using an incorrect or incompatible part might create a hazard that could result in serious personal injury. WARNING Allow hot components to cool for 30 minutes before performing any maintenance pro- cedure. WARNING Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water. Prolonged skin contact with gasoline or engine oil may cause se- vere skin irritation and other adverse reactions. OPERATION Use only the Westinghouse 120V parallel cable kit that came with your generator. Third party cables may not have the ability to carry the increased voltage. If damage or loss occurs to your cables, call Westinghouse customer service for a replacement. NOTE: Make sure both units have been shut down and there are no devices connected to the outlet receptacles. NOTICE Arrange the generators in a “V” shape to allow the heat from the exhaust to safely escape. The exhaust heat from one unit may discolor or melt the plastic case of the other unit if positioned too close- ly together. To install the parallel cable:

Insert the cable end into one of the parallel ports on the rst unit. Insert the other end of the same cable into the corresponding port on the second unit. l Repeat steps with the other cable. NOTE: It is important to connect both ends of the cable to the same ports on both generators. Make sure the same cable ends are connected to the same port on each gener- ator before starting the generators. Start one generator at a time. Wait for the rst unit to run at a stable idle before starting the second unit. Connect one device at a time and allow the unit to stabilize before connecting the next device. To remove the parallel cable: l Remove all devices from the generator’s receptacles. l Shut down both of the connected generators. l Remove the parallel cable ends from the generator ports. TRANSPORTING l Turn off the generator. l Allow the generator to cool a minimum of 30 minutes before transporting. l Replace all protective covers on the generator control panel. l Only use the generator’s xed handle to lift the unit or attach any load restraints such as ropes or tie-down straps. DO NOT attempt to lift or secure the generator by holding onto any of its other components. l Keep the unit level during transport to minimize the pos- sibility of fuel leakage or, if possible, drain the fuel or run the engine until the fuel tank is empty before transport. CAUTION Fire hazard. DO NOT up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur. NOTICE Check the physical condition of the product prior to each use. Look for loose bolts, uid leaks, and other signs of wear. Replace all damaged items. For replacement parts or assistance, contact our customer service team. To prolong the life of this product, follow the maintenance instructions in this section. Contact customer service before servicing any recall or warranty parts.

CLEANING THE GENERATOR

Do not store or operate your generator in dirty, dusty, or corrosive environments. Do not allow foreign materials and debris to clog the vents on the unit. NEVER clean the generator with a garden hose. Water can damage the generator’s fuel system and electrical compo- nents. If the unit needs to be cleaned, use a soft brush and damp cloth to clean the exterior and use low pressure air (no greater than 25 psi) to clean the vents. Never use gasoline as a cleaning agent.English | 21 MAINTENANCE

CLEANING/REPLACING THE AIR FILTER

See Figure 15. Keep air lter clean. A dirty air lter can cause poor perfor- mance and decrease the service life of the product. NEVER operatethegeneratorwithoutanairlterinplace. l Turn the generator off and allow the engine to cool for 30minutes. l Turn the lock knob to the unlocked position. l Remove the engine service cover. l Remove the screw and air lter cover. l Remove the air lter from the air cleaner housing and place it in a suitable cleaning container. Replace the air lterifdamaged. NOTE: The air lter may be covered in oil. Use an appro- priate container. l Wash the air lter by submerging the lter in a solution of household detergent soap and warm water. Slowly squeeze the lter to thoroughly clean. NOTICE DO NOT twist or tear the air lter during cleaning or drying. Only apply slow but rm squeezing action. l Rinse the air lter by submerging it in fresh water and applying a slow squeezing action. Allow the lter to dry thoroughly. NOTICE Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local author- ities or reclamation facility. l Dip the air lter in clean engine oil then squeeze out all excess oil. The engine will smoke when started if too much oil is left in the lter. l Install the air lter in the air cleaner housing and reinstall the air lter cover. l Install the engine service cover and turn the lock knob to the locked position to secure.

CHANGING THE ENGINE OIL

See Figure 16. For optimal performance, change the engine oil according to the gures specied in the maintenance schedule or the engine manual (if applicable). When using the generator under extreme, dirty, dusty conditions or in extremely hot weather, change the oil more frequently. NOTE: Change the oil while the engine is warm but not hot. Warm engine oil drains more quickly and thoroughly than cool lubricant. Contact with hot lubricant will cause serious burns. l Turn the generator off and allow the engine to cool for 30minutes. l Place the generator on a level surface in a well-ventilated area. A - Air Filter Cover B - Air Filter C - Screw

FIG. 15 l Turn the lock knob to the unlocked position. l Remove the engine service cover. l Clean the area around the oil dipstick. l Slowly unscrew and remove the oil dipstick. l Place an oil pan (or suitable container) under the oil ll/ drain hole. l Tilt the generator to drain the oil. l After the oil has drained completely, place the generator in an upright position. l Rell the oil as described in the Operations section. l Replace the oil dipstick and hand-tighten. l Clean up any spilled oil. l Install the engine service cover and turn the lock knob to the locked position to secure. FIG. 16 A - Oil dipstick A22 | English MAINTENANCE

CLEANING/REPLACING THE SPARK PLUG

See Figure 17. NOTICE ALWAYS use the Westinghouse OEM or compatible non-resistor-type spark plug. Use of re- sistor-type spark plug can result in rough idling, mis- re, or may prevent the engine from starting. Make sure the spark is clean and properly gapped. To clean or replace your spark plug: l Turn the generator off and allow the engine to cool for 30minutes. l Place the generator on a level surface in a well-ventilated area. l Lift the spark plug service door to gain access to the spark plug area. l Remove the spark plug boot by rmly pulling the spark boot directly away from the engine. l Clean the area around the spark plug. l Remove the spark plug with the included spark plug socket wrench. NOTICE Never apply any side load or move the spark plug laterally when removing the spark plug. l Inspect the spark plug. Replace if electrodes are pitted, burned, or the insulator is cracked. Only use a recom- mended replacement plug. l Measure the spark plug electrode gap with a wire-type feeler gauge. If necessary, correct the gap by carefully bending the side electrode. Spark plug gap: 0.024 - 0.032 in. (0.60 - 0.80 mm) l Carefully install the spark plug nger tight, then tighten as additional 3/8 to 1/2 turn with the spark plug wrench. l Install the spark plug boot and close the spark plug service door.

CLEANING THE SPARK ARRESTOR

See Figure 18. Check and clean the spark arrestor according to the gures specied in the maintenance schedule or the engine manual (if applicable). Failure to clean the spark arrestor will result in degraded engine performance. l Turn the generator off and allow the engine to cool for 30minutes. l Place the generator on a level surface in a well-ventilated area. l Remove the two screws securing the spark arrestor bracket.

Remove the bracket, screen, and spark arrestor from the generator. l Gently clean the screen and spark arrestor using a wire brush. l Reinstall the spark arrestor, screen, and bracket. Tighten screws securely. A - Spark Plug B - Spark Plug Boot C - Insulator D - Electrode FIG. 17

See Figures 19 - 21. WARNING ALWAYS store gasoline in a con- tainer approved for gasoline. Unapproved containers can break or deteriorate allowing gasoline or gasoline vapors to escape which can create a serious hazard. Even properly stabilized fuel can leave residue and cause corrosion if left long term. If storing the generator for two to six months, drain the oat bowl to prevent gum and var- nish buildup in the carburetor. If storing the generator for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system. l Turn the generator off and allow the engine to cool for 30minutes. l Place the generator on a level surface in a well-ventilated area. Todraintheoatbowl: l Turn the engine/fuel control switch to the OFF position. l Remove the engine service cover. l Locate the drain hose extending from the bottom of the carburetor oat bowl. l Place the bottom end of the hose outside the generator into an approved gasoline container to catch the drained fuel. l Loosen the oat bowl drain screw and allow the fuel to drain. Tighten the oat bowl drain screw. l Route the drain hose between the air cleaner housing and the engine service cover. Install the engine service cover. To drain the fuel tank: NOTICE To prevent damage to the unit, drain the engine oil before emptying the fuel tank. See Chang- ing the engine oil for details. l Turn the engine/fuel control switch to the OFF position l Clean area around fuel cap and remove the cap slowly. l Remove the fuel screen lter by slightly compressing it while removing it from the tank. l Using a commercially available gasoline hand pump (not included), siphon the gasoline from the fuel tank into an approved gasoline container. DO NOT use an electric pump. NOTE: The fuel tank can also be drained using the carbu- retor drain screw and drain hose as described earlier. Keep the engine/fuel control switch in the OFF position to allow fuel to ow from the tank through the carburetor.

REPLACING THE FUEL FILTER

See Figure 22. Overtime, the fuel lter may become dirty or clogged. To re- duce the risk of engine failure, replace the fuel lter accord- FIG. 19 A - Drain ScrewB - Drain Hose

A - Engine/fuel switch off FIG. 20 FIG. 21 ing to the gures specied in the maintenance schedule or the engine manual (if applicable). l Turn the generator off and allow the engine to cool for 30minutes. l Drain the fuel tank as described previously. l Remove the screws securing the control panel. A24 | English MAINTENANCE l Remove the control panel. l Locate the fuel lter and note the lter’s orientation. l Using pliers, squeeze the fuel line clips and slide the fuel lines away from the lter. l Install the fuel lines onto the new lter. Ensure the fuel lter is oriented correctly. l Replace the control and tighten screws securely.

CHECKING/ADJUSTING THE VALVE

CLEARANCE See Figures 23 - 24. NOTICE Checking and adjusting valve clear- ance must be done when the engine is cold. l Turn the generator off and allow the engine to cool for 30minutes. l Place the generator on a level surface in a well-ventilated area. l Remove the rocker arm cover and carefully remove the gasket. If the gasket is torn or damaged, it must be re- placed. l Remove the spark plug so the engine can be rotated more easily. l Pull the recoil handle to rotate the engine to top dead center (TDC). Looking through the spark plug hole; the piston should be at the top (both valves are closed). l Both rocker arms should be loose at TDC on the com- pression stroke. If they are not, rotate the engine 360°. l Insert a feeler gauge between the rocker arm and the valve stem to measure valve clearance. Intake Valve Exhaust Valve Valve Clearance 0.0031 – 0.0047 in (0.08 – 0.12 mm) 0.0051 – 0.0067 in (0.13 – 0.17 mm) Torque 8-12 Nm 8-12 Nm l If an adjustment is necessary, loosen the jam nut. l Slide the appropriate feeler gauge between the rocker arm and the valve stem.

Tighten the adjustment screw onto the push rod to obtain the specied clearance. NOTE: You should be able to feel the rocker arm touch the feeler gauge. l Hold the adjustment screw in place and tighten the nut. Torque: 106 inch-pound (12 Nm) l Recheck valve clearance. l If no further adjustments are needed, perform this proce- dure on the other valve. l When nished, install the gasket, rocker arm cover, and spark plug. A - Fuel Line B - Fuel Filter

FIG. 22 FIG. 23 FIG. 24English | 25 MAINTENANCE STORAGE Turn the unit off and allow it to cool a minimum of 30 minutes before storage. Keep the unit upright. Do not store the generator on its side. Drain fuel before storing the unit. Store the unit and the fuel separately in well-ventilated areas away from sparks, open ames, pilot lights, heat, and other sources of ignition. NOTICE Gasoline stored for as little as 30 days can deteriorate, causing gum, varnish, and corrosive buildup in fuel lines, fuel passages, and the engine. This corrosive buildup restricts the ow of fuel, which can prevent the engine from starting after a prolonged storage period. The use of fuel stabilizer signicantly increases the storage life of gasoline. Full-time use of fuel stabilizer is recommended. Follow the manufacturer’s instructions for use.

STORAGE TIME RECOMMENDED PROCEDURE

Less than 1 month Replace all protective covers on the generator control panel. Clean the exterior of the generator and remove any debris from the mufer cooling vents. 2 to 6 months Replace all protective covers on the generator control panel. Clean the exterior of the generator and remove any debris from the mufer cooling vents. Drain the carburetor oat bowl. (Store gasoline in an approved gasoline container or dis- pose of it according to state and local ordinances.) 6 months or longer Replace all protective covers on the generator control panel. Clean the exterior of the generator and remove any debris from the mufer cooling vents. Drain the carburetor oat bowl and the fuel tank.(Store gasoline in an approved gasoline container or dispose of it according to state and local ordinances.) Put a tablespoon of engine oil into the spark plug cylinder. Gently pull the recoil handle to slowly turn the engine and distribute the lubricant. Reinstall the spark plug Change the engine oil. MAINTENANCE SCHEDULE Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs rst. More frequent service is required when operating in adverse conditions as noted below. NOTE: If your product has a separate engine manual, disregard the information in this chart and follow the in- structions in the engine manual. Before Each Use After First 25 Hours or First Month After 50 Hours or Every Six Months After 100 Hours or Every Six Months After 300 Hours or Every Year Check Engine Oil X Change Engine Oil

Change oil every month when operating under heavy load or in high temperatures.

Clean more often under dirty or dusty conditions. Replace air lter if it cannot be adequately cleaned.

Recommend service to be performed by authorized Westinghouse service dealer.26 | English TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTION

Engine starts, then shuts down Fuel level is low or depleted. Refuel. Incorrect engine oil level. Check engine oil level. Dirty air lter. Clean the air lter. Contaminated gasoline. Drain the fuel tank. Refuel with fresh gasoline. Defective low oil level switch. Contact Westinghouse customer service toll-free at 1 [phone]. Engine lacks power Air lter restricted. Clean or replace air lter. Stale gasoline, generator stored without treating or draining gasoline, or refueled with bad gasoline. Drain the fuel tank. Refuel with fresh gasoline. Fuel system malfunction, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll-free at 1 [phone]. Engine will not start Out of fuel. Refuel. Stale gasoline, generator stored without treating or draining gasoline, or refueled with bad gasoline. Drain the gasoline tank. Refuel with fresh gasoline. Dirty air lter. Clean the air lter. Low engine oil level stopped generator. If LOW OIL LED illuminated, turn engine/ fuel control switch to the OFF position. Add engine oil. Spark plug wet with fuel (ooded engine). Wait ve minutes. Turn engine/fuel control switch to the OFF position. Pull recoil handle rapidly several times. If the generator does not start, remove spark plug and dry. Spark plug faulty, fouled, or improperly gapped. Gap or replace the spark plug. Reinstall. Fuel system malfunction, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll-free at 1 [phone]. CO sensor removed or modied. Return to original conguration. CO sensor activated or system fault occurred. Relocate generator / Contact Westinghouse customer service toll-free at 1 [phone]. Engine runs rough or bogs when load applied Dirty air lter. Clean the air lter. Generator overloaded. Unplug some devices. Faulty power tool or appliance. Replace or repair tool or appliance. Stop and restart the engine. Fuel system malfunction, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll-free at 1 [phone]. No power at AC receptacles OUTPUT READY LED is OFF and OVERLOAD LED is ON. Check AC load. Stop and restart engine. Check the air inlet. Stop and restart the engine. AC circuit breaker/s tripped. Check AC loads and reset circuit breaker/s. Faulty power tool or appliance. Replace or repair tool or appliance. Stop and restart the engine. Faulty generator. Contact Westinghouse customer service toll-free at 1 [phone].English | 27 SCHEMATIC2 | Español iGen2550c
