USER MANUAL iGen4500DFcv WESTINGHOUSE

SAFETY USER MANUAL DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571. iGen4500DFcv Digital Inverter Generator Gasoline: 3700 Running Watts | 4500 Peak Watts Propane: 3330 Running Watts | 4050 Peak Watts2 | Westinghouse Outdoor Power Equipment INTRODUCTION

WARNING: Operating, servicing, and maintaining

this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, and wear gloves or wash your hands frequently when servicing this equipment. For more information go to www. P65warnings.ca.gov. DISCLAIMERS All information, illustrations, and specications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specication or design change without notice.

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment. Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death.

SAVE THESE INSTRUCTIONS

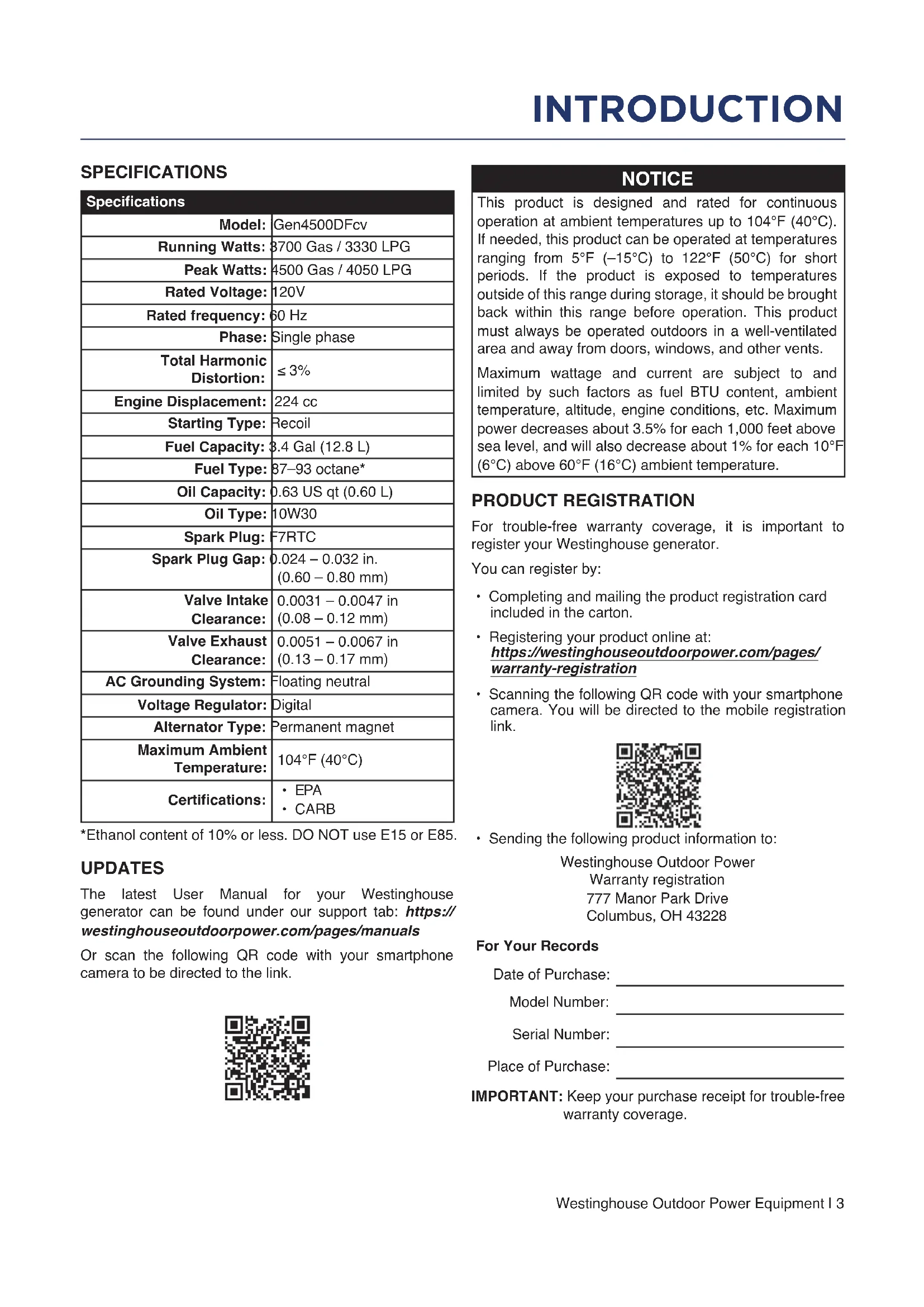

• CARB *Ethanol content of 10% or less. DO NOT use E15 or E85. UPDATES The latest User Manual for your Westinghouse generator can be found under our support tab: https:// westinghouseoutdoorpower.com/pages/manuals Or scan the following QR code with your smartphone camera to be directed to the link. NOTICE This product is designed and rated for continuous operation at ambient temperatures up to 104°F (40°C). If needed, this product can be operated at temperatures ranging from 5°F (–15°C) to 122°F (50°C) for short periods. If the product is exposed to temperatures outside of this range during storage, it should be brought back within this range before operation. This product must always be operated outdoors in a well-ventilated area and away from doors, windows, and other vents. Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level, and will also decrease about 1% for each 10°F (6°C) above 60°F (16°C) ambient temperature. PRODUCT REGISTRATION For trouble-free warranty coverage, it is important to register your Westinghouse generator. You can register by:

• Completing and mailing the product registration card included in the carton.

• Registering your product online at: https://westinghouseoutdoorpower.com/pages/ warranty-registration

• Scanning the following QR code with your smartphone camera. You will be directed to the mobile registration link.

• Sending the following product information to: Westinghouse Outdoor Power Warranty registration 777 Manor Park Drive Columbus, OH 43228 For Your Records Date of Purchase: Model Number: Serial Number: Place of Purchase: IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage.4 | Westinghouse Outdoor Power Equipment SAFETY SAFETY DEFINITIONS The words DANGER, WARNING, CAUTION and NOTICE are used throughout this manual to highlight important information. Make sure that the meanings of this safety information is known to all who operate, perform maintenance on, or are near the generator. This safety alert symbol appears with most safety statements. It means attention, become alert, your safety is involved! Please read and abide by the message that follows the safety alerts symbol. Indicates a hazardous situation which, if not avoided, will result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Indicates a situation which can cause damage to the generator, personal property, and/or the environment, or cause the equipment to operate improperly. Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended. SAFETY SYMBOLS Follow all safety information contained in this manual and on the generator. Symbol Description Safety Alert Symbol Electrocution Hazard Asphyxiation Hazard Burn Hazard. Do not touch hot surfaces. Electrical Shock Hazard Fire Hazard No Open Flame Maintain Safe Distance Read Manufacturer’s Instructions Do Not Operate in Wet Conditions Ground. Consult with electrician to determine grounding requirements before operation. CARBON MONOXIDE

Carbon MonoxideWestinghouse Outdoor Power Equipment | 5 SAFETY NOTICE Install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. Fire and electrocution hazard. DO NOT connect to a building’s electrical system unless the generator and transfer switch have been properly installed and the electrical output has been veried by a qualied electrician. The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes. Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. CORRECT USE Example location to reduce risk of carbon monoxide poisoning

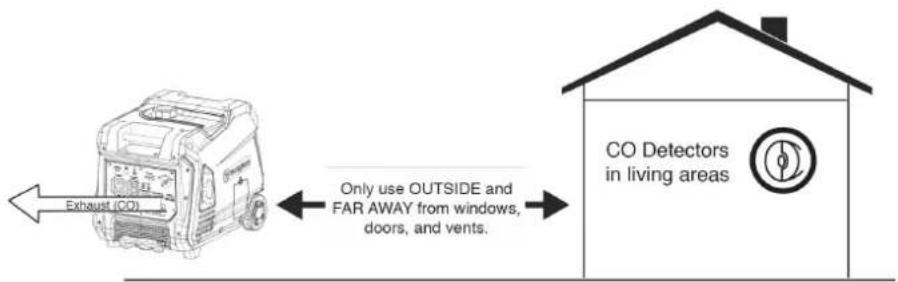

• ONLY use outside and downwind, far away from windows, doors and vents.

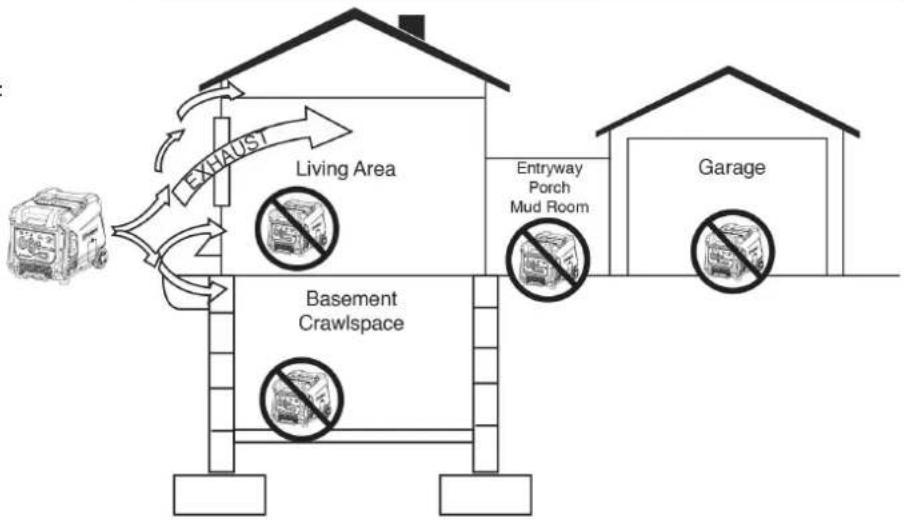

• Direct exhaust away from occupied spaces INCORRECT USE Do not operate in any of the following locations:

• Mudroom SAFETY INSTRUCTIONS6 | Westinghouse Outdoor Power Equipment SAFETY

GENERAL SAFETY PRECAUTIONS

• NEVER use the generator to power medical support equipment.

• DO NOT operate the generator when you are tired or under the inuence of drugs, alcohol, or medication.

• When this generator is used to supply a building wiring system the generator must be installed by a qualied electrician and connected to a transfer switch as a separately derived system in accordance with NFPA 70, National Electrical Code.

• Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specic home and/or wind conditions may require additional distance.

• If you begin to feel sick, dizzy, or weak while using the generator, move to fresh air IMMEDIATELY. See a doctor, as you can have carbon monoxide poisoning.

• While operating and storing, keep at least ve feet of clearance on all sides of the generator, including overhead. Allow the generator to cool a minimum of 30 minutes before storage. Heat created by the mufer and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.

• DO NOT use generator with electrical cords which are worn, frayed, bare, or otherwise damaged.

• All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be double-insulated.

• DO NOT touch the mufer or engine. They are very HOT and will cause severe burns. DO NOT put body parts or any ammable or combustible materials in the direct path of the exhaust.

• ALWAYS remove any tools or other service equipment used during maintenance away from the generator before operating.

• Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water. FUEL SAFETY

• Store fuel in a container approved for gasoline.

• DO NOT smoke when lling the generator with gasoline.

• Wear eye protection while refueling.

• NEVER remove the fuel cap when the generator is running. Shut off the engine and allow the unit to cool at least two minutes. Remove the fuel cap slowly to release pressure, keep fuel from escaping around the cap, and to avoid the heat from the mufer igniting fuel vapors. Tighten the fuel cap securely after refueling.

• NEVER overll the fuel tank. Leave room for fuel to expand. Overlling the fuel tank can result in a sudden overow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.

• Spilled fuel can ignite. If fuel is spilled on the generator, wipe up any spills immediately. Dispose of rag properly. Allow area of spilled fuel to dry before operating the generator.

• DO NOT allow the generator’s gas tank to overow when lling.

• Store any containers containing gasoline or LPG/ propane in a well-ventilated area, away from any combustibles or source of ignition.

GASOLINE AND GASOLINE VAPOR

Fire and explosion hazard. Gasoline and LPG/propane are highly explosive and ammable and can cause severe burns or death.

• Gasoline is highly ammable and explosive.

• Gasoline can cause a re or explosion if ignited.

• Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin.

• Gasoline has a distinctive odor, this will help detect potential leaks quickly.

• In any petroleum gas re, ames should not be extinguished unless by doing so the fuel supply valve can be turned OFF. This is because if a re is extinguished and a supply of fuel is not turned OFF, then an explosion hazard could be created.

• Gasoline expands or contracts with ambient temperatures. Never ll the gasoline tank to full capacity, as gasoline needs room to expand if temperatures rise.Westinghouse Outdoor Power Equipment | 7 SAFETY LIQUID PETROLEUM GAS (LPG/PROPANE) Fire and explosion hazard. NEVER use a gas container, LPG/propane connector hose, LPG/propane tank or any other fuel item that appears to be damaged. Fire and explosion hazard. Only use approved LPG/ propane tanks with an Overlling Prevention Device (OPD) valve. ALWAYS keep the tank in a vertical position with the valve on top and placed at ground level on a at surface. DO NOT allow tanks to be near any heat source. When transporting and storing, turn the propane tank valve to the fully closed position and disconnect the tank. Make sure to ALWAYS cover the generator inlet and tank outlet with protective plastic caps.

• LPG/Propane is highly ammable and explosive.

• Flammable gas under pressure can cause a re or explosion if ignited.

• LPG/Propane can settle in low places because it is heavier than air.

• LPG/Propane has a distinctive odor added to help detect potential leaks.

• ALWAYS keep a LPG/Propane tank in an upright position.

• When exchanging LPG/propane tanks, be sure the tank valve is the same type.

• In case of a LPG/propane re, DO NOT attempt to extinguish unless the fuel supply can be shut off safely.

• LPG/propane will burn the skin. Prevent skin contact at all times.

• Keep the propane tank away from the generator exhaust.

• Large (500 – 1000 gallon) LPG/propane tanks will require a certied plumber to install the fuel line to the generator and the loose regulator is not used (the regulator that is attached to the fuel tank). The pressure as measured at the regulator mounted to the generator must be 7” to 14” of water column. A certied plumber must ensure that the pressure is correct or install a step down regulator if needed. Fire and explosion hazard. If there is a strong smell of propane while operating the generator, fully close the LPG/propane tank valve immediately. Once the propane is off, use soapy water to check for leaks on the hose and connections on the tank valve and the generator. DO NOT smoke or light a cigarette or check for leaks using any open ame source such as a match or lighter. If a leak is found, contact a qualied technician to inspect and repair the LPG/propane system before using the generator. When starting the generator:

• Make sure that the fuel cap, air lter, spark plug, fuel lines, and exhaust system are properly in place.

• If you spill any gasoline on the tank, allow it to fully evaporate before operating.

• Make sure the generator and LPG/propane tank are on a at surface before operating.

• If there is a propane odor DO NOT start the unit because there may be a potential leak. NEVER place a LPG/ propane tank near the engine exhaust. When transporting or servicing the generator:

• Make sure the LPG/propane tank and LPG/propane hose are not attached to the generator.

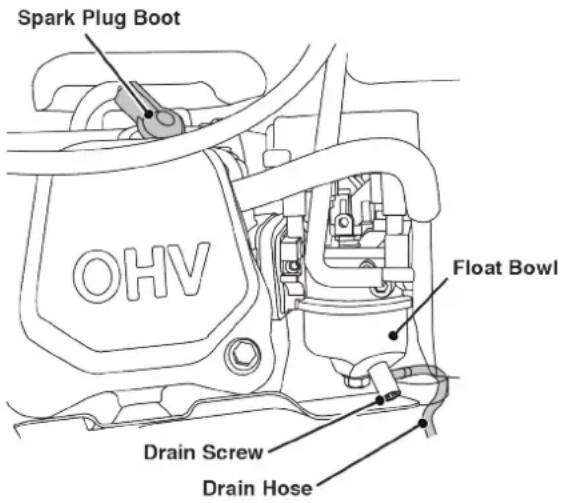

• Disconnect the spark boot to prevent accidental starting. When storing the generator:

• Store away from sparks, open ames, pilot lights, heat, and other sources of ignition.

• DO NOT store gas or a LPG/propane tank near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.8 | Westinghouse Outdoor Power Equipment SAFETY

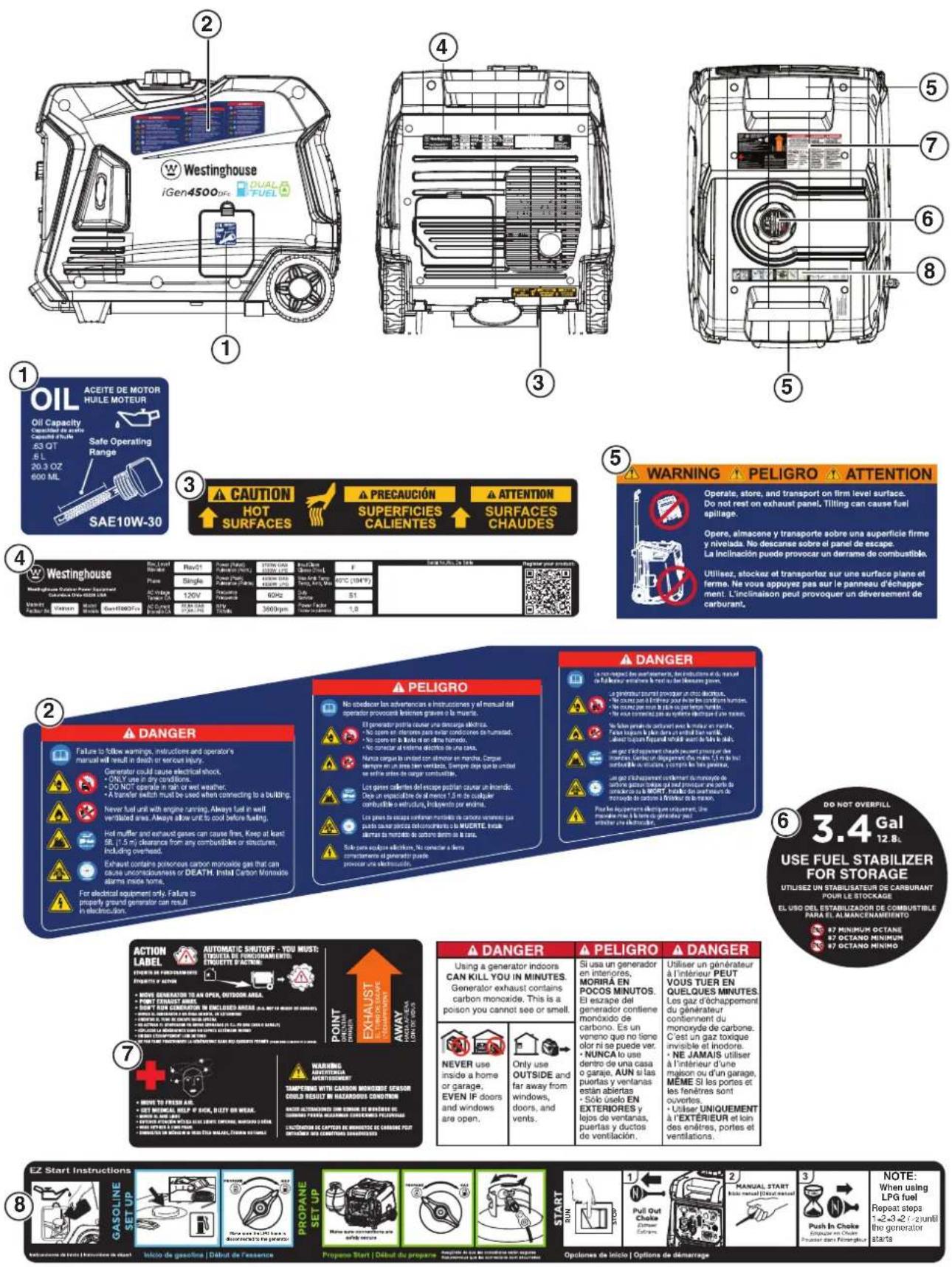

SAFETY LABELS AND DECALS

RUN STOP Make sure the LPG hose is disconnected to the generatorWhen using LPG fuel NOTE: Repeat steps 1 2 3 2 (×2)until the generatorstarts

2Westinghouse Outdoor Power Equipment | 9 CO SENSOR The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine. The CO Sensor will also detect the accumulation of carbon monoxide from other fuel burning sources used in the area of operation. For example, if the exhaust of fuel burning tools is pointed at a CO Sensor-equipped generator, a shut-off may be initiated due to rising CO levels. This is not an error. Hazardous carbon monoxide has been detected. Move and redirect any additional fuel burning sources to dissipate carbon monoxide away from personnel and occupied buildings. Note: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs. Generators are intended to be used outdoors, far from occupied buildings and the exhaust pointed away from personnel and buildings. If misused and operated in a location that results in the accumulation of CO, like in a partially enclosed area, the CO Sensor shuts off the engine and the RED indicator light will ash notiying the user that there are unsafe levels of carbon monoxide. If the generator shuts off and the RED indicator light ashes, leave the area immediately. Wait for the carbon monoxide to dissipate and the RED indicator light to turn off before returning to the affected area. Once it is safe to return, read the Action Label for further steps to take. The CO Sensor DOES NOT replace carbon monoxide alarms. Install battery-powered carbon monoxide alarm(s) in your home. Automatic shutoff accompanied with a ashing RED light in the CO Sensor portion of the control panel is an indication that the generator was improperly located. If you start to feel sick, dizzy, weak, or carbon monoxide detectors in your home indicate an alarm, get to fresh air immediately. Call emergency services. You may have carbon monoxide poisoning. ACTION LABEL

Color Description RED Unsafe levels of carbon monoxide ac- cumulated around the generator. After shut-off, the RED indicator light in the CO Sensor area of the control panel will flash to provide notification that the generator was shut-off due to carbon monoxide levels rising above a safe threshold. The RED light will flash for at least five minutes after a CO shut-off. When it is safe to do so, move the genera- tor to an open, outdoor area far away from occupied spaces with exhaust pointed away. Once relocated to a safe area and the red light is off, the generator can be restarted. Introduce fresh air and ventilate the area where the generator had shut down. YELLOW A CO sensor system fault occurred. When a system fault occurs, the generator is automatically shut down and the YELLOW indicator light in the CO auto-shutoff area of the control panel will ash to provide notication that a fault has occurred. The YELLOW light will ash for at least ve minutes after a fault. The generator can be re-started, but may continue to shutoff. A CO sensor fault can only be diagnosed and repaired by an authorized Westinghouse service center. SAFETY10 | Westinghouse Outdoor Power Equipment COMPONENTS GENERATOR COMPONENTS

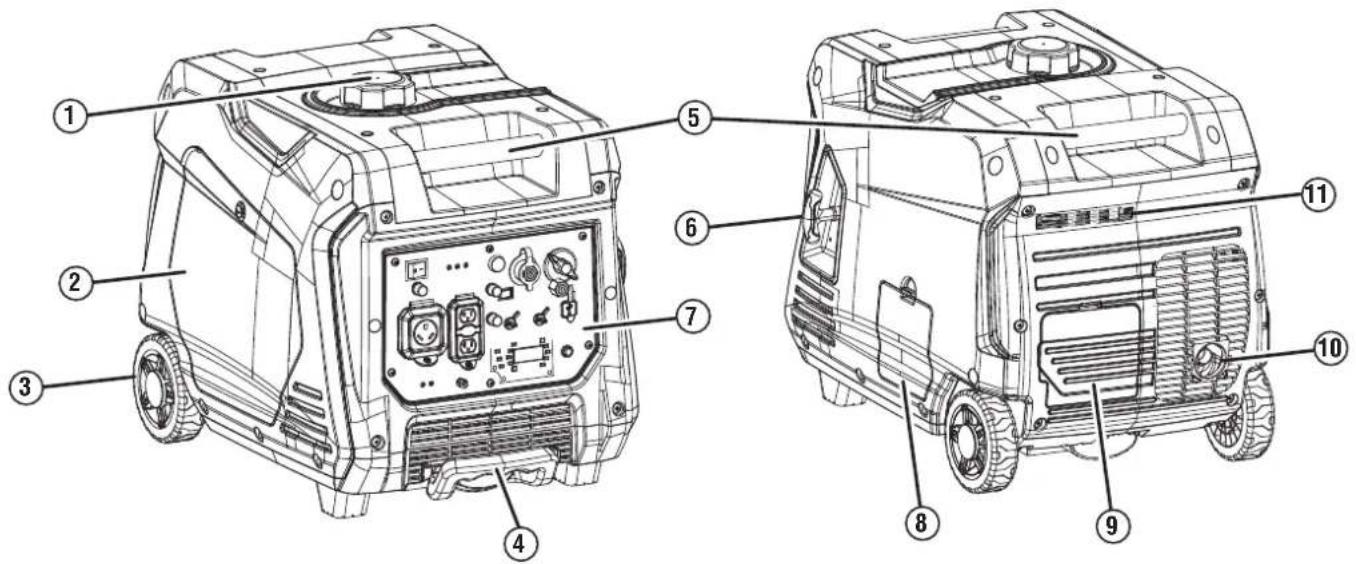

1. Fuel Cap: Add unleaded fuel here. Close the cap

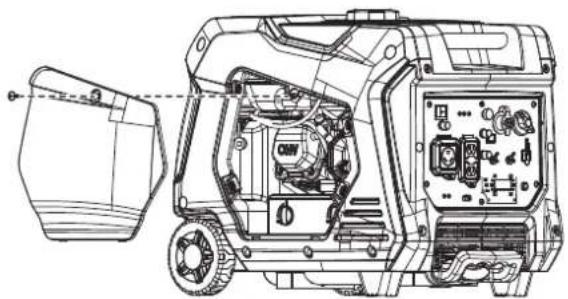

2. Engine Service Cover: Cover provides access to

the engine, air cleaner, carburetor, and spark plug.

3. Transport Wheels: Wheels allow one-handed

maneuverability when used with the extendable handle.

4. Extendable Handle: Extend and retract the handle

by pushing the locking button.

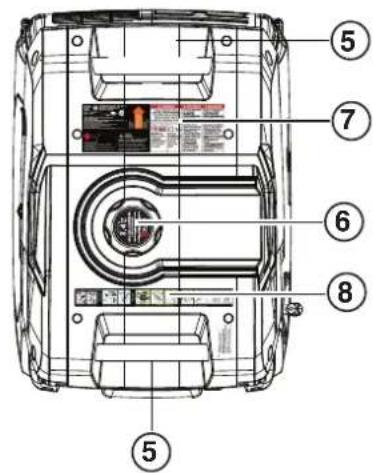

5. Carry Handles: Built-in handles allow easy, two-

6. Recoil Handle: Pull the recoil handle to manually

7. Control Panel: The control panel contains the

outlets and operational controls.

8. Oil Access Cover: Cover provides access to the

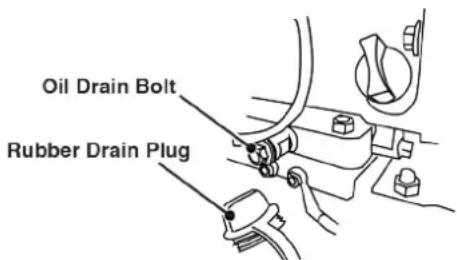

oil ll cap/dipstick and oil drain plug.

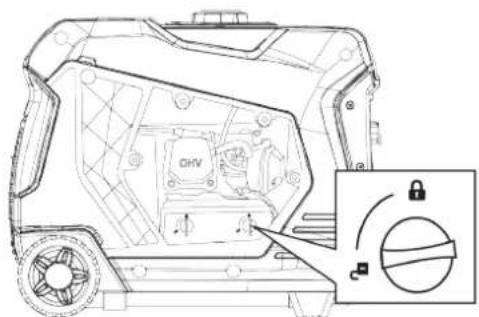

9. Battery Access Cover: Cover provides access to

the battery and quick-connect plug.

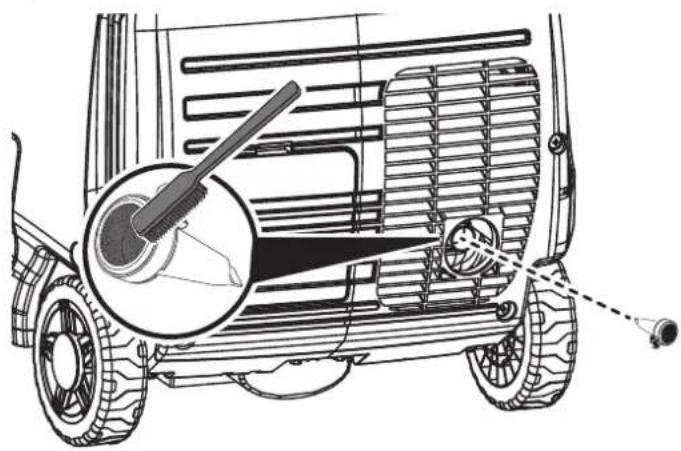

10. Mufer and Spark Arrestor: The spark arrestor

prevents sparks from exiting the mufer.

11. Model Information Label: Provides model

serial number, voltage/amps, and power rating information.

The fuel remaining and power output percentage LEDs are displayed continuously. Press the Mode button to cycle through data display modes.

1Westinghouse Outdoor Power Equipment | 11

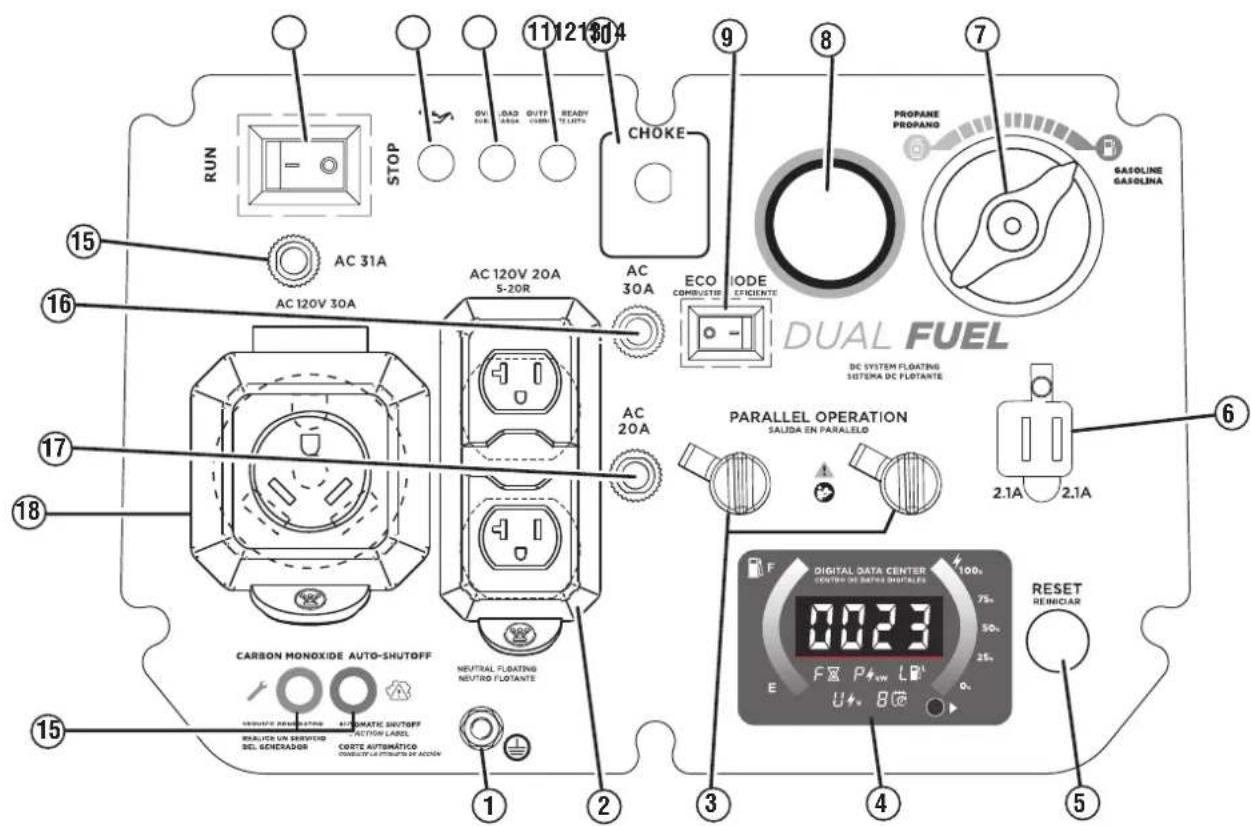

1. Ground Terminal: The ground terminal is used to

externally ground the generator.

2. 120 Volt AC, 20 Amp Duplex NEMA 5-20R Receptacle:

Receptacle can supply a maximum of 20 Amps.

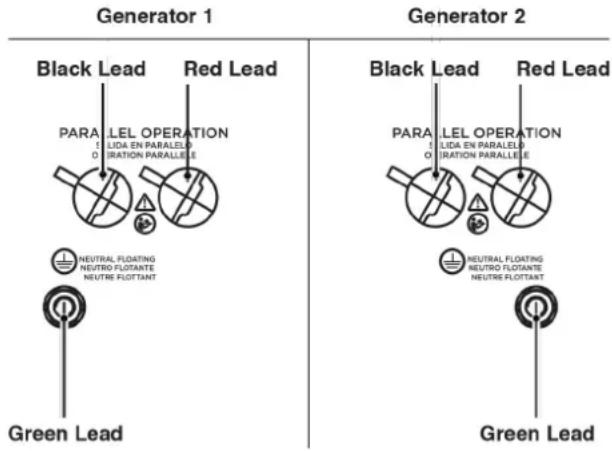

3. Parallel Operation Outlets: A compatible Westinghouse

Inverter Generator can be connected for additional power output.

4. LED Data Center: Displays remaining run time (F), power

output in kW (P), fuel level in liters (L), voltage output (V), and lifetime hours.

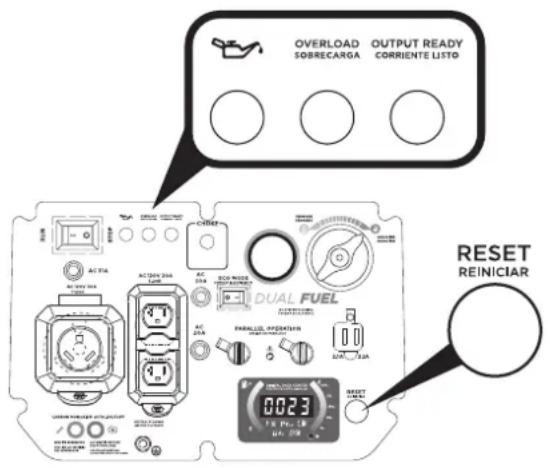

5. Overload Reset: The generator inverter will automatically

switch OFF all AC output to protect the generator if overloaded or if there is a short circuit in a connected appliance.

8. LPG/Propane Inlet: Connects a propane tank with the

included LPG/propane hose.

9. Eco Mode: Eco mode minimizes fuel consumption and

noise by adjusting the engine RPM to the minimum required for the current load.

10. Choke knob: Pull to choke and push in to run after the

11. Low Oil LED: Indicates low oil level. When the oil level

in the crankcase falls below the safe operating limit, the low oil level indicator will illuminate and the generator will automatically shut off the engine.

12. Overload LED: Indicates that the generator is overloaded.

13. Output Ready LED: Illuminates when the generator is

operating normally. Indicates the generator is producing electrical power at the receptacles.

14. Engine Control Switch: Move to STOP to stop the engine.

Move to RUN before starting engine.

15. Main Circuit Breaker: The main circuit breaker controls

total output of all outlets to protect the generator from overload or short circuit.

16. 30 Amp AC Circuit Breaker: Circuit breaker limits the

current that can be delivered through the NEMA TT-30 receptacle to 30 Amps.

17. 20 Amp AC Circuit Breaker: Circuit breaker limits the

current that can be delivered through the NEMA 5-20R receptacle to 20 Amps.

18. 120 Volt AC, 30 Amp NEMA TT-30R Receptacle:

Receptacle can supply a maximum of 30 Amps.

19. CO Sensor indicator lights: The CO Sensor monitors

for the accumulation of poisonous carbon monoxide gas. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine.

1512 | Westinghouse Outdoor Power Equipment ASSEMBLY CARTON CONTENTS Weight hazard. Always have assistance when lifting the generator.

1. Carefully open the carton.

2. Remove and save the instruction manual, oil bottle, oil

funnel, LPG/propane hose, spark plug socket wrench, and battery charger.

3. Remove and discard the packing tray.

4. Unfold the top of the plastic bag enclosing the generator.

5. Carefully cut the vertical corners of the carton to access

6. Recycle or dispose of the packaging materials properly.

• LPG/propane hose with regulator

• 0.63 Quart (0.6 Liter) bottle of SAE 10W-30 Oil

• Spark plug socket wrench

• Screwdriver If any parts are missing, contact our service team at [e-mail] or call 1-855-944-3571.

THIS GENERATOR HAS BEEN SHIPPED WITHOUT

OIL. Do not attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage. NOTICE Use of 2-stroke/cycle oil or other unapproved oil types can cause severe engine damage that is not covered under warranty. The included and recommended oil type for typical use is 10W-30 engine oil. If running the generator in extreme temperatures, refer to the following chart.

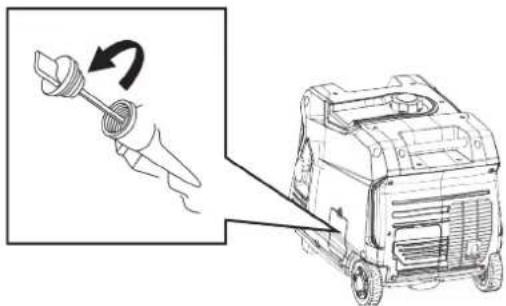

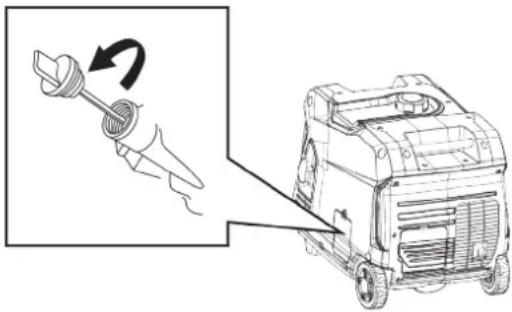

1. On a level surface, remove the oil access cover and oil

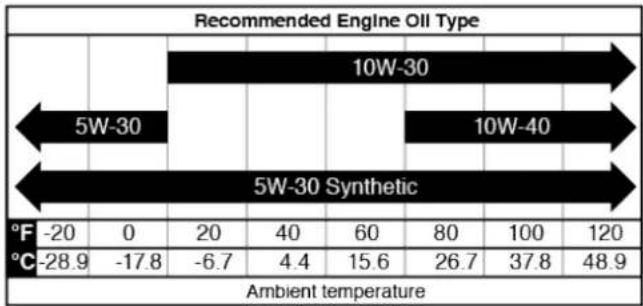

2. Using the supplied funnel and oil, add oil into the engine.

Note: As residual oil from the factory may remain in the engine, add the oil incrementally near the end of the bottle to prevent overlling the engine. See Engine Oil Level Check in the Maintenance section.

3. Check the oil level to be sure it is in the correct operating

range. See Engine Oil Level Check in the Maintenance section.

4. Wipe the oil dipstick clean. Replace the oil dipstick and

5. Replace the oil access cover.

6. Use supplied engine oil for break-in period.Westinghouse Outdoor Power Equipment | 13

ASSEMBLY FUEL Fire and explosion hazard. Never use a gasoline container, gasoline tank, propane connector hose, propane tanks, or any other fuel item that is broken, cut, torn or damaged. Fire and explosion hazard. Do not overll fuel tank. Fill only to the red ll ring located in the in-tank fuel screen lter. Overlling may cause fuel to spill onto engine causing a re or explosion hazard. Fire and explosion hazard. NEVER refuel the generator while the engine is running. ALWAYS turn the engine off and allow the generator to cool for two minutes before refueling. NOTICE DO NOT use E15 or E85 fuel in this product. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty. Only use unleaded gasoline containing up to 10% ethanol. FUEL REQUIREMENTS

• CLEAN, FRESH, unleaded gasoline, 87–93 octane.

• Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended).

• Do not use E85 or E15.

• Do not use a gas oil mix.

• Do not modify the engine to run on alternate fuels.

• Do not fuel indoors. DO NOT create a spark or ame while fueling.

USING FUEL STABILIZER

Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer’s instructions for use. ALWAYS mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for ve minutes to allow the stabilizer to treat the entire fuel system.

FILLING THE FUEL TANK

1. Turn the generator OFF and allow to cool for a minimum

of two minutes before fueling.

2. Place the generator on level ground in a well ventilated

3. Clean area around fuel cap and remove the cap slowly.

NOTICE Only ll the tank from an approved gasoline container. Make sure the gasoline container is internally clean and in good condition to prevent fuel system contamination.

4. Slowly add the recommended fuel. DO NOT overll. Fill

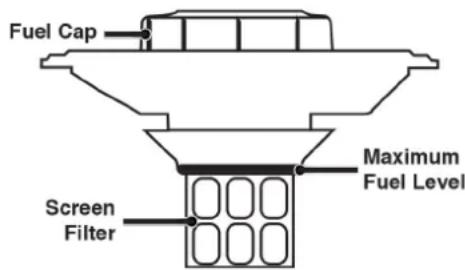

only to the red maximum ll ring on the fuel screen lter visible in the ller neck.

5. Install the fuel cap.

NOTICE Fuel can damage paint and plastic. Use caution when lling the fuel tank. Damage caused by spilled fuel is not covered under warranty. NOTICE Clean the fuel screen lter of debris before and after each fueling. Remove the fuel screen lter by slightly compressing it while removing it from the fuel tank.

• The LPG/propane tank can be of any capacity but the tank must conform to the standard as listed in Fuel Safety section.

• Propane tanks that use liquid withdrawal system can not be used on these models.

• Verify the re-qualication date on the tank has not expired.

• DO NOT use included LPG/propane hose for any other appliances.14 | Westinghouse Outdoor Power Equipment ASSEMBLY NOTICE

• All new tanks must be purged of air and moisture prior to lling. Used tanks that have not been plugged or kept closed must also be purged. The purging process should be done by a propane supplier (Tanks from an exchange supplier should have been purged and lled properly).

• ALWAYS position the tank so the connection between the valve and the gas inlet will not cause sharp bends or kinks in the hose. Explosion hazard. DO NOT start generator if you smell propane. ALWAYS fully close the propane tank valve and disconnect the LPG/propane hose from the generator when not in use.

1. Turn the generator OFF and place on a at surface in a

well ventilated area.

2. Verify that the propane tank valve is in the fully closed

3. Remove the cover on the generator propane inlet valve.

4. Use your ngers to hand thread the LPG/propane hose

(included) to the propane inlet on the generator. IMPORTANT: DO NOT use thread seal tape or any other type of sealant to seal the LPG/propane hose connection.

5. Tighten the LPG/propane hose connector to the

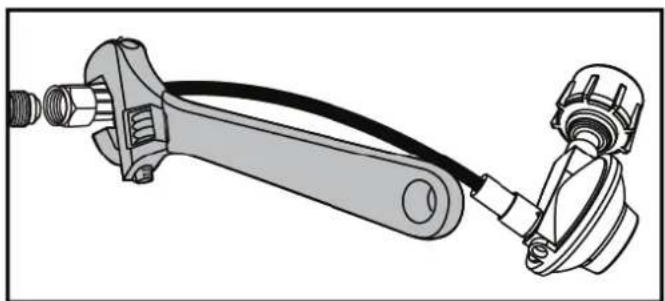

generator with a 19 mm or adjustable wrench. DO NOT over-tighten. Torque: 5-10 lb-ft.

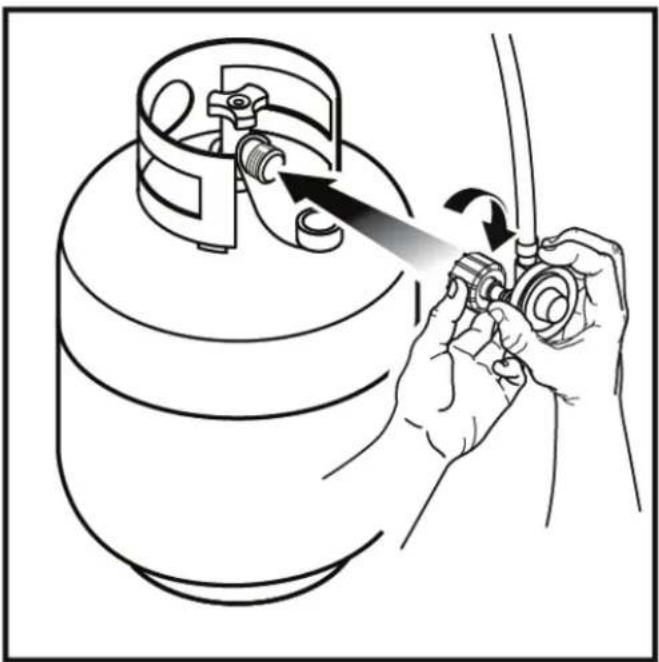

6. Remove the safety plug or cap from the propane tank

valve and attach the other end of the hose to the LPG/ propane connector on the tank. Hand-tighten.

7. Turn the propane tank valve to the fully open position.

Check all connections for leaks by wetting the ttings with a solution of soap and water. Bubbles which appear or bubbles which grow indicate that a leak exists. If a leak exists at a tting, turn the propane tank valve to the fully closed position and tighten the tting. Open the propane tank valve and recheck the tting with the soap and water solution. If the leak continues or if the leak is not at a tting then DO NOT use the generator and contact customer service.Westinghouse Outdoor Power Equipment | 15 OPERATION GENERATOR LOCATION Read and understand all safety information before starting the generator. NEVER operate the generator inside any building, including garages, basements, crawlspaces, sheds, enclosure, or compartment, including the generator compartment of a recreational vehicle. Electrocution hazard. NEVER use the generator in a location that is wet or damp. NEVER expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution Fire hazard. Only operate the generator on a solid, level surface. Operating the generator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could block cooling vents or the air intake system. Allow the generator to cool for 30 minutes before transport or storage. The generator should be on a at, level surface at all times (Even while not in operation). The generator must have at least 5 ft. (1.5 m) of clearance from all combustible material. DO NOT operate the generator in the back of a SUV, camper, trailer, truck bed (regular, at, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the mufer. DO NOT contain generators during operation. Asphyxiation hazard. Place the generator in a well- ventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or conned spaces. Carefully consider wind and air currents when positioning the generator. GROUNDING Shock hazard. Failure to properly ground the generator can result in electric shock. NOTICE Only use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances. The generator neutral is oating. The generator ground terminal is connected to the frame of the generator, the metal non-current-carrying parts of the generator, and the ground terminals of each receptacle. The generator (stator winding) is isolated from the frame and from the AC receptacle ground pin. Electrical devices that require a grounded receptacle pin connection may not function properly. If this generator will be used only with cord and plug equipment connected to the receptacles mounted on the generator, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution. Before using the ground terminal, consult a qualied electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

HIGH ALTITUDE OPERATION

Engine power is reduced the higher you operate above sea level. Output will be reduced approximately 3.5% for every 1000 feet of increased altitude from sea level. High altitude adjustment is required for operation at altitudes over 5,000 ft. (1524 m). Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions. NOTICE DO NOT operate the generator at altitudes below 2,000 ft. (762 m) with the high altitude kit installed. Engine damage may occur. High Altitude Carburetor Kit: Part# 518965 High Altitude DF Regulator: Part# 51851616 | Westinghouse Outdoor Power Equipment Note: You must purchase both the Dual Fuel Regulator and Carburetor Kit for proper high altitude operation.

FUEL SELECTOR SWITCH

Position the fuel selector switch on the front control panel to the desired fuel choice. Turn the fuel selector switch fully to the right for gasoline operation. Turn the fuel selector switch fully downward for propane operation. BREAK-IN PERIOD For proper break-in, DO NOT exceed 50% of the rated running watts (1850 watts) during the rst ve hours of operation.Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings.

• The generator is placed in a safe, appropriate location.

• The generator is on a dry, at, and level surface.

• The engine is lled with oil.

• All loads are disconnected.

• The ECO Mode switch is in the OFF position. Fire and explosion hazard. DO NOT move or tip the generator during operation.

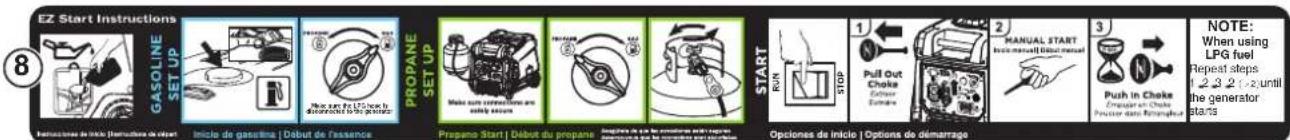

STARTING THE ENGINE: GASOLINE

1. Verify that fuel is in the gas tank.

2. Turn the fuel selector switch on the control panel

to gasoline operation. Make sure the LPG hose is disconnected from the generator.

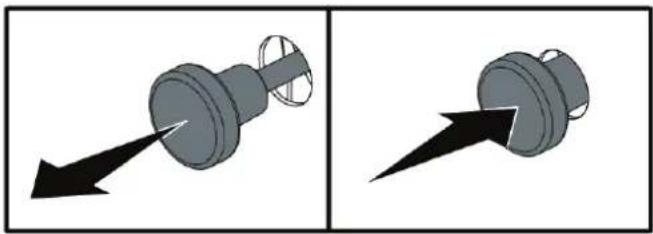

3. Pull the choke knob out completely to the CHOKE

4. Place the RUN/STOP switch in the RUN position.

5. Firmly grasp and pull the recoil handle slowly until you

feel increased resistance, then pull rapidly.

6. After starting, allow the engine to run for several seconds

then move the choke to the fully OFF position.

STARTING THE ENGINE: PROPANE

Fire and explosion hazard. ALWAYS turn the propane tank valve to the fully closed position if not running the generator on propane.

1. Make sure the LPG/propane hose is correctly connected

to the generator and propane tank.

2. Turn the fuel selector switch to propane operation.

3. Fully open the valve on the propane tank.

4. Pull the choke knob out completely to the CHOKE

5. Place the RUN/STOP switch in the RUN position.

6. Firmly grasp and pull the recoil handle slowly until you

feel increased resistance, then pull rapidly.

7. After starting, allow the engine to run for several seconds

then move the choke lever to the fully OFF position. Note: If the unit fails to start, repeat steps 4 through 7. OPERATIONWestinghouse Outdoor Power Equipment | 17 OPERATION

SWITCHING FUEL SOURCES

Fire and explosion hazard. DO NOT add gasoline to the fuel tank or connect the LPG/propane hose to the generator while the generator is in operation. The fuel source can be switched while the engine is running if a propane tank is connected to the generator BEFORE operation.

IMPORTANT: Load capacity is reduced when running on propane. Make sure the generator can supply enough (running) and surge (starting) watts for the items you are powering before switching to propane.

1. Fully open the valve on the propane tank.

2. Turn the fuel selector switch to propane operation.

3. Turn the fuel selector switch to gasoline operation.

4. Turn the propane tank valve to the fully closed position.

Note: When switching to propane operation the engine may run rough for a few seconds while it purges gasoline in the carburetor. If the engine stops when switching fuel sources, disconnect all loads then restart the unit on the fuel source of choice.

1. Turn off and unplug all connected electrical loads.

NOTICE Never start or stop the generator with electrical devices connected. Doing so may result in damage to the device plugged in and/or generator.

2. Let the generator run with no load for several minutes to

stabilize internal temperatures of the engine.

3. Push the RUN/STOP switch to the Stop position.

Note: Alternately, if the generator is used infrequently, turn the fuel tank valve to the OFF position to limit the residual fuel remaining in the carburetor oat bowl. The engine will stop when fuel in the carburetor and fuel line is exhausted.

4. If operating on propane, turn the propane tank valve to

the fully closed position.

If the generator will be used on an infrequent or intermittent basis (more than one month before next use), refer to the storage section of this manual for information regarding fuel deterioration.

The circuit breakers will automatically switch OFF if there is a short circuit or a signicant overload of the generator at each receptacle. If an AC circuit breaker switches OFF automatically, check that the appliance is working correctly and it does not exceed the rated load capacity of the circuit before resetting the AC circuit breaker ON. ECO MODE NOTICE Always start the generator with ECO MODE OFF. Allow the engine speed to stabilize and the OUTPUT READY LED to illuminate before switching ECO MODE ON. Note: Do not use ECO MODE when in parallel operation with another Westinghouse generator. ECO MODE minimizes fuel consumption and noise by adjusting the engine RPM to the minimum required for the current load. Turn ECO MODE ON when powering small appliances with continuous loads such as a computer or electric light. Turn ECO MODE OFF when powering large surge loads such as an air conditioner or electric pump. To turn on ECO MODE, verify that the OUTPUT READY LED is illuminated green, then push the switch to the ON position. If no load is present, the generator RPM will drop to idle speed. The generator will detect loads as they are applied and increase engine RPM. To run the generator at maximum power and RPM, push the ECO MODE switch to the OFF position.18 | Westinghouse Outdoor Power Equipment OVERLOAD RESET The generator will automatically switch OFF all AC output to protect the generator if overloaded or if there is a short circuit in a connected appliance. However, the engine will continue to run. Marginal overloading that temporarily illuminates the OVERLOAD LED may shorten the service life of the generator. OVERLOAD on the control panel will illuminate red and the green OUTPUT READY will be OFF. To restore AC output:

1. Turn off and unplug all connected electrical loads.

2. Push the RESET button on the control panel until the

OVERLOAD LED goes OFF and the OUTPUT READY LED is illuminated.

3. Reset the circuit breakers if OFF.

4. Verify that the intended running and surge loads do not

exceed the generator’s capacity.

5. Reconnect electrical loads sequentially, allowing the

generator to stabilize after each load is connected. GENERATOR CAPACITY NOTICE DO NOT overload the generator’s capacity. Exceeding the generator’s wattage/amperage capacity can damage the generator and/or electrical devices connected to it. Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time. The total power requirements (Volts x Amps = Watts) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model or serial number. To determine power requirements:

1. Select the items you will power at the same time.

2. Total the continuous (running) watts of these items. This

is the amount of power the generator must produce to keep the items running. See the wattage reference chart.

3. Estimate how many surge (starting) watts you will need.

Surge wattage is the short burst of power needed to start electric motor-driven tools or appliances such as a circular saw or refrigerator. Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2. Example: Tool or Appliance Running Watts* Starting Watts* RV Air Conditioner (11,000 BTU) 1010 1600 TV (Tube Type) 300 0 RV Refrigerator 180 600 Radio 200 0 Light (75 Watts) 300 0 Coffee Maker 600 0 2590 Total Running Watts*

Highest Starting Watts* Total Running Watts 2590 Highest Starting Watts + 1600 Total Starting Watts Needed 4190 *Wattages listed are approximate. Verify actual wattage. OPERATIONWestinghouse Outdoor Power Equipment | 19 OPERATION POWER MANAGEMENT To prolong the life of the generator and attached devices, use care when adding electrical loads to the generator. There should be nothing connected to the generator outlets before starting the engine. The correct and safe way to manage generator power is to sequentially add loads as follows:

1. With nothing connected to the generator, start the

engine as described in this manual.

2. Plug in and turn on the rst load, preferably the largest

smoothly and attached device operates properly).

4. Plug in and turn on the next load.

5. Again, permit the generator to stabilize.

6. Repeat steps 4 and 5 for each additional load.

Miter Saw (10”) 1800 1800 Table Saw (10”) 2000 2000 *Wattages listed are approximate. Verify actual wattage. EXTENSION CORDS Asphyxiation hazard. Extension cords running directly into the home increase the risk of carbon monoxide poisoning through any openings. If an extension cord running directly into your home is used to power indoor items, there is a risk of carbon monoxide poisoning to people inside the home. Always use battery-powered carbon monoxide detector (s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector (s) battery. Asphyxiation hazard. When operating the generator with extension cords, make sure the generator is located in an open, outdoor area, far away from occupied spaces with exhaust pointed away. Fire and electrocution hazard. Never use worn or damaged extension cords. Damaged or overloaded extension cords could overheat, arc, and burn resulting in death or serious injury. Before connecting an AC appliance or power cord to the generator:

• Use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.

• Make sure the tool or appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock.

• Make sure the electrical rating of the tool or appliance does not exceed the rated power of the generator or the receptacle being used.20 | Westinghouse Outdoor Power Equipment

EXTENSION CORD SIZING

Only use grounded 3-prong extension cords marked for outdoor use that are rated for the electrical load. PARALLEL OPERATION Fire and electrocution hazard. Never connect or disconnect the parallel cord leads when a generator is running. Correct connection of the left and right cables is very important when the generators are used with a transfer switch to supply power to a bulding. To avoid serious personal injury or damage to electrical devices, including the generators, do not try to power an electrical system in a building without using an approved transfer switch NOTICE Connecting the iGen4500DFc to a generator that is not compatible can cause a low voltage output that can damage tools and appliances powered by the generator. Parallel operation gives you the ability to link the iGen4500DFc to a compatible Westinghouse Inverter Generator for combined running and peak power output. A Westinghouse parallel cord (purchased separately) is required for parallel operation. This cord can be purchased from an authorized Westinghouse Generator dealer. Note: Do not use ECO MODE when in parallel operation with another Westinghouse generator. Parallel cord (50A/6000 Watts): Part# 507PC Note: Compatible Westinghouse generators without parallel ports can be operated in parallel with the receptacle-mounted parallel cable, Part# 260041.

1. Make sure the RUN/STOP switch and the ECO MODE

switch are in the OFF position.

2. Connect the black and red parallel cable leads to the

black parallel ports on each corresponding generator control panel as shown below. Connect the black lead to the left port, the red lead to the right port. Note: DO NOT connect two red leads or two black leads into the same generator.

3. Connect the green ground lead to the ground terminal

on each generator and tighten the nut.

4. Start one of the generators and wait until the OUTPUT

READY LED illuminates.

5. Start the second generator and wait until the OUTPUT

READY LED illuminates before connecting a load.

6. Connect additional loads as described in Power

Management on page 18.

7. Unplug all loads before stopping the generators.

OPERATIONWestinghouse Outdoor Power Equipment | 21 OPERATION TRANSPORTING Weight hazard. Always have assistance when lifting the generator.

• Allow the generator to cool a minimum of 30 minutes before transporting.

• If operating on LPG, turn the propane tank valve to the fully closed position.

• Disconnect the LPG/propane hose from the generator and propane tank.

• Replace all protective covers on the generator control panel.

• Only use the generator’s xed handle(s) to lift the unit or attach any load restraints such as ropes or tie-down straps. Do not attempt to lift or secure the generator by holding onto any of its other components.

• Keep the unit level during transport to minimize the possibility of fuel leakage or, if possible, drain the fuel or run the engine until the fuel tank is empty before transport.

• The generator wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.

• Use the extendable handle for one-person, hand transport. To deploy the handle, push on the locking button and pull on the handle until it’s fully extended. To stow it, push on the locking button and push on the handle until it’s fully retracted. Only extend or retract the handle while the generator is OFF, stationary, and resting on a horizontal surface. Do not use the extendable handle to lift the generator entirely off the ground, tow it, or up-end it. Fire hazard. Do not up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur.22 | Westinghouse Outdoor Power Equipment MAINTENANCE SCHEDULE Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs rst. More frequent service is required when operating in adverse conditions as noted below. Before Each Use Check engine oil After First 25 Hours or First Month Change engine oil After 50 Hours or Every 6 Months Change engine oil

After 100 Hours or Every 6 Months Inspect/clean spark arrestor Inspect/clean spark plug Replace fuel lter

Inspect/adjust valve clearance

Change oil every month when operating under heavy load or in high temperatures.

Clean more often under dirty or dusty conditions. Replace air lter if it cannot be adequately cleaned.

Recommend service to be performed by authorized Westinghouse service dealer.

MAINTENANCE REPLACEMENT PARTS

Remove the engine service cover to access the air lter, carburetor, and spark plug.

1. Remove the screw at the top of the cover.

2. Pull the cover straight out and downward with both

hands to prevent damage to the grommet posts on the cover. Place it to the side. To replace the cover:

1. Align the tabs at the bottom of the cover to the slots in

2. Next, align the posts and push gently into their locking

3. Install the screw and hand tighten to secure. Do not

Fire hazard. Never use gasoline or other ammable solvents to clean the air lter. Use only household detergent soap to clean the air lter. The air lter must be cleaned after every 50 hours of use or six months (frequency should be increased if the generator is operated in a dusty environment).

1. Place the generator on a level surface and allow the

engine to cool for several minutes.

2. Remove the engine service cover.

3. Turn the knobs on the air cleaner cover to the unlocked

position. Tip the cover down to remove. Note: The air lter element is oil soaked. Use an appropriate cleaning container. NOTICE Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water. MAINTENANCEWestinghouse Outdoor Power Equipment | 23 MAINTENANCE

4. Remove the foam air lter from the air cleaner housing

and wash it by submerging the element in a solution of household detergent soap and warm water. Slowly squeeze the foam to thoroughly clean. NOTICE DO NOT twist or tear the foam air lter element during cleaning or drying. Only apply slow but rm squeezing action.

5. Rinse the air lter element by submerging it in fresh

water and applying a slow squeezing action. Allow the lter to dry thoroughly. NOTICE Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

6. Dip the foam air lter in clean engine oil then squeeze

out all excess oil. The engine will smoke when started if too much oil is left in the lter.

7. Install the foam air lter in the housing and lock the air

cleaner cover in place.

8. Install the engine service panel.

Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water. NOTICE Always use the specied engine oil. Failure to use the specied engine oil can cause accelerated wear and/or shorten the life of the engine. When using the generator under extreme, dirty, dusty conditions or in extremely hot weather, change the oil more frequently. Ambient air temperature will affect engine oil performance. Change the type of engine oil used based on weather conditions. Check the engine oil level before each use or every 8 hours of operation.

1. Place the generator on a level surface and allow the

engine to cool for several minutes.

2. Remove the oil access cover.

3. With a damp rag, clean around the oil dipstick.

4. Remove the oil dipstick and wipe the dipstick clean.

5. Screw the dipstick fully into the ller neck. Remove

the dipstick and verify that the oil level is within safe operating range.

6. If low, add recommended engine oil incrementally and

recheck until the level is between the L and H marks on the dipstick. DO NOT overll. If over the full mark on dipstick, drain the oil to reduce oil level to the full mark on dipstick.

7. Replace the oil dipstick and hand-tighten.

8. Install the oil access cover.24 | Westinghouse Outdoor Power Equipment

Accidental start-up. Remove the spark plug boot from the spark plug when working on the generator. Also remove the battery quick-connect plug from the battery. When using the generator under extreme, dirty, dusty conditions or in extremely hot weather, change the oil more frequently. Change the oil while the engine is still warm from operation.

1. Place the generator on a level surface and allow the

engine to cool for several minutes.

2. Remove the engine service cover. Disconnect the spark

plug wire from the spark plug and place the wire where it cannot contact the spark plug.

3. Remove the oil access cover.

4. With a damp rag, clean around the oil dipstick. Remove

the dipstick and wipe clean.

5. Remove the rubber plug under the oil drain bolt and

place an oil pan (or suitable container) under the drain hole.

6. Using a 10mm wrench, remove the oil drain bolt and

allow the oil the to drain.

7. Install the oil drain plug and tighten securely. Install the

rubber plug. Note: A new oil drain plug crush washer is recommended at each oil change. Drain plug crush washer: Part# 94007

8. Slowly pour oil into the oil ll opening until oil the level

is between the L and H marks on the dipstick. Stop frequently to check the oil level. DO NOT overll. Maximum oil capacity: 0.63 US qt (0.60 L)

9. Replace the dipstick and hand-tighten.

10. Connect the spark plug wire and install the engine

service cover. NOTICE Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

SPARK PLUG MAINTENANCE

Inspect and clean the spark plug after every 100 hours of use or six months. Replace the spark plug after 300 hours of use or every year. NOTICE ALWAYS use the Westinghouse OEM or compatible non-resister-type spark plug. Use of resistor-type spark plug can result in rough idling, misre, or may prevent the engine from starting.

1. Place the generator on a level surface and allow the

2. Remove the engine service cover.

3. Remove the spark plug boot by rmly pulling the spark

boot directly away from the engine.

4. Clean the area around the spark plug.

5. Remove the spark plug with the included spark plug

socket wrench. NOTICE Never apply any side load or move the spark plug laterally when removing the spark plug.

6. Inspect the spark plug. Replace if electrodes are

pitted, burned, or the insulator is cracked. Only use a recommended replacement plug. Recommended Spark Plug Replacement Westinghouse Model NumberTorch NGK Bosch AutoliteiGen4500DFc F7RTC BPR7ES WR5D 62Westinghouse Outdoor Power Equipment | 25 MAINTENANCE

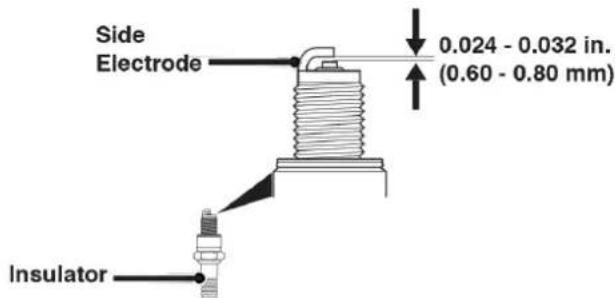

7. Measure the spark plug electrode gap with a wire-type

feeler gauge. If necessary, correct the gap by carefully bending the side electrode. Spark plug gap: 0.024 – 0.032 in. (0.60 – 0.80 mm)

8. Carefully install the spark plug nger tight, then tighten

as additional 3/8 to 1/2 turn with the spark plug wrench.

9. Install the spark plug boot and engine service cover.

SPARK ARRESTOR SERVICE

Check and clean the spark arrestor after every 100 hours of use or six months. Failure to clean the spark arrestor will result in degraded engine performance.

1. Place the generator on a level surface and allow the

mufer to cool before servicing the spark arrestor.

2. Remove the screw securing the spark arrestor bracket.

3. Remove the bracket screen, and spark arrestor from the

4. Gently clean the screen and spark arrestor screen using

5. Reinstall the spark arrestor, screen, and bracket. Tighten

the screw securely. Spark Arrestor: Part# 6790 STORAGE Proper storage preparation is required for trouble-free operation and generator longevity. NOTICE Gasoline stored for as little as 30 days can deteriorate, causing gum, varnish, and corrosive buildup in fuel lines, fuel passages and the engine. This corrosive buildup restricts the ow of fuel, which can prevent the engine from starting after a prolonged storage period. The use of fuel stabilizer signicantly increases the storage life of gasoline. Full-time use of fuel stabilizer is recommended. Follow the manufacturer’s instructions for use.

STORAGE TIME RECOMMENDED PROCEDURE

Less than 1 month No service required. 2 to 6 months Fill with fresh gasoline and add gasoline stabilizer. Drain the carburetor oat bowl. 6 months or longer Drain the fuel tank and carburetor oat bowl.

• Allow the generator to cool a minimum of 30 minutes before storage.

• If operating on LPG, turn the propane tank valve to the fully closed position and disconnect the LPG/propane hose from the generator and propane tank.

• Replace all protective covers on the generator control panel.

• Wipe the generator with a moist cloth. Clean any debris from the air inlets under the control panel and mufer cooling vents.

• Store the generator in a well-ventilated, dry location away from sparks, open ames, pilot lights, heat, and other sources of ignition such as areas with a spark- producing electric motor or where power tools are operated.

• Do not store the generator, gasoline, or propane tanks near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.

• With the engine and exhaust system cool and all surfaces dry, cover the generator to keep out dust. Do not use a plastic sheet as a dust cover. Non-porous materials trap moisture and promote rust and corrosion.

Even properly stabilized fuel can leave residue and cause corrosion if left long term. If storing the generator for two to six months, drain the oat bowl to prevent gum and varnish buildup in the carburetor.26 | Westinghouse Outdoor Power Equipment MAINTENANCE

DRAINING THE FLOAT BOWL

1. Remove the engine service cover.

2. Locate the drain hose extending from the bottom of the

carburetor oat bowl.

3. Place the loose end of the hose outside the generator

into an approved gasoline container to catch the drained fuel.

4. Loosen the oat bowl drain screw and allow the fuel to

drain. Tighten the oat bowl drain screw.

5. Route the drain hose between the air cleaner housing

and the engine service cover. Install the engine service cover.

DRAINING THE FUEL TANK

If storing the generator for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system.

1. Unscrew the fuel tank cap. Remove the fuel screen lter

by slightly compressing it while removing it from the tank.

2. Using a commercially available gasoline hand pump

(not included), siphon the gasoline from the fuel tank into an approved gasoline container. DO NOT use an electric pump.

3. Reinstall the fuel screen lter and the fuel tank cap.

4. Start the generator and allow it to run until the generator

5. Place the RUN/STOP switch in the OFF position.

6. Remove the spark plug.

7. Put a teaspoon of engine oil into the cylinder and pull the

recoil handle until resistance is felt. At this position the piston is coming up on its compression stroke and both valves are closed. Storing the engine in this position will help prevent internal corrosion. Return the recoil handle gently.

8. Reinstall the spark plug. Leave the spark plug boot

disconnected to prevent accidental starting.

9. Install the engine service cover.

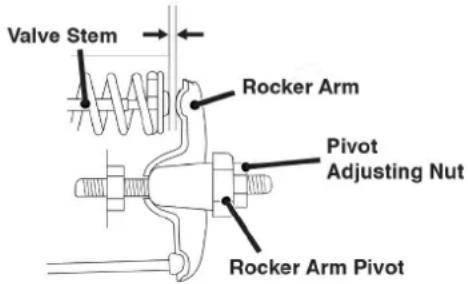

VALVE CLEARANCE NOTICE Checking and adjusting valve clearance must be done when the engine is cold.

1. Remove the rocker arm cover and carefully remove

the gasket. If the gasket is torn or damaged, it must be replaced.

2. Remove the spark plug so the engine can be rotated

3. Rotate the engine to top dead center (TDC) by pulling

the recoil handle slowly. Looking through the spark plug hole, the piston should be at the top (both valves are closed).

4. Both the rocker arms should be loose at TDC on the

compression stroke. If they are not, rotate the engine 360°.Westinghouse Outdoor Power Equipment | 27 MAINTENANCE

5. Insert a feeler gauge between the rocker arm and the

7. Turn the rocker arm pivot to obtain the specied

clearance. Hold the rocker arm pivot and re-tighten the pivot adjusting nut to the specied torque. Torque: 106 inch-pound (12 N•m)

8. Perform this procedure for the other valve.

9. Install the gasket, rocker arm cover, and spark plug.28 | Westinghouse Outdoor Power Equipment

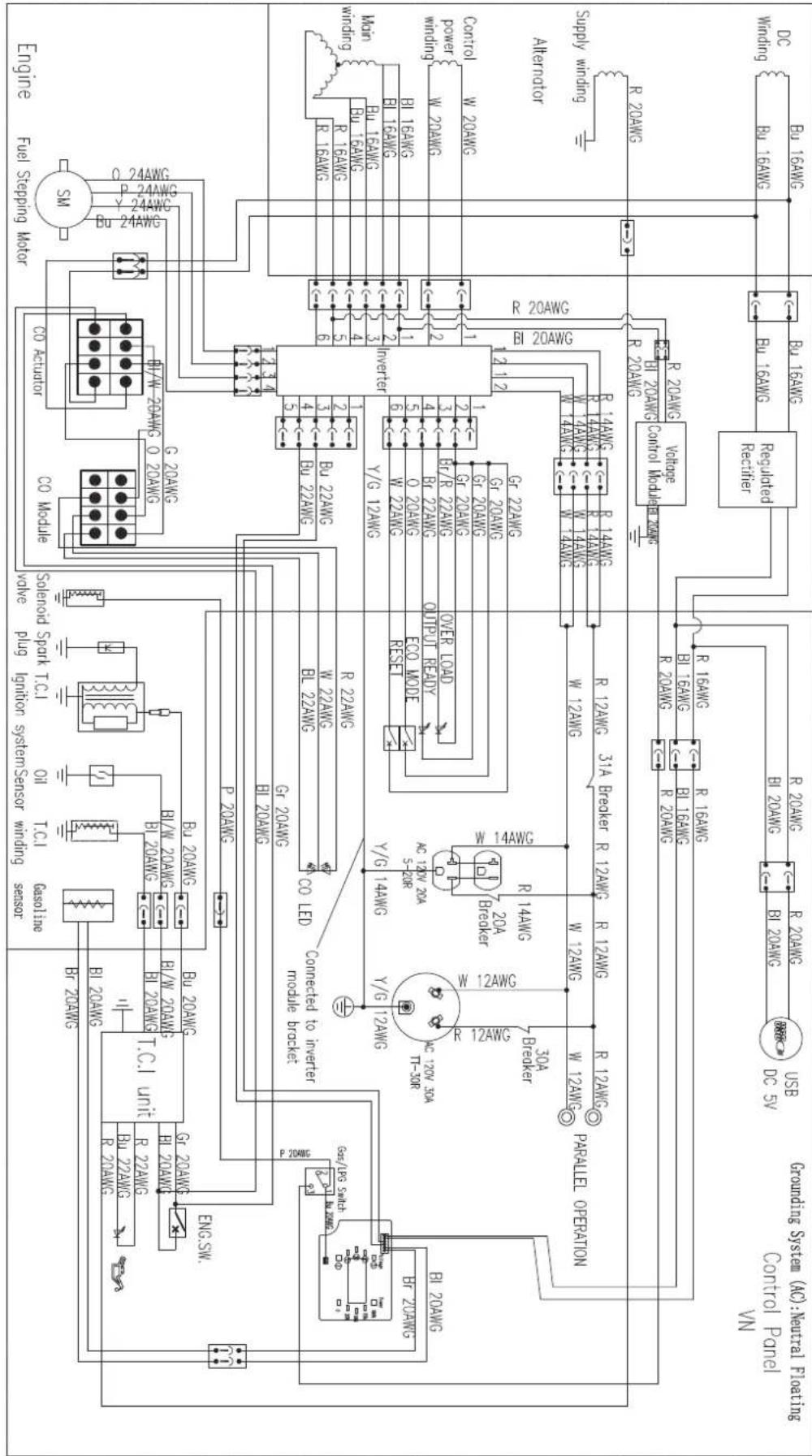

PROBLEM POSSIBLE CAUSE CORRECTION

Engine will not start Out of fuel. Refuel. Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline. Drain the fuel tank. Refuel with fresh gasoline. Dirty air lter. Clean the air lter. Low engine oil level stopped generator. Check engine oil level. Add engine oil if low. Spark plug wet with fuel (ooded engine). Wait ve minutes. Turn Run/Stop switch to the OFF position. Pull recoil handle rapidly several times. If the generator does not start, remove spark plug and dry. Spark plug faulty, fouled, or improperly gapped. Gap or replace the spark plug. Reinstall. Fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll- free at 1 [phone]. Choke partially open or closed. Fully open or close the choke. CO sensor removed or modied Return to original conguration CO sensor activated or system fault occurred Relocate generator/ Contact Westinghouse customer service toll free at 1 [phone]. Engine starts, then shuts down Out of fuel. Refuel. Incorrect engine oil level. Check engine oil level. Dirty air lter. Clean the air lter. Contaminated fuel. Drain the fuel tank. Refuel with fresh gasoline. Defective low oil level switch. Contact Westinghouse customer service toll- free at 1 [phone]. Engine lacks power Air lter restricted. Clean or replace air lter. Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline. Drain the fuel tank. Refuel with fresh gasoline. Fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll- free at 1 [phone]. Engine runs rough or bogs when load applied Dirty air lter. Clean the air lter. Generator overloaded. Unplug some devices. Faulty power tool or appliance. Replace or repair tool or appliance. Stop and restart the engine. Fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll- free at 1 [phone]. No power at AC receptacles AC circuit breaker’s tripped. Check AC loads and reset circuit breaker/s. Faulty power tool or appliance. Replace or repair tool or appliance. Stop and restart the engine. Faulty generator. Contact Westinghouse customer service toll- free at 1 [phone]. Frost on the propane tank or regulator If the temperature of the propane tank drops below the dew point, condensation on the tank may turn to frost or ice. This typically occurs in humid conditions. Providing all the propane fuel handling equipment is functioning normally, no correction is needed. The propane tank is not equipped with an Overlling Prevention Device (OPD). If you suspect your propane fuel tank is not equipped with an OPD device, discontinue operation immediately and replace the propane fuel tank with a propane tank equipped with a an OPD. Propane fuel tank overlled. If you suspect your propane fuel tank has been overlled, discontinue operation immediately and return the propane fuel tank to the place of purchase or relling. TROUBLESHOOTINGWestinghouse Outdoor Power Equipment | 29 TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTION

Propane fuel smell Fuel regulator or fuel hose and ttings not securely sealed. Using a soap solution check each connection and tighten as needed. Propane fuel regulator vent active. The propane fuel regulator is equipped with a vent that will allow a small amount of propane fuel vapor to escape from the regulator when the propane tank valve is opened. This can be normal providing the venting of the propane is brief. If you suspect that this is abnormal, immediately discontinue use and have the propane regulator inspected by a qualied technician. Residual fuel from the carburetor dispersing after operation. Normal, no correction is needed. Poor performance or engine stalling on propane Propane fuel line kinked or crushed. Inspect propane fuel line and remove kinks or other obstructions. Fuel selector valve not properly positioned. Rotate the fuel valve fully until the pointer is directly in line with the desired fuel. Gasoline not purged from the carburetor before switching to propane. Close the propane fuel tank valve. Move the fuel selector switch to gas. Start the engine and allow the engine to run until the gasoline has been consumed in the carburetor. Begin propane start up procedure.30 | Westinghouse Outdoor Power Equipment SCHEMATICSNOTES / NOTAS31 | Westinghouse Outdoor Power Equipment NO DEVUELVA ESTE PRODUCTO A LA TIENDASi tiene preguntas o necesita ayuda, llame al servicio al cliente al 855-944-3571.

RUN STOP Make sure the LPG hose is disconnected to the generatorWhen using LPG fuel NOTE: Repeat steps 1 2 3 2 (×2)until the generatorstarts

238 | Westinghouse Outdoor Power Equipment

140 | Westinghouse Outdoor Power Equipment SAFETY

15Westinghouse Outdoor Power Equipment | 41 MONTAJE

1. Align the tabs at the bottom of the cover to the slots in the

SÉCURITÉ SÉCURITÉ RUN STOP Make sure the LPG hose is disconnected to the generatorWhen using LPG fuel NOTE: Repeat steps 1 2 3 2 (×2)until the generatorstarts

CENTRE DE DONNÉES LED

15Westinghouse Outdoor Power Equipment | 69 ASSEMBLÉ

service du moteur. AVIS Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

PROBLÈME CAUSE POSSIBLE CORRECTION

Le moteur ne démarrepas En panne d’essence. Ravitailler. Mauvais carburant, générateur stocké sans traitement ni vidange d’essence, ou plein d’essence. Videz le réservoir de carburant. Faites le plein d’essence fraîche. Filtre à air sale. Nettoyez le ltre à air. Le niveau d’huile moteur bas a arrêté le générateur. Si le voyant de niveau d’huile bas est allumé, tournez le commutateur de batterie en position OFF. Ajoutez de l’huile moteur. Bougie d’allumage mouillée de carburant (moteur noyé). Attendez cinq minutes. Mettez l’interrupteur de la batterie en position OFF. Tirez la poignée de recul rapidement plusieurs fois. Si le générateur ne démarre pas, retirez la bougie et séchez. Bougie d’allumage défectueuse, encrassée ou mal espacée. Écartez ou remplacez la bougie. Réinstaller. Filtre à carburant obstrué, dysfonctionnement du système d’alimentation, défaillance de la pompe à carburant, dysfonctionnement d’allumage, soupapes bloquées, etc. Contactez le service à la clientèle de Westinghouse sans frais au 1 [phone]. Starter partiellement ouvert ou fermé en raison d’une batterie faible ou déconnectée. Réglez manuellement le starter. Voir la section Maintenance. Capteur de CO supprimé ou modié Revenir à la conguration d’origine Capteur de CO activé ou panne du système Relocaliser le générateur / Contactez le service à la clientèle de Westinghouse sans frais au 1 [phone]. Le moteur démarre, puis s’arrête En panne d’essence. Ravitailler. Niveau d’huile moteur incorrect. Vériez le niveau d’huile moteur. Filtre à air sale. Nettoyez le ltre à air. Carburant contaminé. Videz le réservoir de carburant. Faites le plein d’essence fraîche. Interrupteur de bas niveau d’huile défectueux. Contactez le service à la clientèle de Westinghouse sans frais au 1 [phone]. Le moteur manque depuissance Mauvais carburant, générateur stocké sans traitement ni vidange d’essence, ou plein d’essence. Videz le réservoir de carburant. Faites le plein d’essence fraîche. Filtre à carburant obstrué, dysfonctionnement du système d’alimentation, défaillance de la pompe à carburant, dysfonctionnement d’allumage, soupapes bloquées, etc. Contactez le service à la clientèle de Westinghouse sans frais au 1 [phone]. Le moteur tourne mal ou tourbillonne lors de l’application de la charge Filtre à air sale. Nettoyez le ltre à air. Générateur surchargé. Débranchez certains appareils. Outil électrique ou appareil défectueux. Remplacez ou réparez l’outil ou l’appareil. Arrêtez et redémarrez lemoteur. Filtre à carburant obstrué, dysfonctionnement du système d’alimentation, défaillance de la pompe à carburant, dysfonctionnement d’allumage, soupapes bloquées, etc. Contactez le service à la clientèle de Westinghouse sans frais au 1 [phone].84 | Westinghouse Outdoor Power Equipment DÉPANNAGE

PROBLÈME CAUSE POSSIBLE CORRECTION
