USER MANUAL Turin Audizio

UNPACKING INSTRUCTION....6

POWERSUPPLY 6

CONTROLS 6

REMOTE CONTROL....7

USING REMOTE CONTROL....7

BEFORE YOU START 7

TO START UP 7

NETWORK SETUP......8

OVERVIEW OF FEATURES AND FUNCTIONS 8

INTERNET RADIO 9

MEDIA CENTRE....10

BT PLAYBACK 11

ALARM SETTING....11

SLEEP TIMER SETTING 11

CONFIGURATION....11

REMOTE CONTROL VIA PC / SMART PHONE....14

HELPFUL TIPS 16

TROUBLE SHOOTING....17

NEDERLANDS....18

UITPAKKEN 19

AANSLUITSPANNING 19

BEDIENING 19

AFSTANDSBEDIENING 20

GEBRUIK VAN DE AFSTANDSBEDIENING....20

VOORDAT JE BEGINT 20

AAN DE SLAG GAAN 20

NETWERK INSTELLING....21

OVERZICHT VAN KENMERKEN EN FUNCTIES....21

INTERNET RADIO 22

MEDIA CENTRE 23

BT AFSPELEN 24

ALARM INSTELLEN....24

INSTELLING VAN DE SLAAPTIMER....24

CONFIGURATIE....24

BEDIENING VIA PC/SMARTPHONE....27

TIPS 28

PROBLEEMOPLOSSING 29

DEUTSCH....30

AUSPACKEN 31

NETZANSCHLUSS 31

BEDIENUNG 31

FERNBEDIENUNG....32

AVANT DE DEMARRER....56

DEMARRER....56

CONNEXION RESEAU 57

PRESENTATION DES CARACTERISTIQUES ET FONCTIONS....57

RADIO INTERNET 58

MEDIA CENTER....59

LECTURE BT 60

REGLAGE ALARME 60

REGLAGE TIMER 60

CONFIGURATION....60

TELECOMMANDE VIA PC / SMART PHONE....63

ASTUCES....64

PROBLEMES 65

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCHE DATEN / SPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES....66

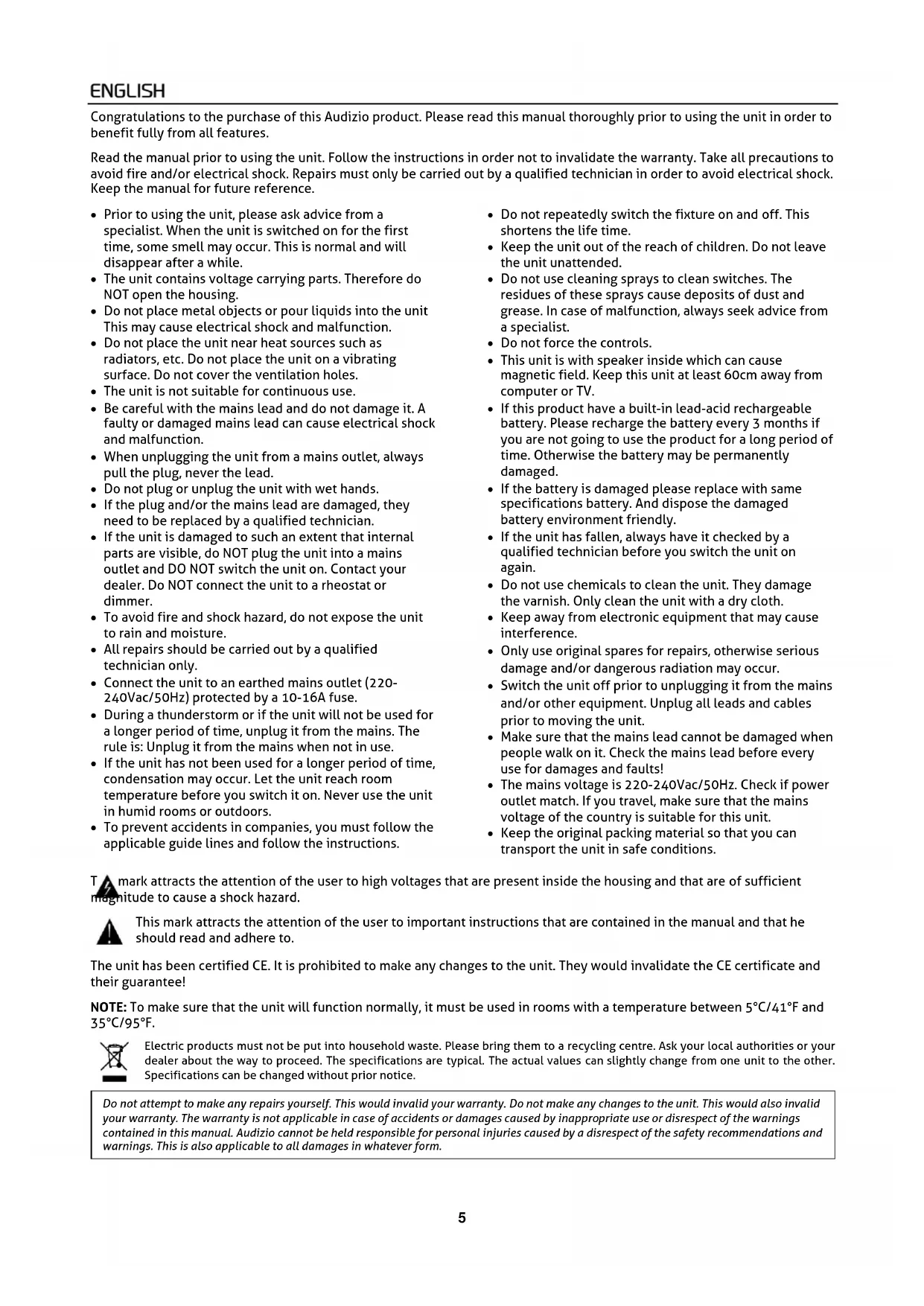

Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

A mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

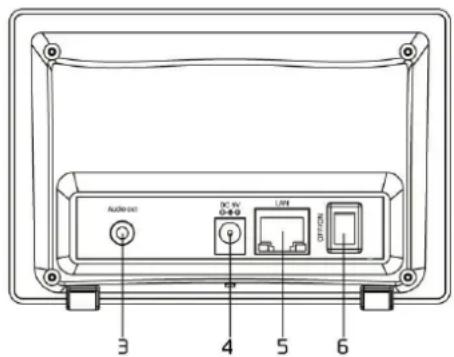

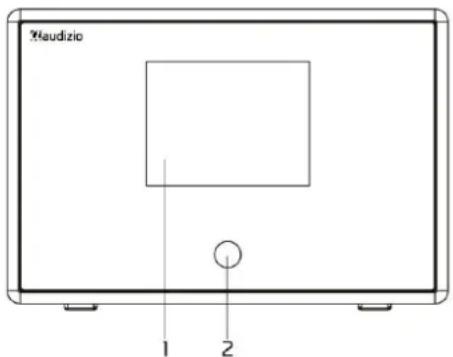

CONTROLS

Meudizio 1 2

Audierecc DC bus LINE OFFION 3 4 5 6

1. TFT color screen 2.4"
2. IR Sensor Receives infra red signal from remote control.
3. Line output jack 3.5 mm Connect to external powered speaker / amplifier
4. DC Input Jack 5Volt / 1A
5. Lan-Jack 10Mbps RJ45 connector
6. Powerswitch Press the button to turn on/off.

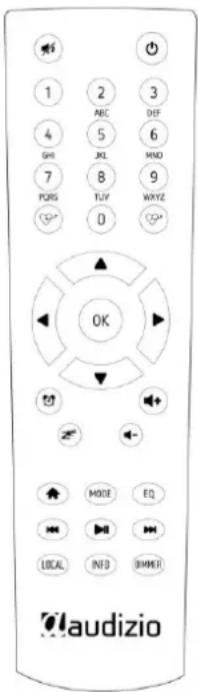

☐: Press to toggle between Standby and Operation (applicable only when Standby is enabled with power connected to the radio)

: Mute

0-9: Input index number on the list / input characters for WiFi password

♥: Preset the current playing station to Favorite

▲ : Cursor up

◀ : Cursor left / back to previous menu

Alarm button

Z: Sleep Timer

Mode: Switch between Internet radio / BT / Media Centre

: Main Menu

: Previous station on the list/previous track on BT/Media Centre

Local: Access the local station list (Local area set up in Configuration)

: Recall the favorite list

OK: Confirm button

▶ : Cursor right

▼: Cursor down

Vol+: Volume up

Vol-: Volume down

EQ: Equalizer

▶ Next station on the list/next track on BT / Media Centre

▶: Play/pause for BT / Media Centre Play / stop for Internet radio

Dimmer: Access the Dimmer menu to adjust the brightness of the display

Info: Quick access to Network and System information

1 2 3 ABC DEF 4 5 6 GHI JKL MNO 7 8 9 FORD TUY WKYZ OK Mode EQ LOCAL INFO DIMMER Claudizio

USING REMOTE CONTROL

On the alpha-numeric keypad, press the button repeatedly to cycle through the characters assigned to each button. Refer to the following list. To input a character, highlight it and press the [▶] button to confirm and input the next character. When it comes to the last character of the password, press [OK] to complete the entry.

Button 1: 1 and different kind of symbols !@#\$%^&*()_+[]{};:"|,/<>?

Button 2: 2ABCabc

Button 3: 3DEFdef

Button 4: 4GHIghi

Button 5: 5JKLjkl

Button 6: 6MNOmno

Button 7: 7PQRSpqrs

Button 8: 8TUVtuv

Button 9: 9WXYZwxyz

Button 0: 0

BEFORE YOU START

Please ensure the following is ready:

You have a broadband internet connection. A wireless broadband router is connected to the internet successfully. The radio supports Wireless B, G and N connection (Wireless N router can also be used with the setting on B or G). You know the Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access (WPA) data encryption code/password. You need to key in the correct code when the radio is connected to the wireless router for network connection. If you do not know the code/password, please contact the person/technician who set up the router/network for you. The radio can work via Wireless network connection (Wi-Fi connection) and wired connection (ethernet RJ45).

TO START UP

• Remove internet radio tuner (called Tuner hereafter) from the package box.
• Plug in the DC adapter and switch the Power on/off switch (on the rear cabinet) to ON. Press [☐] button on the remote to turn the radio on.

Caution: Use only the adaptor supplied with the radio. Connecting a power supply with a different rating will cause permanent damage to the radio and may be hazardous.

- The Tuner is intended to connect with external powered speaker. It does not have amplifier and speaker driver built-in. Please connect your stereo through the Audio output located on the rear panel of the Tuner for listening.

Internet connection can be setup via Wired LAN or Wireless LAN (WiFi). Your Radio requires a broadband Internet connection through wired Ethernet or WiFi. The easiest way is use a CAT 5 or CAT 6 cable to connect through wired Ethernet to a Wifi router, which connects to an Adsl modem or a cable modem provided by your ISP.

WPS connection is available if your router has a WPS button. To configure the network via remote app, see [under Wi-Fi Network > Add AP (SmartConfig)] for more details.

Wired LAN (Ethernet)

For Wired Ethernet connection to a router with DHCP enabled, the network configuration for Internet connection is automatically done and the Radio can be used for Internet radio and UPnP sharing without user interaction. When the network is connected, the Ethernet icon will appear on the top left corner.

Wireless LAN (Wi-Fi)

- If this is first time use, the Configure Network wizard will be displayed. Choose Yes to start configuring network. Press the [◀] button to highlight Yes and press [OK] to confirm.

Configure Network? No

- Select Add/Remove AP from the list, use the [▲/▼] button to scroll and press OK to confirm, then choose Add AP (Scan):

Add/Remove AP AP:[ ]

Add AP Remove AP

- It will start scanning the Wi-Fi networks available. Scroll to your network and press [OK] to confirm. If your wifi network has a password protected, it will ask you to enter the passphrase/password.

Note: The password is case sensitive. Please consult with the one who setup your network if you don't know the password.

- When the Wi-Fi connection is successful, the Association Complete will be shown briefly. The wifi signal bar will appear on the top left corner of the display:

Wi-Fi signal bar Toll ▶ 12:09 My Favourite < 28 Apr, 2018 >

OVERVIEW OF FEATURES AND FUNCTIONS

Press [ 🔊 ] to enter the main menu or the on the remote control. Scroll by rotating the [Tune/Select] knob or the [ ◀ / ▶ ] button on remote:

My Favorite - To show the list of favorite stations which have been assigned to the presets. There are up to 99 presets available.

Internet Radio - Start exploring the worldwide radio stations and music here.

Media Centre - You can browse and stream music from your network via UPnP or DLNA Compatible devices.

BT - BT playback, to play audio stream (receive) from another BT enabled device after pairing/connected each other.

Alarm - Alarm clock. Two alarm settings available.

Sleep Timer - Enable the timer to turn the radio in standby after the selected time elapsed.

Configuration - More options/settings available to personalize as you desire.

On the main menu, choose Internet Radio and you will find the options below:

Skytune

Search

History

Skytune

Select Skytune to start enjoying thousands of radio stations over the world. You can filter your search by Region, Music genre and talks. The Local Radio let you access quickly the stations available in your local area through internet connection.

Local Radio

Globe All

Globe By Genre

Globe By Region

Note: You can change the Local Radio area under Configuration> Local radio setup.

When you scroll along the list of Globe All and want to quickly reach to a certain point of the long list, input the index number on the remote control to quickly jump to that point. For example, on the remote control, input 28 and press OK, it will highlight the station no. 28.

Search

Instead of browsing the radio station list, you can input a few characters of the desired station to filter out / short list the stations.

History

The radio memorizes the stations you have listened up to 99 stations. If you have listened more than 99 stations, it will supersede the first station that you have listened.

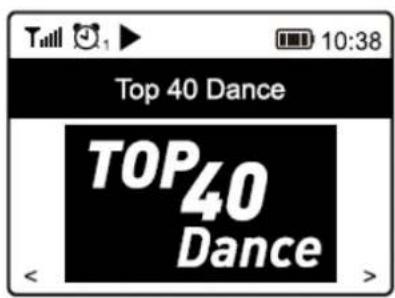

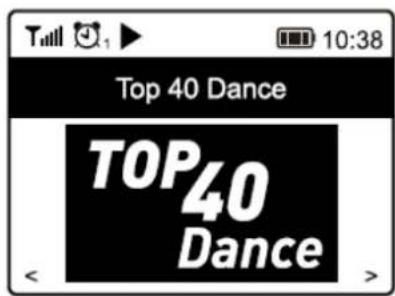

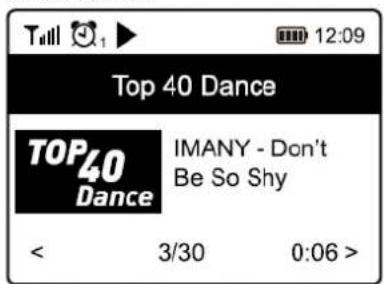

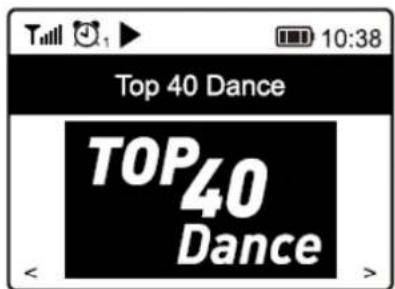

Start playing internet radio

When a radio station starts playing, more radio information can be displayed. Press the [▶] button in the state of the playing screen below:

Top 40 Dance TOP40 Dance IMANY - Don't Be So Shy < 3/30 0:06 >

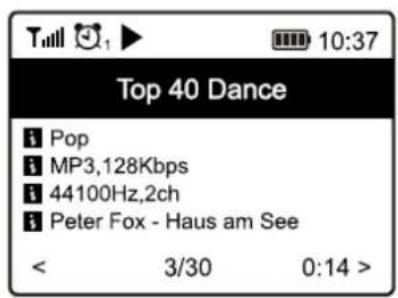

Every time you press the [▶] button, it will show various information at a time such as the streaming bit rate, name of the song, artist name (if available), the big time clock and the radio's station logo (if available):

Top 40 Dance Pop MP3,128Kbps 44100Hz,2ch Peter Fox - Haus am See < 3/30 0:14 >

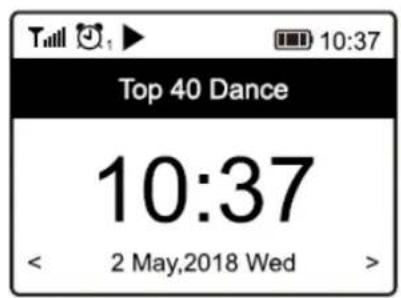

Top 40 Dance 10:37 < 2 May,2018 Wed >

Top 40 Dance TOP40 Dance

My Favorite

This is to show the list of your Favorite stations which have been assigned to the presets.

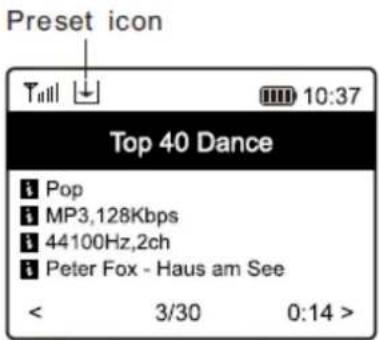

Preset a station

When a radio station is playing, press the [♥] button on the remote control or press and hold the [♥] on the unit, you will see the micron appears as below. It means the station is added to the Favorite list.

Preset icon Tull ↓ 10:37 Top 40 Dance i Pop i MP3,128Kbps i 44100Hz,2ch i Peter Fox - Haus am See < 3/30 0:14 >

The new added station will always show in the last item on the Favorite list. You can store up to 99 presets.

There are 4 dedicated preset buttons to quickly access the top 4 favourite station. Press and hold the numeric button on the radio unit to preset the channel.

Recall a station

Press the button on the remote control or press the [♥] briefly on the radio unit to recall the list of presets, or navigate to My Favourite on the main menu and select it to confirm.

Edit your favorite list

On the Favorite list, choose the radio station you want to edit then press the [▶] button on the remote control. It will enter the Edit menu with the following options:

• Move down - To move down the ranking of a station
• Move up - To move up the ranking of a
• Delete - To delete a particular station

MEDIA CENTRE

The device supports UPnP and is DLNA-compatible. This provides the opportunity to stream music from your network. However, this requires you to have a compatible device in your network that can function as a server. This can be e.g., a network hard drive or a conventional PC with e.g., Windows 8 via which access to the shared folder or media sharing is permitted. The folders can then be browsed and played on the radio.

Note: Please make sure your computer laptop is on the same Wi-Fi network as the Radio before you start using this function.

Music streaming

• Once the UPnP/DLNA compatible server is configure to share media files with your radio, you can start music streaming.
• On the main menu, select Media Centre and choose UPnP.
• It may take a few seconds for the radio to complete the scan for available UPnP servers. If no UPnP servers are found, it will show Empty List.
  • After a successful scan is done, select your UPnP server.
• The radio will show the media categories available from the UPnP server, e.g. 'Music', 'Playlists' etc.
• Choose the media files that you wish to play. You can set the mode of playback under Configuration > Playback setup.

My Playlist

You can make your own playlist for the UPnP music files. Choose and highlight the song you want to add to playlist, press and hold the [Dial/Select] knob or press and hold the [OK] button on remote, until the sign 📁 appears. The song will be added to My playlist.

Clear My Playlist

Remove all songs in "My Playlist" to allow a new playlist to be prepared.

Note: If you have DLNA compatible servers available, follow the steps described above to browse the audio files from DLNA compatible device on the radio to play.

Before transmission between your BT device and the radio is possible, both devices must be coupled. This process is called "pairing". The radio is served as a receiver, to receive music stream to play on the radio.

If you have already coupled to a BT device before, this connection will be restored automatically when both devices are in range and BT operation has been selected on the radio. "Pairing" does not have to be repeated. This function may need to be activated in your BT device, however.

• Push the [ ] button to display the selection menu for the different operating modes.
  • Use the [▲/▼] button to select the operating mode BT and press [OK].
• Switch your BT device to which you want to connect the radio on and activate the pairing mode here. The device scans for BT devices in the reception range.
• When the radio is found, your BT device shows its name Audizio Turin-XXXX (the XXXX is an identification code for your radio unit).
• Select the radio at your BT device.
• Start playback on your BT device.
• Playback now takes place using the radio.

Note: If that music is not loud enough, you can turn up the "BT Gain" in the configuration menu.

ALARM SETTING

• Choose Alarm from the main menu or press the [Alarm] button on the remote control.
• Select either Alarm 1 or Alarm 2, choose Turn on to activate the Alarm.
• Follow the alarm wizard instructions to set the alarm.
• The wizard will guide you through the settings below:

Time - Set the time for the alarm.

Sound - You can choose Wake to Tone, My Favourite as the alarm source.

Repeat - You can schedule the alarm as you desire: Everyday, Once or multiple days.

Alarm Volume - Adjust the volume of the alarm as you like by rotating the [Dial/Select] knob or [▲/▼] button on remote.

Alarm duration - Set the duration of the alarm from the preset options ranging from 30 to 180 minutes. The radio will be turned to standby when the selected duration of time is due.

- After the above settings are completed, press the [◀] button to exit and make sure the Alarm is turned on. You will see the Alarm icon appeared on the display if it is activated.

Stopping Alarm

When the alarm goes off, press the [∅] to stop the alarm.

SLEEP TIMER SETTING

You can set the timer to let the radio turns off after the selected time elapsed in the range of 15 minutes to 180 minutes.

Press [Z^2] button on the remote control to set the timer. You will see the icon appeared on the display if the timer is set.

Alarm Sleep Timer Till Z30 11:07 Internet Radio 1/3 < Skytune > Search(Skytune) > History >

CONFIGURATION

Here you will find the complete settings / options available to configure your own radio. On the main menu, navigate to Configuration setting. Press OK and you will see a list of options available.

Network

• Network Options
Always on: The WLAN function remains switched on (faster access when switching from other modes of radio). Auto off in 30s: The WLAN function shuts down after 30 seconds when not in use (to save energy).
- Wi-Fi Channels
Not all of the Wi-Fi channels are available in every country. There may be variation between different countries. Therefore it is necessary to choose the Wi-Fi channels to ensure the Wi-Fi performs satisfactory.

We have already set the channels according to the requirement in different countries. Choose the country you are staying from the list to get the correct channel.

- Add / Remove AP

Add AP - It will scan out a list of routers around.

Add AP (WPS button) - Choose this option to connect your Wi-Fi router via WPS if the router has a WPS button. Remove AP - If you have already added a router and want to remove it, choose this option.

Note: Always bring the radio within 2 meters of the Wi-Fi router for setup.

• AP

If you have added more than one routers on the radio and want to switch to another one, select this option to change.

- Signal

This is to show the strength of the Wi-Fi Signal of the Wi-Fi router as received by the radio. Usually signal levels lower than -70dBm is at weaker level and if it affects the reception of your radio, you may need to optimize the router location or check any problem of the router itself.

• IP

The IP is set Dynamic by default. Select to change Fixed IP according to your network condition.

• DNS

The DNS is set Dynamic by default. Select to change DNS according to your network condition.

LAN Network

Connect the Tuner's Ethernet port to one of the LAN ports in a router or Wi-Fi router using CAT 5 or CAT 6 cable. If your Router or Wi-Fi router is DHCP-enabled (recommended), you don't have anything to setup and the Tuner will connect to Internet with the parameters automatically assigned by the Router/Wi-Fi router.

Use the remote control for configuration if you want to use a fixed IP, scroll to IP:[Dynamic] and press [OK]. Choose Fixed.

Press the [▲] button, you can then enter the IP, press [▲ / ▼] to tune to the required numbers: xxx.xxx.xxx.xxx. Switch among the 4 groups by pressing [◀ / ▶]. When done, press OK. Scroll to GW and NM to do the same. You can also choose to use a DNS server other than the one from the DHCP server. Scroll to DNS and do the same.

Note: Use DHCP to get the network parameters unless you are familiar with network setup.

Date and Time

The radio will set your local time automatically after the internet connection is completed.

If you want to do manual setting, change it by the following options:

- Time zone

Auto-set Time Zone: This option is set by default.

Manual-set Time Zone: Choose this option if you want to set the time in another region.

Choose and highlight the region/city you prefer and press OK to confirm.

Coupled with NTP (use network time) and DST (Daylight time saving) will be adjusted automatically if you choose to use network time (NTP).

- Set Time Format

Choose either 12-hour or 24-hour notation you prefer.

- Set Date Format

• DST (Day Light Saving)

Enable on/off

• NTP (Use network time)

NTP is designed to synchronize a device's clock with a time server. Your radio will synchronize the time server by default every time it powers up and connects to Internet.

This ensures a very high degree of accuracy in the radio's clock. You can change to use other time server by inputting the URL address (see below NTP server). You can choose "Do not use network time" if you don't want it to.

If you choose not to use NTP for clock synchronization, highlight the NTP (Network time protocol) and press OK to make the change. You will see the Set Date & Time appeared on the menu. Select it and adjust the date and time as you desire.

- NTP Server

NTP is designed to synchronize a device's clock with a time server. Here it shows the server being used for the radio.

Language

The default language is English, you can choose other languages as preferred. Scroll with the [▲ /▼] buttons on remote or [Dial/Select] knob to the item with □ and press OK. Scroll to highlight and press [OK] to select your language of choice.

English, French, Spanish, Italian, German, Dutch, Polish, Russian and Simplified Chinese are available.

Local Radio

The radio is set by default to detect the radio stations in your local area automatically through internet connection and these stations can be accessed by a press of [Local] button on remote. You can also set Local in another region if you want.

Highlight the Local Radio and press [OK]. Choose Manual-set Local radio to change the region setting.

Playback Setup

This is to set the mode of playback under UPnP/DLNA compatible streaming: Repeat All, Repeat Once or Shuffle.

Resume Play Options

• Resume once ready
  This is set by default. The radio will resume playing the last played station when it is power on the next time.
• Stay at home
  Choose this option if you want the radio to stay on the Home screen without playing anything when it is power on the next time.

Power-On Options

This is to select the state of the radio after a power reset or power cut, whether to return to the Standby mode or return to the state of the setting selected from the above "Resume play options".

Dimmer

You can set the backlight level for the display as you prefer. There are two settings: Mode and Level

• Mode - Normal or Power Saving
Normal - the display will stay with the same level of brightness all the time without dim down.
Dim - the display will dim down after 20 seconds if no operation is made on the radio.

• Level - Bright and Dim

Bright - This is to adjust the level of brightness in Normal mode.

Dim - This is to adjust the level of brightness in Dim mode.

- Dimmer in Standby

When the radio is in Standby, press the [▲ / ▼] button to adjust the backlight level at your preference which you feel comfortable especially during night time.

EQ(Equaliser)

Various music genres can be set.

Buffer Time

Sometimes you may experience uneven playback of the internet radio. This can happen if the internet connection is slow or network congestion occurs. To help improving the situation, you can choose longer buffer time to get a few seconds of radio stream before beginning to play.

The default value is 2 seconds. You can choose 5 seconds if you prefer to have a longer buffering time.

BT Gain

If your BT sound is not loud enough or just too loud, you can set it here.

Standard this is +9db, but is fully adjustable between 0,3,6,9,12 Db

Information

View the Network and System Information of your radio. To access quickly to this information, press the [Info] button on the remote control. When you use your PC to manage the My favorite stations, you have to use the IP address and you can view this info from here. Then type in the IP address Configuration > Info > Network > IP ) to your PC's browser input window.

Reset to Default

You can do the reset to clear all the settings and return to default settings.

** Please note all the Station presets, Settings and configuration will be erased after you have performed the Reset.

Experience an easy way to control tuning internet radio channels and manage your favourite list via PC or Smart phone's web browser. The supported browsers are Internet Explorer and Chrome.

• Connect your PC or Smart phone to the same Wi-Fi network as your radio.
• Visit www.skytune.net
  • On the home page, click "Browse/Search"
• Browse or enter the name to search the radio channel, a list of internet radio channels will be displayed.
• Click the "♥" symbol

SKYTUNE Internet Radio Browse / Search

Result for Searching 'dance'

1.fm 90's Dance

1.fm Dance One
101.RU - Club Dance
101.RU - Russian Dance

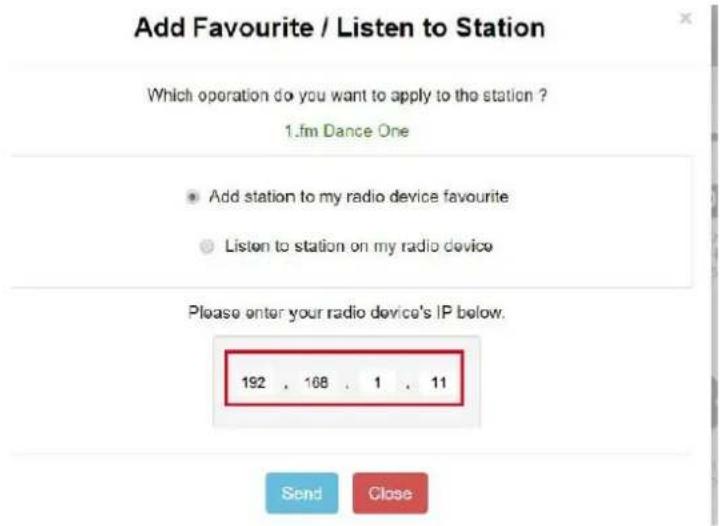

It will prompt you whether to "Add Favourite" or "Listen to Station". Enter the IP address of your radio (e.g. 192.168.1.11):

Add Favourite / Listen to Station Which operation do you want to apply to the station ? 1.fm Dance One • Add station to my radio device favourite • Listen to station on my radio device Please enter your radio device's IP below. 192 . 168 . 1 . 11 Send Close

The IP address can be located on the radio unit as follow:

* On the remote control, press the [Info] button, choose Network and scroll to IP to view the IP address
* On the radio, return to the main menu. Navigate to Configuration > Information > Network Information > IP

-Select "Listen to Station", click "Send" and the radio unit will switch playing the channel and the "My Favourite" page will pop up on the web browser.

You can then choose to add the playing station to favourite or manage your list by other edit options. Any changes will synchronize to the radio unit immediately.

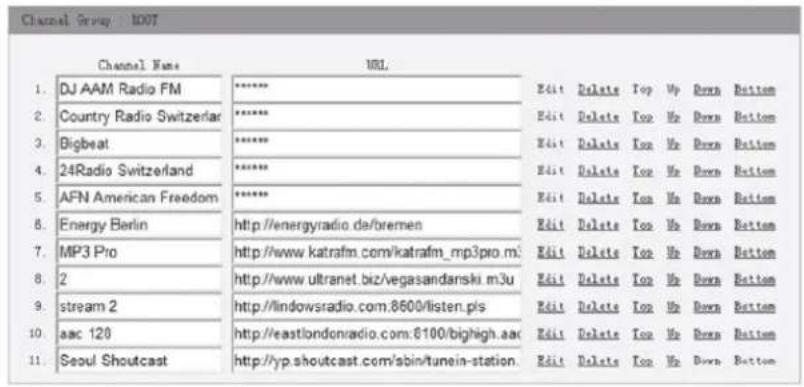

MY FAVOURITE

Channel Name URL 1. DJ AAM Radio FM **** Edit Delete Top Up Down Bottom 2. Country Radio Switzerland **** Edit Delete Top Up Down Bottom 3. Bigbeat **** Edit Delete Top Up Down Bottom 4. 24Radio Switzerland **** Edit Delete Top Up Down Bottom 5. AFN American Freedom **** Edit Delete Top Up Down Bottom 6. Energy Berlin http://energyradio.de/bremen Edit Delete Top Up Down Bottom 7. MP3 Pro http://www.katrafm.com/katrafm_mp3pro.m3 Edit Delete Top Up Down Bottom 8. 2 http://www.ultranet.biz/vegasandanski.m3u Edit Delete Top Up Down Bottom 9. stream 2 http://lndowsradio.com.8600/listen.pis Edit Delete Top Up Down Bottom 10. aac 120 http://eastlondonradio.com:8100/bighigh.aac Edit Delete Top Up Down Bottom 11. Seoul Shoutcast http://yp.shoutcast.com/sbin/tunein-station Edit Delete Top Up Down Bottom

Add Channel Channel Name URL Submit Reset

You can also add the radio channel if you know the published audio stream URL with the streaming format as follow:

1. Audio formats: MP3, AAC, AAC+
2. Stream formats: Shoutcast, Icecast (HTTP, HTTPS) and HLS
3. Playlist formats: PLS, M3U
4. Sampling frequency: 44.1 KHz and 48 KHz

1. If the Internet Radio keeps re-buffering radio station:

The Internet Radio is streaming the data from the radio station via your broadband connection, if there is a high error rate on your broadband connection, or the connection is intermittent, then it will cause the Internet Radio to pause until the connection is re-established and it has received enough data to start playing again.

If your Internet Radio keeps stopping, please check the DSL modem to ensure that the Broadband line is not suffering a high error rate or disconnections. If you are experiencing these problems, you will need to contact your broadband supplier.

2. What is Buffering?

When playing a stream, the Internet Radio/Media player, downloads a small amount of the stream before it starts playing. This is used to fill in any gaps in the stream that may occur if the internet or the wireless network is busy. The Internet Radio streams music data from the PC while you are listening. If a stream gets blocked or experiences Internet congestion while transferring it may stop/interfere with the quality of play. If this happens, check your internet connection speed- it must be faster than the speed of the streams.

3. My radio is working but some stations cannot be played.

The problem may be due to one or more of the followings:

a) The radio station is no longer broadcasting.
b) The radio station has reached the maximum allowed number of simultaneous listeners.
c) The radio station has changed the stream arrangement and the link is no longer valid.
d) The radio station is not broadcasting at the time of the day (not all stations are broadcasting 24 hours throughout the day).
e) The Internet connection between your radio and the radio station server is too slow or unstable to support the data rate of the broadcast.

Problem	Cause	Solutions
Cannot connect to Wi-Fi network	Network down	Confirm that a Wi-Fi or Ethernet Wired connected PC can access the internet (i.e. can browse the web) using the same network.• Check that a DHCP server is available, or that you have configured a static IP address on the radio.• Check that you firewall is not blocking any outgoing ports. As a minimum the radio needs access to UDP and TCP ports 80,443 and 8008, DNS port 53.
	Router restricts access to listed MAC addresses	Obtain the MAC address from Configuration > Information > Network > Wi-Fi MAC and add to the allowed equipment list on your access point.Note: The radio has separate MAC addresses for wired and wireless networks.
	Insufficient Wi-Fi signal strength	Check distance to router; see if a computer can connect to the network in this location• Optimize the distance of the router's location
	Unknown encryption method	Change encryption method on router. The radio supports WEP, WPA, WPA2
	Firewall preventing access	Windows Media Player: varies — non-Microsoft firewalls may require configuration for UPnP.
If your radio can connect to the network successfully, but is unable to play particular stations		• The station is not broadcasting at this time of the day (remember it may be located in a different time zone).• The station has too many people trying to attach to the radio station server and the server capacity is not large enough.• The station has reached the maximum allowed number of simultaneous listeners.• The update of the link is done regularly. To get the updated list of stations, please access from Internet radio > Skytune. If case a particular stream is still not working, please contact us or Skytune to report the case.
No sound		Please check if the playback is stopped. Press the OK button on the remote to resume playback.• Adjust the volume• Check if other radio stations have the same problem or just happened on a particular station.If external speaker is connected to the lineout jack:• Adjust the volume level of the external powered speaker.• Please check if the power of the external powered speaker is switched on.

Audio unit DC bus LED CT/USB 3 4 5 6

Add/Remove AP AP:[ ]

Add AP Remove AP

Wi-Fi signal bar Tull ▶ 12:09 My Favourite < 28 Apr, 2018 >

OVERZICHT VAN RENMERKEN EN FUNCTIES

Local Radio

Globe All

Globe By Genre

Globe By Region

Toll 📞₁ ▶ 12:09 Top 40 Dance TOP40 Dance IMANY - Don't Be So Shy < 3/30 0:06 >

Top 40 Dance 10:37 < 2 May,2018 Wed >

Top 40 Dance TOP40 Dance

Mijn favoriet

• DST (Day Light Saving)

In-/uitschakelen

Result for Searching 'dance'

1.fm 90's Dance

1.fm Dance One
101.RU - Club Dance
101.RU - Russian Dance

Add Favourite / Listen to Station Which operation do you want to apply to the station ? 1.fm Dance One • Add station to my radio device favourite • Listen to station on my radio device Please enter your radio device's IP below. 192 . 168 . 1 . 11 Send Close

Channel Name URL 1. DJ AAM Radio FM **** Edit Delete Top Up Down Bottom 2. Country Radio Switzerland **** Edit Delete Top Up Down Bottom 3. Bigbeat **** Edit Delete Top Up Down Bottom 4. 24Radio Switzerland **** Edit Delete Top Up Down Bottom 5. AFN American Freedom **** Edit Delete Top Up Down Bottom 6. Energy Berlin http://energyradio.de/bremen Edit Delete Top Up Down Bottom 7. MP3 Pro http://www.katrafm.com/katrafm_mp3pro.m2 Edit Delete Top Up Down Bottom 8. 2 http://www.ultranet.biz/vegasandanski.m3u Edit Delete Top Up Down Bottom 9. stream 2 http://lndowsradio.com:8600/listen.pis Edit Delete Top Up Down Bottom 10. aac 128 http://eastlondonradio.com:6100/bighigh.aac Edit Delete Top Up Down Bottom 11. Seoul Shoutcast http://yp.shoutcast.com/sbin/tunein-station Edit Delete Top Up Down Bottom

Add Channel Channel Name URL Submit Reset

2. Wat is buffering?

Add/Remove AP AP:[ ]

Add AP Remove AP

Wi-Fi signal bar Tull ▶ 12:09 My Favourite < 28 Apr, 2018 >

Local Radio

Globe All

Globe By Genre

Globe By Region

Start playing internet radio

Top 40 Dance 10:37 < 2 May,2018 Wed >

Top 40 Dance TOP40 Dance

Mein Favorit

• DST (Day Light Saving)

Aktivieren ein/aus

• NTP (Use network time)

View the Network and System Information of your radio.

To access quickly to this information, press the [Info] button on the remote control.

When you use your PC to manage the My favorite stations, you have to use the IP address and you can view this info from here. Then type in the IP address Configuration > Info > Network > IP ) to your PC's browser input window.

Result for Searching 'dance'

1.fm 90's Dance

1.fm Dance One
101.RU - Club Dance
101.RU - Russian Dance

Add Favourite / Listen to Station Which operation do you want to apply to the station ? 1.m Dance One • Add station to my radio device favourite • Listen to station on my radio device Please enter your radio device's IP below. 192 . 168 . 1 . 11 Send Close

Channel Name		URL
1.	DJ AAM Radio FM	******	Edit	Delete	Top	Up	Down	Bottom
2.	Country Radio Switzerlar	******	Edit	Delete	Top	Up	Down	Bottom
3.	Bigbeat	******	Edit	Delete	Top	Up	Down	Bottom
4.	24Radio Switzerland	******	Edit	Delete	Top	Up	Down	Bottom
5.	AFN American Freedom	******	Edit	Delete	Top	Up	Down	Bottom
6.	Energy Berlin	http://energyradio.de/bremen	Edit	Delete	Top	Up	Down	Bottom
7.	MP3 Pro	http://www.katrafm.com/katrafm_mp3pro.m3i	Edit	Delete	Top	Up	Down	Bottom
8.	2	http://www.ultranet.biz/vegasandanski.m3u	Edit	Delete	Top	Up	Down	Bottom
9.	stream 2	http://lindowsradio.com:8600/listen.pis.	Edit	Delete	Top	Up	Down	Bottom
10.	aac 128	http://eastlondonradio.com:6100/bighhigh.aac	Edit	Delete	Top	Up	Down	Bottom
11.	Seoul Shoutcast	http://yp.shoutcast.com/sbin/tunein-station.	Edit	Delete	Top	Up	Down	Bottom

Add Channel Channel Name URL Submit Reset

Add/Remove AP AP:[ ]

Add AP Remove AP

Wi-Fi signal bar Tull ▶ 12:09 My Favourite < 28 Apr, 2018 >

Local Radio

Globe All

Globe By Genre

Globe By Region

Top 40 Dance 10:37 < 2 May,2018 Wed >

Top 40 Dance TOP40 Dance

My Favorite

• DST (Day Light Saving)

Permitir on/off

Result for Searching 'dance'

1.fm 90's Dance

1.fm Dance One
101.RU - Club Dance
101.RU - Russian Dance

Add Favourite / Listen to Station Which operation do you want to apply to the station ? 1.fm Dance One • Add station to my radio device favourite • Listen to station on my radio device Please enter your radio device's IP below. 192 . 168 . 1 . 11 Send Close

10Mbps RJ45 connector

Add/Remove AP AP:[ ]

Add AP Remove AP

Wi-Fi signal bar Tull ▶ 12:09 My Favourite < 28 Apr, 2018 >

PRESENTATION DES CARACTERISTIQUES ET FONCTIONS

Local Radio

Globe All

Globe By Genre

Globe By Region

Top 40 Dance 10:37 < 2 May,2018 Wed >

Top 40 Dance TOP40 Dance

My Favorite

• NTP (Use network time)

Local Radio – radio locale

Result for Searching 'dance'

1.fm 90's Dance

1.fm Dance One
101.RU - Club Dance
101.RU - Russian Dance

- It will prompt you whether to "Add Favourite" or "Listen to Station". Enter the IP address of your radio (e.g. 192.168.1.11):

Add Favourite / Listen to Station

Which operation do you want to apply to the station?

1. fm Dance One

- Add station to my radio device favourite

Listen to station on my radio device

Please enter your radio device's IP below.

Send

Close

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2022 by Tronios The Netherlands
