MDJ160 - Speaker Fenton - Free user manual and instructions

Product type	Portable speaker
Brand	Fenton
Model	MDJ160
Mains power	220-240 V AC, 50 Hz
Battery	Built-in rechargeable lead-acid
Connectivity	Bluetooth, AUX (3.5 mm), USB, Micro-SD (TF)
Frequency response	80 Hz - 12 kHz
Impedance	4 Ohms
Magnet	Ferrite
Main functions	MP3 playback, recording, karaoke, microphone priority, light effects, echo
Inputs	Guitar jack 6.3 mm, microphone jack 6.3 mm, AUX 3.5 mm
Output	USB 5V port for external charging
Remote control	Included
Microphone	Wired, included
Power adapter	Included
Stereo mode	Wireless pairing between two Fenton Core speakers
Recording	On USB flash drive or Micro-SD card (max 64 GB)
Care and cleaning	Use a dry cloth, no chemical products
Safety	Never open the housing, avoid moisture and heat sources
Repairability	Only by a specialized technician with original parts
Operating temperature	5°C to 35°C
Recommended use	Indoor only

Frequently Asked Questions - MDJ160 Fenton

How to connect my phone via Bluetooth?

Press the [M] button to activate BT mode. On your phone, search for 'Party Speaker Core160' and select it to pair. The optimal distance is about 10 meters with no obstacles.

How to use the karaoke function?

Press the [Karaoke] button on the remote to activate karaoke mode. Only instrumental music will be played, you can sing with the microphone.

How to record my voice on a USB stick?

Insert a USB stick (max 64 GB) into the USB port. Plug in a wired microphone and press [REC] to start recording. Press [REC] again to stop and save the MP3 file.

How to pair two Fenton Core speakers in stereo?

Turn on both speakers and switch to Bluetooth mode. Press [LINK] on one speaker to pair them. A sound confirms the connection. The range is about 5 meters.

What to do if the speaker does not turn on?

Check that the battery is charged or plug in the power adapter. Make sure the power switch is set to ON. If the problem persists, contact a specialized technician.

How to clean the speaker?

Use a dry, soft cloth. Never use chemical products or aerosols that could damage the coating.

Can I use the speaker outdoors?

No, the speaker is designed for indoor use only. Do not expose it to rain or moisture to avoid any risk of electric shock.

How to adjust the echo on the microphone?

Turn the [Echo] knob on the control panel to increase or decrease the echo effect on the microphone.

How to activate microphone priority?

Press the [Mic Prio] button on the speaker or press and hold the [MIC Priority] button on the remote. When you speak into the microphone, the music volume decreases automatically.

How to connect an electric guitar?

Plug your guitar cable into the 6.3 mm [Guitar Jack] on the back of the speaker. Use the [Guitar] knob to adjust the guitar volume.

USER MANUAL MDJ160 Fenton

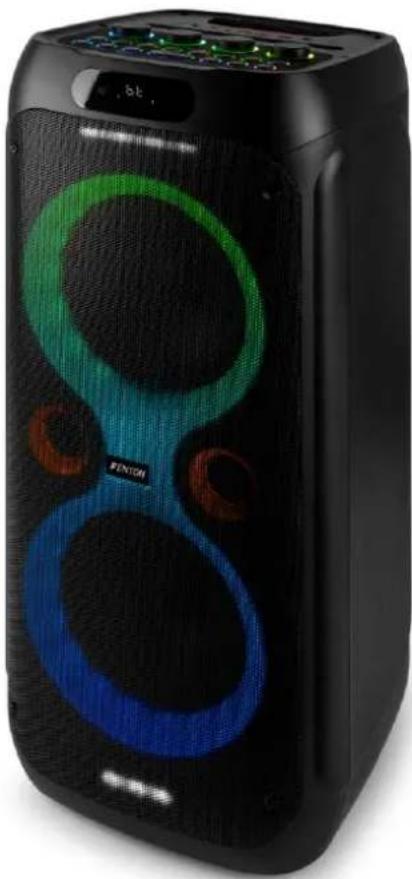

Core160 Party Speaker

Ref. nr.: 178.580

Black and blue portable electronic device with glowing green and blue patterns, no visible text or symbols on body

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI NÁVOD K POUŽITÍ

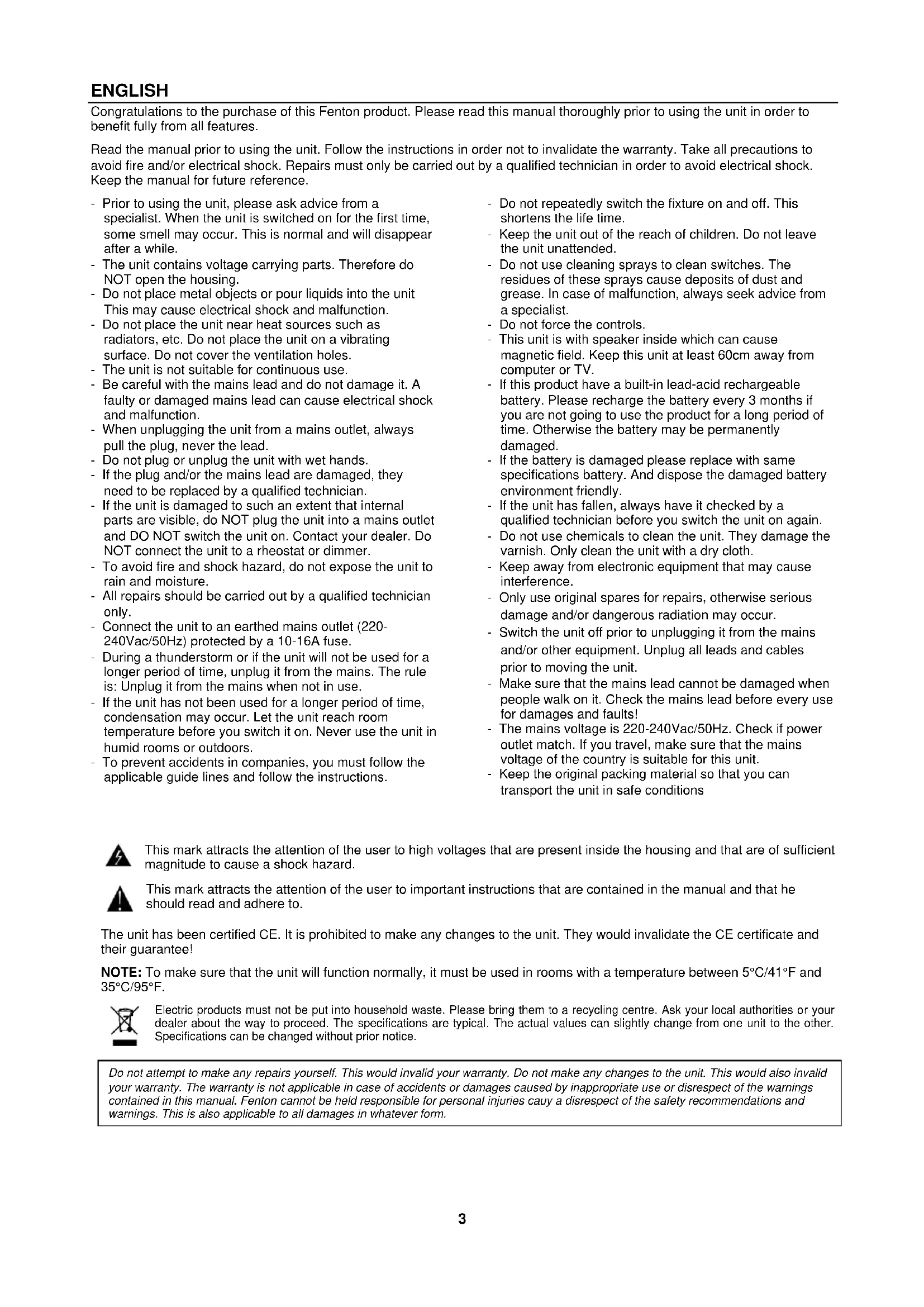

ENGLISH

Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/ 41^ F and 35^ C/ 95^ F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries cauy a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

CONTROLS AND CONNECTIONS

1. Echo

Rotate to adjust the echo level

1. Guitar

Rotate to adjust the guitar volume

1. MIC

Rotate to adjust the microphone level

1. Master

Rotate to adjust the master volume

1. Light

Press to switch the light effects. Press and hold to turn the light effects off

1. Repeat

Press to change repeat mode (one/all) in USB/SD mode

1. Mic Prio

Press to turn the microphone priority on/off

1. Treble

Press "-" or "+" to adjust the treble level

1. Bass

Press “-” or “+” to adjust the bass level

1. EQ

Press to switch between 2 sound settings

1. REC

Press to enable recording function

1. Mode / Stereo pair

Press to switch between modes (BT, AUX, USB, TF)

If without USB/TF/AUX inserting, [M] button only stay in BT mode

Press and hold to initiate stereo pair (link) function

1. Play/pause

Press to start/resume or pause play

1. Previous

Press to change to previous track. Press and hold to rewind within tracks

1. Next

Press to skip to next track. Press and hold to fast forward within tracks

1. Power

Press to turn the device on/off

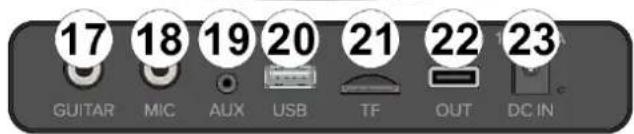

1. Guitar Jack

6.3mm guitar jack

1. MIC Jack

6.3mm microphone jack

1. AUX

3.5mm auxiliary line input jack

1. USB

Insert U Disk for MP3 playback

1. Micro-SD (TF)

Insert Micro SD card for MP3 playback

1. Power Output 5V

USB port to use the device as a power bank

1. Power Input

Connector for inserting the supplied power adapter to charge battery or to use mains power to power the device

ECHO GUITAR MIC MASTER 1 2 3 4 - + - + - + - + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - TREBLE + - BASS + EQ 5 6 7 8 9 10 11 12 13 14 15 16 REC LINK

17 18 19 20 21 22 23 GUITAR MIC AUX USB TF OUT DC IN

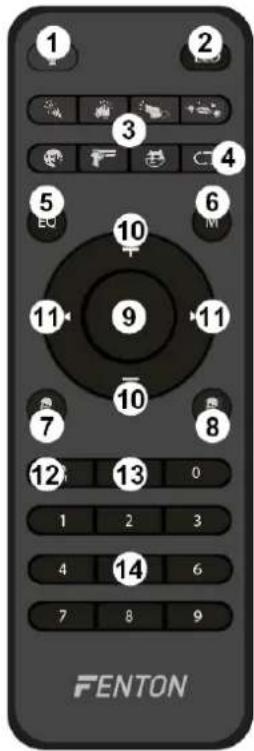

REMOTE CONTROL

1. REC

Press to start/stop recording

1. LED

Press to turn party light on Press and hold to turn the party light off

1. Sound Effects

Press to emit sound effects

1. Repeat

Press to change repeat mode (one/all) in USB/SD/TF card mode

1. EQ

Press to switch between indoor/outdoor sound modes

1. Mode

Press to switch between the different modes. If without USB/SD/TF inserting [M] button only stay in BT mode

1. MIC -

Press to decrease volume of the microphone

1. MIC +

Press to increase volume of the microphone

1. Play/pause

Press to start/resume or pause play

1. Volume -/+

Press to decrease/increase volume

1. Previous/next

Press to play previous/next track

1. MIC Priority

Press this button to enable or disable microphone priority; the music is automatically turned down when you speak through the microphone

1. Karaoke

Press to turn karaoke mode on/off. When on, only instrumental music will be emitted

1. Numpad

Numeric keys

1 2 3 4 5 6 7 8 9 10 11 12 13 14 FENTON

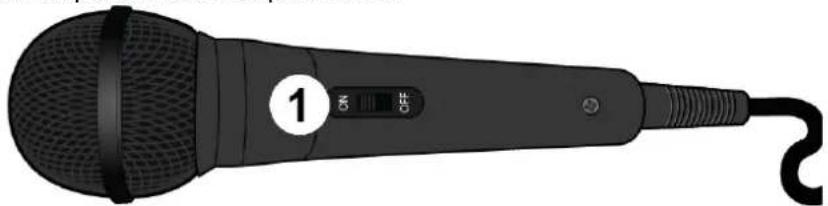

Insert the 6.3mm jack of the microphone cable into the microphone input. Switch on the microphone by setting to power switch to "on".

1. Power

Slide the switch to turn the power of the microphone on/off.

Illustration of a black handheld microphone with a control panel and cord (no text or symbols)

LINK/STEREO (TWS) PAIRING FUNCTION

When having two Fenton Core speaker systems, it's possible to initiate a link (pairing) between the two. Both portable systems will be emitting the same signal from the streaming audio function. To set up this stereo pairing, please follow the below steps:

1. Turn on the power on both Fenton Core speaker systems.
2. Change the operating mode to BT streaming on both Fenton Core speaker systems.
3. Press [LINK] on any speaker to pair with another speaker to connect. The speaker will give a sound when connection is completed.
4. Press and hold [LINK] to disconnect.

The optimal connection distance is about 5 meters.

When re-pairing after shutdown or power down of both speaker systems, the pairing will be "remembered". When setting both speaker systems to BT streaming mode, they will automatically pair after about 5 seconds.

BT CONNECTION

1. Activate the BT on your device (Mobile phone, tablet etc.) from which you want to play the music.
2. See the operating instructions for that device.
3. Press the [M] button and activate the BT-function.
4. Select "Party Speaker Core160" on your BT device and pair.

Attention: BT distance is approx. 10 meter without any barrier.

AUX

AUX IN mode plays audio from an external source such as MP3 players.

To avoid sudden loud volume, turn the volume down on both this device and, if adjustable, the source device.

To enter AUX IN mode, press [M] to activate AUX IN.

Adjust the volume of this device and, if necessary, the audio source device as required.

USB/MICRO-SD(TF)/U DISK

For playing MP3 music, insert the USB stick/SD/TF card or U disk in the correct slot. The device will start playing automatically.

Press [◀◀] or [▶▶] for next/previous track, press and hold to fast forward or rewind.

Press [▶] to start/resume or pause play.

RECORD FUNCTION

To start recording:

1. Insert a USB/TF card or U disk into the device.

2. Insert a wired microphone.

3. Press [REC] to record.

When playing music, press [REC] to enter the recording file. You can start recording by pressing the [REC] button. Press the [REC] button again to stop recording and play the recording automatically. An mp3 file of the recording will be saved on your USB/TF card or U-disk. When playing a recording file, press and hold [REC] for 3 seconds to delete the recording. When playing music (not recording), press and hold [REC] for 3 seconds to play the recording.

NOTE:

1. Use a usb stick or Micro SD or TF card with a maximum of 64gb.

2. Make sure there is at least one mp3 file stored in the usb/Micro SD/TF card.

MICROPHONE PRIORITY

Press [MIC PRIO] to enable or disable microphone priority; the music is automatically turned down when you speak through the microphone.

NEDERLANDS

Black desktop microphone with a black handle and cable, labeled with number 1 (no text or symbols on the device body)

LINK/STEREO (TWS) PAIRING FUNCTIE

Black handheld microphone with a black label and cable, no visible text or symbols on the device body

LINK/STEREO (TWS) PAIRING FUNCTION

Black handheld microphone with a black handle and attached cable, labeled with number 1 (no text or symbols on the device body)

Illustration of a black handheld microphone with a control panel and cord (no text or symbols)

FONCTION D'APPAIRAGE LINK/STEREO (TWS)

Illustration of a black handheld microphone with a black control knob and cord, labeled with number 1 (no text or symbols on the device body)

FUNKCJA PAROWANIA LINK/STEREO (TWS)

Illustration of a black handheld microphone with a labeled button (1) and cord, no text or symbols present.

FUNKCE PÁROVÁNÍ LINK/STEREO (TWS)

Input connections : 3.5mm Jack, MicroSD, USB

Output power: Max : 160W

Output power: RMS : 80W

Diameter woofer : 2x 8"

Signal-to-noise ratio : >80dB

Battery : 12V - 6Ah

Power supply : 100-240VAC 50/60Hz

Dimensions (L x W x H) : 330 x 327 x 735mm

Weight : 5,80kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.
