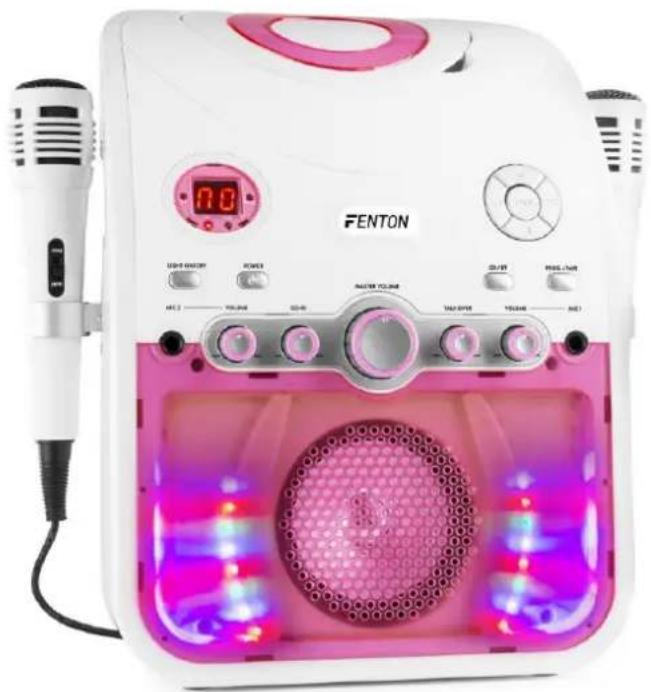

USER MANUAL SBS20B Fenton

MANUEL D'INSTRUCTIONS

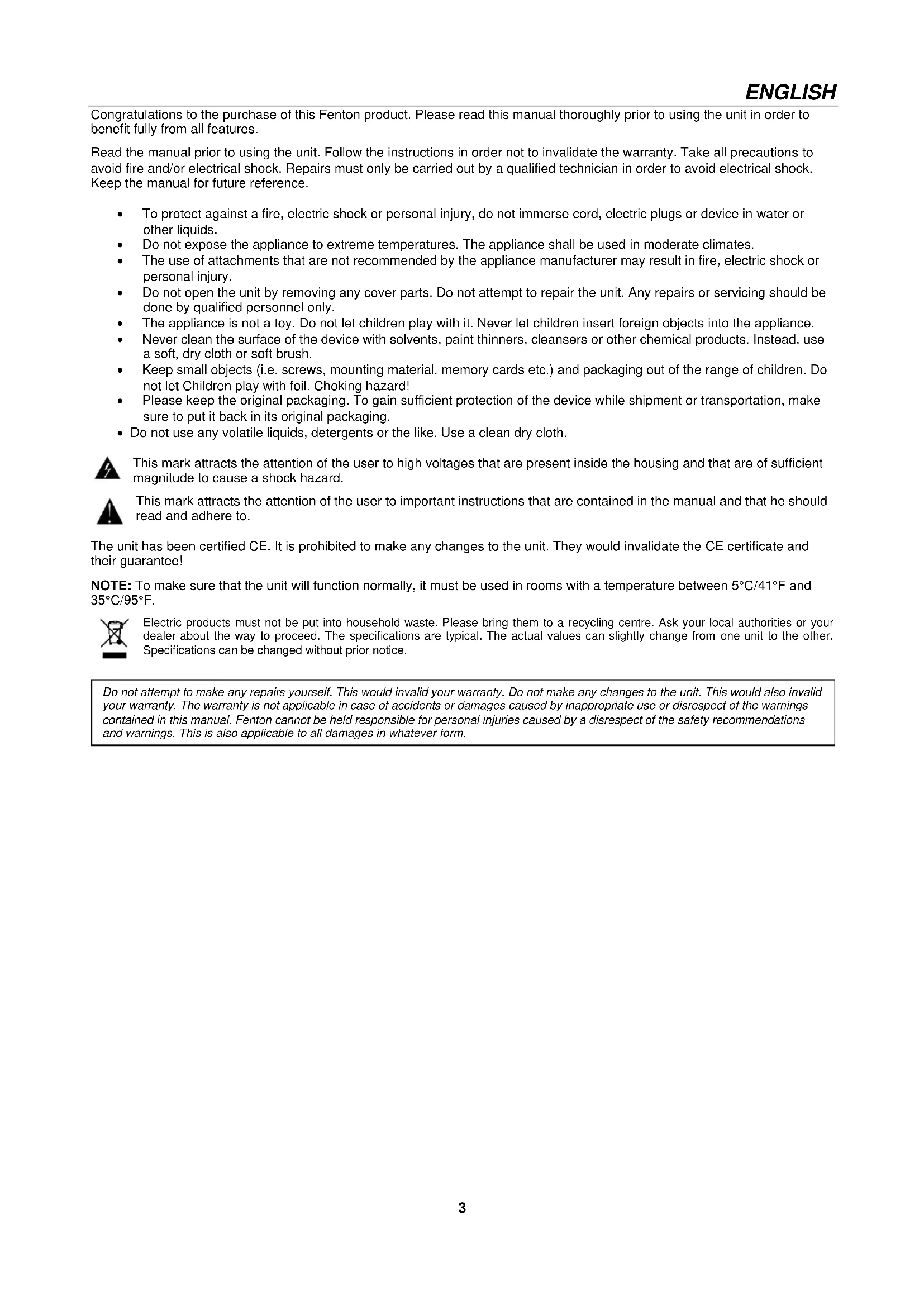

V1.123 ENGLISH Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or device in water or other liquids.

• Do not expose the appliance to extreme temperatures. The appliance shall be used in moderate climates.

• The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.

• Do not open the unit by removing any cover parts. Do not attempt to repair the unit. Any repairs or servicing should be done by qualified personnel only.

• The appliance is not a toy. Do not let children play with it. Never let children insert foreign objects into the appliance.

• Never clean the surface of the device with solvents, paint thinners, cleansers or other chemical products. Instead, use a soft, dry cloth or soft brush.

• Keep small objects (i.e. screws, mounting material, memory cards etc.) and packaging out of the range of children. Do not let Children play with foil. Choking hazard!

• Please keep the original packaging. To gain sufficient protection of the device while shipment or transportation, make sure to put it back in its original packaging.

• Do not use any volatile liquids, detergents or the like. Use a clean dry cloth. This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard. This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to. The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee! NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F. Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.4 UNPACKING INSTRUCTION CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. POWERSUPPLY On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply. Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire. OPERATION Connect an RCA audio cable to the RCA Audio Output on the SBS20 and an audio input on an external stereo system. Adjust the external stereo systems source to the input used. Audio played through the SBS20will now be heard through the connected stereo system.

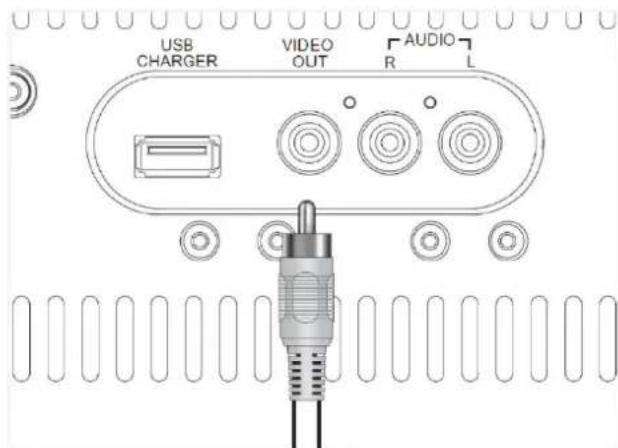

Connect an RCA video cable to the RCA Video Output on the SBS20 and a video input on a television. Adjust the television source to the input used.

• Load a CD, CD-R/RW, or CD+G disc into the karaoke machine, label side facing up. Close the CD door.

• Press the CD/BT button to switch to CD+G mode (The CD indicator will light up).

• Plug the included microphone into the Mic 1 or Mic 2 input.

• Press the Play/Pause button to begin playing the loaded disc.5 Programming a Loaded Disc

• Press the Stop button to stop the playback.

• Press the Program button. Press the Skip/Search buttons to select a track from the loaded disc.

• Press the Program button to add the selected track to the program.

• Repeat the above steps to add up to 20 tracks to the playlist.

• Press the Stop button to cancel a program. BT CONNECTION

• Press the CD/BT button repeatedly to switch to BT mode - then press the Pair button so the unit will enter pairing mode.

• Using the native controls on your BT device, select the “SBS20” in your BT settings to pair with.

• If your device requests a password, enter the default password “ 0 0 0 0 ”.

• When successfully paired and connected, the pairing indicator will display a solid blue light.

• After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device.

• If your device should become unpaired or above steps or press the Pair button to start the pairing process pairing again.

• Use the native controls on the connected BT Device to select a track. To play, pause or skip the selected track, use the native controls on the connected BT Device or press the Play/Pause or Tun/Skip/Search buttons.

• Load a CD, CD-R/RW, or CD+G disc into the karaoke machine, label side facing up. Close the CD door.

• Press the CD/BT button to switch to CD+G mode (The CD indicator will light up).

• Plug the included microphone into the Mic 1 or Mic 2 input.

• Press the Play/Pause button to begin playing the loaded disc.11 Programming a Loaded Disc

• Press the Stop button to stop the playback.

• Press the Program button. Press the Skip/Search buttons to select a track from the loaded disc.

• Press the Program button to add the selected track to the program.

• Repeat the above steps to add up to 20 tracks to the playlist.

• Press the Stop button to cancel a program. BT CONNECTION

• Press the CD/BT button repeatedly to switch to BT mode - then press the Pair button so the unit will enter pairing mode.

• Using the native controls on your BT device, select the “SBS20” in your BT settings to pair with.

• If your device requests a password, enter the default password “ 0 0 0 0 ”.

• When successfully paired and connected, the pairing indicator will display a solid blue light.

• After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device.

• If your device should become unpaired or above steps or press the Pair button to start the pairing process pairing again.

• Use the native controls on the connected BT Device to select a track. To play, pause or skip the selected track, use the native controls on the connected BT Device or press the Play/Pause or Tun/Skip/Search buttons.

Rated voltage : AC 220-240V 50Hz Dimensions per unit : 235 x 320 x 200mm Weight : 1,80 kg The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

• Restriction of Hazardous Substances (RoHS) 2011/65/EUSpecifications and design are subject to change without prior notice. www.tronios.com Copyright © 2020 by Tronios The Netherlands
