Product type	Portable speaker
Brand	Fenton
Model	BoomBox540
Mains power supply	220-240 V AC, 50 Hz
Built-in battery	Rechargeable lead-acid
Battery recharge	Every 3 months if unused
Wireless connectivity	Bluetooth (range ~10 m)
Wired connectivity	USB input, microSD reader, AUX input (3.5 mm), microphone input (6.35 mm)
Playback modes	Bluetooth, USB, microSD, AUX, FM radio
Special functions	Recording, stereo pairing (TWS), microphone priority, bass/treble/echo control
LED lighting	Yes, with effect modes
Operating temperature	5 °C to 35 °C
Safety	Do not open, avoid moisture, unplug during storms
Cleaning	Dry cloth, no chemicals
Repairs	Reserved for a qualified technician
Original parts	Mandatory for repair
Warranty	Lost in case of unauthorized modification or repair
Environment	Do not dispose with household waste, recycle
Instructions	Read the manual before use

Frequently Asked Questions - BoomBox540 Fenton

How to connect the speaker via Bluetooth?

Turn on the speaker, press MODE to select Bluetooth mode. Enable Bluetooth on your device, search for "Fenton" and connect. The range is about 10 meters without obstacles.

Can I use the speaker while charging?

Yes, you can use the speaker while it is charging. Plug the mains adapter into a 220-240 V socket and the speaker will operate normally.

How to play MP3 files from a USB drive?

Insert the USB drive into the USB INPUT port. The speaker automatically detects MP3 files. Use the NEXT/CH+ and PREV/CH- buttons to navigate.

How to use the recording function?

Press REC to start recording from the active source (USB, microSD or BT). Press a second time to play, a third time to exit.

How to pair two speakers in stereo (TWS)?

Turn on both speakers, connect one via Bluetooth. On both, long press PAUSE/PLAY until "TWS-ON" appears. Playback will be shared on both.

What to do if the speaker does not turn on?

Check that the ON/OFF switch is in the ON position. If the battery is discharged, plug in the mains adapter. If the problem persists, contact a technician.

How to clean the speaker?

Use a dry cloth to clean the surface. Do not use chemicals or aerosols that could damage the coating.

What are the important safety precautions?

Never open the case, avoid moisture, do not place metal objects or liquids on the device. Unplug it during storms or prolonged non-use.

How to adjust bass, treble and echo?

Press MENU repeatedly to select the setting (bass, treble, echo). Turn the VOLUME knob to adjust the value.

Can the speaker be used outdoors?

The speaker is designed for indoor use. Avoid exposure to rain or moisture. The ambient temperature must be between 5°C and 35°C.

USER MANUAL BoomBox540 Fenton

BoomBox540 Party Speaker with LED

Ref. nr.: 178.376

Black and white photo of a colorful outdoor audio workstation with visible sound waves and buttons (no text or symbols)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

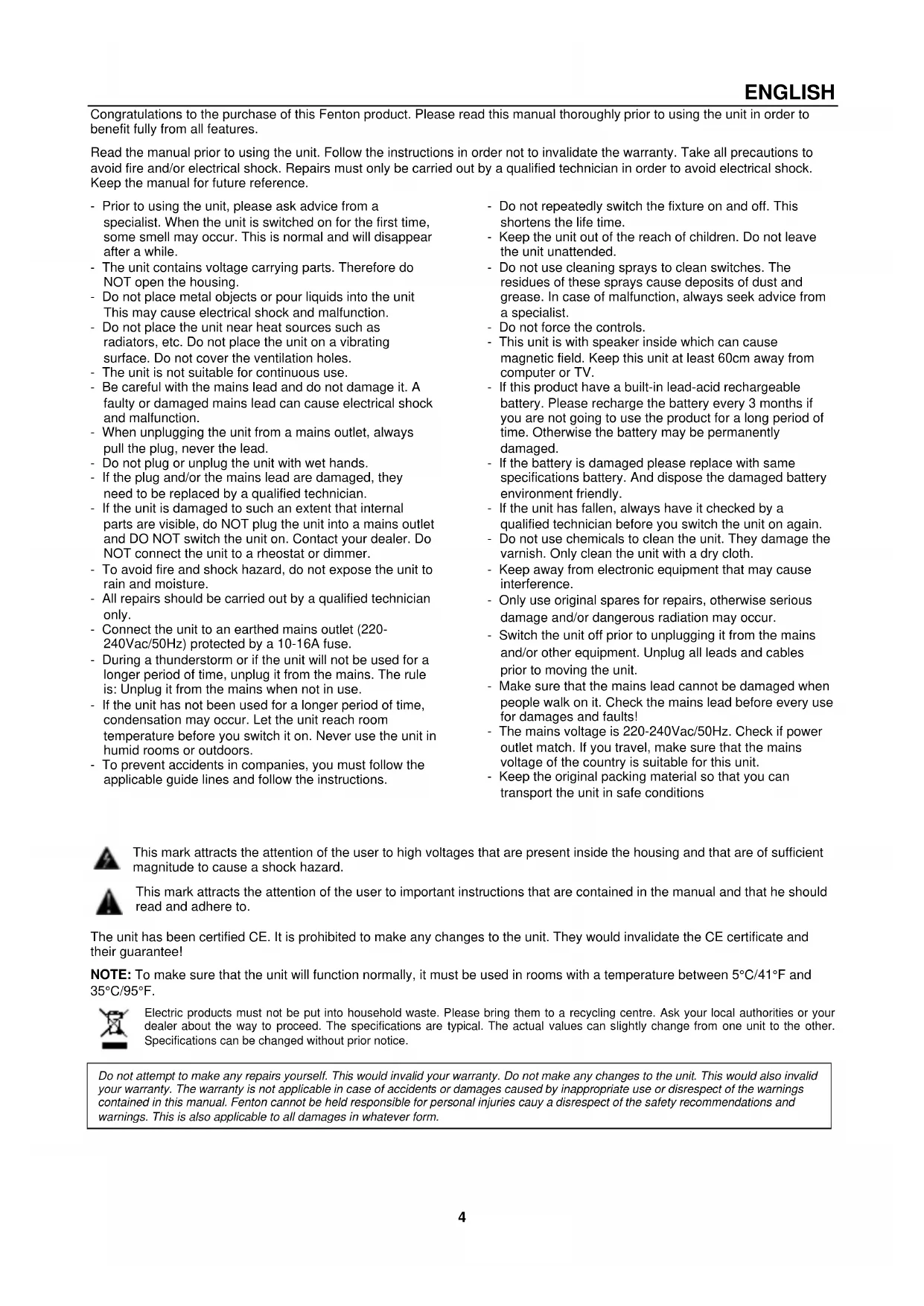

Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries cause a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

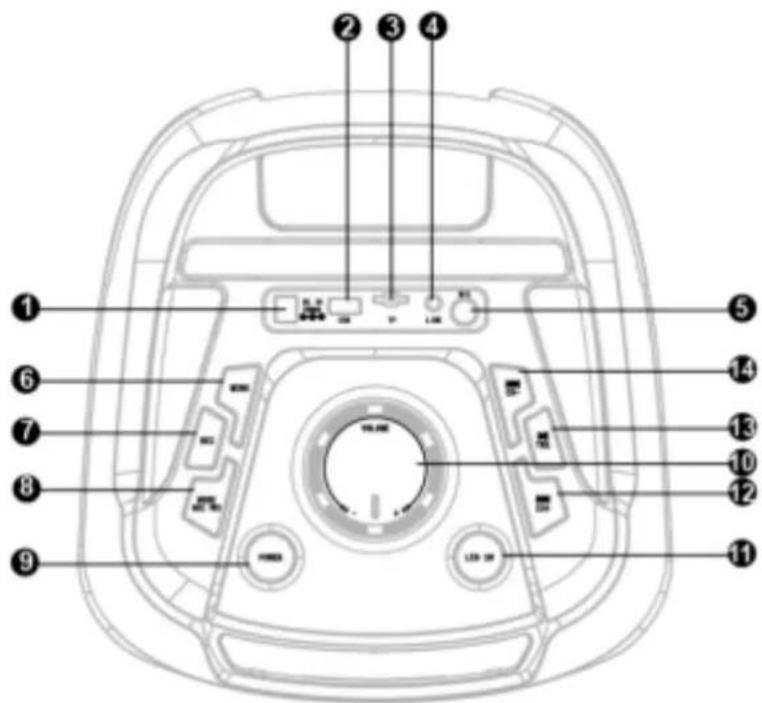

CONTROLS AND CONNECTIONS

1. DC9V1A CHARGE

Connect 9V1A adapter to power source to charge battery. Can use speaker while charging.

2. USB Input Insert

USB stick for MP3 playback.

3. MicroSD PORTS

Insert microSD card for MP3 playback.

4. Line Input

Connect external playback device with AUX cable.

5. MIC INPUT

Connect included microphone.

6. MENU

Press this button to change the bass/treble/echo.

7. REC

Press this button to record the signal from the USB flash drive, TF card or BT input.

8. MODE/MIC PRI

Short press to change Mode (BT, Aux, FM Radio, USB/microSD). Long Press to delete USB Recording.

9. POWER SWITCH

Turn speaker on/off.

10. VOLUME

Adjust speaker's Master Volume.

11. LED SWITCH

Turn LED Party Lighting on/off, long press to change the LED light effect mode.

12. NEXT/CH+

Long Press to disconnect BT.

13. PAUSE/PLAY/ Stereo pairing

Short press this button to pause the signal from the USB flash drive, TF card or BT input. Long press this button to turn on Stereo pairing mode.

14. PREV/CH-

Previous Song.

Technical diagram of a device interior with numbered components for identification

1. Power Switch
   Switch to turn the device ON or OFF.
2. Mode Switch
   Press to change modes.

3. Rec
   Press this button short to start recording
   Press this button for a second time to play recording
   Press this button for the third time to exit recording function

4. Playback Recording

5. Master Volume Up

Press to raise volume.

1. Previous Track

Press to choose previous track.

1. Play / Pause

Press to start/resume or pause play.

1. Next Track

Press to choose next track.

1. Master Volume Down

Press to decrease volume.

1. EQ

2. Numpad

3. Repeat

Press to select repeat single track or repeat full folder.

MODE 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 0

BT CONNECTION

1. Activate the BT on your device (Mobile phone, tablet etc.) which you want to play the music. See the operating instructions for that device.
2. Press the "MODE" button and activate the BT-function.
3. Select "Fenton" on your BT device and pair.

Attention: BT distance is approx. 10meter without any barrier.

BUILT-IN STEREO PAIRING FUNCTION

1. Power on the first Partybox500 speaker and connect it to a BT device.
2. Power on the second Partybox500 speaker and set the mode to BT (Do not pair any devices).
3. These two speakers, long press the PAUSE/PLAY TWS button, will see TWS-ON in the led display.
4. Play Audio from BT device. The audio sound will be transmitted through both speakers.

MICROPHONE PRIORITY

MIC priority button: long press this button to enable or disable microphone priority; the music is automatically turned down when you speak through the microphone.

Technical diagram of a device interior with numbered components for identification

AFSTANDSBEDIENING

1. AAN/UIT-SCHAKELAAR

4. OPNAME AfLUISTEREN

5. HOOFDVOLUME VERHOGEN

Technical diagram of a device interior with numbered components and labeled ports

1. EIN/AUS-SCHALTER

1. EQ

2. NUMPAD

3. WIEDERHOLEN SIE

Technical diagram of a device interior with numbered labels pointing to various components such as buttons, dials, and control knobs.

Technical diagram of a device interior with numbered components and labeled ports

1. INTERRUPTEUR MARCHE/ARRET

Technical diagram of a device rear panel with numbered labels pointing to internal components such as buttons, dials, and control knobs.

1. WŁĄCZNIK/WYŁĄCZNIK

Supplied features Master/Slave mode

Playback options BT 5.0 streaming, FM radio, MicroSD, USB

Input connections 3.5mm Jack, 6.3mm Jack, MicroSD, USB

Output power: Max 240W

Diameter tweeter 1"

Tweeter type Dome

Amount of tweeters 1

Diameter woofer 8"

Magnet type Ferrite

Amount of woofers 2

Frequency response 30Hz - 20.000Hz

Impedance 4 Ohm

Signal-to-noise ratio >70dB

Battery 7.4V - 5.4Ah

Power supply 100-240VAC 50/60Hz (9V Adapter)

Dimensions (L x W x H) 290 x 285 x 585mm

Weight 5,35

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2022 by Tronios The Netherlands
