| Brand | HiKOKI |
| Model | CS35SB |
| Product type | Electric chain saw |
| Guide bar length | 350 mm |
| Chain | Oregon 91PX-52 (pitch 9.53 mm, gauge 1.27 mm) |
| No-load speed | 14.5 m/s |
| Power | 1900 W |
| Voltage | 220-240 V ~ |
| Weight | 4.8 kg (according to EPTA 01/2003) |
| Oil tank capacity | 200 ml |
| Oil pump | Automatic |
| Chain brake | Manual activation |
| Overload protection | Electric |
| Sprocket | 6 teeth |
| Sound power level | 108 dB(A) |
| Sound pressure level | 95 dB(A) |
| Vibration value | 4.0 m/s² (uncertainty K = 1.5 m/s²) |
| Applications | Classic wood cutting |
| Standard accessories | Chain case, guide bar, chain, plug clip, chain saw oil (100 ml) |
| Maintenance | Cleaning of side cover, oil outlet, guide bar; sharpening of blade; checking chain brake |
| Safety | Switch lock, chain brake, bumper spike, chain guard, chain catcher |
| Warranty | According to national regulations |
| Certifications | CE (according to WEEE directive) |
Frequently Asked Questions - CS35SB HiKOKI
User questions about CS35SB HiKOKI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual CS35SB - HiKOKI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CS35SB by HiKOKI.
USER MANUAL CS35SB HiKOKI
CS 30SB • CS 35SB • CS 40SB
en Handling instructions
de Bedienungsanleitung
fr Mode d'emploi
it Istruzioni per l'uso
nl Gebruiksaanwijzing
es Instrucciones de manejo
pt Instruções de uso
sv Bruksanvisning
da Brugsanvisning
no Bruksanvisning
fi Käyttöohjeet
el Οδηγίες χειρισμού
pl Instrukcja obsługi
hu Kezelési utasítás
cs Návod k obsluze
tr Kullanım talimatları
ro Instructiuni de utilizare
sl Navodila za rokovanje
sk Pokyny na manipuláciu
bg Инструкция за експлоатация
sr Uputstvo za rukovanje
hr Upute za rukovanje
UK Інструкції щодо поводження з пристроєм
⑯ Инструкция по эксплуатации
1
3
4
5
6
7
8
9
10 11 12 13
14 15 16 17
SYMBOLS
WARNING
The following show symbols used for the machine. Be sure that you understand their meaning before use.
| CS30SB / CS35SB / CS40SB: Chain Saw | |
 | To reduce the risk of injury, user must read instruction manual. |
 | Do not use a power tool in the rain and moisture or leave it outdoors when it is raining. |
 | Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. |
 | Read, understand and follow all warnings and instructions in this manual and on the unit. |
 | Always wear eye protectors when using this unit. |
 | Always wear ear protectors when using this unit. |
 | Pull out the power supply plug if the cable is damaged. |
 | Oil pump adjustment |
 | Guaranteed Sound power level |
 | Chain oil fi II |
WHAT IS WHAT? (Fig. 1)
A: Lock-off button: Button that prevents the accidental operation of the trigger.
B: Oil tank cap: Cap for closing the oil tank.
C: Saw chain: Chain, serving as a cutting tool.
D: Guide bar: The part that supports and guides the saw chain.
E: Spiked bumper: Device for acting as a pivot when in contact with a tree or log.
F: Oil sight glass: Window to check chain oil amount.
G: Chain brake: Device for stopping or locking the saw chain.
H: Front handle: Support handle located at or towards the front of the main body.
I: Rear handle: Support handle located on the top of the main body.
J: Switch: Device activated by the finger.
K: Side cover: Protective cover to the guide bar saw chain, clutch and sprocket when the chain saw is in use.
L: Tension dial: Device for adjusting tension of saw chain
M: Knob: Knob for securing tension dial and side cover
N: Chain case: Case for covering the guide bar and saw chain when the unit is not being used.
O: Plug clip: A tool to prevent the power plug from slipping free of an extension cord's socket.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodifi ed plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.
If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
PRECAUTION
Keep children and infi rm persons away.
When not in use, tools should be stored out of reach of children and infi rm persons.
CHAIN SAW SAFETY WARNINGS
-
Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing
-
Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.
-
Hold the power tool by insulated gripping surfaces only, because the saw chain may contact hidden wiring or its own cord. Saw chains contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
-
Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is recommended. Adequate protective clothing will reduce personal injury by flying debris or accidental contact with the saw chain.
-
Do not operate a chain saw in a tree. Operation of a chain saw while up in a tree may result in personal injury.
-
Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of the chain saw.
-
When cutting a limb that is under tension be alert for spring back. When the tension in the wood fibres is released the spring loaded limb may strike the operator and/or throw the chain saw out of control.
-
Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.
-
Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.
-
Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
-
Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control.
-
Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.
Causes and operator prevention of kickback: (Fig. 2)
Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.
Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.
Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.
Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury.
Kickback is the result of tool misuse and/or incorr operating procedures or conditions and can be avoided by taking proper precautions as given below:
○ Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.
Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.
○ Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback.
Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.
Chain brake operation:
If a chain saw hits a solid object at a high speed it reacts violently and kicks back. This is difficult to control and could be dangerous, especially with lightweight tools that tend to be used in all kind of positions. The chain brake immediately stops the chain from rotating if there is an unexpected kickback. The chain brake can be activated by pressing your hand against the handguard or automatically by the kickback itself.
The chain brake can only be reset after the motor has stopped completely. Reset the handle to the rear position (Fig. 3). Check the function of the chain brake every day.
ADDITIONAL SAFETY WARNINGS
- Use the electrical voltage listed on the name plate for the power source.
The use of a voltage that exceeds this may result in injury. - Work without pressure. In addition, always keep your body warm.
- Before commencing work, reflect fully on the work procedures involved and work to avoid accidents, otherwise injury may occur.
- Do not use in the event of bad weather, such as strong wind, rain, snow, fog, or in areas prone to rockfall or avalanches.
In bad weather, judgment may be impaired and the vibration may result in disaster.
- When visibility is poor, such as during bad weather or night, do not use the unit. In addition, do not use it in rain or in a location exposed to rain.
Unstable foothold or loss of balance may result accident.
- Check the guide bar and saw chain before starting the unit.
☐ If the guide bar or saw chain is cracked, or the product is scratched or bent, do not use the unit.
☐ Check if the guide bar and saw chain are securely installed. If the guide bar or saw chain is broken or dislodged, this may result in an accident. - Before starting work, check to ensure the switch does not engage unless the lock-off button is pressed.
If the unit does not working properly, immediately stop using and request repair from your HiKOKI Authorized Service Center.
- Install the saw chain properly, in accordance with the instruction manual. If installed incorrectly, the saw chain will come off the guide bar and injury may occur.
- Never remove any of the safety devices equipped on the chain saw (brake lever, lock-off button, chain or recatcher etc.).
In addition, do not alter or immobilize them. Injury may occur.
- In the following cases, switch the unit off and ensure the saw chain is no longer moving:
○ When not in use or being repaired.
○ When shifting to a new work location.
When inspecting, adjusting or replacing the saw chain, guide bar, chain case and any other part.
○ When refilling the chain oil.
○ When removing dust etc. from the body.
- When removing obstacles, trash or sawdust generated from work from the work area.
○ When you take off the unit, or when you get away from the unit.
- Otherwise, if you sense danger or anticipate risk. If the saw chain is still moving, an accident may occur.
-
Work should generally be performed individually. When multiple individuals are involved, ensure sufficient spacing between them. In particular, when felling standing trees or working on a slope, if you anticipate trees falling, rolling or sliding, ensure there is no danger to other workers.
-
Remain more than 15 m away from other people. In addition, when working with multiple persons, remain 15 m or more apart.
There is a risk of impact with scatters and other accidents.
○ Prepare a whistle alert etc. and determine appropriate contact method for other workers beforehand. -
Before felling standing trees, ensure the following:
○ Determine a safe evacuation location prior to felling.
○ Remove obstacles (e.g., branches, shrubs) in advance.
☐ Based on a comprehensive evaluation of the state of the tree to be felled (e.g., trunk bend, tension of branches) and the surrounding situation (e.g., state of adjacent trees, presence of obstacles, terrain, wind), decide on the direction in which the standing tree will fall and then plan the felling procedure.
Careless felling may result in injury.
- When felling standing trees, ensure the following:
During work, be very careful of the direction in which trees fall.
When working on a slope, ensuring the tree will not roll, always work from the uphill side of the terrain.
When the tree starts falling, switch the unit off, alert the surroundings, and immediately retreat to a safe location.
During work, if the saw chain or guide bar become entangled in the tree, switch off and use a wedge.
15. During use, if the unit performance deteriorates, or you notice any abnormal sound or vibration, immediately switch off and discontinue use, and return to your HiKOKI Authorized Service Center for inspection or repair.
If you continue using, injury may occur.
- If the unit is accidentally dropped or exposed to impact, inspect carefully for damage or cracks and ensure there is no deformation.
If the unit is damaged, cracked or deformed, injury may occur.
- When transporting the unit by car, secure the unit to prevent it moving.
There is a risk of accident.
English
- Do not switch the unit on while the chain case is attached.
Injury may occur. - Ensure there are no nails and other foreign objects in the material.
If the saw chain impact on the nail etc., injury may occur. - To avoid the guide bar becoming entangled with the material when chopping on a verge or when subject to the weight of material while cutting, install a supporting platform close to the cutting position.
If the guide bar becomes entangled, injury may occur. - If the unit is to be transported or stored after use, either remove the saw chain, or attach the chain cover.
If the saw chain comes into contact with your body, injury may occur. -
Adequately care for the unit.
To ensure work can be performed safely and efficiently, care for the saw chain to ensure it provides optimal cutting performance.
When replacing the saw chain or guide bar, maintaining the body, filling oil etc., follow the instruction manual. -
Ask the shop to repair the unit.
○ Do not modify this product, since it already complies with the applicable safety standards.
○ Always refer to your HiKOKI Authorized Service Center for all repairs.
Attempting to repair the unit yourself may result in an accident or injury. - When not using the unit, ensure it is properly stored. Drain off the chain oil, and keep in a dry place out of reach of children or a locked location.
- If the warning label is no longer visible, peels off or is otherwise unclear, apply a new warning label. For the warning label, refer to your HiKOKI Authorized Service Center.
- When working, if local rules or regulations apply, comply with the same.
- Recommendation for the use of a residual current device with a tripping current of 30 mA or less
- Statement to position the cord of so that it will not be caught on branches and the like, during cutting
- Recommendation that the first-time user should, as a minimum practice, cutting logs on a saw-horse or cradle

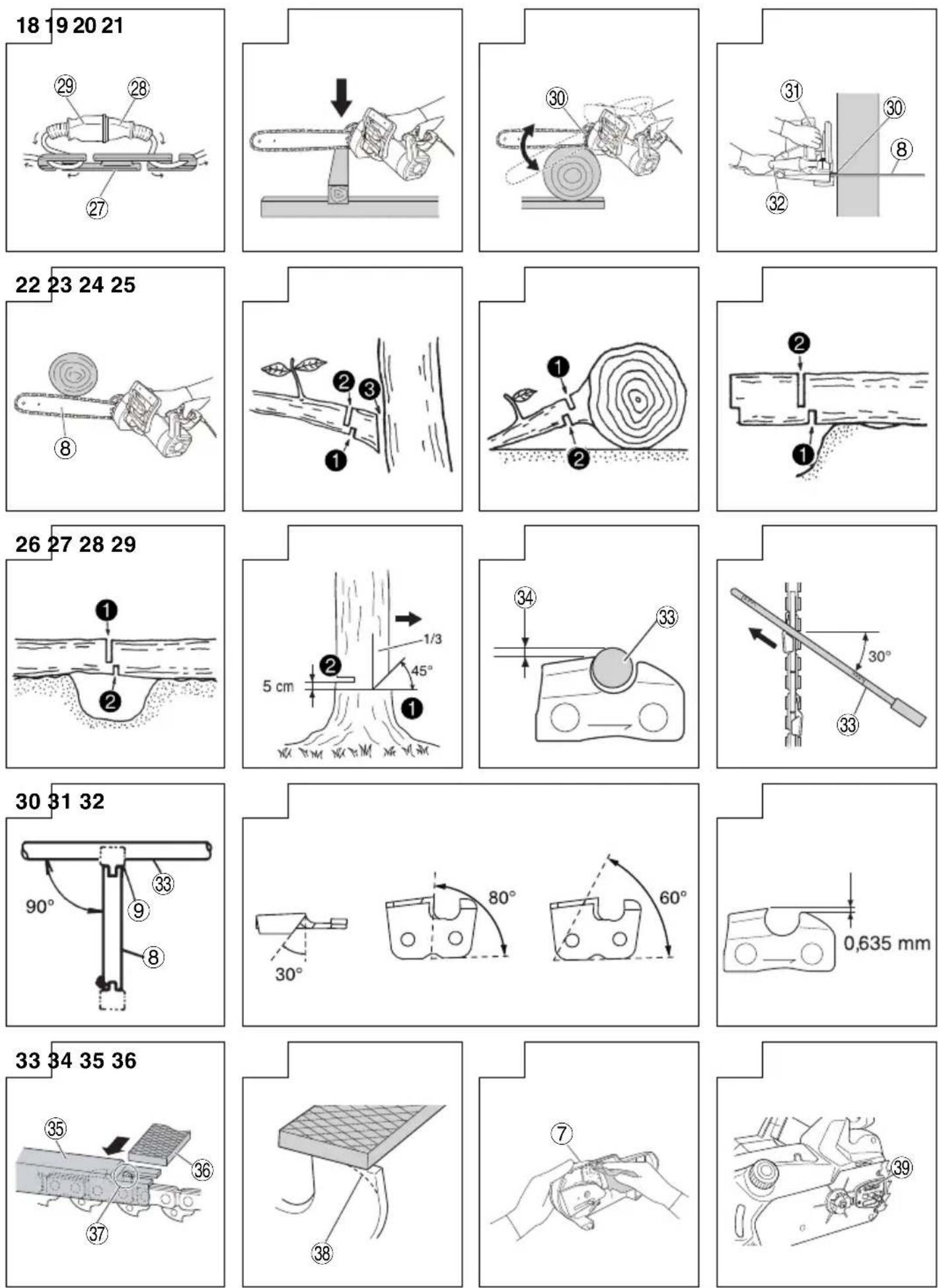

DESCRIPTION OF NUMBERED ITEMS (Fig. 2 - Fig. 38)
| 1 | Kickback zone | 12 | Blade direction | 23 | Oil sight glass | 34 | 1/5 of diameter of fi le |
| 2 | Chain brake | 13 | Chain tensioner hole | 24 | Oil pump adjuster | 35 | Depth gage jointer |
| 3 | Free | 14 | Chain tensioner boss | 25 | Lock-off button | 36 | Flat fi le |
| 4 | Lock | 15 | Increase the tension | 26 | Switch | 37 | Protruding depth gage head |
| 5 | Knob | 16 | Decrease the tension | 27 | Plug clip | 38 | Round off |
| 6 | Tension dial | 17 | Drive link | 28 | Plug | 39 | Brake band chamber |
| 7 | Side cover | 18 | Fasten | 29 | Extension cord | 40 | Chain oil spout |
| 8 | Guide bar | 19 | Pull | 30 | Spiked bumper | 41 | Groove |
| 9 | Saw chain | 20 | Actuation | 31 | Front handle | 42 | Oil hole |
| 10 | Guide bar tip | 21 | Release | 32 | Rear handle | 43 | Chain catcher |
| 11 | Sprocket | 22 | Chain oil | 33 | Round fi le |
SPECIFICATIONS
| Model | CS30SB | CS35SB | CS40SB |
| Guide bar length (Max. cutting length) | 300 mm | 350 mm | 400 mm |
| Guide bar Type | P012-50CR | P014-50CR | P016-50CR |
| Voltage (by areas)*1 | (220 V, 230 V, 240 V) ~ | ||
| Power Input*1 | 1900 W | ||
| No-load chain speed | 14.5 m/s | ||
| Type of chain | 91PX-45 (Oregon) | 91PX-52 (Oregon) | 91PX-57 (Oregon) |
| Chain pitch / Gauge | 9.53 mm (3/8") / 1.27 mm (0.05") | ||
| Sprocket | Number of teeth: 6 | ||
| Oil pump | Automatic | ||
| Chain oil tank capacity | 200 ml | ||
| Overload protection | Electrical | ||
| Chain brake | Manually actuated | ||
| Weight*2 | 4.7 kg | 4.8 kg | 4.9 kg |
*1 Be sure to check the nameplate on product as it is subject to change by areas.
*2 Weight: According to EPTA-Procedure 01/2003
STANDARD ACCESSORIES
○ Chain case .... 1
○ Guide bar .... 1
○ Chain
○ Plug clip ^* 1
○ Chain Saw Oil (100 ml) ....1
* Not supplied in certain sales areas.
Standard accessories are subject to change without notice.
OPTIONAL ACCESSORIES (SOLD SEPARATELY)
○ Chain Saw Oil
○ Round File
○ Depth Gauge Jointer
Round File and Depth Gauge Jointer are to be used for sharpening of chain blades. As to its application, please refer to the item titled "Sharpening of the Chain Blade".
○ Chain Case Always keep the chain cover on the chain while carrying the chain saw or while storing it.
Optional accessories are subject to change without notice.
APPLICATIONS
General wood cutting.
INSTALLING (REPLACING) SAW CHAIN
WARNING
To prevent accidents, always switch the unit off, and disconnect the plug from the receptacle.
- Don't use the saw chain or the guide bar other than those specified in "SPECIFICATIONS".
CAUTION
Wear gloves and be careful to avoid injury with the saw chain.
NOTE
When removing the saw chain, remove sawdust from the oil spout, oil hole, and guide bar groove.
If sawdust accumulates, this may cause the unit to fail.
○ Use the correct type of saw chain in accordance with the specifications.
If you install the wrong type of guide bar, the saw chain may come off and injury may occur.

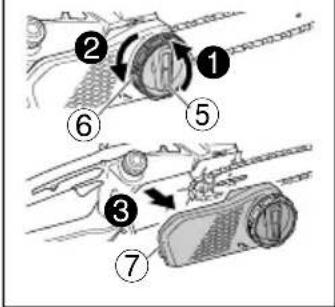

1. Removing the side cover (Fig. 4)
① Rotate the knob once to loosen it.
② Rotate the tension dial half a turn to loosen it.
③ Turn the knob and remove the side cover.
- Removing the saw chain and guide bar (Fig. 5) Remove the saw chain and guide bar in the direction indicated by the arrow.
3. Engaging the new saw chain in the sprocket (Figs. 6, 7)
Engage the saw chain at the guide bar tip with attention to the direction of the saw chain, and then properly engage the saw chain with the sprocket.
4. Installing the side cover
① Adjust the tension dial of the side cover so that the chain tensioner boss is inserted into the guide bar chain tensioner hole, and attach the side cover. (Fig. 8)
② Rotate the knob once to temporarily fix it. (Fig. 9)
5. Adjusting the saw chain tension (Fig. 10)
○ While lifting the guide bar tip, turn the tension dial to adjust the saw chain tension.
○ Turn the tension dial to the right to increase the saw chain tension, and to the left to decrease it.
6. Checking the saw chain tension (Fig. 11)
Adjust the saw chain tension so that the gap between the saw chain drive link and the guide bar is 0.5 to 1 mm when you lift the saw chain slightly near the center of the guide bar.
7. Securing the knob (Fig. 12)
① When adjustment is complete, lift up the guide bar, and fully tighten the knob.
② Make sure the bolt is firmly tightened.
WARNING
After adjusting the saw chain tension, ensure the knob is fully tightened.
If it is loose, injury may occur.
INSPECTION AND PREPARATION PRIOR TO USE
Prior to use, make the following inspection and preparation. WARNING
○ Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.
To prevent accidents, always perform steps 1 to 5 ensuring the plug is disconnected from the receptacle.
☐ Do not secure the lock-off button while it is pressed. If the switch is accidentally engaged, the unit may unexpectedly start and injury may occur.
1. Ensuring the switch is off
☐ Ensure that the power switch is in the OFF position. If the plug is connected to a receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.
☐ When the switch is engaged while pressing the lock-off button, the unit switches on, and when the switch is released, the unit switches off.
2. Checking the extension cord
When the work area is remote from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.
3. Checking the saw chain tension
☐ If the saw chain tension is incorrect, there is a risk of damage to the saw chain or guide bar and malfunction. Referring to steps 5 to 7 “Installing (replacing) saw chain,” ensure an appropriate tension is set.
○ While the saw chain is still new, it is particularly stretchy, so periodically check the tension and adjust as required.
○ Also check the knob is securely tightened.
4. Checking operation of chain brake (Fig. 13)
WARNING
Although the chain brake is an emergency stop device, this is not completely reliable. Operate carefully to avoid the risk of kickback.
☐ The chain brake is intended for use in emergencies and when starting up. Do not use it indiscriminately.
To avoid impaired movement of the chain brake due to buildup of sawdust etc., clean regularly.
- The chain brake is an important component to ensure safe use.
If you have any concern regarding the brake operation, request repair from your HiKOKI Authorized Center.
English
The chain brake is an emergency stop device that stops the saw chain when the unit is subject to kickback etc., to reduce risk.
(Refer to “Causes and operator prevention of kickback.”) When activating the chain brake by pushing the brake lever forward, the saw chain stops moving.
If you pull the brake lever toward you, the brake is released. When confirming the operation of the chain brake, always switch the unit off, disconnect the plug form the receptacle, activate the brake lever and pull the saw chain by hand. If the saw chain does not move, this means the chain brake is activated.
NOTE
Always wear thick gloves for this task.
Since the saw chain blade is very sharp, pulling it hard risks injuring your fingers.
5. Checking the chain oil
○ This unit is delivered without chain oil inside. Ensure the oil tank is filled with the chain oil provided before use. (Fig. 14)
○ Periodically check the oil sight glass during work and replenish oil as required.
○ If the chain oil supplied runs out, use HiKOKI chain oil sold separately or equivalent chain oil on the market.
○ The chain oil lubricates automatically.
The discharge rate for auto lubrication is factory preset to the maximum.
To reduce the discharge rate, turn the oil pump adjuster on the rear of the body clockwise. (Fig. 15)
NOTE
○ The oil tank capacity is about 200 ml.
Even if overfilled, excess oil will escape from the overflow spout.
- We recommend that you stock up with chain oil.
If you continue working without chain oil, the saw chain may burn through, or the motor may fail.
○ Be careful to avoid dust or other foreign matter from entering the oil tank.
If dust and other foreign matter enter the oil tank, the unit may fail.
○ Chain oil left in the tank may leak due to the structure of this unit. Although this does not indicate a malfunction, it may soil the storage location, so be careful.
When storing, empty the oil from the oil tank, and place an item under the main body which can absorb any leaks.
6. Connecting the plug to the receptacle
7. Checking brake is engaged
○ When the switch is engaged while pressing the lock-off button, the unit switches on, and when the switch is released, the unit switches off.
○ In addition, at the same time as releasing the switch, the unit applies a brake to stop the rotation of the saw chain.
○ Before using, check to ensure brake is engaged.
CAUTION
Be careful of the repulsive force when the brake is engaged.
If you drop the unit, injury may occur.
8. Checking chain oil discharge (Figs. 15, 16)
When switching the unit on, chain oil automatically lubricates the saw chain and guide bar.
☐ If oil does not seem to emerge 2 to 3 minutes after the unit starts, check if any sawdust has accumulated around the oil spout.
(Refer to "Cleaning the chain oil spout.")
(Refer to "Checking the chain oil.")
- It is recommended to use an earth-leakage circuit breaker or a residual current device.
Switch operation
When the switch is engaged while pressing the lock-off button, the saw chain rotates. (Fig. 17) Unless the lock-off button is pressed, the switch cannot be engaged.
After the switch is engaged, the saw chain continues rotating as long as it is pressed down.
When the switch is released, a brake is applied to stop the saw chain rotation.
WARNING
Do not secure the lock-off button while it is pressed. If the switch is accidentally engaged, t unexpectedly start and injury may occur.
Using the plug clip
The cord leading from the power plug is prevented from being pulled out by the plug clip. (Fig. 18)
CUTTING PROCEDURES
WARNING
○ Prior to operation, ensure that chain brake works.
○ During use, grip the handle securely with both hands.
- When cutting timber from the bottom, ensure the saw chain does not impact with the timber.
If the unit is pushed back, injury may occur.
During work breaks or after work, always switch the unit off, and disconnect the plug from the receptacle.
Always monitor the workplace and surrounding area, ensure there are no objects which could cause injuries, accidents or failure, and if any are present, remove them in advance.
In particular, when establishing a foothold for working, ensure there is no instability or any object which could be tripped over.
When felling standing trees, always pay careful attention to the direction in which the tree will fall or roll, and determine a safe evacuation area and escape route for yourself in advance.
① Ensuring the unit is switched off
If the plug is connected to a receptacle while the switch is unknowingly engaged, the unit may unexpectedly start, which may result in an accident.
② Engaging the switch
Ensuring the saw chain is not in contact with the timber, engage the switch, and start cutting when the saw chain speed has increased.
CAUTION
When switching the unit on, ensure the saw chain does not contact with material or anything else.
During use, be careful to ensure the saw chain does not contact with other material or object. In particular, when you have finished cutting, be careful to ensure it does not touch the ground.
NOTE
Refill the oil tank early to prevent the unit running out of oil.
1. General cutting procedures
(1) Switch ON the power while keeping the saw slightly away from the wood to be cut. Start sawing only after the unit has reached full speed.
(2) When sawing a slender piece of wood, press the base section of the guide bar against the wood and saw downward as shown in Fig. 19.
(3) When sawing a thick piece of wood, press the spike on the front section of the unit against the wood and cut it with a lever action while using the spike as a fulcrum as shown in Fig. 20.
(4) When cutting wood horizontally, turn the unit body to the right so that the guide bar is below and hold the upper side of the front handle with your left hand. Hold the guide bar horizontally and place the spike that is on the front of the unit body on the lumbar. Using the spike as a fulcrum, cut into the wood by turning the rear handle to the right. (Fig. 21)
(5) When cutting into wood from the bottom, touch the upper part of the guide bar to the wood lightly. (Fig. 22)
(6) As well as carefully studying the handling instructions, ensure practical instruction in the operation of the chain saw prior to use, or at least practice working with the chain saw by cutting lengths of round timber on a sawing trestle.
(7) When cutting logs or timbers which are not supported, support them properly by immobilizing them during cutting using a sawing trestle or other proper method.
CAUTION
When cutting wood from the bottom, there is a danger that the unit body may be pushed back toward the user if the chain strongly impacts with the wood.
Do not cut all the way thorough the wood by starting from the bottom since there is the danger of the guide bar flying up out of control when the cut is finished.
○ Always prevent the operating chain saw from touching the ground or wire fences.
2. Branch cutting
(1) Cutting branches from a standing tree: A thick branch should initially be cut off at a point away from the trunk of the tree.
First cut in about one third of the way from below, and then cut off the branch from above. Finally, cut off the remaining portion of the branch even with the trunk of the tree. (Fig. 23)
CAUTION
○ Always be careful to avoid falling branches.
○ Always be alert for chain saw recoil.
(2) Cutting branches from fallen trees:
First cut off branches that do not touch the ground, then cut off those which touch the ground. When cutting thick branches that touch the ground, first cut in about half of the way from above, then cut the branch off from below. (Fig. 24)
CAUTION
When cutting off branches which touch the ground, be careful that the guide bar does not become bound by pressure.
○ During the final cutting stage, beware of the log suddenly rolling.
3. Log cutting
When cutting a log positioned as shown in Fig. 25, first cut in about one third of the way from below, then cut down all the way from above. When cutting a log that straddles a hollow as shown in Fig. 26, first cut in about two thirds of the way from above, then cut upward from below.
CAUTION
○ Ensure the guide bar does not become bound in the log by pressure.
When working on inclined ground, be sure to stand on the uphill side of the log. If you stand on the downhill side, the cut-off log may roll toward you.
4. Felling trees
(1) Undercut ① as shown in Fig. 27):
Make undercut facing the direction in which you want the tree to fall. The depth of the undercut should be 1/3 of the tree's diameter. Never fell trees without proper undercut.
(2) Back cut (② as shown in Fig. 27): Make a backcut about 5 cm above and parallel to the horizontal undercut.
If the chain becomes entangled during cutting, stop the saw and use wedges to free it. Do not cut thorough the tree.
CAUTION
- Trees should not be felled in a manner that would endanger any person, strike any utility line or cause any property damage.
○ Be sure to stand on the uphill side of the terrain as the tree is likely to roll or slide downhill after it is felled.
Precaution for cutting work
Gripping/pushing force of chain saw
Always grip the chain saw securely.
In addition, do not force the chain saw more than necessary. When cutting, additional force exerted on the chain saw will not accelerate the cutting speed.
This will strain the motor, impair the performance, and damage or cause malfunction of the motor or guide bar. Use the unit in the range where the saw chain is at a reasonable speed.
In particular, when the saw chain stops (becomes jammed) due to the excessive force, it may cause an injury or failure of the unit.
Chain catcher
☐ The chain catcher is located on the power head just below the chain to further prevent the possibility of a broken chain striking the chain saw user.
○ When the saw chain is cut, replace it with a new one referring to "Installing (replacing) saw chain".
SHARPENING OF THE CHAIN BLADE
WARNING
To prevent accidents, always turn off the switch and disconnect the plug from the receptacle.
In addition, when using saw chains, always wear thick gloves.
NOTE
Sharpen the saw chain and adjust the depth gage at the central position on the guide bar, with the saw chain attached to the main body.
When the sharpness of saw chains deteriorates, the motor and each part of the body are burdened and the efficiency declines.
For optimal performance of the unit, frequent maintenance is necessary to keep the saw chain sharp.
1. Blade sharpening
The accessory round file should be held against the chain blade so that one-fi fth of its diameter extends above the top of the blade, as shown in Fig. 28. Sharpen the blades by keeping the round fi le at a 30° angle in relation to the guide bar, as shown in Fig. 29, ensuring that the round file is held straight, as shown in Fig. 30. Ensure that all saw blades are filed at the same angle, or the cutting efficiency of the tool will be impaired. Appropriate angles for sharpening the blades correctly are shown in Fig. 31.
2. Adjustment of depth gage
WARNING
☐ Do not sand the top part of the bumper tie strap and guard drive link, nor cause the shape of said parts to deform.
○ Adjustment of depth gages must be in line, predetermined dimensions and shapes, otherwise the risk of kickback may increase, causing an injury.
Bumper tie strap
Guard drive link
English
Depth gages shall be all lined up in the same manner because they are used to adjust depth at the position where the cutter inlays into the wood.
When sharpening the saw chain, be sure to check the depth gage every two or three times.
Place a depth gage jointer on the saw chain, leave the gage visible at the groove, and use a flat file to bevel the portion out of the depth gage jointer. (Fig. 33) (Depth gage jointer and flat file are sold separately.) After filing away the depth gage, round off the front side of the depth gage as it was. (Fig. 34)
After sharpening the saw chain, place it into chain oil to wash off the filings.
If filings are not cleaned off, the saw chain and guide bar will quickly wear while in use.
MAINTENANCE AND INSPECTION
After operation, perform inspection and maintenance of each part when storing the unit.
WARNING
During maintenance and inspection, always switch off the unit and disconnect the plug from the receptacle.
1. Inspection of saw chains
○ Occasionally inspect the saw chain. In the event of any abnormality, replace it with a new one referring to "Installing (replacing) saw chain".
○ Inspect the chain tension and check If it is correctly tightened.
- Stop using the unit when the saw chain becomes blunt and sharpen it referring to "Sharpening of the chain blade".
○ After use, carefully lubricate the saw chain and guide bars with oil for rust-proofing.
CAUTION
Wear gloves to avoid injury while using a saw chain.
2. Cleaning the side cover (Fig. 35)
Clean and remove any sawdust left inside the parts.
NOTE
When cleaning the side cover, brake band chain oil spout, and side bar, see the procedure "Installing (replacing) saw chain" and remove the saw chain.
3. Cleaning the chain oil spout (Fig. 36)
Before cleaning the chain oil spout, remove the side cover and guide bar.
4. Cleaning the guide bar (Figs. 7, 37)
When sawdust and similar become clogged in the groove of the guide bar or oil spout, the oil may not flow, which may result in the unit failing.
Remove the guide bar and clean any sawdust clogged in the groove after use and when replacing the saw chain. (Refer to “Installing (replacing) saw chain.”)
5. Inspect the chain catcher (Fig. 38)
The chain catcher is for preventing the saw chain from striking the operator as much as possible should the chain come loose or break.
The chain catcher and side cover are combined into a single structure.
Inspect the chain catcher to make sure that there are no damages.
6. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.
7. Maintenance of the motor
The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.
8. Replacing the carbon brushes
For your continued safety and electrical shock protection, carbon brush inspection and replacement on this tool should ONLY be performed by a HiKOKI AUTHORIZED SERVICE CENTER.
9. Cleaning of the outside
When the chain saw is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.
10. Storage
When storing the unit, perform cleaning and maintenance of each part and mount the chain case to the guide bar.
Store the chain saw in a place where the temperature is less than 40^ C and out of reach of children.
CAUTION
In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
SELECTING ACCESSORIES
The accessories of this machine are listed on page 235.
GUARANTEE
We guarantee HiKOKI Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center.
IMPORTANT
Correct connection of the plug
ch The wires of the main lead are coloured in accordance with the following code:
Blue: -- Neutral
Brown: -- Live
As the colours of the wires in the main lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:
The wire coloured blue must be connected to the terminal marked with the letter N or coloured black.
The wire coloured brown must be connected to the terminal marked with the letter L or coloured red.
Neither core must be connected to the earth terminal.
NOTE
This requirement is provided according to BRITISH STANDARD 2769: 1984.
Therefore, the letter code and colour code may not be applicable to other markets except The United Kingdom.
Information concerning airborne noise and vibration
The measured values were determined according to EN60745 and declared in accordance with ISO 4871.
Measured A-weighted sound power level: 108 dB (A)
Measured A-weighted sound pressure level: 95 dB (A)
Uncertainty K: 2 dB (A).
Wear hearing protection.
Vibration total values (triax vector sum) determined according to EN60745.
ah = 4.0 m/s²
Uncertainty K = 1.5 m/s ^2
The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.
It may also be used in a preliminary assessment of exposure.
WARNING
☐ The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used.
○ Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
NOTE
Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.
VEILIGHEIDSWAARSCHUWINGEN VOOR DE KETTINGZAAGMACHINE
HVAD ER HVAD? (Fig. 1)
SLIBNING AF KÆDEKNIVENE
ADVARSEL
SIKKERHETSFORHOLDSREGLER FOR ELEKTROVERKT∅Y
ADVARSEL
7. Checking brake is engaged
DODATNA VARNOSTNA OPOZORILA
Negotovost K : 2 dB (A)
91PX-52XJ(3/8×14"):6697854
91PX-57XJ(3/8×16"):6697889
14":6696991
16": 6696992
14":6699116
16": 6699115
957681
| GUARANTEE CERTIFICATE1 Model No.2 Serial No.3 Date of Purchase4 Customer Name and Address5 Dealer Name and Address(Please stamp dealer name and address) | GARANTIBEVIS1 Modelnummer2 Serienummer3 Købsdato4 Kundes navn og adresse5 Forhandlers navn og adresse(Indsæt stempel med forhandlers navn og adresse) | CERTIFICAT DE GARANTIE1 Model nr.2 Nr. de serie3 Data cumpărării4 Numele și adresa clientului5 Numele și adresa distribuitorului(Vă rugăm aplicați ștampila cu numele și adresa distribuitorului) | ||
| Deutsch Norsk Slovenščina | ||||
| GARANTIESCHEIN1 Modell-Nr.2 Serien-Nr.3 Kaufdatum4 Name und Anschrift des Kunden5 Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln) | GARANTISERTIFIKAT1 Modellnr.2 Serienr.3 Kjøpsdato4 Kundens navn og adresse5 Forhandlerens navn og adresse(Vennligst stemple forhandlerens navn og adresse) | GARANCIJSKO POTRDILO1 Št. modela2 Serijska št.3 Datum nakupa4 Ime in naslov kupca5 Ime in naslov prodajalca(Prosimo tvisnite žig z imenom in naslovom prodajalca) | ||
| Français Suomi Slovenčina | ||||
| CERTIFICAT DE GARANTIE1 No. de modèle2 No de série3 Date d'achat4 Nom et adresse du client5 Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur) | TAKUUTODISTUS1 Malli nro2 Sarja nro3 Ostopäivämäärä4 Asiakkaan nimi ja osoite5 Myyjän nimi ja osoite(Leimaa myyjän nimi ja osoite) | ZÁRUČNÝ LISTA1 Č. modelu2 Sériové č.3 Dátum zakúpenia4 Meno a adresa zákazníka5 Názov a adresa predajcu(Pečiatka s názvom a adresou predajcu) | ||
| Italiano Ελληνικά Български | ||||
| CERTIFICATO DI GARANZIA1 Modello2 N° di serie3 Data di acquisto4 Nome e indirizzo dell'acquirente5 Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati) | ПІЗТОПОІНТИКО ЕГГУНЗНЗ1 Ap. Movtėlou2 Auξων Ap.3 Нμερομηνία αγοράς4 ́Оvoμα και διεύθυνση πελάτη5 ́Оvoμα και διεύθυνση μεταπωλητή(Παρακαλούμε να χρησιμοποιηθεί οφραγίδα) | ГАРАНЦИОНЕН СЕРТИФИКАТ1 Модел No2 Сериен No3 Дата за закупуване4 Име и адрес на клиента5 Име и адрес на търговеца(Моля, отпечатайте името и адрес на дилъра) | ||
| Nederlands Polski Srpski | ||||
| GARANTIEBEWIJS1 Modelnummer2 Serienummer3 Datum van aankoop4 Naam en adres van de gebruiker5 Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handelaar) | GWARANCJA1 Model2 Numer seryjny3 Data zakupu4 Nazwa klienta i adres5 Nazwa dealera i adres(Pieczęć punktu sprzedaży) | GARANTNI SERTIFIKAT1 Br. modela.2 Serijski br.3 Datum kupovine4 Ime i adresa kupca5 Ime i adresa prodavca(Molimo da stavite pečat na ime i adresu trgovca) | ||
| Español Magyar Hrvatski | ||||
| CERTIFICADO DE GARANTÍA1 Número de modelo2 Número de serie3 Fecha de adquisición4 Nombre y dirección del cliente5 Nombre y dirección del distribuidor(Se ruega poner el sello del distribuidor con su nombre y dirección) | GARANCIA BIZONYLAT1 Típusszám2 Sorozatszám3 A vásárlás dátuma4 A Vásárló neve és címe5 A Kereskedő neve és címe(Kérjük ide elhelyezni a Kereskedő nevének és címének pecsétjét) | JAMSTVENI CERTIFIKAT1 Br modela.2 Serijski br.3 Datum kupnje4 Ime i adresa kupca5 Ime i adresa trgovca(Molimo stavite pečat na ime i adresu trgovca) | ||
| Português Češina Український | ||||
| CERTIFICADO DE GARANTIA1 Número do modelo2 Número do série3 Data de compra4 Nome e morada do cliente5 Nome e morada do distribuidor(Por favor, carimbe o nome e morada do distribuidor) | ZÁRUČNÍ LIST1 Model č.2 Série č.3 Datum nákupu4 Jméno a adresa zákazníka5 Jméno a adresa prodejce(Prosíme o razitko se jménem a adresou prodejce) | ГАРАНТИЙНИЙ СЕРТИФИКАТ1 Ne моделі2 Ne серії3 Дата придбання4 Îм'я і адреса кілента5 Îм'я і адреса дилера(Будь ласна, поставте печатку з іменем і адресою дилера) | ||
| Svenska Türkçe | Русский | |||
| GARANTICERTIFIKAT1 Modellnr2 Serienr3 Inköpsdatum4 Kundens namn och adress5 Försäljarens namn och adress(Stàmpla försäljarens namn och adress) | GARANTÍ SERTÍFÍKASI1 Model No.2 Seri No.3 Satin Alma Tarihi4 Müşteri Adi ve Adresi5 Bayi Adi ve Adresi(Lütfen bayi adini ve adresini kaşe olarak basin) | ГАРАНТИЙНЫЙ СЕРТИФИКАТ1 Модель No2 Серийный No3 Дата покупки4 Названию и адрес заказчика5 Название и адрес дилера(Пожалуйста, внесите название и адрес дилера) | ||
HiKOKI
| 1 | |
| 2 | |
| 3 | |
| 4 | |
| 5 |
Siemensring 34, 47877 willich, Germany
Tel: +49 2154 49930
Fax: +49 2154 499350
URL: http://www.hikoki-powertools.de
Hikoki Power Tools Netherlands B.V.
Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands
Tel: +31 30 6084040
Fax: +31 30 6067266
URL: http://www.hikoki-powertools.nl
Hikoki Power Tools (U.K.) Ltd.
Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ,
United Kingdom
Tel: +44 1908 660663
Fax: +44 1908 606642
URL: http://www.hikoki-powertools.uk
Hikoki Power Tools France S.A.S.
Hikoki Power Tools Belgium N.V./S.A.
Koningin Astridlaan 51, B-1780 Wemmel, Belgium
Tel: +32 2 460 1720
Fax: +32 2 460 2542
URL http://www.hikoki-powertools.be
Hikoki Power Tools Italia S.p.A
Via Piave 35, 36077, Altavilla Vicentina (VI), Italy
Tel: +39 0444 548111
Fax: +39 0444 548110
URL: http://www.hikoki-powertools.it
Hikoki Power Tools Ibérica, S.A.
C/ Puigbarral, 26-28, Pol. Ind. Can Petit, 08227 Terrassa
(Barcelona), Spain
Tel: +34 93 735 6722
Fax: +34 93 735 7442
URL: http://www.hikoki-powertools.es
Kjeller Vest 7, N-2007 Kjeller, Norway
Tel: (+47) 6692 6600
Fax: (+47) 6692 6650
URL: http://www.hikoki-powertools.no
Hikoki Power Tools Sweden AB
Rotebergsvagen 2B SE-192 78 Sollentuna, Sweden
Tel: (+46) 8 598 999 00
Fax: (+46) 8 598 999 40
URL: http://www.hikoki-powertools.se
Hikoki Power Tools Denmark A/S
Lillebaeltsvej 90, 6715 Esbjerg N, Denmark
Tel: (+45) 75 14 32 00
Fax: (+45) 75 14 36 66
URL: http://www.hikoki-powertools.dk
Hikoki Power Tools Finland Oy
Tupalankatu 9, 15680 Lahti, Finland
Tel: (+358) 20 7431 530
Fax: (+358) 20 7431 531
URL: http://www.hikoki-powertools.fi
Hikoki Power Tools Hungary Kft.
Hikoki Power Tools Romania S.R.L.
Ring Road, No. 66, Mustang Traco Warehouses, Warehouse
No.1, Pantelimon City, 077145, Ilfov County, Romania
| EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that Chain Saw, identified by type and specific identification code *1), is in conformity with all relevant requirements of the directives *2) and standards *3). Technical file at *4) – See below.The European Standard Manager at the representative office in Europe is authorized to compile the technical fi le.2000/14/ECMeasured sound power level: 108 dBGuaranteed sound power level: 110 dBNotified body (2006/42/EC): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finland has carried out a EC type examination and issued EC type examination certifi cate no. MD 119 according to Annex IX.The declaration is applicable to the product affi xed CE marking. | EC VERKLARING VAN CONFORMITEITWij verklaren onder onze eigen verantwoordelijkheid dat Kettingzaagmachine, geidentificeerd door het type en de specifieke identificatiecode*1), voldoet aan alle relevante bepalingen van de richtlijnen*2) en normen*3). Technische documentatie bij*4) – zie onder.D e E uropese Normen Manager bij de vert gemachtigd om het technisch dossier samen te stellen.2000/14/ECGemeten geluidsdruk: 108 dBGegarandeerde geluidsdruk: 110 dBVolgens (2006/42/EC): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finland heeft een EG-type onderzoek uitgevoerd en het EG-type onderzoekcertifi caat nr. MD 119 volgens Aanhangsel IX afgegeven.Deze verklaring is van toepassing op producten voorzien van de CE-markeringen. |
| Deutsch Español | |
| EG-KONFORMITÄTSERKLÄRUNGWir erklären in alleiniger Verantwortung, dass die durch den Typ und den spezifischen Identifizierungscode *1) identifizierte Kettensäge allen einschlägigen Bestimmungen der Richtlinien *2) und Normen *3) entspricht. Technische Unterlagen unter *4) – Siehe unten.Die Leitung der repräsentativen Behörde für europäische Normen und Richtlinien ist berechtigt, die technischen Unterlagen zusammenzustellen.2000/14/EGGemessener Schalleistungspegel: 108 dBGarantiertier Schalleistungspegel: 110 dBBenannte Stelle (2006/42/EG): 0598 SGS Fimko Ltd. Särkiniementie 3 Postfach 30 FI-00211 Helsinki, Finland hat eine EG-konforme Prüfung durchgeführt und das Prüfungszertifikat vom Typ EG Nr. MD 119 gemäß Anhang IX ausgestellt.Die Erklärung gilt für die an dem Produkt angebrachte CE-Kennzeichnung. | DECLARACIÓN DE CONFORMIDAD DE LA CEDeclaramos bajo nuestra única responsabilidad que la Sierra de cadena, identificada por tipo y por código de identificación específico *1), está en conformidad con todas las disposiciones correspondientes de las directivas *2) y de las normas *3). Documentación técnica en *4) – Ver a continuación.El Director de Normas Europeas en la oficina de representación en Europa está autorizado para elaborar el expediente técnico.2000/14/CENivel de potencia acústica medida: 108 dBNivel de potencia acústica garantizada: 110 dBOrganismo notificado (2006/42/CE): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finland, ha realizado un examen tipo CE y emitido un certificado de examen tipo CE n° MD 119 de conformidad con el Anexo IX.La declaración se aplica al producto con marcas de la CE. |
| Français Português | |
| DECLARATION DE CONFORMITE CENous déclarons sous notre entière responsabilité que la Scie à chaîne, identifiée par le type et le code d'identification spécifique *1) est en conformité avec toutes les exigences applicables des directives *2) et des normes *3). Dossier technique en *4) - Voir ci-dessous.Le Gestionnaire des normes européennes du bureau de représentation en Europe est autorisé à constituer le dossier technique.2000/14/CENiveau de puissance sonore mesuré: 108 dBNiveau de puissance sonore garanti: 110 dBOrganisme notifié (2006/42/CE): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finland a réalisé un contrôle CE et émis un certificat de contrôle CE n° MD 119 conformément à l'Annexe IX.Cette déclaration s'applique aux produits désignés CE. | DECLARAÇÃO DE CONFORMIDADE CEDeclaramos, sob nossa única e inteira responsabilidade, que Electro - serra, identificada por tipo e código de identificação específico *1), está em conformidade com todos os requerimentos relevantes das diretivas *2) e normas *3). Ficheiro técnico em *4)-Consulte abaixo.O Gestor de Normas Europeias no escritório de representação na Europa autorizado a compilar o fi cheiro técnico.2000/14/CENivel medido de potência de som: 108 dBNivel garantido de potência de som: 110 dBOrganismo notificado (2006/42/CE): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finland a efectuou um exame tipo EC e emitiu um certificado de exame tipo EC n.° MD 119 de acordo com o Anexo IX.A declaração aplica-se aos produtos com marca CE. |
| Italiano Svenska | |
| DICHIARAZIONE DI CONFORMITÀ CEDichiariamo sotto la nostra esclusiva responsabilità che la elettrosega, identificata dal tipo e dal codice identificativo specifico *1), è conforme a tutti i requisiti pertinenti delle direttive *2) e degli standard *3). Documentazione tecnica presso *4) – Vedere sotto.Il gestore delle norme europee presso l'ufficio di rappresentanza in Europa è autorizzato a compilare il fascicolo tecnico.2000/14/CELivello di potenza sonora misurato: 108 dBLivello di potenza sonora garantito: 110 dBEnte notificato (2006/42/CE): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O. Box 30 FI-00211 Helsinki, Finlandia, ha eseguito un esame di tipo CE ed ha emesso un certifi cato di esame di tipo CE n. MD 119 secondo l'Allegato IX.La dichiarazione è applicabile ai prodotti cui sono applicati i marchi CE. | EG-DEKLARATION BETRÄFFANDE LIKFORMIGHETVi intygar på eget ansvar att denna kedjesåg, identifierad enligt typ och särskild identifikationskod *1), överensstämmer med alla relevanta krav i direktiven *2) och standarderna *3). Teknisk fil enligt *4) – Se nedan.Den europeiska standardansvariga på representationskontoret i Europa är auktoriserad att sammanställa den tekniska fi len.2000/14/EGUppmätt ljudstyrkenivå: 108 dGBaranterad ljudstyrkenivå: 110 dBAnmält organ (2006/42/EG): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finland har utfört en EC-typ examen och uttärdat EC-typ examensbevis nr MD 119 enligt Bilaga IX.Denna försäkran gäller för produkten med tillhörande CE-märkning. |
| *1) CS30SB C350801RCS35SB C350803RCS40SB C350807R*2) 2006/42/EC, 2000/14/EC, 2014/30/EU, 2011/65/EU*3) EN60745-1:2009+A11:2010EN60745-2-13:2009+A1:2010EN55014-1:2006+A1:2009+A2:2011EN55014-2:1997+A1:2001+A2:2008EN61000-3-2:2014EN61000-3-3:2013 | |
*4) Representative office in EuropeHikoki Power Tools Deutschland GmbHSiemensring 34, 47877 Willich, GermanyHead office in Japan  Koki Holdings Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan | 30. 9. 2019Naoto YamashiroEuropean Standard Manager30. 9. 2019A. NakagawaCorporate Officer |
| Dansk Polski | ||
| EF-OVERENSSTEMMELSESERKLÆRINGVi erklærer os fuldstændige ansvarlige for, at den elektriske kædesav, identificeret ved type og specifik identifikationskode *1), er i overensstemmelse med alle relevante krav i direktiveme *2) og standarderne *3). Teknisk fil i *4) – Se nedenfor. Lederen af europæiske standarder på repræsentationskontoret i Europa er bemyndiget til at komplere den tekniske fi l.2000/14/EFMålt lydstyrkeniveau: 108 dGBaranteret lydstyrkeniveau: 110 dBNameldt instans (2006/42/EF): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finland har udfort EF-typeapfrevning og udstedt EF-typeapfrevningsattest nr. MD 119 iht. bilag IX.Erklæringen gælder produktet, der er mærket med CE. | DEKLARACJA ZGODNOŚCI Z WEOświadczamy na własną wyłączną odpowiedzialność, że Pila rańcuchowa podanego typu i oznaczona unikalnym kodem identikacyjnym *1) jest zgodna ze wszystkimi właściwymi wymogami dyrektyw *2) i norm *3). Dokumentacja techniczna w *4) – Patrz poniżej.Menedzer Norm Europejskich przedstawicielstwa firmy w Europie jest upoważniony do sporządzania dokumentacji technicznej.2000/14/WEZmierzony poziom mocy dźwięku: 108 dBGwarantowany poziom mocy dźwięku: 110 dBInstytucja notyfikująca (2006/42/WE) : 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finlandia przeprowadziła badanie typu WE i wydała certyfikat badania typu WE nr MD 119 zgodnie z Załącznikiem IX.Niniejsza deklaracja ma zastosowanie do produktu opatrzonego znakiem CE. | |
| Norsk MagyarEF'S ERKLÆRING OM OVERENSSTEMMELSEVi erklærer på eget ansvar at elektrisk kjedesag, identifisert etter type og spesifik identifikasjonskode *1), er i samsvar med alle relevante krav i direktiver *2) og standarder *3). Teknisk fi l under *4) - Se nedenfor.Styrenen for europeiske standarder ved representantkontoret i Europa er autorisert til å kompilere den tekniske fi len.2000/14/EFGarantert lydeff ektnivå: 110 dBGodkjent kontrollorgan (2006/42/EF) : 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finland har utført en EF-typekontroll og utstedt et EF-kontrollseritifi kat nr. MD 119 i overensstemmelse med Annex IX.Erklæringen gjelder for CE-merket på produktet. | EK MEGFELELŐŚĘGI NYILATKOZATA kizárólagos felelősségünkkre kijelentjük, hogy a Lâncfúrész, amely típus és egyedi azonositó kód *1) alapján azonositott, megfelel az irányelvek vonatkozó követelményeinek *2) és szabványainak *3). Müszaki fájl a *4) - Lásd alább.AZ EU képviseleti iroda európai szabványúgyi menedzsere jogosult a müszaki dokumentáció összeállítására.2000/14/EKMért hangteljesítmény szint: 108 dBGarantált hangteljesítmény szint: 110 dBÉrtesítendő szervezet (2006/42/EK) : 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finland végézte el az EC típusú vizsgálatot, és adta ki az EC típusú, MD 119 számú vizsgálati bizonyítványt az Annex IX szerint.Jelen nyilatkozat a terméken feltüntetett CE jelzésre vonatkozik. | |
| Suomi ČeštiņaEY-ILMOITUS YHDENMUKAISUUDESTAVakuutamme yksinomaisella vastuullamme, että ketjusaha, joka identifioidaan tyypin ja erityisen tunnistuskoordin *1) perusteella, on kaikkien direktiviien *2) ja standardien *3) asiaankuuulvien vaatimusten mukainen. Tekninen tiedosto kohdassa *4) – katso alta.Eurooppalaisten standardien hallintaelin Euroopan edustustossa na valtuutettuko kokoamaan teknisen tiedoston.2000/14/EYMittattu äänenpainetaso: 108 dBTaattu äämempanetaso: 110 dIMItoettu elin (2006/42/EY) : 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finland on suorittanut EY-typpitarkastuksen ja antanut EY-typpitarkastustodistuksen no. MD 119 liitteen IX mukaisesti.Ilmoitus on sovellettavissa tuotteeseen kiinnitettyn CE-merkintään. | PROHLÁŠENÍ O SHODĚ S ESProhlašujeme na svou vyhradní zodpovědnost, že fetěžová pila, identifikovaná podle typu a specifického identifikačního kódu *1), je v souladu se všemi příslušnými požadavky směrnic *2) a norem *3). Technický soubor *4) - viz niže.K sestavení technické dokumentace je oprávněn manažer pro evropské standardy v evropském obchodním zastoupení.2000/14/ESNaměřená hlučnost: 108 dBZaručená mez hluku: 110 dBZplnomocněny orgán (2006/42/ES): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finsko, provedi typovou zkoušku ES a vydal certifikát o typové zkoušce ES č. MD 119 podle přílohy IX.Toto prohlášení plati pro výrobek označený značkou CE. | |
| Ελληνικά TürkçeEK ΔΗΛΩΣΗ ΕΝΑΡΜΟΝΙΣΜΟΥΔηλώνουμε με αποκλειστική μας ευθύνη ότι το Λλυοσπρίσνο, το οποίο προσδιορίζεται από τον τύπο και ειδικό αναγνωριστικό κωδικό *1), είναι σύμφωνο με όλες τις σχετικές απαιτήσεις των Οδηγιών *2) και στα σχετικά πρότυπα *3). Τεχνικό Αρχείο στο *4) – Dešite naparakáτω.O Διαχεριστής Ευρωπαϊκών Προτύπων στο γραφείο εκπροσώπησης στην Ευρωπη είναι εξουσιοδοτημένος για τη σύνταξη του τεχνικού φακέλου.2000/14/EKMετρημένο επίπεδο ηχητικής ισχύος: 108 dBEγγυημένο επίπεδο ηχητικής ισχύος: 110 dBΔιακοινωμένο όργανο (2006/42/EK) : 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Eláνικι, H Φινλανδία έχει διεξάχει μια εξέταση τύπου EK και εξέδωσε το υπ' αριθ. MD 119 πιστοποιητικό τύπου εξέτασης EK σύμφωνα με το Παράρτημα Ικ.Η δήλωση ισχύει μόνο για το προϊόν που είναι τοποθετημένη σήμανη CE. | AT UYGUNLUK BEYANITip ve özel tanım koduyla *1) tanımlı Zincir Testere'nin direktiflerin *2) ve standartlarin *3) tüm ligili gereksinimlerine uygun olduğunu tamamen kendi sorumluluğumuz altında beyan ederiz. Teknik dosya *4) dedir – Aşągiya bakin. Avrupa'daki temsilcilik ofisindeki Avrupa Standartlan Yöneticisi, teknik dosyayi derlemek için yetkilendirilimiišťir.2000/14/ATOiçülen ses gücü seviyesi: 108 dBGaranti edilen ses gücü seviyesi: 110 dBYetkili Kuruluş (2006/42/AT) : 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finlandiya, EC tip muayenesi gerçekleştirmiş ve Ek IX uyarınca MD 119 numarali EC tipi muayene sertifikasini yayiniamiišťir.Beyan, üzerinde CE işareti bulunan ürünler için geçerlidir. | |
| *1) CS30SB C350801RCS35SB C350803RCS40SB C350807R*2) 2006/42/EC, 2000/14/EC, 2014/30/EU, 2011/65/EU*3) EN60745-1:2009+A11:2010EN60745-2-13:2009+A1:2010EN55014-1:2006+A1:2009+A2:2011EN55014-2:1997+A1:2001+A2:2008EN61000-3-2:2014EN61000-3-3:2013 | ||
| *4) Representative office in EuropeHikoki Power Tools Deutschland GmbHSiemensring 34, 47877 Willich, GermanyHead office in JapanKoki Holdings Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan | 30. 9. 2019Naoto YamashiroEuropean Standard Manager30. 9. 2019 A. NakagawaCorporate Officer | |
| Română Srpski | |||
| DECLARATIE DE CONFORMITATE CEDeclarăm pe propria răspundere că Ferăstrăul cu lant, identificat după tipul și codul de identificare specific *1), este în conformitate cu toate cerințele relevante ale direcivelor *2) și ale standardelor *3). Fisjier tehnic la *4) - Vezi mai jos.Managerul standardelor europene de la biroul reprezentanței din Europa este autorizat să intocmească dosarul tehnic.2000/14/CENivel de putere sunet măsurat: 108 dBNivel de putere sunet garantat: 110 dBOrganism notificat (2006/42/CE): 0598 SGS Fimko Ltd. Särkiniementie 3P.O.Box 30 FI-00211 Helsinki, Finlanda a realizat o examinare de tip CE și a emis certifi catul de examinare CE de tip nr. MD 119 conform Anexei IX.Declarația se referă la produsul pe care este aplicat semnul CE. | EZ DEKLARACIJA O USAGLAŠENOSTIPod punom odgovornošću izjavljujemo da je Lančana testera, identifikovanaprema tipu i specifičnom identifikacionom kodu *1), u skladu sa svim relevantnim zahtevima direktiva *2) i standardima *3). Tehnička datoteka pod *4) - Pogledajte dole.Direktor za evropske standarde u kancelariji predstavništva u Evropi je odgovoran za sastavljanje tehničke dokumentacije.2000/14/EZIzmerena jačina zvuka: 108 dGBarantovana jačina zvuka: 110 dBObavešteno telo (2006/42/EZ): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finska i izvršeno od EC tipa ispitivanja i objavljenog EC tipa ispitivanja br. sertifi kata MD 119 u skladu sa Aneksom IX.Deklaracija je primenjiva na proizvod na koji je stavljena CE oznaka. | ||
| Slovenščina Hryatski | |||
| ES IZJAVA O SKLADNOSTINa lastno odgovornost izjavljamo, da je Verižna žaga, označena z vrsto in posebno identifikacijsko kodo *1), v skladu z vsermi ustreznimi zahtevami direktiv *2) in standardov *3). Tehnična dokumentacija pod *4) - glejte spodaj.Upravitelj evropskih standardov na predstavništvu v Evropi je pooblaščen za pripravo tehnične dokumentacije.2000/14/EZIzmjerena raven zvočne moći: 108 dBZajamčena raven zvočne moći: 110 dBPriglašeni organ (2006/42/ES): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finska je opravil ES tipski pregled in izdal ES certifikat o tipskem pregledu št. MD 119 v skladu z aneksom IX.Deklaracija je označena na izdelku s pritrjeno oznako CE. | EZ IZJAVA O SUKLADNOSTIJzjavljujemo pod vlastitom odgovornošću kako je Motorna pila, identificirana prema vrsti i posebnom identifikacijskom kodu *1), u skladu sa svim relevantnim zahtjevima direktiva *2) i standarda *3). Tehnička dokumentacija na *4) - Vidi dolje.Menadžer za europske standarde u europskom predstavništvu tvrtke ovlašten je za sastavljanje tehničke dokumentacije.2000/14/EZIzmjerena razina zvučne snage: 108 dBZajamčena razina zvučne snage: 110 dBPrijavljeno tijelo (2006/42/EZ): Na 0598 SGS Fimko Ltd. Särkiniementie 3P.O.Box 30 FI-00211 Helsinki, Finska, je provedeno ispitivanje tipa EC i izdan certifi kat o pregledu tipa EC br. MD 119 prema Dodatku IX.Izjava se primjenjuje na proizvod na kojem je stavljena CE oznaka. | ||
| Slovenčina Український | |||
| ES VYHLÁSENIE O ZHODETýmto vyhlasujeme na vlastnú zodpovednosť, že výrobok Refazová pila identifikovaný podľa typu a specifického identifikacného kódu *1) je v zhode so všetkými prislušnými požiadavkami smernic *2) a noriem *3). Technický súbor v *4) - Pozrite nižšie.Manažér europskych noriem na zastupujúcom úrade v Európe má oprávnenie na zostavovanie technickej dokumentácie.2000/14/ESNameraná hlučnost : 108 dBZaručená medza hluku: 110 dBNotifikovaný orgán (2006/42/ES): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Helsinki, Finsko vykonal skušku typu ES a vydal certifikát o skuške typu ES č. MD 119 podľa Prilohy IX.Toto vyhlasenie sa vzfahuje na výrobok označený značkou CE. | ДЕНЛАРАЦІЯ ВІДПОВІДНОСТИ ЄСМи заявляемо під нашу винячну відповідальність, що Ланцюгова пилка, визначена за типом та уникальнім identифікаційним кодом *1), відповідає всім відповідним вимогам директив *2) та стандартів *3). Технічна документація на *4) - Див. нижче.Відповідальний за дотримання европейських стандартів у представництві в Європлі уповноважений заповнювати технічний паспорт.2000/14/ЄСОбмірюваній рівень потужності звуку: 108 дБГарантованим рівень потужності звуку: 110 дБВповноважений орган (2006/42/ЄС): 0598 SGS Fimko Ltd. Särkiniementie 3 абонентська скринька 30 розташований за адресою FI-00211 Гельсінкі, Фінляндія, провів випробування на відповідність типу ЕС і видав сертифікат типу ЕС No MD119 відповідно до Додатку IX.Ця декларація дійсна щодо виробу, маркованого СЕ. | ||
| Български Русский | |||
| ЕО ДЕНЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕДекларираме на своя собствена отговорност, че Верижният трион, идентифициран по тип и специален идентификационен код *1), е в съответствие с всички съответни изисявания на директивите *2) и стандартите *3). Техническо досие в *4) - Вижте по-долу.Мениджърът по европейските стандарти в представителния офис в Европа в упълномощен да съставя технического досие.2000/14/ЕОизмерено ниво на акустична мощност: 108 dBFарантирано ниво на акустична мощност: 110 dBHотифициран орган (2006/42/EO): 0598 SGS Fimko Ltd. Särkiniementie 3 P.O.Box 30 FI-00211 Хелзинки, Финландия извърши оценка за типово одобрение на ЕО и издаде сертификат за типово одобрение на ЕО No MD 119 съгласно Приложение IX.Декларацията е приложима за продукта, който има поставена СЕ маркировка. | ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ ЕСМы с полной ответственностью заявилям, что электрическая цепная пила, идентифицируемая по типу и соответствующему идентификационному коду *1), отвечает всем соответствующим требованиям директив *2) и стандартов *3). Техническая документация в *4) – см. ниже.Менеджер по европейским стандартам в представительстве в Европе уполномочен составлять техническую документацию.2000/14/ЕСИзмеренный Уровень мощности звука: 108 дБГарантированный уровень мощности звука: 110 дБОтветственное лицо (2006/42/EC) : 0598 SGS Fimko Ltd. Särkiniementie 3P.O.Box 30 FI-00211 Helsinki, 2017 Impactо выпровено испытание типа ЕС и выпущен сертификат испытани типа ЕС под номером MD 119 в соответствии с Приложением IX.Данная декларация относится к изделиям, на которых имеется маркировка СЕ. | ||
| *1) CS30SB C350801RCS35SB C350803RCS40SB C350807R*2) 2006/42/EC, 2000/14/EC, 2014/30/EU, 2011/65/EU*3) EN60745-1:2009+A11:2010EN60745-2-13:2009+A1:2010EN55014-1:2006+A1:2009+A2:2011EN55014-2:1997+A1:2001+A2:2008EN61000-3-2:2014EN61000-3-3:2013 | |||
| *4) Representative office in EuropeHikoki Power Tools Deutschland GmbHSiemensring 34, 47877 Willich, GermanyHead office in JapanKoki Holdings Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan | 30. 9. 2019Naoto YamashiroEuropean Standard Manager30. 9. 2019A. NakagawaCorporate Officer | ||
Koki Holdings Co., Ltd.
- CS 30SB • CS 35SB • CS 40SB
- SYMBOLS
- WARNING
- WHAT IS WHAT? (Fig. 1)
- GENERAL POWER TOOL SAFETY WARNINGS
- PRECAUTION
- CHAIN SAW SAFETY WARNINGS
- Chain brake operation:
- ADDITIONAL SAFETY WARNINGS
- English
- STANDARD ACCESSORIES
- OPTIONAL ACCESSORIES (SOLD SEPARATELY)
- APPLICATIONS
- INSTALLING (REPLACING) SAW CHAIN
- CAUTION
- NOTE
- Removing the side cover (Fig. 4)
- Engaging the new saw chain in the sprocket (Figs. 6, 7)
- Installing the side cover
- Adjusting the saw chain tension (Fig. 10)
- Checking the saw chain tension (Fig. 11)
- Securing the knob (Fig. 12)
- INSPECTION AND PREPARATION PRIOR TO USE
- Prior to use, make the following inspection and preparation. WARNING
- Ensuring the switch is off
- Checking the extension cord
- Checking the saw chain tension
- Checking operation of chain brake (Fig. 13)
- Checking the chain oil
- Connecting the plug to the receptacle
- Checking brake is engaged
- Checking chain oil discharge (Figs. 15, 16)
- Switch operation
- Using the plug clip
- CUTTING PROCEDURES
- General cutting procedures
- Branch cutting
- Log cutting
- Felling trees
- Precaution for cutting work
- Gripping/pushing force of chain saw
- Chain catcher
- SHARPENING OF THE CHAIN BLADE
- Blade sharpening
- Adjustment of depth gage
- MAINTENANCE AND INSPECTION
- Inspection of saw chains
- Cleaning the side cover (Fig. 35)
- Cleaning the chain oil spout (Fig. 36)
- Cleaning the guide bar (Figs. 7, 37)
- Inspect the chain catcher (Fig. 38)
- Inspecting the mounting screws
- Maintenance of the motor
- Replacing the carbon brushes
- Cleaning of the outside
- Storage
- SELECTING ACCESSORIES
- GUARANTEE
- IMPORTANT
- Correct connection of the plug
- Information concerning airborne noise and vibration
- VEILIGHEIDSWAARSCHUWINGEN VOOR DE KETTINGZAAGMACHINE
- HVAD ER HVAD? (Fig. 1)
- SLIBNING AF KÆDEKNIVENE
- ADVARSEL
- SIKKERHETSFORHOLDSREGLER FOR ELEKTROVERKT∅Y
- DODATNA VARNOSTNA OPOZORILA
- Hikoki Power Tools Netherlands B.V.
- Hikoki Power Tools (U.K.) Ltd.
- Hikoki Power Tools France S.A.S.
- Hikoki Power Tools Belgium N.V./S.A.
- Hikoki Power Tools Italia S.p.A
- Hikoki Power Tools Ibérica, S.A.
- Hikoki Power Tools Sweden AB
- Hikoki Power Tools Denmark A/S
- Hikoki Power Tools Finland Oy
- Hikoki Power Tools Hungary Kft.
- Hikoki Power Tools Romania S.R.L.
- Koki Holdings Co., Ltd.
Brand : HiKOKI
Model : CS35SB
Category : Saw
