Product type	Electric shaver
Brand	Braun
Model	Series 3 wet & dry
Usage	Dry shaving and in the shower (wet & dry)
Power supply	Rechargeable battery with power cable (low voltage transformer plug)
Battery life	Up to 50 minutes after 1 hour of charging
Quick charge	5 minutes for one shave
Cleaning system	Clean&Renew self-cleaning station (included)
Main functions	Pivoting head, flexible foils, retractable trimmer for long hair, sensitive/intensive settings
Display	Screen with battery and hygiene segments, low charge indicator, replacement symbol
Safety	Cordless use in bath or shower possible; automatic shutdown in case of overload?
Maintenance	Automatic cleaning via station or manual with running water and brush
Included accessories	Clean&Renew station, cleaning fluid cartridge, travel pouch, power cable
Spare parts	Shaving cassette 70S/70B, Clean&Renew CCR cleaning fluid cartridge
Warranty	2 years (excluding normal wear: foil and cutter block)
Reparability	Authorized Braun service centers; use of genuine parts required

Frequently Asked Questions - Series 3 wet & dry BRAUN

How to clean the shaver?

You can use the Clean&Renew station for automatic cleaning. For manual cleaning, turn on the cordless shaver and rinse the head under warm water, optionally with non-abrasive liquid soap. Then remove the shaving cassette and let it dry.

How long does the battery last?

A full 1-hour charge offers up to 50 minutes of cordless shaving. A 5-minute quick charge is enough for one shave.

Can I use the shaver in the shower?

Yes, the shaver is wet & dry and can be used cordless in the shower. For safety reasons, only use the device cordless under these conditions.

When should I replace the foil and cutter block?

Replace the shaving cassette (foil and cutter block) when the replacement symbol lights up on the screen, usually after about 18 months, or if shaving performance decreases.

What to do if the shaver does not start?

Check that the battery is charged. If it is fully charged but the shaver stops, the shaving cassette is probably worn: replace it and apply oil regularly.

How to reset the counter after replacing the cassette?

Use a pen to press the reset button (15) for at least 3 seconds. The replacement indicator flashes then goes out.

Why is the cleaning indicator flashing red on the station?

The red light indicates that the cleaning fluid cartridge is empty or nearly empty. Replace it with a new Clean&Renew CCR cartridge.

Can I use the shaver plugged into the mains while charging?

Yes, you can use the shaver while plugged in, but for optimal safety in the bathroom, use it cordless. Charging occurs automatically when the shaver is placed in the station.

How to maintain the retractable long hair trimmer?

Clean the trimmer after each use with the provided brush or under running water. Apply a drop of light machine oil (not included) to the trimmer for optimal performance.

What to do if the screen shows a replacement symbol?

The symbol reminds you to replace the shaving cassette (foil and cutter block) within the next 7 shaves. After replacement, reset the counter as indicated in the manual.

USER MANUAL Series 3 wet & dry BRAUN

(Sharecall charged at local rates)

Braun GmbH

Illustration of a light blue plastic container with internal cavities and a labeled section '7' (no text or symbols on the object itself)

Illustration of a hand pouring liquid into a container with a blue X symbol (no text or labels)

Series 7 8 9 10 11 wet & dry 12 13 14 15 16

16a 16b 16c 16d battery replace hygiene 7a months battery replace hygiene 7a months

20 17 18

Illustration of a handheld electronic device with open case and internal components (no text or symbols)

Illustration showing four steps of a device cleaning process: lighting, pressing down, adding a component, and finally adjusting a trash bin.

Diagram illustrating a hand cleaning a water drain with warning symbols and a warning triangle

Illustration of a hand using a vacuum cleaner to clean water droplets (no text or symbols)

Series

Illustration of a hand cleaning a water roller with blue droplets falling (no text or symbols)

Illustration of a hand gripping a camera module with a blue arrow indicating compression or disassembly (no text or symbols present)

Series 7

Series 7

Series

Series 7

Illustration of a hand using a tool to press or install a mechanical component (no text or symbols visible)

Sears 7

Deutsch

Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver.

Read these instructions completely, they contain safety information. Keep them for future reference.

Warning

Your shaving system is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the special cord set provided with your appliance.

If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX.

Do not shave with a damaged foil or cord.

This appliance is suitable for cleaning under running water and use in a bathtub or shower. For safety reasons it can only be operated cordless.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

To prevent the cleaning fluid from leaking, ensure that the Clean&Renew station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor over a radiator, nor place it on a polished or lacquered surface.

The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not smoke near the station. Do not expose to direct sunlight for long periods of time.

Do not refill the cartridge and use only original Braun refill cartridges.

Description

Clean&Renew station

1 Cleaning fluid display
2 Lift button for cartridge exchange
3 Station-to-shaver contacts
4 Start button
5 Cleaning program indicators
6 Station power socket
7 Cleaning cartridge

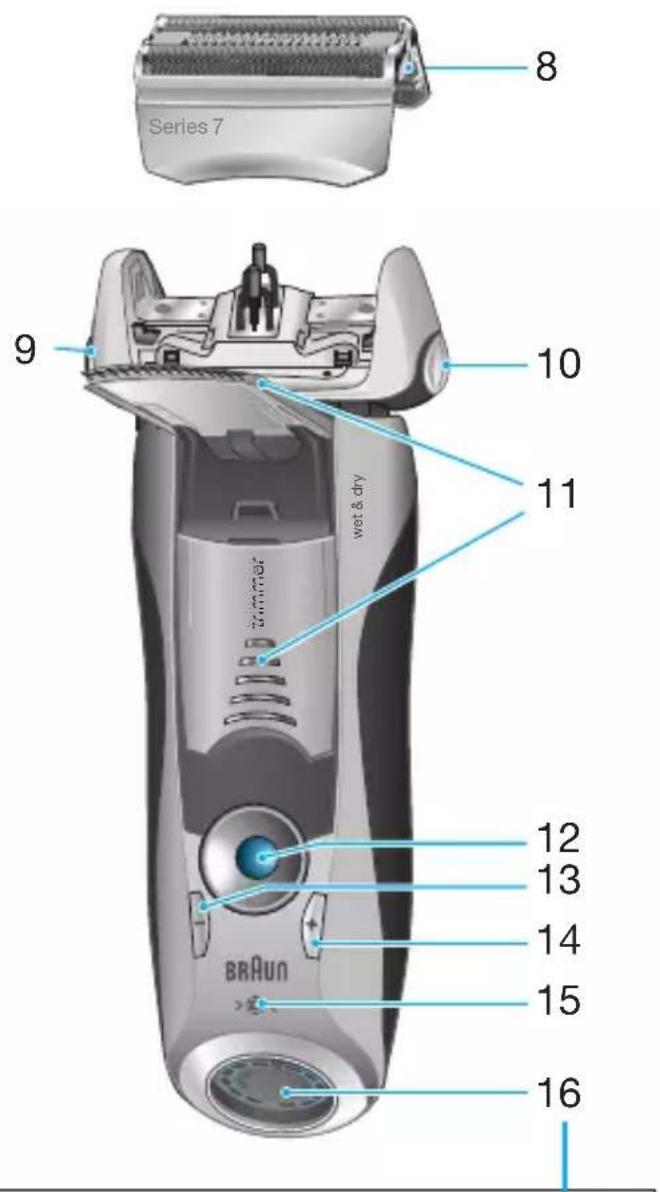

Shaver

8 Foil & Cutter cassette
9 Cassette release button
10 Shaver head lock switch
11 Pop-out long hair trimmer

12 On/off switch
13 - setting button (sensitive)
14 + setting button (intensive)
15 Reset button
16 Shaver display
16a Battery segments
16b Hygiene segments
16c Low charge indicator
16d Replacement symbol

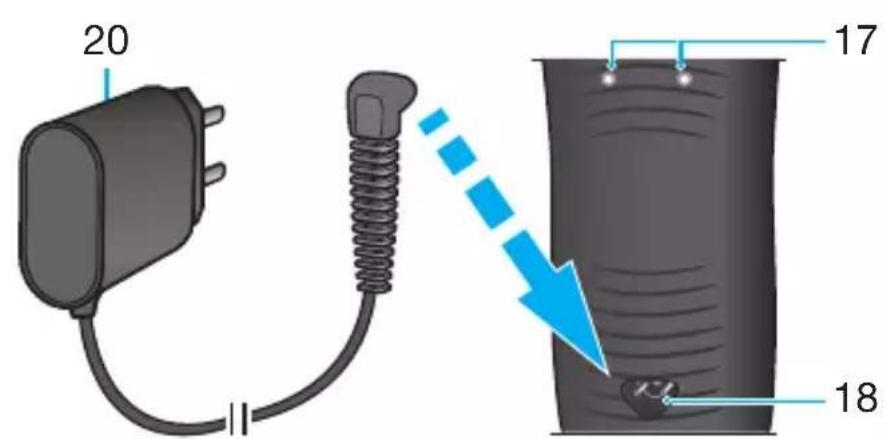

17 Shaver-to-station contacts
18 Shaver power socket

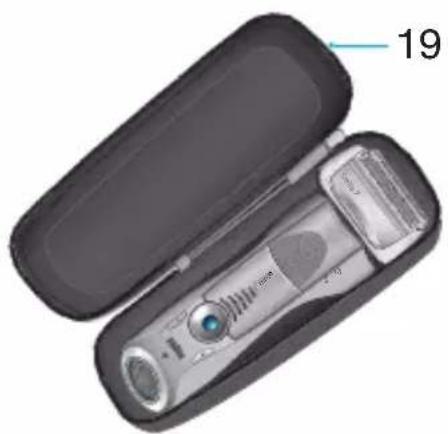

19 Travel case
20 Special cord set (design can differ)

Before shaving

Prior to first use you must connect the shaver to an electrical outlet using the special cord set (20) or alternatively proceed as below.

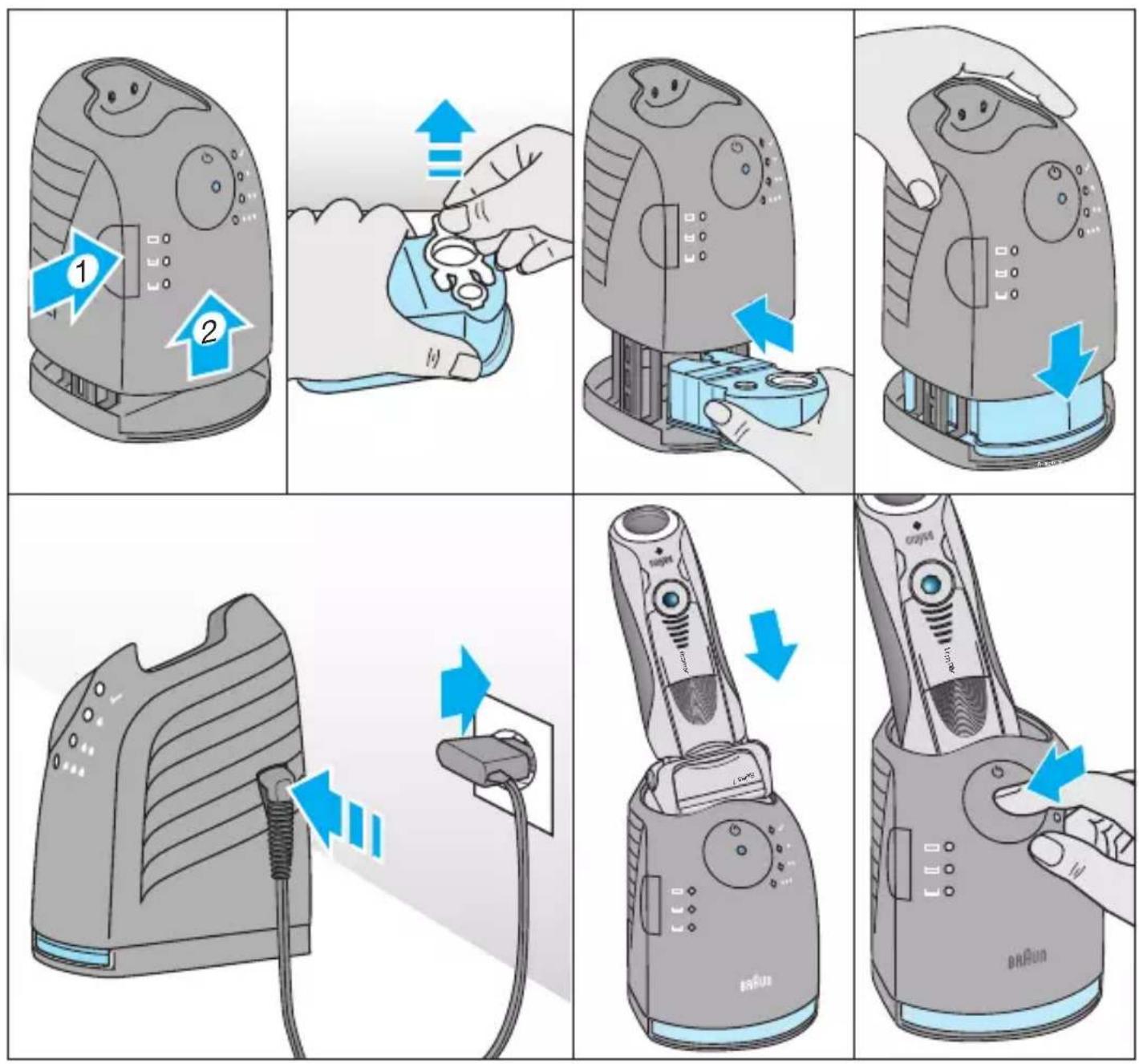

Installing the Clean&Renew station

• Press the lift button (2) to open the housing.
• Hold the cleaning cartridge (7) down on a flat, stable surface (e.g. table).
• Carefully remove the lid from the cartridge.
• Slide the cartridge into the base of the station as far as it will go.
• Slowly close the housing by pushing it down until it locks.
• Using the special cord set (20), connect the station power socket (6) to an electrical outlet.

The cleaning fluid display (1) will show how much fluid is in the cartridge:

up to 30 cleaning cycles available
up to 7 cleaning cycles remaining
new cartridge required

Charging and cleaning the shaver

Insert the shaver head with the front showing and released head lock (10) into the Clean&Renew. The contacts (17) on the back of the shaver will align with the contacts (3) in the cleaning station. Important: The shaver needs to be dry and free from any foam or soap residue!

If required, the Clean&Renew station will automatically charge the shaver. The hygiene status of the shaver will also be analyzed and one of the following cleaning program indicators (5) will light up:

√ shaver is clean
short economical cleaning required
▲▲ normal level of cleaning required
high intensive cleaning required

If the station selects one of the required cleaning programs, it will not start unless you press the start button (4). For best shaving results, we recommend cleaning after each shave.

Each cleaning program consists of several cycles, where cleaning fluid is flushed through the shaver head. Depending on your Clean&Renew Station model and/or program selected, the cleaning time takes up to 16 minutes. Leave the shaver in the station for drying. It takes several hours until remaining moisture evaporates depending on the climatic conditions.

When the program is finished, the blue √ indicator will light up.

Stand-by mode

10 minutes after completing the charging or cleaning session, the Clean&Renew station switches to the stand-by mode: The indicators of the Clean&Renew station turn off.

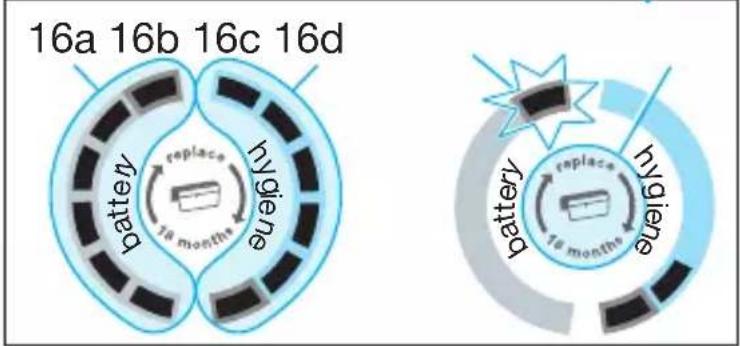

Shaver display

The shaver display (16) shows the charge status of the battery on the left, and the hygiene status on the right. 6 dark segments are shown on each side when the battery is fully charged and the shaver is hygienically clean.

Battery segments:

During charging or when using the shaver, the respective battery segment (16a) will blink. When fully charged all 6 segments are shown. With decreasing charge the segments gradually disappear.

Low charge indicator

The low charge indicator (16c) provided with a red frame blinks to indicate that the battery is running low. The remaining battery capacity is sufficient for 2 to 3 shaves.

Hygiene segments:

All 6 hygiene segments (16b) will appear after the shaver has been cleaned in the Clean&Renew station. When the shaver is being used, the hygiene segments will gradually disappear. Once the shaver is returned to the station, the system will automatically select the appropriate cleaning program and restore the segments to maximum hygiene. Given that rinsing the shaver under tap water is not as hygienic as the cleaning station, the hygiene segments will only restore themselves when the shaver has been cleaned in the Clean&Renew station.

Charging information

- A full charge will take about 1 hour and provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth and environmental temperature. 5-minute quick charge is sufficient for a shave.

- Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 15 °C to 35 °C. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time.

Using the shaver

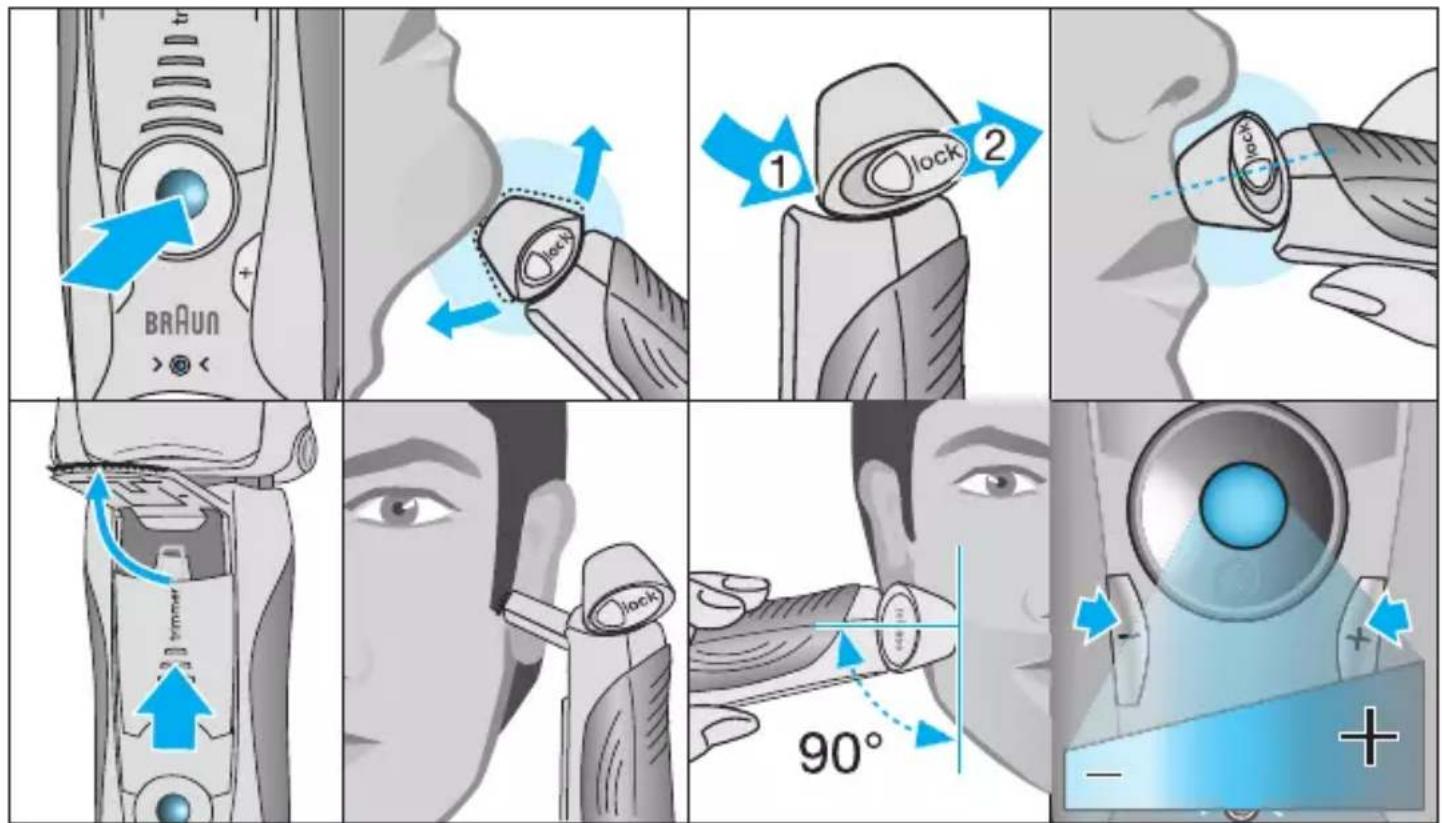

How to use

Press the on/off switch (12) to operate the shaver:

• The pivoting shaver head and floating foils automatically adjust to every contour of your face.

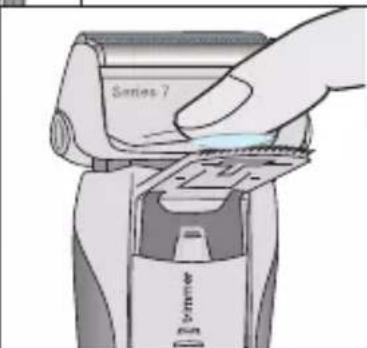

• To shave hard to reach areas (e.g. under the nose), first slide the shaver head to the back position, afterwards move the head lock switch to the back. The pivoting head is locked at this angle.
• To trim sideburns, moustache or beard, slide the pop-out long hair trimmer (11) upwards.

Tips for the perfect dry shave

For best shaving results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

Personalizing your shaver

By holding down the accelerator button - / + (13) or (14) you can adjust the shaving power to your individual needs in the different areas of your face from sensitive to intensive. The pilot light in the on/off switch (12) changes within the following range:

(−) sensitive shave
- light blue
- dark blue
- green
(+) intensive shave

For a thorough and fast shave we recommend the green (intensive) setting.

When switching on next time, the last used setting will be activated.

Cleaning

Automatic cleaning

After each shave, return the shaver to the Clean&Renew station and proceed as described above in the section «Before shaving». All charging and cleaning needs are then automatically taken care of. With daily use, a cleaning cartridge should be sufficient for about 30 cleaning cycles.

The hygienic cleaning cartridge contains ethanol or isopropanol (specification see cartridge), which once opened will naturally evaporate slowly. Each cartridge, if not used daily, should be replaced after approximately 8 weeks to ensure optimal disinfection.

The cleaning cartridge also contains lubricants, which may leave residual marks on the outer foil frame after cleaning. However, these marks can be removed easily by wiping gently with a cloth or soft tissue paper.

Manual cleaning

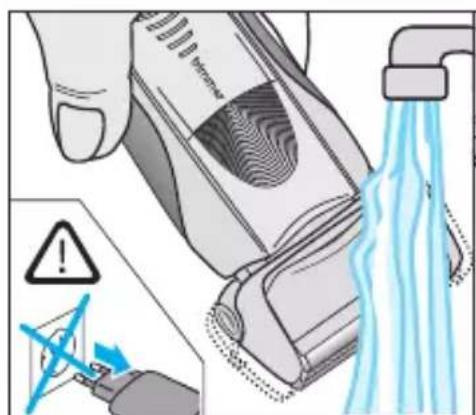

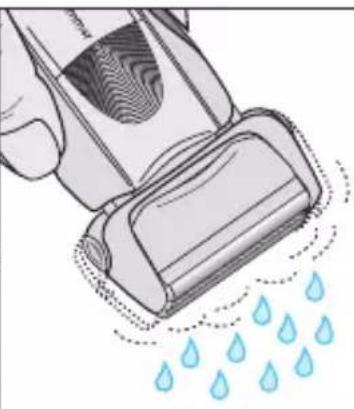

Cleaning under running water:

• Switch the shaver on (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.

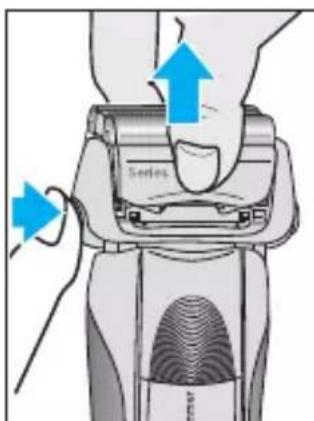

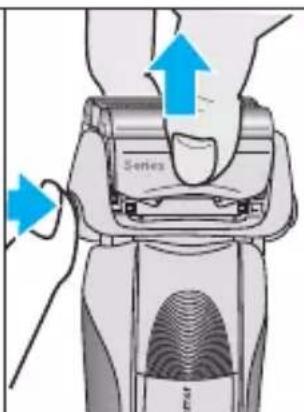

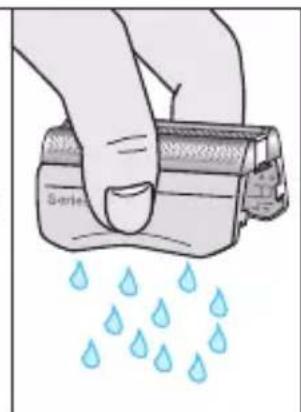

• Next, switch off the shaver, press the release button (9) to remove the Foil & Cutter cassette (8) and let it dry.

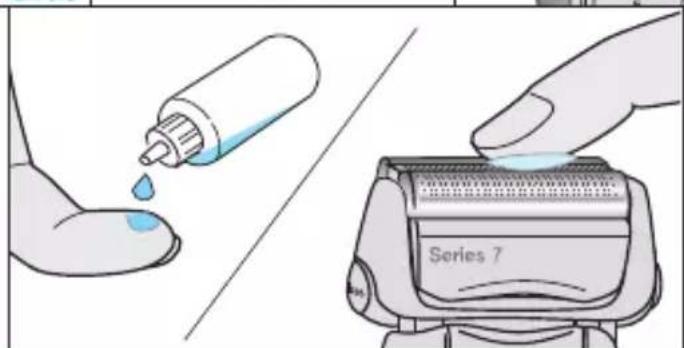

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil (not included) on top of the Foil & Cutter cassette and the long hair trimmer.

The shaver should be cleaned after each foam usage.

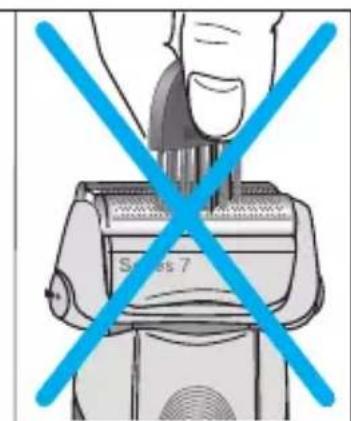

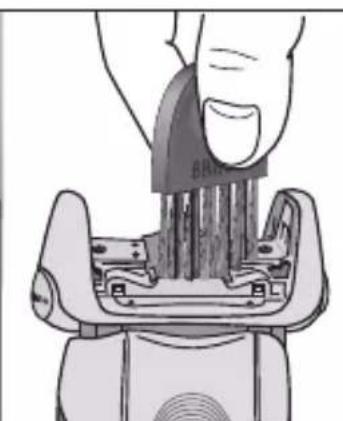

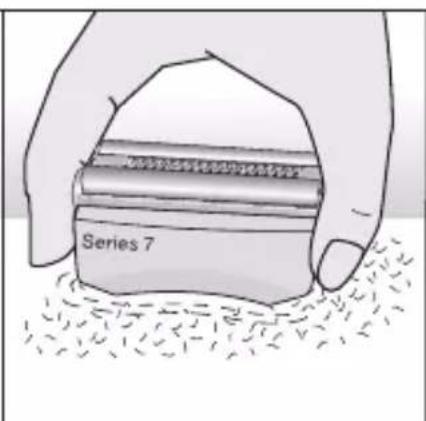

Cleaning with a brush:

- Switch off the shaver. Remove the Foil & Cutter cassette (8) and tap it out on a flat surface. Using a brush, clean the inner area of the pivoting head. However, do not clean the cassette with the brush as this may damage it.

Cleaning the housing

From time to time clean the housing of the shaver and the Clean&Renew station with a damp cloth, especially inside the cleaning chamber where the shaver rests.

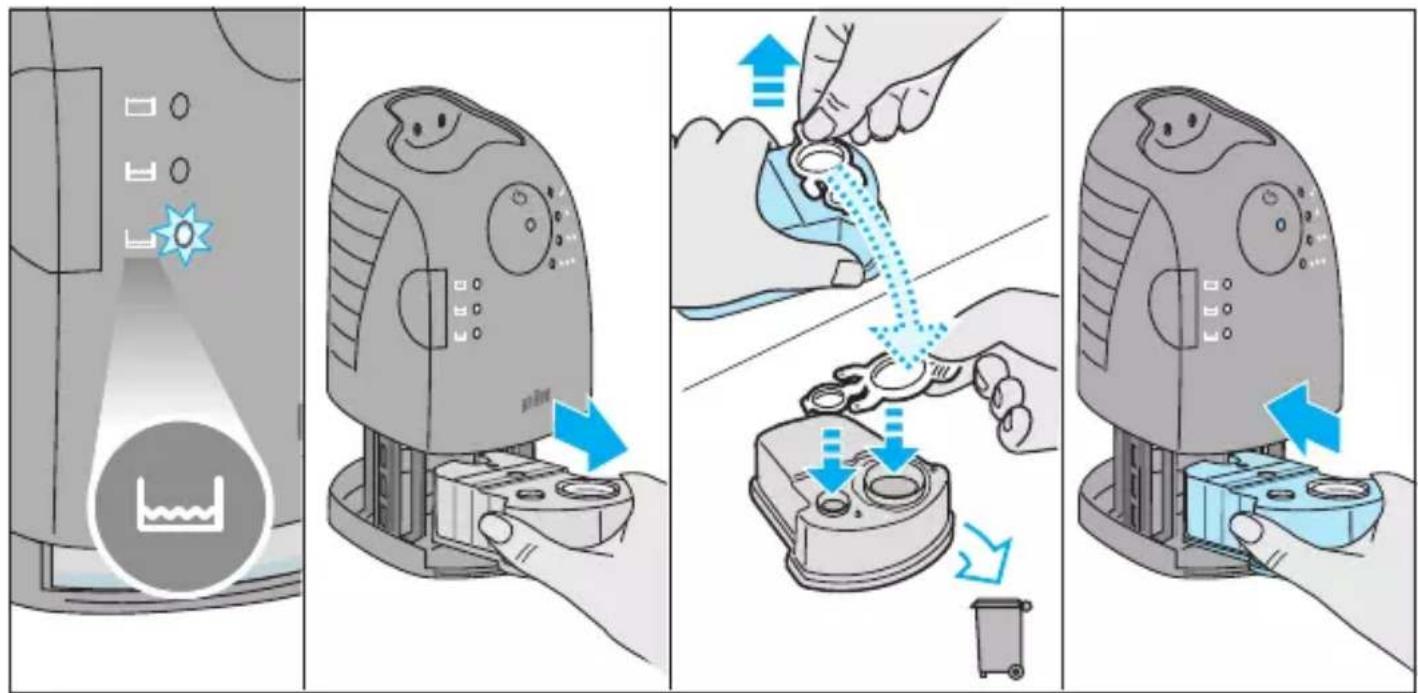

Replacing the cleaning cartridge

After having pressed the lift button (2) to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution.

Keeping your shaver in top shape

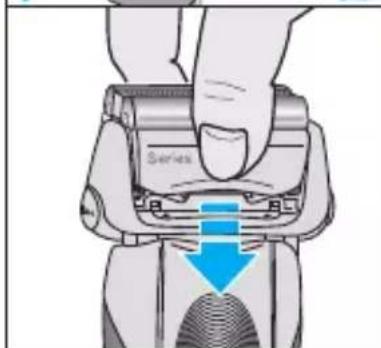

Replacing the Foil & Cutter cassette/ reset

To maintain 100% shaving performance, replace the Foil & Cutter cassette (8), when the replace ment symbol (16d) lights up on the shaver display (after about 18 months) or when cassette is worn. The replacement symbol will remind you during the next 7 shaves to replace the Foil & Cutter cassette. Then the shaver will automatically reset the display.

After you have replaced the Foil & Cutter cassette, use a ball-pen to push the reset button (15) for at least 3 seconds to reset the counter. While doing so, the replacement light blinks and goes off when the reset is complete. The manual reset can be done at any time.

Accessories

Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette 70S/70B
• Cleaning cartridge Clean&Renew CCR

Environmental notice

Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

The cleaning cartridge can be disposed of with regular household waste.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Trouble-Shooting

Problem: Possible	reason: Remedy:
SHAVER
Unpleasant smell from the shaver head.	1. Shaver head is cleaned with water.2. Cleaning cartridge is in use for more than 8 weeks.	1. When cleaning the shaver head with water only use hot water and from time to time some liquid soap (without abrasive substances). Remove Foil & Cutter cassette to let it dry.2. Change cleaning cartridge at least every 8 weeks.
Battery performance dropped significantly.	1. Foil and cutter are worn which requires more power for each shave.2. Shaver head is regularly cleaned with water but not lubricated.	1. Renew Foil & Cutter cassette.2. If the shaver is regularly cleaned with water, apply a drop of light machine oil on top of the foil once a week for lubrication.
Shaving performance dropped significantly.	1. Foil and cutter are worn.2. Personal setting of shaving performance has been changed.3. Shaving system is clogged.	1. Renew Foil & Cutter cassette.2. For a thorough and fast shave we recommend the green (intensive) setting.3. Soak the Foil & Cutter cassette into hot water with a drop of dish liquid. Afterwards rinse it properly and tap it out. Once dry apply a drop of light machine oil on the foil.
Shaver turns off with fully charged battery.	Foil and cutter are worn which requires more power than the motor can deliver. The appliance turns off.	- Renew Foil & Cutter cassette.- Regularly oil the shaving system, especially when cleaning with water only.
Battery segments in the display are skipped with decreasing battery capacity.	Foil and cutter are worn which requires more power for each shave.	- Renew Foil & Cutter cassette.- Regularly oil the shaving system, especially when cleaning with water only.
Shaving parts have been changed recently but replacement symbol lights up.	Reset button has not been pushed.	- Push the reset button for at least 3 seconds to reset the counter.
Shaver head is damp.	1. Drying time after automatic cleaning was too short.2. Drain of the Clean&Renew station is clogged.3. Cleaning cartridge has been used for quite a while.	1. Clean directly after shaving to allow enough time for drying.2. Clean the drain with a wooden toothpick. Regularly wipe the tub clean.3. The ethanol/isopropanol proportion has decreased while the oil proportion has increased. Remove residue with a cloth.

CLEAN&RENEW STATION

Cleaning does not start when pressing the start button.	1. Shaver is not placed properly in the Clean&Renew station.2. Cleaning cartridge contains not enough cleaning fluid (display lights red).3. Appliance is in stand-by mode.	1. Insert shaver into the Clean&Renew station (contacts of the shaver need to align with contacts in the station).2. Insert new cleaning cartridge.3. Press start button again.
Increased consumption of cleaning fluid.	Drain of the Clean&Renew station is clogged.	– Clean the drain with a wooden toothpick.– Regularly wipe the tub clean.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase.

Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.
