Product type	Electric shaver
Brand	Braun
Model	Series 3 3020s
Cutting technology	3-element system with Sensor blades
Power supply	Rechargeable Li-Ion battery
Battery life	Approximately 45 minutes
Charging time	1 hour
Charge indicator	LED
Usage	Corded or cordless
Dimensions (approx)	15 x 6 x 4 cm
Weight (approx)	200 g
Maintenance and cleaning	Rinse under running water, removable shaver head
Safety	Use on dry or wet skin, waterproof
Spare parts	Cutting heads, blades, foils available
Warranty	2 years
Box contents	Shaver, protective cap, charging cable, cleaning brush
Additional functions	Close shave, flexible, Precision Trimmer technology

Frequently Asked Questions - Series 3 3020s BRAUN

How to clean the Braun Series 3 3020s shaver?

Remove the shaver head and rinse it under running water. Shake off excess water and let it dry. Use the provided brush to clean the blades.

How long does the battery of the Series 3 3020s last?

The battery life is approximately 45 minutes after a full charge of 1 hour.

Can I use the shaver in the shower?

Yes, the Braun Series 3 3020s is waterproof and can be used in the shower with shaving foam.

When should the blades and foil be replaced?

It is recommended to replace the blades and foil every 18 months for optimal shaving. You will find compatible replacement parts.

How to charge the Series 3 3020s shaver?

Plug the provided charging cable into the device and a power outlet. Full charging takes about 1 hour. An LED indicator shows progress.

Can the shaver trim long hair?

Yes, thanks to Precision Trimmer technology, you can trim longer hairs before the close shave.

How to replace the shaver head?

Press the release button on top of the shaver, remove the old head, and snap in the new compatible cutting head.

Does the shaver work cordless?

Yes, once charged, you can use it cordless. It can also be used plugged in if the battery is empty.

What to do if the shaver does not charge?

Check the charging cable and outlet. If the problem persists, contact Braun customer service. Only use original cables.

Where to find spare parts for the Series 3 3020s?

Spare parts (cutting heads, blades, foils) are available on the official Braun website or at authorized dealers.

USER MANUAL Series 3 3020s BRAUN

Type 5415, 5413

www.braun.com

3030s

3020s

3000s

German 6

English 10

French 14

Spanish 18

Portuguese 22

Italian 26

Dutch 30

Danish 34

Norwegian 38

Swedish 42

Suomi 46

Polski 50

Český 55

Slovenský 59

Magyar 63

Hrvatski 67

Slovenski 71

Türkçe 75

Română (RO/MD) 81

Ελληνικά 85

Български 89

Русский 93

Українська 98

Braun GmbH

(Sharecall charged at local rates)

Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver.

Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings

This appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water.

This appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock.

Only use the special cord set provided with your appliance.

If the appliance is marked ➞—C 492, you can use it with any Braun power supply coded 492-XXXX.

Do not shave with a damaged foil or cord.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years and supervised.

Description

1 Foil & Cutter cassette 2 Long hair trimmer* 3 On/off switch 4 Green charging light(s) 5 Red low-charge light 6 Replacement light for shaving parts 7 Shaver power socket 8 Special cord set (design can differ) 9 Protection cap

* not with all models

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 15 °C to 35 °C. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time.

• Using the special cord set (8), connect the shaver to an electrical outlet with the motor switched off.
• When charging for the first time or when the shaver has not been used for a few months, leave the shaver to charge continuously for 4 hours.
• Once the shaver is completely charged, discharge the shaver through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.
• A full charge provides up to 45 minutes of cordless shaving time depending on your beard growth. Maximum battery capacity will only be reached after several charging/discharging cycles.
• A 5-minute quick charge is sufficient for a shave.
• If the rechargeable batteries are discharged, you may also shave by connecting the shaver to an electrical outlet via the special cord set.

Charging light(s) (4)

The green charging light shows the charge status of the batteries.

The green charging light blinks when the shaver is being charged or switched on.

When the battery is fully charged, all green charging lights shine permanently, provided the shaver is connected to an electrical outlet.

Low-charge light (5)

The red low-charge light flashes when the battery is running low. You should be able to finish your shave.

Shaving

Press the on/off switch (3) to operate the shaver.

The flexible shaving foils automatically adjust to every contour of your face.

Long hair trimmer (2)

To trim sideburns, moustache or beard, slide the long hair trimmer upwards.

Tips for a perfect dry shave

For best results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

Cleaning

Regular cleaning ensures better shaving performance.

Cleaning under running water:

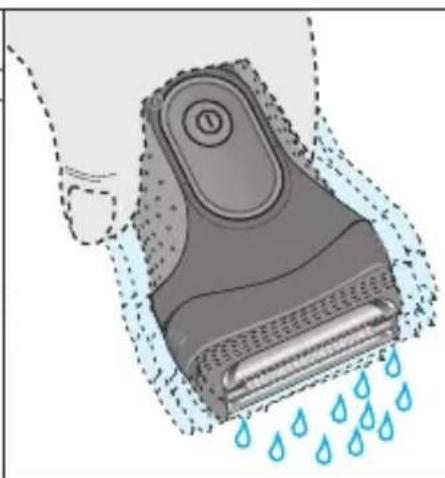

• Switch the shaver on (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, remove the Foil & Cutter cassette (1) and let it dry.

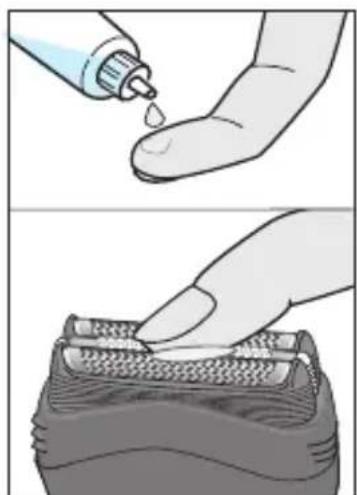

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil (not included) onto the long hair trimmer (2) and Foil & Cutter cassette (1).

Cleaning with a brush:

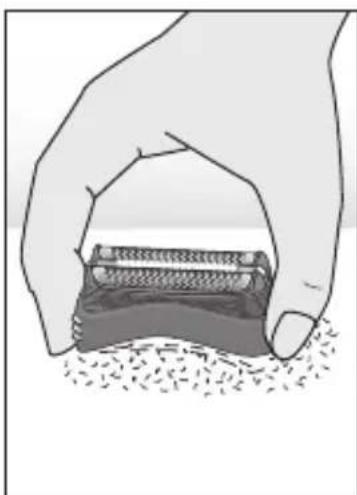

• Switch off the shaver. Remove the Foil & Cutter cassette and tap it out on a flat surface.

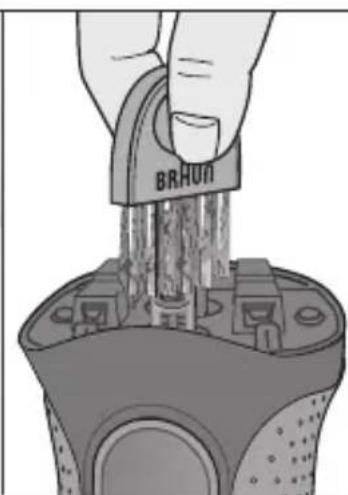

• Using a brush, clean the inner area of the shaver head. However, do not clean the Foil & Cutter cassette with a brush as this may damage it.

Keeping your shaver in top shape

Replacement light for shaving parts / Reset

To maintain 100% shaving performance, replace the Foil & Cutter cassette (1), when the replacement light for shaving parts (6) comes on after about 18 months or when worn.

Foil & Cutter cassette: 32S/32B

The replacement light will remind you during the next 7 shaves to replace the

Foil & Cutter cassette. Then the shaver will automatically reset.

After you have replaced the Foil & Cutter cassette (1), press the on/off switch (3) for at least 5 seconds to reset the counter.

While doing so, the replacement light blinks and goes off when the reset is complete.

The manual reset can be done at any time.

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged by shaving every 6 months approximately. Then recharge the shaver to full capacity.

Environmental notice

Product contains batteries and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase.

Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

Country of origin: Germany (Models 3030s/3020s)

Country of origin: China (Model 3000s)

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture.

Example: "427" – The product was manufactured in week 27 of 2014.
