Vacuum cleaner type	Cordless stick vacuum
Brand	Koenic
Model	KVR 21621
Rated voltage	21.6 V
Maximum suction power	150 W
Dust bin capacity	0.3 L
Battery charging time	5 hours
Battery type	Integrated non-replaceable lithium-ion
Power adapter (input)	100-240 V ~, 50-60 Hz
Power adapter (output)	25.0 V / 29.0 V, 0.5 A
Supplied accessories	Floor nozzle with rotating brush, crevice nozzle, upholstery nozzle, suction tube, charger, wall mount with mounting kit
Washable filter	Yes (washable with water, thorough drying required)
Recommended use	Indoor, household use only
Charge indicator	LED flashing during charging, off when full
Adjustable suction speed	Yes (high/low)
Motorized rotating brush	Yes (in the floor nozzle)
Safety instructions	Do not vacuum liquids, unplug before cleaning, use only the supplied charger
Minimum age of use	8 years under supervision

Frequently Asked Questions - KVR 21621 Koenic

How to charge the KVR 21621 vacuum cleaner?

Plug the charger into the mains socket, then connect the charger plug to the charging port of the vacuum cleaner. The charging LEDs flash during charging and turn off when the battery is full. Charging time is approximately 5 hours.

How to empty the dust bin?

Press the release button of the dust bin lid to open the bottom lid and empty the dust into a bin. For a more thorough cleaning, remove the bin, disassemble the filters and empty them. Close the lid until it clicks.

How to clean the vacuum cleaner filters?

Remove the dust bin, then take out the complete filter element and the fine filter. Tap them to remove dust. You can wash them with water, but make sure they are completely dry before reinstalling.

What to do if the vacuum cleaner no longer sucks or loses power?

Check if the dust bin is full or if the filters are clogged. Clean or replace the filters and empty the bin. Also ensure that the tube is not blocked by an object.

The rotating brush does not turn, what to do?

The brush may be blocked by threads or hair. Turn off the device, remove the floor nozzle, then cut and remove debris from the brush using scissors or a flat-head screwdriver.

Can I use the vacuum cleaner on hard floors?

Yes, the vacuum cleaner is suitable for hard floors. However, the floor nozzle with rotating brush may wear differently depending on the floor type. Regularly inspect the nozzle to avoid damaging delicate surfaces like parquet.

How to mount the supplied wall mount?

Attach the wall mount to the wall respecting the indicated distances (wall plugs and screws are included). Before drilling, ensure there are no cables or pipes in the wall. The mount allows storing and charging the vacuum cleaner.

What accessories are supplied with the vacuum cleaner?

The package contains: the vacuum cleaner with battery, a floor nozzle with rotating brush, a crevice nozzle, an upholstery nozzle, a suction tube, a charger, a wall mount with mounting kit, the instruction manual, and the warranty card.

Can I wash the filters with water?

Yes, the filter element and the dust bin can be cleaned with water. After washing, dry them completely before putting them back. Never use solvents or metal objects.

What to do in case of low battery during use?

When the battery is low, the charge level LED flashes. Plug the vacuum cleaner into the charger. Full charge takes approximately 5 hours. Can the vacuum cleaner be used while charging? No, it must be turned off and plugged in.

USER MANUAL KVR 21621 Koenic

F: _2 P310Z1_202010_404

CE

KO≡NIC

Rechargeable Vacuum Cleaner

0121621

Black vacuum cleaner with extended arm and metallic handle (no text or symbols visible)

Cancer 3-6	—
Angi 9-14	—
spinal 15-20	—
Insula 7-18	—
EOPa 27-32	—
Vagus 13-13	—
sarcoid 33-44	—
seousal 45-50	—
helix 51-55	—
cingulate 17-02	—
Starch 63-08	—
Uroflow 94-14	—

M. CMBC 2016 V8-34-01

14/2023年1月1日

Labeled diagram of a vacuum cleaner with parts marked for identification and assembly reference.

Technical diagram showing mechanical assembly steps with labeled components and directional arrows indicating motion or assembly.

Sicherheitshinweise

Hersteller : Jiangsu Midea Cleaning Appliances Co., Ltd No.39 Caohu Avenue, Xiangcheng, Economic Development Zone, Suzhou, Jiangsu, P.R.China.

Handelsregister: 91441900776947111F

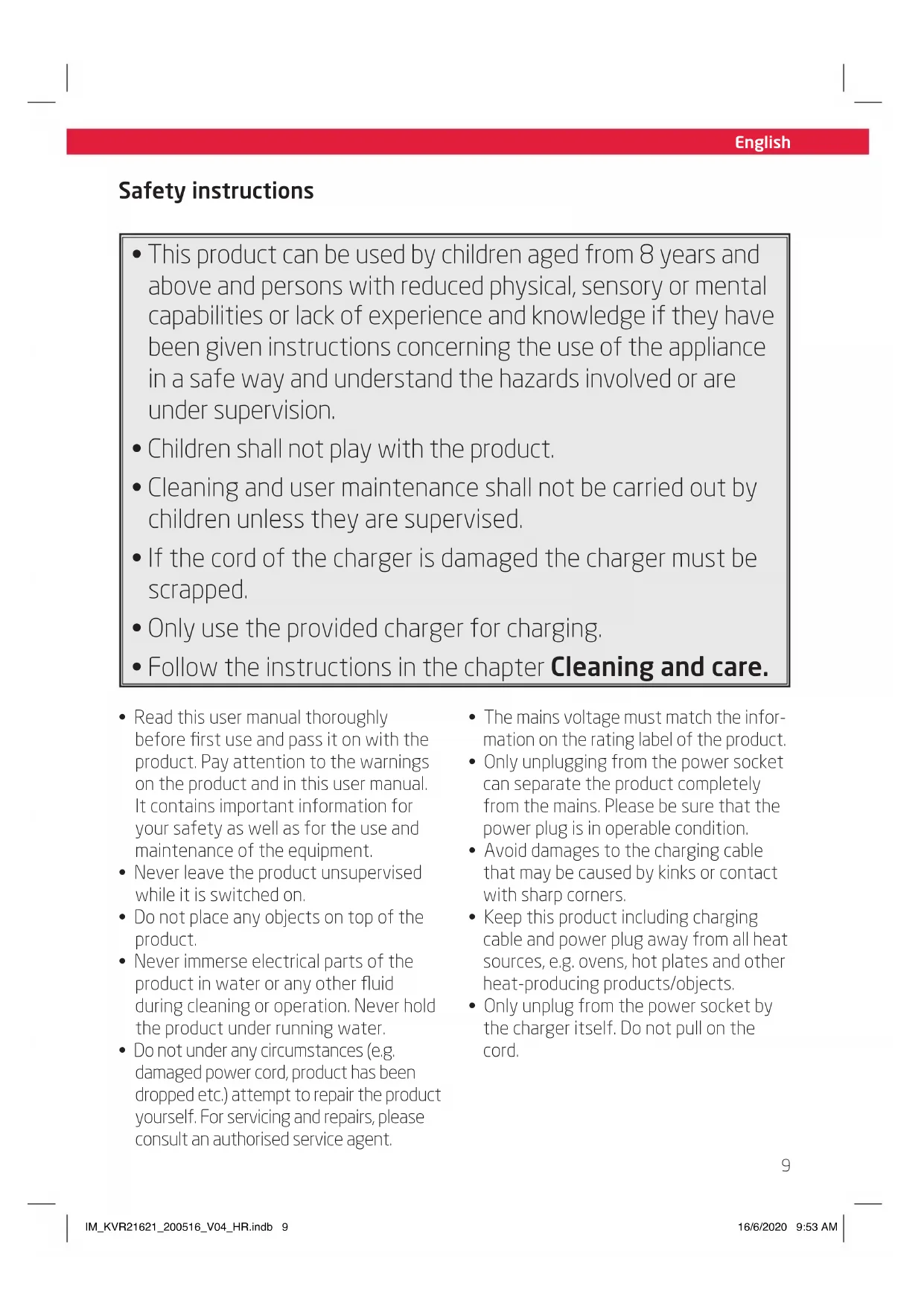

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given instructions concerning the use of the appliance in a safe way and understand the hazards involved or are under supervision.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• If the cord of the charger is damaged the charger must be scrapped.
• Only use the provided charger for charging.

• Follow the instructions in the chapter Cleaning and care.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.

• Do not under any circumstances (e.g. damaged power cord, product has been dropped etc.) attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

• The mains voltage must match the information on the rating label of the product.

• Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the charging cable that may be caused by kinks or contact with sharp corners.
• Keep this product including charging cable and power plug away from all heat sources, e.g. ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the charger itself. Do not pull on the cord.

English

Safety instructions

• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.
• This product is not intended for commercial use. It is designed for household use only.
• Do not allow the product to operate unsupervised.
• Make sure that the motor unit and charger incl. power cord do not become wet.
• Use accessories supplied with the device or recommended by the manufacturer only!
• This product is suitable only for private use.
  • Always switch the product off before disconnecting it from mains supply.
• Let the product cool down sufficiently before storing.
• Do not cover the product while in use. Fire hazard!
• Do not suck up lit cigarettes, hot ashes, matches, etc. Fire hazard!
• Do not suck up inflammable or explosive materials and gases. The product must not be used in rooms that contain explosive gases or liquids.
• Be especially careful when cleaning any kind of stairs.

• When in use, keep the product away from clothes and body parts (e.g. fingers, hair, face).

• Do not try to clean people or animals with the product.

• Only use the charging adapter provided to charge the product.
• Never expose the product/rechargeable batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The rechargeable batteries could explode.
• Never short-circuit the contacts of the rechargeable battery. Do not throw the rechargeable battery or the product into fire. There is a danger of fire and explosion!
• Never charge the rechargeable battery of the product unattended.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The vacuum cleaner is designed only to vacuum dry dust and dirt. Using it for anything else can damage the device or cause injury. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Before first time use, the built-in batteries must be charged for at least 5 hours, please refer to chapter Charging batteries.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste.

Please use the return and collection systems in your community or contact the dealer where you purchased the product.

Content

1 x Vacuum cleaner with battery
1 x Floor nozzle
1 x Crevice nozzle
1 x Upholstery nozzle
1 x Tube
1 x Charger
1 x Wall bracket with mounting set
1 x User manual
1 x Warranty card

Controls and Components

A On / off switch
B Vacuum power level switch
C Vacuum power level indicator and charging control LEDs
D Dust container release button
E Suction tube release buttons
F Suction tube
G Floor nozzle with rotating brush
H Upholstery nozzle
Crevice nozzle
J Charger with cable and charging plug
K Wall bracket with mounting kit
L Dust container lid release button
M Dust container with dust flap and filter inserts
N Handle
0 Charging socket

English

Assembly

Wall bracket

Fig. 1 If needed, attach the wall bracket to a wall. Please note the distances and dimensions.
Fig. 2 The dimensions of the required dowels and screws (included) can be found in the overview picture. When mounting on the wall, the distance between the holes must be considered. Mark the drill holes beforehand.

Note: Before screwing on the wall bracket, make sure that there is a suitable socket for the charger.

Warning!

Make sure there are no power lines or other wires or pipes in the wall where you want to drill holes for the wall bracket. There is danger to life if you drill a live cable!

Fig. 3 The minimum height of the wall bracket must be selected so that the floor nozzle can hang freely downwards.

Charging batteries

Fig. 4 Plug the charger into the socket. Plug the charging plug into the charging socket.

When the charging indicator LEDs are flashing, it indicates that the battery is being charged. The indicator LEDs turn off, when the battery is fully charged.

LED indicator

LED Condition
1 LED on, flashing	During operation, when battery level is low
LEDs on and/or flashing	During charging
LEDs off	Charging completed. Fully charged

Fig. 5 Connect the floor nozzle to the lower end of the suction tube and then connect the tube to the vacuum cleaner.

Upholstery nozzle and crevice nozzle

Fig. 6 Both nozzles can either be connected directly to the vacuum cleaner or onto the end of the suction tube. When attaching them, always insert the respective nozzle as far as possible so that it snaps into place. To vacuum upholstered furniture, mattresses, pillows, curtains, etc., use the upholstery nozzle. The brush can be pushed back whereby a lint brush is available. To vacuum wrinkles, joints and corners, use the crevice nozzle.

Vacuuming

Using handstick vacuum cleaner

Fig. 7 Press the on / off switch to turn on the product. The light on the floor nozzle turns on and indicates that the rotating brush is turning. Press the vacuum power level switch to set the desired suction power (high, low).

Warning!

When the vacuum cleaner is left standing, it must be switched off, because if the brush is turning while the product is standing, it could cause damage to the floor surface.

After vacuuming, press the on/off switch to turn off the product.

Cleaning and care

Warning!

• When cleaning the product, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

Emptying dust container and cleaning filters

Note: The dust container should be emptied every time after vacuuming.

Fig. 8 To empty the dust container, press the dust container lid release button so that the bottom lid of the container opens and the dust falls out. Hold the dust container over a dustbin. If the filter and dust container are relatively clean, close the lid again so that it snaps into place. The vacuum cleaner is ready for use.

Fig. 9 For better cleaning, loosen the dust container and remove it. Remove the complete filter element and the fine filter. Empty the dust from the dust container and tap the filters. The filter element and dust container can also be rinsed with water if completely dried afterwards. When cleaning the elements with water, make sure that they are completely dry before re-assembly. Mount all previously removed components. The assembly is done in reverse order. First press the dust container into the socket on the motor housing and afterwards into the socket on the switch so that it engages. When assembling make sure that no seal is lost or crushed and that no parts are jamming.

Cleaning floor nozzle

Fig.10 The floor nozzle should be cleaned at regular intervals. To clean it, release the floor nozzle from the handstick vacuum cleaner. Push the clip to remove the latch. Take out the brush roller from the nozzle. Cut through threads and hairs wounded round the rollers using scissors and remove them.

Note: If the wheels are blocked with threads and hairs, use scissors to carefully remove the blockage.

Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order.

English

Note:

- Floor nozzles are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor nozzle at regular intervals.

- Worn undersides of floor nozzles may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The Imtron GmbH does not accept any responsibility for damage caused by worn floor nozzles.

Technical data

Re-chargeable vacuum cleaner

Rated voltage: 21.6 V

Vacuum power: Max. 150 W

Battery charging time

: 5 hours

Dust container capacity : 0.3 L

Power adaptor

Manufacturer: Jiangsu Midea Cleaning Appliances Co., Ltd

No.39 Caohu Avenue, Xiangcheng,

Economic Development Zone, Suzhou, Jiangsu, P.R.China.

Business license: 91441900776947111F

Imported by : Imtron GmbH

Wankelstraße 5,85046 Ingolstadt, Germany.

Commercial registration number:HRB 4580

Model : MC2805B-V

Input voltage: 100 - 240 V \~

Input AC frequency : 50-60 Hz

Output voltage:25.0 V

---;29.0V---

Output current: 0.5 A

Output power: 12.5 W (25.0 V); 14.5 W (29.0 V)

Average active efficiency : 86.94 % (25.0 V); 87.19 % (29.0 V)

Efficiency at low load (10 %) : 73.68 % (25.0 V); 73.13 % (29.0 V)

No-load power consumption : 0.06 W (25.0 V); 0.06 W (29.0 V)

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem	Possible causes	Solution
Product does not work	Interrupted power supplyBattery is empty	Check the power supplyRe-charge battery
Product cannot absorb dust or loose suction power	Filters are blocked with dirtDust container fullTube blocked	Clean and wash the filtersEmpty dust containerRemove blockage from tube
Rolling brush does not work	Brush is blocked with threads and hairs	Cut and remove the threads and hairs from the brush
Floor nozzle difficult to move or get jammed	Wheels are blocked with threads and hair	Remove them carefully by using a flat screwdriver

14

No.39 Caohu Avenue, Xiangcheng,

Economic Development Zone, Suzhou, Jiangsu, P.R.China.

Número de registro comercial : 91441900776947111F

Wankelstraße 5,85046 Ingolstadt, Germany.

Fabricant: Jiangsu Midea Cleaning Appliances Co., Ltd

No.39 Caohu Avenue, Xiangcheng,

Economic Development Zone, Suzhou, Jiangsu, P.R.China.

Wankelstraße 5,85046 Ingolstadt, Germany.

No.39 Caohu Avenue, Xiangcheng,

Economic Development Zone, Suzhou, Jiangsu, P.R.China.

Wankelstraße 5,85046 Ingolstadt, Germany.

Produttore : Jiangsu Midea Cleaning Appliances Co., Ltd No.39 Caohu Avenue, Xiangcheng, Economic Development Zone, Suzhou, Jiangsu, P.R.China.

Numero registro imprese : 91441900776947111F

Importato da : Imtron GmbH Wankelstraße 5, 85046 Ingolstadt, Germany.

Numero registro imprese : HRB 4580

Modello : MC2805B-V

Tensione in uscita: 25,0 V ---; 29,0 V---

Potenza in uscita : 12,5 W (25,0 V); 14,5 W (29,0 V)

Efficienza attiva media : 86.94 % (25.0 V); 87.19 % (29.0 V)

Efficienza a basso carico (10 %) : 73,68 % (25,0 V); 73,13 % (29,0 V)

Fabrikant: Jiangsu Midea Cleaning Appliances Co., Ltd

No.39 Caohu Avenue, Xiangcheng,

Economic Development Zone, Suzhou, Jiangsu, P.R.China.

Handelsregisternummer:91441900776947111F

Producent: Jiangsu Midea Cleaning Appliances Co., Ltd

No.39 Caohu Avenue, Xiangcheng,

Economic Development Zone, Suzhou, Jiangsu, P.R.China.

Wankelstraße 5,85046 Ingolstadt, Germany.

Carregar as baterias

Fig. 4 Ligue o carregador na tomada. Ligue a ficha de carregamento na tomada de carregamento.

No.39 Caohu Avenue, Xiangcheng,

Economic Development Zone, Suzhou, Jiangsu, P.R.China.

Número de registo commercial : 91441900776947111F

Wankelstraße 5,85046 Ingolstadt, Germany.

No.39 Caohu Avenue, Xiangcheng,

Economic Development Zone, Suzhou, Jiangsu, P.R.China.

Ticaret sicil numarası : 91441900776947111F

Wankelstraße 5,85046 Ingolstadt, Germany.

Ticaret sicil numarası : HRB 4580

Model:MC2805B-V

Giriş gerilimi : 100 - 240 V \~

Çıkış gerilimi : 25,0 V = - - - ; 29,0 V = - - -

Çıkış akımı : 0,5 A

Çıkış gücü : 12,5 W (25,0 V); 14,5 W (29,0 V)

Ortalama etkin verimlilik : 86.94 % (25.0 V); 87.19 % (29.0 V)
