Brand	Dri Eaz
Model	HEPA 700
Product Type	HEPA Air Purifier
Dimensions (H x D x W)	57.9 x 43.3 x 65.9 cm (22.8 x 17.0 x 25.9 in)
Weight	19.1 kg (42.0 lb)
Power Supply	115 V, 60 Hz, 1.5 - 3.0 A, 350 W
Airflow	Up to 1189 m³/h (700 cfm)
Static Pressure	747 Pa (3.0 in H₂O)
Cord Length	7.6 m (25 ft)
Duct Diameter	35.6 cm (14 in)
Construction	Injection-molded plastic housing
Filter Types	MERV 8 pre-filter, microglass HEPA filter, activated carbon filter (optional)
Key Functions	Removal of dust, mold, pollen, dander, odors; positive or negative filtration; use in restoration, construction, clean room
Connected Technology	Command Hub with mobile app for 24/7 monitoring and control
Stacking Capacity	Up to 3 units for storage or transport
Max per 15 A Circuit	8 units on low speed, 4 on high speed
Maintenance and Cleaning	Regularly check and replace pre-filter and HEPA filter; clean exterior with a damp cloth; do not use liquid on control panel
Safety	ETL certified to UL 507 and CSA C22.2 No. 113; outlet protected by ground fault circuit interrupter
Spare Parts and Repairability	Original Legend Brands filters available; contact distributor for repairs
Warranty	Register at Warranty.LegendBrandsRestoration.com

Frequently Asked Questions - HEPA 700 Dri Eaz

How often should I replace the filters?

The pre-filter should be replaced more frequently to extend the life of the HEPA filter. The HEPA filter should be replaced when indicated by the control panel or after each restoration project. Use only Legend Brands filters.

Can I use ducts with this unit?

Yes, the inlet and outlet accept standard 14 in (35.6 cm) ducts. Use the provided locking ring. Do not exceed 25 ft (7.6 m) of duct length.

How do I set up negative pressure?

The unit can be configured for negative pressure by placing it inside the containment area and exhausting filtered air outside. This setup should be done by trained professionals.

What is the power consumption?

The unit operates on a standard 115 V, 60 Hz outlet, drawing 1.5 to 3.0 A (350 W). Up to 8 units can be plugged into a 15 A circuit on low speed, and 4 on high speed.

Can I stack multiple units?

Yes, you can stack up to 3 HEPA 700 units for storage or transport. The unit can also be used on its back, exhaust facing up.

How do I clean the unit?

Unplug the unit before cleaning. Vacuum or wipe the exterior and interior of the filter compartment with a damp cloth. Do not put any liquid on the control panel or electrical components.

What are typical applications?

The unit is used for water damage restoration, mold remediation, construction dust control, odor control, and clean room environments. Suitable for schools, hospitals, construction sites, etc.

What should I do if the unit does not turn on?

Check that the power cord is plugged into a GFCI-protected outlet. Test the outlet by pressing the reset/test buttons. If the problem persists, contact your distributor.

Can I use filters from other brands?

It is strongly recommended to use only Legend Brands filters. Using a filter from another brand reduces performance and limits fan speed to 50%.

How is the unit connected?

The built-in Command Hub technology allows connection via the free Command Center mobile app for remote monitoring and control, as well as firmware updates.

USER MANUAL HEPA 700 Dri Eaz

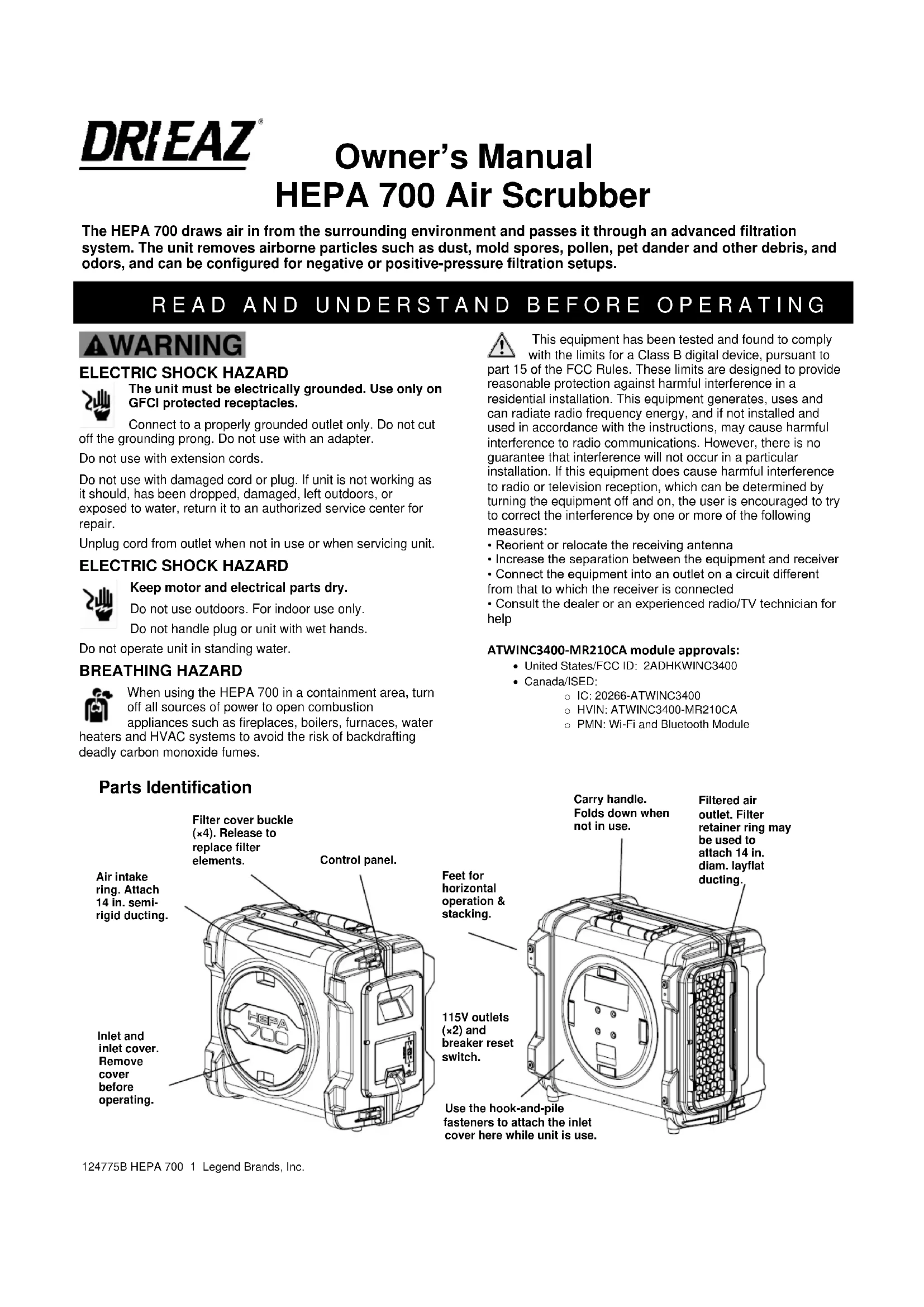

Owner's Manual HEPA 700 Air Scrubber

The HEPA 700 draws air in from the surrounding environment and passes it through an advanced filtration system. The unit removes airborne particles such as dust, mold spores, pollen, pet dander and other debris, and odors, and can be configured for negative or positive-pressure filtration setups.

READ AND UNDERSTAND BEFORE OPERATING

▲WARNING

ELECTRIC SHOCK HAZARD

The unit must be electrically grounded. Use only on GFCI protected receptacles.

Connect to a properly grounded outlet only. Do not cut rounding prong. Do not use with an adapter.

Do not use with extension cords.

Do not use with damaged cord or plug. If unit is not working as it should, has been dropped, damaged, left outdoors, or exposed to water, return it to an authorized service center for repair.

Unplug cord from outlet when not in use or when servicing unit.

ELECTRIC SHOCK HAZARD

Keep motor and electrical parts dry.

Do not use outdoors. For indoor use only.

Do not handle plug or unit with wet hands.

Do not operate unit in standing water.

BREATHING HAZARD

When using the HEPA 700 in a containment area, turn off all sources of power to open combustion

appliances such as fireplaces, boilers, furnaces, water

heaters and HVAC systems to avoid the risk of backdrafting deadly carbon monoxide fumes.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

ATWINC3400-MR210CA module approvals:

United States/FCC ID: 2ADHKWINC3400

Canada/ISED:

IC:20266-ATWINC3400
HVIN:ATWINC3400-MR210CA
PMN:Wi-Fi and Bluetooth Module

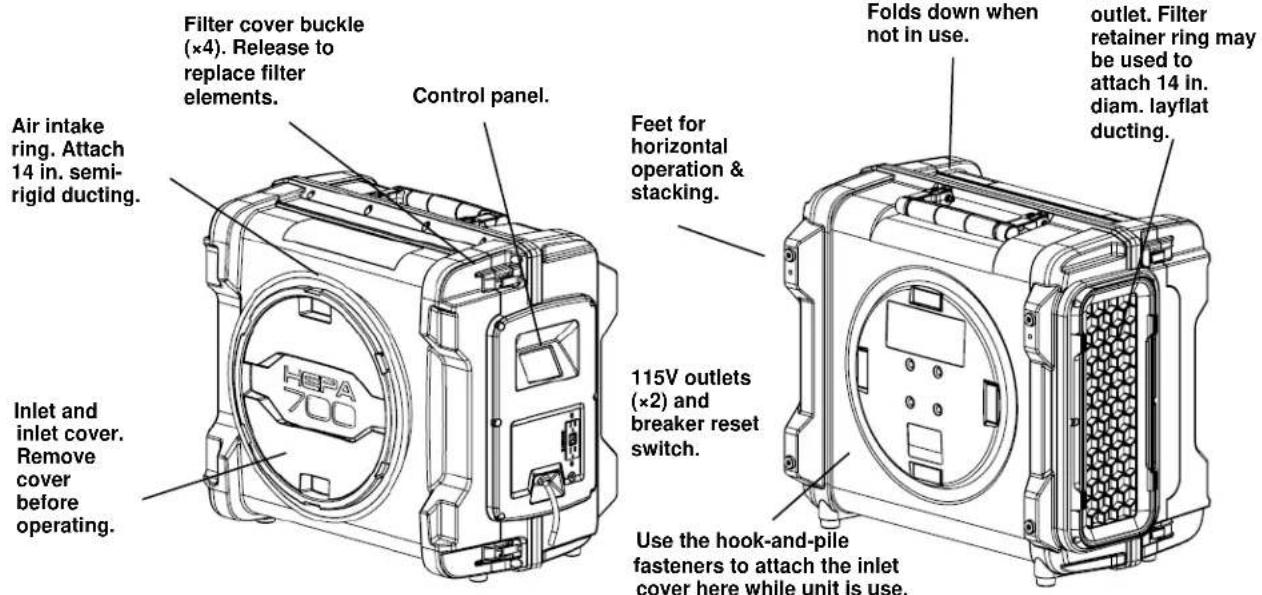

Parts Identification

HEPA 700 APPLICATIONS

Water Damage
- Construction Dust Control
Mold Remediation
Odor control
- Other uses: The HEPA 700 can be used for dust abatement, fire damage remediation, jobsite ventilation, and positive or negative air setups for contamination cleanup and cleanroom environments. Use in homes, businesses, institutions, schools, hospitals, long term care facilities, construction and remodel job sites.

NOTICE! Many of these applications can present significant health risks and require professional training.

and regulations have varying requirements for the application, testing and general use of equipment on asbestos abatement projects, Legend Brands cannot warrant products for asbestos abatement. Contractors performing abatement work should evaluate tools, equipment and procedures in light of their local regulatory requirements, and comply with those requirements.

WARRANTY REGISTRATION

Register at Warranty.LegendBrandsRestoration.com. If you determine service is required, have your equipment model, serial number and original proof of purchase available and call your distributor to obtain a return material authorization (RMA) or email [e-mail].

SPECIAL FEATURES

Command Hub Technology

Integrated Command Hub technology with the free Command Center mobile app enables firmware updates and 24/7 monitoring and control to ensure optimal air filtration. (App available soon in Apple and Google Play stores.)

Ducting options

Inlet: 14 in. wire reinforced ducting (purchased separately).

Outlet: 14 in.(diameter) layflat or wire reinforced ducting (purchased separately) using the provided duct attachment ring. Take care not to bend or otherwise damage the attachment ring when installing the ducting. Do not exceed a maximum ducting length of 25 ft. / 7.6 m.

Negative Pressure Setup

The HEPA 700 can be set up for a negative pressure containment area. Only professionals with the appropriate training should set up negative pressure containment areas.

Stacking for Storage and Operation

Stack the HEPA 700 up to three high for storage or transport. Secure the units when stacked for transport.

The unit can also be operated on its back, with the outlet facing upward.

CONTROLS AND OPERATING INSTRUCTIONS

Setup

1. Unwrap the cord completely.
2. Place the HEPA 700 with the handle up. Ensure that neither the inlet nor the outlet are obstructed.
3. Plug in to a standard 115V GFCI-protected outlet.

Electrical Outlets

You can connect up to eight (8) HEPA 700s on a 15-amp circuit on the lowest speed; four (4) on the highest speed.

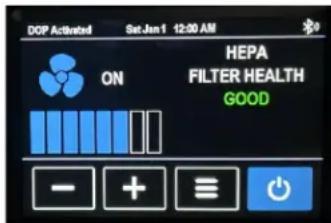

Command Hub - Home

On/Off. Switches unit on or off.

Use + / - to adjust blower speed.

Menu. Select to view system info, service, error pages, wireless setup, settings, and other information. Go to PA700.legendbrandsrestoration.com for more info.

GFCI Outlet Reset and Test

AUXILIARY OUTLET 115 VOLTS AC

MAINTENANCE

WARNING

ELECTRIC SHOCK HAZARD. Disconnect from electrical supply prior to servicing or cleaning.

BREATHING HAZARD. Always wear an appropriate NIOSH-approved respirator and personal protective equipment when removing or replacing filters, or when cleaning the HEPA 700.

About the filters

IMPORTANT: Use Legend Brands HEPA 700 filters only (see Filter Options below). Use of other filters will reduce filtration effectiveness.

Regularly check and replace the prefilter(s) and HEPA primary filter as needed. The control panel will indicate when the HEPA primary filter needs to be replaced.

Filters are not reusable. Do not attempt to clean and reuse.

NOTICE: When using the HEPA 700 on remediation projects, change BOTH filters after every job. Dispose of contaminated filters properly.

Replacing the Prefilter

The prefilter should be replaced more frequently to help preserve the life of the HEPA filter.

1. Lay unit on its back and release the four (4) buckles. Lift off the filter door.

2. Remove the prefilter from the filter door and discard.

3. Insert new prefilter into filter door. Ensure that the prefilter is seated properly on the retention tabs.
4. To replace the HEPA Primary filter, proceed to the next step. Otherwise, replace filter assembly on to unit and reattach the four buckles.

Replacing the HEPA Primary Filter

IMPORTANT: Performance is reduced when a non-Legend Brands primary filter is installed. For maximum filtration performance, use only Legend Brands filters. Do not clean and reuse the HEPA filter. Always replace the prefilter when replacing the HEPA filter.

1. Lay unit on its back and release the four (4) buckles. Lift off the filter door.
2. Remove the prefilter from the filter door and discard.
3. Release the two locking tabs and lift out primary filter element. Discard used filter.
4. Replace HEPA primary filter, handling it with care, as filter is easily damaged. Do not use a filter that is damaged.
5. Place new prefilter(s) in filter door. Replace filter cover and lock the four buckles securely.

Before each use

Inspect the electrical cord for damage, and do not use the unit if you find any fraying, cuts, etc. Contact your local distributor for service.

As Needed

Clean exterior of housing and inside the filter compartment. Ensure housing is completely dry before reassembling. Do not apply liquids to control panel or to any electrical components.

When using the HEPA 700 for remediation or in sensitive environments:

• Wear NIOSH-approved protective gear when changing filters.
• Change both filters after every remediation job.
• Dispose of used filters according to local regulations.
• Replace both the prefilter and HEPA filter to prevent cross-contamination.
• Clean the unit thoroughly (vacuum and damp wipe per IICRC S520, 10.11) before removing it from the containment area to avoid cross-contamination. Let the unit dry before installing clean filters.

For parts and service contact your local distributor or Legend Brands: Live Chat - Info.legendbrands.com | Email: [e-mail]

Filter Options

Air Filtration Applications:	Prefilter(s) Removes larger particulates – protects primary filter	Specialty Prefilter Carbon removes VOCs and odors	Primary filter (HEPA) Removes fine particulate down to .3 microns
·Water loss air filtration and mold remediation* ·Standard air scrubbing. For high particle loads, such as construction or remodeling sites.	2-in. MERV 8 Pleated Paper Filter #125026 (6 pk.)		HEPA Filter #124966 (1 pk.) #125028 (8 pk.)
·Odor control and air filtration. For removing volatile organic compounds (VOCs), fumes from paint and paint thiners, and many other noxious odors, eg, from food, sewage, etc. ·Smoke particulate and odor removal. Paper prefilter and HEPA filter remove particulates and carbon filter adsorbs odors.	1-in. MERV 8 Pleated Paper Filter #125029 (12 pk.)	1-in. Activated Carbon Filter #125027 (4 pk.)	HEPA Filter #124966 (1 pk.) #125028 (8 pk.)

SPECIFICATIONS

Model	HEPA 700 (#125105)
Airflow	Variable to 700 CFM | 1189 CMH
Static pressure	3.0 in. ( \( {\mathrm{H}}_{2}\mathrm{O} \) ) \( {747}\mathrm{\;{Pa}} \)
Weight	42.0 lbs. | 19.1 kg
Dimensions (H × D × W)	\( {22.8} \times {17.0} \times {25.9} \) in. \( {57.9} \times {43.3} \times {65.9}\mathrm{\;{cm}} \)
Amps/Power	1.5 - 3.0 amps, 115v, 60 Hz, 350w
Power cord	25 ft. | 7.6 m
Duct size	14 in. | 35.6 cm
Construction	Injection-molded plastic housing
Xactimate	WTRNAFAN>
Safety	ETL listed to UL 507 and CSA C22.2 No. 113
Specifications are subject to change without notice. Some values may be approximate.
