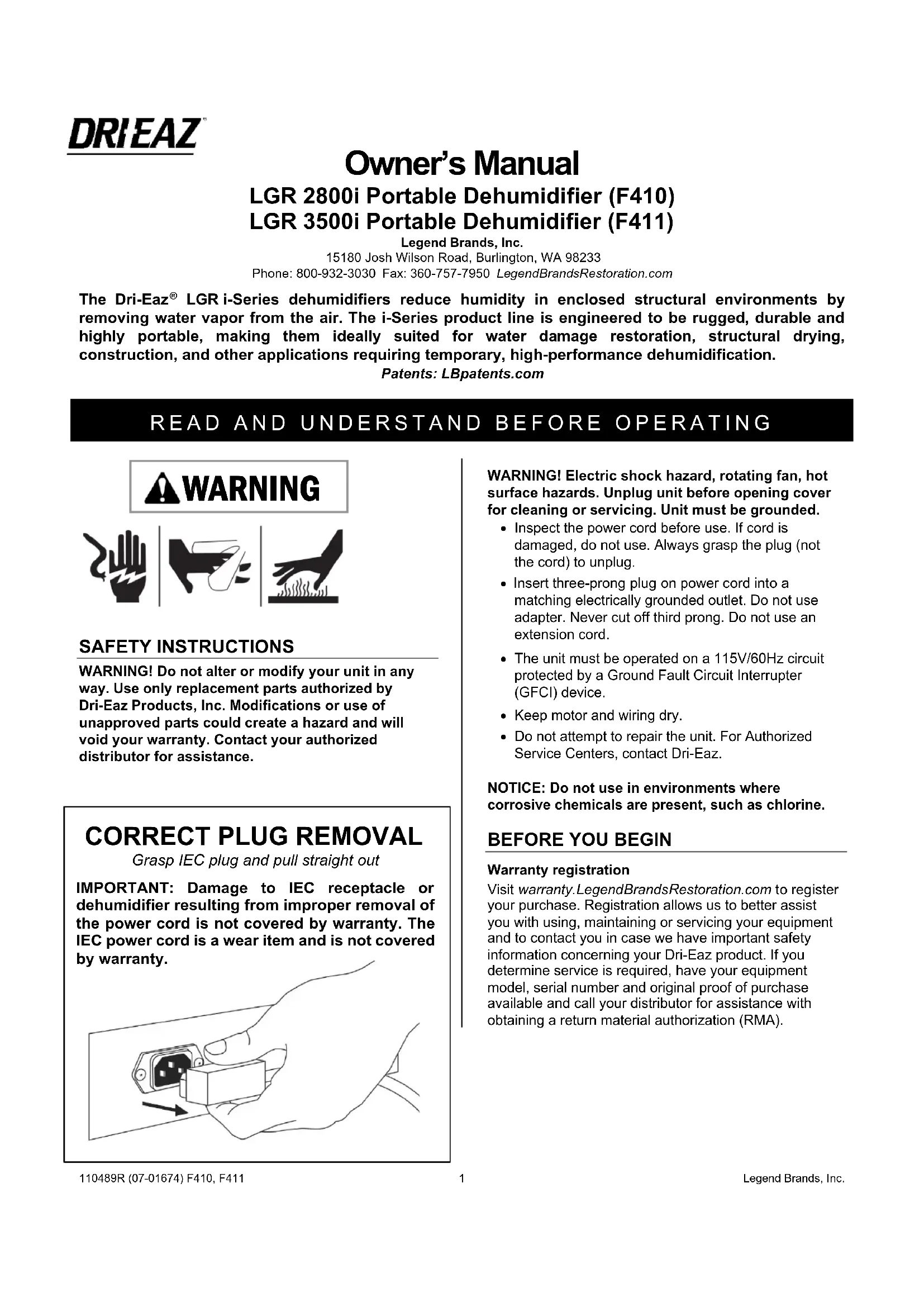

USER MANUAL LGR 3500i Dri Eaz

LGR i-Series dehumidifiers reduce humidity in enclosed structural environments by removing water vapor from the air. The i-Series product line is engineered to be rugged, durable and highly portable, making them ideally suited for water damage restoration, structural drying, construction, and other applications requiring temporary, high-performance dehumidification. Patents: LBpatents.com

SAFETY INSTRUCTIONS WARNING! Do not alter or modify your unit in any way. Use only replacement parts authorized by Dri-Eaz Products, Inc. Modifications or use of unapproved parts could create a hazard and will void your warranty. Contact your authorized distributor for assistance. WARNING! Electric shock hazard, rotating fan, hot surface hazards. Unplug unit before opening cover for cleaning or servicing. Unit must be grounded. • Inspect the power cord before use. If cord is damaged, do not use. Always grasp the plug (not the cord) to unplug.

• Insert three-prong plug on power cord into a matching electrically grounded outlet. Do not use adapter. Never cut off third prong. Do not use an extension cord. • The unit must be operated on a 115V/60Hz circuit protected by a Ground Fault Circuit Interrupter (GFCI) device. • Keep motor and wiring dry. • Do not attempt to repair the unit. For Authorized Service Centers, contact Dri-Eaz. NOTICE: Do not use in environments where corrosive chemicals are present, such as chlorine.

Warranty registration Visit warranty.LegendBrandsRestoration.com to register your purchase. Registration allows us to better assist you with using, maintaining or servicing your equipment and to contact you in case we have important safety information concerning your Dri-Eaz product. If you determine service is required, have your equipment model, serial number and original proof of purchase available and call your distributor for assistance with obtaining a return material authorization (RMA). WARNING

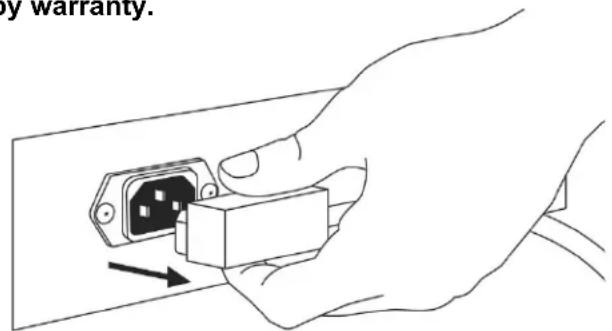

CORRECT PLUG REMOVAL

Grasp IEC plug and pull straight out IMPORTANT: Damage to IEC receptacle or dehumidifier resulting from improper removal of the power cord is not covered by warranty. The IEC power cord is a wear item and is not covered by warranty.110489R (07-01674) F410, F411 2 Legend Brands, Inc. INTRODUCTION How LGR dehumidifiers work Dri-Eaz LGR (low-grain refrigerant) dehumidifiers operate by pulling moist air in across a very cold evaporator core. The moisture in the air condenses on the coil. In certain conditions, the machine operates in defrost mode, warming any frost that has accumulated on the evaporator coil back into water. The water collects in a tray and is pumped out through a hose. Onboard sensors continually monitor environmental conditions and system operations of the dehumidifier, including temperature and relative humidity, which can be viewed on the display panel. LGR dehumidifiers have better heat exchange and defrost abilities than regular refrigerant dehumidifiers, and are able to continue removing moisture in drier environments.

POSITIONING A DEHUMIDIFIER

For best results, operate your dehumidifiers in an enclosed area, as this creates a drying chamber. Close all doors and windows that open to the outside to maximize the unit’s water removal efficiency. Also, keep traffic though the drying chamber to a minimum. Place your dehumidifier against a wall, away from obstructions, and keep it away from anything that could block airflow into and out of the unit. Rugged rotomolded housing resists dents and scratches and is easy to maintain.

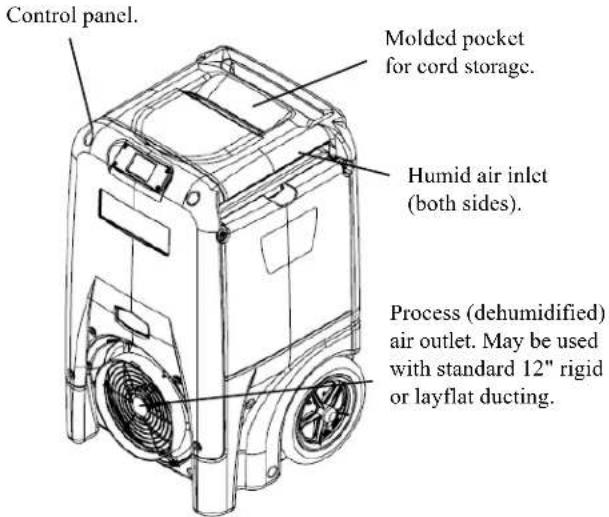

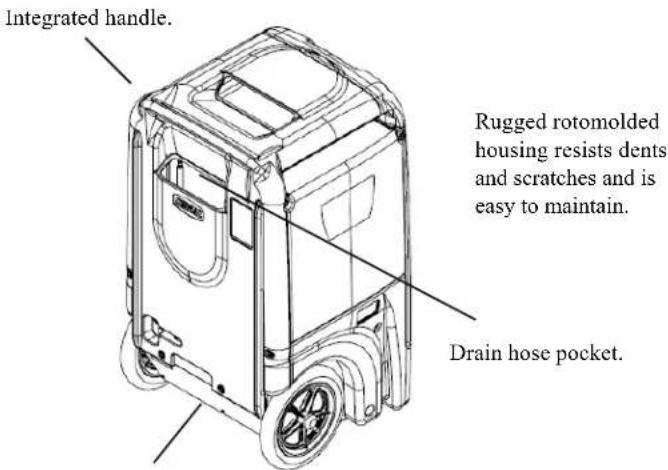

Integrated handle. Lower back panel. Remove this panel to access the pump for servicing. Drain hose pocket. Control panel. Molded pocket for cord storage. Humid air inlet (both sides). Process (dehumidified) air outlet. May be used with standard 12" rigid or layflat ducting.

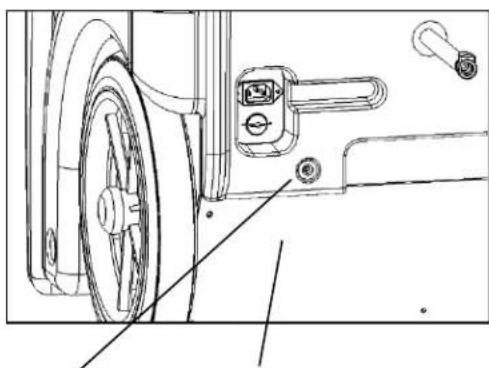

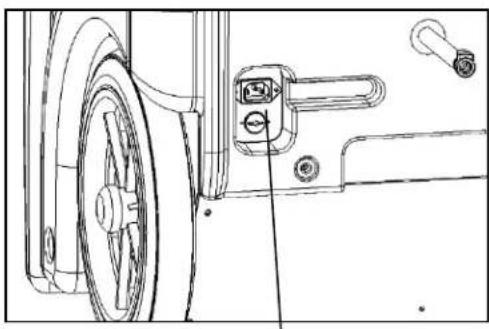

ATTACHMENT POINTS Power cord socket. Lower back panel. Remove the five retaining screws to remove pump for cleaning.

FIG. D: PUMP ACCESS PANEL

Bottom of back polyethylene housing. Remove two bolts to remove pump for cleaning. PARTS IDENTIFICATION110489R (07-01674) F410, F411 3 Legend Brands, Inc.

OPERATING YOUR DEHUMIDIFIER

Set unit upright NOTICE: If you transport an i-Series dehumidifier in a horizontal position, set it upright and let it stand for at least 30 minutes before you turn it on. When the machine is horizontal, the oil from the compressor flows into the refrigerant coils reducing the ability of the dehumidifier to function. Letting the unit stand upright for 30 minutes allows the oil to flow back into the compressor. Set up drain hose This unit automatically pumps out water on a regular basis. This dehumidifier is equipped with a quick- connect fitting for attachment to the provided 40 ft. (12 m) drain hose located in the side pocket. Unwrap the entire hose and place the open end in a sink, drain, bucket or outdoors – anywhere that water can drain out safely. If you use a bucket or other container for water collection, check it regularly to prevent overflows. NOTE: Uncoil and straighten the entire drain hose. Do not leave any of part of the hose coiled on the unit and do not place the end of the hose higher than 20 ft. (6 m) above the top of the unit. Also check for kinks, or obstructions that would restrict the flow of water. Failure to do so may cause a water backup in the pump resulting in leakage. Plug in electrical cord The i-Series dehumidifier should be plugged into a GFCI-protected 115 volt outlet rated for at least 15 amps. Remove the cord from its storage pocket and uncoil it. Always plug the cord firmly into the unit first, and then plug the other end into a suitable outlet.110489R (07-01674) F410, F411 4 Legend Brands, Inc.

HOW TO USE THE CONTROL PANEL

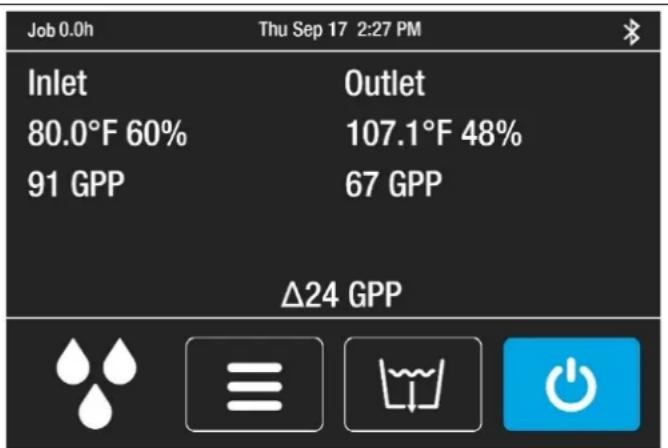

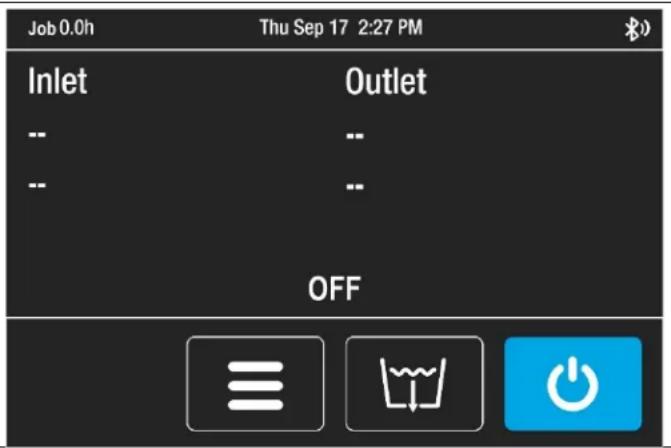

The i-Series Controller provides comprehensive dehumidifier controls and detailed real-time data about the drying environment as well as job hours, self-diagnosis messages, maintenance reminders and operating status. For detailed information and additional instructions, please visit the i-Series Controller page at Controller.LegendBrandsRestoration.com Home Screen Views Unit OFF Unit must be plugged in. Top display bar: Job hours, current time Press MENU to access settings and configuration controls Press PURGE to pump out condensate tank Press ON/OFF to turn unit on.

Press MENU to access settings and configuration controls Press PURGE to pump out condensate tank Press ON/OFF to turn unit off.110489R (07-01674) F410, F411 5 Legend Brands, Inc.

If the control system detects a problem, it will display an "Alert" symbol in the upper right corner of the screen. Press ON/OFF to view the message and OK to clear the message. NOTE: In the case of an error, the unit will not operate until the problem is resolved. Refer to the explanations and solutions shown below. If these solutions do not fix the problem, contact your local authorized service center for further assistance. CONTROL PANEL MESSAGE

EXPLANATION AND SOLUTION

ER4 Error Defrost Thermistor Connect —or— ER4 Error Outlet Thermistor Connect Temp sensor is open, missing, or shorted. Check that temp sensors are installed correctly on control panel. If error persists, contact service. ER5 Error Inlet RH1 Temp/RH Sensor Inlet Temp/RH sensor is open, missing, or shorted. Check that inlet temp/RH sensor is installed correctly on control panel and inlet shroud. If error persists, contact service. ER5 Error Inlet RH1 Temp/RH Sensor Inlet Temp/RH sensor is open, missing, or shorted. Check that inlet temp/RH sensor is installed correctly on control panel and inlet shroud. If error persists, contact service. ER6 Error Current Sensor Failure Current sensor failure. If error persists, contact service. ER9 Error Pump Blocked Check for obstructions in drain hose. Check the pump.

Low BATTERY Replace coin cell battery (3V, CR2032) on control panel.

To reduce the possibility of drips when moving the unit, follow these additional steps to ensure that all water is removed from the unit. NOTICE: The unit will complete the defrost cycle even if the unit is turned off but still plugged in. If the unit is unplugged during the defrost cycle, excessive water may accumulate in the unit and may drip out when you move the unit. NOTICE: To ensure the condensate tank empties completely while purging, make sure the unit is placed upright on a horizontal surface.

1. Do not turn unit off or move it until it has returned

to normal operating mode.

2. Gently rock the machine to ensure any water

remaining on interior surfaces falls into the sump area.

3. Press the PURGE key. When the purge cycle is

complete, turn the unit off.

4. Disconnect the external drain hose, drain it

carefully, coil it and secure it in the pocket or the strap provided with your unit. MAINTENANCE WARNING! ELECTRIC SHOCK HAZARD. Unplug the dehumidifier before performing any maintenance. Before each use Inspect the electrical cord for damage. Look for fraying, cuts, etc. Do not use the unit if you find any110489R (07-01674) F410, F411 6 Legend Brands, Inc. damage. Call Dri-Eaz for the nearest Service Center at 800-932-3030. Inspect filter. Replace if accumulation of dust and debris is visible. NOTICE: Replace used filters only with a new Dri-Eaz filter #121708 (F584). Other filter types do not provide adequate filtration or airflow.

Monthly Check coils. Dirty coils can cause the unit to overheat. Clean when visibly dirty. Check heat exchange block. Clean out with compressed air only. Take care not to damage the block. Inspect and clean the pump. To remove the condensate pump unit:

To maintain proper operation, the pump and drain pan assembly should be periodically removed and cleaned. Follow these steps to clean the pump and drain pan assembly: Tools Needed Philips screwdriver Flat blade screwdriver ⅜ in. and

in. sockets and driver Cleaning cloths

DISASSEMBLY AND CLEANING

1. Unplug unit, then remove the power cord from the

socket at the base of the unit. Remove pump hose at quick-connect.

3. Remove the two bolts from the upper front cover.

4. Remove one bolt each from the upper back corner of

side covers A and B (see Fig. A)

5. Remove four bolts from the lower back panel. The

back/top panel may now be removed.

6. Remove lower back metal panel (unscrew the five

7. Place a firm support under the base of the unit so that

the left wheel may be removed.

8. Using the flat blade screwdriver, carefully pry the

in. socket to remove the retaining nut and slide the wheel off. See Fig. E, #1.

9. Remove the two electric box retaining screws (see

10. Tilt the bottom of the electric box to the right and

slide outward (Fig. F). It is not necessary to disconnect any electrical cables.

11. Remove drain hose from pump assembly and slide

pump and tray assembly out of the unit.

12. Lift pump body out of plastic catch tray.

13. Wipe or rinse off all surfaces of the plastic catch tray

14. Remove the pump assembly from the pump tray and

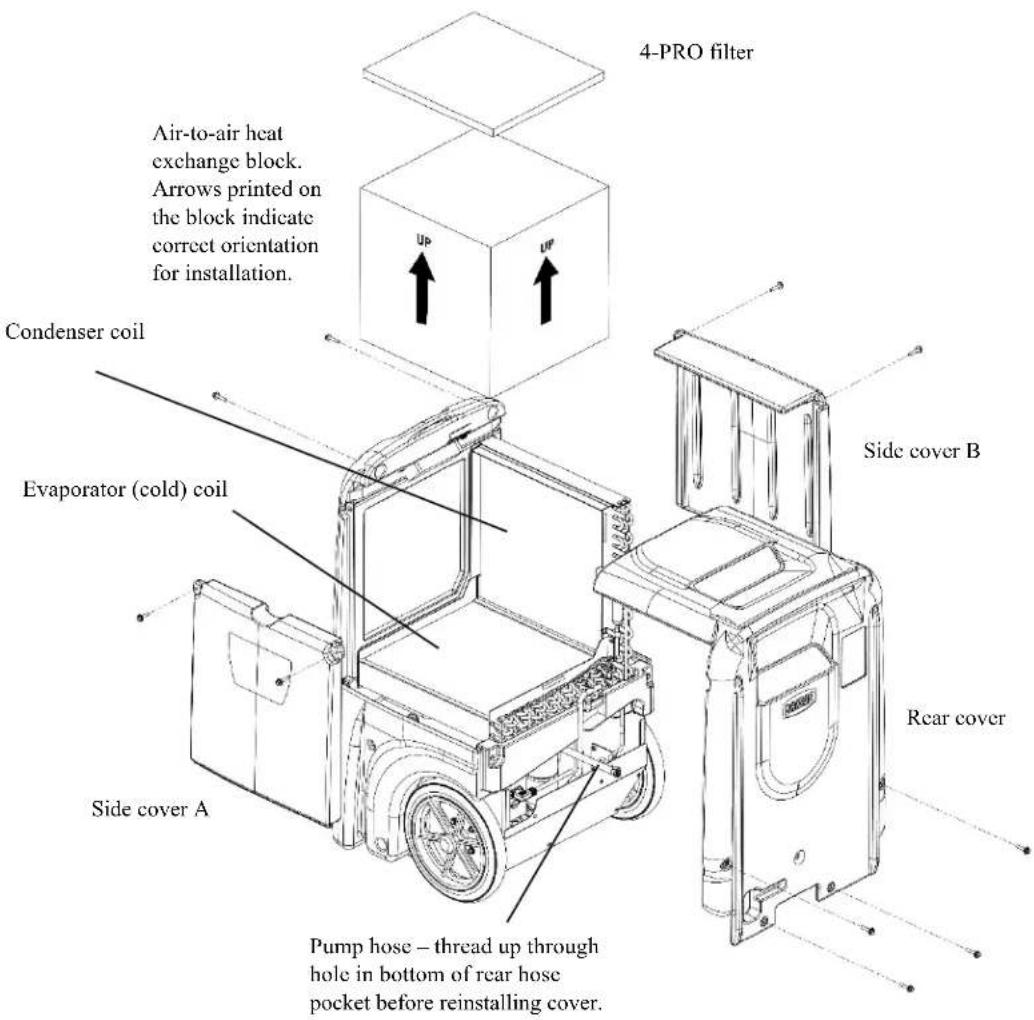

set pump aside. Wipe or rinse out pump tray and wipe dry. Rear cover Side cover A Side cover B 4-PRO filter

Pump hose – thread up through hole in bottom of rear hose pocket before reinstalling cover. Condenser coil Evaporator (cold) coil Air-to-air heat exchange block. Arrows printed on the block indicate correct orientation for installation.110489R (07-01674) F410, F411 7 Legend Brands, Inc.

15. Remove pumpout hose from the check valve outlet.

16. Unscrew check valve. Using needle nose pliers,

carefully remove bottom of check valve assembly by inserting one side of pliers approximately ⅛ in. into hole, grasp and pull out carefully. A small ball bearing should fall out so be careful not to lose it. Inspect assembly for debris in assembly and clean accordingly. Reinstall the ball bearing and reinstall the check valve assembly. Reassemble in reverse order. The dehumidifier is now ready for use. Annually Have the pump system inspected by a qualified service center.

TRANSPORTATION AND STORAGE

IMPORTANT: Before moving, transporting or storing, purge unit and stow hose and power cord as described in the “At the End of the Job” section above. NOTICE: Handle the unit carefully. Do not drop, throw or place the unit where it could fall. Rough treatment can damage the dehumidifier and may create a hazardous condition or void the warranty.

• Do not expose the control panel to moisture, snow or rain.

• Store and transport securely to avoid any damaging impact to internal parts.

• Secure during transport to prevent sliding and possible injury to vehicle occupants.

• Do not transport or store the unit on its front, sides or back. This will help to prevent any remaining moisture from escaping from the unit or flowing into areas outside the sump.

CLEANING COILS AND HEAT

EXCHANGE BLOCK WARNING! Unplug unit before servicing. To help keep the unit operating efficiently, keep the coils and the air-to-air heat exchange block clean. Access these components by removing the side and rear covers:

2. Unplug the power cord from the socket at the base of

the unit. Remove pump hose at quick-connect.

4. Remove both side covers A and B (unscrew two bolts

shown for each panel).

5. Remove back cover (unscrew the four bolts shown on

the back and the two bolts on the upper front panel).

6. Remove the heat exchange block.

Inspect the heat exchange block carefully. If necessary, use compressed air to clear the channels of the block, taking care not to damage the block. NOTICE: The unit is fitted with sensitive electronic sensors. Protect the sensors from impact and do not expose them to water or cleaning solution. Vacuum or use compressed air on both sides of the upright (condenser) coil until it is clean. Take care not to let the nozzle touch the fins; as this may damage the fins. A coil cleaner product may be used on the horizontal cold (evaporator) coil only. Follow instructions on product label. Take care not to spray or wipe product on or near any electrical components or sensors. To clean the vertical (condenser) coil, contact Service for instructions. To reassemble, follow the above steps in reverse. Be sure to reinstall heat exchange block in the original

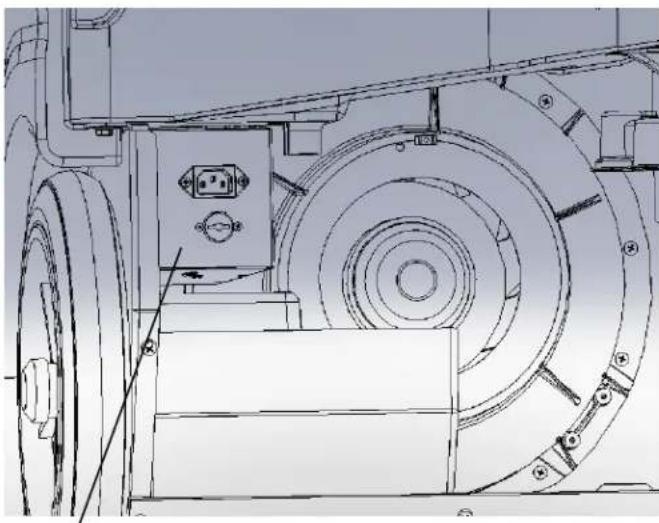

FIG. F: ELECTRIC BOX LOCATION

After removing attachment screws (Fig. E), tilt the bottom of the electrical box to the right and slide it out. Set aside. It is not necessary to disconnect any electrical cables.

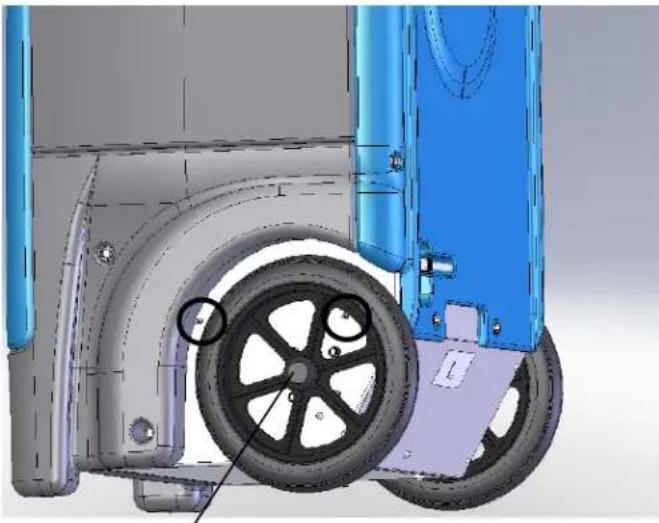

1. After placing a firm support under the base of the unit, remove

the center hub cap and remove the axle nut. The wheel will now slide off. 2. Remove the two screws (shown in the circles above) to detach the electric junction box.110489R (07-01674) F410, F411 8 Legend Brands, Inc. orientation. When installing the rear cover, carefully thread the pump hose through the hole in the back pocket before putting the cover in place. NOTICE: Rubber strips are attached to the outside edges of the evaporator and condenser coils to provide an airtight seal around the heat exchange block. When reinstalling the block, make sure the seals are in place and are not kinked or folded. TROUBLESHOOTING

FAULT CAUSE SOLUTION

Water drips out when moving unit Unit was unplugged before purging was complete. Purge unit before moving. See “At the End of the Job.” Unit does not operate Unit not switched on. No power to machine. Switch unit on. Plug in unit; check power cord connection at wall outlet and at base of unit. Unit operating, but room not dry Not enough time to dry. Poor air movement in room. Excessive moist air infiltration. Make sure “Humidistat” is OFF. Allow more time for drying. Increase air movement with air movers. Seal off area to reduce infiltration. Unit collects too little water Room air is dry. Room temperature is too low. Filter is full. Coils are clogged. Make sure “Humidistat” is OFF. Confirm humidity level with hygrometer. Increase room temperature. Check filter. Replace as necessary. Check coils. Clean as necessary. If the problem you are experiencing is not listed here, call your local distributor or contact our Service Department at 800-932-3030 for further assistance. SPECIFICATIONS Model LGR 2800i (F410) LGR 3500i (F411) Use weight 156 lbs. | 70.8 kg 158 lbs. | 71.2 kg Dimensions (H × D × W)

120 volts Water removal AHAM (80°F/60% RH) 130 pts. | 61.5 liters / day 170 pts. | 80.4 liters / day Water removal max. (90°F/90% RH) 200 pts. | 94.6 liters / day 240 pts. | 113.6 liters / day Water removal 80°F/20% RH 20 pts. | 9.5 liters / day 24 pts. | 11.4 liters / day Max process air 400 CFM | 679.7 CMH* 400 CFM | 679.7 CMH* Operating range 33°F–125°F 1°C–52°C 33°F–100°F 1°C–38°C Construction Rotomolded shell Rotomolded shell Safety ETL certified to CSA

ETL certified to CSA

Specifications are subject to change without notice. Some values may be approximate. *Automatic variable speed for optimized performance. PARTS INCLUDED 40 ft. (12 m) of drain hose with quick-connect fitting. 25 ft. (7.6 m) detachable power cord. 4-PRO air filter. Reorder #121708 (F584) 24 pk. ACCESSORIES VMax Adaptor #100694 (F422) Sto&Go Ducting #113260 (F405) FOR PARTS AND SERVICE CALL YOUR LOCAL DISTRIBUTOR or Dri-Eaz at 800-932-3030. Visit warranty.LegendBrandsRestoration.com and register your purchase to ensure you receive any important product releases.

WARNING: This product may expose you to
