40858 - Vacuum packaging machines Vollrath - Free user manual and instructions

Brand	Vollrath
Model	40858
Product Type	Refrigerated Beverage Dispenser
Tank Capacity	8 L (2.11 gal), 12 L (3.17 gal) or 20 L (5.28 gal) depending on model
Power Supply	Single-phase, voltage per nameplate
Ambient Operating Temperature	5 to 30 °C (41 to 86 °F)
Minimum Clearance Required	15.2 cm (6 inches) on all sides
Main Functions	Refrigeration and dispensing of pre-mixed cold beverages; circulation by agitator + paddle or by spray-fountain
Controls	Main on/off switch; per-tank circulation switch (12L/20L models)
Fill Levels	Minimum: 2 L (0.5 gal); Maximum: according to tank capacity
Materials	Stainless steel and food-grade plastic
Safety	Grounding mandatory; stops if panels not secured; unplug before cleaning
Maintenance and Cleaning	Disassembly, manual washing, disinfection (100 ppm solution); monthly condenser cleaning with compressed air
Lubrication	Food-grade lubricant on the washer under the turbine
Spare Parts and Repairability	Parts available via White Glove Service Network; do not repair yourself
Warranty	Manufacturer's warranty (details at vollrath.com)
Intended Use	Commercial foodservice use (indoor only)
Suitable Beverages	Pre-mixed beverages without pieces, pulp or seeds (coffee, tea, juice)
Included Accessories	Drip tray; 100 mm legs (depending on model)

Frequently Asked Questions - 40858 Vollrath

What type of beverage can be used with the Vollrath 40858 dispenser?

This dispenser is designed for pre-mixed cold beverages without fruit pieces, pulp or seeds. It is suitable for coffee, tea, natural fruit juices and similar beverages. Avoid liquids containing solid particles that could clog the faucet or motor.

How to install the dispenser for the first time?

Place the machine on a level counter capable of supporting the weight of full tanks. Maintain a minimum clearance of 15.2 cm on all sides. After unpacking, let the machine stand upright for 24 hours before plugging it in to stabilize the compressor oil.

What is the recommended cleaning and disinfection procedure?

Unplug the machine. Disassemble parts (lid, faucet, tank, gasket, tray). Hand wash in warm water (32-43 °C) with a mild detergent. Rinse, then immerse in a 100 ppm disinfectant solution (e.g., Stera-Sheen®) for 1 minute. Air dry. Do not use a dishwasher.

What if the beverage does not cool fast enough?

Check that the machine has proper clearance (15.2 cm minimum) and that the environment is at 5-30 °C. Ensure the condenser is clean (clean monthly with compressed air). Pre-chill the beverage before pouring into the tank.

How to resolve a beverage leak?

Check that the tank is properly seated on its gasket and that the gasket is not worn. Inspect the faucet rubber washer: it must be in place with flanges outward. If the piston ring is dirty or damaged, clean it or have it replaced.

Can I use an extension cord?

No, it is strictly prohibited to use an extension cord. Plug the appliance directly into a single-phase grounded outlet matching the voltage on the nameplate.

What if the machine makes an abnormal noise?

Excessive noise may come from a damaged turbine or a fan issue. Inspect the turbine and replace if necessary. If noise persists, contact the White Glove Service Network.

How to maintain the condenser?

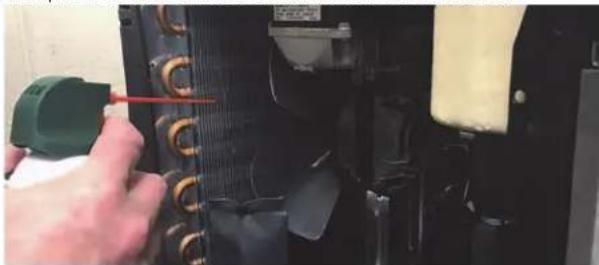

Clean the condenser once a month with compressed air. Unplug the machine, remove the drip tray and access panel. Blow air from inside to outside, never through the louvers. Do not use water.

What is the warranty for the Vollrath 40858?

The Vollrath Company LLC warrants its products against defects in material and workmanship. The warranty begins on the initial purchase date. For more details, visit www.vollrath.com or contact customer service.

Where to find spare parts and how to get repair?

Spare parts are available through the White Glove Service Network (phone [phone] in the US). Do not attempt to repair the appliance yourself. Contact this network for any technical intervention or parts request.

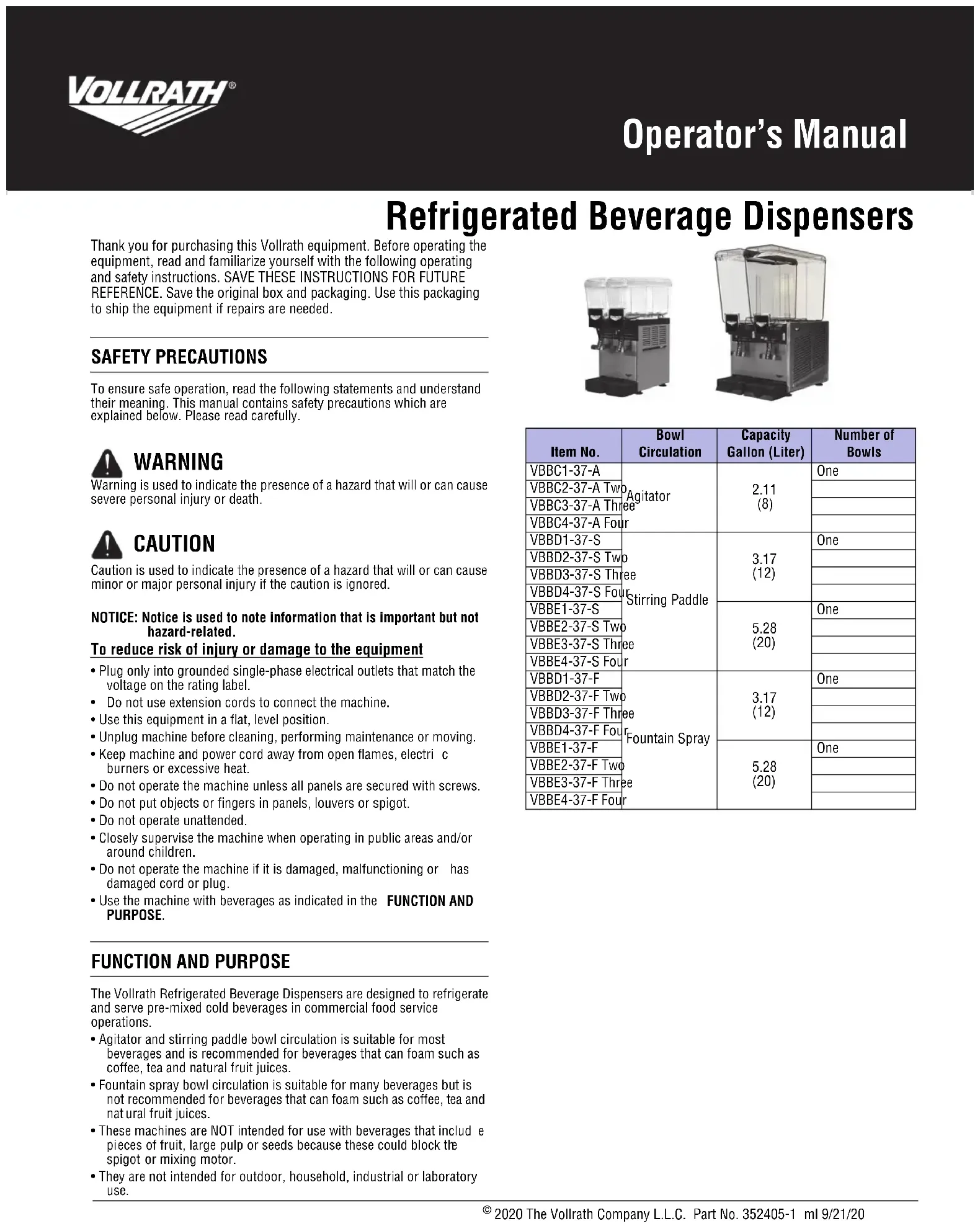

USER MANUAL 40858 Vollrath

Refrigerated Beverage Dispensers

Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use this packaging to ship the equipment if repairs are needed.

SAFETY PRECAUTIONS

To ensure safe operation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warning is used to indicate the presence of a hazard that will or can cause severe personal injury or death.

CAUTION

Caution is used to indicate the presence of a hazard that will or can cause minor or major personal injury if the caution is ignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

To reduce risk of injury or damage to the equipment

• Plug only into grounded single-phase electrical outlets that match the voltage on the rating label.
• Do not use extension cords to connect the machine.
• Use this equipment in a flat, level position.
• Unplug machine before cleaning, performing maintenance or moving.
• Keep machine and power cord away from open flames, electric burners or excessive heat.

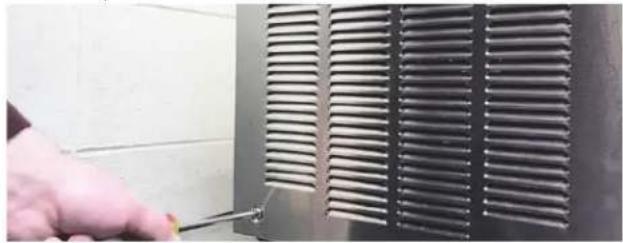

• Do not operate the machine unless all panels are secured with screws.
• Do not put objects or fingers in panels, louvers or spigot.
• Do not operate unattended.
• Closely supervise the machine when operating in public areas and/or around children.
• Do not operate the machine if it is damaged, malfunctioning or has damaged cord or plug.
• Use the machine with beverages as indicated in the FUNCTION AND PURPOSE.

FUNCTION AND PURPOSE

The Vollrath Refrigerated Beverage Dispensers are designed to refrigerate and serve pre-mixed cold beverages in commercial food service operations.

• Agitator and stirring paddle bowl circulation is suitable for most beverages and is recommended for beverages that can foam such as coffee, tea and natural fruit juices.
• Fountain spray bowl circulation is suitable for many beverages but is not recommended for beverages that can foam such as coffee, tea and natural fruit juices.
  • These machines are NOT intended for use with beverages that include pieces of fruit, large pulp or seeds because these could block the spigot or mixing motor.
  • They are not intended for outdoor, household, industrial or laboratory use.

Exterior view of a modern stainless steel laboratory stand with glass enclosure (no visible text or symbols)

Item No.	Bowl Circulation	Capacity Gallon (Liter)	Number of Bowls
VBBC1-37-A	Agitator	2.11(8)	One
VBBC2-37-A Two
VBBC3-37-A Three
VBBC4-37-A Four
VBBD1-37-S	Stirring Paddle	3.17(12)	One
VBBD2-37-S Two
VBBD3-37-S Three
VBBD4-37-S Four
VBBE1-37-S		5.28(20)	One
VBBE2-37-S Two
VBBE3-37-S Three
VBBE4-37-S Four
VBBD1-37-F	Fountain Spray	3.17(12)	One
VBBD2-37-F Two
VBBD3-37-F Three
VBBD4-37-F Four
VBBE1-37-F		5.28(20)	One
VBBE2-37-F Two
VBBE3-37-F Three
VBBE4-37-F Four

CLEARANCE AND ENVIRONMENT REQUIREMENTS

• Indoor use only.
• Ambient temperature: 41^ - 86^ (5° - 30°C).
  • Minimum clearance required: 6" (15.2 cm) on all sides of the machine.

INSTALLATION

NOTICE: Do not lay the machine on its side or back.

NOTICE: Do not lift the machine by the bowl(s). Only lift by grasping the bottom of the machine.

NOTICE: After unpacking the machine, it must sit in the upright position for 24 hours before turning it on. This will allow the oil in the compressor to settle into place.

Attach the Legs (Some Machines)

Some Refrigerated Beverage Dispensers require 4" (100 mm) legs to meet the NSF standard for cleaning under the machine. If legs are included with your machine, they must installed.

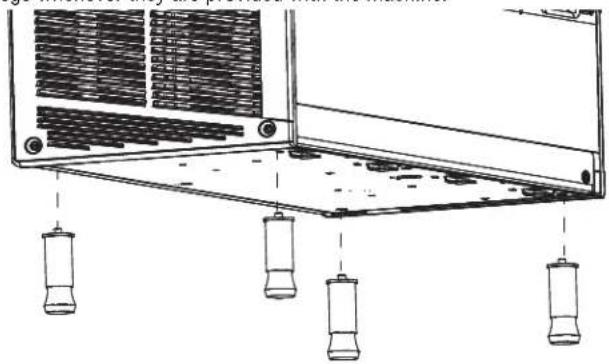

1. Position the machine on a countertop capable of supporting the weight when all bowls are filled to capacity.
2. Replace the feet on the machine with installed with the 4" (100 mm) legs whenever they are provided with the machine.

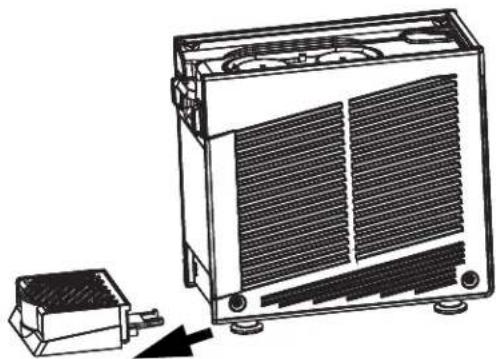

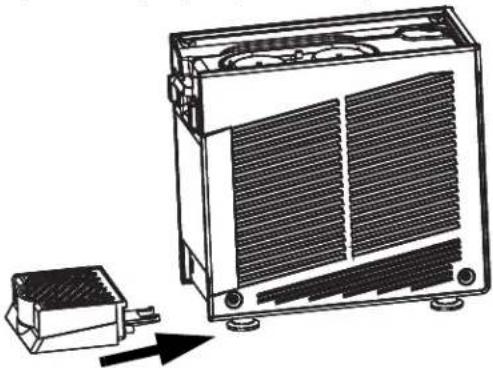

Technical line drawing of a server rack with cooling fans and three hanging sensors (no text or symbols)

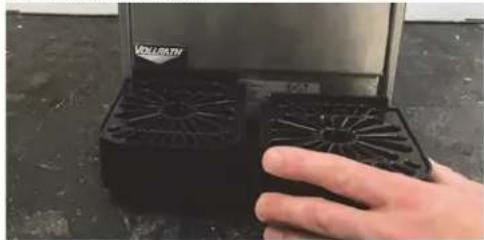

Attach the Drip Tray

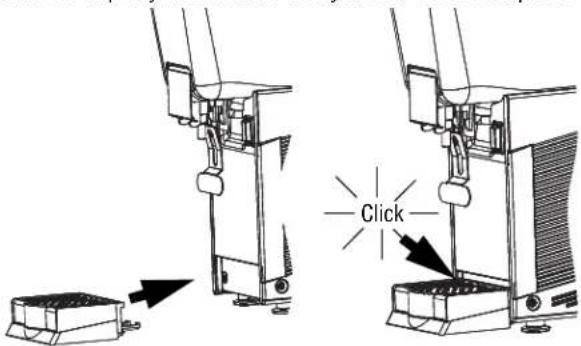

Gently slide the drip tray into position until you hear it click.

Technical line drawing of a device with a small component and a larger internal panel (no text or symbols)

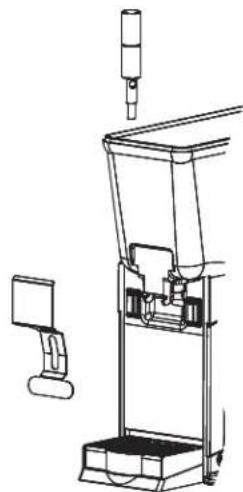

BEFORE FIRST USE

Before use, the machine must be disassembled, cleaned and sanitized.

1. Disassemble the machine. See DISASSEMBLE THE MACHINE.
2. Clean the components. See CLEAN THE MACHINE.
3. Re-assemble and lubricate the components. See ASSEMBLE THE MACHINE.
4. Sanitize the machine. See CLEAN THE MACHINE.

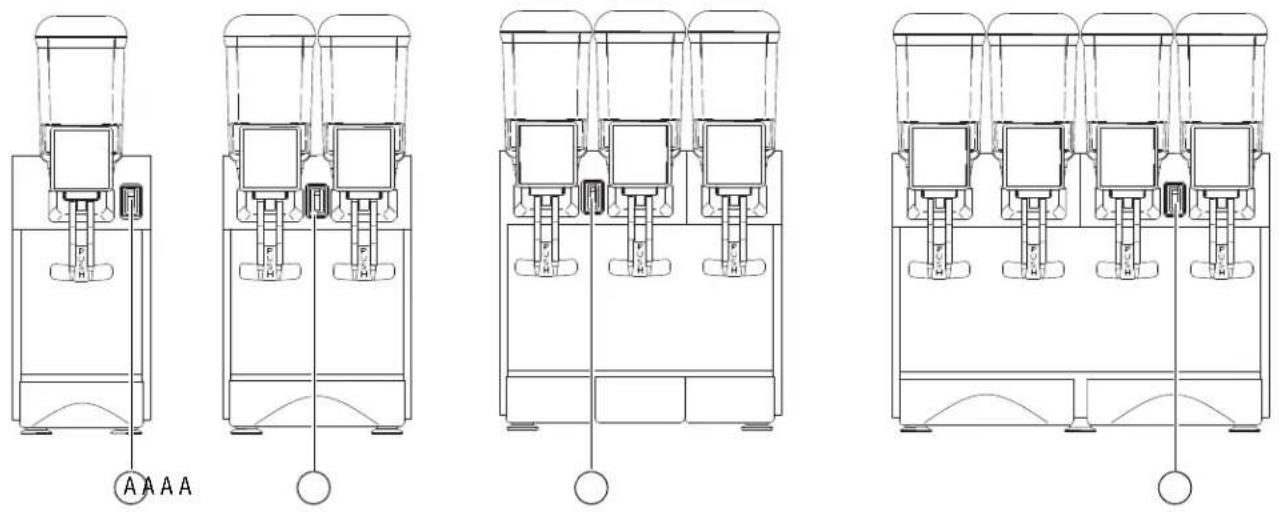

FEATURES AND CONTROLS

Machines with 2.11 Gallon Bowls

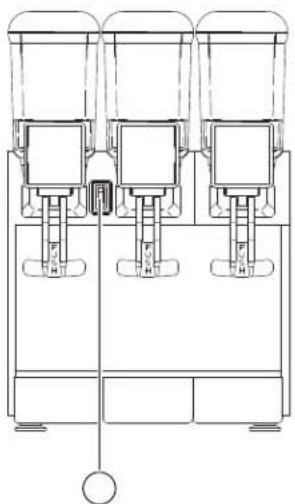

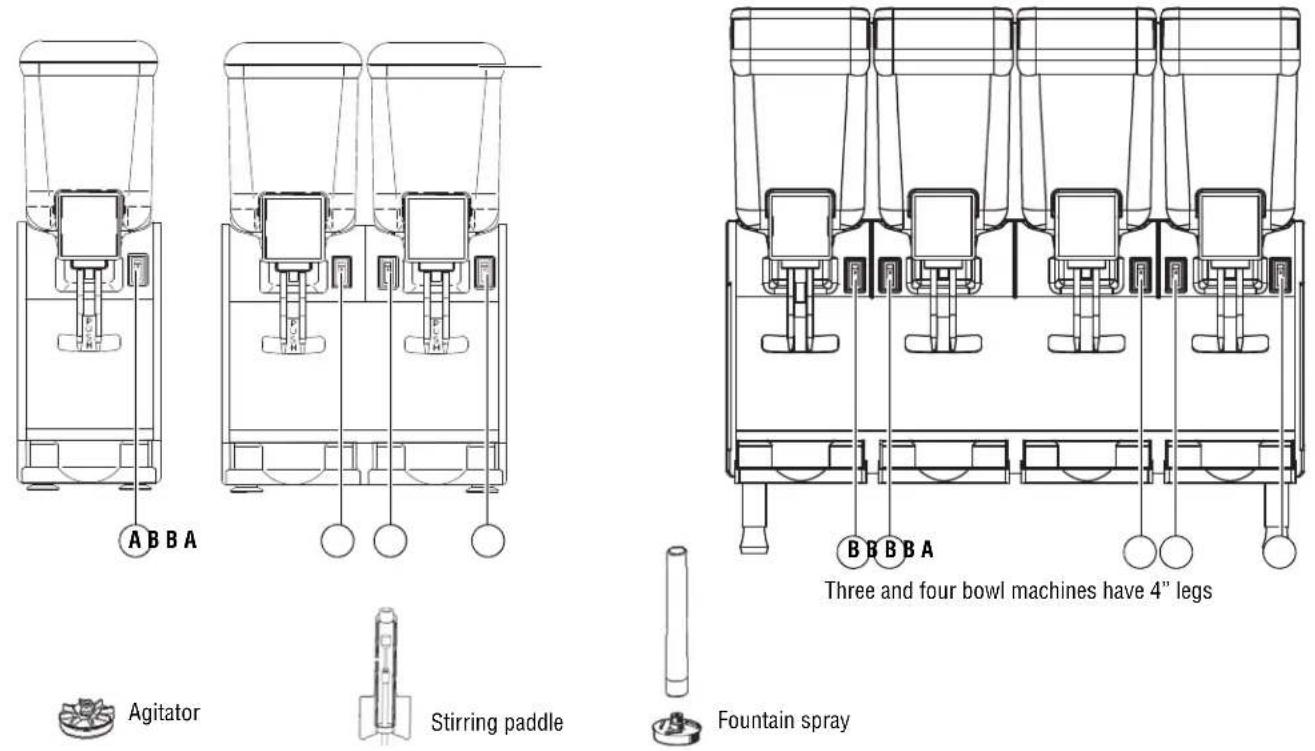

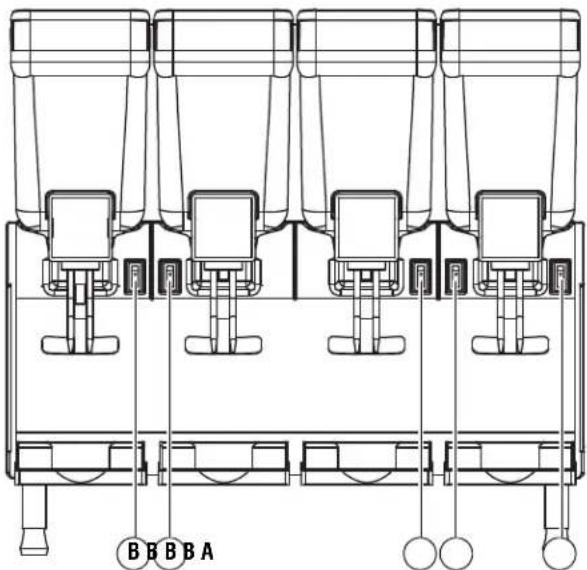

A ON/OFF Switch. Switches power, beverage circulation and refrigeration ON and OFF.

Machines with 3.17 and 5.28 Gallon Bowls

A ON/OFF. Switches power and refrigeration ON and OFF.

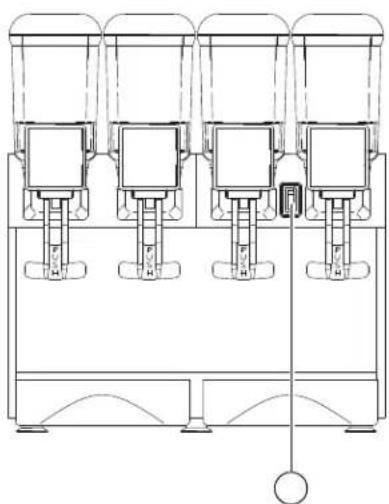

B Beverage Circulation ON/OFF. One per bowl. Switches the beverage circulation ON and OFF.

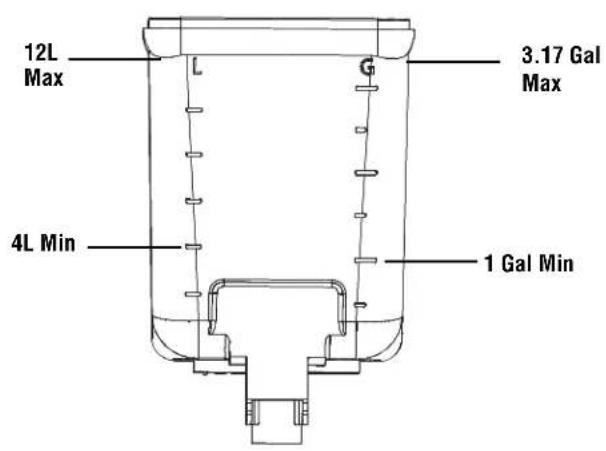

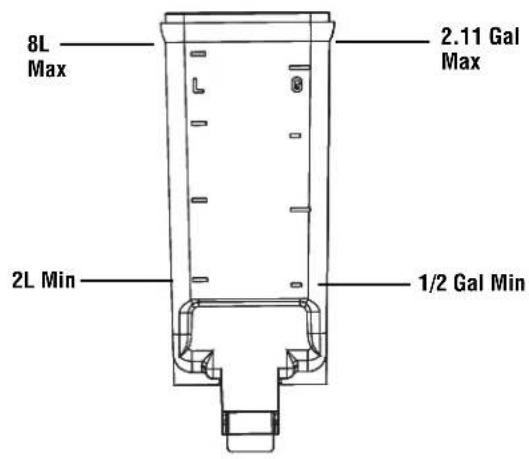

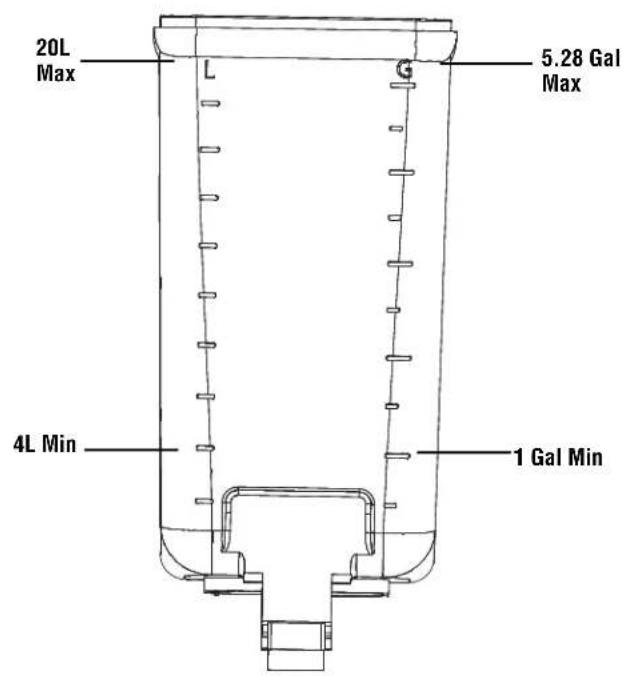

8L Max 2.11 Gal Max 2L Min 1/2 Gal Min

8 Liter Bowls

12L Max 4L Min 3.17 Gal Max 1 Gal Min

12 Liter Bowls 20 Liter Bowls

20L Max 5.28 Gal Max 4L Min 1 Gal Min

NOTICE: Do not exceed the maximum fill level.
NOTICE: Do not operate the machine when the beverage in the bowl is below the minimum fill level. Monitor the beverage level in each bowl. Add additional beverage as needed to maintain the minimum fill level.

OPERATION

NOTICE: Do not operate the machine unless all panels are secured with screws.

NOTICE: Do not put objects or fingers in panel louvers or spigot.

NOTICE: Unplug the machine before cleaning, troubleshooting or performing routine maintenance.

NOTICE: For best results pre-chill and mix the beverage before adding it to the dispenser.

NOTICE: Do not operate the machine with an empty bowl.

Sanitize the Machine

NOTICE: The United States Department of Agriculture and the Food and Drug Administration requires that all cleaning and sanitizing solutions used with food processing equipment be certified for this use.

NOTICE: Refer to local sanitary regulations for applicable codes and recommended sanitizing products and procedures. The frequency of sanitizing must comply with local health regulations.

Sanitizing must be done after the machine is cleaned and just before the machine is filled with beverage. Sanitizing the night before is not effective. However, you should always clean the machine and parts after using it.

1. Read the instructions for Stera-Sheen® Green Label Sanitizer or equivalent product for creating a 100 ppm strength solution.
2. Mix the sanitizer in warm, approximately 90^ to 110^ F ( 32^ to 43^ C) water.
3. Check the strength of the sanitizing solution. Use a chlorine test strip and color chart to make sure the solution has 100 ppm.
4. Pour the solution into the bowl.
5. Using a suitable brush, wipe the solution onto all parts above the level of the solution and on the underside of the cover.
6. Install the cover.
7. Plug in the machine.

1. Turn on the machine.
2. Operate the machine for five minutes.
3. After five minutes, place a container under the spigot. Press the handle to drain the sanitizing solution. Do not discard the solution.
4. Use a new test strip to test the solution. A reading of 100 ppm or more is acceptable. If the reading is less than 100 ppm, sanitize the machine again.

NOTICE: If the reading is less than 100 ppm after sanitizing the second time, disassemble and wash the machine again.

1. When the strip shows a reading of 100 ppm or more, turn off the machine.

Add the Beverage

After sanitizing the machine, then add the beverage.

Note: When using a beverage mix, thoroughly combine the mix and the liquid before pouring into the bowl.

1. Remove the top cover from the bowl.
2. Flush any remaining sanitizer from the bowl by adding a small amount of beverage to the bowl. Then drain the beverage from the bowl.

3. Fill the bowl with beverage to at least the minimum fill level. Do not fill above the maximum fill level.

4. Place the cover on the bowl. If you do not wish to operate all of the bowls.

NOTICE: Do not operate the machine with an empty bowl. This may damage the impeller at the bottom of the bowl.

Machines with only one switch: Remove the impeller from the bottom of the bowl or fill the bowl with water.

Machines with a circulation switch for each bowl: Turn off circulation for the bowl that is not in use.

1. Turn on the machine.

2. Dispensers with 2.11 gallon bowls: Press the On/Off button.

3. Dispensers with 3.17 and 5.28 gallon bowls: Press the On/Off button to turn on refrigeration. Press the bowl circulation button for each bowl you wish to operate.

4. Allow the beverage to chill to the desired serving temperature.

Dispense Beverages

1. Press a cup against the dispenser lever to start the flow of the beverage.
2. Remove the cup to stop the flow of the beverage.

CLEAN THE MACHINE

WARNING

Electrical Shock Hazard

Before disassembly, ensure that the dispenser is disconnected from its power source.

NOTICE: Local and state health codes dictate the procedure required. Some health codes require a four-sink process (pre-wash, wash, rinse, sanitize, and air-dry), while other codes require a three-sink process (without the pre-wash step). The following procedure is a general guideline only. Consult your local and state health codes for procedures required in your location.

NOTICE: Hand wash only. Do not wash any components in the dishwasher.

NOTICE: Do not use excessive amounts of water around the electrical components. This could cause electric shocks or damage to the machine.

NOTICE: Do not use abrasive materials, scratching cleansers or scouring pads because these could damage the finish. Use only products designed for use with plastic.

Clean and the Components

1. Drain any remaining beverage from the bowl.

2. Turn off and unplug the machine.

1. Disassemble the machine. See DISASSEMBLE THE MACHINE for instructions.

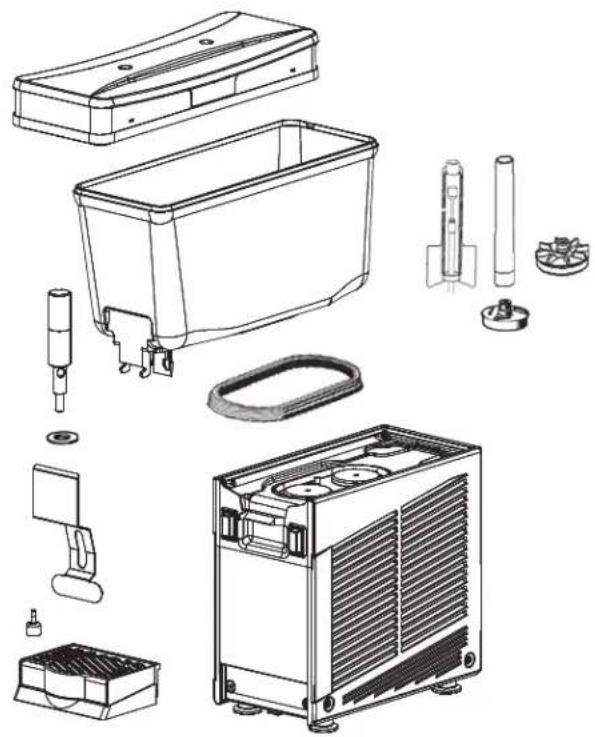

Exploded view diagram of a device's internal components and parts, including housing, battery pack, and accessories (no text or labels)

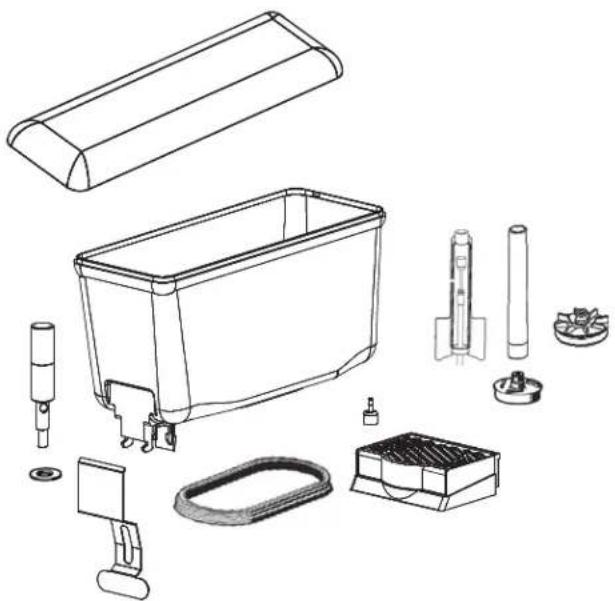

1. Wash the parts shown below in warm, 90° to 110°F (32°C to 43°C) mild detergent water.

Exploded view diagram of a smart home appliance showing internal components like battery, motor, and control unit (no text or labels)

1. Rinse the components with clean 90° to 110°F (32°C to 43°C) water.

2. Place the components in a sanitizing solution for at least one minute.

3. Remove the components from the solution and let them air dry completely. Do not remove the sanitizer from the components.

WARNING

Electrical Shock Hazard

Before disassembly, ensure that the dispenser is disconnected from its power source.

1. Turn off and unplug the machine.

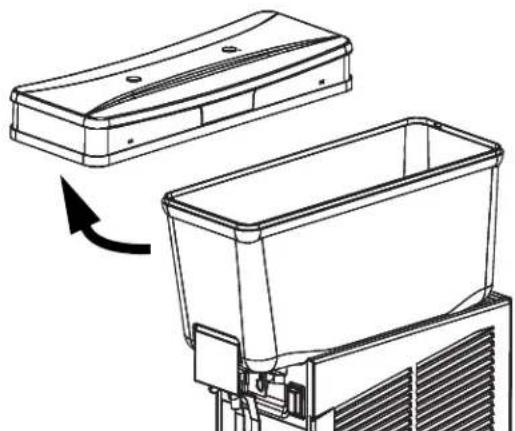

1. Remove the cover from the bowl.

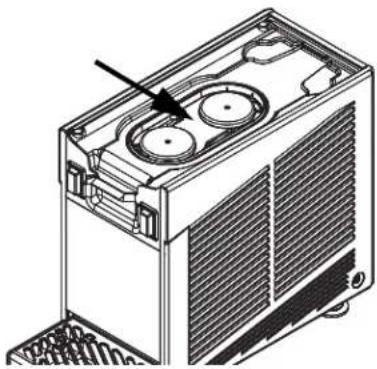

Technical line drawing of a device with two views: top shows a lid, bottom shows a container with internal components (no text or symbols)

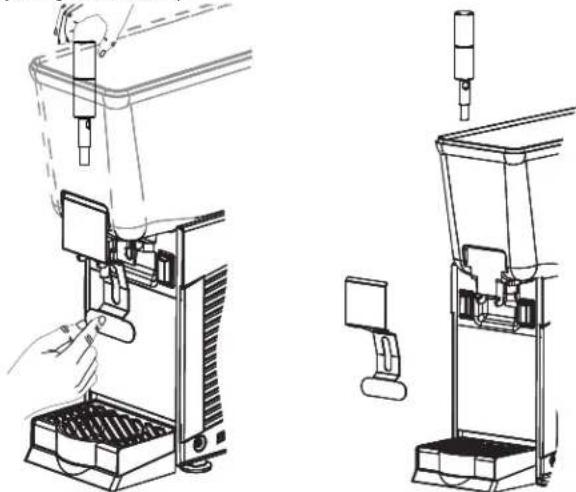

1. Remove the spigot by pushing on the dispensing handle while pulling the faucet up.

Technical line drawings of a mechanical device with two views: top shows a hand operating a component, bottom shows a device with a handle and base (no text or symbols present)

1. Remove the rubber washer from the spigot.

Pure mechanical diagram showing a cylindrical component with an arrow pointing to its end (no text or symbols)

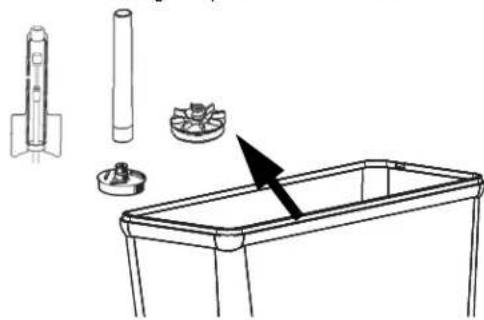

1. Remove the mixing components from the bowl.

Technical line drawing of a mechanical assembly with components and an arrow indicating direction (no text or symbols)

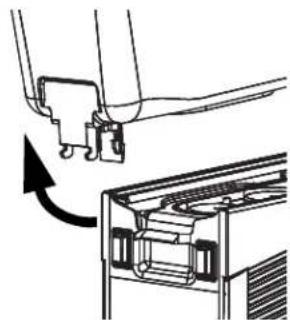

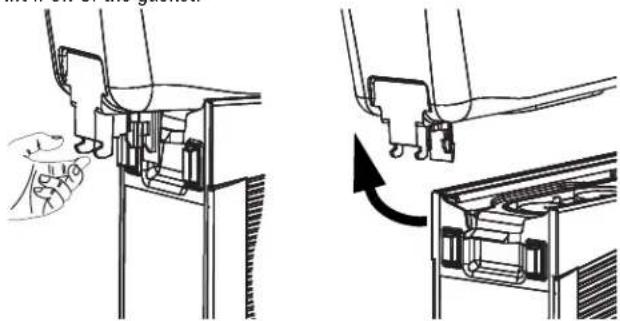

1. Remove the bowl by lifting up on the lever to release the bowl and lift if off of the gasket.

Technical line drawing showing mechanical assembly steps with no visible text or symbols

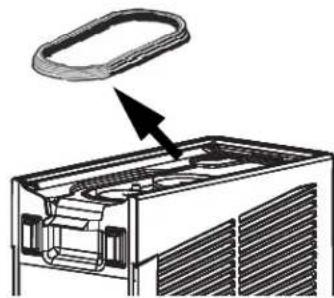

1. Remove the bowl gasket.

Diagram of a computer case with an open lid and internal components, no text or symbols present

1. Slide the drip tray out and empty it.

Technical line drawing of a mechanical device with a small component and a separate housing (no text or symbols)

ASSEMBLE THE MACHINE

NOTICE: The United States Department of Agriculture and the Food and Drug Administration require that lubricants used on food processing equipment be certified for this use. Use lubricants only in accordance with the manufacturer's instructions.

NOTICE: Clean, sanitize and allow all parts to air dry before assembling.

1. Make sure the machine is unplugged.

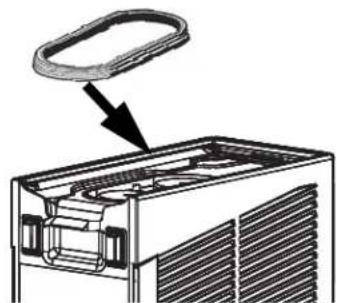

1. Attach the gasket.

Diagram of a computer case with an open lid and internal components, showing no text or symbols

NOTICE: The wide rim of the gasket must be placed facing down.

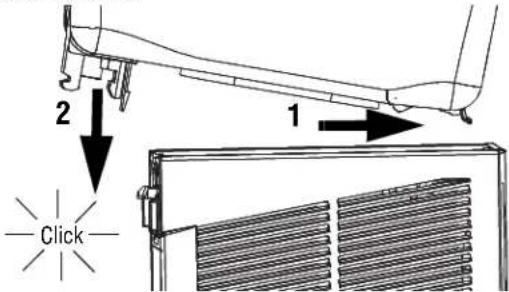

1. Attach the bowl.

2 1 Click

1. For bowls with a removable impeller, lubricate the washer on the underside of the impeller with a food-grade lubricant.

Diagram of a mechanical component with a pencil tip inserted into a circular opening, showing no text or symbols.

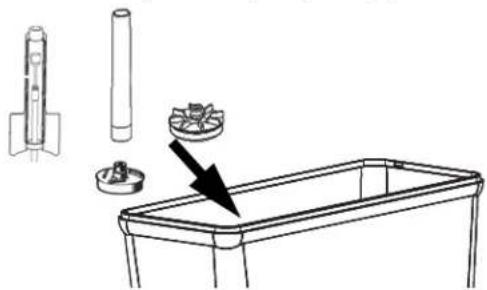

1. Insert the beverage circulating component(s).

Technical line drawing of a mechanical assembly with components and a directional arrow (no text or symbols)

1. Install the washer onto the spigot. The flanges must be on the outside of the washer when it is installed.

Flanges

1. Attach the dispensing handle. Then while pressing the handle, slide the spigot into position in the bowl.

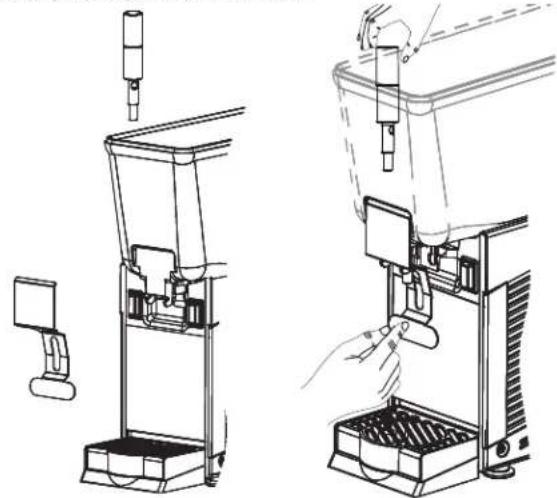

Technical line drawings of a mechanical device with two views: top shows a cylindrical component being inserted into a base, bottom shows a hand inserting a tool into a tray (no text or symbols present)

1. Slide the drip tray into the base until you hear it click into place.

Click

1. Place the cover on the bowl.

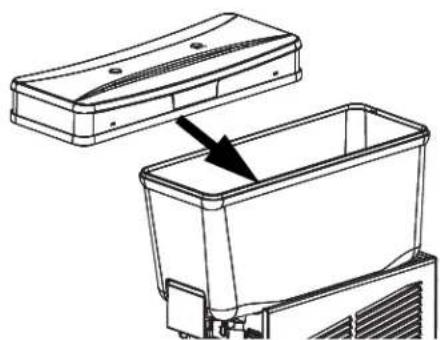

Technical line drawing of a mechanical device with an open lid and internal casing, showing no text or symbols.

TROUBLESHOOTING

Problem Might be Caused By Course of Action
It takes too long for the beverage to chill to desired serving temperature.	Beverage was not chilled before pouring it into the bowl.	Chill beverages before pouring into the bowl.
	Airflow is blocked.	Machine does not have enough clearance or the environment is not correct. See CLEARANCE AND ENVIRONMENT REQUIREMENTS.
	Condenser fins may be dirty.	Refer to CLEAN THE CONDENSER in this manual.
	Impeller may be dirty or need to be lubricated.	Inspect the impeller for food debris. Verify the impeller can freely rotate. If it cannot, then apply a food grade lubricate to the washer located on the underside of the impeller.
	Impeller may be damaged. Replace the impeller.
Product is leaking from the machine.	Bowl may not be properly seated on the gasket. Gasket may be installed incorrectly.	Drain the bowl and reassemble the machine. See ASSEMBLE THE MACHINE.
	Rubber washer on the spigot may be installed incorrectly.	Drain the bowl. Remove the spigot. Verify the rubber is installed with the wider portion at the top. See ASSEMBLE THE MACHINE.
	Gasket or rubber washer may be worn or damaged.	Replace the component.
	The ring on the piston hole in the bowl may be dirty, worn or damaged.	Drain the beverage from the bowl. Remove the bowl and inspect the piston hole at the bottom of the bowl for debris or wear.
Condensation on the bowl(s). Ambient temperature is too warm or humidity is too high.		Cool the environment or relocate the machine.
Beverage not circulating well.(Stirring Paddle and Agitator machines)	Beverage may be too thick. Add liquid to thin the beverage.
	Impeller may be dirty or need to be lubricated.	Turn off and unplug the machine. Remove the impeller from the bowl. Remove any food debris from the impeller or surrounding area. Food debris could impede the operation of the impeller and beverage circulation.
	Impeller may be damaged. Replace the component.

TROUBLESHOOTING

Problem Might be Caused By Course of Action
Beverage not circulating well. (All machines)	Ice buildup on the evaporator plate due to operating the machine with less than the minimum amount of beverage in the bowl.	Turn off the machine. Allow the ice to melt. Fill the bowl to above the minimum fill line. Resume operation.Refer to the Minimum and Maximum Fill information in this manual. Monitor the amount of beverage in the bowl. Add beverage to the bowl as needed.
Machine operation seems too loud.	The impeller on agitator or stirring paddle style machines may be damaged.	Inspect the impeller. Replace if it is damaged.
	A problem with the fan. Contact the White Glove Network.

MAINTENANCE

Clean the Condenser (Monthly)

To keep your machine running properly, the condenser must be free of dust and dirt.

WARNING

Electrical Shock Hazard

Before disassembly, ensure that the dispenser is disconnected from its power source.

NOTICE: Compressed air must be used as shown below. Do NOT blow compressed air through the louvers and into the machine.

1. Turn off and unplug the machine.

1. Remove the drip trays.

Close-up of a hand pressing down on a black plastic fan device with a stainless steel container (no visible text or symbols)

Machines with 2.11 Gallon Bowls Machines with 3.17 and 5.28 Gallon Bowls

1. Remove the panel to access the condenser.

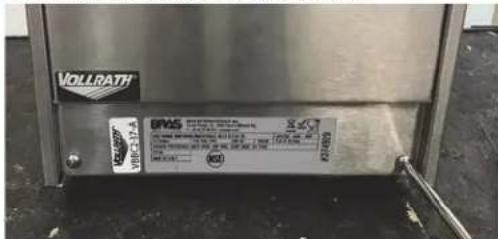

VOLLRATH DRS DRS-12-A DRS-12-A DRS-12-A DRS-12-A DRS-12-A DRS-12-A DRS-12-A DRS-12-A DRS-12-A DRS-12-A DRS-12-A DRS-12-A DRS-12-A DRS-12-A DRS-12-A MRD MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A NRM NRM-12-A NRM-12-A NRM-12-A NRM-12-A NRM-12-A NRM-12-A NRM-12-A NRM-12-A NRM-12-A NRM-12-A NRM-12-A NRM-12-A NRM-12-A NRM-12-A NRM-12-A MRD MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A MRD-12-A NRM

1. Remove the front panel. 4. Remove one or both side panels.

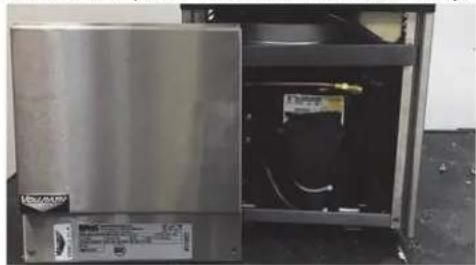

Interior view of a stainless steel appliance with visible internal components and no readable text or symbols

1. Use compressed air to clean the condenser as shown below.

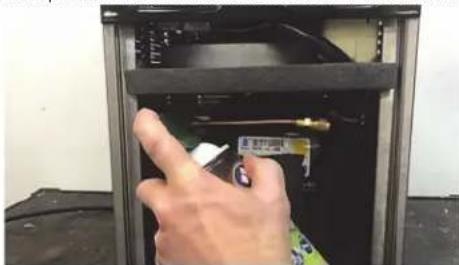

Hand inserting a small electronic component into a server rack (no visible text or symbols)

1. Remove the panel to access the condenser.

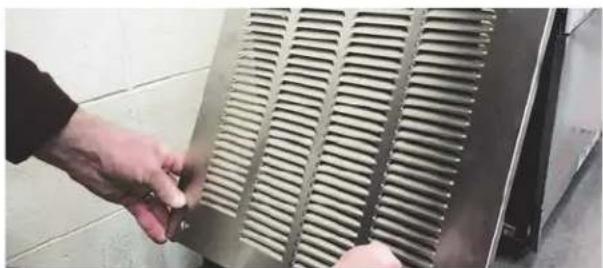

Close-up of a hand using a tool to adjust or install a metal ventilation grille (no text or symbols visible)

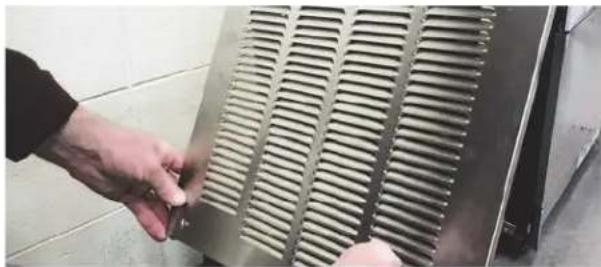

Close-up of hands installing or adjusting a metal ventilation grille on a kitchen appliance (no text or symbols visible)

1. Use compressed air to clean the condenser as shown below.

Close-up of a hand using a tool to adjust or install a black electronic component with coiled leads and copper wires (no visible text or symbols)

SERVICE AND REPAIR

Serviceable parts are available via the White Glove Network.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to The Vollrath Company LLC. Please contact the White Glove Service Network.

When contacting the White Glove Network, please be ready with the item number, model number (if applicable), serial number, and proof of purchase showing the date the unit was purchased.

WARRANTY STATEMENT FOR THE VOLLRATH CO. L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasers for such uses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

For complete warranty information, product registration and new product announcement, visit www.vollrath.com.

www.vollrath.com

The Vollrath Company, L.L.C.

1236 North 18th Street

Sheboygan, WI 53081-3201 U.S.A.

Main Tel: [phone] or 920.457.4851

Main Fax: [phone] or 920.459.6573

Customer Service: 800.628.0830

Canada Customer Service: 800.695.8560

Technical Service Information

Every machine includes White Glove Service. One call does it all – customer service, technical service, parts or warranty information, installation, startup, sales, on-site service dispatch and much more. Available 24 hours a day, seven days a week year-round. 800-319-9549 (U.S. Toll Free) 920-894-2293 (Outside the U.S.)

Exterior view of a modern stainless steel beverage container with glass lid (no visible text or symbols)

Num. d'art.	Circulation dans la cuve	Contenance Gallon (litre)	Nombre de Cuves
VBBC1-37-A	Agitateur	2,11(8)	Un
VBBC2-37-A Deux
VBBC3-37-A Trois
VBBC4-37-A Quatre
VBBD1-37-S	Pélette agitatrice	3,17(12)	Un
VBBD2-37-S Deux
VBBD3-37-S Trois
VBBD4-37-S Quatre
VBBE1-37-S		5,28(20)	Un
VBBE2-37-S Deux
VBBE3-37-S Trois
VBBE4-37-S Quatre
VBBD1-37-F	Pelvérisateur-fontaine	3,17(12)	Un
VBBD2-37-F Deux
VBBD3-37-F Trois
VBBD4-37-F Quatre
VBBE1-37-F		5,28(20)	Un
VBBE2-37-F Deux
VBBE3-37-F Trois
VBBE4-37-F Quatre

EXIGENCES EN MATIÈRE DE DÉGAGEMENT ET DE CONDITIONS AMBIANTES

Technical line drawing of a server rack with three hanging sensors and ventilation grilles (no text or symbols)

Technical line drawing of a portable air conditioner unit with cooling fins and a small component nearby (no text or symbols)

AVANT LA PREMIÈRE UTILISATION

Exploded view diagram of a mechanical device showing internal components like casing, battery pack, and motor (no text or labels)

Exploded view diagram of a smart home appliance showing internal components like battery, circuit board, and wall-mounted unit (no text or labels)

Technical line drawing of a device with a lid and base, showing internal components and an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with hands operating it (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Pure mechanical diagram showing a cylindrical component with a circular end and an arrow pointing to it (no text or symbols)

Technical line drawing of a mechanical assembly with components and an arrow indicating direction (no text or symbols)

Line drawing of a hand operating a mechanical device with no visible text or symbols

Technical diagram showing a mechanical assembly with an arrow indicating rotation or assembly (no text or symbols present)

Diagram of a computer tower with an open rear panel and a circular component above it, showing no text or symbols.

Technical line drawing of a portable air conditioner unit with cooling fan and base, showing no text or symbols

ASSEMBLAGE DE LA MACHINE

Diagram of a computer case with an open lid and internal components, no text or symbols present

Diagram of a mechanical component with a pencil tip inserted into a circular opening (no text or symbols)

Technical line drawing of a mechanical assembly with cylindrical components and a tray, no text or symbols present

Technical line drawings of a mechanical device with two views: top shows a cylindrical component being inserted into a base, bottom shows a hand inserting a tool into a tray (no text or symbols present)

Technical line drawing of a mechanical device with an open lid and internal components, showing no text or symbols.

DÉPANNAGE

Close-up of a hand pressing down on a black plastic tray with a metallic container (no visible text or symbols)

Machines avec cuves

2,11 gallons

VOLLRATH DRS DRS-19-A DRS-19-A DRS-19-A DRS-19-A DRS-19-A DRS-19-A DRS-19-A DRS-19-A DRS-19-A DRS-19-A DRS-19-A DRS-19-A DRS-19-A DRS-19-A DRS-19-A DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR

Interior view of a stainless steel appliance with visible internal components and a label (no readable text or symbols)

Hand inserting a small electronic device into a black server rack (no visible text or symbols)

Machines avec cuves

Close-up of a hand using a tool to adjust or install a metal ventilation grille (no text or symbols visible)

Close-up of hands installing or adjusting a metal ventilation grille on a kitchen appliance (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a mechanical component with copper coils and a yellow component (no visible text or symbols)

SAV ET RÉPARATIONS

1236 North 18th Street

Exterior view of a modern stainless steel industrial water dispenser with clear lid (no visible text or symbols)

Núm. art.	Circulación en el recipiente	Capacidad Galones (litros)	Número de Recipientes
VBBC1-37-A	Agitador	2,11(8)	Uno
VBBC2-37-A Dos
VBBC3-37-A Tres
VBBC4-37-A Cuatro
VBBD1-37-S	Paleta agitadora	3,17(12)	Uno
VBBD2-37-S Dos
VBBD3-37-S Tres
VBBD4-37-S Cuatro
VBBE1-37-S		5,28(20)	Uno
VBBE2-37-S Dos
VBBE3-37-S Tres
VBBE4-37-S Cuatro
VBBD1-37-F	Rociador de fuente	3,17(12)	Uno
VBBD2-37-F Dos
VBBD3-37-F Tres
VBBD4-37-F Cuatro
VBBE1-37-F		5,28(20)	Uno
VBBE2-37-F Dos
VBBE3-37-F Tres
VBBE4-37-F Cuatro

FUNCIÓN Y PROPÓSITO

Technical line drawing of a server rack with three hanging sensors and ventilation grilles (no text or symbols)

Fije la bandeja de goteo

Technical line drawing of a portable air conditioner unit with cooling fan and heat exchanger (no text or symbols)

Technical line drawing of a dual-chamber pump mechanism with no visible text or symbols

Technical line drawing of three identical mechanical devices with no visible text or symbols

Technical line drawing of a multi-level industrial machine with no visible text or symbols

Technical line drawing of two identical mechanical components with pulleys and hanging weights (no text or symbols)

Paleta agitadora

Exploded view diagram of a mechanical device showing internal components like casing, motor, and accessories (no text or labels)

Exploded view diagram of a smart home appliance showing internal components like battery, circuit board, and wall-mounted unit (no text or labels)

Technical line drawing of a device with a lid and base, showing a transformation from top to bottom view (no text or symbols present)

Technical line drawings of a mechanical device assembly (no text or symbols)

Pure mechanical diagram showing a cylindrical component with a circular end and an arrow pointing to it (no text or symbols)

Technical line drawing of a mechanical assembly with components and an arrow indicating direction (no text or symbols)

Technical line drawing showing mechanical assembly steps with no visible text or symbols

Diagram of a computer tower with an open rear panel and a circular component above it, showing no text or symbols.

Technical line drawing of a portable air conditioner unit with cooling fan and base, showing no text or symbols

MONTE LA MÁQUINA

Diagram of a computer case with an attached circular component and an arrow pointing to it (no text or symbols present)

Line drawing of a mechanical component with a pencil tip inserted, no text or symbols present

Technical line drawing of a mechanical assembly with components and a directional arrow (no text or symbols)

Technical line drawings of a mechanical device with two views: top shows a cylindrical component being inserted into a base, bottom shows a hand holding a tool inside a rack (no text or symbols present)

Technical line drawing of a mechanical device with an open lid and internal casing, showing no text or symbols.

Close-up of a hand holding two black plastic heat exchanger units with visible blades, next to a stainless steel appliance (no text or symbols)

Interior view of a stainless steel appliance with visible internal components and labels (no readable text or symbols)

Hand inserting a small electronic device into a server rack (no visible text or symbols)

Close-up of a hand using a screwdriver to adjust or install a black ventilation grille (no text or symbols visible)

Close-up of hands installing or adjusting a metal ventilation grille on a tiled wall (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a black electrical component with copper coils (no visible text or symbols)

1236 North 18th Street
