Brand	Dri Eaz
Model	Vortex
Product type	Axial fan
Category	Heating (ventilation and drying)
Power supply	115 V ~ 60 Hz
Rated current	7.4 A
Motor power	1.0 hp (746 W)
Rotation speed	3520 rpm
Maximum static pressure	3.0 in H₂O (≈ 747 Pa)
Dimensions (L × W × H)	45.7 × 38.1 × 48.3 cm
Weight	15 kg
Cord length	6.1 m
Control type	Toggle switch (1 speed)
Safety	UL/ULc certification; GFCI protection required
Primary use	Confined space ventilation, air circulation, structural drying
Duct usage	Yes, up to 38 m of semi-rigid duct
Exterior maintenance	Clean with water and mild detergent; use a vinyl protectant for shine
Filters	Clean intake and exhaust grilles regularly
Lubrication	None required (lubricated-for-life bearings)
Warranty	Register online at warranty.legendbrandsrestoration.com
Spare parts	Authorized Dri-Eaz distributor

Frequently Asked Questions - Vortex Dri Eaz

Why is the device not working?

Check that the switch is in the on position. Ensure the outlet is powered (test with a receptacle tester). If the circuit breaker tripped, discharge the circuit and reset. Inspect internal wiring and switch; contact an authorized technician if necessary.

What to do if the device stops after a few minutes of operation?

This indicates an overload. Clean the obstructed intake and exhaust grilles. Reduce duct length if it exceeds 38 m. If the problem persists, the motor bearing or internal wiring may be defective – have the motor replaced.

How to clean the Dri Eaz Vortex?

Always unplug the device before cleaning. Clean the plastic outer shell with water and a mild detergent. For a glossy appearance, use a vinyl protectant. Regularly clean the intake and exhaust grilles to prevent debris buildup.

Can I use the Vortex with a solid-state speed control?

No, it is strictly prohibited by the warnings in the manual. Using a solid-state speed control increases the risk of fire or electric shock.

How to install duct on the Vortex?

Make sure the device is off and unplugged. Identify the direction of airflow (indicated by an arrow on the housing). Place the end of the duct over the duct ring and secure it firmly. Use a semi-rigid duct with a maximum length of 38 m.

What to do if the fan vibrates excessively?

This may be due to dirt accumulation on the fan blade – clean it. If the device has been impacted, the motor shaft may be bent or the blade damaged; in that case, replace the motor or blade.

The device emits a scraping noise, what to do?

An impact may have deformed the motor mount or housing, causing friction. Have the motor repaired or replaced if necessary, or replace the entire housing.

What type of electrical outlet is required?

The Vortex must be plugged into a GFCI-protected outlet and grounded. Do not use a damaged extension cord or cable under rugs.

Can I leave the device unattended near children?

No. The manual states not to allow children to play with or near the device. When unattended, ensure it is out of reach of children.

Where can I find spare parts?

Spare parts and maintenance must be performed by an authorized Dri-Eaz distributor. Use only parts authorized by Legend Brands, Inc. Any modification or unapproved part voids the warranty.

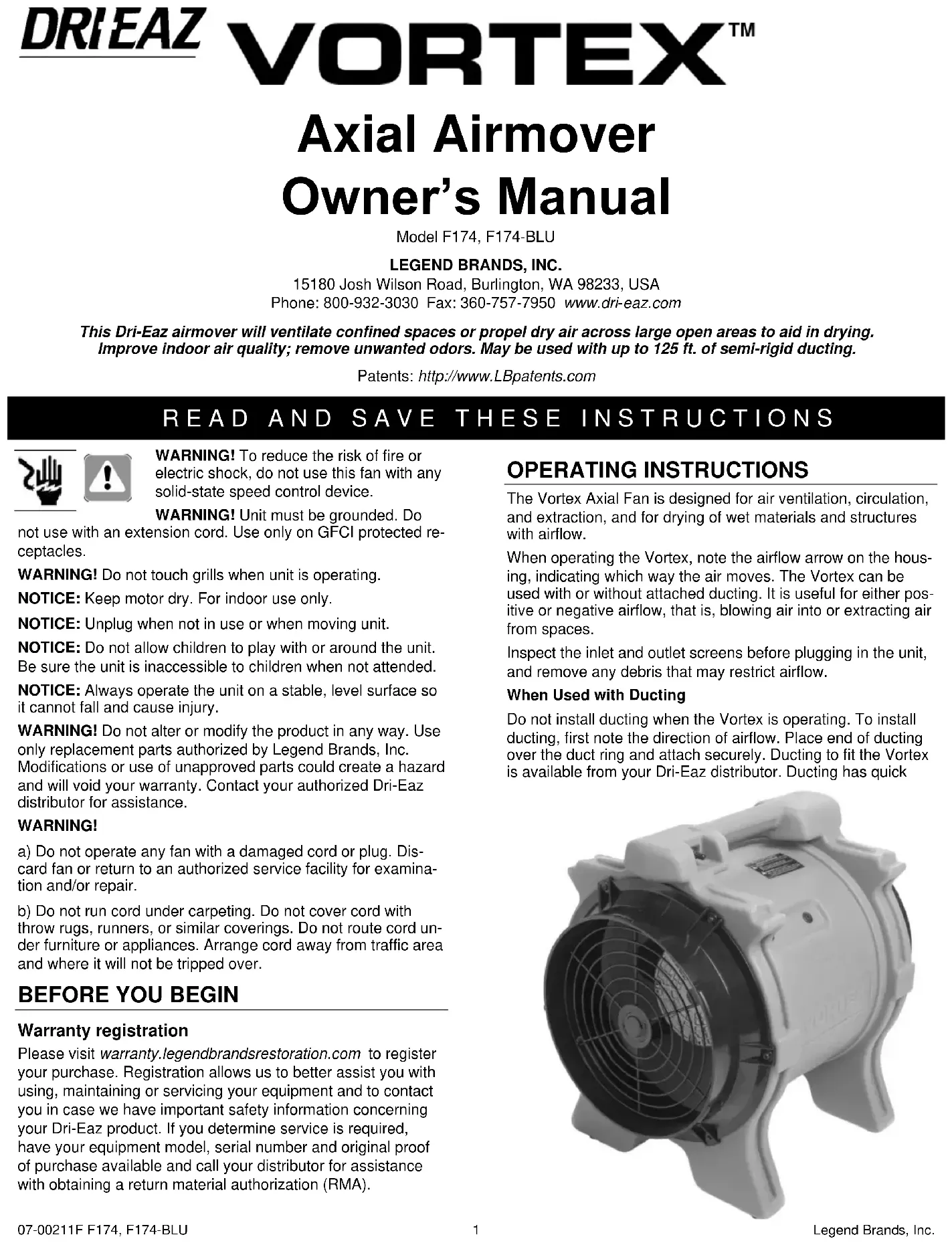

USER MANUAL Vortex Dri Eaz

15180 Josh Wilson Road, Burlington, WA 98233, USA

Phone: [phone] Fax: [phone] www.dri-eaz.com

This Dri-Eaz airmover will ventilate confined spaces or propel dry air across large open areas to aid in drying. Improve indoor air quality; remove unwanted odors. May be used with up to 125 ft. of semi-rigid ducting.

Patents: http://www.LBpatents.com

READ AND SAVE THESE INSTRUCTIONS

WARNING! To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

WARNING! Unit must be grounded. Do

not use with an extension cord. Use only on GFCI protected receptacles.

WARNING! Do not touch grills when unit is operating.

NOTICE: Keep motor dry. For indoor use only.

NOTICE: Unplug when not in use or when moving unit.

NOTICE: Do not allow children to play with or around the unit. Be sure the unit is inaccessible to children when not attended.

NOTICE: Always operate the unit on a stable, level surface so it cannot fall and cause injury.

WARNING! Do not alter or modify the product in any way. Use only replacement parts authorized by Legend Brands, Inc. Modifications or use of unapproved parts could create a hazard and will void your warranty. Contact your authorized Dri-Eaz distributor for assistance.

WARNING!

a) Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

b) Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

BEFORE YOU BEGIN

Warranty registration

Please visit warranty.legendbrandsrestoration.com to register your purchase. Registration allows us to better assist you with using, maintaining or servicing your equipment and to contact you in case we have important safety information concerning your Dri-Eaz product. If you determine service is required, have your equipment model, serial number and original proof of purchase available and call your distributor for assistance with obtaining a return material authorization (RMA).

OPERATING INSTRUCTIONS

The Vortex Axial Fan is designed for air ventilation, circulation, and extraction, and for drying of wet materials and structures with airflow.

When operating the Vortex, note the airflow arrow on the housing, indicating which way the air moves. The Vortex can be used with or without attached ducting. It is useful for either positive or negative airflow, that is, blowing air into or extracting air from spaces.

Inspect the inlet and outlet screens before plugging in the unit, and remove any debris that may restrict airflow.

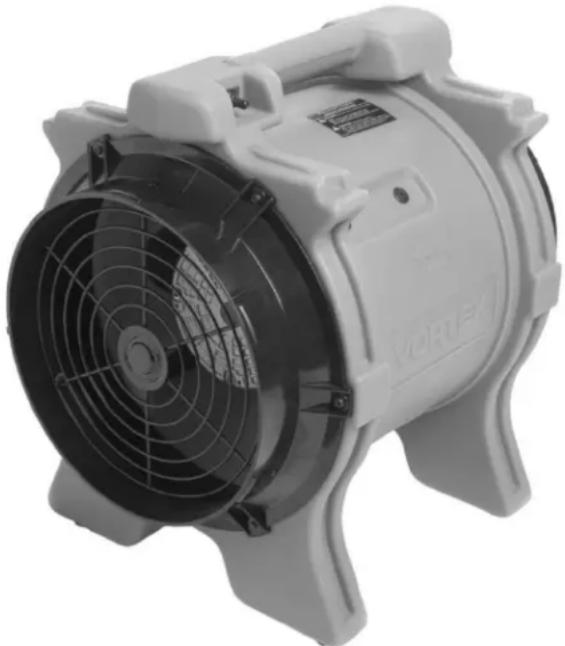

When Used with Ducting

Do not install ducting when the Vortex is operating. To install ducting, first note the direction of airflow. Place end of ducting over the duct ring and attach securely. Ducting to fit the Vortex is available from your Dri-Eaz distributor. Ducting has quick

connect straps plus a snap-in ring used to fasten two sections of ducting together.

Confined Space Ventilation

Position the Vortex at least five feet away from the entry to the confined space. Place it upwind so that purged gases do not re-enter the unit. Make sure the the inlet is not blocked by a wall or other obstruction.

Place the other end of the ducting in the confined space, angled so it points at an end wall. Keep it pointed at an end wall to prevent pockets of unmoving air, and to keep fresh air circulating to all locations.

MAINTENANCE

CAUTION: Internal repair procedures should be performed by a qualified technician from an authorized service center.

WARNING: Disconnect from electrical supply prior to servicing or cleaning.

Cord Inspection: Inspect the electrical cord for damage. Units with damaged cords must be removed from service and repaired before use. Failure to do so may lead to electrical shock or a fire hazard.

⚠ WARNING: This product and other substances that may become airborne from its use contain chemicals, including lead and phthalates, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to P65Warnings.ca.gov

Exterior Inspection: Evaluate exterior components and make sure that all are in proper operating condition. Repair or replace components as required. Run the unit briefly; listen for abnormal sounds and repair as needed.

Clean Exterior: Clean the exterior plastic housing with mild detergent and water. For deep cleaning and a lasting, protective shine, use a vinyl cleaner and protectant.

Motor Bearings: The bearings on the Dri-Eaz Vortex are permanently lubricated. No oiling is necessary.

For parts and service, contact your local Dri-Eaz distributor

SPECIFICATIONS

Power:	115 volts / 60 Hz
Amps:	7.4 amps
Dimensions(D × W × H)	18 × 15 × 19 in.24.6 × 26.2 × 18.2 in.
Weight:	33 lbs. | 15 kg
Motor rating:	1.0 hp
Fan speed:	3520 RPM
Max. static pressure:	3.0 in. H2O
Cord length:	20 ft. | 6.1 m
Control:	1 speed toggle switch
Safety	UL/ULc
Specifications are subject to change without notice.Some values may be approximate.

TROUBLESHOOTING

WARNING: ALL THE SERVICE PROCEDURES BELOW SHOULD BE EXECUTED WITH POWER OFF I.E. UNPLUGGED.

PROBLEM	CAUSE	SOLUTION
Unit does not run.	Switch not turned on.No power at outlet.Circuit is overloaded and panel circuit breaker tripped.Loose wiring.Switch is broken.	Turn on switch.Check panel circuit breaker and check outlet with receptacle tester.Unload circuit and reset circuit breakers.Check wiring and tighten as needed.Replace switch.
Unit runs briefly, then shuts off on overload.	Intake and/or exhaust grill(s) obstructed.Excessive duct length.Motor bearing or internal motor wiring is faulty.	Clean grill(s).Shorten duct length.Replace motor.
Unit runs but vibrates excessively.	Dirt has built up on fan blade.Severe jolt has bent motor shaft so unit is out of balance.Fan blade is damaged.	Clean fan bladeReplace motor. Replace fan blade if necessary.Replace fan blade.
Unit runs but makes a scraping noise.	Severe jolt has deformed motor mount so fan rubs.Severe jolt has deformed the housing.	Repair or replace the motor as necessary.Replace the housing or entire unit as necessary.
Motor makes noise but fan does not turn.	Severe jolt has deformed motor mount so fan rubs.Severe jolt has deformed the housing.Capacitor wire is broken or loose, or capacitor has failed.Roll pin locking fan to motor shaft is faulty.	Repair or replace the motor as necessary.Replace the housing or entire unit as necessary.Repair or replace the wires and/or the capacitor as necessary.Replace the roll pin.
