Product Type	Drying Fan (Air Mover)
Brand	Dri Eaz
Model	Velo (2 speeds) / Velo Pro (variable speed)
Dimensions (L × W × H)	61 × 45.7 × 22.9 cm (24 × 18 × 9 in)
Weight	8.8 kg (Velo) / 9.6 kg (Velo Pro)
Power Supply	115 V, 60 Hz, standard plug with ground fault circuit interrupter
Power	190 W (low) / 241.5 W (high) for Velo; 185 W for Velo Pro
Airflow	511 to 885 CFM (Velo); 500 to 885 CFM (Velo Pro)
Static Pressure	1.28 to 1.7 in H₂O (Velo); 1.65 in H₂O (Velo Pro)
Average Sound Level	59.9 to 71.5 dB (Velo); 69 dB (Velo Pro)
Number of Blades	6
Cord Length	5.5 m (18 ft)
Max. per 15 A circuit	7 (Velo) / 10 (Velo Pro)
Housing Material	Injection molded plastic, steel inlet and outlet grilles
Electrical Safety	Built-in ground fault circuit interrupter, overload protector, ETL listed to UL and CSA standards
Maintenance	Unplug before maintenance; clean exterior with mild detergent; interior accessible by disassembly (Fig. C)
Transport and Storage	Carry handle; stackable; cord wraps under front skirt; secure in vehicle
Warranty	Register online at Warranty.LegendBrandsRestoration.com
Replacement Parts	Use only parts authorized by Legend Brands; contact Dri-Eaz distributor
Recommended Use	Drying floors, walls, ceilings after water damage; air circulation

Frequently Asked Questions - Velo Dri Eaz

How to use the Velo to dry a floor?

Place the Velo horizontally on a flat surface, aim the air outlet toward the area to dry. Plug into an outlet protected by a ground fault circuit interrupter. Use high speed for fast drying.

Can I use the Velo with an extension cord?

No, using an extension cord is prohibited for safety reasons. Plug directly into a suitable wall outlet.

How to clean the Velo?

Unplug the unit before any cleaning. Clean the exterior with a mild detergent solution and a damp cloth. For the interior, refer to Figure C in the manual for disassembly.

What to do if the ground fault circuit interrupter trips?

Unplug the fan and check the cord condition. If the cord is intact, reconnect to a properly grounded outlet. Press the reset button on the breaker to restore power.

What is the difference between the standard Velo and the Velo Pro?

The Velo Pro features a variable speed control with digital display of current draw and operating hours, while the standard Velo has two fixed speeds (low/high). The Pro also allows finer airflow adjustment.

Can the Velo be used on stairs?

Yes, the Velo Pro is equipped with a lockable kickstand that allows angled positioning for drying stairs and walls. Place it with the kickstand deployed.

How to transport and store the Velo?

Use the handle to carry it. Wrap the cord under the front skirt of the housing and secure it with the plug strap. Fans can be stacked for storage. When transporting in a vehicle, secure them properly.

What is the noise level of the Velo?

For the standard Velo, the average sound level is 59.9 dB at low speed and 71.5 dB at high speed; for the Velo Pro, it averages 69 dB.

How many Velos can I plug into one circuit?

On a 15 A circuit, you can plug up to 7 standard Velos or up to 10 Velo Pros. Use the current draw display on the Pro to optimize the number.

Where can I find replacement parts for the Velo?

Contact your authorized Dri-Eaz distributor. Use only parts authorized by Legend Brands to ensure safety and warranty validity. Register your product at Warranty.LegendBrandsRestoration.com.

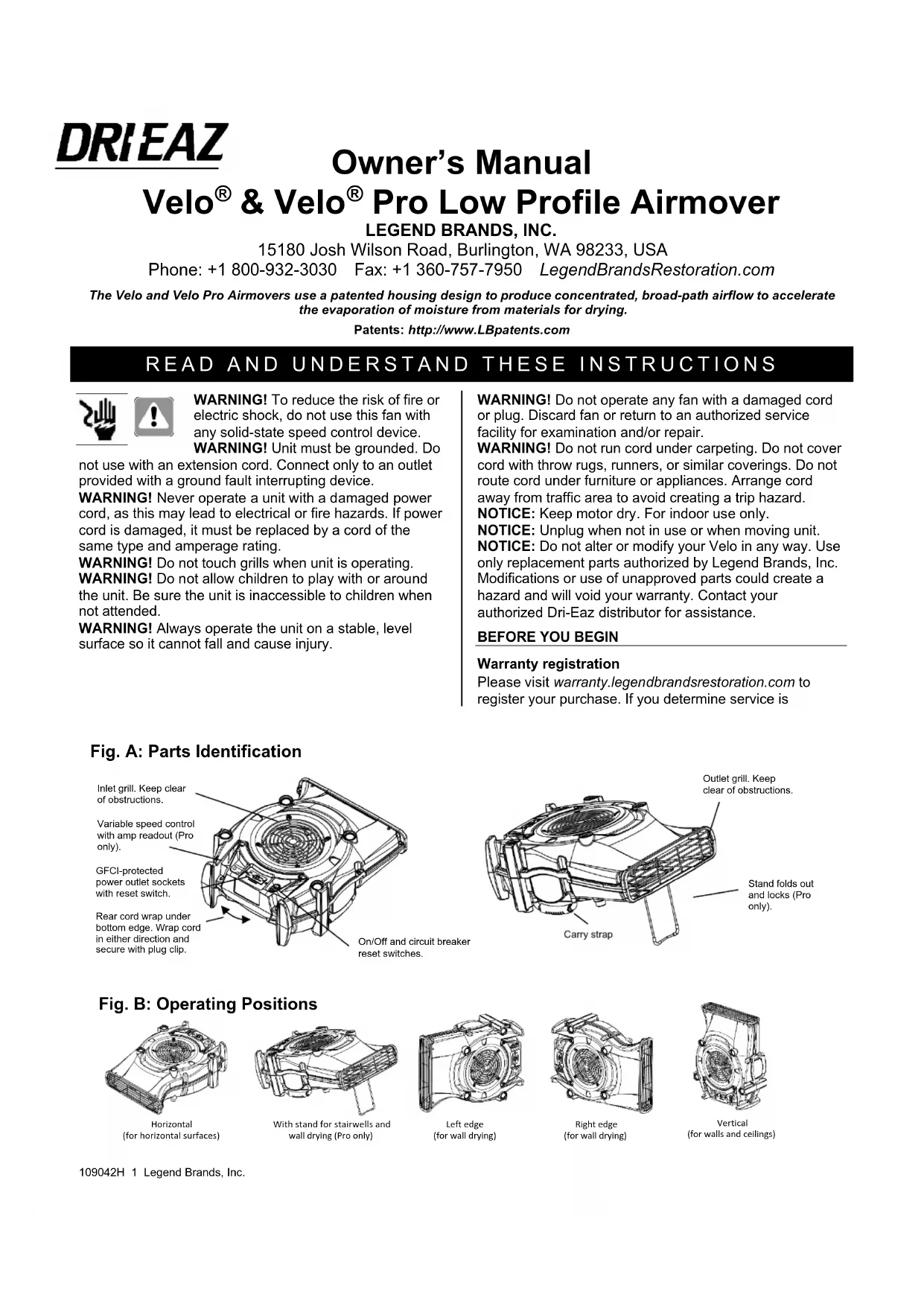

USER MANUAL Velo Dri Eaz

15180 Josh Wilson Road, Burlington, WA 98233, USA

Phone: [phone] Fax: [phone] LegendBrandsRestoration.com

The Velo and Velo Pro Airmovers use a patented housing design to produce concentrated, broad-path airflow to accelerate the evaporation of moisture from materials for drying.

Patents: http://www.LBpatents.com

READ AND UNDERSTAND THESE INSTRUCTIONS

WARNING! To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

WARNING! Unit must be grounded. Do

not use with an extension cord. Connect only to an outlet provided with a ground fault interrupting device.

WARNING! Never operate a unit with a damaged power cord, as this may lead to electrical or fire hazards. If power cord is damaged, it must be replaced by a cord of the same type and amperage rating.

WARNING! Do not touch grills when unit is operating.
WARNING! Do not allow children to play with or around the unit. Be sure the unit is inaccessible to children when not attended.

WARNING! Always operate the unit on a stable, level surface so it cannot fall and cause injury.

WARNING! Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

WARNING! Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area to avoid creating a trip hazard.

NOTICE: Keep motor dry. For indoor use only.

NOTICE: Unplug when not in use or when moving unit.

NOTICE: Do not alter or modify your Velo in any way. Use only replacement parts authorized by Legend Brands, Inc. Modifications or use of unapproved parts could create a hazard and will void your warranty. Contact your authorized Dri-Eaz distributor for assistance.

BEFORE YOU BEGIN

Warranty registration

Please visit warranty.legendbrandsrestoration.com to register your purchase. If you determine service is

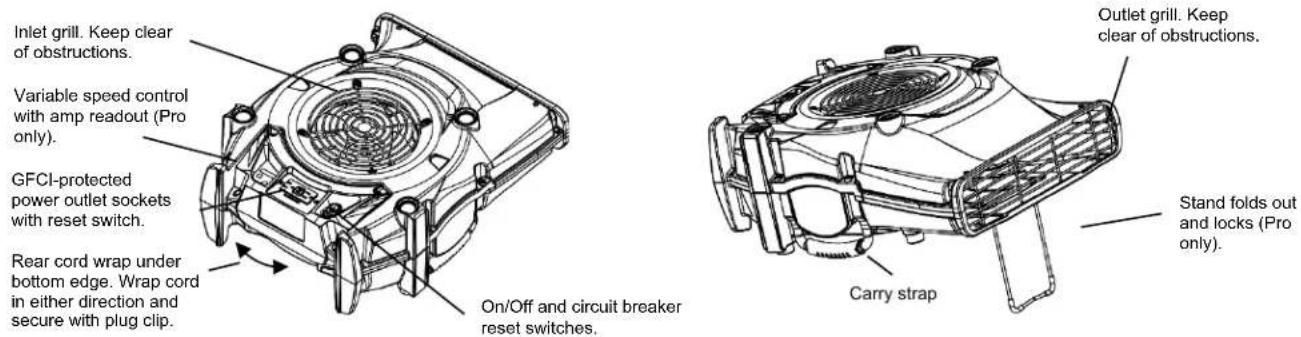

Fig. A: Parts Identification

Fig. B: Operating Positions
Horizontal
(for horizontal surfaces)

With stand for stairwells and
wall drying (Pro only)

Left edge
(for wall drying)

Right edge
(for wall drying)

Vertical
(for walls and ceilings)

required, have your equipment model, serial number and original proof of purchase available and call your distributor for assistance with obtaining a return material authorization (RMA).

OPERATING INSTRUCTIONS

Note that the Velo can be placed in a variety of positions for drying and air circulation. See Fig. B for details.

1. Unwrap the cord and plug the unit into a standard 115V GFCI-protected outlet. CAUTION: Be sure switch is in the off position before connecting unit to power outlet.
2. Direct the Velo outlet toward the surface to be dried.
   TIP: On the Velo Pro, the airflow may be adjusted by pressing the Up or Down arrow on the speed control (Fig. D). A digital readout shows the approximate amp draw. Use this value to maximize the number of Velos you can place on a single circuit.
3. When surface is dry to the touch, switch the unit off and reposition the unit in the next area to be dried.
4. When finished, unplug the unit and re-wrap the cord in the cord wrap.

For additional instructions about the use of airmovers for restorative drying, see Tech Tips under Resources on www.LegendBrandsRestoration.com.

Electrical safety devices

Circuit breaker: If the circuit breaker detects overload or short circuit conditions, the breaker will automatically shut off the electrical supply. If this occurs, check the power cable carefully for any damage and ensure it is plugged into a properly grounded outlet. Press the Circuit Breaker Reset Switch (Fig. A) to reestablish the electrical supply.

Ground Fault Circuit Interruption: If the GFCI device detects a ground fault, it will automatically shut off the electrical supply. If this should occur, check the power cable carefully for damage and ensure it is plugged into a properly grounded outlet. Press the GFCI reset button (Fig. A) to reestablish the electrical supply.

TRANSPORT AND STORAGE

Always use the handle to load or carry the unit.

Wrap cord in either direction under front Cord Wrap tab and rear bottom edge (Fig. A). Pull cord snug and secure with plug clip.

Units may be stacked for transport and storage.

When transporting in a vehicle, secure the unit(s) carefully to prevent sliding and damage to the unit and/or injury to vehicle occupants.

Keep unit dry. Do not expose the unit to rain or snow.

MAINTENANCE

WARNING: Unplug unit before performing any maintenance.

Before each use

Inspect the power cord. If cord is damaged, do not use. Always grasp the plug (not the cord) to unplug.

As needed

The exterior may be cleaned with a mild solution of detergent. Ensure housing is completely dry before use. To clean interior, see Fig. C for instructions.

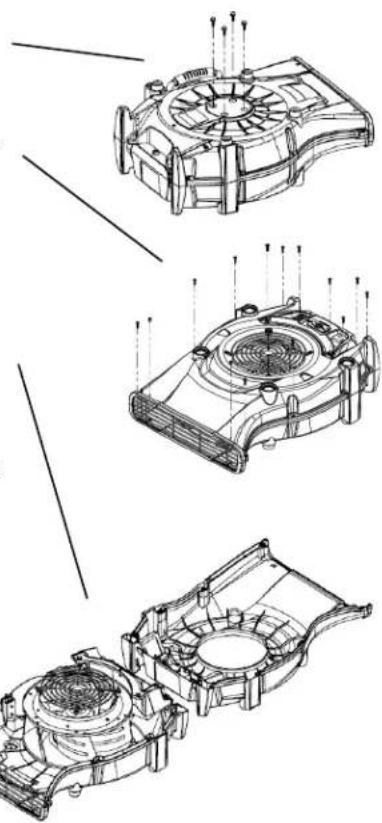

Fig. C: Disassembly

To disassemble for cleaning: 1. Lay the unit on its top (upside down). Remove the 4 blower bolts from the bottom of the unit.

1. Turn the unit right side up and remove the 14 screws around the perimeter of the top housing and electrical enclosure.

2. Open the electrical box and feed the blower cord back through the opening to create slack inside the housing.

3. Lift the top housing shell and electrical enclosure together and flip them over next to the base to expose the inside of the housing.

4. Lift the blower out for full access to the inside of the housing.

5. Reverse the steps for reassembly. IMPORTANT: Bc sure to pull any slack blower cord back into the electrical enclosure before the lid is placed on the electrical enclosure.

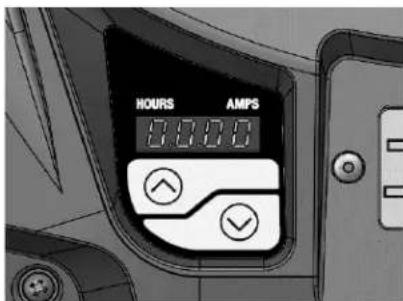

Fig. D (Pro only)

Variable speed control with amp and total unit hours display

FOR SERVICE CALL YOUR LOCAL DISTRIBUTOR or the Legend Brands Service Department at 800-932-3030.

Be sure to visit warranty.legendsbrandsrestoration.com to register your purchase. Your registration will help us provide you with updated product information as needed.

WARNING: This product and other substances that may become airborne from its use contain chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to P65Warnings.ca.gov

SPECIFICATIONS

Model	Velo 2-Speed	Velo Pro
Weight	19.3 lbs. | 8.8 kg	21.2 lbs. | 9.6 kg
Dimensions (D × W × H)	24 × 18 × 9 in. 61 × 45.7 × 22.9 cm	24 × 18 × 9 in. 61 × 45.7 × 22.9 cm
Amp draw (115V)	1.7 amps (low) 2.1 amps (high)	1.2-1.9 amps
Velos per 15 amp circuit	Up to 7 Up to 10
Power	190.0W (low) 241.5W (high)	185W
Air movement	511 CFM (low) 885 CFM (high)	500-885 CFM 850-1504 CMH
Static pressure	1.28 in.(low) 1.7 in. (high)	1.65 in. (H2O)
Sound level (avg.)	59.9 dB (low) 71.5 dB (high))	69 dB
Control	Two speed rocker switch	On/Off switch with variable speed
Cord length	18 ft. | 5.5 m	18 ft. | 5.5 m
Fan	6 blades 6 blades
Construction	Injection molded housing; steel wire inlet and outlet grills.	Injection molded housing; steel wire inlet and outlet grills.
Safety	ETL tested to UL and CSA standards	ETL tested to UL and CSA standards
Specifications are subject to change without notice. Some values may be approximate.

Modelo	Velo 2-Speed	Velo Pro
Peso	19,3 lbs. | 8,8 Kg	21,2 lbs. | 9,6 Kg
Las dimensiones (Profundidad × Ancho× Alto)	24 × 18 × 9. 61 × 45,7 × 22,9 cm	24 × 18 × 9. 61 × 45,7 × 22,9 cm
Amperaje (115V)	1,7 Amperios (baja) 2,1 Amperios (alta)	1,2-1,9 Amperios
Unidad VeloPor Circuito de 15 amperios	Hasta 7 Hasta 10
Alimentación	190.0W (baja) 241.5W (alta)	185W
Circulación de aire	511 CFM (baja) 885 CFM (alta)	500-885 CFM 850-1504 CMH
Presión estática (H₂O)	1.28 in.(baja) 1.7 in. (alta)	1.65 pulg.
Nivel de sonido (prom.)	59,9 dB (baja) 71,5 dB (alta)	69 Db
Control	Interruptor de On/Off velocidad 2-speed	Interruptor de On/Off velocidad variable
Longitud de cable	18 Pies. | 5,5 M	18 Pies. | 5,5 M
Ventilador	6 hojas 6 hojas
Construccion	Carcasa moldeada por ineccion; rejillas de entraday saliva de alambre de acero.	moldeada por inyeccion; rejillas de entrada y salida de alambre de acero.
Seguridad	ETL probado según las normas UL / CSA	ETL probado según las normas UL / CSA
