USER MANUAL HP100EU SHARK

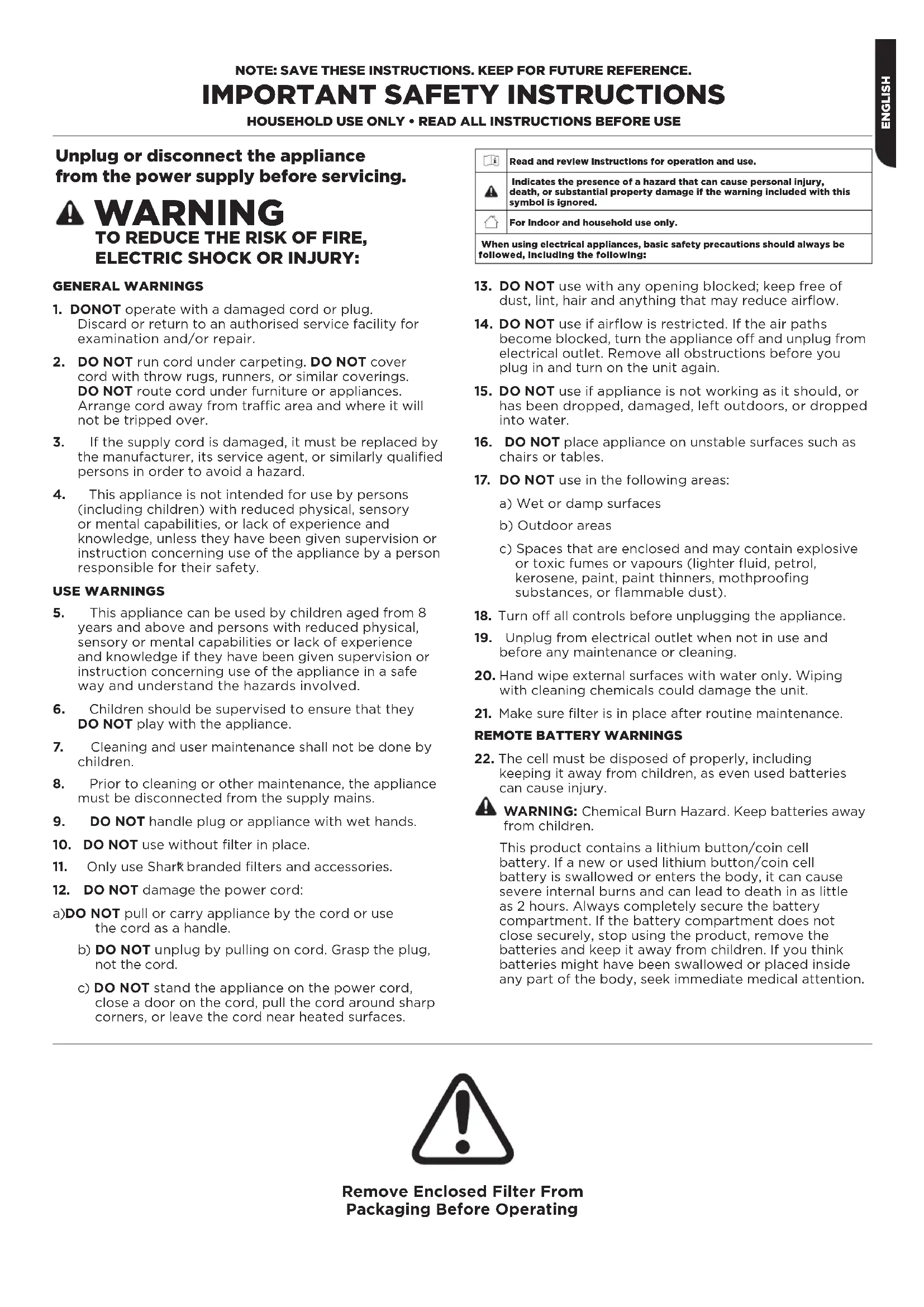

1. DO NOT operate with a damaged cord or plug.

Discard or return to an authorised service facility for examination and/or repair.

2. DO NOT run cord under carpeting. DO NOT cover

cord with throw rugs, runners, or similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

3. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

4. This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. USE WARNINGS

5. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

6. Children should be supervised to ensure that they

DO NOT play with the appliance.

7. Cleaning and user maintenance shall not be done by

8. Prior to cleaning or other maintenance, the appliance

must be disconnected from the supply mains.

9. DO NOT handle plug or appliance with wet hands.

10. DO NOT use without filter in place.

branded filters and accessories.

12. DO NOT damage the power cord:

a) DO NOT pull or carry appliance by the cord or use the cord as a handle. b) DO NOT unplug by pulling on cord. Grasp the plug, not the cord. c) DO NOT stand the appliance on the power cord, close a door on the cord, pull the cord around sharp corners, or leave the cord near heated surfaces.

13. DO NOT use with any opening blocked; keep free of

dust, lint, hair and anything that may reduce airflow.

14. DO NOT use if airflow is restricted. If the air paths

become blocked, turn the appliance off and unplug from electrical outlet. Remove all obstructions before you plug in and turn on the unit again.

15. DO NOT use if appliance is not working as it should, or

has been dropped, damaged, left outdoors, or dropped into water.

16. DO NOT place appliance on unstable surfaces such as

17. DO NOT use in the following areas:

a) Wet or damp surfaces b) Outdoor areas c) Spaces that are enclosed and may contain explosive or toxic fumes or vapours (lighter fluid, petrol, kerosene, paint, paint thinners, mothproofing substances, or flammable dust).

18. Turn off all controls before unplugging the appliance.

19. Unplug from electrical outlet when not in use and

before any maintenance or cleaning.

20. Hand wipe external surfaces with water only. Wiping

with cleaning chemicals could damage the unit.

21. Make sure filter is in place after routine maintenance.

REMOTE BATTERY WARNINGS

22. The cell must be disposed of properly, including

keeping it away from children, as even used batteries can cause injury.

WARNING: Chemical Burn Hazard. Keep batteries away

from children. This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Unplug or disconnect the appliance from the power supply before servicing. WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: Remove Enclosed Filter From Packaging Before Operating Read and review instructions for operation and use. Indicates the presence of a hazard that can cause personal injury, death, or substantial property damage if the warning included with this symbol is ignored.For indoor and household use only. When using electrical appliances, basic safety precautions should always be followed, including the following:ENGLISH

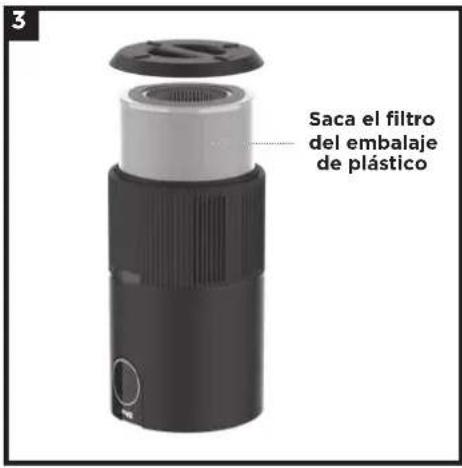

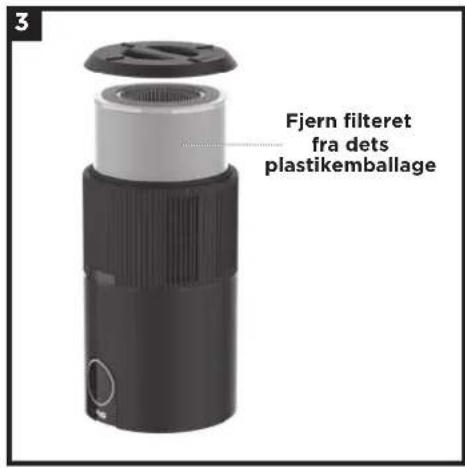

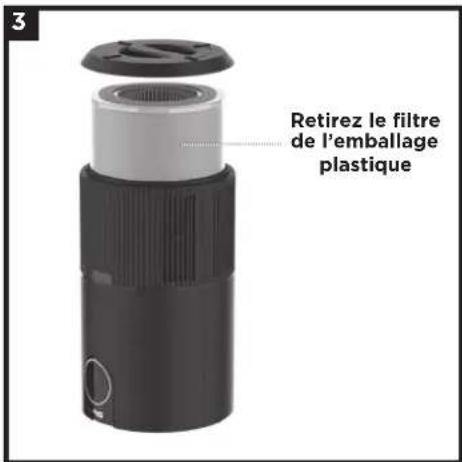

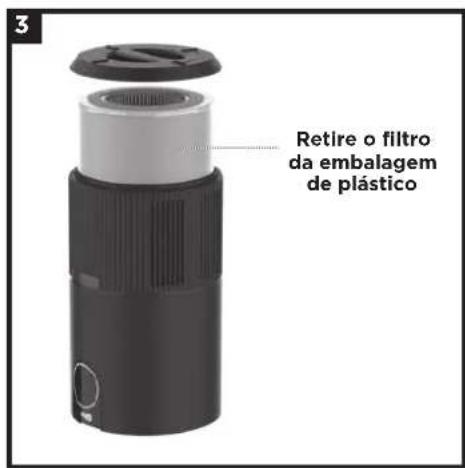

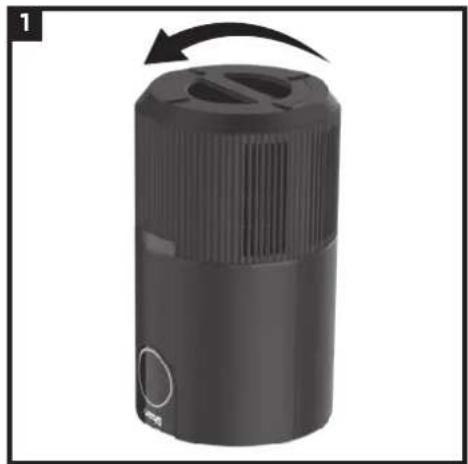

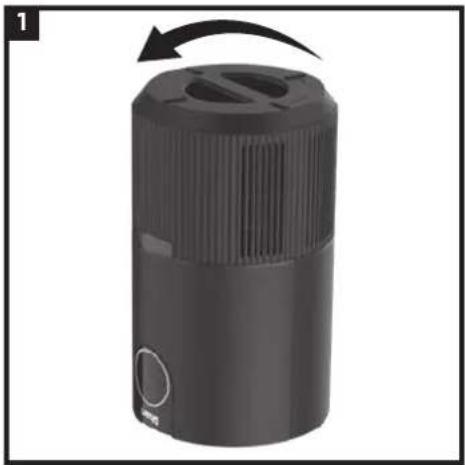

1. Remove the filter door located on the

bottom of the air purifier.

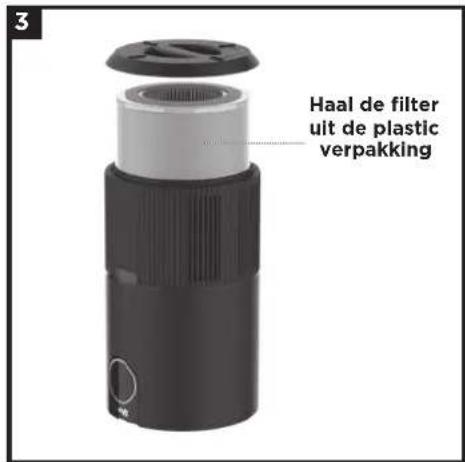

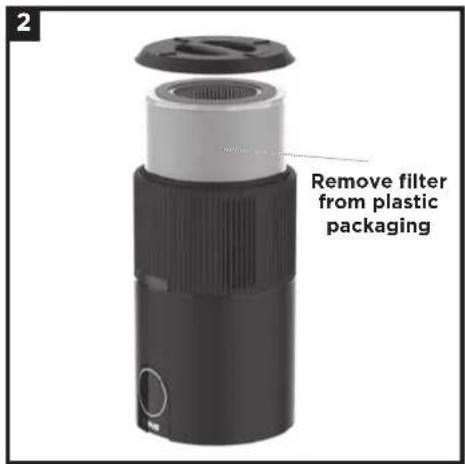

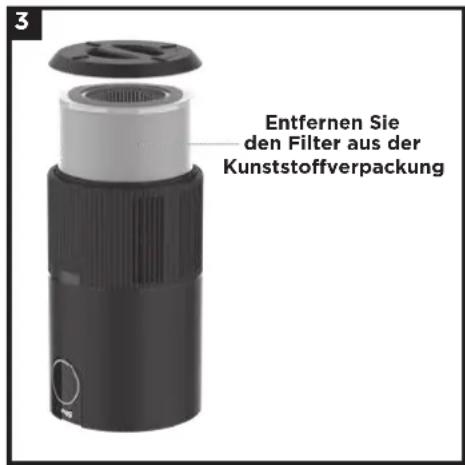

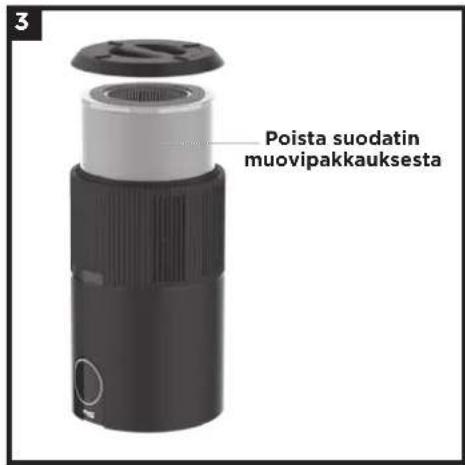

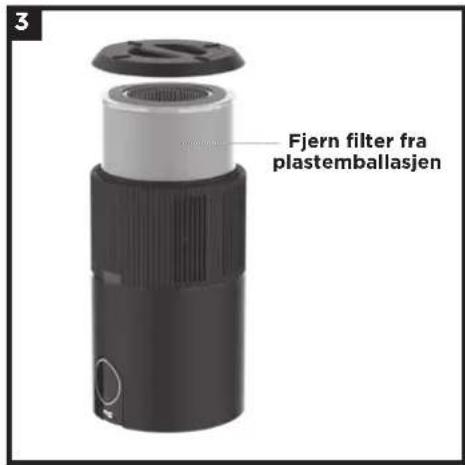

2. Take the filter out of the unit and remove

packaging, then insert back into the unit. DO NOT run the air purifier unless the filter is removed from its packaging and properly reinstalled.

3. With the filter installed, replace the filter

door. Twist the filter door until clicks into place.

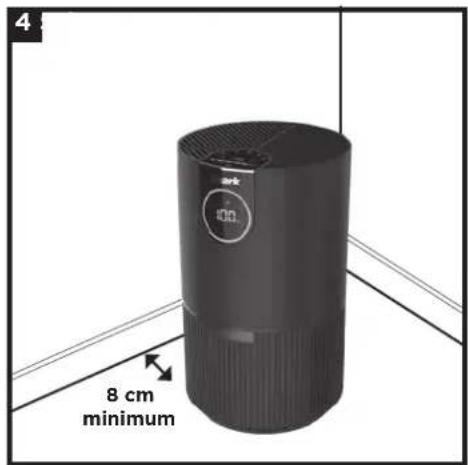

4. Set up the unit on a level floor surface,

at least 8 cm away from walls and objects.

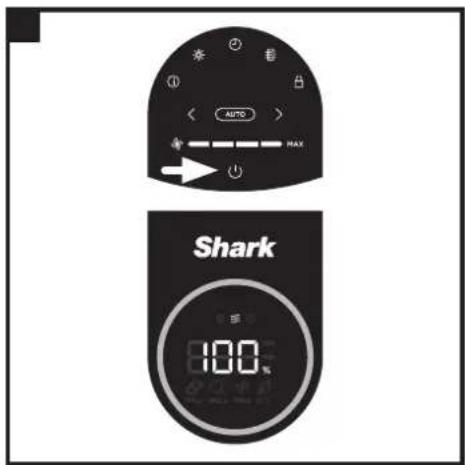

5. Plug the unit into an electrical outlet

and press the power button on the top control panel.

6. When the unit is powered on, it will begin

to analyse the air quality indicated by the rotating lights. After a few seconds the unit will display the current air quality and you can customise the settings on your unit.

TIPS FOR SETTING UP YOUR UNIT

• Make sure the front panel of the unit faces away from the closest wall.

• Do not move the unit while it is running. Turn o the power and unplug the unit before moving it.

• Make sure the vents are not blocked.

• Do not place anything on the air purifier.

• Do not place the air purifier near heaters or radiators.

• Keep the unit out of direct sunlight and away from water or other liquid.

• Keep all nearby doors and windows closed when operating the air purifier.

• Avoid using in very humid environments.

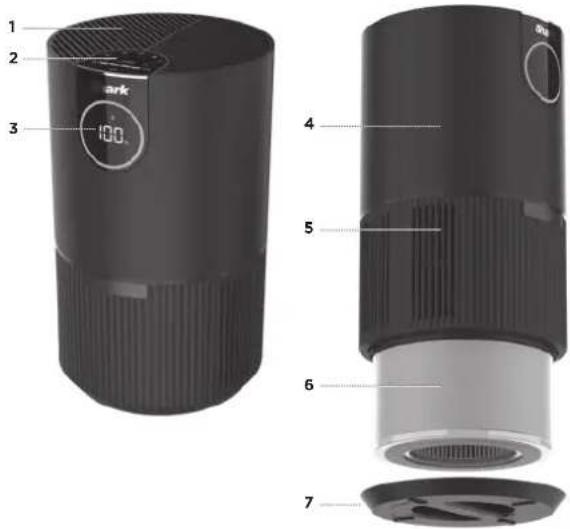

Remove filter from plastic packaging 1ENGLISH CONTROL PANEL Your air purifier is equipped with a control panel on the top of the unit and a display screen on the front of the unit.

Includes controls that allow you to customise the settings.

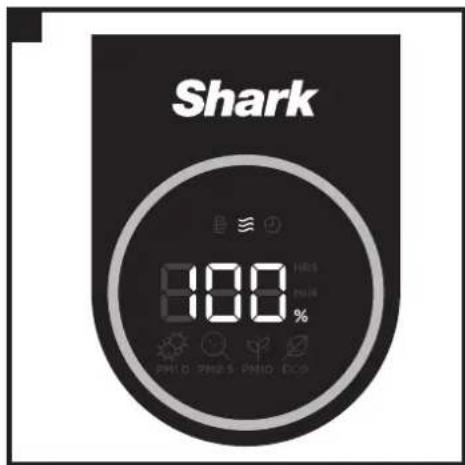

FRONT DISPLAY SCREEN

Displays the current air quality status based on the Air Info mode selected on the top control panel.

On/O: Press to turn the power on or o.

Air Info: Press to switch between air quality display options. See the Air Info Settings section for more information. MAX

Auto Mode: Press to turn on Auto Mode. In this setting the fan speed automatically adjusts based on real time air quality readings. As the air quality improves, the fan speed will decrease. If air quality worsens, the fan speed will increase. Leave your unit in Auto Mode for optimal performance.

Filter Life: Press to show the remaining filter life. Once the filter has 0% remaining, the FILTER LIFE button will flash to indicate the filter needs to be changed. See Installing and Removing the Filter section for more information. MAX

Brightness: Adjusts the brightness of both the front display screen and the top control panel. Switch between 3 options: full brightness, partially dim, fully dim. MAX

Shut-O Timer: Set the number of hours for the air purifier to run before it automatically shuts o. Timer can be set between 1–12 hours. MAX

Fan Speed: Adjusts the speed of the fan. Select one of 4 settings: 1 Low, 2 Medium, 3 High, 4 Maximum. Note: If fan speed is manually changed, auto mode will be deactivated. For tips on optimal fan setting, see Optimising Fan Speed section.

Optimise Performance in Eco Mode: After 100% clean air status is achieved for 10 minutes in Auto Mode, your air purifier will enter Eco Mode. Your unit’s filter life and electricity usage will be Optimised!

To control your unit’s beeping, hold the Air Info and Child Lock buttons at the same time for two seconds.

The built-in sensor detects your air quality to give you real-time information. Use the AIR INFO button to switch between air quality display options. INFO FRONT DISPLAY SCREEN REAL-TIME READING % AIR QUALITY Displays the air quality rating:

• Poor: 0%–69%• Fair: 70%–84%• Good: 85%–100% If your unit reads 100% this means your air quality is very good. Should the air quality drop, the % will adjust accordingly. TIME REMAINING Shows the estimated time remaining until reaching air quality rating- Good: 85%-100% PARTICLE SIZES The PM (particulate matter) value is the amount of particulate in your air, measured in micrograms (μg) per cubic meter. Your air purifier measures three particle sizes, PM1, PM2.5, and PM10. PM1 MAX Displays the amount of PM1-sized particles in your air, including viruses and ultra-fine allergens. PM2.5 MAX Displays the amount of PM2.5-sized particles in your air, including smoke and bacteria. PM10 MAX Displays the amount of PM10-sized particles in your air, including dust, mould, and pollen.ENGLISH

UNDERSTANDING YOUR AIR QUALITY

The rings on the front and top displays will change color as your air quality changes, allowing you to easily monitor your air quality even when you are far from the unit. GOOD 85–100

A blue ring means your air quality is good, with a low level of particle concentration. FAIR 70–84

An amber ring means your air quality is fair, with a moderate level of particle concentration. For better results, increase fan speed or select Auto Mode. POOR 0–69

A red ring means your air quality is poor, with a high level of particle concentration. For better results, increase fan speed or select Auto Mode. Note: The air quality sensor uses a cumulative particle count across all PM sizes to determine percentage of clean air.

OPTIMISING FAN SPEED

Your air purifier is equipped with 4 fan speed settings. Adjust fan speed to optimise your cleaning performance.

DISPLAY SPEED BEST FOR

1 Quiet Operation 2 Reducing Odours 3 Reducing Allergens 4 Maximum Cleaning

TROUBLESHOOTING AND FREQUENTLY ASKED QUESTIONS

PROBLEM SOLUTION What are the recommended settings? • We recommend using this air purifier in Auto Mode. Auto Mode leverages your air purifiers particle sensor, and this adjusts the air purifiers fan speed automatically. Higher fan speeds work best for allergies suerers and dirty environments. What is Eco Mode? • After 100% air quality status is achieved for 10 minutes in Auto Mode, your air purifier will enter Eco Mode. Your fan will turn o until particles are detected. This will optimise your filters life. Can I mute my air purifier beeping? • To control your unit's beeping, hold the Air Info and Child Lock buttons at the same time for two seconds. How come my control panel buttons do not work? • Your air purifier may have the child lock setting activated. Press the Child lock button for two seconds to control this setting. Why is my air quality always at 100%? • If your air purifier displays a blue ring, your air quality is good. However, air quality will fluctuate as pollutants enter or develop in your home. Activities like smoking, cooking, burning candles or spraying cleaning products (among other things) can add more pollutants to your air. Our Clean Sense IQ technology tracks this fluctuation in real time and adjusts as it detects particles. Please visit: sharkclean.eu for more information Why is my air quality never at 100%?

• If your air quality never reaches 100%, make sure that the filter is properly installed without its original plastic packaging. Activities like smoking, burning candles, running a humidifier, opening windows, and cooking (among other things) can add more pollutants to your air. Make sure to survey your environment and remove anything that could be causing low air quality. Why is my air purifier vibrating or making unusual loud noises?

• Make sure the unit is set up on its base, and on a flat, level surface. Why is there no air flow? • Increase the fan speed on your unit to improve performance. Make sure that all packaging is removed from the filter, and it is properly installed in the unit. Unplug the unit and clean o any dust or debris from the intake and the air vent areas. Can I wash the filter? • No, the filter is not washable. Keep filter away from water and dispose of it when it is dirty. How often should I switch my filter? • We recommend switching your filter every 6-12 months. How do I optimise my filter life? • To maximise your air purifier’s filter life, we recommend flipping and rotating the direction of your filter every three months. This will help equalize and balance the distribution of captured particles throughout the filter allowing for extended usage. Where can I buy replacement filters? • You can buy replacement filters from select retailers or at: sharkclean.eu Customer Service For further assistance, call 0800 8620453.ENGLISH

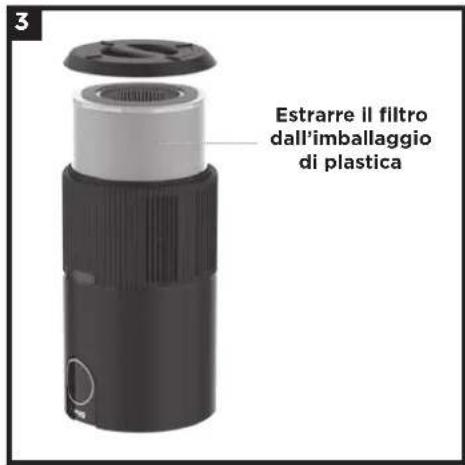

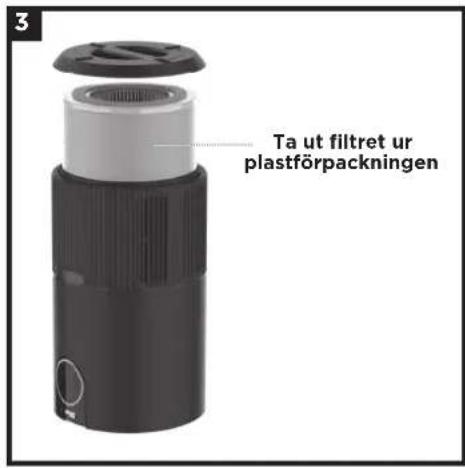

INSTALLING AND REMOVING THE FILTER

NOTE: Always remove all protective packaging from the filter before installing. When the filter timer has 0% remaining, the FILTER LIFE button on the top control panel will blink, indicating that it’s time to install a new filter.

1. Turn o and unplug the unit before removing or installing filters.

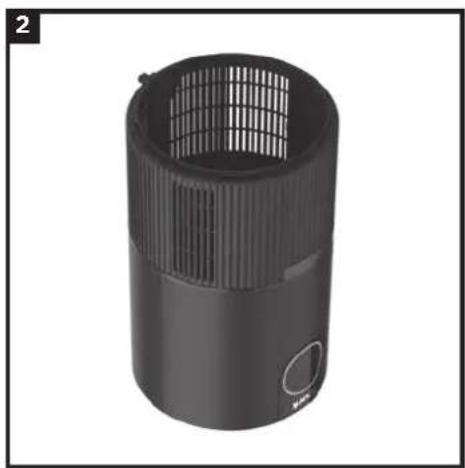

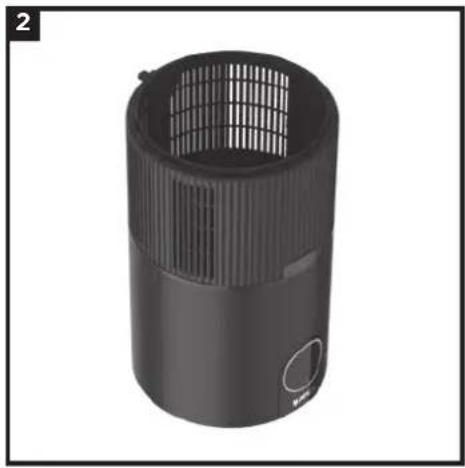

2. Remove the filter door from the bottom of the unit by twisting

the filter door to the unlocked position and removing.

3. To remove the old filter, pull it out by the tabs at the top and

bottom of the filter (2). Discard old filter in rubbish bin.

4. Remove all packaging and wrapping from the new filter.

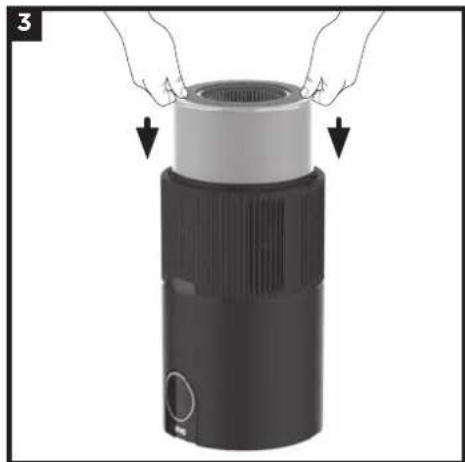

5. Insert the new filter, then replace the filter door. Twist the filter

door until it clicks into place.

6. Plug the unit back in and turn on power. Calibration will begin.

7. After installing a new filter, press and hold the Filter Life button

on the top control panel for 3 seconds to reset the filter life percentage. The unit will beep when the filter life is reset to 100%. Disposing of used filters Filters can’t be cleaned or recycled. After removing a used filter, wrap it in an airtight plastic bag for disposal. As an extra precaution, wear gloves when handling a dirty filter.

MAINTAINING YOUR AIR PURIFIER

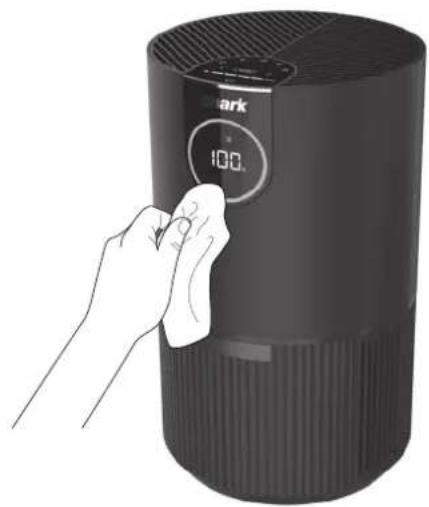

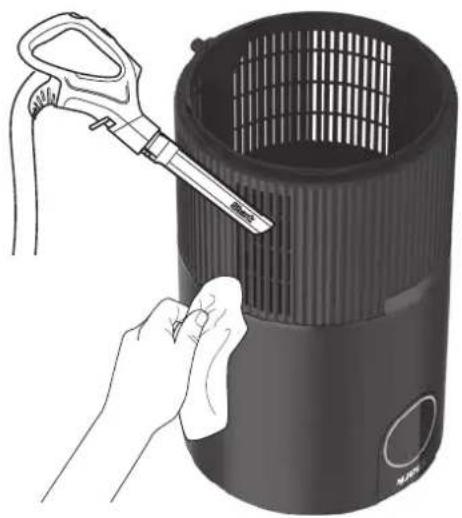

NOTE: Always unplug the unit before doing any cleaning or maintenance. Exterior Cleaning: For best results, clean the exterior of the unit every two months or as needed. Use a microfibre cloth to remove dust. Wipe down the exterior with a microfibre cloth dampened with warm, soapy water. Avoid excess water and abrasive chemical cleaners to prevent damage. To maximise your air purifier’s filter life, we recommend flipping and rotating your filter every three months. This will help equalise and balance the distribution of captured particles throughout the filter allowing for extended usage. Interior Cleaning: For best results, clean the interior of the unit every two months or as needed. Remove the filter cover, take out the filter, and use a vacuum cleaner or a microfibre cloth to remove dust and debris from the interior of the unit. DO NOT use abrasive chemical cleaners on the inside of the unit.

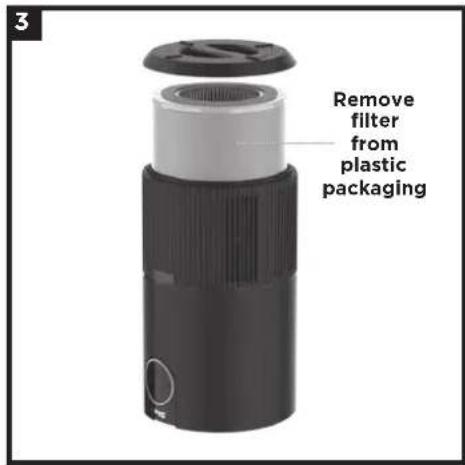

Remove filter from plastic packaging

ORDER ADDITIONAL ACCESSORIES AND REPLACEMENT FILTERS

Additional accessories and replacement filters are available on sharkclean.eu

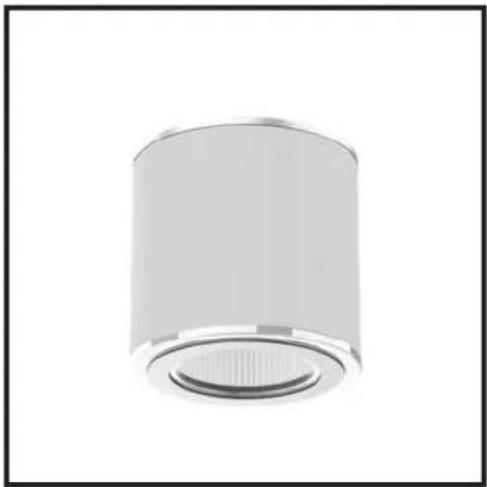

SHARK® NANOSEAL™ BASE FILTER WITH HEPA

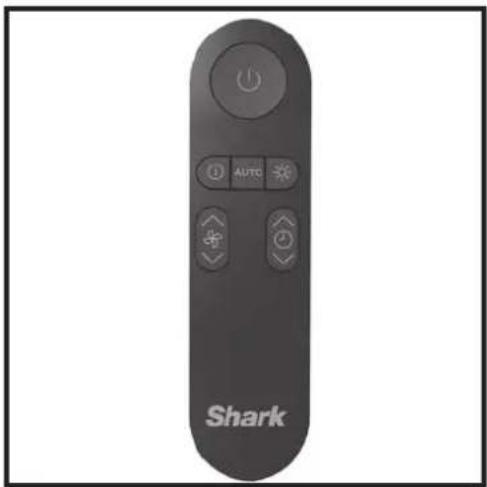

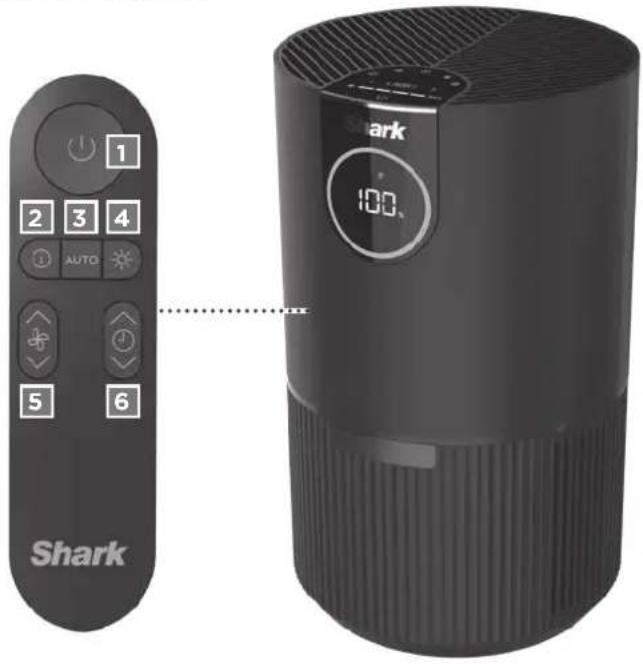

Captures 99.97% of large, small, & micro-sized particles from the air. Remote Control Use the remote control to operate your air purifier from a distance.

2. Air Info: Switch between air quality display options.

3. Auto: Enables Auto Mode.

4. Brightness: Adjusts brightness.

2 43ENGLISH When a consumer buys a product in Europe, they get the benefit of legal rights relating to the quality of the product (your “statutory rights”). You can enforce these rights against your retailer. However, at Shark® we are so confident about the quality of our products that we give the product owner an additional manufacturer’s guarantee of two years. These terms and conditions relate to our manufacturer’s guarantee only - your statutory rights are unaected. The conditions below describe the prerequisites and scope of our guarantee. They do not aect your statutory rights or the obligations of your retailer and your contract with them. Shark® Guarantees A household appliance like a Air Purifier constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality. Every Shark® machine comes with a free parts and labour guarantee. Our customer service helpline (0800 862 0453) is open from 9.00am to 6.00pm Monday - Friday. It’s free to call, and you’ll be put straight through to a Shark® representative. You’ll also find online support at www.sharkclean.eu. How do I register my extended Shark® guarantee? You can register your guarantee online within 28 days of purchase. To save time, you’ll need the following information about your machine:

• Date you purchased the machine (receipt or delivery note). To register online, please visit www.Sharkclean.eu/uk/register-guarantee. Products purchased directly from Shark® are automatically registered. What is covered by the free Shark® guarantee? Repair or replacement (at Shark’s discretion) of your Shark® machine, including all parts and labour. A Shark® guarantee is in addition to your legal rights as a consumer. What are the benefits of registering my free Shark® guarantee? When you register your guarantee we’ll have your details to hand if we ever need to get in touch. If you further agree to receive communications from us, you can also receive tips and advice on how to get the best out of your Shark® Air Purifier and hear the latest news about new Shark® technology and launches. If you register your guarantee online, you’ll get instant confirmation that we’ve received your details. How long are new Shark® machines guaranteed for? Our confidence in our design and quality control means that your new Shark® Air Purifier is guaranteed for two years. Where can I buy genuine Shark® spares and accessories? Shark® spares and accessories are developed by the same engineers who developed your Shark® Air Purifier. You’ll find a full range of Shark® spares, replacement parts and accessories for all Shark® machines at www.sharkclean.eu. Please remember that damage caused by use of non-Shark® spares is not covered under your guarantee. What is not covered by the free Shark® guarantee? 1. Normal wear and tear of wearable parts, which require regular maintenance and/or replacement to ensure the proper functioning of your unit, are not covered by this guarantee. Replacement parts are available for purchase at sharkclean.eu.

2. Any unit that has been tampered with or used for commercial purposes.

Accidental damage and faults caused by negligent use or care, misuse, neglect, careless operation or handling of the Air Purifier which is not in accordance with this Shark® Instruction booklet supplied with your machine.

4. Use of parts not assembled or installed in accordance with these instructions.

5. Faulty installation (except where installed by Shark®).

6. Repairs or alterations carried out by parties other than Shark® or its agents.
