Multi Crispy 180122 - Deep fryer PRINCESS - Free user manual and instructions

Product type	Hot air fryer
Brand	Princess
Model	Multi Crispy 180122
Power supply	220-240 V ~ 50/60 Hz
Power	1500 W
Temperature range	70 °C – 200 °C
Timer	1 – 60 minutes
Automatic programs	11 preset programs
Maximum capacity (fries)	700 g
Included accessories	Basket, 2 cooking racks, grease collecting tray
Screen	Digital display with touch keys
Interior light	Yes, with button
Automatic shut-off	Yes
Automatic cooling	Yes, after cooking
Removable door	Yes, for easy cleaning
Cleaning	Parts (basket, racks, tray) dishwasher safe; door and appliance wipe clean
Safety	Extraction handle, hot surfaces indicated, automatic shut-off
Usage	Household use only

Frequently Asked Questions - Multi Crispy 180122 PRINCESS

How to use the preset programs?

Press the symbol of the desired program (e.g., Fries). The symbol flashes. Temperature and time are set automatically. To adjust, use the + and - buttons.

Can I use oil in this fryer?

Yes, but sparingly. Add at most half a teaspoon of oil for homemade fries. Never pour oil directly into the cavity.

How to clean the racks and basket?

Remove accessories and wash them in the dishwasher or in hot soapy water. For stubborn dirt, soak in warm water with dish soap.

Is the door removable?

Yes. Open the door to a 30° angle and gently remove it. Note: the door is not dishwasher safe. Clean it with a damp cloth.

What to do if the appliance does not turn on?

Check that the plug is properly inserted into a grounded outlet. Ensure the door is closed correctly. If the problem persists, contact after-sales service.

What is the maximum amount of food I can cook?

Do not fill the basket beyond the indicated capacity (about 700 g for fries). Overfilling can prevent even cooking.

Why does my appliance turn off before the end?

This is normal: the appliance performs an automatic cooling after cooking. Do not unplug the appliance before the end of this cycle to avoid damaging it.

How to manually adjust the temperature?

Press the + or - button for the temperature parameter to choose between 70 °C and 200 °C. Do the same for the time (1 to 60 minutes).

Are the accessories dishwasher safe?

Yes, the basket, cooking racks, and grease collecting tray are dishwasher safe. The door and the appliance itself are not.

What does the flashing of indicators mean?

During operation, the indicators flash to indicate that the appliance is heating. If all flash and nothing happens, this may signal an interruption (e.g., door open). Close the door to resume.

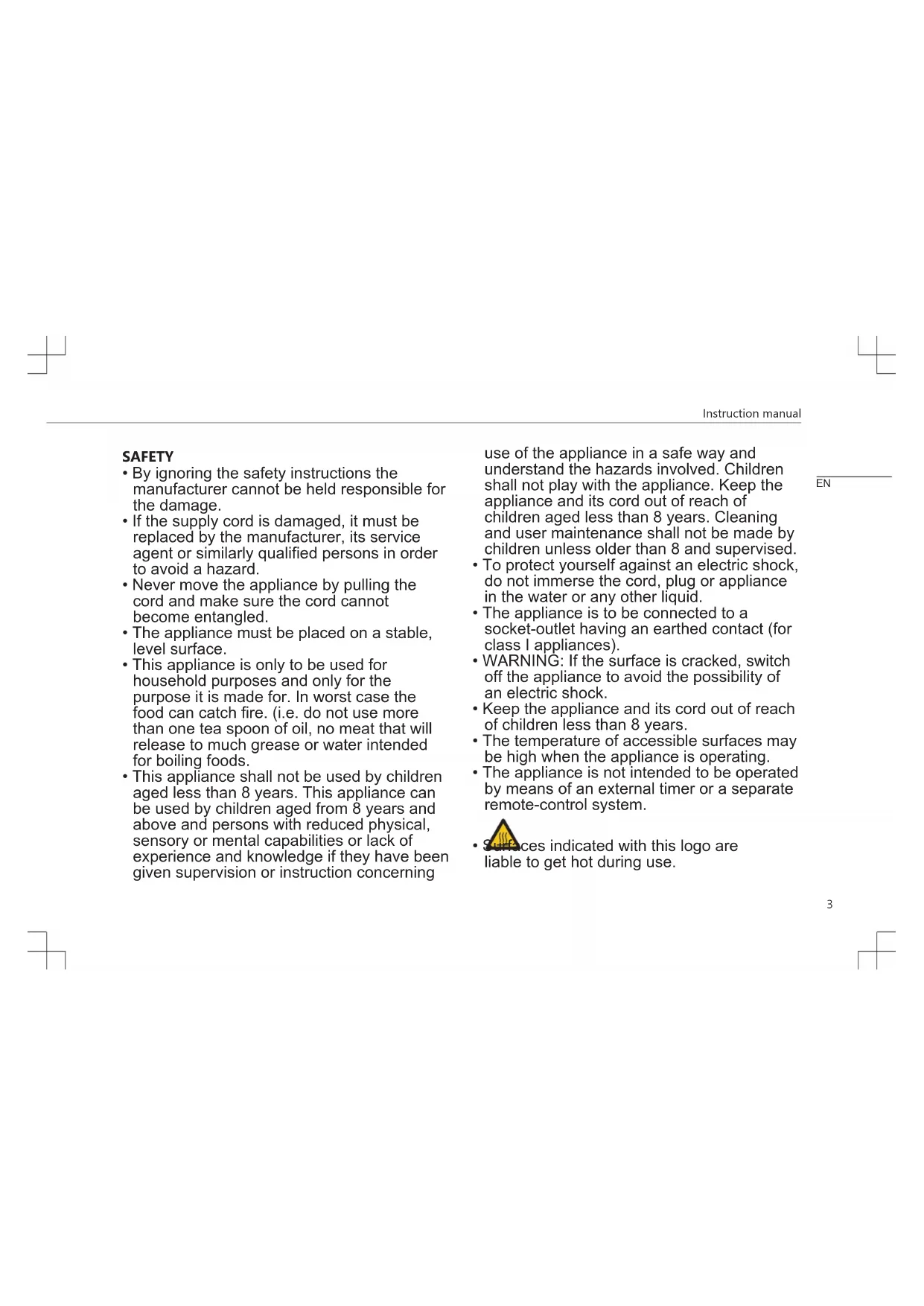

USER MANUAL Multi Crispy 180122 PRINCESS

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
• The appliance must be placed on a stable, level surface.
• This appliance is only to be used for household purposes and only for the purpose it is made for. In worst case the food can catch fire. (i.e. do not use more than one tea spoon of oil, no meat that will release to much grease or water intended for boiling foods.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• The appliance is to be connected to a socket-outlet having an earthed contact (for class I appliances).
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The temperature of accessible surfaces may be high when the appliance is operating.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

Surfaces indicated with this logo are liable to get hot during use.

TRISTAR Instruction manual

• In order to prevent disruptions of the airflow do not put anything on top of the appliance and make sure there is always 10 centimeter of free space around the appliance.
  After the baking process the appliance needs to cooldown, this cooling process will activate automatically when the timer is done. Avoid to unplug the appliance from the net socket before the cooling process is finished because the remaining hot air can damage the appliance.
• This appliance is intended to be used in household and similar applications such as:
  Staff kitchen areas in shops, offices and other working environments.
• By clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments.
• Farm houses.
  SAVE THESE INSTRUCTIONS
  HOUSEHOLD USE ONLY

PARTS DESCRIPTION

1. Main unit
2. Display
3. Basket

4. Removal handle

5. Baking rack (2 x)

6. Fat collecting tray / baking tray

BEFORE THE FIRST USE

• When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.
• Remove all packaging material.
• Remove any stickers or labels from the appliance.
• Wipe the inside and outside of the appliance with a moist cloth

Fat collecting/baking tray

Always place the fat collecting tray in the lower rails of the cooking space to collect dripping fat, food residues or crumbs. It can also be used as a baking tray by placing food on it, place the baking tray in the middle rails.

Basket

• Don't overfill the basket with ingredients, if it's to full, the food will not cook evenly.

Baking racks

• The baking racks are slid onto the rails in the cooking space.
  The heating element is located at the top of the cooking space.
  The higher a rack is placed, the more intense the heat is from above.
  In the upper part, the food is cooked faster and crispy.

• The middle position can be selected to achieve uniform heating from all sides.

• The bottom rails are suitable for gentle cooking.

USE

• Put the mains plug in an earthed wall socket.
• Open the door.
• If the fat collecting tray is not to be used as a baking tray, slide it into the lowest rails of the cooking space
• Select a suitable accessory for the food to be prepared.
• Process the food and place it on or in the accessory and attach this accessory in the device.
• Close the door.
• Press the on/off switch. The display will become active.
• Set the temperature and cooking time manually or choose between one of the 11 programs.
• Manual setting:
• Touch the + or - symbol at the temperature setting to set the desired temperature (lowest 70^ , highest 200^ ).
• Touch the + or - symbol at the time setting to set the desired time (1 minute to 60 minutes).
• Program setting:
• Activate the desired program by touching the program symbol, it's activated when the symbol starts flashing.
• Touching the same symbol again will cancel the selection.
  See for presetting information the table below:

Program Icon Default

temperature

Default cooking time

Fries 200°C 15 minutes
Chops 160°C 10 minutes
Shrimp 160°C 12 minutes
Baking 160°C 30 minutes
Drumsticks 180°C 20 minutes
Steak 200°C 12 minutes
Fish 200°C 13 minutes
Pizza 180°C 10 minutes
Dehydrate 70°C 4 hours
Defrost 70°C 12 minutes
Preheat		200°C 3 minutes

TRISTAR Instruction manual

The cooking time depends on the thickness of the food. Times can also vary due to the quantity and consistency of the food. The time settings are only guidelines and can be adapted to your taste. Double the time for tough meat and extend the time by at least 20% for deep-frozen food.

	Min-max amount (g)	Time (min)	Temperature (°C)	Shake	Extra information
Fries 600-700	00 15-20	200 shake
Homemade fries	600-700	20-25 200	shake add 1/2 a		tablespoon of oil
Frozen fish fingers	500-800	6-10 200
Drumsticks	100-500	18-22 180
Hamburger	400-800	25-30 180
Spring rolls	500-800	8-10 200 shake
Cake 800 20-25	0-25 160	Use baking			tin
Quiche 800	20-22 180	Use baking			tin
Muffins 800	15-18 200	Use baking			tin

• Make sure that meat and poultry are thoroughly cooked before serving.

• To change the temperature or cooking time of a selected program, touch the temperature and time setting buttons, the same as for manual setting and set a new value.

• Successively illuminating operating lamps indicate that the device is operating. If operation is interrupted, they flash.

• Switch on the light pushing the button to check the condition of the food during use or open the door, the light will switch on and the operation is interrupted automatically. Operation is resumed once the door is closed again.
  After the cooking time has elapsed, the device switches off automatically and it will give a beep sound. If the device must be stopped prematurely, press the on/off switch.

• Open the door and take the cooked items out of the device. Always use oven gloves and use the removal handle/tool to take out the accessories.
  After use, remove the mains plug from the wall socket.
• Allow the used accessories and device to cool down and then clean them.

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and wait for the appliance to cool down.
- Never immerse the device in water or any other liquid. The device is not dishwasher proof.
- Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.

• Rinse all other used parts with dish soap and warm water or in the dishwasher. In the case of stubborn dirt, we recommend soaking the accessories in warm water and washing-up liquid beforehand.
• The door is detachable for easy cleaning, open the door to a 30^ angle and gently take off the door. The door is not dishwasher safe.

• Allow all parts to dry completely or dry them with a towel.

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at http:// service.nova-int.com!
