Product type	AS-i / DeviceNet Controller
Brand	IFM
Model	AC1314
Dimensions (L x H x D)	86 x 124 x 62 mm (approximate)
Weight	Approximately 0.5 kg
Power supply	24 V DC (20...30 V DC)
Programming interface	RS232C, baud rate 4800 to 115200, max distance 20 m
Network interface	DeviceNet (125, 250, 500 kbit/s)
Number of AS-i masters	2 (AS-i version 2.1)
Display	LED screen with adjustable contrast
LED indicators	PWR/COM, PROJ, CONF/PF, DeviceNet network status and module status
Main functions	AS-i master, signal preprocessing, autonomous control, gateway mode, data exchange with PC and higher-level control system
Mounting	On 35 mm profile rail, in an electrical cabinet (IP20)
Protection rating	IP20
Maintenance	Environment free of condensation, avoid dust, vibrations and shocks; do not block ventilation holes
Cleaning	Clean with a dry, lint-free cloth
Safety	Disconnect power before connection; use a Class 2 certified power supply for cULus compliance; do not connect negative potentials together or to ground
Approvals	cULus (with Class 2 power supply)
Spare parts and repairability	No spare parts provided; repair by a qualified technician. Contact IFM after-sales service.
General information	User manual available free of charge in PDF format at notice-facile.com

Frequently Asked Questions - AC1314 IFM

How to adjust the screen contrast?

Simultaneously press the right button and the « button (too bright) or the » button (too dark) to adjust the contrast.

What is the difference between models AC1308 and AC1314?

The AC1308 integrates a single AS-i master, while the AC1314 integrates two (according to AS-i version 2.1).

How to navigate the menu?

Use the left button MENU to open the main menu, then the « and » buttons to navigate. Simultaneously press both buttons to switch between German and English.

What does the PWR/COM LED indicator mean?

LED on: AS-i power present and at least one slave detected. LED flashing: power present but no slave detected correctly.

What supply voltage is required?

The controller requires a 24 V DC power supply (20...30 V DC) on terminals +24V and 0V. For the AS-i bus, a specific AS-i power supply is required (e.g., AC1216 or AC1218).

How to connect the DeviceNet interface?

Connect the pins: 1: V-, 2: CAN_L, 3: Shield, 4: CAN_H, 5: V+. The baud rate can be set to 125, 250 or 500 kbit/s.

How to program the address of an AS-i slave?

In the menu, go to Address Slave to re-address a connected slave or enable automatic addressing (easy startup) via Quick Setup.

How to reset the configuration?

Use the Master Setup menu to switch to project mode and modify the configuration, then switch back to protected mode. You can also reset the configuration error counter.

What is the maximum distance for the RS232C interface?

The maximum distance between the controller and the host is 20 meters. Use the programming cable E70320.

How to update the firmware?

In the System Setup menu, select the firmware update option. Specific programming software and the RS232C interface are required.

USER MANUAL AC1314 IFM

Line drawing of an electrical control panel with buttons and a grid, no text or symbols present

DeviceNet Status LEDs (Network Status)

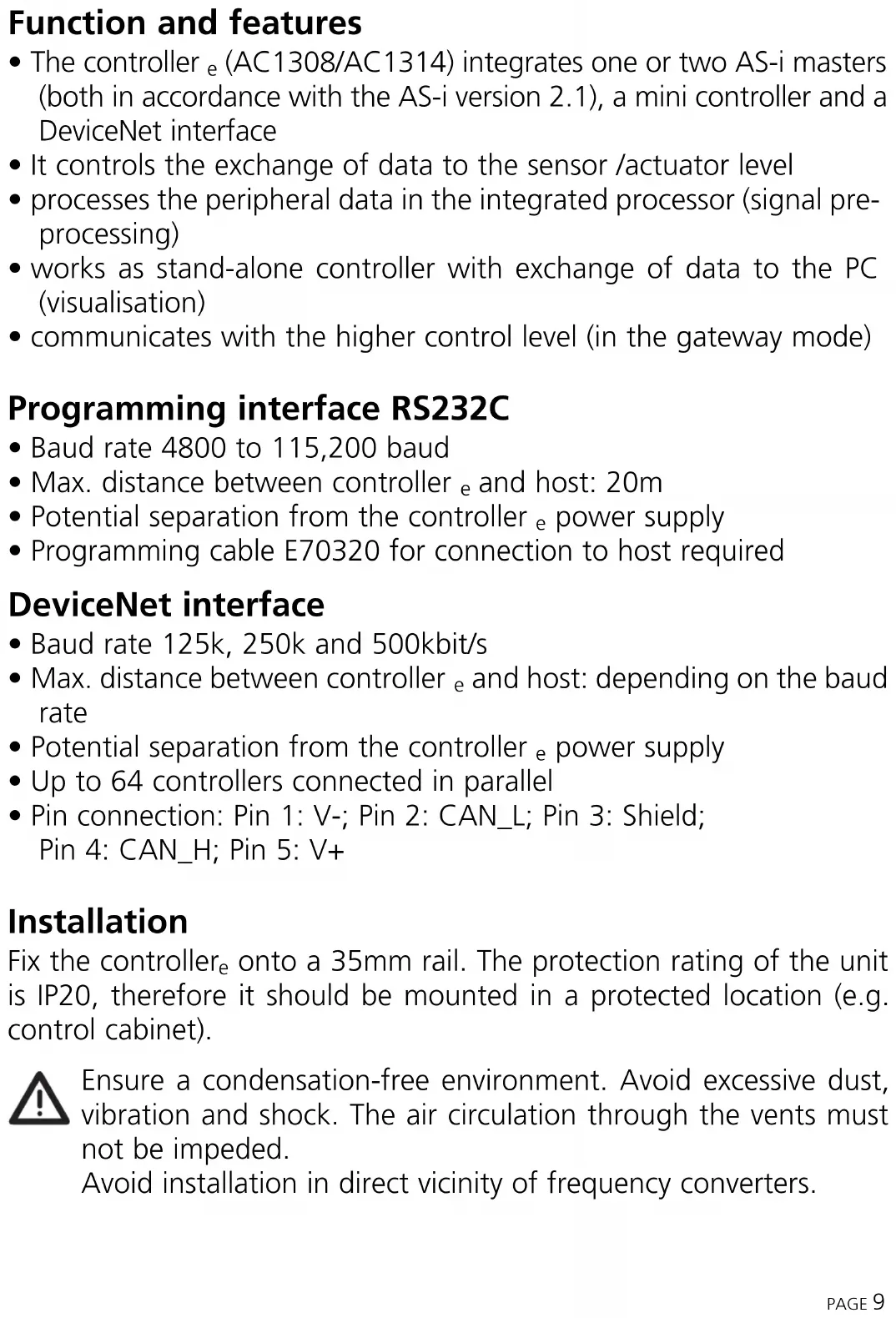

Function and features

• The controller _e (AC1308/AC1314) integrates one or two AS-i masters (both in accordance with the AS-i version 2.1), a mini controller and a DeviceNet interface
• It controls the exchange of data to the sensor /actuator level
• processes the peripheral data in the integrated processor (signal preprocessing)
• works as stand-alone controller with exchange of data to the PC (visualisation)
• communicates with the higher control level (in the gateway mode)

Programming interface RS232C

• Baud rate 4800 to 115,200 baud
- Max. distance between controller e and host: 20m
- Potential separation from the controller e power supply
- Programming cable E70320 for connection to host required

DeviceNet interface

• Baud rate 125k, 250k and 500kbit/s
• Max. distance between controller _e and host: depending on the baud rate
• Potential separation from the controller _e power supply
• Up to 64 controllers connected in parallel
• Pin connection: Pin 1: V-; Pin 2: CAN_L; Pin 3: Shield; Pin 4: CAN_H; Pin 5: V+

Installation

Fix the controller _e onto a 35mm rail. The protection rating of the unit is IP20, therefore it should be mounted in a protected location (e.g. control cabinet).

Ensure a condensation-free environment. Avoid excessive dust, vibration and shock. The air circulation through the vents must not be impeded.

Avoid installation in direct vicinity of frequency converters.

Electrical connection

Disconnect the installation from power. Connect the unit as indicated on the terminals. Never connect the minus potentials to each other or the minus potentials to the FE connection. Ensure an electrically safe ground connection between AS-i controller _e (terminal FE) and ground of the unit.

Supply the DeviceNet controller _e with a 24V DC voltage (20...30V DC).

Connection is made to the terminals +24V and 0V.

The DeviceNet controller _e has the cULus approval when supplied by a certified class 2 source.

Examples of the power supplies available from ifm electronic gmbh:

Power supply DN2112 for applications that require the cULus approval.

Power supply DN2011 for applications that require no cULus approval.

Operating and indicating elements

Information concerning the state of the master (AC1308) / master AC1314) and the connected system is given via three diagnostic LEDs on the controller _e .

• LED PWR/COM lights: AS-i voltage present, at least one slave was detected
• LED PWR/COM flashes: AS-i voltage present, but no slave was detected correctly
• LED PROJ lights: Projection mode active, the configuration monitoring is deactivated
• LED PROJ flashes: Projection mode active, changeover to protected mode not possible as a slave with the address 0 is connected
• LED CONF/PF lights: Projected and current configuration do not match
• LED CONF/PF flashes: Periphery fault on at least one connected slave

DeviceNet status LEDs (Network Status)

• LEDs off: DeviceNet voltage not ok

• LED green lights: online, connected

- LEDs off: DeviceNet voltage not ok - LED green lights: online, connected

• LED green flashes: online, not connected
- LED red lights: BUS OFF
• LED red flashes: timeout error during data transmission

DeviceNet status LEDs (module status)

• LEDs off: no supply voltage
- LED green lights: controller e online
• LED red lights: unrecoverable system error
• LED red flashes: system error

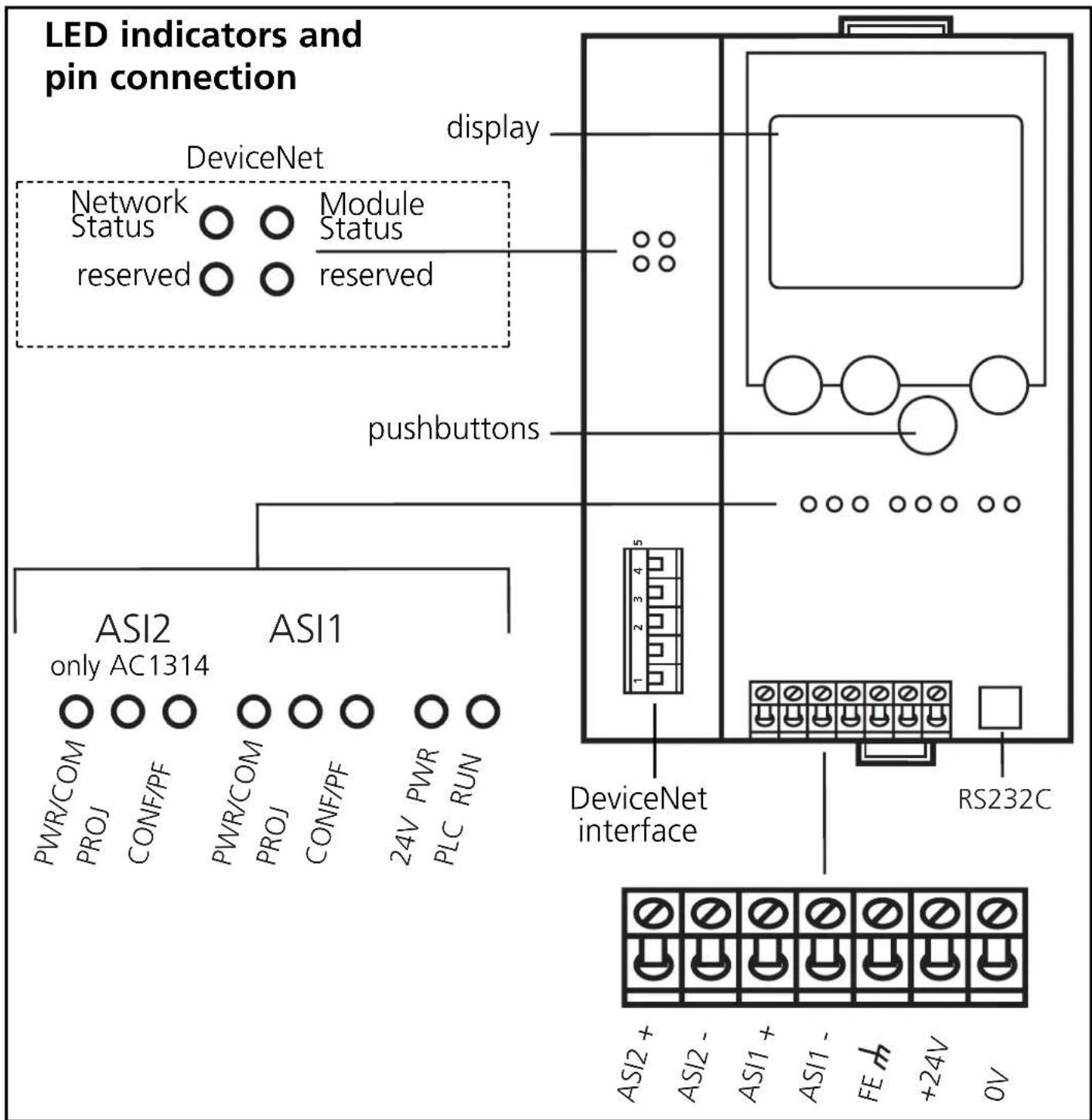

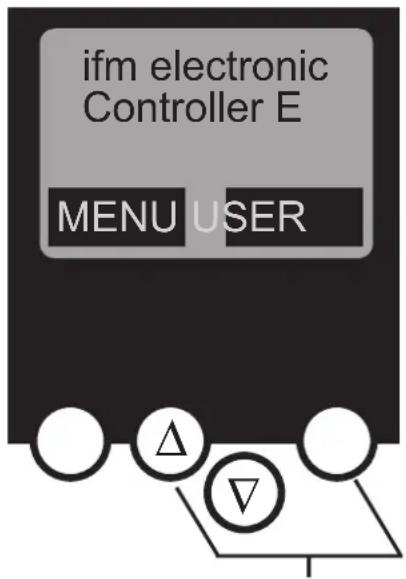

Contrast setting

The contrast can be directly changed by simultaneously pressing the right button and the -button (too bright) or the -button (too dark).

ifm electronic Controller E MENU USER

increase contrast

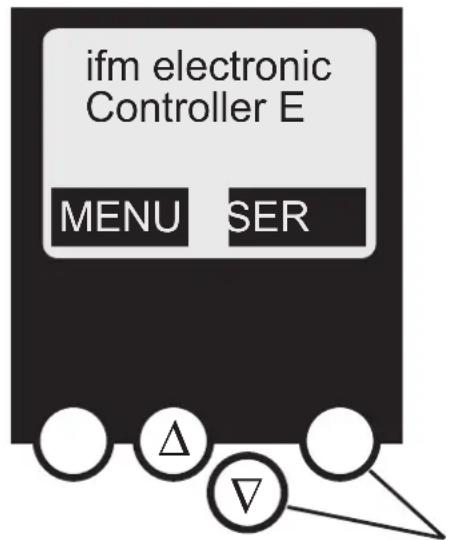

ifm electronic Controller E MENU SER

decrease contrast

Operation

To operate an AS-i system a special AS-i power supply is required. Connection is made to the terminals AS-i + and AS-i -.

The DeviceNet controller _e has the cULus approval when supplied by a certified class 2 source.

Examples of the power supplies available from ifm electronic gmbh: Power supply AC1216 for applications that require the cULus approval. Power supply AC1218 for applications that require no cULus approval.

Disconnect the power supply before connecting the controller _e .

The AS-i system is operated ungrounded. AS-i + and AS-i - are to be symmetrical to the ground potential of the installation. Ensure a low resistance connection of the symmetry point of the AS-i power supply (terminal shield) to the ground of the installation.

Menu overview

Open the main menu by pressing the left button "MENU" in the start display.

To navigate within a menu point press the button or .

Press the buttons simultaneously to switch between the German and English menu.

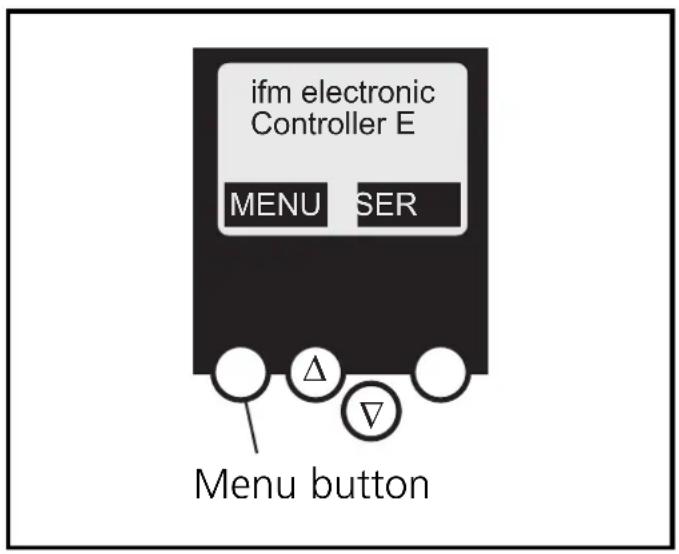

ifm electronic Controller E MENU SER Menu button

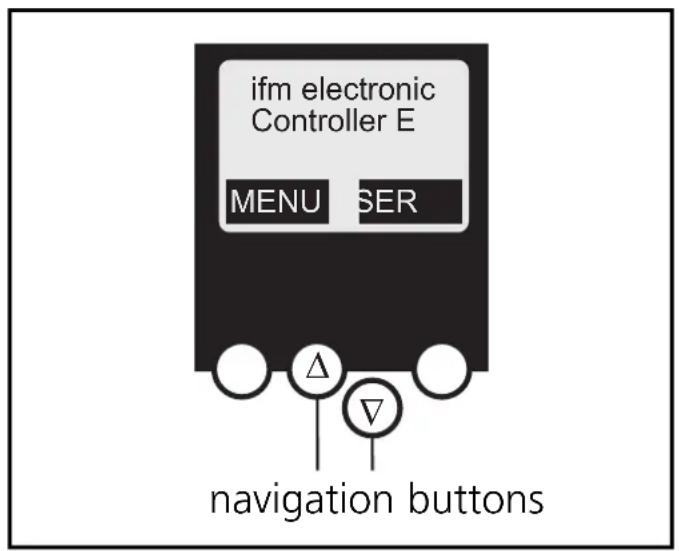

ifm electronic Controller E MENU SER navigation buttons

Menu navigation

O Slave lists (Checking of the addresses of the connected AS-i slaves)

∇List of the detected AS-i slaves (LDS)

∇List of the projected AS-i slaves (LPS)

∇List of the activated AS-i slaves (LAS)

∇List of the AS-i slaves with periphery fault (LPF)

O Address slave (Programming of the correct addresses in the connected AS-i slaves)

∇Readdressing of an AS-i slave connected to the controller _e

∇Automatic addressing of new AS-i slaves to the next free address (easy startup)

O Quick setup (Summary of the menu points required for a basic configuration)

∇Reading of the current AS-i configuration (config all)

∇Setting of the fieldbus connection (optional)

O System setup (Setting of the controller e device)

∇Baud rate of the serial programming interface

∇IP address of the Ethernet programming interface (optional)

∇Input of the password to enable changes in the system configuration

Update of the controller e firmware (special programming software required)

O System info (Device information)

∇Hardware and firmware version numbers of this controller _e

∇Serial number of this controller e

∇Current /maximum PLC cycle time

O PLC setup (Using the integrated PLC is optional)

∇Activation or deactivation of the gateway mode (no PLC used)

∇Start or stop of the PLC in the controller _e (if used)

O PLC info (Display of the user program name, author, date)

O Master setup (AS-i master flags)

∇Reading of the current AS-i configuration (config all)

∇Changeover to the projection mode: configuration of the AS-i system

∇Changeover to the protected mode: standard mode (the master monitors the configuration)

∇Deactivation of the automatic AS-i slave addressing in the protected mode

∇Deactivation of the AS-i reset when exiting the projection mode

∇Display of the config.error counter of the connected AS-i system

∇Reset of the config.error counter

∇Display of the percentage fault rate of the connected AS-i system

O Slave setup (Details about the connected AS-i slaves)

∇Digital or analogue inputs/outputs of the connected AS-i slaves
∇Current and projected parameters of the connected AS-i slaves
∇Current and projected I/O and ID codes of the connected AS-i slaves
∇Message faults in the communication to the connected AS-i slaves

O Fieldbus setup

Input of the DeviceNet Node Address of controller
∇Input of the baud rate of the controller
∇Input of the module length

Modul 1 =digital inputs master1A

Modul 2 = digital outputs master1A

Modul 3 =digital inputs master2A

Modul 4 = digital outputs master2A

Modul 5 =digital inputs master1B

Modul 6 = digital outputs master1B

Modul 7 =digital inputs master2B

Modul 8 =digital outputs master2B

Modul 9 =analogue multiplexed input

Modul 10 = analog. multiplexed output

Modul 11 = command channel

Modul 12 = PLC inputs

Modul 13 = PLC outputs

Modul 14 = analogue input master 1

Modul 15 = analogue output master 1

Modul 16 = analogue input master 2

Modul 17 = analogue output master 2

Modul 18 = diagnosis

O Fieldbus data (optional)

∇Display of the data cyclically transmitted via the fieldbus
