Product Type	AirBox AS-i (AS-i slave) for industrial automation
Model	AC2047
Brand	IFM
AS-i network supply	31.6 V DC, 165 mA
Integrated sensor supply	30 V DC, 100 mA max (total per module)
Compressed air pressure	3 to 8 bar (peaks >8 bar not allowed)
Auxiliary air pressure (vacuum option)	3 to 8 bar, via Legris 3000/4 mm fitting
Main pneumatic connection	Legris 3000/8 mm (conforms to CETOP RP 54 P)
Sensor electrical connection	M12 plug-in connectors (2-wire or 3-wire PNP inputs)
AS-i network connection	Via EMS wiring module
AS-i addressing	Free address 1 to 31 (delivery: 0) using an addressing unit
Pneumatic outputs	4/2-way valve, manual override by screw (push/release or lock)
LED indicators	Green: AS-i voltage; Yellow: input/output status
Electromagnetic compatibility	EN 61000-4-2: contact discharge ±4 kV, air ±8 kV
Protection rating	IP 67 (auxiliary air inlet closed if not connected)
Mounting torque	0.8 Nm
Operating temperature	Not specified, standard industrial use
Maintenance	Use filtered air (5 µm); lubrication ISO-VG10 possible (if used once, always lubricate)
Safety	Follow pneumatic regulations; cut pressure before intervention; avoid electrostatic discharge
Spare parts / Repairability	Not specified; refer to IFM service
General information	Manual available as PDF on notice-facile.com

Frequently Asked Questions - AC2047 IFM

What is the recommended compressed air pressure for the AirBox AC2047?

The AirBox operates with compressed air from 3 to 8 bar. Peaks above 8 bar can damage the seals.

How to assign an AS-i address to the AC2047 module?

Mount the module on the addressing unit, then assign a free address between 1 and 31 (factory address is 0). Then mount the module on the AS-i wiring base.

What to do if the green LED does not light up?

The green LED indicates power supply via the AS-i network. Check AS-i voltage (31.6 V DC) and connections of the EMS wiring module.

Can the AirBox be used with vacuum?

Yes, optionally, with auxiliary air from 3 to 8 bar via the Legris 3000/4 mm fitting, you can obtain a vacuum of 90%.

What type of sensors can be connected to the inputs?

The inputs are designed for 2-wire or 3-wire PNP sensors (IEC 947-5-2) or mechanical position detectors.

How to use the manual override of the pneumatic output?

Actuate the manual override screw: press for momentary action, or press and turn to lock the output.

What precautions to take against electrostatic discharge (ESD)?

Observe EMC rules: potential equalization, separation of bus and signal cables, and distance from electrostatic charge sources. Tested according to EN 61000-4-2 (±4 kV contact, ±8 kV air).

How to connect the pneumatic tubes?

Cut the tubes straight, then push them into the Legris fittings until the click. To disconnect, press the black ring and pull.

What is the meaning of the yellow LEDs?

The yellow LEDs indicate the status of the inputs/outputs: lit when active.

Does the AirBox require lubricated air?

It can operate with or without lubrication (ISO-VG10). Caution: if first used with lubricated air, it must always be lubricated afterwards.

USER MANUAL AC2047 IFM

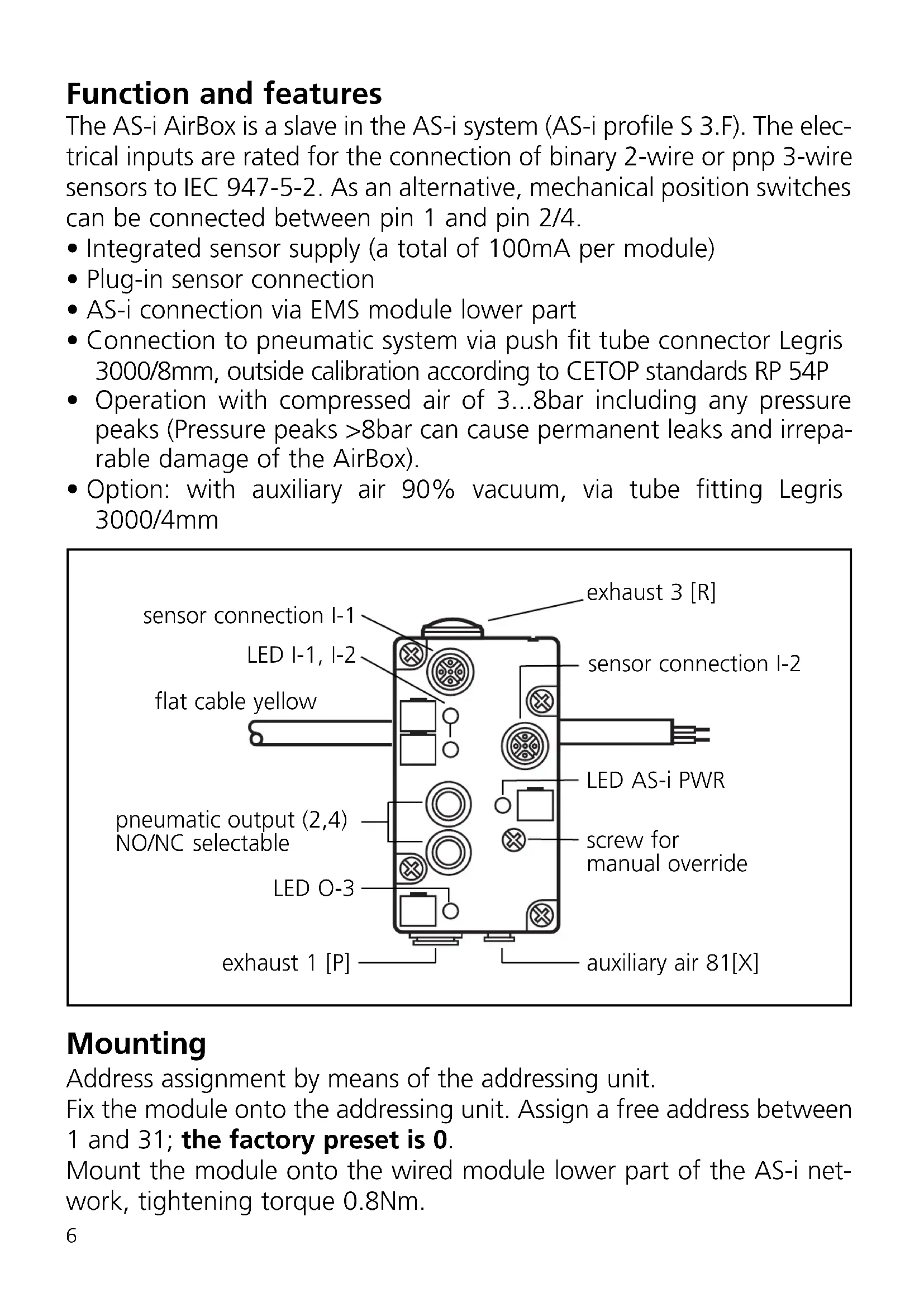

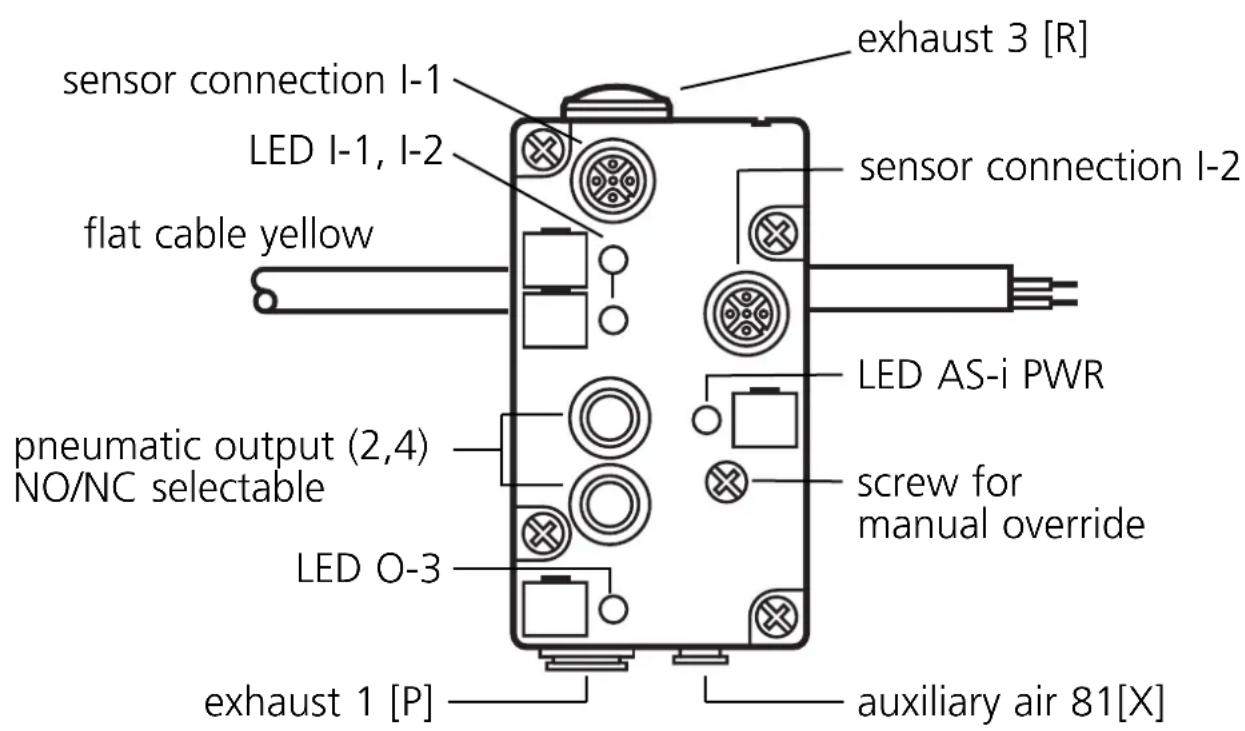

Function and features

The AS-i AirBox is a slave in the AS-i system (AS-i profile S 3.F). The electrical inputs are rated for the connection of binary 2-wire or pnp 3-wire sensors to IEC 947-5-2. As an alternative, mechanical position switches can be connected between pin 1 and pin 2/4.

• Integrated sensor supply (a total of 100mA per module)
• Plug-in sensor connection
• AS-i connection via EMS module lower part
• Connection to pneumatic system via push fit tube connector Legris 3000/8mm, outside calibration according to CETOP standards RP 54P
• Operation with compressed air of 3...8bar including any pressure peaks (Pressure peaks >8 bar can cause permanent leaks and irreparable damage of the AirBox).
• Option: with auxiliary air 90% vacuum, via tube fitting Legris 3000/4mm

Mounting

Address assignment by means of the addressing unit.

Fix the module onto the addressing unit. Assign a free address between 1 and 31; the factory preset is 0.

Mount the module onto the wired module lower part of the AS-i network, tightening torque 0.8Nm.

In a dusty environment the AirBox should be mounted with the filter facing downwards.

Compressed air

Adhere to the safety regulations and provisions for the installation of pneumatic systems. Switch off pressure.

Connect the compressed air supply 1 (P), the pneumatic output (NO/NC selectable) 2 and 4 and, if necessary, the exhaust 3 (R) to the pneumatic system. Cut the connection tube straight and push it into the tube fitting until you can feel the tube latch.

Auxiliary air

Auxiliary air is needed

• if pressures below 3bar are to be used
• if a vacuum is to be used
• for parallel wiring of valves if a considerable pressure drop is to be expected (with a high simultaneity factor)

The auxiliary air must be rated for at least 3 bar to enable switching of the valve.

The auxiliary air fitting is integrated in the module and is activated by connecting the 4mm tube for compressed air. If no tube is connected, this pneumatic input is closed (IP67).

Removal of the tubes

To remove the tubes, push the black ring and pull out the tube at the same time.

Manual override

The pneumatic output (NO/NC selectable) can be activated manually by means of the screw for the manual override (pressing/releasing or pressing/turning/locking).

Electromagnetic compatibility (EMC):

The AirBox is rated for operation in industrial environments. The test of the electrostatic discharge was carried out in accordance with EN 61000-4-2 with the following test levels:

• Contact discharge ± 4kV
• air discharge ± 8kV

Special applications such as the conveying and distribution of bulk material can generate higher electrostatic charges.

To avoid electrostatic discharge the following remedial actions are possible, among others:

• Equalisation of potential according to the installation instructions

• Separate laying of

• signal and bus cables

• equipotential bonding conductors

• power cables

• physical separation of the AirBox and all cables from all parts carrying or discharging electrostatic charges

If these discharges are not avoided there is the danger of:

• injury to/incapacitation of operators and maintenance staff
• spark formation
• damage to the AirBox
• damage to the electrical equipment

The electrical triggering has priority over the mechanical triggering.

Assignment of the data bits

M12 socket	I-1/PIN	I-2/PIN
sensor supply L+	1	1
sensor supply L-	3	3
data input I	4	—
data input II	2	4
not used	5	2+5

Data bit	D0 D1 D2 D3
Inputs / outputs	I-1 I-2 O-3

Operation

Check the safe functioning of the unit. Display by LEDs:

• LED green: supply voltage via the AS-i system
• LEDs yellow: external voltage supply

For trouble-free operation sufficiently treated air must be used (filtered air 5 m , lubricated (ISO-VG10)1) or not lubricated). Once the AirBox has been operated with lubricated air, it always has to be operated with lubricated air as the oil removes the initial lubrication.

1) You can find further notes on compressed air and EMC/ESD for the AirBox at www.ifm-electronic.com. Enter the article number of your AirBox on the start page under "Data sheet direct". You receive the additional product information by clicking on "Additional data".
