| Product type | AS-i controller (Industrial automation) |
| Brand | IFM |
| Model | AC1307 |
| Category | Industrial automation |
| Power supply | 24 V DC (20...30 V SELV) |
| Programming interface | RS232C, 4800 to 115200 baud |
| Ethernet interface | Ethernet/IP, 10/100 Mbps, TCP/IP, UDP |
| Supported protocols | Ethernet/IP, Modbus/TCP |
| Number of AS-i masters | 1 (AC1307) |
| AS-i version | 2.1 |
| Mounting | On 35 mm profile rail |
| Protection rating | IP20 |
| Diagnostic LEDs | PWR/COM, PROJ, CONF/PF |
| Ethernet LEDs | Module Status, Net Status, Transmission activity |
| Dimensions (approx.) | 100 x 80 x 60 mm |
| Weight (approx.) | 200 g |
| Main functions | Control of AS-i slaves, signal preprocessing, Ethernet communication, programming via RS232 |
| Maintenance | Avoid condensation, dust, vibrations; ensure air circulation |
| Safety | Disconnect power before connection; do not connect negative potentials; ground via FE terminal |
| Spare parts | Programming cable E70320, 24V power supply DN2011 |
Frequently Asked Questions - AC1307 IFM
User questions about AC1307 IFM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Industrial Automation in PDF format for free! Find your manual AC1307 - IFM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AC1307 by IFM.
USER MANUAL AC1307 IFM
- LED Module Status:
• LED Link to Ethernet:
Function and features
- The controller _e integrates one or two AS-i masters (AC1307/AC1317, both in accordance with the AS-i version 2.1), a mini controller and an Ethernet IP interface.
- It controls the exchange of data to the sensor / actuator level
- processes the peripheral data in the integrated processor (signal preprocessing)
- works as stand-alone controller with exchange of data to the PC (visualisation)
- communicates with the higher control level (in the gateway mode) (Ethernet / IP, Modbus /TCP)
Programming interface RS232C
• Baud rate 4800 to 115,200 baud
- Max. distance between controller e and host: 20m
- Potential separation from the controller e power supply
- Programming cable E70320 for connection to host required
Ethernet interface
- Ethernet / IP 10Mbps and 100Mbps
- TCP/IP - Transport Control Protocol/ Internet Protocol
• UDP - User Datagram Protocol - IT functionality: file system, FTP server, Telnet server, HTTP server, E-mail client
- RJ45, Twisted-Pair
Installation
Fix the controller _e onto a 35mm rail. The protection rating of the unit is IP20, therefore it should be mounted in a protected location (e.g. control cabinet).
Ensure a condensation-free environment. Avoid excessive dust, vibration and shock. The air circulation through the vents must not be impeded.
Avoid installation in direct vicinity of frequency inverters.
Electrical connection
Disconnect the installation from power. Connect the unit as indicated on the terminals. Never connect the minus potentials to each other or the minus potentials to the FE connection. Ensure an electrically save ground connection between AS-i controller _e (terminal FE) and ground of the unit.
Supply the controller _e with a 24V DC voltage (20 ... 30V PELV), e.g. from the 24V power supply DN2011 of ifm electronic. The connection is made to the terminals +24V and 0V.

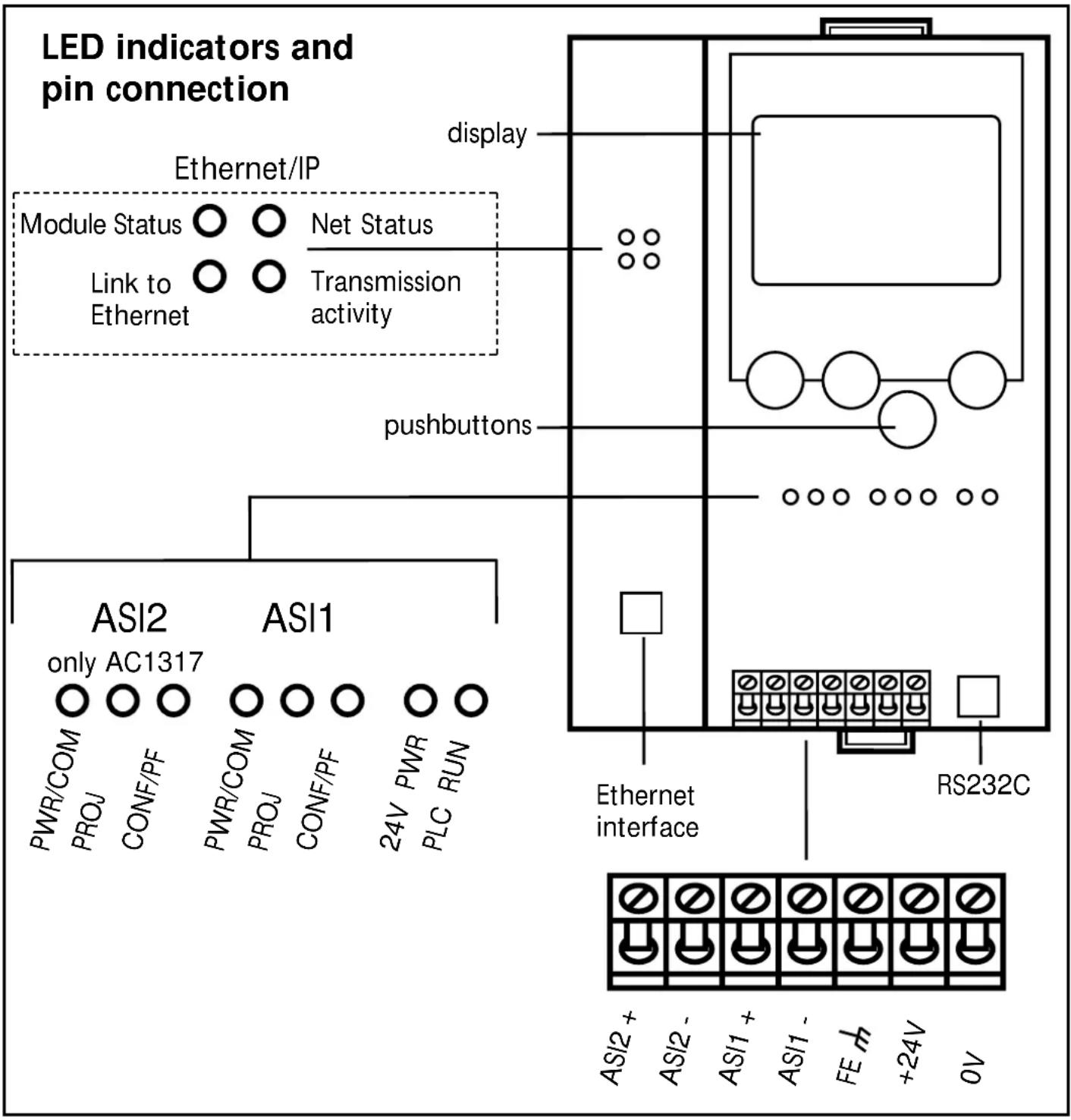

Operating and indicating elements
Information concerning the state of the master (AC1307)/masters/AC1317) and the connected system is given via three diagnostic LEDs on the controller _e .
- LED PWR/COM lights: AS-i voltage present, at least one slave was detected
- LED PWR/COM flashes: AS-i voltage present, but no slave was detected correctly
- LED PROJ lights: Projection mode active, the configuration monitoring is deactivated
- LED PROJ flashes: Projection mode active, changeover to protected mode not possible as a slave with the address 0 is connected
- LED CONF/PF lights: Projected and current configuration do not match
- LED CONF/PF flashes: Periphery fault on at least one connected slave
Ethernet Status LEDs
- LED Module Status:
green flashes 1Hz: The IP address is freely selectable red flashes 1Hz: Invalid MAC ID (internal fault Ethernet interface)
red flashes 2Hz: No valid Ethernet configuration loaded
red flashes 4Hz: internal fault Ethernet interface red lights: double IP address recognised
- Status NET LEDs:
off: No voltage or no IP address green lights: Connected with Ethernet / IP green flashing: No connection made to Ethernet / IP red flashing: Connection Timeout red lights: Double IP address red/ green light: Self-test
• LED Link to Ethernet:
green lights: Controller _e is connected to an Ethernet network off: No connection made to Ethernet network
• LED Transmission activity: Flashing green for every data package transferred
Contrast setting
The contrast can be directly changed by simultaneously pressing the right button and the -button (too bright) or the -button (too dark).

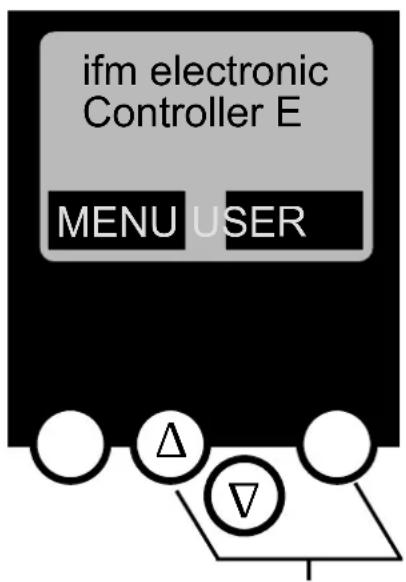

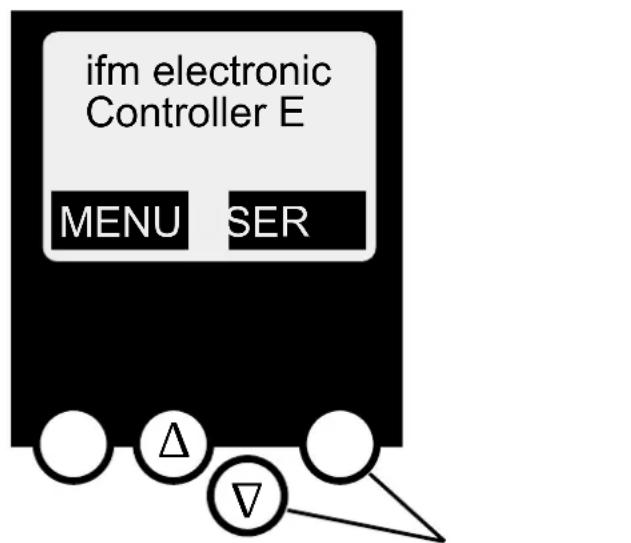

Operation
To operate an AS-i system a special AS-i power supply is required (e.g. AC1216). The AS-i power supply supplies the yellow AS-i cable with energy and implements a data decoupling to the voltage regulator of the power supply. Standard switched-mode power supplies would consider the AS-i data signals as interference signals and suppress them.
Disconnect the power supply before connecting the controller _e .
The AS-i system is operated ungrounded. AS-i + and AS-i - are to be symmetrical to the ground potential of the installation. Ensure a low resistance connection of the symmetry point of the AS-i power supply (terminal shield) to the ground of the installation.
Menu overview
Open the main menu by pressing the left button "MENU" in the start display.
To navigate within a menu point press the button or .
Press the buttons simultaneously to switch between the German and English menu.

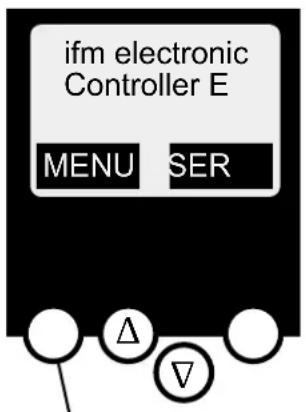

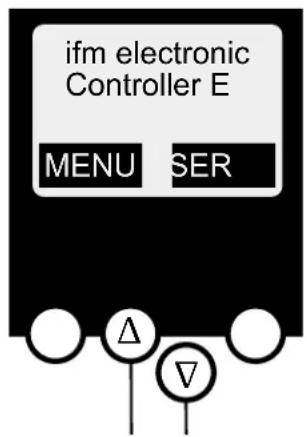

Menu navigation
O Slave lists (Checking of the addresses of the connected AS-i slaves)
∇ List of the detected AS-i slaves (LDS)
∇ List of the projected AS-i slaves (LPS)
∇ List of the activated AS-i slaves (LAS)
∇ List of the AS-i slaves with periphery fault (LPF)
O Address slave (Programming of the correct addresses in the connected AS-i slaves)
∇ Readdressing of an AS-i slave connected to the controller _e
∇ Automatic addressing of new AS-i slaves to the next free address (easy startup)
O Quick setup (Summary of the menu points required for a basic configuration)
∇ Reading of the current AS-i configuration (config all)
∇ Setting of the fieldbus connection (optional)
O System setup (Setting of the controller e device)
∇ Baud rate of the serial programming interface
∇ IP address of the Ethernet programming interface (optional)
∇ Input of the password to enable changes in the system configuration
∇ Update of the controller _e firmware (special programming software required)
O System info (Device information)
∇ Hardware and firmware version numbers of this controller e
∇ Serial number of this controller e
∇ Current / maximum PLC cycle time
O PLC setup
∇ Start or stop of the PLC in the controller _e
O PLC info (Display of the user program name, author, date)
O Master setup (AS-i master flags)
∇ Reading of the current AS-i configuration (config all)
∇ Changeover to the projection mode: configuration of the AS-i system
∇ Changeover to the protected mode: standard mode (the master monitors the configuration)
∇ Deactivation of the automatic AS-i slave addressing in the protected mode
∇ Deactivation of the AS-i reset when exiting the projection mode
∇ Display of the config error counter of the connected AS-i system
∇ Reset of the config error counter
∇ Display of the percentage fault rate of the connected AS-i system
O Slave setup (Details about the connected AS-i slaves)
∇ Digital or analogue inputs/outputs of the connected AS-i slaves
∇ Current and projected parameters of the connected AS-i slaves
∇ Current and projected I/O and ID codes of the connected AS-i slaves
∇ Message faults in the communication to the connected AS-i slaves
O Fieldbus setup(The different fieldbus interfaces are optional)
∇ Input of the IP address of the controller _e in the higher-level system
∇ Input of the Subnet Mask
∇ Reading of the MAC ID
∇ Input of the module lengths
| Module 1 = Digital inputs master 1A |
| Module 2 = Digital outputs master 1A |
| Module 3 = Digital inputs master 2A |
| Module 4 = Digital outputs master2A |
| Module 5 = Digital inputs master 1B |
| Module 6 = Digital outputs master1B |
| Module 7 = Digital inputs master 2B |
| Module 8 = Digital outputs master2B |
| Module 9 = Analogue multiplex input |
| Module 10 = Analogue multiplex output |
| Module 11 = Command channel |
| Module 12 = PLC inputs |
| Module 13 = PLC outputs |
| Module 14 = Analog Input Master 1 |
| Module 15 = Analog Output Master 1 |
| Module 16 = Analog Input Master 2 |
| Module 17 = Analog Output Master 2 |
| Module 18 = Diagnosis |
O Fieldbus data (optional)
∇ Display of the data cyclically transmitted via the fieldbus
