| Product type | AS-i AirBox 42 interface module |
| Brand | IFM |
| Model | AC046A |
| Category | Industrial automation |
| Intended use | Explosive atmospheres ATEX II 3D (dust atmospheres) |
| ATEX marking | II 3D T 65°C IP65 X |
| Permissible ambient temperature | 0 to +40°C |
| Protection rating | IP65 |
| Power supply | Via AS-i bus (standard voltage 30 Vdc) |
| Interface | AS-i (Actuator-Sensor Interface) |
| Housing material | Plastic |
| Mounting | On 35 mm profile rail or mounting plate via AC5000 base |
| Connection | AS-i flat cable and M12 connectors |
| Tightening torque (top part screws) | 0.8 Nm |
| Tightening torque (M12 connectors) | 0.8 Nm |
| Sealing plugs (ref. AC3004) | Tightening torque 0.8 Nm |
| Maximum impact energy | 1.5 J (low energy) |
| Maintenance and repair | No repair possible, contact the manufacturer in case of failure |
| Cleaning | Damp cloth only, avoid electrostatic charges |
| UV protection | Avoid direct sunlight |
| Special installation conditions | Avoid dust flow and deposits, avoid electrostatic charges |
Frequently Asked Questions - AC046A IFM
User questions about AC046A IFM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Industrial Automation in PDF format for free! Find your manual AC046A - IFM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AC046A by IFM.
USER MANUAL AC046A IFM
- According to the ATEX directive 94/9/EC (ATEX) the original operating instructions and a translation of these operating instructions into the language or languages of the EU user country must be provided when a unit or protective system is put into operation within the member countries of the European Union (EU).
- If no operating instructions or EC declaration of conformity is supplied with this product in the language of the EU user country, these can be requested from your dealer (see delivery note) or manufacturer (see cover sheet / back).
- Only qualified personnel is allowed to set up the product. Furthermore, we expressly point out that any liability is excluded resulting from putting the unit into operation without the corresponding operating instructions in the language of the EU user country.
ESEspañol

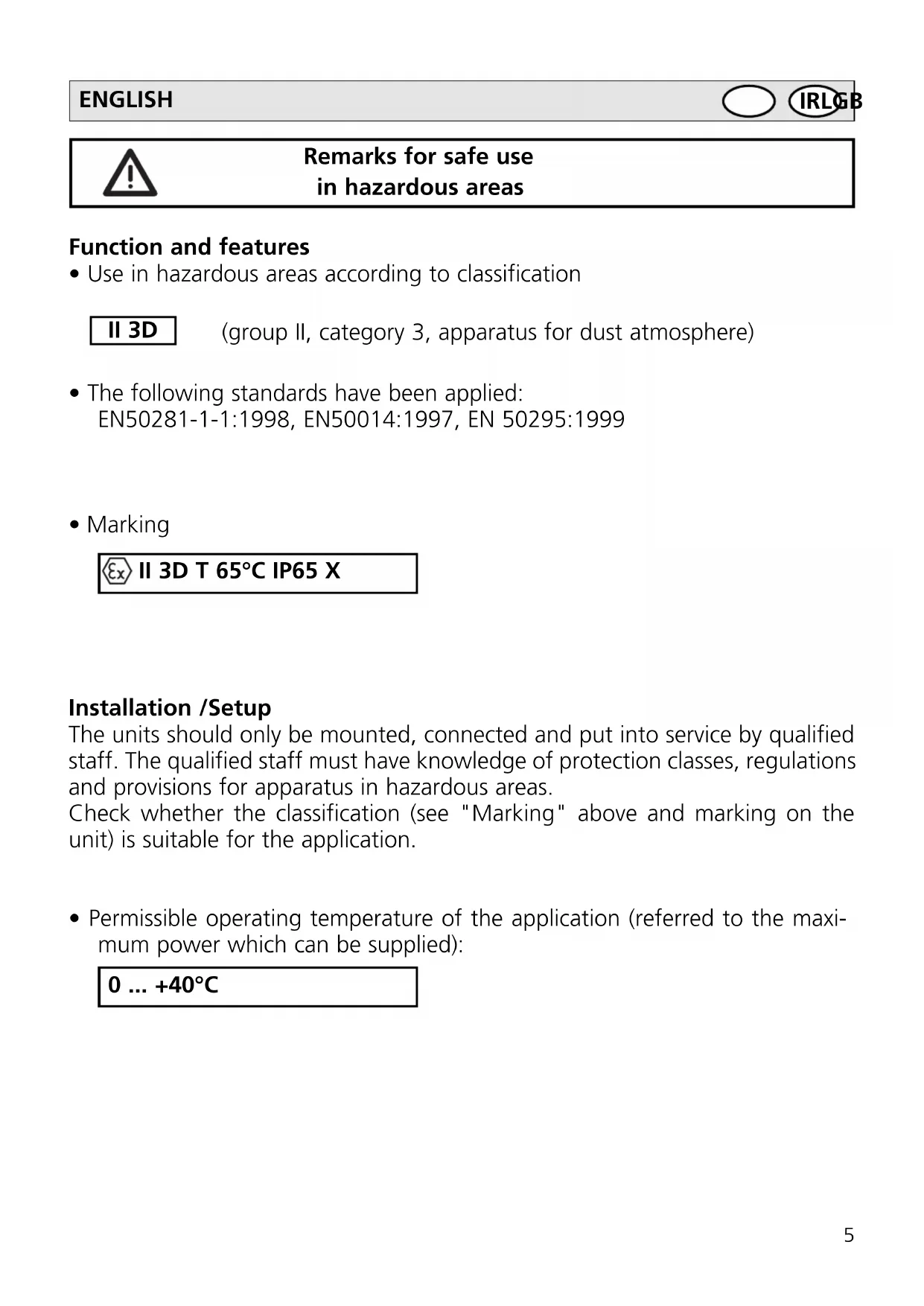

Remarks for safe use in hazardous areas
Function and features
- Use in hazardous areas according to classification
II 3D
(group II, category 3, apparatus for dust atmosphere)
- The following standards have been applied: EN50281-1-1:1998, EN50014:1997, EN 50295:1999
- Marking
II 3D T 65°C IP65 X
Installation /Setup
The units should only be mounted, connected and put into service by qualified staff. The qualified staff must have knowledge of protection classes, regulations and provisions for apparatus in hazardous areas.
Check whether the classification (see "Marking" above and marking on the unit) is suitable for the application.
- Permissible operating temperature of the application (referred to the maximum power which can be supplied):
0 ... +40°C
Installation remarks/Mounting
- Adhere to the respective national regulations and provisions.
- Before mounting ensure that the installation is disconnected from power.
- Fasten the FC lower part AC5000 on a 35mm rail or on a mounting device. Mount the module on the wired FC lower part. The FC lower part must not be operated without an ATEX approved upper part.
- To maintain the specified protection class, the 4 screws of the upper part must be tightened evenly crosswise with 0.8Nm. When mounting the module ensure that the seal is carefully inserted.
- During installation and laying the bending radii of the cables and a suitable strain relief must be such that neither the cable entries nor the seals are subjected to mechanical stress.
Special conditions for safe operation
- Avoid electrostatic charging from plastic units and cables.
- Do not mount the module in the dust flow.
- Avoid dust deposits on the module.
- Avoid electrostatic charging, only clean the unit with a damp cloth. In principle, rubbing with non-conductive materials must be avoided.
- Avoid direct radiation with high UV components (sunlight), mount the unit at a protected place.
- The unit is rated for a low impact energy (mechanical damage) (1.5 joules). The module housing and the cables must be effectively protected against mechanical stress and damage by means of appropriate measures.
- Insert the blanking seals in the FC lower part if the module is located at the end of the cable line. The end of the flat cable must be located inside the module.
- Cover any unused sockets with protective caps (AC3004), tightening torque 0.8Nm.
- Do not separate the module upper part from the FC lower part while live.
- Do not disconnect the M12 connections while live.
- Use M12 connectors with hexagon nuts, tightening torque 0.8Nm.
- Check the tightening torque of the screws two weeks after mounting and retighten them, if necessary.
- Protective caps, housing upper / lower part and M12 nuts may only be opened or closed in a sufficiently clean environment.
- Using an FC lower part with addressing socket is not permitted.
- For use in hazardous areas according to the indication compliance with the protection rating is essential. Therefore appropriate care must be taken when mounting the housing and the seals, see installation instructions / mounting.
Maintenance /Repair
The unit must not be modified nor can it be repaired. In case of a fault please contact the manufacturer.
