USER MANUAL CBC124113.1 Emerio

Instruction manual – English ...................................................................................... - 2 - Bedienungsanleitung – Deutsch ............................................................................... - 12 - Mode d‘emploi – Français ........................................................................................ - 23 - Manuale d'istruzioni – Italiano ................................................................................. - 34 -- 2 - Instruction manual – English SAFETY INSTRUCTIONS Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual. In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

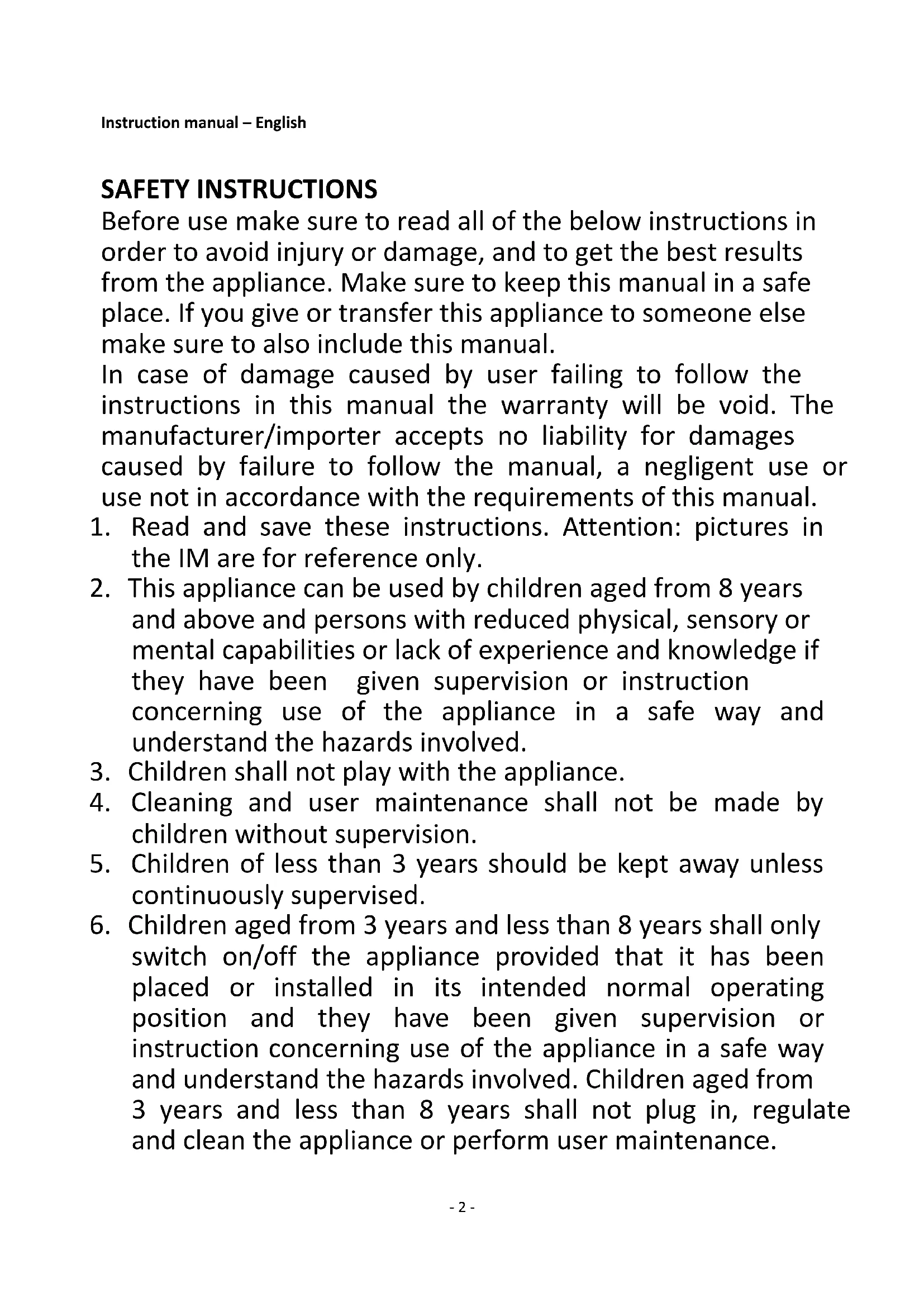

1. Read and save these instructions. Attention: pictures in

the IM are for reference only.

2. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by

children without supervision.

5. Children of less than 3 years should be kept away unless

continuously supervised.

6. Children aged from 3 years and less than 8 years shall only

switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.- 3 -

7. CAUTION — Some parts of this product can become very

hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

8. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

10. This appliance is intended to be used in household and

similar applications.

11. The heater is not intended for use in bathrooms, laundry

areas or similar indoor locations. Never place the heater where it may fall into a bathtub or any other water container.

12. Do not use outdoors. Do not use to dry clothes or any

13. The heater must not be located immediately below a

14. Do not use the heater if the power cord is damaged.

15. Do not use the heater in areas where flammable liquids

are stored or where flammable fumes may be present.

16. WARNING: In order to avoid overheating, do not cover

17. WARNING: The heater must not be used if the panel is

18. Do not use this heater in the immediate surroundings of a

bath, a shower or a swimming pool.

19. Means “DO NOT COVER“.

20. Keep combustible material such as furniture, cushions,

bedding, paper, clothes, curtains etc. at least 100cm away from the heater.- 4 -

21. This heater has hot and arcing or sparking parts inside. Do

not use it in the areas where gasoline, paint, or flammable liquids are used or stored.

22. To prevent overloading a circuit, do not plug the heater

into a circuit that already has other appliances working. Do not install the heater under the wall socket.

23. Always unplug the appliance when not in use.

24. The appliance is hot when in use. Do not touch the heater

panel when it switches on.

25. The heater is designed to be wall mounting, do not mount

26. Always switch the heater off, unplug it and leave to cool

down before: - cleaning the heater - carrying out maintenance on the heater - touching or moving the heater.

27. Keep a distance of at least 40cm in the front and 20cm on

the sides to any object and wall.

28. Keep away babies and children from all packaging material

such as plastic bags to avoid danger of suffocation.

29. The appliance (incl. cord and plug) may only be opened

and/or repaired by properly authorized and qualified persons.

30. Only use this heater for its intended purpose and as

described in this instruction manual.

31. Regarding the information pertaining to the installation,

please refer to the below paragraph of the manual.- 5 - CBC-124113.1 EN

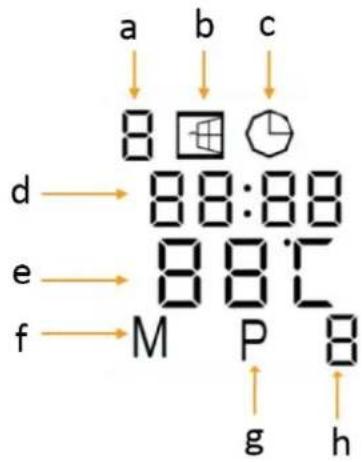

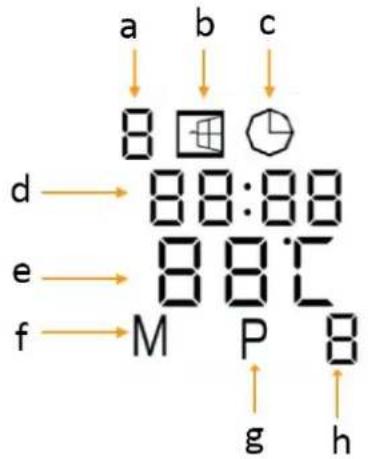

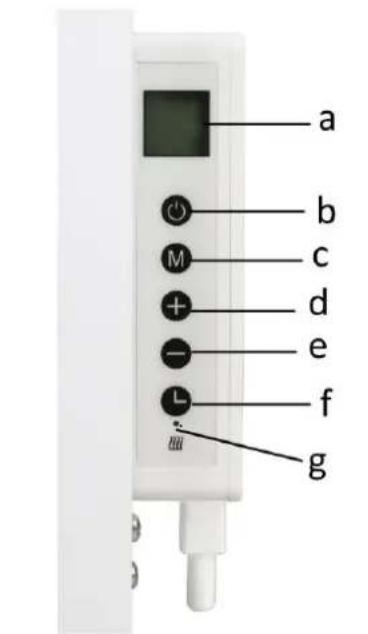

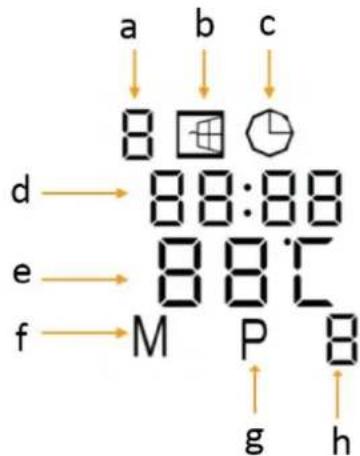

a) LCD display b) On/off button c) Mode button d) Value increase button e) Value decrease button f) Timer button g) Heating light LCD display a) Date icon b) Icon of open-window detection function c) Icon of timer d) Time e) Temperature f) Icon of normal mode g) Icon of weekly schedule h) Period of the weekly schedule WALL MOUNTING There is a pack of accessories provided with the appliance. Please use them for wall mounting according to below illustrations. Before installation, make sure the appliance is turned off and disconnected from power.

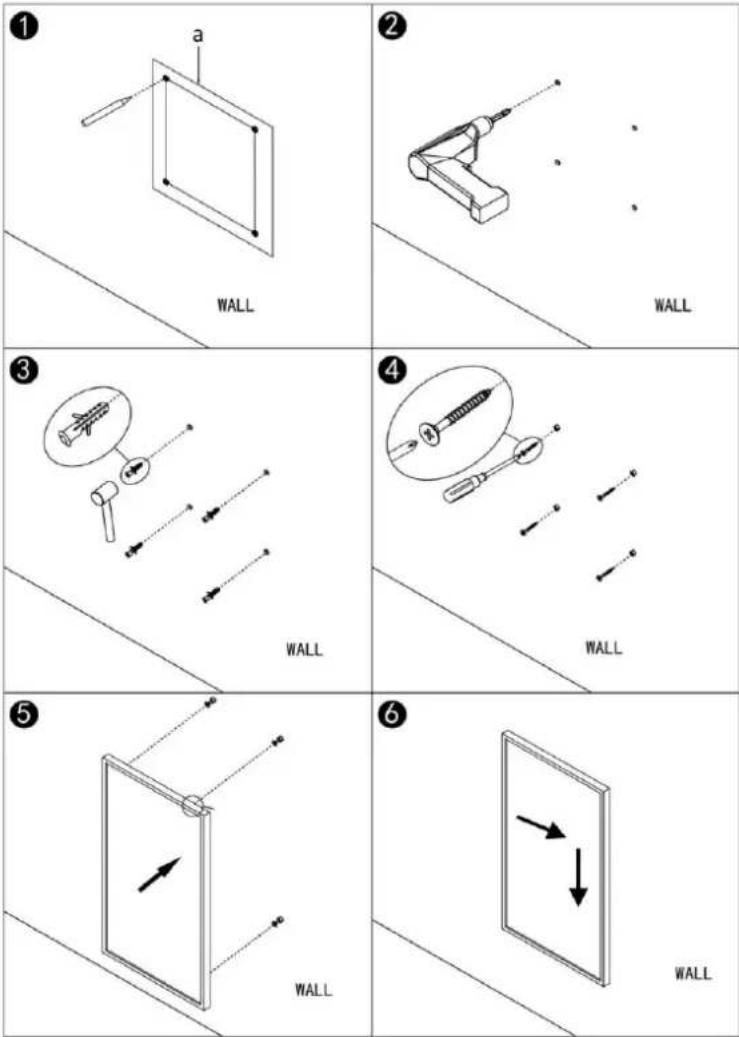

1. Use the supplied installation template (a) to mark the position of the holes on the wall.

2. Drill holes using a 8mm drill.

3. Insert the plastic expansion bolts into the holes.- 6 -

4. Screw the 4pcs screws into the plastic expanison bolts.

5. Mount the appliance on to the screws.

6. Move the appliance to the right and then down unitl it’s secured.

NOTE: The kit supplied in the package is designed for mounting vertically on a solid wall. The heater must be at least 20 cm removed from all objects, walls, etc.; the distance to the floor must be at least 20 cm and there must be at least 20 cm above the heater.

OPERATION Plug the appliance into an appropriate electrical outlet. Power on the appliance by pressing the power switch to position “I”. The power switch will be illuminated. LCD display lights up and shows “OFF”. The appliance is standby. Press the on/off button “ ” to turn on your appliance.

1. Temperature calibration

Long press the button “+” for 5 seconds to enter the temperature calibration, adjusting the number by pressing button “+” or “-“. The calibration ranges from -5 to +5 degrees.

2. Set the temperature.

1) Press the button “+” or “-” to set your desired temperature. You can choose from 0℃ to 37℃.

2) The display will flash the set temperature a few seconds and then turn back to show the current

temperature. It means the temperature has been set.

3) If the set temperature is higher than the current temperature, the appliance will start to heat, and the- 7 -

heating light will be illuminated. If the set temperature is reached, the appliance will automatically switch off and then swich on again when the room cools down. The heating light will be off and illuminated again accordingly.

Short press button “ ”, the timer “00 H” shows in the display. Press button “+” or “-” to set the desired working time from 0 to 24 hours. The appliance will shut itself off automatically when the time is up.

Press button “ ” again to turn off the appliance. Turn off the power switch and unplug the power cord from the outlet.

5. Weekly timer function

A. Time setting: Set the current day and time (so that you can set the weekly timer function later)

1) When the appliance is on, long press button “ ” until you hear “DI” sound; the date icon flashes,

press button “+” or “-“ to set the day of today from 1 to 7; 1 = Monday, 2 = Tuesday, 3 = Wednesday, 4 = Thursday, 5 = Friday, 6 = Saturday, 7 = Sunday

2) Short press button “ ”, the hour flashes, press button “+” or “-“ to set current hour from 00 to 23;

3) Short press button “ ”, the minute flashes, press button “+” or “-“ to set current minute from 00 to

59; B. Weekly schedule: When the appliance is on, press button “M” to switch to the weekly schedule mode, icon “P” will appear on the display. Now the appliance will work according to the default program setting like below: Four periods of the programs each day. Monday 1 / Tuesday 2 / Wednesday 3 / Thursday 4 / Friday 5 / Saturday 6 / Sunday 7 Period P 1 P 2 P 3 P 4 Time 6:30 8:00 18:00 22:30 Temperature 21℃ 18℃ 21℃ 16℃ For example: on Monday, the first period (P 1) is from 6:30 to 8:00, the set temperature for this period is 21℃; the second period (P 2) is from 8:00 to 18:00, the set temperature for this period is 18℃; the third period (P 3) is from 18:00 to 22:30, the set temperature for this period is 21℃; the forth period (P 4) is from 22:30 to 6:30 of the Tuesday, the set temperature for this period is 16℃. If you want to adjust the set temperature once for the current time period. You can directly press button “+” / “-“. The appliance will not record this change. If you want to permanently modify the weekly schedule, please follow the steps below:

1) Long press button “M” until you hear “DI” sound; the date icon flashes, press button “+” or “-” to

choice which day you want to modify; “P 1” will show on the display.

2) Short press button “M”, the time flashes; press button “+” or “-” to adjust the start time of the first

4) Short press button “M” to shift to the second period of setting; the time flashes again, press button

“+” or “-” to adjust the start time of this period. Each press for 15 mintues.

6) Repeat above operation to set the third and forth periods.

7) To leave the settings, press time button “ ”.

Note: If the appliance is switched off by using the power switch or by removing the plug from the electrical outlet, all settings will be lost. Open-window detection function The appliance is equipped with an open-window detection function. If our control system detects that the room temperature decreases dramatically in short period when the heater is in the heating status, it will recognize that a window is open. The window sign on the screen will start to flash and the heater will be powered off for 30 minutes and get back to the previous setting automatically after 30 minutes. Long press button “-” for 5 sceonds to turn on/off this function, and the icon “ ” will appear or disappear accordingly. SAFETY SYSTEM The appliance has a safety system which automatically switches the unit off when overheated.

Always un-plug the heater from the wall socket and allow it to cool down completely before cleaning. Clean the outside of the heater by wiping with a damp cloth and with a dry cloth. Do not use any detergents or abrasives and do not allow any water to penetrate the heater.

When the heater is not used for long time it should be protected from dust and stored in a clean dry place. TECHNICAL DATA: Operating voltage: 220-240V ~ 50Hz Power consumption: 350W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.- 9 -

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Emerio Switzerland AG Oberneuhofstrasse 1 6340 Baar Switzerland- 10 - ERP information (EN) Supplier: Emerio Switzerland AG Oberneuhofstrasse 1 6340 Baar Switzerland Declare that the product detailed below: Information requirements for electric local space heaters Model identifier(s): Item Symbol Value Unit Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one)

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At minimum heat output

single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer Yes

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection Yes

with distance control option

with adaptive start control No- 11 -

with working time limitation

with black bulb sensor
