Product type	Smart vibration sensor
Brand	Niceboy
Model	ION ORBIS Vibration Sensor
Dimensions	34 x 41 x 15 mm
Power supply	CR2032 battery (included)
Wireless protocol	Zigbee
Range	Up to 30 meters (indoor)
Detection	Vibrations and movements
Installation	Double-sided adhesive, tool-free
Application	Niceboy ION (iOS and Android)
Compatibility	Requires Niceboy ION ORBIS Bridge
LED indicator	Yes (LED light)
Reset button	Yes (hidden under the droplet icon)
Adjustable sensitivity	Yes, via the app
Operating temperature	-10°C to +50°C
Operating humidity	0 to 95% RH
Operating frequency	2400 - 2483.5 MHz
Max transmission power	9.99 dBm
Package contents	Sensor, 3M double-sided adhesive tape, manual
Maintenance and cleaning	Clean with a dry cloth, avoid any liquids
Safety	Do not expose to water, do not repair yourself, keep out of reach of children, risk of button battery ingestion
Spare parts and repairability	Replaceable battery (CR2032); no other spare parts provided
General information	Made in China; compliant with EU and RoHS directives; indoor use only

Frequently Asked Questions - ION ORBIS Vibration Sensor Niceboy

How to install the Niceboy ION ORBIS vibration sensor?

Remove the protective film from the double-sided sticker, place the sensor at the desired location and press firmly. No tools are required. Make sure you have previously installed the Niceboy ION app and the Niceboy ION ORBIS Bridge.

What type of battery does the sensor use and how to insert it?

The sensor uses a CR2032 battery. Open the compartment (under the droplet icon), insert the battery respecting polarity, then hold the reset button for 5 seconds until the LED flashes rapidly.

How to add the sensor to the Niceboy ION app?

Two methods: (a) Open the app > My Home > ORBIS Bridge > Zigbee device list > Add a new device. (b) Press '+' > Sensors > Vibration sensor, select the Zigbee gateway, follow the instructions. Make sure the LED is flashing rapidly.

How to reset the sensor?

Hold the reset button (hidden under the droplet icon) for 5 seconds until the LED flashes rapidly. This resets the sensor to pairing mode.

How to adjust the sensor sensitivity?

In the Niceboy ION app, open the product, go to Configure alarm then Configure sensitivity. You can adjust the level as needed.

Can the sensor be used outdoors?

No, this product is intended for indoor household use only. Do not expose it to rain, excessive humidity, or temperatures outside the range of -10°C to +50°C.

What to do if the LED does not flash or the sensor does not connect?

Check that the battery is correctly inserted and you are near the Bridge. Reset the sensor (button 5 seconds). If the problem persists, remove and reinsert the battery, then try pairing again.

Can the sensor be used as a primary security device?

No, this product is designed for comfort and automation. It should not be used as a primary security device for a home, building, or warehouse.

How to dispose of the sensor at the end of its life?

Do not dispose of the device with household waste. Take it to an electronic waste collection point. Remove the battery and dispose of it according to local regulations.

What are the risks associated with the button battery?

The CR2032 battery poses an ingestion risk, which can cause severe internal burns in 2 hours. Keep batteries out of reach of children. If swallowed, seek medical attention immediately.

USER MANUAL ION ORBIS Vibration Sensor Niceboy

molecularly PCY ① ②

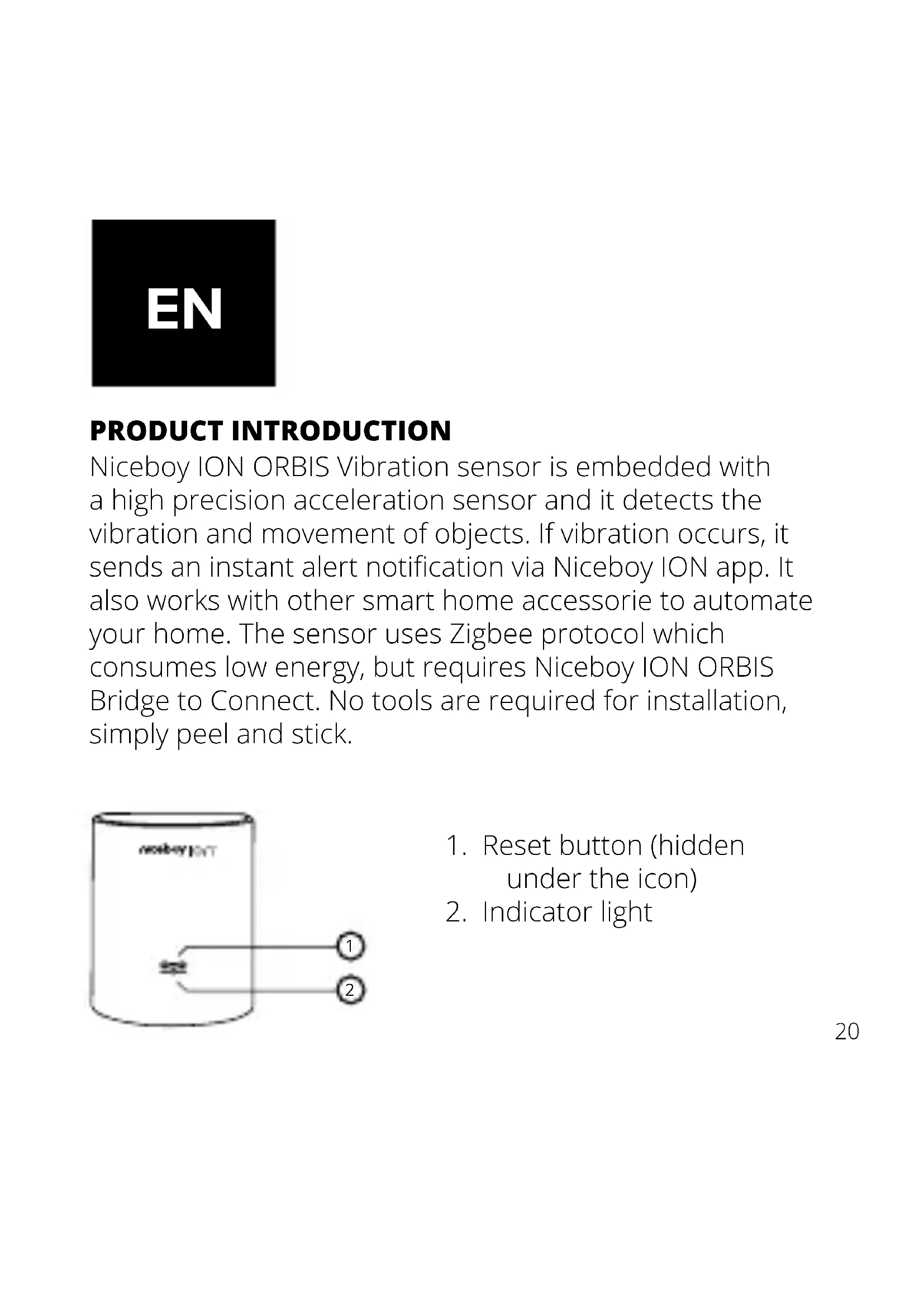

PRODUCT INTRODUCTION

Niceboy ION ORBIS Vibration sensor is embedded with a high precision acceleration sensor and it detects the vibration and movement of objects. If vibration occurs, it sends an instant alert notification via Niceboy ION app. It also works with other smart home accessorie to automate your home. The sensor uses Zigbee protocol which consumes low energy, but requires Niceboy ION ORBIS Bridge to Connect. No tools are required for installation, simply peel and stick.

noobay1DCT ① ②

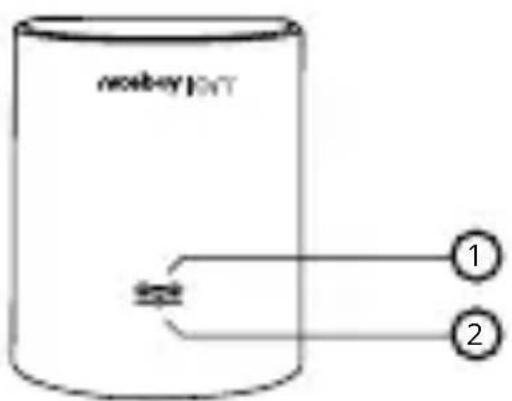

1. Reset button (hidden under the icon)
2. Indicator light

QUICK SETUP

1. Before activating the accessory, please make sure you have the Niceboy ION app downloaded and Niceboy ION ORBIS Bridge installed.
2. Insert the battery inside the sensor unit (CR2032 type). Then hold the reset button for 5 seconds until the indicator light starts flashing rapidly. The reset button is hidden under the water drop icon.
3. There are two methods to add the device

a. Open the Niceboy ION app, tap "Home" and then open Niceboy ION ORBIS Bridge. Click on „Zigbee devices list“, then on „Add device“ and then on „Add new devices“. The app will start looking for nearby devices. Once the device is found, it will appear on the screen. Click on the device and add it to your app.

b. Open the Niceboy ION app, and then tap “+” in the top right corner to enter “Add Device page”. Select “Sensors”, then click on „Vibration sensor“ and choose the Zigbee gateway (Niceboy ION ORBIS Bridge). Confirm that you inserted batteries, reseted the device and that the light indicator is blinking rapidly (step 2).

The app will start looking for a new device. Once the device is found, just add it to the app.

1. New device will be visible in Niceboy ION ORBIS Bridge and also on the page „Home“.
2. You can set the sensitivity in the Niceboy ION app. Open the product, go to „set alarm“, then click to „set sensitivity“.

INSTALLATION

1. Option 1: Place it directly on the surface where you need to monitor.
2. Option 2: Remove the protective film from the sticker, place it on the sensor unit and stick it to the desired position.
3. You can set the sensitivity in the Niceboy ION app. Open the product, go to „set alarm“, then click to „set sensitivity“.

WARNINGS

• This product is NOT a toy. Please keep children away from this product.
• This product is designed for indoor use only. Do NOT use in humid environments or outdoors.
• Beware of moisture, do NOT spill water or other liquids onto the product.
• Do NOT place this product near a heat source. Do NOT place it in an enclosure unless there is normal ventilation.
• Do NOT attempt to repair this product by yourself.
• All repairs should be performed by an authorized professional.
• This product is only suitable for improving the entertainment, convenience of your home life and reminding you about the device status. It should NOT be used as security equipment for home, building, warehouse or any other places.
• If a user violates the product use instructions, the manufacturer will NOT be liable for any

CAUTION

• Risk of explosion if the battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
• Do not ingest battery, Chemical Burn Hazard.
• This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
  • Leaving a battery in an extremely high temperature surrounding environment that can result in an explo-

sion or the leakage of flammable liquid or gas.

• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• Improper handling (prolonged charging, short circuit, breakage by another object, etc.) may result in, for example, fire, overheating or battery leakage.
• The battery or accumulator that may be included with the product has a life of six months because it is a consumable item.

SPECIFICATIONS

Model: ORBIS Vibration sensor

Dimensions: 34 x 41 x 15 mm

Wireless Protocol: Zigbee

Battery: CR2032

Operating Temperature: -10^ - +50^ ( 14^ - 122^ )

Operating Humidity: 0 - 95 % RH

Maximum Transmit Power (Zigbee): 9.99 dBm

Working Frequency: 2400 MHz - 2483.5 MHz

Packing list: Water sensor, double-si-

ded tape, manual

RTB Media s.r.o. hereby declares that the type of radio equipment ORBIS Vibration sensor complies with Directives 2014/53 / EU, 2014/30 / EU, 2014/35 / EU, and 2011/65 / EU. The full content of EU Declaration of Conformity is available on the following websites: https://niceboy.eu/cs/podpora/prohlaseni-o-shode-mM38CtmYvX693IHvvu4CWpk3vjJGrvnC

USER INFORMATION FOR DISPOSING ELECTRICAL AND ELECTRONIC DEVICES (HOME USE)

This symbol located on a product or in the product's original documentation means that the used electrical or electronic products may not be disposed together with the communal waste. In order to dispose of these products correctly, take them to a designated collection site, where they will be accepted for free. By disposing of a product in this way, you are helping to protect precious natural resources and helping to prevent any potential negative impacts on the environment and human health, which could be the result of incorrect waste disposal. You may receive more detailed information

from your local authority or nearest collection site. According to national regulations, fines may also be given out to anyone who disposes of this type of waste incorrectly. User information for disposing electrical and electronic devices.

(Business and corporate use)

In order to correctly dispose of electrical and electronic devices for business and corporate use, refer to the product's manufacturer or importer. They will provide you with information regarding all disposal methods and, according to the date stated on the electrical or electronic device on the market, they will tell you who is responsible for financing the disposal of this electrical or electronic device. Information regarding disposal processes in other countries outside the EU. The symbol displayed above is only valid for countries within the European Union. For the correct disposal of electrical and electronic devices, request the relevant information from your local authorities or the device seller.

Information on all frequency bands in which the radio equipment operates and intentionally transmits radio waves as well as the maximum radio frequency power transmitted in the frequency band in which the radio equipment is operated is included in the instructions and safety information.
