ION ORBIS Bridge - Smart Home Niceboy - Free user manual and instructions

Product type	Smart home control hub
Brand	Niceboy
Model	ORBIS Bridge
Dimensions	60 x 60 x 15 mm
Power supply	Micro USB, power adapter 100-240 V~ 50/60 Hz, 5 V / 1 A
Wireless protocol	Wi-Fi IEEE 802.11 b/g/n (2.4 GHz), Zigbee 3.0, Bluetooth 5.0
Operating frequency	2400-2483.5 MHz
Maximum transmission power (Zigbee)	9.99 dBm
MESH support	Yes
Maximum number of devices	128
Range without obstacles	Up to 90 meters
Operating temperature	-10 to +50 °C
Operating humidity	10-90% RH, non-condensing
Package contents	Detection unit, magnetic unit, 3M sticker, user manual
Main functions	Connects Zigbee and Bluetooth devices to WiFi, automation via the Niceboy ION app
Safety	Indoor use only, do not expose to water or heat, repairs by a qualified professional
Care and cleaning	Clean with a dry, soft cloth
Repairability	Do not attempt to repair yourself, contact a qualified professional
Manufacturer	RTB media s.r.o., Prague, Czech Republic
Country of origin	China

Frequently Asked Questions - ION ORBIS Bridge Niceboy

How to install the Niceboy ION ORBIS Bridge?

Plug the adapter into a power outlet. Make sure your phone is connected to the 2.4 GHz Wi-Fi network and Bluetooth is enabled. Press and hold the reset button for 5 seconds until the blue light flashes rapidly. Open the Niceboy ION app, tap '+', and follow the instructions.

What to do if the blue light does not flash?

If the blue light does not flash rapidly after holding the reset button, press the button once, then press and hold it again for 5 seconds.

What is the range of the bridge?

The indoor transmission range without obstacles (walls) can reach up to 90 meters.

How many devices can I connect?

The bridge supports up to 128 compatible Zigbee and Bluetooth devices.

Does the device work on 5 GHz Wi-Fi?

No, the built-in Wi-Fi only supports the 2.4 GHz band (IEEE 802.11 b/g/n). Bluetooth is also on 2.4 GHz.

How to reset the bridge?

Press and hold the reset button for 5 seconds until the status light (blue) flashes rapidly. If necessary, press the button once first, then press and hold.

Can I use the bridge without the app?

No, configuration and device management are done exclusively via the Niceboy ION app, available on iOS and Android.

What to do if the app does not find the bridge?

Check that the blue light flashes rapidly. Make sure your phone's Bluetooth is enabled and you are on a 2.4 GHz Wi-Fi network. If the problem persists, reset the bridge and try again.

Is it compatible with other Zigbee brands?

The bridge uses the standard Zigbee 3.0 protocol, so it should be compatible with most certified Zigbee devices. However, verify compatibility via the Niceboy ION app.

How to update the firmware?

Firmware updates are available through the Niceboy ION app. The app will notify you when an update is available and guides you through the process.

USER MANUAL ION ORBIS Bridge Niceboy

PRODUCT INTRODUCTION

Niceboy ION ORBIS Bridge is a smart home control center, which connects Zigbee 3.0 and Bluetooth devices to Wi-Fi network. Users can design and implement smart application scenarios by adding ZigBee devices.

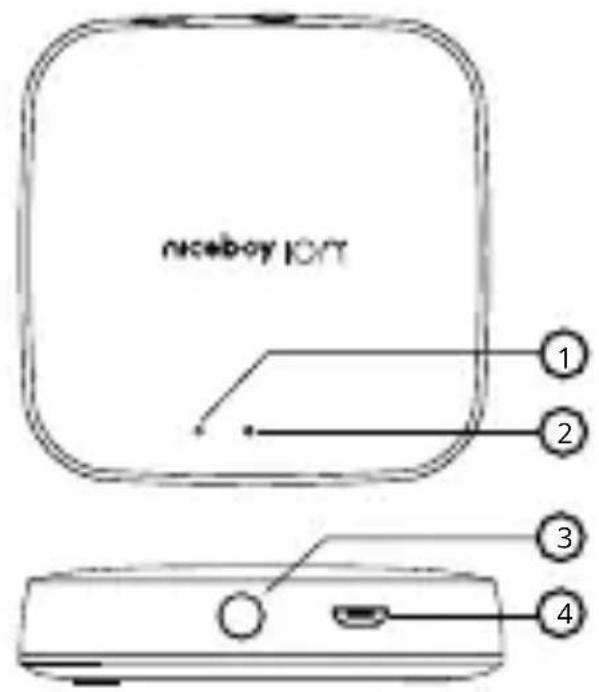

niceboy IOIT 1 2 3 4

1. WIFI indicator light
2. Status indicator light
3. Reset button
4. Micro USB socket

WIFI INDICATOR LIGHT (RED LIGHT)

Steady on Successful connection

Blinks Ready for connection

Steady off Successful configuration but the network is disconneted

STATUS INDICATOR (BLUE LIGHT)

Steady on Activate, not connected

Blinks Pairing mode, ready to connect

Steady off Connected

QUICK SETUP

1. Plug the hub into the socket and wait until red and blue indicator lights turn on. Make sure your mobile Phone is connected with 2.4 GHz Wi-Fi network and that Bluetooth is on.
2. Hold the reset button for 5 seconds until the status indicator light (blue light) starts flashing rapidly. If the blue light wont start flashing rapidly, press once the reset button and then hold the reset button for 5s.
3. Open the Niceboy ION app and then tap “+” in the top right corner to enter “Add Device page”. The app will find the Bridge automatically. If not, select “Sensors”, then click on „Bridge“. Confirm that you reset the device and that its blinking rapidly (step 2). The app will start looking for a new device. Once the device is found, just add it to the app.

INSTALLATION

1. To ensure steady communication between the hub and its accessories, it is recommended to install the hub at the center of the area where the accessories are located.
2. Depending on the local environment, the indoor transmission distance reaches up to 90 meters between the hub and bridge accessories without barriers, such as walls.

WARNINGS

• This product is NOT a toy. Please keep children away from this product.
• This product is designed for indoor use only. Do NOT use in humid environments or outdoors.
• Beware of moisture, do NOT spill water or other liquids onto the product.
• Do NOT place this product near a heat source. Do NOT place it in an enclosure unless there is normal ventilation.
• Do NOT attempt to repair this product by yourself.

• All repairs should be performed by an authorized professional.

• This product is only suitable for improving the entertainment, convenience of your home life and reminding you about the device status. It should NOT be used as security equipment for home, building, warehouse or any other places.

• If a user violates the product use instructions, the manufacturer will NOT be liable for any

SPECIFICATIONS

Model: ORBIS Bridge

Dimensions: 60 x 60 x 15 mm

Wireless Protocol: Wi-Fi IEEE 802.11 b/g/n

(2412-2472 MHz), Zigbee

3.0 (2405-2483,5 MHz),

Bluetooth 5.0 (2,4 GHz)

Input: 100—240V\~, 50/60Hz, 1A

5V

Operating Temperature: -10^ - +50^

Operating Humidity: 10 - 90% RH, no con-

densation

Maximum Transmit Power (Zigbee): 9.99 dBm

Working Frequency: 2400 MHz - 2483.5 MHz

Packing list: Sensor unit, magnet unit,

3M sticker, manual

MESH Support: YES

Maximum devices: 128

Range without barriers: up to 90 meters

RTB Media s.r.o. hereby declares that the type of radio equipment ORBIS Bridge sensor complies with Directives 2014/53 / EU, 2014/30 / EU, 2014/35 / EU, and 2011/65 / EU. The full content of EU Declaration of Conformity is available on the following websites: https://niceboy.eu/cs/podpora/prohlaseni-o-shode-mM38CtmYvX693IHwvu4CWpk3vjGrvnC

USER INFORMATION FOR DISPOSING ELECTRICAL AND ELECTRONIC DEVICES (HOME USE)

This symbol located on a product or in the product's original documentation means that the used electrical or electronic products may not be disposed together with the communal waste. In order to dispose of these products correctly, take them to a designated collection site, where they will be accepted for free. By disposing of a product in this way, you are helping to protect precious natural resources and helping to prevent any potential negative impacts on the environment and human health, which could be the result of incorrect waste disposal. You may receive more detailed information from your local authority or nearest collection site. According to national regulations, fines may also be given out to anyone who disposes of this type of waste incorrectly. User information for disposing electrical and electronic devices.

(Business and corporate use)

In order to correctly dispose of electrical and electronic devices for business and corporate use, refer to the product's manufacturer or importer. They will provide you with information regarding all disposal methods and, according to the date

stated on the electrical or electronic device on the market, they will tell you who is responsible for financing the disposal of this electrical or electronic device. Information regarding disposal processes in other countries outside the EU. The symbol displayed above is only valid for countries within the European Union. For the correct disposal of electrical and electronic devices, request the relevant information from your local authorities or the device seller.

Information on all frequency bands in which the radio equipment operates and intentionally transmits radio waves as well as the maximum radio frequency power transmitted in the frequency band in which the radio equipment is operated is included in the instructions and safety information.
