IR450EUR - Thermometer Beha-Amprobe - Free user manual and instructions

Product Type	Infrared Thermometer / Laser Pointer / Flashlight
Brand	Beha-Amprobe
Model	IR450EUR
Temperature Range	-30 °C to 500 °C (-20 °F to 932 °F)
Accuracy	±1 °C (from 11 °C to 40 °C); ±1.5 °C or ±1.5% elsewhere (whichever is greater)
Display Resolution	0.2 °C / 0.5 °F
Distance to Spot Ratio (D:S)	8:1
Emissivity	0.95 (preset)
Response Time	0.5 second
Display Hold	10 seconds
Auto Power Off	After 3 minutes of inactivity
Power Supply	1 AAA 1.5 V alkaline battery
Battery Life	Not specified
Dimensions (H x W x D)	100 x 20 x 29 mm
Weight	Approximately 50 g (with battery)
Main Functions	Non-contact infrared measurement, laser pointer, LED flashlight, °C/°F selection, continuous measurement
Laser Safety	Class 2, < 1 mW, 630-670 nm. Do not stare into beam.
Operating Conditions	Indoor, max altitude 2000 m, temperature 23°C ± 2°C, humidity < 80% RH
Certifications	CE, EN 61326-1, EN 61010-1, EN 60825-1
Warranty	1 year (excluding batteries and abusive wear)
Repairability	Repair by Amprobe authorized service center (see manual for contact details)
Maintenance and Cleaning	Lens: compressed air or damp cotton swab (no solvents). Housing: soapy water. Do not immerse.
Included Accessories	User manual, battery installed

Frequently Asked Questions - IR450EUR Beha-Amprobe

How to change the temperature unit from °C to °F?

Press the Test button and flashlight button simultaneously for 2 seconds. The unit toggles between °C and °F.

What to do if the screen remains blank?

Check that the battery is properly installed and not depleted. Replace the AAA 1.5 V battery if necessary.

The laser pointer does not turn on, what should I do?

The laser requires a good battery. If the battery is low or depleted, replace it. The laser only works when the Test button is pressed.

How to clean the thermometer lens?

Use dry compressed air to remove dust, then a damp cotton swab (water or alcohol) for dirt. Do not use solvents on the plastic lens.

What is the measurement accuracy of the IR450EUR?

Accuracy depends on the range: ±1 °C between 11 and 40 °C, ±1.5 °C or ±1.5% elsewhere (whichever is greater). For negative temperatures, ±2 °C up to 0 °C.

Can I measure temperature through a window?

No. The thermometer cannot measure through transparent surfaces like glass. Remove any obstacle between the device and the target.

How to activate continuous measurement?

Press the Test button for 3 seconds. The device enters continuous IR temperature measurement mode as long as you hold the button.

What type of battery to use and how to replace it?

Use a AAA 1.5 V alkaline battery. Slide open the battery cover, insert the battery respecting polarity, then close. After replacement, the device goes into standby automatically.

The device turns itself off, is this normal?

Yes, the auto power off mode turns off the device after 3 minutes of inactivity to save battery. Press Test to turn it back on.

Why are my measurements inaccurate?

Several possible causes: distance too large (the spot must be smaller than the target), inappropriate emissivity (shiny surfaces), sudden ambient temperature change (wait 30 min), or presence of steam/dust.

USER MANUAL IR450EUR Beha-Amprobe

Limited Warranty and Limitation of Liability

Your Amprobe product will be free from defects in material and workmanship for one year from the date of purchase, unless local laws require otherwise. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on Amprobe's behalf. To obtain service during the warranty period, return the product with proof of purchase to an authorized Amprobe Service Center or to an Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED OR STAUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY.

Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.

Repair

All returned for warranty or non-warranty repair or for calibration should be accompanied by the following: your name, company's name, address, telephone number, and proof of purchase. Additionally, please include a brief description of the problem or the service requested and include the test leads with the meter. Non-warranty repair or replacement charges should be remitted in the form of a check, a money order, credit card with expiration date, or a purchase order made payable to Amprobe®.

In-Warranty Repairs and Replacement – All Countries

Please read the warranty statement and check your battery before requesting repair. During the warranty, period any defective test tool can be returned to your Amprobe® distributor for an exchange for the same or like product. Please check the "Where to Buy" section on www.amprobe.com for a list of distributors near you. Additionally, in the United States and Canada In-Warranty repair and replacement units can also be sent to a Amprobe® Service Center (see address next page).

Non-Warranty Repairs and Replacement – US and Canada

Non-warranty repairs in the United States and Canada should be sent to a Amprobe® Service Center. Call Amprobe® or inquire at your point of purchase for current repair and replacement rates.

In USA In Canada

Amprobe Test Tools Amprobe Test Tools

Everett, WA 98203 Mississauga, ON L4Z 1X9

Tel: 877-AMPROBE (267-7623) Tel: [phone]

Non-Warranty Repairs and Replacement – Europe

European non-warranty units can be replaced by your Amprobe® distributor for a nominal charge. Please check the "Where to Buy" section on www.amprobe.com for a list of distributors near you.

European Correspondence Address*

Amprobe® Europe

Beha-Amprobe GmbH

In den Engematten 14

79286 Glottertal, Germany

Tel.: [phone] - 0

www.amprobe.eu

*(Correspondence only – no repair or replacement available from this address. European customers please contact your distributor.)

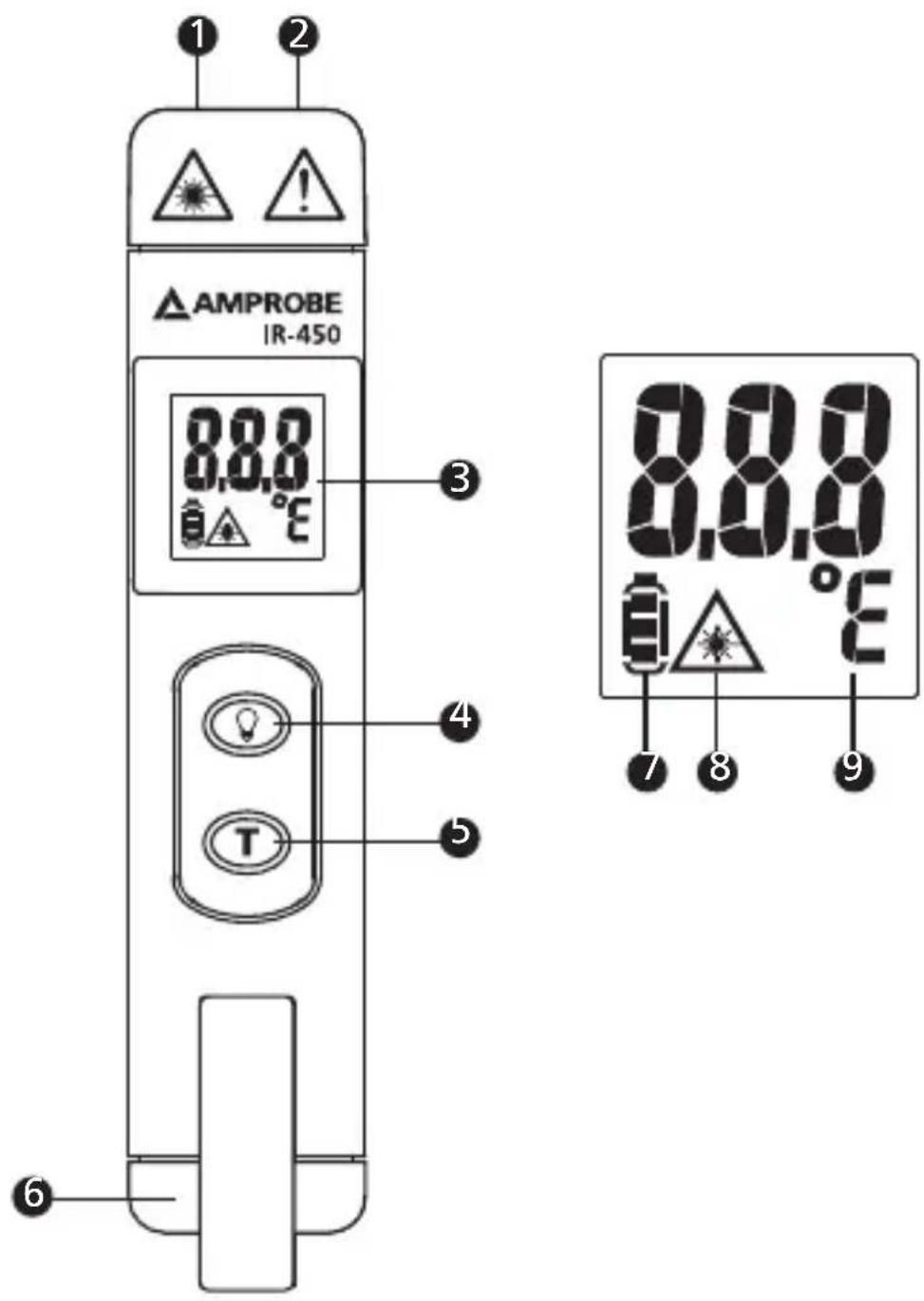

1 2 AMPROBE IR-450 8.8.0 °E 3 4 5 6 7 8 9 8.8.0 °E

1) Laser
2) Flash light
3) Display
4) Flashlight button
5) On button / Test button

6) Battery cover
7) Battery indicator
8) Laser indicator
9) ^ F / ^

CONTENTS

SYMBOLS....1

UNPACKING AND INSPECTION 2

INTRODUCTION 2

OPERATING INSTRUCTIONS ...... 3

Power On / Off ....3

Auto Power Off....3

Auto Hold....3

Operating The Unit....3

Taking Temperature Measurement......3

°F / °C Selection 4

Distance & Spot Size 4

Reminders....5

Emissivity 7

SPECIFICATION....7

TROUBLE SHOOTING....8

MAINTENANCE AND REPAIR 9

BATTERY REPLACEMENT....10

SYMBOLS

	Caution! Refer to the explanation in this Manual
	Laser light: Do not stare into laser beam
	Battery
	Conform to relevant Australian standards
	Complies with European Directives
	Do not dispose of this product as unsorted municipal waste. Contact a qualified recycler

⚠ Safety Information

<1mW/630-670nm IEC 60825-1

LASER LIGHT DO NOT STARE INTO BEAM CLASS 2 LASSER

CAUTION LASER RADIATION - DO NOT STARE INTO BEAM OUTPUT<1mW WAVELENTH 630-670nm CLASS II LASER PRODUCT

⚠ Warning

- Do not stare into laser beam.

- Do not point laser directly at eye or indirectly off reflective surfaces.

• For use by competent persons only.

- Do not leave the unit on or near objects of high temperature.

- Verify the Tester's operation by measuring on a known source. Do not use the Tester if it operates abnormally.

- Do not operate the Tester around explosive gas, vapor, or dust.

• The Tester is intended for indoor use only.

- Use the Tester only as specified in the users manual or the protection by the Tester might be impaired.

⚠️ Cautions

The unit should be protected from the following,

• EMF (electro-magnetic fields) from arc welders and induction heaters
• Static electricity
• Thermal shock (caused by large or abrupt ambient temperature changes - allow 30 minutes for unit to stabilize before use)

UNPACKING AND INSPECTION

Your shipping carton should include:

1 IR-450
1 1.5V AAA alkaline battery (installed)
1 Manual

If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange.

INTRODUCTION

A must-have tool for everyday applications, the IR-450 is a 3-in-1 tool that verifies temperature, is used as a laser pointer and illuminates dark work spaces with a bright LED flashlight. Compact and easy to use - just aim, press the button, and read surface temperatures in less than a second. You can safely measure surface temperatures of hot, hazardous, or hard-to-reach objects without contact.

Features

• Infrared temperature measurement with laser pointer
• Holds temperature reading for 10 seconds
• Ultra white LED flashlight
• Selectable °F / °C temperature measurements
• Pocket clip

Power On / Off

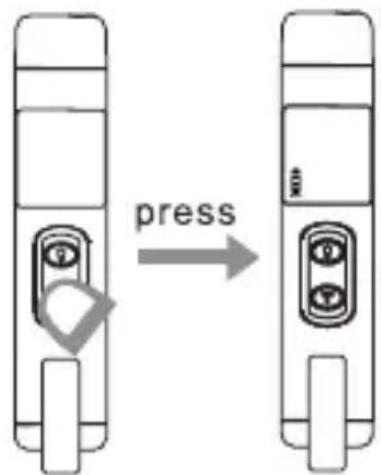

press

Auto Power Off

The IR-450 will power down after not being used for 3 minutes.

Auto Hold

The unit will hold the reading for 10 seconds after the on button is pressed.

Operating the Unit

To measure temperature, point unit at an object and press the Test button. Be sure to consider distance-to-spot size ratio and your distance from the measured object. The IR-450 is equipped with a laser. Use the laser only for aiming. See “Taking Temperature Measurement”.

Taking Temperature Measurement


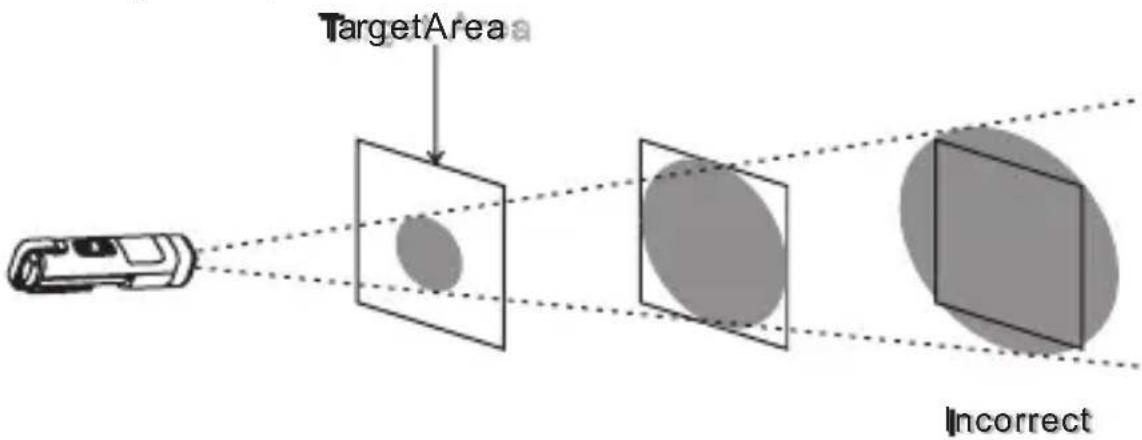

Make sure that the target is larger than the unit's spot size. The smaller the target, the closer you should be to it. The minimum measurement area is 3.75cm (1.5in) diameter.

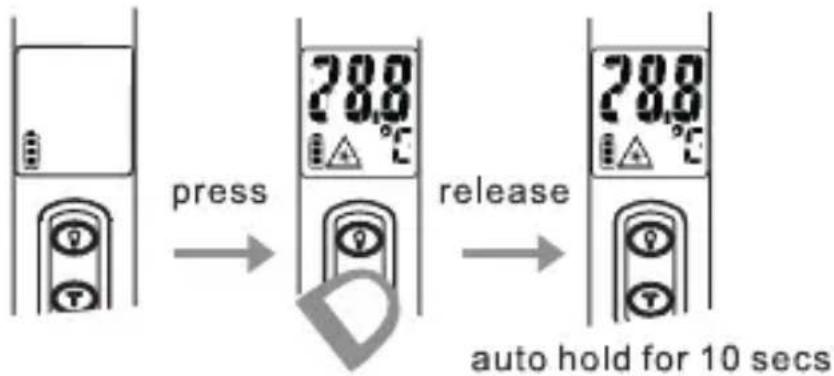

Press the Ⓣ key, and the unit will show the temperature of the target surface. Then release the Ⓣ key, and the LCD will hold the reading for 10 seconds.


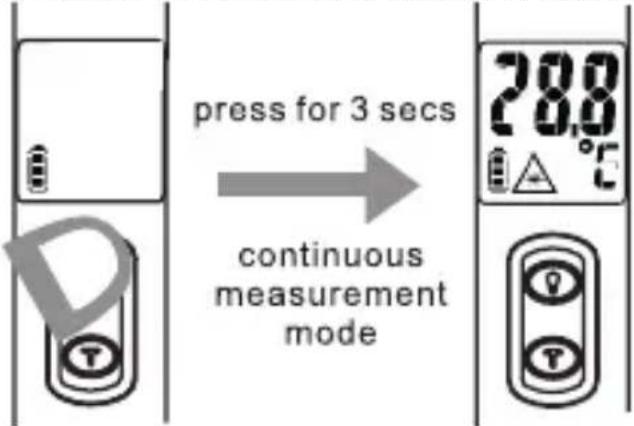

Press the ⓣ key for 3 seconds, the unit will turn into the IR temperature continuous measurement mode.

press for 3 secs continuous measurement mode 28.0 °C

°F / °C Temperature Selection

Press the Test button and the Flashlight button for 2 seconds at the same time for switching between Fahrenheit and Celsius.

Distance and Spot Size

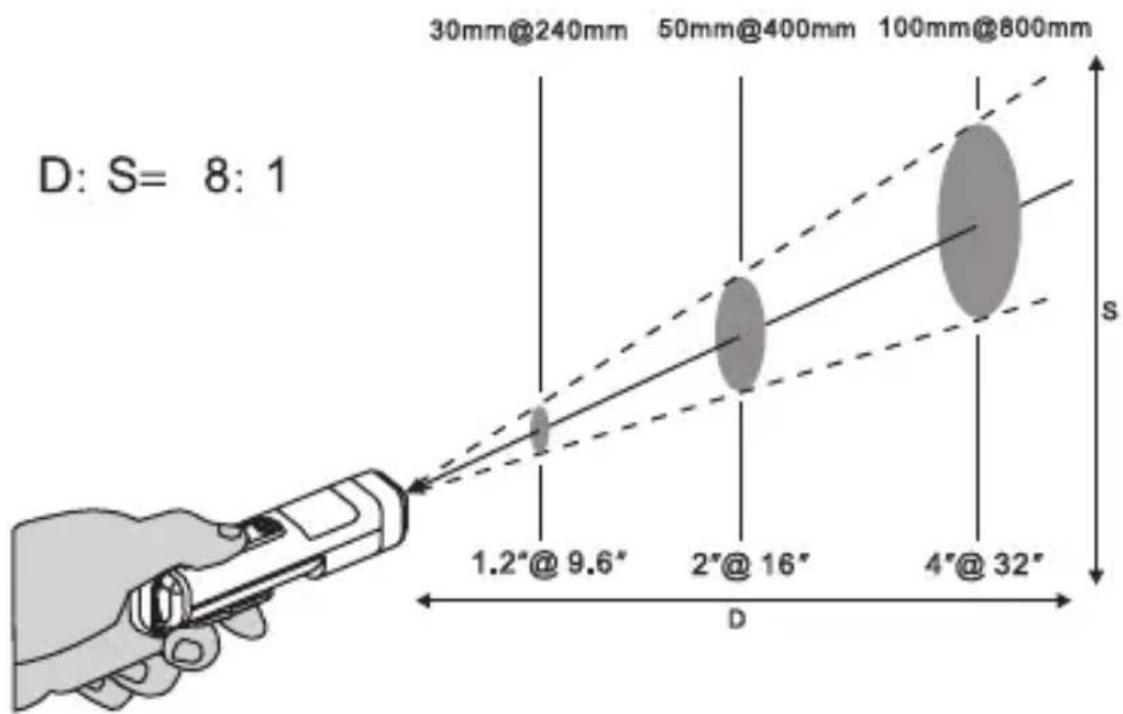

As the distance (D) from the object increases, the spot size (S) of the area measured by the unit becomes larger.

30mm@240mm 50mm@400mm 100mm@800mm D: S= 8: 1 1.2°@9.6° 2°@16° 4°@32° s D

Use the unit at around 30cm to get the best measurement accuracy.

At longer distances, the target area shall be larger than the distance divided by 8.

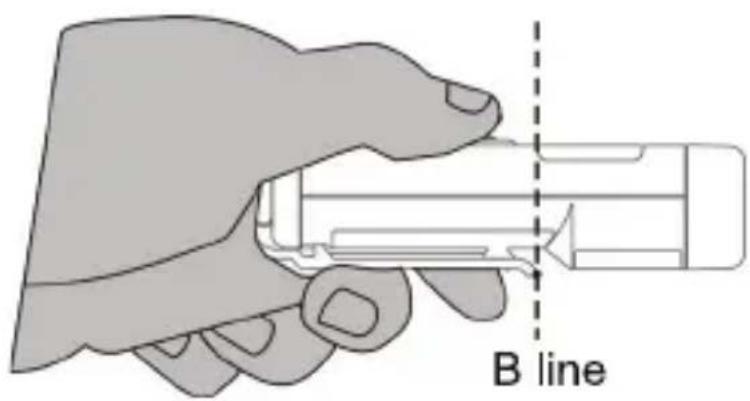

Please do not put the fingers on the housing for a long period of time and cross the "B line" to prevent thermo effect interference from measuring accuracy.

B line

Reminders

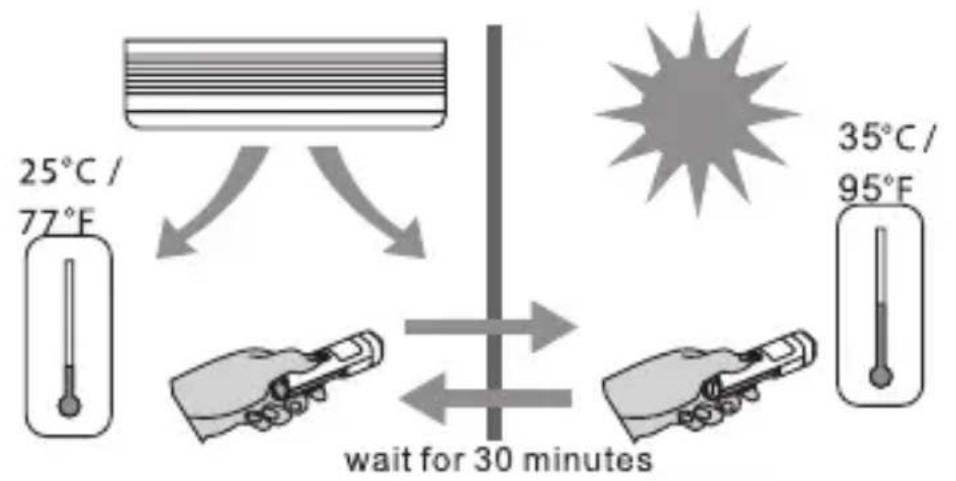

1. Changes of surrounding ambient temperatures can result in inaccurate readings. Allow time for the unit to adapt to the change temperatures before use. Specified accuracy applies after 30 minutes when the Tester adjusts to different environmental temperatures..

Allow time for the unit to adapt to the change of ambient temperatures from the user's pocket to environmental ambient.

Diagram illustrating a medical procedure involving a patient's chest with an attached device and a bottle being injected into a bottle.

wait for 30 minutes for more accurate measurement

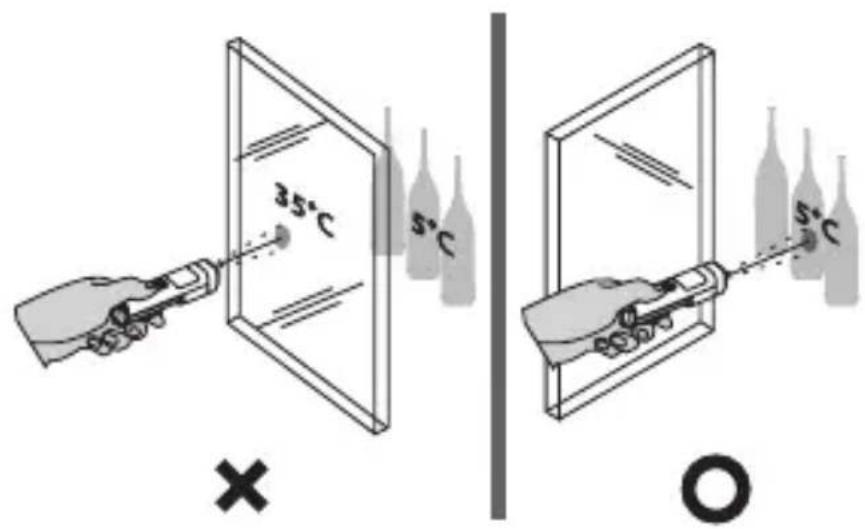

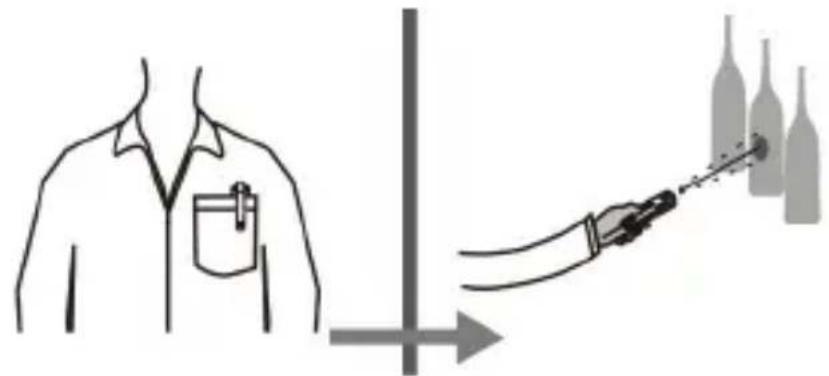

1. The unit cannot take measurements through transparent surfaces such as glass. Remove the barrier between the unit and the target surface.

35°C 5°C × 0

1. Not recommended for use in measuring shiny or polished metal surfaces (stainless steel, aluminum, etc.). See Emissivity.

2. Steam, dust, smoke, etc., can prevent accurate measurement by obstructing the unit's optics

Emissivity

Most organic materials and painted or oxidized surfaces have an emissivity of 0.95 (pre-set in the unit). Inaccurate readings will result from measuring shiny or polished metal surfaces. To compensate, cover the surface to be measured with masking tape or flat black paint. Allow time for the tape to reach the same temperature as the material underneath it. Measure the temperature of the tape or painted surface.

SPECIFICATION

Temperature Range	-30°C to 500°C (-22°F to 932°F)
Accuracy at 23°C ±2°C <80%RH	-30°C to 0°C (-22°F to 32°F): ±2°C (±4°F)1°C to 10°C (34°F to 50°F): ±1.5°C (±3°F)11°C to 40°C (52°F to 104°F): ±1°C (±2°F)41°C to 500°C (106°F to 932°F): ±1.5°C (±3°F) or ±1.5% of reading, whichever is greater.
Best display Resolution	0.5°F / 0.2°C
Response Time	0.5 s
Wavelength 630nm to 670nm
Spectral Response	6.5μm to 18μm
Emissivity E=0.95
D:S 8:1(calculated at 80% energy)
Repeatability ±1°C or ±0.5% of reading, whichever is greater.
Display Hold 10 s
Electrical Supply	Internally powered by 1 x AAA 1.5 Alkaline, LR03 battery
Weight Approx. 50g (0.11lb)
Dimensions (HxWxD)	100 x 20 x 29mm (3.94 x 0.79 x 1.14in)
Storage Temperature	-20°C to 60°C (without battery)

CE Certification

This instrument conforms to the following standards:

• EN 61326-1 Electromagnetic Emissions and Susceptibility
• EN 61010-1 General Safety
• EN 60825-1 Laser Safety

Environmental Conditions

• Indoor use
• Operating altitude: up to 2000m (6562 ft)
• Pollution degree: 2
  • Temperature 23^ C ± 2^ C
  • Humidity < 80% RH

TROUBLESHOOTING

Code Problem Action
Battery icon appears	Possible low battery	Check and/or replace battery
Blank display Possible dead battery		Check and/or replace battery
Laser doesn’t work	Low or dead battery	Replace battery

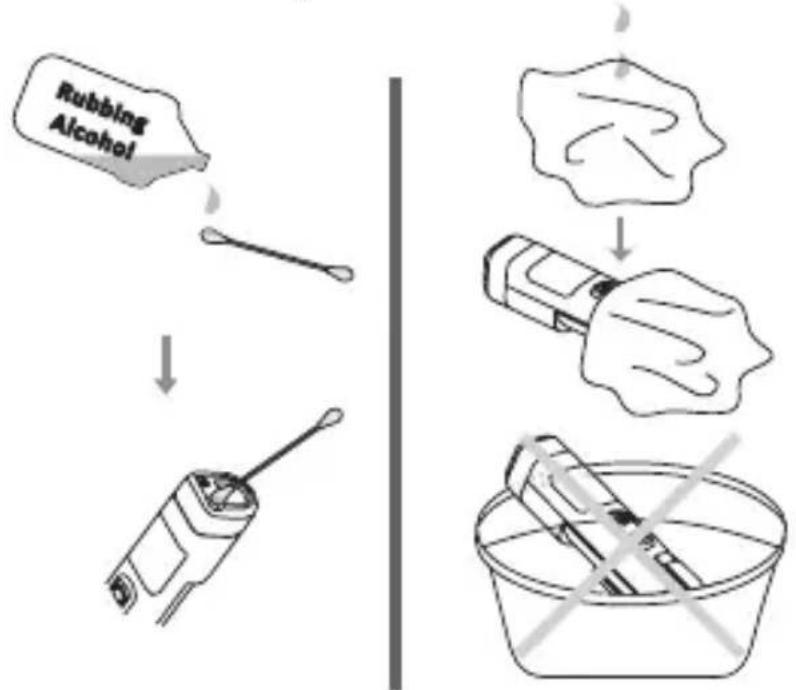

Lens Cleaning: Blow off loose particles using clean compressed air. Gently brush remaining debris away with a brush. Carefully wipe the surface with a moist cotton swab. The swab may be moistened with water or rubbing alcohol.

NOTE: DO NOT use solvents to clean the plastic lens. Case Cleaning: Use soap and water on a damp sponge or soft cloth.

NOTE: DO NOT submerge the unit in water.

Please replace the battery when "Battery indicator" is flashing on display.

When battery is replaced / installed, the unit will go into standby mode automatically.

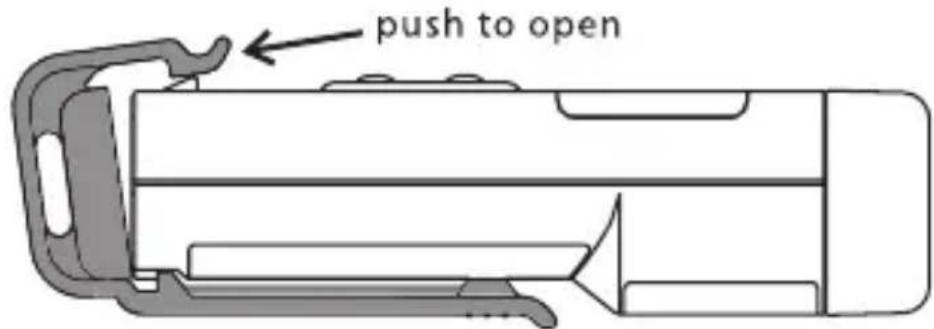

push to open

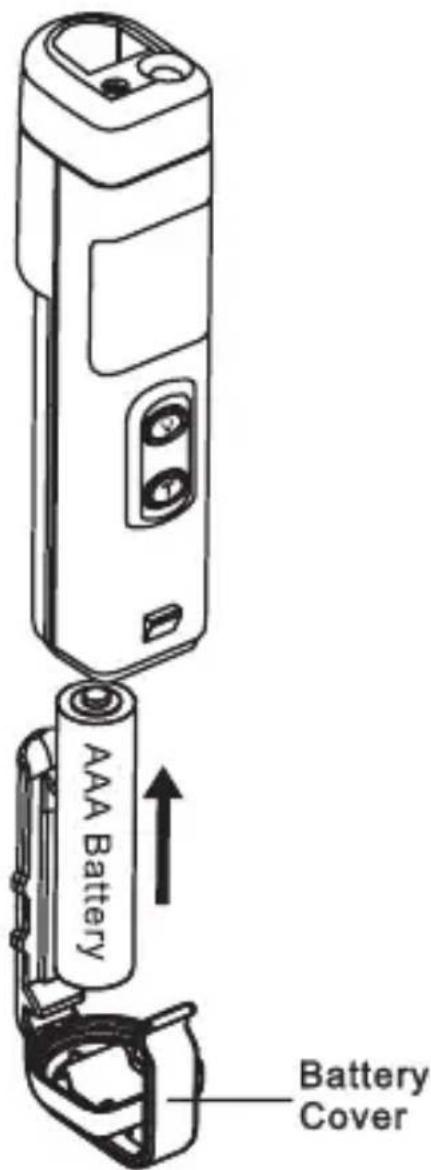

AAA Battery Battery Cover

IR-450

Amprobe Test Tools Amprobe Test Tools

Everett, WA 98203 Mississauga, Ontario L4Z 1X9

Tél. : 877-AMPROBE (267-7623) Tél. : [phone]

CHANGEMENT DES PILES....12

SYMBOLES

Diagram illustrating a medical procedure involving a patient's chest with a bottle and a syringe, showing directional flow.

Amprobe Test Tools Amprobe Test Tools

Everett, WA 98203 Mississauga, ON L4Z 1X9

Tel.: 877-AMPROBE (267-7623) Tel.: [phone]

Diagram illustrating a medical procedure involving a patient's chest with an attached device and a syringe injecting liquid into bottles.

Line drawing of a handheld electronic device with two ports and a handle (no text or symbols)

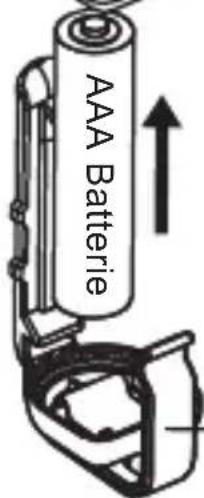

AAA Batterie

Diagram illustrating a medical procedure involving a patient's chest with an attached device and a syringe measuring blood pressure.

Amprobe Test Tools Amprobe Test Tools

Everett, WA 98203 Mississauga, Ontario L4Z 1X9

Tel.: 877-AMPROBE (267-7623) Tel.: [phone]

Diagram illustrating a medical procedure involving a patient's chest with an attached device and a bottle being injected into a bottle.

Diagram illustrating a medical procedure involving a patient's chest with a catheter and a bottle being injected into a bottle.

Visit www.Amprobe.com for

• Catalog
• Application notes
  • Product specifications
• User manuals
