Product type	Reversible wall-mounted split air conditioner (cooling and heating)
Brand	LG
Model	DC09RK
Indoor unit dimensions (approx.)	820 x 300 x 210 mm (W x H x D)
Outdoor unit dimensions (approx.)	770 x 545 x 288 mm (W x H x D)
Indoor unit weight (approx.)	9 kg
Outdoor unit weight (approx.)	35 kg
Power supply	220-240 V, 50 Hz, single-phase
Rated current (cooling)	4.2 A
Rated cooling capacity	2500 W (2.5 kW)
Rated heating capacity	2800 W (2.8 kW)
Power consumption (cooling)	800 W
Power consumption (heating)	900 W
Refrigerant	R32
Operating modes	Cooling, heating, dehumidification, ventilation, auto
Fan speed	Multiple adjustable speeds (low, medium, high, auto)
Special functions	Jet Mode, oscillation (Swing), timer (on/off), energy display
Wireless remote control	Yes, with AAA batteries (1.5 V)
Air filter	Washable, cleaning recommended every 2 weeks
Indoor unit noise level (approx.)	20-40 dB(A)
Outdoor unit noise level (approx.)	48-52 dB(A)
Energy class (heating season)	A+
Energy class (cooling season)	A++
Manufacturer warranty	2 years (parts and labor)

Frequently Asked Questions - DC09RK LG

How to clean the air filter of the LG DC09RK air conditioner?

Turn off the device and unplug it. Open the front cover, remove the air filter and wash it with warm soapy water. Rinse and dry completely before reinstalling. Cleaning every 2 weeks is recommended.

What to do if the remote control is not working?

First check the battery status: replace them if necessary. Make sure to point the remote control at the signal receiver on the indoor unit. If the problem persists, use the ON/OFF button located on the indoor unit for emergency use.

How to set the timer on/off?

Press the Timer button on the remote control. Set the desired time using the + and - buttons, then confirm with Set/Cancel. The timer is available after setting the current time.

Can I use the air conditioner without the remote control?

Yes. Open the front cover or the horizontal louver and press the ON/OFF button on the indoor unit. Note that the temperature cannot be changed and will be set between 22°C and 24°C for reversible models.

How to change the display from °C to °F?

Press and hold the corresponding button (often the Temp or Set/Cancel button) for about 5 seconds. The display will toggle between Celsius and Fahrenheit.

What does Jet Mode mean?

The Jet Mode allows rapid cooling or heating of the room by running the fan at maximum speed. It is ideal for reaching the desired temperature quickly.

How to direct the airflow properly?

Use the Swing button on the remote control to oscillate the louvers horizontally or vertically. You can also adjust them manually by gently pushing the deflectors.

What is the power consumption of the LG DC09RK?

In cooling mode, the consumption is approximately 800 W, and in heating mode approximately 900 W. The exact consumption depends on settings and usage conditions.

How to maintain the outdoor unit?

Keep the outdoor unit clear of any obstacles (vegetation, debris). Clean the fins with a soft vacuum cleaner and check that the drain hose is not blocked. Call a professional for thorough maintenance.

What to do if the air conditioner is not cooling enough?

First check the air filter: if it's dirty, clean it. Make sure all doors and windows are closed. Also check that the louvers are not blocked. If the problem persists, contact a technician.

USER MANUAL DC09RK LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

This manual is the simplified version of original manual. You can obtain the original manual from www.lg.com.

TYPE: WALL MOUNTED

Original instruction

EN ENGLISH

ITITALIANO

ES ESPANOL

FR FRANÇAIS

DE DEUTSCH

EL EAAHNIKA

PT PORTUGUES

NL NEDERLANDS

PL POLSKI

RO ROMAN

LG Electronics Inc. Single Point of Contact (EU/UK) & EU Importer:

LG Electronics European Shared Service Center B.V.

Krijgsman 1, 1186 DM Amstelveen, The Netherlands

When installed, enter the model name and send it to the customer.

5401521249 Rev.: a

Model Name

*

1. Read the QR Code.
2. Enter the model name.
3. Select the manual that you want to see.

TABLE OF CONTENTS

This manual may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

OPERATION 3

Notes for Operation 3

Parts and Functions 3

Wireless Remote Control. 4

OPERATION

EN

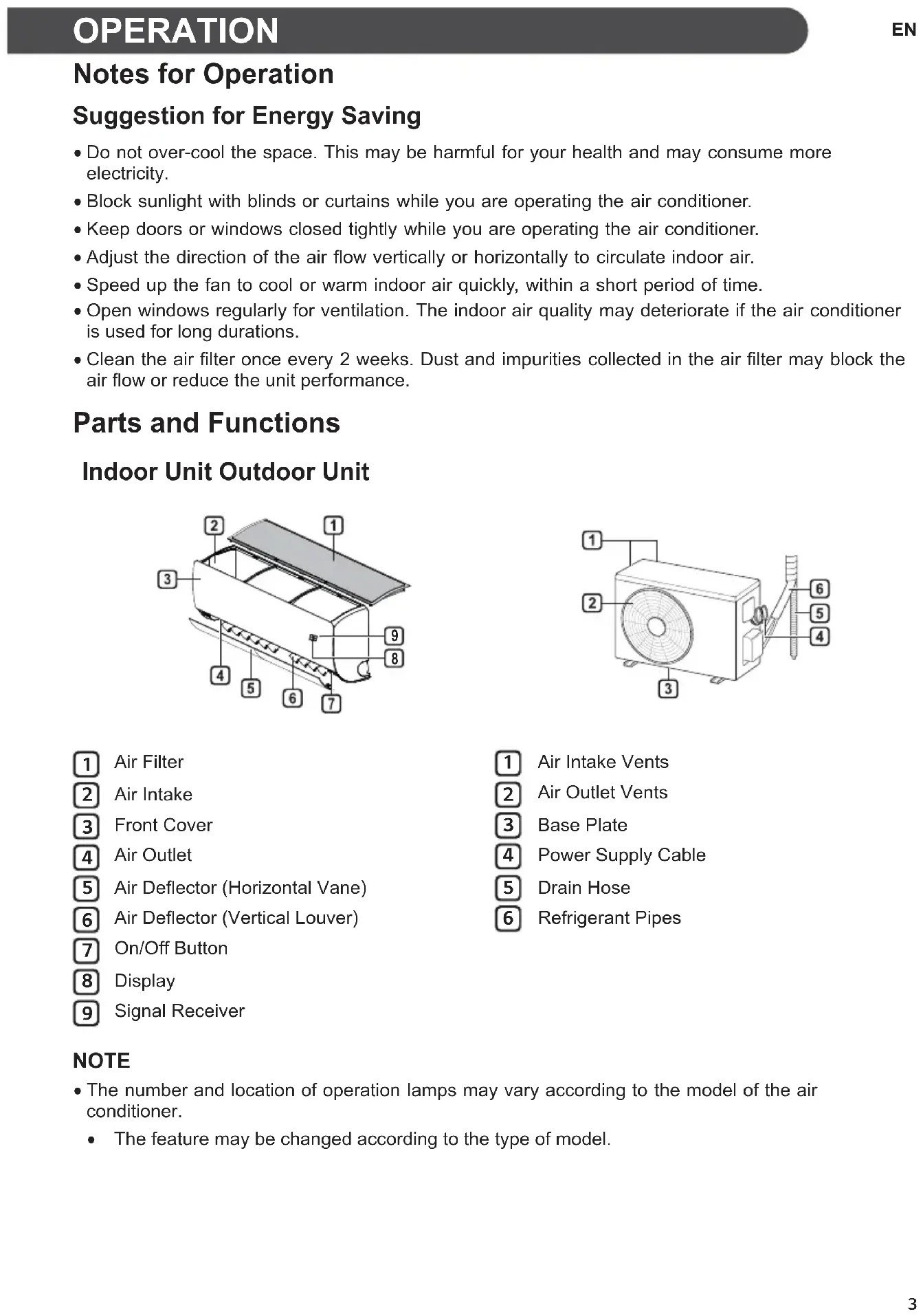

Notes for Operation

Suggestion for Energy Saving

• Do not over-cool the space. This may be harmful for your health and may consume more electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, within a short period of time.
• Open windows regularly for ventilation. The indoor air quality may deteriorate if the air conditioner is used for long durations.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the air flow or reduce the unit performance.

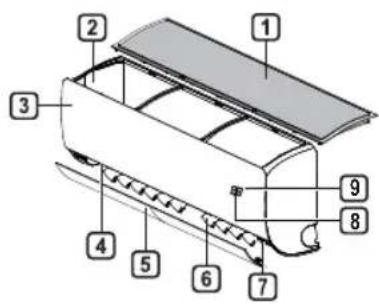

Parts and Functions

Indoor Unit Outdoor Unit

Air Filter
Air Intake
3 Front Cover
4 Air Outlet
5 Air Deflector (Horizontal Vane)
6 Air Deflector (Vertical Louver)
7 On/Off Button
8 Display
9 Signal Receiver

Air Intake Vents
Air Outlet Vents
3 Base Plate
4 Power Supply Cable
5 Drain Hose
6 Refrigerant Pipes

NOTE

• The number and location of operation lamps may vary according to the model of the air conditioner.

The feature may be changed according to the type of model.

Wireless Remote Control

Inserting Batteries

If the display screen of the remote control begins to fade, replace the batteries. Insert AAA (1.5 V) batteries before using the remote control.

1 Remove the battery cover.

2 Insert the new batteries and make sure that the + and - terminals of the batteries are installed correctly.

Installing the Remote Control Holder

To protect the remote control, install the holder where there is no direct sunlight.

1 Choose a safe and easily accessible location.
2 Fix the holder by fastening 2 screws firmly with a screwdriver.

Operating Method

Point the remote control towards the signal receiver at the right side of the air conditioner to operate it.

NOTE

• The remote control may operate other electronic devices if it is directed towards them. Make sure to point the remote control towards the air conditioner signal receiver.
• For proper operation, use a soft cloth to clean the signal transmitter and receiver.
• In case of a function not provided in the product, no buzzer sound occurs from the product when a button for such function on the remote control is pressed except for Air Flow Direction (Swing), Energy Display (Air Purification function).

Setting the Current Time

1 Insert batteries.

• The icon below blinks at the bottom of the display screen.

2 Press on button to select the minutes.
3 Press Set/Cancel button to finish.

NOTE

• The On/Off Timer is available after setting the current time.

Using the ^ C / ^ Conversion Function (Optional)

This function changes unit between ^ C and ^ F

Press and hold button about 5 seconds.

Operating the Air Conditioner without the Remote Control

You can use the ON/OFF button of the indoor unit to operate the air conditioner when the remote control is unavailable.

1 Open the front cover (Type2) or horizontal vane (Type1).
2 Press the ON/OFF button.

Type1

Type2

NOTE

• The stepping motor may be broken, if the horizontal vane opens rapidly.
  The fan speed is set to high.
  The feature may be changed according to the type of model.
• The temperature cannot be altered when using this emergency ON/OFF button.
• For cooling & heating models, the temperature is set from 22^ to 24^

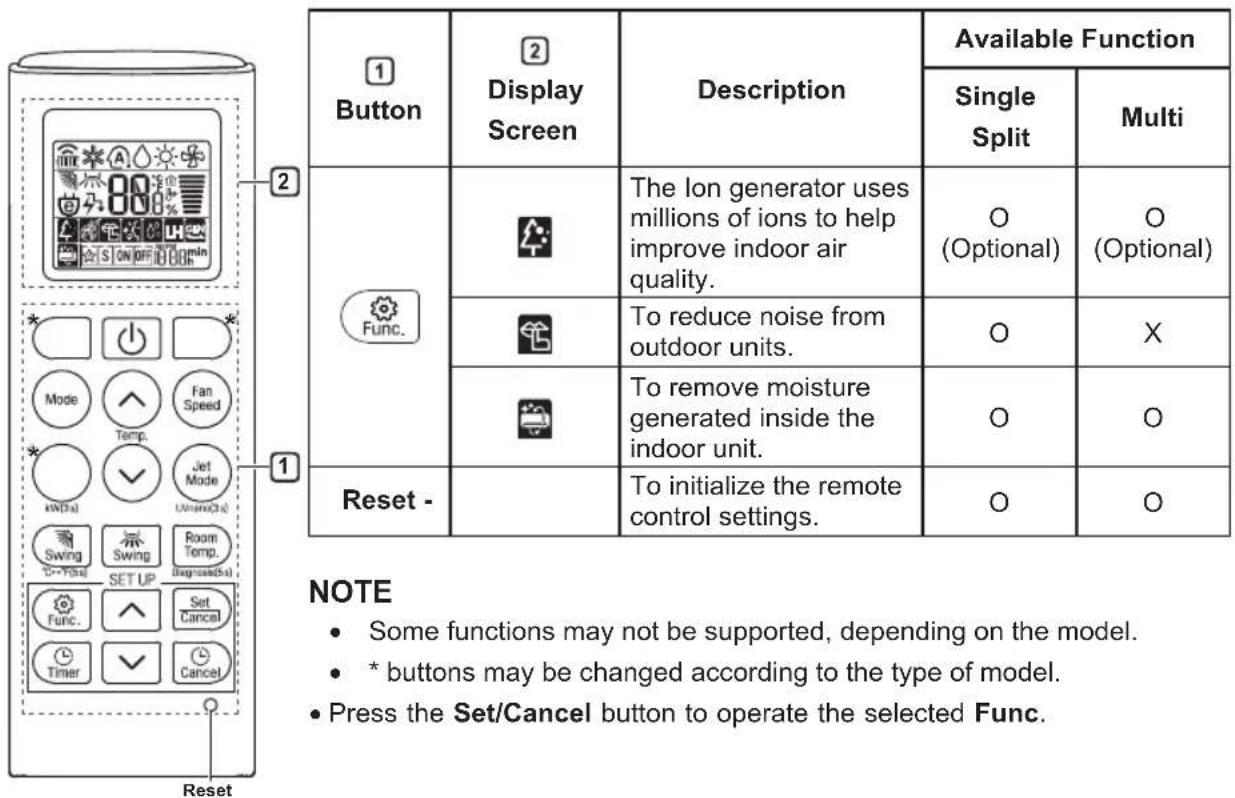

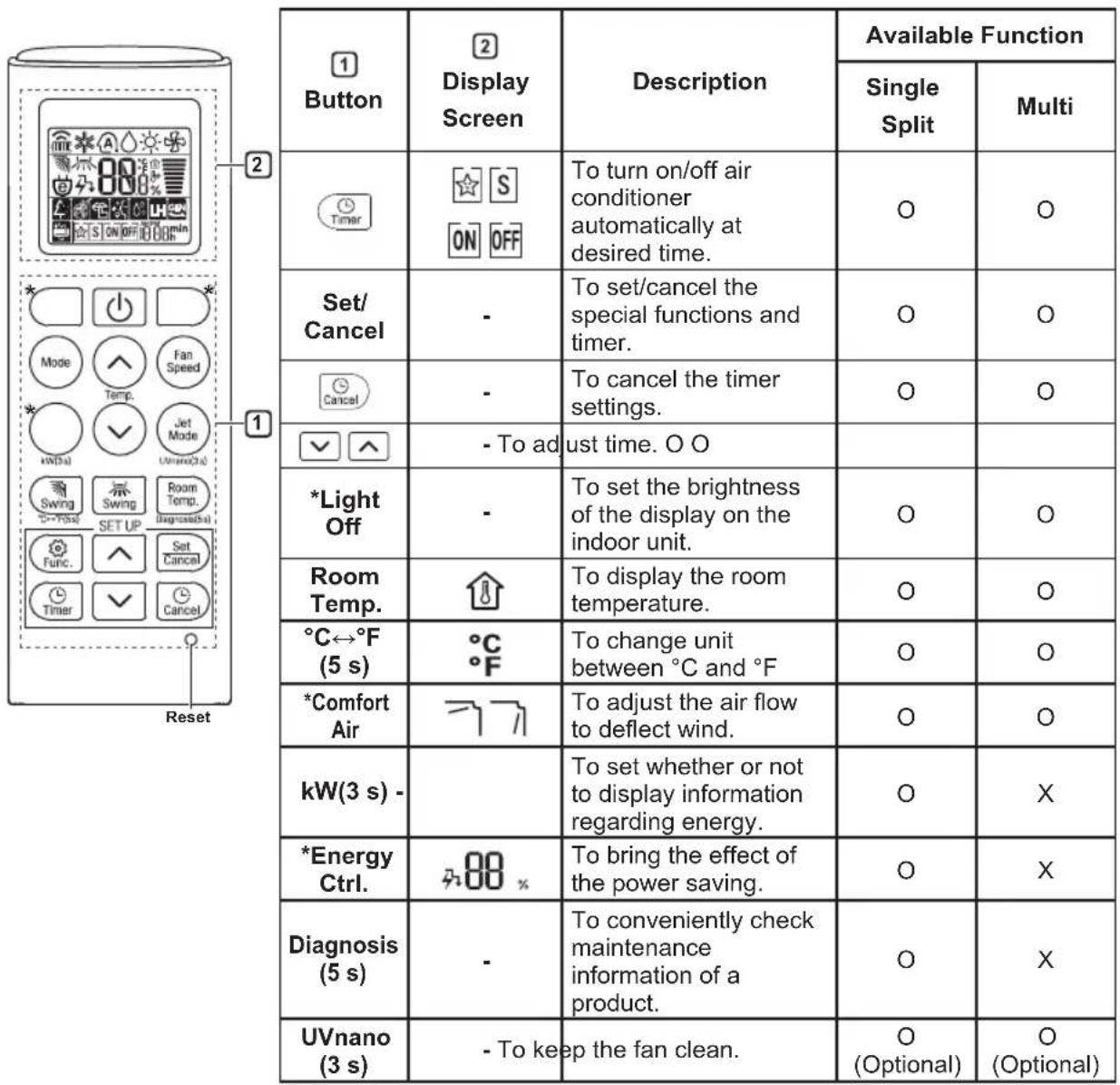

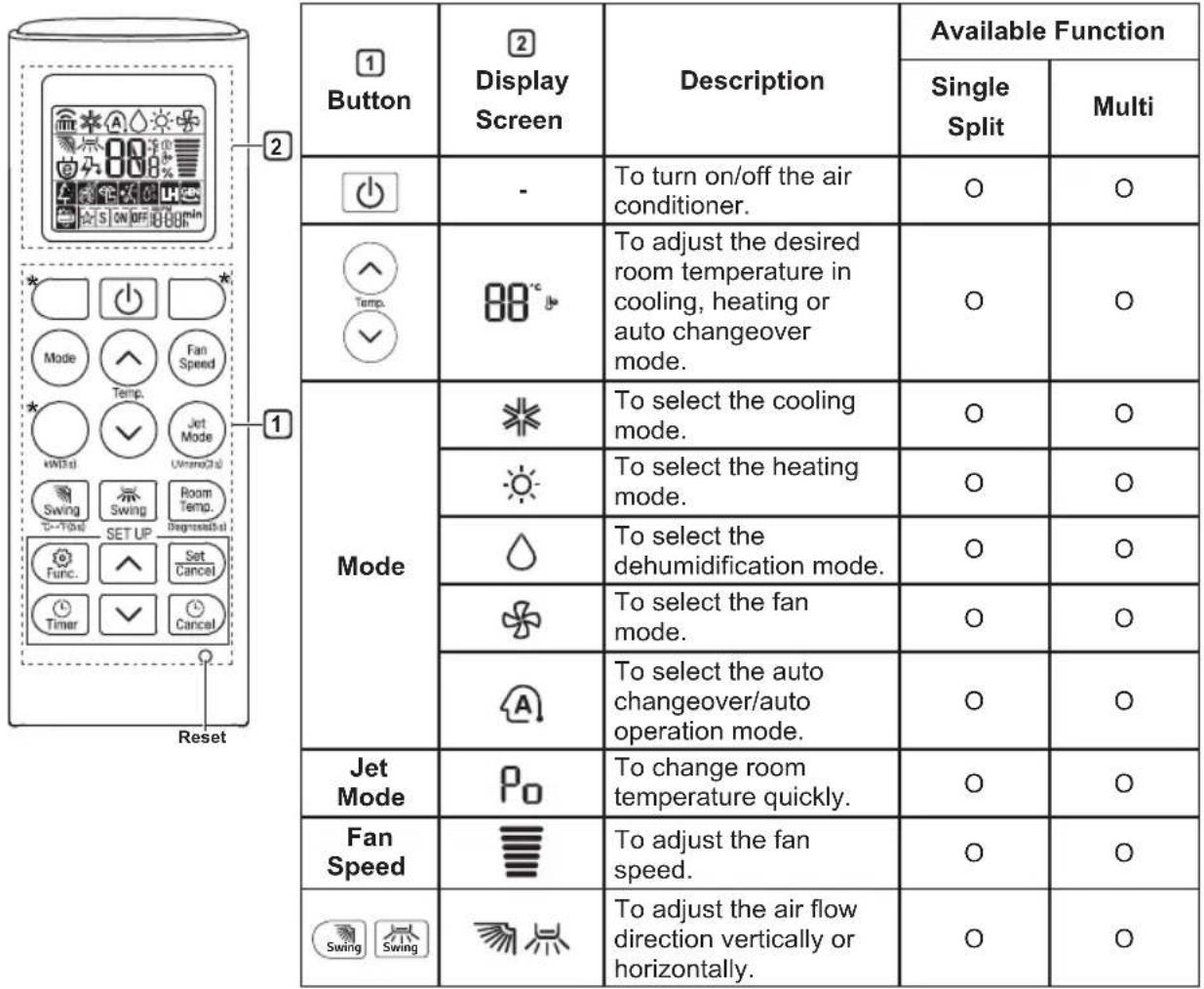

Using Wireless Remote Control

You can operate the air conditioner more conveniently with the remote control.

NOTE

• • buttons may be changed according to the type of model.

• When connected to the Multi Outdoor unit, the Energy Display, Energy Control, Silent and Smart Diagnosis function may not be supported.
