BBUM12340X - Cooker BEKO - Free user manual and instructions

Brand	Beko
Model	BBUM12340X
Product type	Built-in cooker (hob + oven)
Hob type	Ceramic glass
Number of burners	4
Oven type	Electric oven
Oven capacity	65 L
Electrical supply	230 V / 50 Hz
Total power	~10 kW
Dimensions (W x D x H)	60 x 60 x 85 cm
Net weight	45 kg
Material of the hob	Ceramic glass
Oven door	Cold glass
Cleaning	Manual cleaning, enamelled surfaces
Safety	Integrated ventilation, automatic switch-off in case of overheating
Oven functions	Fan-assisted, bottom heat, grill, interior light
Repairability index	7.5/10
Availability of spare parts	Main parts available for 10 years
Warranty	2 years

Frequently Asked Questions - BBUM12340X BEKO

What type of electrical connection is required for the Beko BBUM12340X cooker?

The appliance requires a single-phase 230 V 50 Hz supply with earthing. The power cord must be connected by a qualified electrician according to the diagrams provided in the manual.

How to install the cooker into a worktop?

Cut an opening to the indicated dimensions (figure 2-3), place the sealing gasket on the hob, attach the mounting springs, then insert the hob into the worktop. The oven then slides into the cabinet and is secured with screws.

What safety distance must be observed between the cooker and furniture?

Allow at least 750 mm between the hob and an overhead cabinet (or 650 mm if a hood is installed). The minimum lateral distance must equal the width of the hob. A rear ventilation gap of at least 15 mm is required.

How to connect the hob to the oven?

For a ceramic glass hob, plug the hob connector into the corresponding socket on the oven, then secure the earthing cable with the provided screw. For an induction hob, two connectors must be connected.

Is the cooker compatible with all types of pans?

For a ceramic glass hob, use pans with a flat and smooth base. Avoid rough or copper bottoms that could scratch the surface.

How to clean the ceramic glass hob?

Use a special scraper for burnt residues and a ceramic glass cleaner. Do not use abrasive powder or metal scouring pads. Clean after cooling.

What to do if the oven does not heat?

First check the power supply and circuit breaker. Ensure the cooking mode is correctly selected. If the problem persists, contact an authorized service technician.

Is it possible to use the cooker without the oven door?

No, the oven door must always be closed during cooking to ensure safety and proper operation. Using without the door risks burns and malfunction.

How to activate the child lock?

The manual does not mention a specific child lock. For safety, never leave children unsupervised near the appliance.

Where to find spare parts for this model?

Main spare parts (heating elements, glass, knobs) are available from Beko authorized dealers. Use the model number BBUM12340X to order them.

USER MANUAL BBUM12340X BEKO

Icon of crossed wrench and screwdriver tools (no text or symbols)

EN / DE / FR / TR / BG / BS / CZ / DA / EL / ES / ET / FI / HR / HU / IT / LT / LV / MK / NL / NO / PL / PT / RO / RU / SK / SL / SB / SV / UK

R 3,5 x 22 mm R 4 x 6,5 mm R 3,19 x 16 mm

1

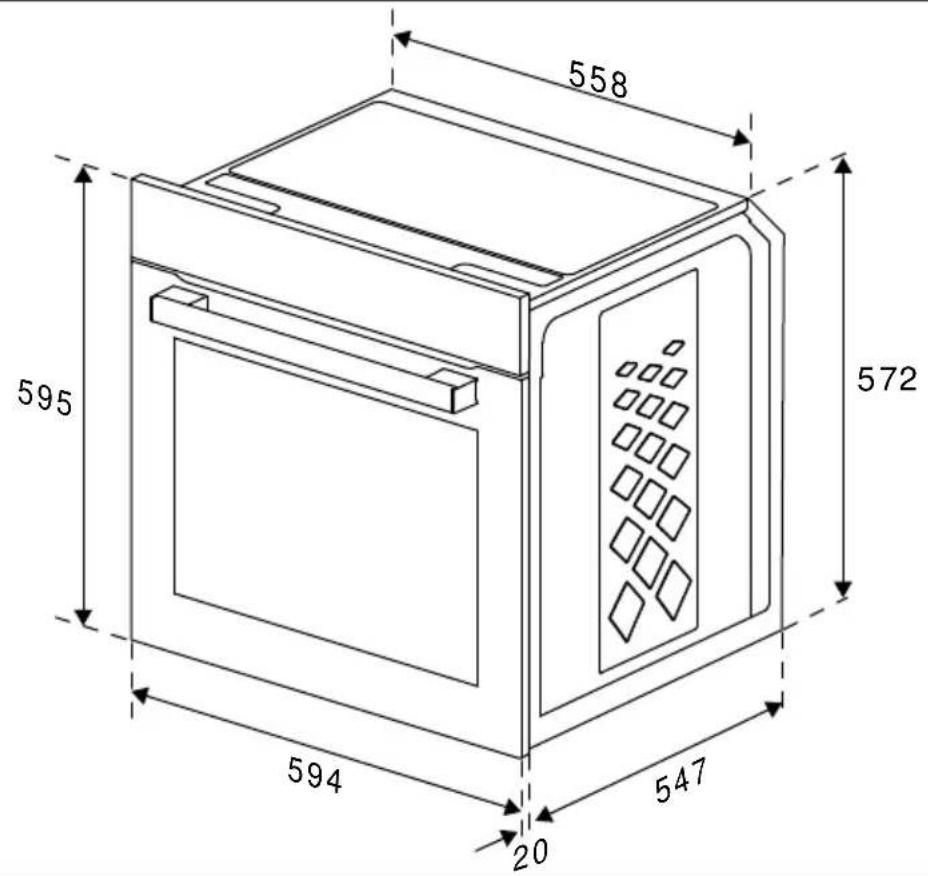

558 595 572 594 547 20

2

min. 560 100 A min.35 min. 500 30

min. 550 min. 560 600 3

3

min. 400 ** min.55 490 (+2) 560(+2) min.60 min.50 min.55

4a

min. 28

min. 15

Illustration of a hand holding a spiral-shaped object placed on a rectangular base, with no text or symbols present.

6

Isometric line drawing of a mechanical assembly with a downward arrow indicating force or motion (no text or symbols)

Architectural or engineering diagram showing structural components and detail views (no text or symbols)

9a 1 2 3 4 5 1 2 3 4 5

9b

10

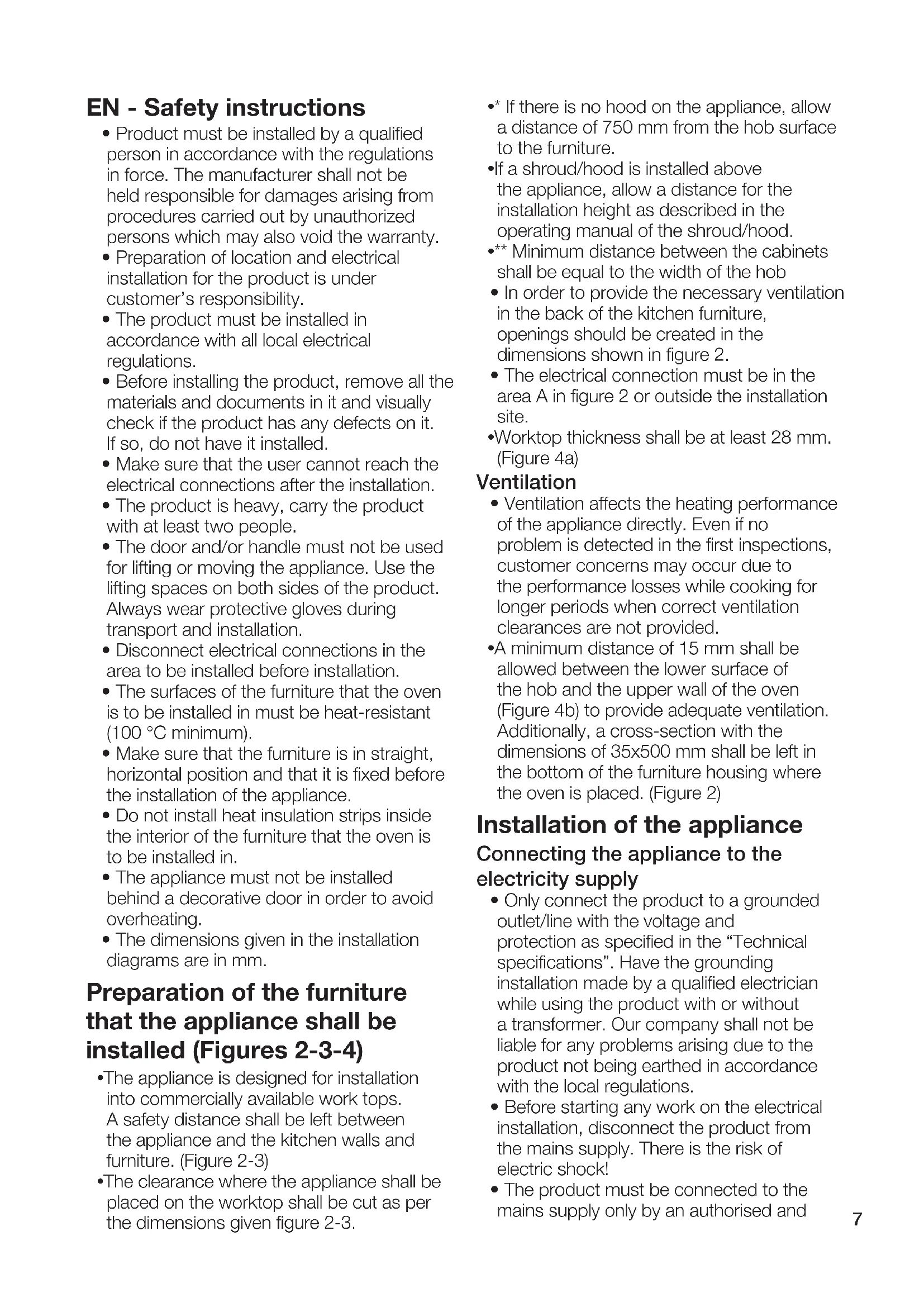

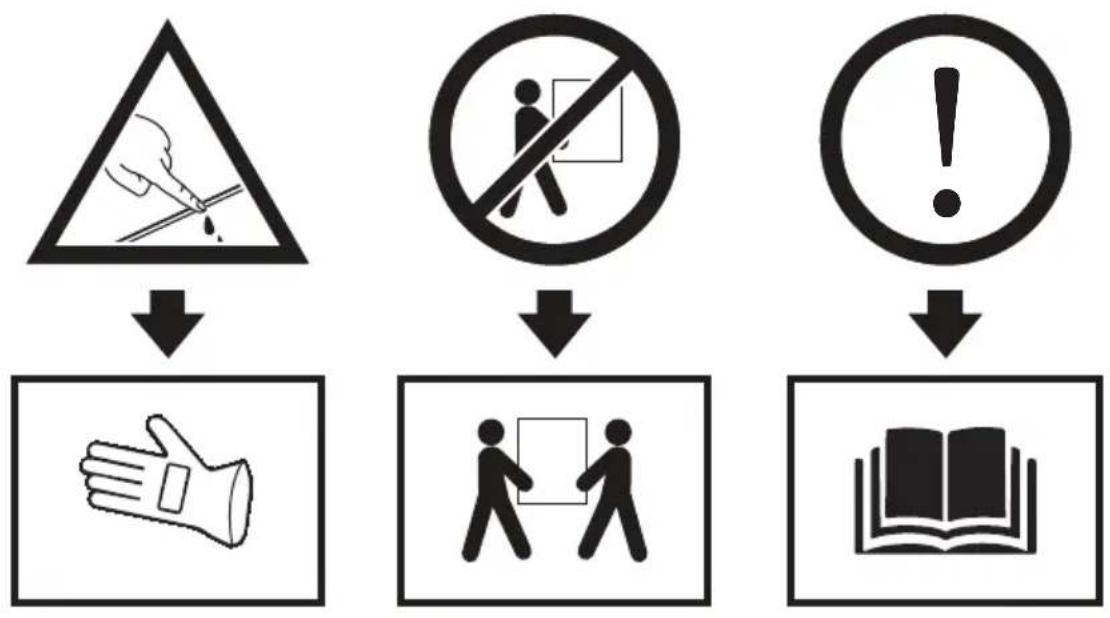

EN - Safety instructions

- Product must be installed by a qualified person in accordance with the regulations in force. The manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorized persons which may also void the warranty.

- Preparation of location and electrical installation for the product is under customer's responsibility.

- The product must be installed in accordance with all local electrical regulations.

- Before installing the product, remove all the materials and documents in it and visually check if the product has any defects on it. If so, do not have it installed.

- Make sure that the user cannot reach the electrical connections after the installation.

- The product is heavy, carry the product with at least two people.

- The door and/or handle must not be used for lifting or moving the appliance. Use the lifting spaces on both sides of the product. Always wear protective gloves during transport and installation.

- Disconnect electrical connections in the area to be installed before installation.

- The surfaces of the furniture that the oven is to be installed in must be heat-resistant (100 °C minimum).

- Make sure that the furniture is in straight, horizontal position and that it is fixed before the installation of the appliance.

- Do not install heat insulation strips inside the interior of the furniture that the oven is to be installed in.

- The appliance must not be installed behind a decorative door in order to avoid overheating.

- The dimensions given in the installation diagrams are in mm.

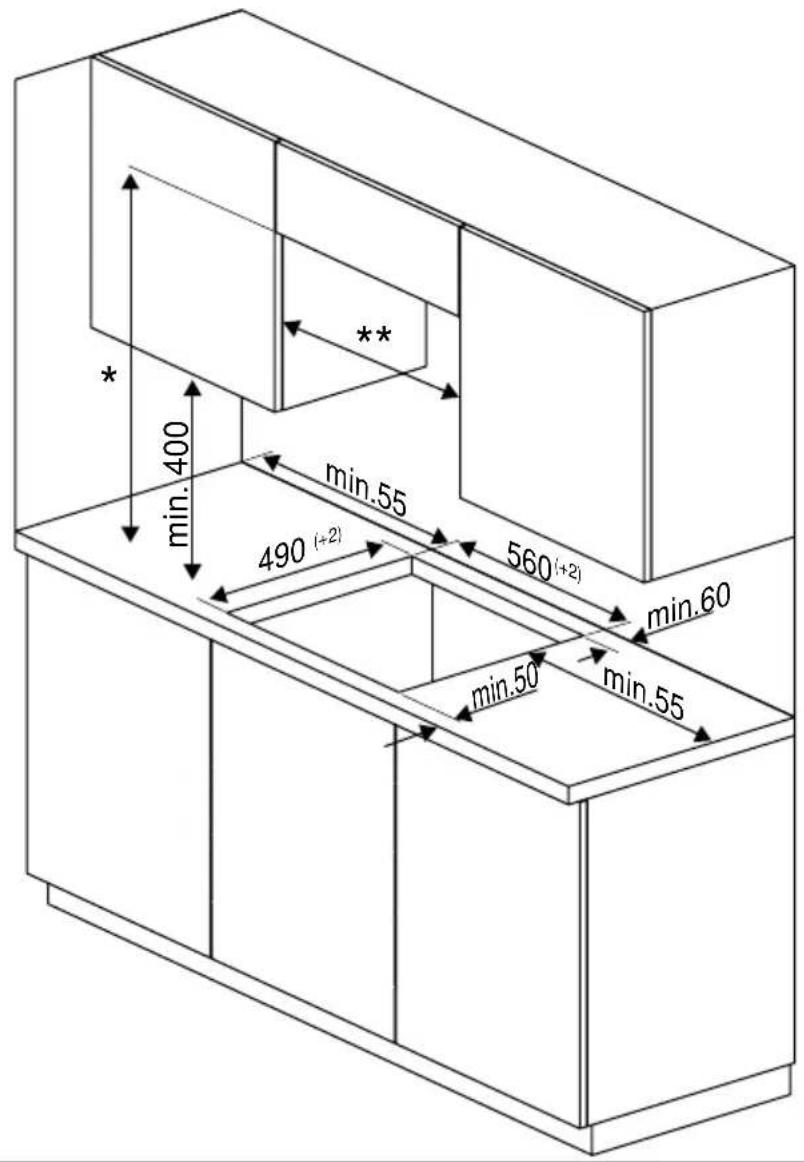

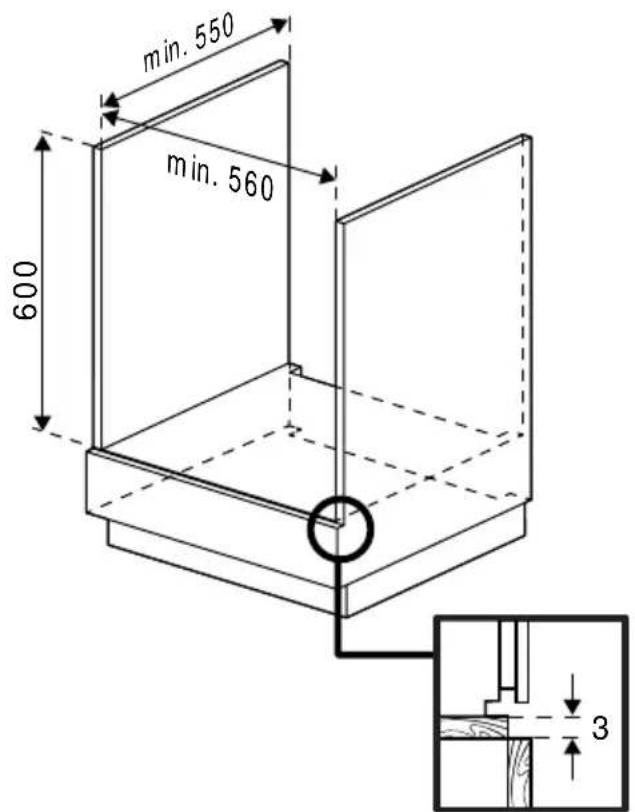

Preparation of the furniture that the appliance shall be installed (Figures 2-3-4)

- The appliance is designed for installation into commercially available work tops. A safety distance shall be left between the appliance and the kitchen walls and furniture. (Figure 2-3)

- The clearance where the appliance shall be placed on the worktop shall be cut as per the dimensions given figure 2-3.

- If there is no hood on the appliance, allow a distance of 750 mm from the hob surface to the furniture.

- If a shroud/hood is installed above the appliance, allow a distance for the installation height as described in the operating manual of the shroud/hood.

- ** Minimum distance between the cabinets shall be equal to the width of the hob

- In order to provide the necessary ventilation in the back of the kitchen furniture, openings should be created in the dimensions shown in figure 2.

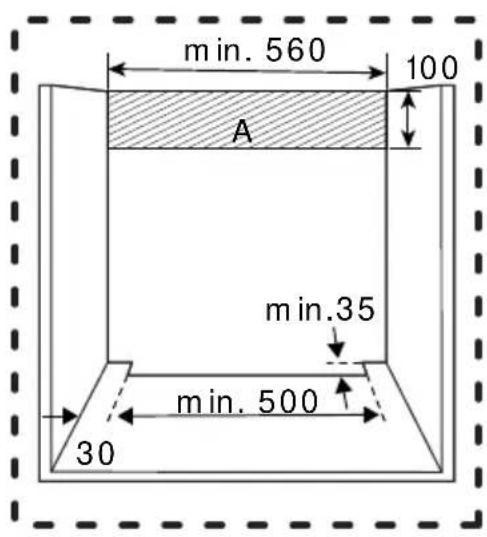

- The electrical connection must be in the area A in figure 2 or outside the installation site.

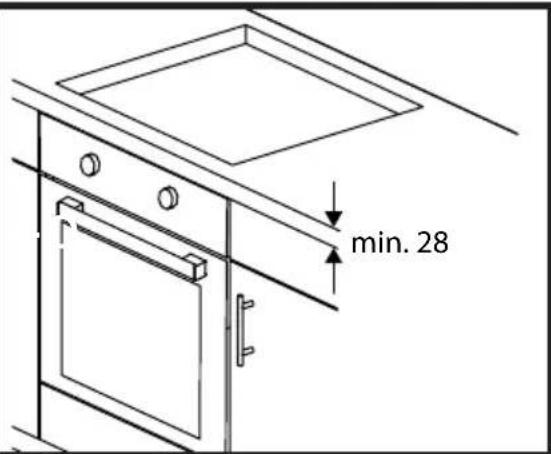

•Worktop thickness shall be at least 28 mm. (Figure 4a)

Ventilation

- Ventilation affects the heating performance of the appliance directly. Even if no problem is detected in the first inspections, customer concerns may occur due to the performance losses while cooking for longer periods when correct ventilation clearances are not provided.

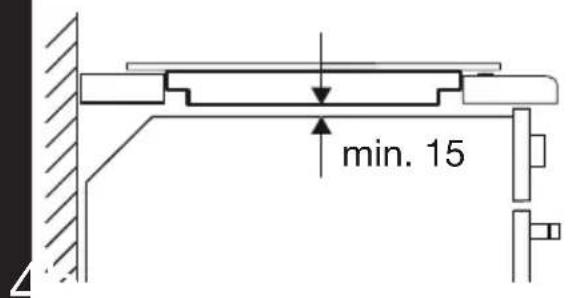

- A minimum distance of 15 mm shall be allowed between the lower surface of the hob and the upper wall of the oven (Figure 4b) to provide adequate ventilation. Additionally, a cross-section with the dimensions of 35x500 mm shall be left in the bottom of the furniture housing where the oven is placed. (Figure 2)

Installation of the appliance Connecting the appliance to the electricity supply

- Only connect the product to a grounded outlet/line with the voltage and protection as specified in the “Technical specifications”. Have the grounding installation made by a qualified electrician while using the product with or without a transformer. Our company shall not be liable for any problems arising due to the product not being earthed in accordance with the local regulations.

- Before starting any work on the electrical installation, disconnect the product from the mains supply. There is the risk of electric shock!

- The product must be connected to the mains supply only by an authorised and

qualified person. The product's warranty period starts only after correct installation. Manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorised persons.

- The appliance must be installed so that it can be completely disconnected from the mains supply. The separation must be provided by a switch built into the fixed electrical installation, according to construction regulations.

- The rear surface of the oven and the bottom surface of the hob get hot when it is in use. Make sure that the electrical connection does not come into contact with the rear surface otherwise, connections can get damaged.

- The connection cable must not be clamped, bent or trapped or come into contact with hot parts of the appliances. You may cause the appliances to short circuit and catch fire as a result of the cable melting. If the power cord is damaged, it must be replaced by a qualified electrician. Otherwise there is a risk of electric shock, short circuit or fire!

- The plug of the power cord should be easily accessible after installation (but not over the hobs).

- When wiring, you must comply with national / local electrical regulations and use socket outlet / line and plug suitable for the appliances. If the power limits of the product exceed the current carrying capacity of the plug and socket outlet / line, you must connect the product directly to the fixed electrical installation without using the plug and socket outlet / line.

- Make sure that fuse rating is compatible with the product.

- Connection must comply with national regulations.

- The mains supply data must correspond to the data specified on the type label of the products. You may see the hob's type label on the bottom of the hob and open the oven door to see the oven's type label.

- Power cable of your product must comply with the values in “Technical specifications” table.

- If the product will be connected directly to the supply power: If it is not possible to disconnect all poles in the supply power, a disconnection unit with at least 3

mm contact clearance (fuses, line safety switches, contactors) must be connected and all the poles of this disconnection unit must be adjacent to (not above) the product in accordance with IEE directives. Failure to obey this instruction may cause operational problems and invalidate the product warranty.

- Additional protection by a residual current circuit breaker is recommended.

If the product is produced with cable:

- Connect the cord of product to supply power as identified below:

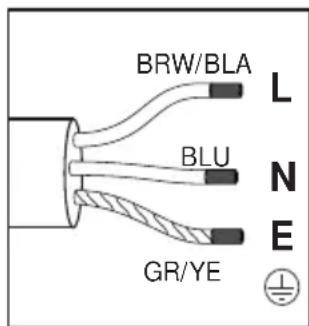

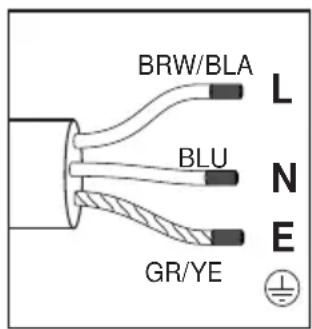

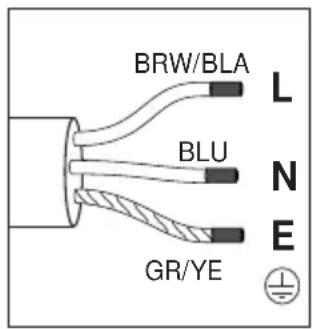

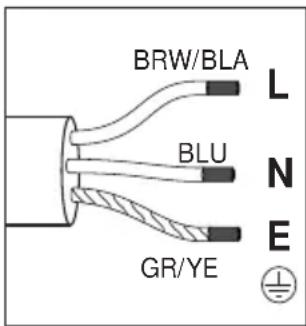

If your supply cord type is 3-conductor type, for 1-phase connection:

• (BRW/BLA) Brown/black = L (Phase)
• (BLU) Blue = N (Neutral)
• (GR/YE) Green/yellow wire = (E) ⏚ (Earthing)

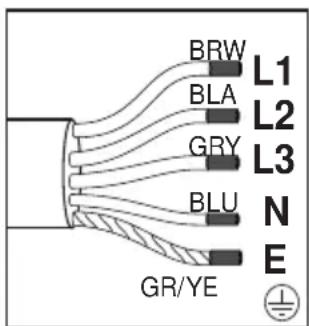

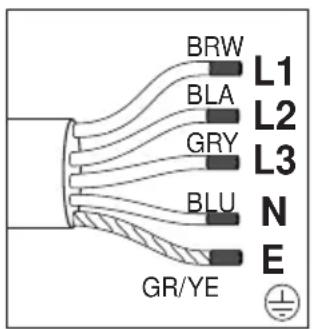

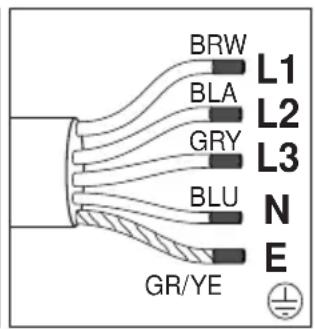

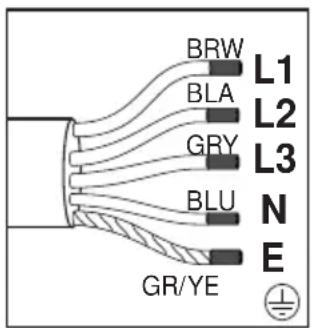

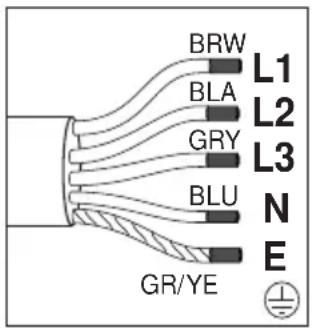

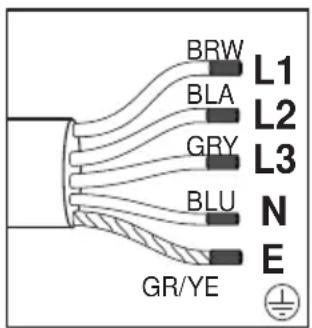

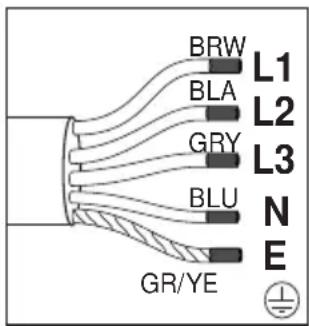

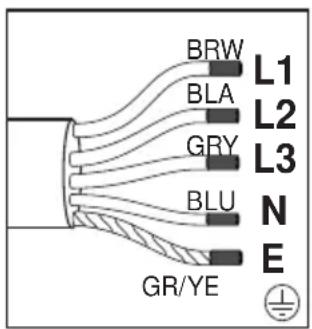

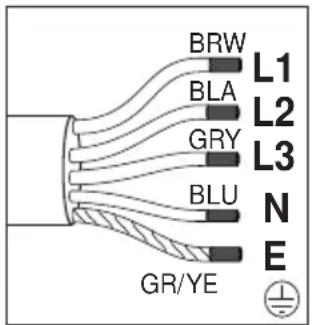

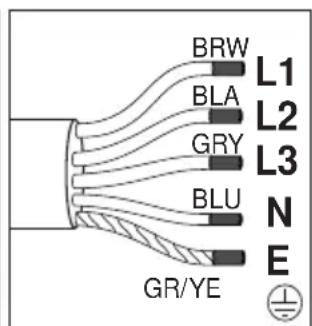

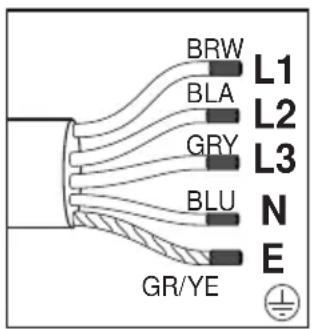

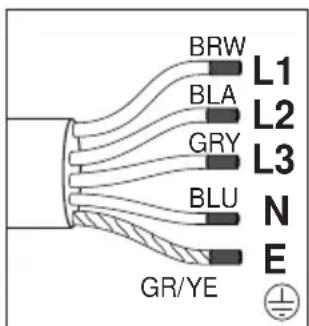

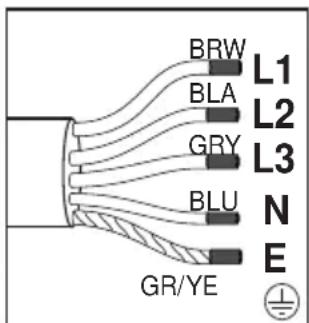

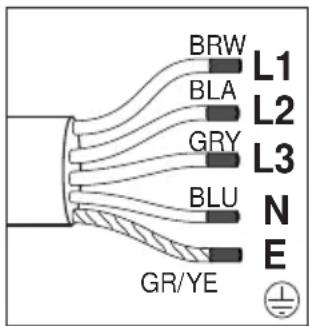

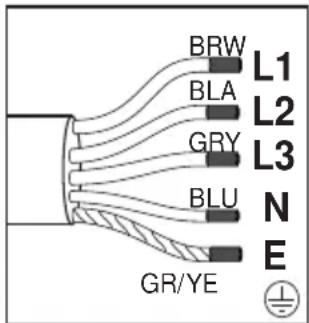

  If your supply cord type is 5-conductor type, for 3-phase connection:
• (BRW) Brown = L1 (Phase)
• (BLA) Black = L2 (Phase)
• (GRE) Grey = L3 (Phase)
• (BLU) Blue = N (Neutral)
• (GR/YE) Green/yellow wire = (E) ⏚ (Earthing)

BRW/BLA L BLU N E GR/YE

1 N AC 220-240 V

BRW L1 BLA L2 GRY L3 BLU N E GR/YE

3 N AC 380-415 V

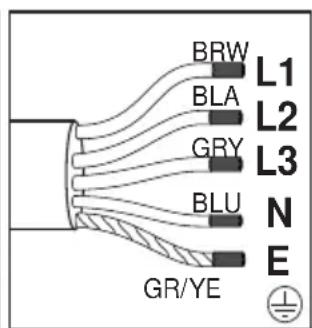

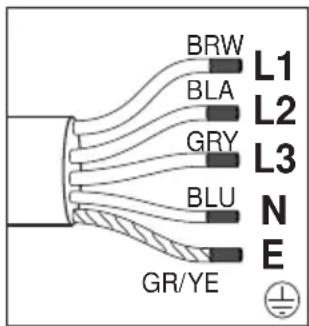

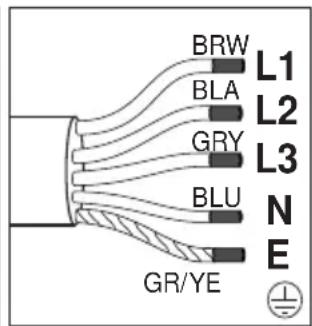

If the product is produced without cable:

A power cable that it is defined in the technical table home must be connected to product by following the instructions. Power cable must not be longer than 2 m because of safety reasons.

• Open the terminal block cover with a screwdriver.
• Insert the power cable through the cable clamp below the terminal and secure it to the main body with the integrated screw on cable clamping component.

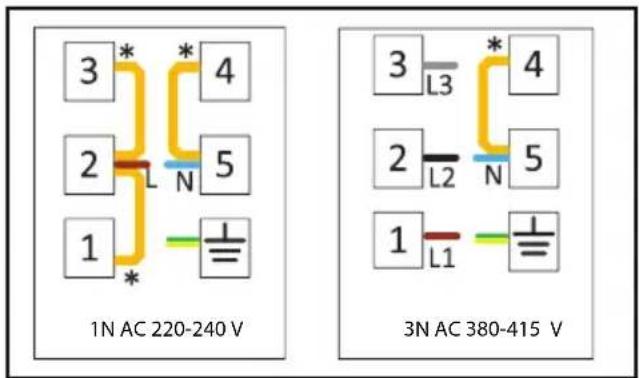

• Connect the cables according to the supplied diagram.

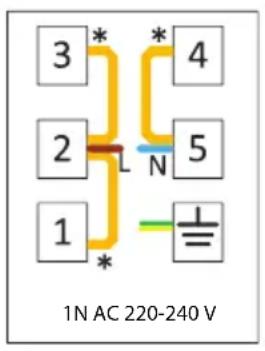

1N AC 220-240 V 3 * 4 2 L N 5 1 * 1 3 L3 4 2 L2 N 5 1 L1 1 3N AC 380-415 V

* Copper bridge If your supply cord type is 3-conductor type, for 1-phase connection:

• Brown/black = L (Phase)
• Blue = N (Neutral)

• Green/yellow wire = (E) Earthing) If your supply cord type is 5-conductor type, for 3-phase connection:

• Brown = L1 (Phase)

• Black = L2 (Phase)
• Grey = L3 (Phase)
• Blue = N (Neutral)
• Green/yellow wire = (E) (Earthing)

• After completing the wire connections, close the terminal block cover.

- Connect the power cable to supply power by routing it so that it will not contact the product and get squeezed between the product and the wall.

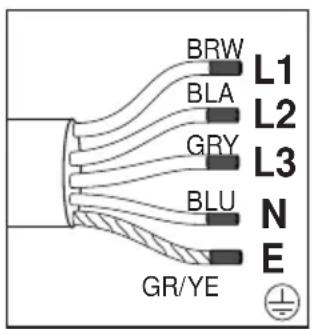

Prevention against possible fire risk!;

• Ensure all electrical connections are secure and tight to prevent risk of arcing.
• Do not use damaged cables or extension cables.
• Ensure liquid or moisture is not accessible to the electrical connection point.

Placing and securing of the hob (Figures 5-6-7-8)

• After preparing the installation location of the appliances, turn the hob upside down and place it on a flat surface.

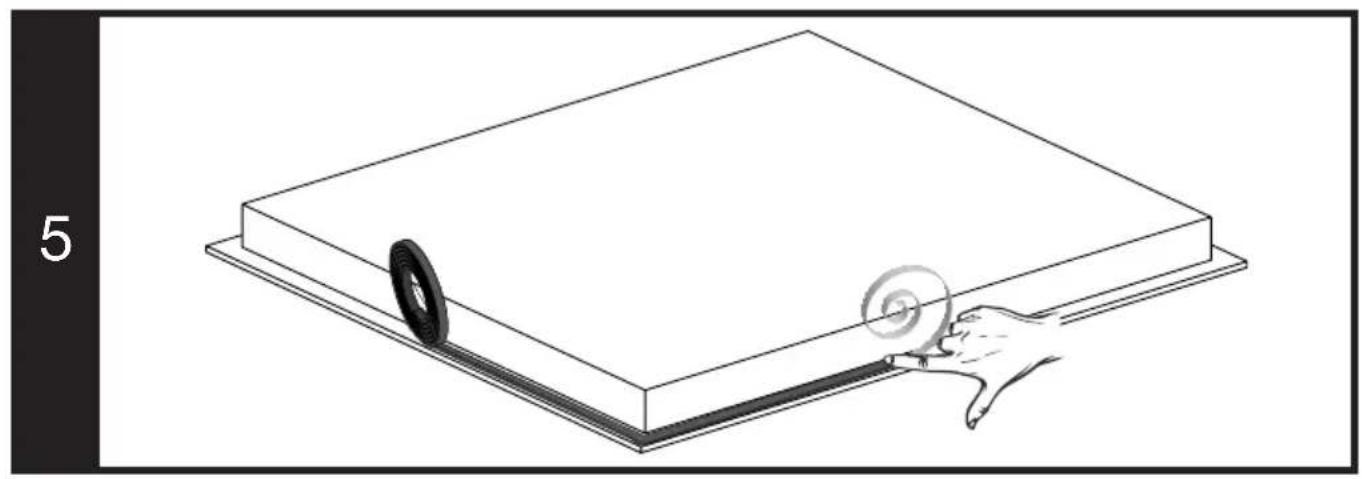

- Affix the sealing gasket supplied with the appliance around the hob so that it shall be 1-2 mm inside the outer edge of the glass as shown in Figure 5. Ensure that no clearance is left between both ends and between the glass and gasket.

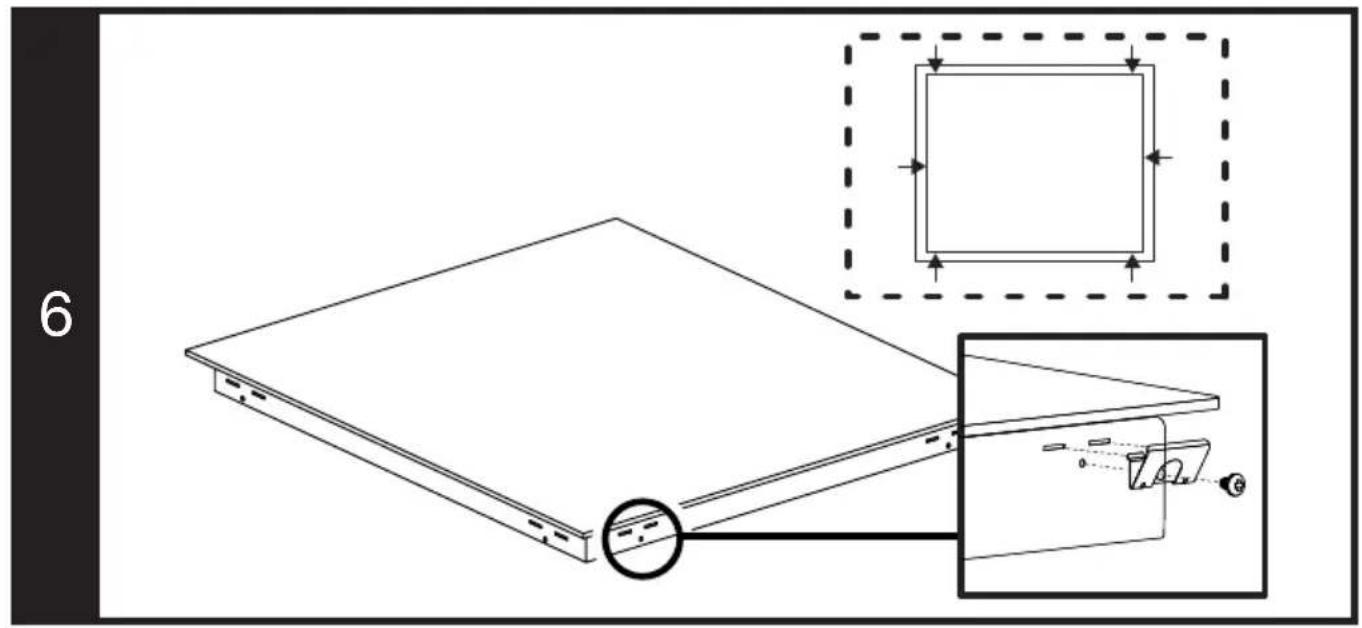

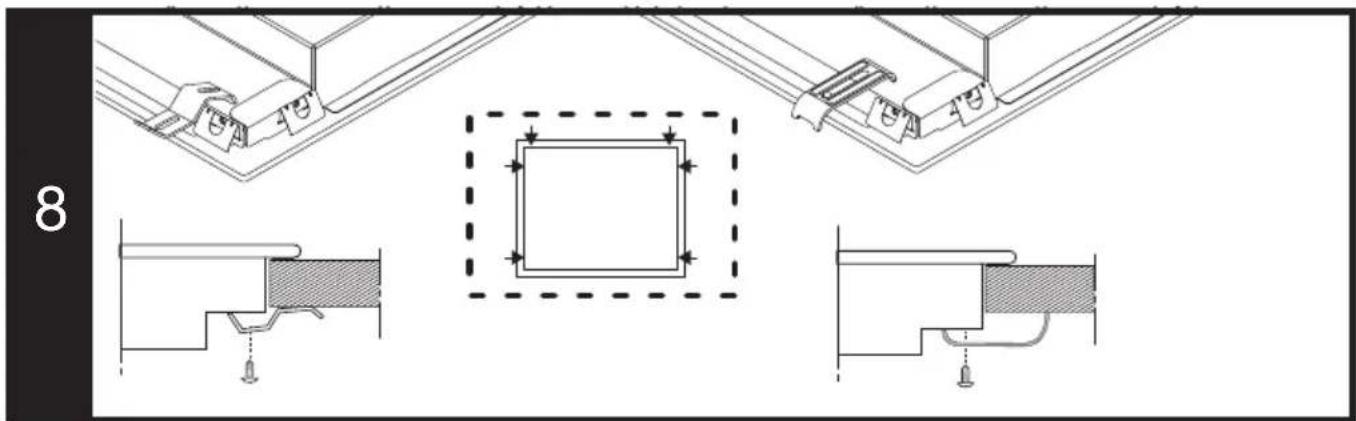

- Screw and secure the mounting springs supplied with the appliance by engaging them to their seat on the lower housing of the hob as shown in Figure 6. (In some models, these springs may be secured to the appliance ex-factory.)

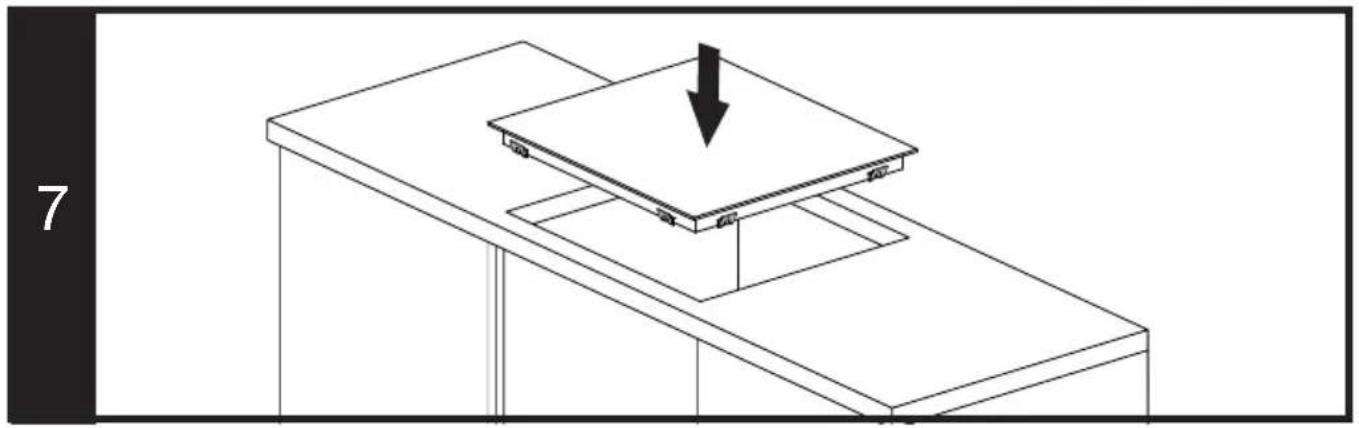

- Turn the hob again and align it with the worktop and then place it on the worktop. Cooker shall be placed on the worktop thanks to the springs, and it shall be easily secured.

- Ensure that the hob and the worktop are parallel when you place the cooker on the worktop. When it is not in parallel, connect the additional installation clamps supplied with the appliance as shown in Figure 8. Figure 8 shows the possible installation locations of the clamps. (The locations where the clamps can be attached may vary depending on the product model. You can connect according to the mounting holes on your hob.) Ensure the parallelism by attaching the clamps to the appropriate locations. The type and quantity of clamps supplied with the product may vary depending on the product model.

Making hob-oven connection and placing and fixing the oven (Figure 9a-9b-10)

• Connect the oven to the power supply.
• Slide the oven centered with at least two persons into the cabinet until half way.

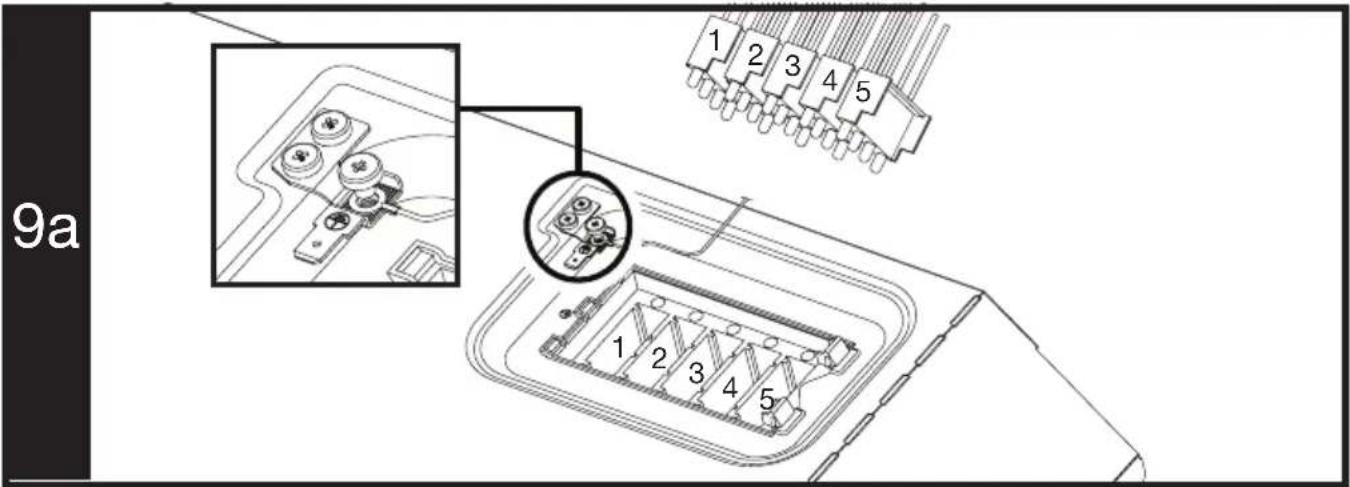

• If your hob type is vitroceramic: The hob has a socket and a grounding cable to be connected to the oven. As shown in figure 9a, connect the socket to its slot on the oven in a way that the colors match. Fix the grounding cable with the screw shown in figure 9a.

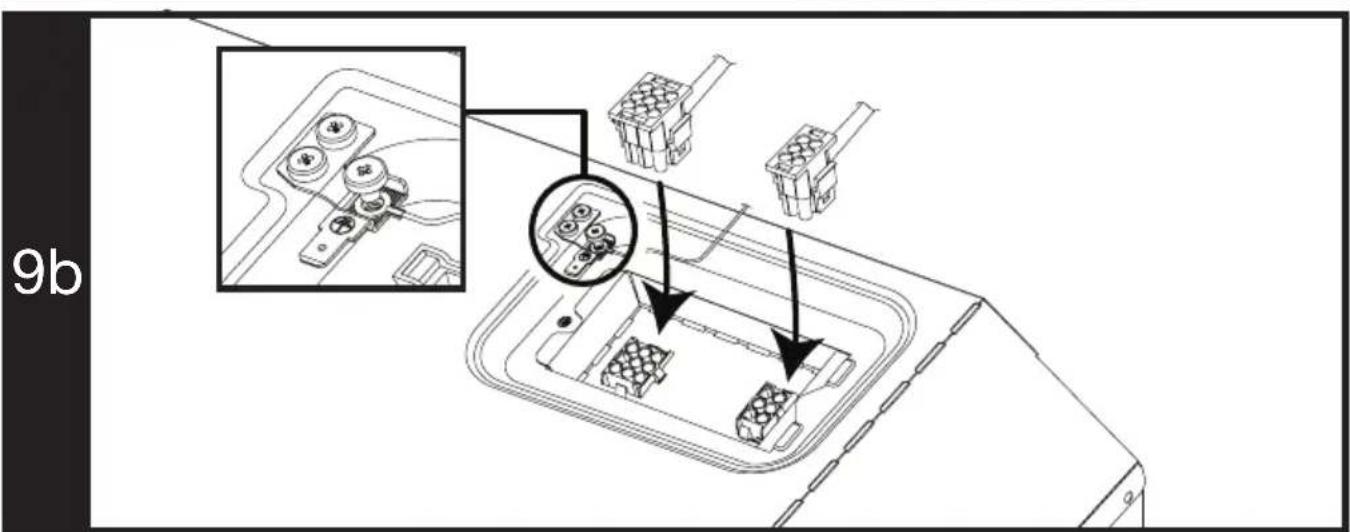

- If your hob type is induction: The hob has two socket and a grounding cable to be connected to the oven. As shown in figure 9b, connect the sockets to its slot on the oven. Fix the grounding cable with the screw shown in figure 9b.

• Place the oven to the cabinet completely.

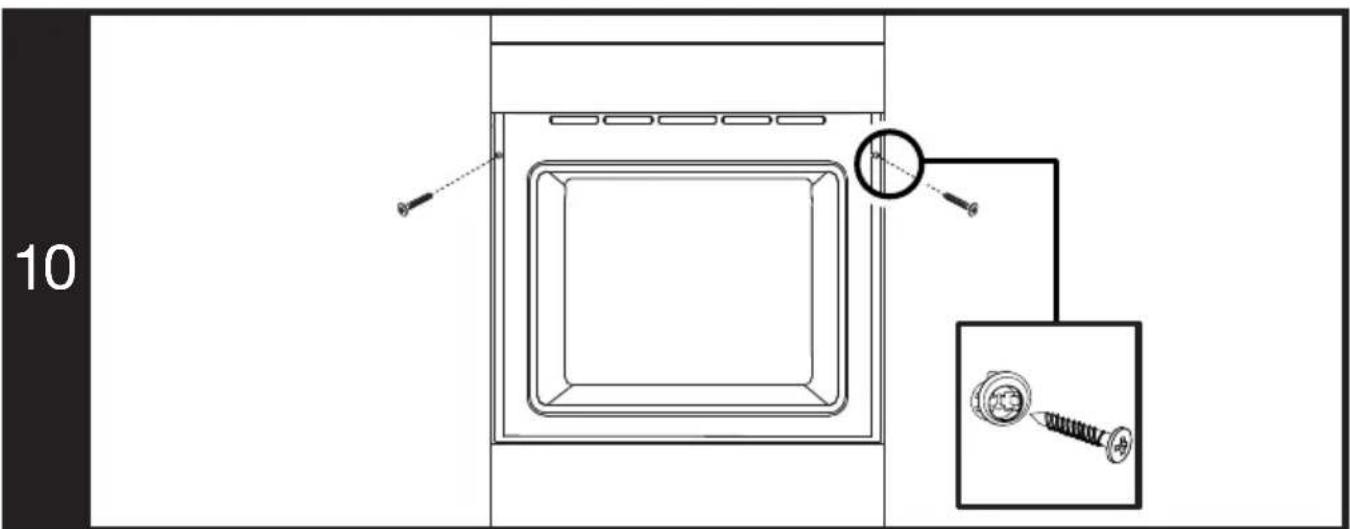

• Fix the oven to the furniture using the screws provided. (Figure 10)
• At the end of the installation, check that the screws are properly tightened and that the product is firmly fixed. If the oven is not installed in accordance with the instructions and the screws are not properly tightened, there is a risk of tipping during use.

Final check

• After installation, turn on the power supply.
- Read the user manual for the first use of the appliances.
- Check functions of appliances.

Removing the appliances

• Disconnect the appliances from the power supply.

• Unscrew the fastening screws of oven.v

• Pull out the oven with at least two persons from the cabinet until half way.

• Disconnect the oven and hob.
• Pull out the oven completely.
• If the hob is secured with additional clamps, unscrew the clamps first.
• Remove the hob by pushing upward from the bottom of the hob.

- (BRW/BLA) Braun/Schwarz = L (Phase)

- (BLU) Blau = N (Neutral)

- (GR/YE) Grüner/gelber Draht = (E)

(Erdung)

• (BRW) Braun = L1 (Phase)
• (BLA) Schwarz = L2 (Phase)
• (GRE) Grau = L3 (Phase)
• (BLU) Blau = N (Neutral)
• (GR/YE) Grüner/gelber Draht = (E) ⏚ (Erdung)

BRW/BLA L BLU N E GR/YE

BRW L1 BLA L2 GRY L3 BLU N E GR/YE

• Braun/Schwarz = L (Phase)
• Blau = N (Neutral)

• Braun = L1 (Phase)

• Schwarz = L2 (Phase)

• Grau = L3 (Phase)

• Blau = N (Neutral)
• Grüner/gelber Draht = (E) (Erdung)

BRW/BLA L BLU N E GR/YE

BRW L1 BLA L2 GRY L3 BLU N E GR/YE

BRW/BLA L BLU N E GR/YE

BRW L1 BLA L2 GRY L3 BLU N E GR/YE

3N AC 380-415 V

* Bakır köprü

- Kahverengi/Siyah = L (Faz)

- Mavi = N (Nötr)

- (GR/YE) zelena/žuta žica = (E)

(Uzemljenje)

Ako je vaš kabel za napajanje tipa s 5 konduktora, za trofazni priključak:

• (BRW) braon = L1 (Faza)
• (BLA) crna = L2 (Faza)
• (GRE) siva = L3 (Faza)
• (BLU) plava = N (Nula)
• (GR/YE) zelena/žuta žica = (E) ⏻ (Uzemljenje)

BRW/BLA L BLU N E GR/YE

BRW L1 BLA L2 GRY L3 BLU N E GR/YE

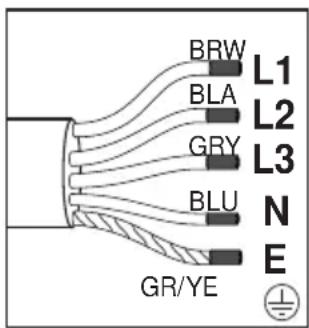

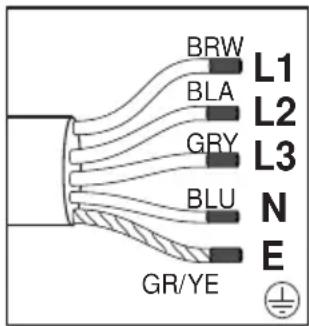

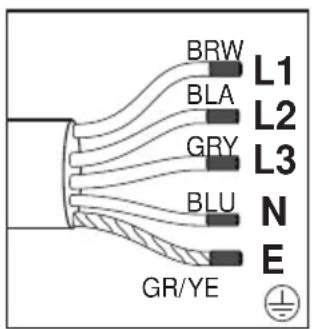

Ako se proizvod proizvodi bez kabla:
