Product type	Pedestal fan
Brand	Cecotec
Model	EnergySilence 580 RetroDesk
Rated power	45 W
Voltage and frequency	220-240 V ~ 50/60 Hz
Number of speeds	3 (low, medium, high)
Oscillation	Yes, with push button
Tilt	Yes, manual head tilt
Blade material	Plastic
Grille material	Metal
Color	Retro (wood or metal depending on variant)
Assembly	Rear grille, blades then front grille; base to screw
Cleaning	Damp cloth and neutral detergent; do not immerse
Child safety	Not for use by children under 8 years
Water protection	Do not expose to water; do not use near a window
Spare parts available	Blades, grilles, screws
Repairability	Contact Cecotec after-sales service
Warranty	2 years (except normal wear and misuse)
Recycling	Do not dispose of with household waste; follow WEEE directive
Product references	05213 / 05214 / 05224

Frequently Asked Questions - EnergySilence 580 RetroDesk CECOTEC

How to assemble the EnergySilence 580 RetroDesk fan?

Start by removing the blade tightening screw and the grille screw. Place the rear grille on the shaft, then secure it with the screw. Push the blades onto the shaft and tighten the blade screw clockwise. Snap the front grille onto the rear grille and close the clips. Finally, screw the foot onto the base.

How to clean the fan?

Always unplug the appliance before cleaning. Use a soft, damp cloth with a neutral detergent. Do not use solvents, alcohol, or abrasive products that could damage the plastic. Do not allow water to enter the motor or touch the cable.

How to adjust the fan speed?

The speed selector is on the motor. It offers 3 positions: 1 (low), 2 (medium), and 3 (high). Position 0 to turn off.

How to activate the fan oscillation?

Use the button on the motor (oscillation on/off button). Press or pull it to start or stop the left-to-right movement.

What to do if the fan does not turn on?

Check that the cord is plugged into a working outlet and that the voltage matches (220-240 V). Make sure the speed selector is not on 0. If the problem persists, contact Cecotec after-sales service.

Can I use the fan outdoors?

No, the fan is designed for indoor domestic use. Do not use it near a window or in a humid environment to avoid short circuits.

The fan makes a strange noise, what should I do?

Check that the blades are properly attached and that the grille is not obstructed. Make sure the fan is on a stable surface. If the noise persists, contact customer service.

How to store the fan when not in use?

Turn off and unplug the appliance. Clean it lightly and store it in a dry place away from dust. Wrap the cable without bending it.

What is the warranty of the Cecotec fan?

This product has a 2-year warranty from the date of purchase, upon presentation of the invoice. The warranty does not cover damage due to misuse, modification, or repair by an unauthorized third party.

Can I replace the blades myself?

Yes, the blades are removable. Unplug the appliance, unscrew the blade tightening screw, remove the blades, and replace them. For any other part, contact customer service.

USER MANUAL EnergySilence 580 RetroDesk CECOTEC

Abstract geometric line drawing composed of intersecting triangles (no text or symbols)

ÍNDICE

1. Safety instructions / 11
2. Before use /13
3. Operation /13
4. Cleaning and maintenance / 13
5. Technical specifications /14
6. Disposal of old electrical appliances / 14
7. Technical support service and warranty / 14

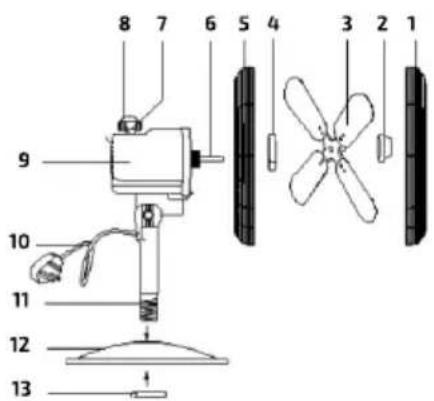

INDICE

1. Front grill
2. Front grid fastening nut
3. Blades
4. Back grid fastening nut
5. Back grill
6. Shaft
7. Oscillation button
8. Speed selector
9. Motor
10. Cable
11. Fan support
12. Base
13. Nut

FR

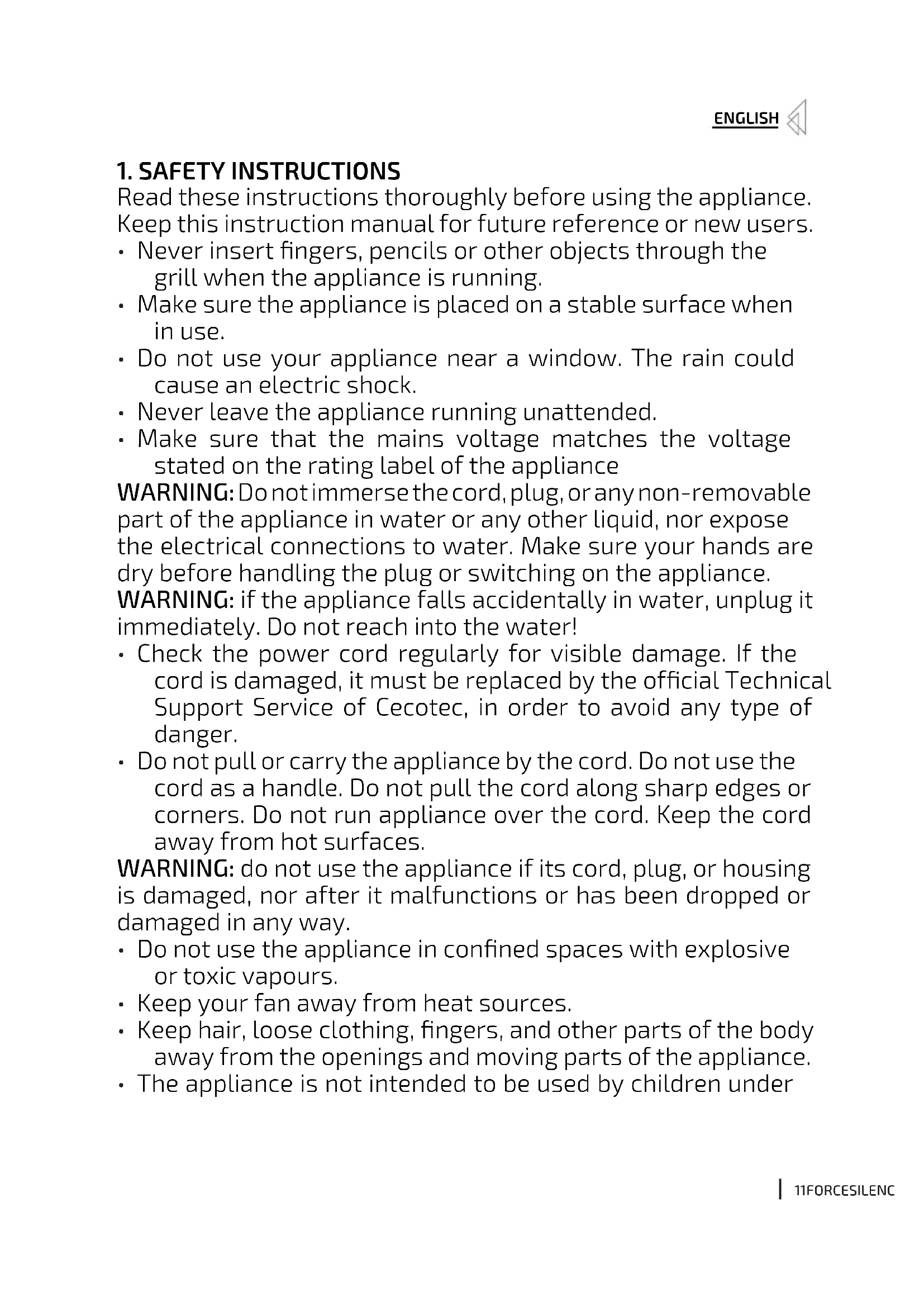

1. SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Never insert fingers, pencils or other objects through the grill when the appliance is running.
• Make sure the appliance is placed on a stable surface when in use.
• Do not use your appliance near a window. The rain could cause an electric shock.
• Never leave the appliance running unattended.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance

WARNING: Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

WARNING: if the appliance falls accidentally in water, unplug it immediately. Do not reach into the water!

• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec, in order to avoid any type of danger.
• Do not pull or carry the appliance by the cord. Do not use the cord as a handle. Do not pull the cord along sharp edges or corners. Do not run appliance over the cord. Keep the cord away from hot surfaces.

WARNING: do not use the appliance if its cord, plug, or housing is damaged, nor after it malfunctions or has been dropped or damaged in any way.

- Do not use the appliance in confined spaces with explosive or toxic vapours.

- Keep your fan away from heat sources.

- Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the appliance.

- The appliance is not intended to be used by children under

the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.

• This appliance is not intended to be used by persons with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety, and understand the hazards involved.
• Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.
• Keep the appliance and its cord out of reach of children under the age of 8.
• Do not leave the appliance unattended while in use. Unplug it from the mains supply when you finish using it or when you leave the room.
• Do not try to repair the appliance by yourself. Contact the official Technical Support Service of Cecotec for advice.
• Switch off and unplug from wall outlet when not in use, when moving the appliance from one location to another or before assembling or disassembling parts. To avoid a tripping hazard, safely coil the cable.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before cleaning it.
• Cleaning and maintenance tasks must not be carried out by children.
• Store the appliance and its instruction manual in a safe and dry place when not in use.
• Make sure the fan is not placed near drapes, curtains, or any objects that may be drawn into the fan
• Do not run cord under carpeting and do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area and where it will not be tripped over.

- Use the fan in a well-ventilated area. While using, distance of no less than 20 cm should be kept away from wall or corner to ensure the air intakes.

2. BEFORE USE

1. Remove the nut (2) and the back grid fixing nut (4) by turning anticlockwise both of them, then remove the two pieces.

2. Place the back grid (5) with the handle on the top part.

3. Place and firmly tighten the back grid fixing nut (4) to fix the back grid (5).

4. Place the blades (3) on the central hub (6) until they match the back grid fixing nut. (4).

5. Place the nut (2) shaft and turn it clockwise until it is fixed.

1. Put the back (5) and front (1) grid together. Make sure the holes on each one match perfectly and use the 3 closing clips to keep them safely attached.

2. Insert the fan (11) in the base (12) and screw with the nut (13).

3. OPERATION

1. To activate or stop oscillation, press the button or pull (7).
2. To adjust the direction of the fresh air, tilt the fan's head up or down.
3. You can adjust speed with the speed buttons:

0: Off / 1: Slow / 2: Medium / 3: Fast

1. Plug the power cord into a suitable power socket.

4. CLEANING AND MAINTENANCE

1. Always disconnect the appliance from the mains by switching it off and removing the plug from the power outlet before cleaning.
2. It is advisable to use a neutral detergent and a soft cloth and to rub dry. Do not use solvents, acidic detergents, petrol or alcohol etc., to clean the plastic components, as these could be deformed or damaged.
3. Do not allow water to penetrate the motor during cleaning.

5. TECHNICAL SPECIFICATIONS

Product reference: 05213/05214/05224

Model: ForceSilence 560 Woodesk/570 Steeldesk/580 RetroDesk

Rated power: 45 W

Rated voltage and rated frequency: 220-240 V, 50/60 Hz

Made in China | Designed in Spain

6. DISPOSAL OF OLD ELETRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

7. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
• Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].
