USER MANUAL EnergySilence Aero 5274 CECOTEC

Four wooden fan blades with black and white designs against a dark blue background (no text or symbols)

Safety instructions 7

1. Parts and components 43

2. Operation 46

3. Cleaning and maintenance 46

4. Technical specifications 47

5. Disposal of old electrical and electronic appliances 47

6. Technical support and warranty 48

7. Copyright 48

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance.

Cleaning and user maintenance should not be carried out by unsupervised children.

• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.

• The electrical wiring must be in accordance with the local regulations.

• The cable must be properly earthed to avoid possible accidents.

• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.

• Do not disassemble, open, or damage the batteries.

• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.

• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Canopy
2. 25 cm downrod
3. Mounting bracket
4. Blades
5. Motor housing
6. Motor
7. Remote control and remote-control receiver
8. 15 cm downrod
9. Assembly kit

Note:

The graphics in this manual are schematic representations and may not exactly match the appliance.

2. Before use

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Instruction manual
• Remote control
• Assembly kit

3. Assembly

Assembly preparation

- To prevent personal injury and damage, make sure that the location where the appliance is going to be installed allows a 2.3-metre clearance from the blades to the floor and a

ENGLISH

76-cm clearance from the blades to any wall or object. Fig. 2

• Ensure that the junction box is securely fastened to the building structure and can support the full weight of the fan.
• Make sure that the building structure can hold the full weight of the fan.
• This fan can be installed on a normal or vaulted ceiling with a downrod. The hanging length of the fan can be extended with a longer rod. Fig. 3
• Installation requires the following tools: screwdriver, flat screwdriver, adjustable pliers or spanner, ladder, wire cutters and electrical tape.

Fig. 3 key:

A. Standard assembly

B. Sloped assembly

Installation

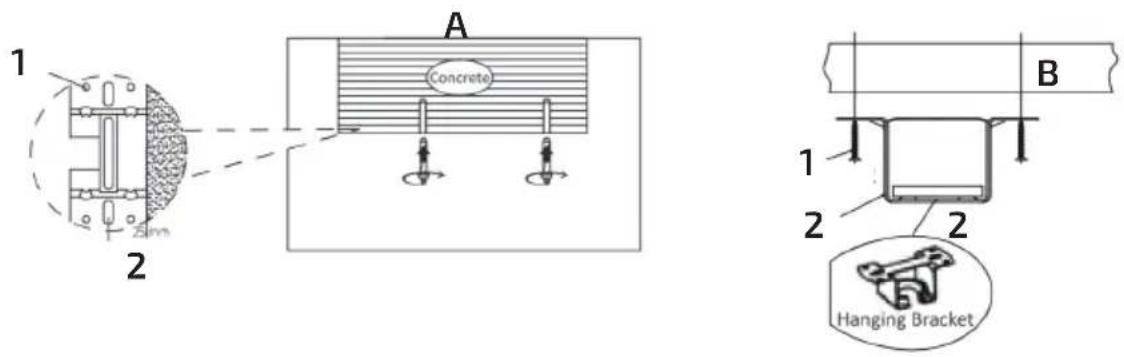

Fig. 4 key:

A. Concrete ceiling

1. Self-tapping mounting holes
2. Expansion screws mounting holes

B. Wooden ceiling

1. 4 self-tapping screws
2. Mounting bracket

Fig. 10 key:

1. Canopy fixing screws
2. Mounting bracket
3. Canopy

4. Use a flat screwdriver to tighten the screws.

5. Place the mounting bracket in the position where it is to be installed and mark the point where the holes are to be drilled.

6. Using a drill, drill two holes 08 mm and 240 mm deep and then insert two plugs.

Note:

• Use plugs or self-tapping screws depending on the roof material. Do not place the mounting bracket directly on a thin wooden or concrete surface. When the mounting bracket is in place, make sure that it can withstand more than 60 kg of vertical tension to avoid any risk.

• You do not need to drill any holes if you are installing in a solid wood ceiling. In this case, you only need to insert 4 self-tapping screws into the four mounting holes in the corners of the mounting bracket. Fig. 4

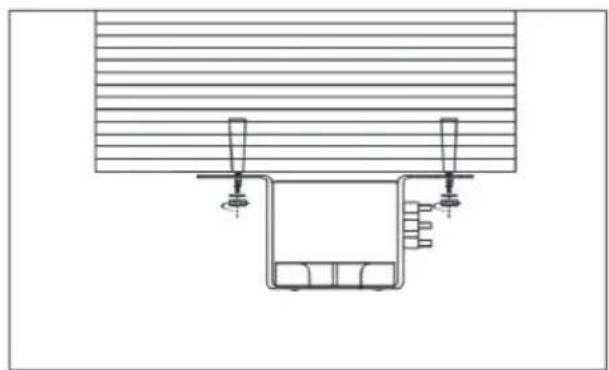

• Remove the plugs, nuts, and gaskets, and secure the mounting bracket to the plugs.

• Place the gaskets on the plugs and tighten the nuts. Make sure that the installation has been carried out correctly, otherwise the fan may fall down. Fig. 5
• Align the holes in the blades with the holes in the motor and fix the blades. Fig. 6.

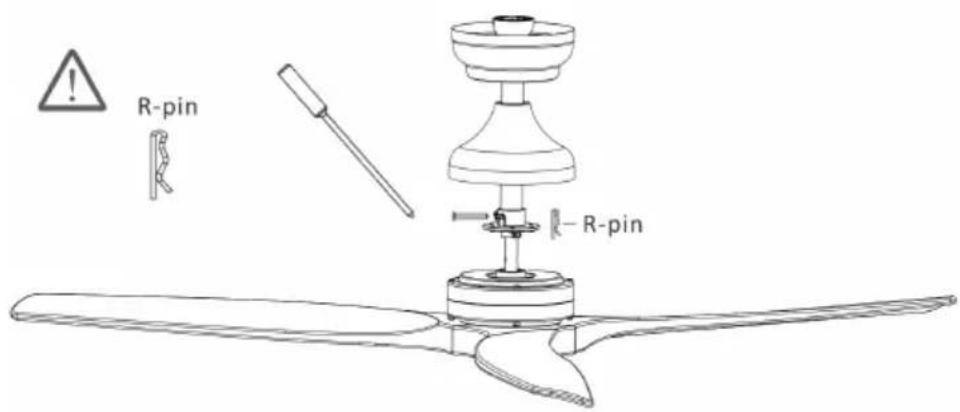

• Pass the canopy through the cover of the downrod, then pass the power cables through the downrod.
• Loosen the downrod base fixing screws and align the holes in the downrod with the holes in its base. Then, fit the pin and clevis. Use a flat screwdriver to tighten the screws at the base of the downrod. Fig. 7
• Fit the downrod cover.

Note: make sure that the pin and clevis are correctly positioned to prevent the fan from falling.

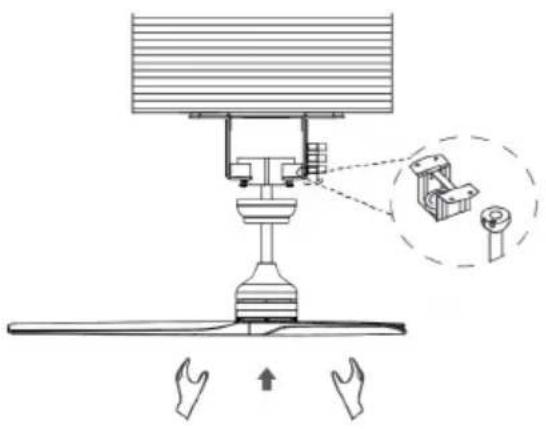

1. Grasp both sides of the lamp body with both hands, align the downrod with the hole in the mounting bracket and then fit the mounting bracket. Fig. 8

2. Turn the lamp body counterclockwise until it is in the correct position. Move the lamp body to the right and to the left to ensure that it is correctly positioned.

3. Insert the controller into the mounting bracket. Fig. 8

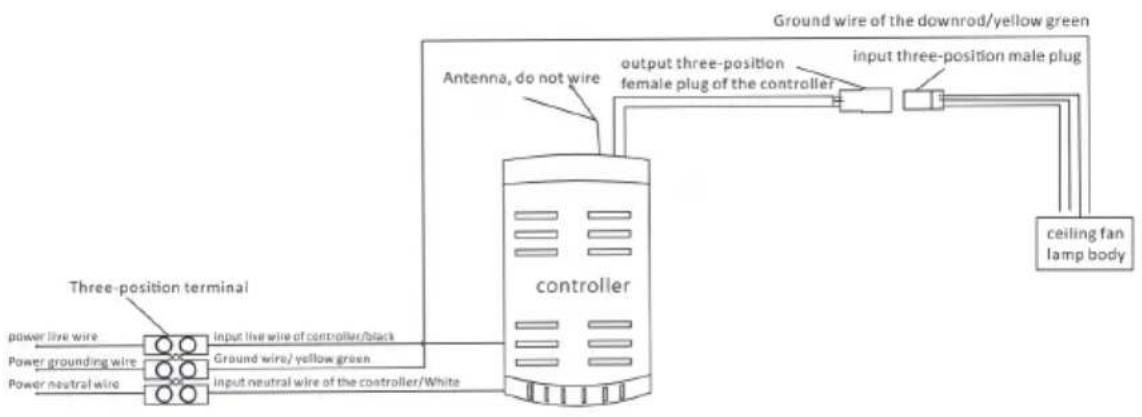

Wiring connections. Fig. 9

1. Connect the white plug of the controller motor wires to the white plug of the ceiling fan motor wires.
2. Strip the power cable (N: neutral, L: line) by 6 to 8 mm.
3. Connect the neutral/line input wire from the controller, the earth wire from the mounting bracket, and the earth wire from the ceiling fan to the appropriate wiring holes on the mounting bracket. Afterwards, tighten the screws of the wiring terminals with a flat screwdriver.
4. Connect the neutral/line cable and the earth cable to the corresponding wiring holes on the mounting bracket. Afterwards, tighten the screws of the wiring terminals with a flat screwdriver.
5. Arrange the cables.

Note: the remaining length of the cables can be placed in the cover of the mounting bracket. If the cables are too long, cut them.

1. Loosen the fixing screws of the mounting bracket canopy by 2 to 5 mm. Then, hold the canopy with both hands and carefully insert the fixing screws into the mounting holes.
2. Turn the canopy counterclockwise until it is in the correct position.
3. Tighten the canopy fixing screws with a flat screwdriver. Fig. 10

ENGLISH

4. OPERATION

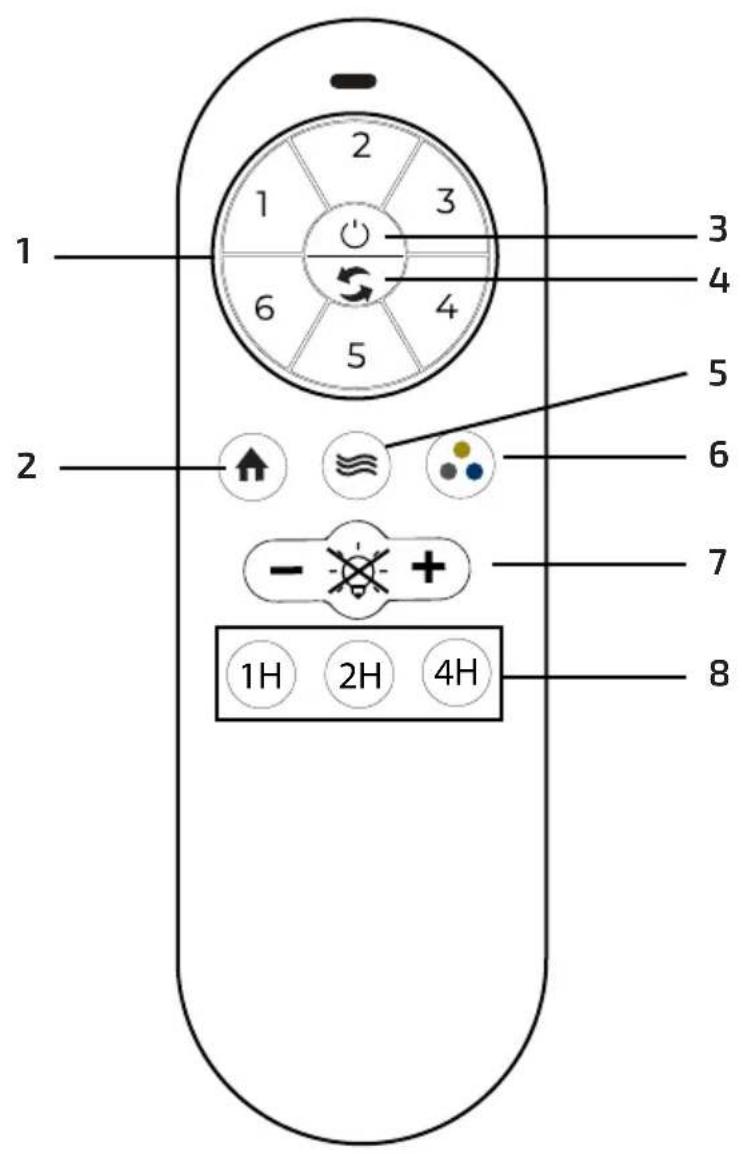

Fig. 11 key:

1. Speed buttons
2. Anti-theft function
3. Off button
4. Reverse rotation button
5. Natural breeze function button
6. Shade change button (depending on model)
7. Light controls (depending on the model)

8. Timer buttons

9. Use the speed buttons to select the power level.

10. Press the off button to switch the appliance off.
11. Use the timer buttons to select the operation time of the appliance. The fan will turn off once the selected time has elapsed.

Reverse rotation

Press button 4, to reverse the direction of rotation.

• If the blades start to rotate clockwise, then winter mode is activated (causing warm air to be distributed throughout the room).
• If the blades start to rotate counterclockwise, then summer mode is activated (creating a cool breeze).

Natural breeze

Activate this mode by pressing button 5. The fan will progressively vary the power level in cycles, providing a feeling of fresh air.

Changing the remote-control battery

1. Open the battery compartment.
2. Insert the batteries into the battery compartment observing the polarity.
3. Close the compartment.

5. CLEANING AND MAINTENANCE

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
• Use a soft, damp cloth to clean the surface of the appliance.

6. TECHNICAL SPECIFICATIONS

Product reference: 08550 / 08551 / 08552 / 08553

Product: EnergySilence Aero 5270 BlackWood / EnergySilence Aero 5270 Black&WhiteWood

/EnergySilence Aero 5270 WhiteWood /EnergySilence Aero 5270 White&BlackWood

Voltage: 220 - 240 V

Frequency: 50 / 60 Hz

Power: 40 W

Description Symbol Value Unit
Fan maximum flow F m			^3/min
Fan power consumption P W
Service value SV (m			^3/min)/W
Power consumption on standby mode	P_SB		W
Fan sound power level L	WA		dB (A)
Maximum air speed C m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910, Alfafar(Valencia, Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

ENGLISH

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

Technical diagram showing two mechanical assembly states labeled A and B, with no visible text or symbols.

Fig./Img./Abb./Rys./Obr. 3

Fig./Img./Abb./Rys./Obr. 4

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a propeller with three blades and a screw, showing mechanical components and directional arrows (no text or symbols)

Fig./Img./Abb./Rys./Obr. 5 Fig./Img./Abb./Rys./Obr. 6

R-pin R-pin

Fig./Img./Abb./Rys./Obr. 7

Technical diagram of a mechanical assembly with a base, clamping mechanism, and directional arrows (no text or labels)

Technical line drawing of a mechanical assembly with a base mount and a close-up inset showing internal components (no text or symbols)

Fig./Img./Abb./Rys./Obr. 8

Ground wire of the downrod/yellow green Antenna, do not wire output three-position female plug of the controller input three-position male plug ceiling fan lamp body control Three-position terminal power live wire Power grounding wire Power neutral wire input line wire of controller/black Ground wire/yellow green input neutral wire of the controller/White

Fig./Img./Abb./Rys./Obr. 9

1 2

3 4

Fig./Img./Abb./Rys./Obr. 10

1 2 3 4 5 6 7 8 1H 2H 4H

Fig./Img./Abb./Rys./Obr. 11
