USER MANUAL EnergySilence 8150 Skyline CECOTEC

Modern vertical air conditioner tower with visible cooling fins and a digital display showing 21°C (no text or symbols on the device itself)

Safety instructions 7

1. Parts and components 40
2. Before use 40
3. Operation 41
4. Cleaning and maintenance 42
5. Technical specifications 42
6. Disposal of old electrical and electronic appliances 43
7. Technical support and warranty 43
8. Copyright 43

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• Check the power cable regularly for visible damage. If the

cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.

- Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.

- If the appliance falls accidentally into water, unplug it immediately. Do not touch the water!

- Do not operate the device if any fault or unusual sign is detected.

- Do not operate the product next to combustible or explosive gas.

- The appliance must not be placed immediately below a socket.

- Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the device.

- Make sure the appliance is placed on a flat and stable surface and do not move it during operation.

- Do not use the appliance near a window or places where it could get wet (at least 2 metres away), as water could cause an electric shock.

- Do not operate the product under or next to curtains.

- Do not cover the air inlet and outlet and do not place the product's cord under carpets or other objects during operation. Keep the front, back, and sides of appliance at a minimum safety distance from walls and other objects.

- Do not leave the appliance unattended while in use.

- It is not recommended to use the product with an extension lead.

- Always turn off and unplug the device when not in use and before assembling, disassembling, or moving it. Pull from the plug, not the cable, to disconnect it from the outlet.

• Cleaning and maintenance tasks should be carried out according to this manual to ensure the correct operation of the device.
• Supervise children to prevent them from playing with the appliance. Close supervision is necessary when the appliance is being used by or near children.

Instructions on batteries

• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children.
• Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit the batteries. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Do not subject batteries to mechanical shock.
• Leaks from the batteries can occur under extreme conditions. Do not touch any liquid that leaks from the batteries. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and ensure they are used correctly.
• Do not use any batteries that are not designed for use with the appliance.

• Do not use the appliance if powered with batteries that differ in capacity, size, or type.

• The use of the batteries by children must be supervised.

• In case of battery ingestion, please seek medical attention immediately.
• Always buy the batteries recommended by the device manufacturer.
• Keep the batteries clean and dry.
• Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Use the batteries only for their intended purpose.
• Whenever possible, remove the batteries from the remote control when not in use.
• Dispose of the battery correctly.

INSTRUCTIONS DE SÉCURITÉ

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Tower fan
• Remote control
• Instruction manual
• 1 CR2025 battery

3. OPERATION

Assembly instructions

Base assembly

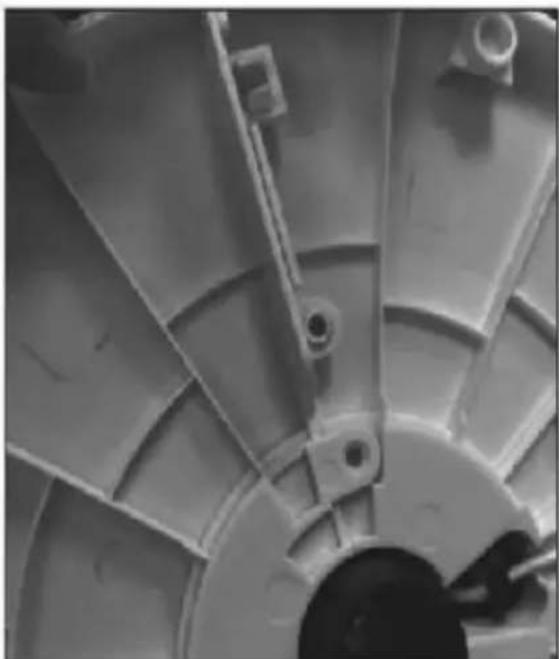

1. Loosen the lock nut at the bottom of the fan by turning it counterclockwise. Lower the power cable as shown in figure 4.

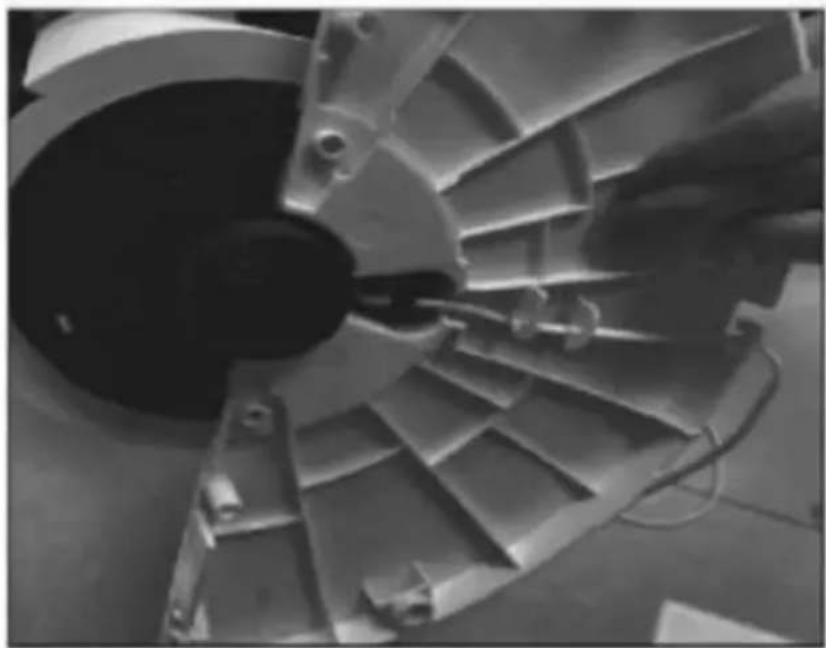

2. Pass the power cable through the central gap between the two halves of the base (not assembled yet), as shown in figure 5.

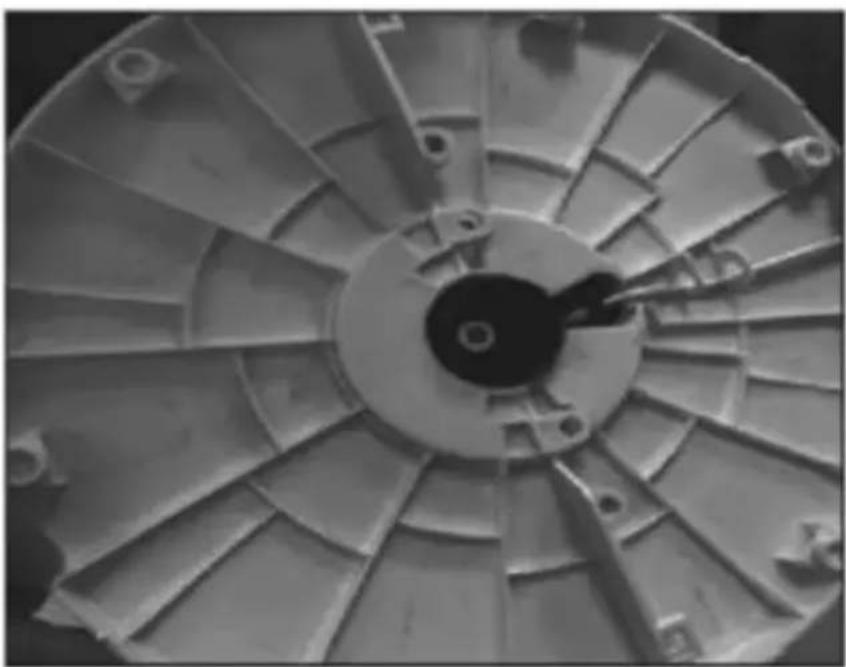

3. Join the two halves by pressing the plastic tabs of each half into the corresponding slots of the other half, like shown in figures 6, 7 and 8.

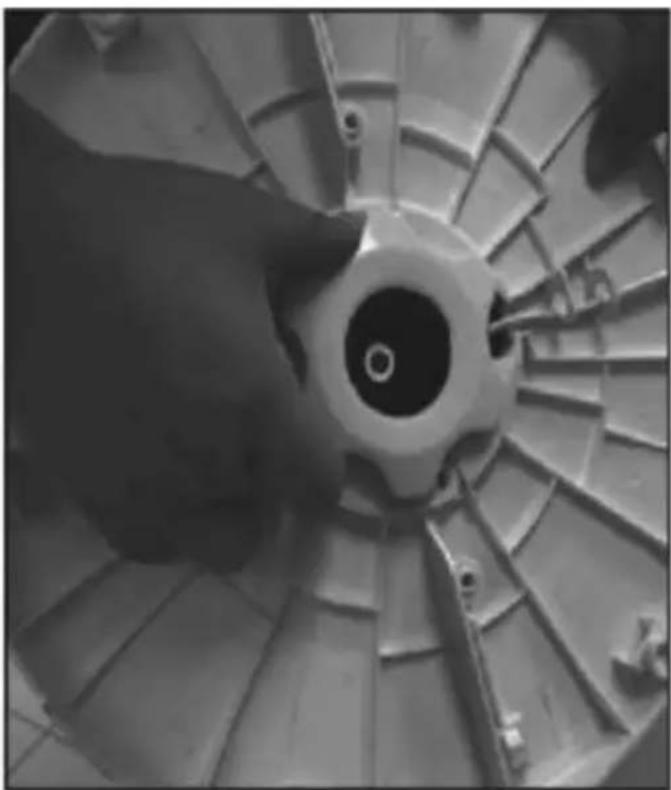

4. Retighten the locking nut clockwise, as shown in figure 9.

NOTE: make sure the power cable goes through the guides on the base.

Operation

1. Power icon

When pressed for the first time, the fan will switch on. If you press it again, it will switch off.

2. Mode icon

Press this icon to select Normal, Natural or Night mode.

3. Oscillation icon

Press once to activate the oscillation function. If you press it again, this function will be deactivated.

4. Timer icon

Press this icon to set the timer. You can programme the fan to switch off after 1, 2, 3 or 12 hours of operation.

5. Speed icon

Press this icon to select the speed (low, medium, or high).

The temperature, mode, oscillation, and speed icons will be shown in the digital display.

ENGLISH

4. CLEANING AND MAINTENANCE

1. Keep the fan in a cool, dry place.
2. To clean stains and remove dust from the fan, use a soft cloth dampened with soapy water. Then, use another cloth to dry it. Do not use solvents.
3. Once cleaned, cover the fan, and store it in a dry place if you are not going to use it for a long time.

5. TECHNICAL SPECIFICATIONS

Product reference: 08202

Product: EnergySilence 8150 Skyline

Voltage: 220-240 V\~

Frequency: 50/60 Hz

Power: 55 W

DESCRIPTION SYMBOL VALUE UNIT
Fan maximum flow F 3.1 m			^3 /min
Fan power consumption P 51.6 W
Service value	S_v	0.1	(m ^3 /min)/W
Power consumption on standby mode	P_SB	0.5	W
Fan sound power level	L_WA	57	dB (A)
Maximum air speed	C 1.2	m/seg
Service value measurement standard	EN ISO 5801:2017
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos n°60, 46910, Alfajar (Valencia, Spain)

The power consumption in standby mode is 0.5 W using the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function, waiting for the standby mode to be activated.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

Close-up of a mechanical component with a curved, mesh-like opening and internal cavity (no visible text or symbols)

Fig./Img./Abb./Afb./Rys.4

Close-up of a mechanical fan or turbine blade assembly with visible blades and internal components (no text or symbols)

Fig./Img./Abb./Afb./Rys.5

Close-up of a mechanical fan or impeller component with radial blades and central hub (no visible text or symbols)

Fig./Img./Abb./Afb./Rys. 6

Close-up of hands assembling a mechanical component with visible gears and brackets (no text or symbols)

Fig./Img./Abb./Afb./Rys.7

Close-up of a mechanical fan or impeller component with no visible text or symbols

Fig./Img./Abb./Afb./Rys.8

Close-up of a mechanical fan or impeller component with visible blades and central hub (no text or symbols)

Fig./Img./Abb./Afb./Rys.9
