Product type	Flying insect trap
Brand	Blaupunkt
Model	BPGIKLED08
Power supply	5 VDC via USB, max. 500 mA
Power consumption	5 W
UV wavelength	365 nm (±5 nm)
Material	PC, ABS, metal
Coverage area	30 m²
Lamp	UV LED
Dimensions	112 x 112 x 167 mm
Weight	310 g
Main functions	UV LED attraction, fan suction, air drying
Usage	Indoor (bathroom, living room)
Sticky plates	Included, replaceable
Cleaning	Soft cloth with mild detergent; do not immerse
Maintenance	Unplug before cleaning; check the container once a week
Safety	Use by children aged 8 and up with supervision; do not open the housing
Spare parts and repairability	Light source and PCB not replaceable; replace the entire device
Warranty	Modifications or improper use void the warranty
Environmental information	Do not dispose of in household waste; local recycling

Frequently Asked Questions - BPGIKLED08 BLAUPUNKT

How does the device work?

The device uses a UV LED to attract flying insects. A fan sucks the insects into a container where they are air dried. No electric shock, toxin, or odor is emitted.

Where to place the device for best results?

Install the device in a dry place, on a stable, non-slip surface, indoors (bathroom, living room). For best results, turn off any other light sources and avoid drafty areas.

How long to run the device the first time?

On first use, let the device run for at least 12 hours. Then, let it run 3 hours before going to bed and close doors and windows.

How to clean the device?

Unplug the device and let it cool. Clean the housing with a soft cloth dampened with mild detergent. Never immerse the device in water and do not use solvents. Remove the funnel by turning it slightly to clean it separately.

How to replace the sticky plate?

Turn off and unplug the device. Remove the protective film from the new plate, then place it at the bottom of the collection container. Replace the plate when its surface is completely covered with insects. Close the container and plug the device back in.

What to do if the device does not start?

Check that the USB power supply is properly connected and that the on/off button has been pressed. If the LED does not light up, the LED or PCB may be damaged; these parts are not replaceable, you must replace the entire device.

Is the device safe for children and pets?

The device can be used by children aged 8 and up under supervision. Children must not play with it. Cleaning must not be performed by children without supervision. It does not contain hazardous chemicals, but the sticky plates can be deadly if ingested.

Can I use the device outdoors?

No, the device is intended for indoor use only. It must be protected from rain, moisture, and splashes.

Does the device make noise?

The fan may produce some noise. If the noise becomes excessive, check for foreign objects in the fan and clean it. The device does not produce a loud electric shock.

What to do in case of failure?

Stop using the device immediately. Do not attempt to repair it yourself, as it contains no user-serviceable parts. Contact your retailer or a qualified technician. Opening the housing voids the warranty.

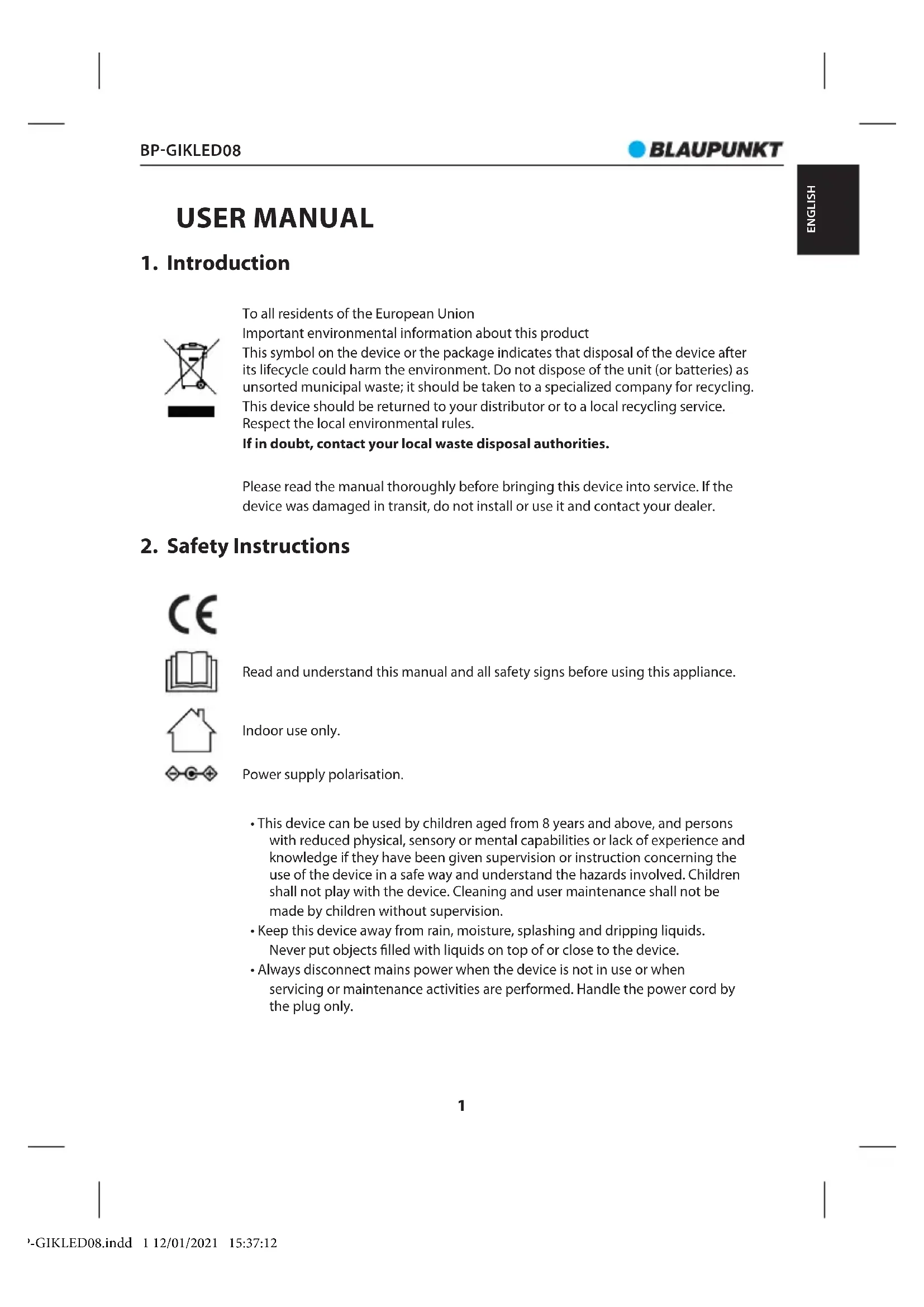

USER MANUAL BPGIKLED08 BLAUPUNKT

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling.

This device should be returned to your distributor or to a local recycling service.

Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

Power supply polarisation.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Keep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquids on top of or close to the device.

• Always disconnect mains power when the device is not in use or when servicing or maintenance activities are performed. Handle the power cord by the plug only.

• All cords and cables should be routed so that they will not be walked on or pinched by items placed upon or against them. Pay particular attention to the point where they exit the unit.

• Remove all flammable materials close to the device before switching on.
• Do not install the device on a flammable surface (linoleum, carpet, wood, paper, cardboard, plastic, etc.).
• Protect this device from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• Do not remove the cover under any conditions. There are no user-serviceable parts inside. Never operate this device when its cover is removed.
• Do not operate a visibly damaged device. Do not attempt to operate this device if the power cord has been frayed or broken.
  • Always mount this device in a safe and stable manner. Mount this device in an area that will allow proper ventilation. Allow about 15 cm between this device and a wall.
• This device should only be serviced by qualified service personnel.
• Familiarise yourself with the functions of the device before actually using it.
  • Always install the device in a well-ventilated location.
• Keep this device away from dust and extreme temperatures. Make sure the ventilation openings are clear at all times. For sufficient air circulation, leave at least 2.5 cm in front of the openings.
• Never carry or move the device from the power cord or any other moving part. Always use the bracket.
  • In the event of an operating problem, stop using the device immediately.
• Never try to repair the device. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
• This device is not designed for permanent operation: regular operation breaks will prolong its life.

Warnings Regarding Servicing

No user-serviceable parts inside. The light source in this appliance cannot be replaced. Scrap the appliance when the lamps cease to operate.

• Disconnect from the power supply before servicing, cleaning and opening.
• Keep this appliance away from children and unauthorized users.
• The appliance is not to be used in locations where flammable vapour or explosive dust is likely to exist.

Sticky Pads

May be fatal if swallowed and enters airways.

Wear tight-fitting safety goggles.

Wear chemical protective clothing.

Wear protective gloves.

3. General Guidelines

• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

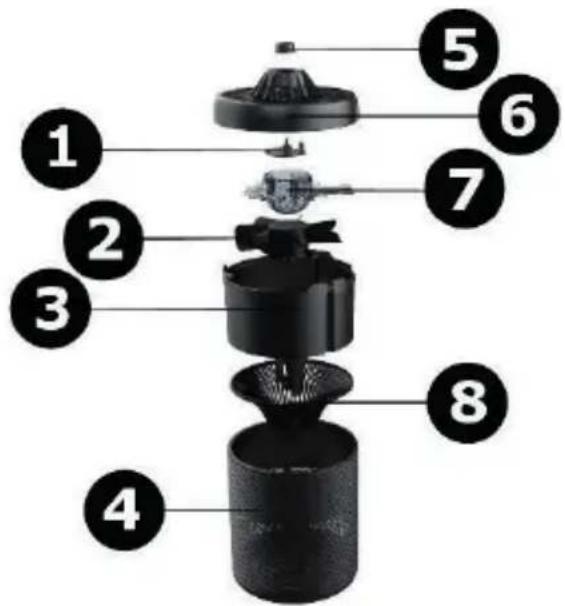

4. Overview

1 PCB board 5 on-off button

2 fan 6 inlet grid

3 fan body 7 LED cover

4 container 8 funnel

Exploded view diagram of a mechanical assembly with numbered parts for identification

5. Operation

5.1. Introduction

This insect killer uses an LED to attract flying insects. The fan will suck these insects into the container and dry them. This insect killer does not produce any noisy electric shocks nor does it emit any toxins, smoke, scent or radiation.

This insect killer is designed to be used indoors (bedroom, living room).

Keep the insect killer working for more than 12 hours at first use. Do not open the container during use. Make sure the insects are dried to death to prevent them from escaping.

Keep the insect killer working for 3 hours before going to sleep. Make sure to keep windows and doors closed.

5.2. How to Use

1. Connect the insect killer to a 5 V power supply. Install the insect killer in a dry location on a stable and non-slippery surface.
2. Slightly press the on-off button to start the insect killer.
3. Press the same button to stop the insect killer. Disconnect from the power supply after use.

For best results, turn off other light sources and prevent from installing the appliance in the draught.

5.3. Sticky Pads

1. Switch of the appliance and disconnect from the mains.
2. Remove the protective layer of the sticky pad.
3. Apply it at the bottom of the storage tray. Replace when covered with bugs.
4. Close the tray and reconnect the appliance to the mains.

6. Troubleshooting

Problem Reason Possible solution
Appliance does not start	Power supply not connected well	Reconnect the power supply
	On-off button not pressed	Press the on-off button
Appliance does not light	Power supply not connected well	Reconnect the power supply
	Light is damaged	Light source cannot be replaced; scrap the appliance
	PCB board is damaged	PCB Board cannot be replaced; scrap the appliance
Noisy fan Foreign objects in the fan Clean the fan

7. Care and Maintenance

Storage

Store the appliance and its accessories in a clean and dry area.

Cleaning

The cleaning frequency depends on the intensity of use. Check the tray of the device at least once a week. Clean more often if necessary.

Before starting any cleaning or maintenance activities, unplug the appliance from its power source and let it cool down.

Wipe all exterior surfaces of the appliance clean with a soft cloth dampened with a soap and water solution. Do not immerse or submerge any part of the appliance in water or any other liquid. Never use solvents or cleaning agents containing petroleum (petrol, kerosene, oil), paint thinner, turpentine, alcohol, or ammonia.

1. Switch off the device and disconnect from the power supply.

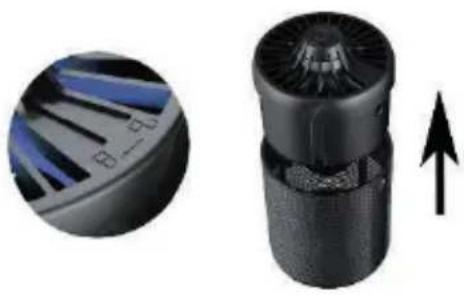

2. Turn the upper part of the insect killer and remove.

Close-up of a black cylindrical device with blue internal components, shown in an inset circular view (no text or symbols visible)

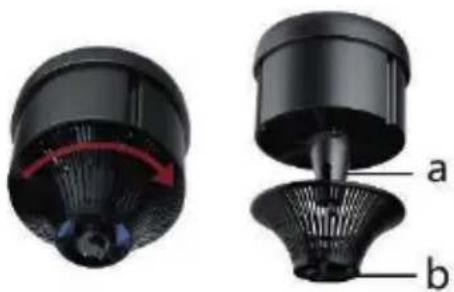

1. Slightly turn the funnel and release. Take out the funnel to clean it.
2. Re-assemble by proceeding in reverse order. Make sure to match one of the gaps (a) with the hole (b) and to click it in place.

Two views of a black mechanical component with labeled parts (a and b), showing internal structure and motion direction (no text or symbols beyond labels)

Maintenance

All repairs should only be carried out by qualified service personnel. Do not open exterior casing of the appliance. There are no user-serviceable parts inside. Opening or visible attempts to open or repair the appliance may void any guarantee and/or cause damage to the product or personal injury.

8. Technical Specifications

USB charger port....5 VDC, max. 500 mA via USB power consumption....5 W wavelength....365 nm (+/- 5 nm) material....PC - ABS - metal effective area....30 m² lamp....UV LED dimensions....112 x 112 x 167 mm weight....310 g

Use this device with original accessories only. The importer cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
