BPGIKLED09 - Pest control BLAUPUNKT - Free user manual and instructions

Product Type	UV LED Pest Control
Brand	Blaupunkt
Model	BPGIKLED09
Dimensions	130 x 140 x 223 mm
Weight	460 g
Power Supply	5 V DC (via power adapter)
Lamp	UV LED
Wavelength	365-395 nm
Range	50 m²
Housing Material	PC-ABS and metal
Operating Modes	Silent and max power
Main Function	Sucking and drying flying insects
Included Accessories	Sticky plates
Usage Area	Indoor only (bathroom, living room)
First Use	Let it run for at least 12 hours
Cleaning	Soft cloth with mild detergent, do not immerse
Repairability	No user-serviceable parts, LED not replaceable
Safety	Do not use continuously, take breaks
Warranty	Modifications by customer void warranty

Frequently Asked Questions - BPGIKLED09 BLAUPUNKT

How to install the device?

Place the device on a stable, non-slip surface in a dry location. Connect the 5 V power supply and press the button to turn it on. For best results, turn off other light sources and avoid drafts.

What to do if the device does not start?

Check that the power supply is properly connected. Make sure you pressed the on/off button. If the problem persists, refer to the problem and solution section in the manual.

How to clean the device?

Unplug the device and let it cool down. Clean the housing with a soft cloth dampened with mild detergent. Never immerse the device in water or use solvents.

Can I use the device outdoors?

No, this device is intended for indoor use only. Protect it from rain, humidity, and water splashes.

How to replace the sticky plate?

Turn off and unplug the device. Remove the protective film from the new plate, place it at the bottom of the collection tray, then close. Replace the plate when its surface is completely covered with insects.

Does the device make noise?

The device has a silent mode for discreet operation. In max power mode, the fan may be more audible. If the fan becomes noisy, check that no foreign object is blocking the blades.

What types of insects are attracted?

The UV light attracts flying insects such as gnats, mosquitoes, moths, and other nocturnal insects. The device sucks them in and dries them.

How to turn off the device?

Press the same button used to turn it on. Then unplug the device to save energy and extend its lifespan.

What is the range of the device?

The effective range is about 50 m², ideal for a medium-sized room. For best results, close doors and windows.

Is the device safe for children and pets?

The device can be used by children over 8 years old under supervision. Do not let children play with it. It does not use chemicals or electric shock, but the sticky plates can be dangerous if ingested.

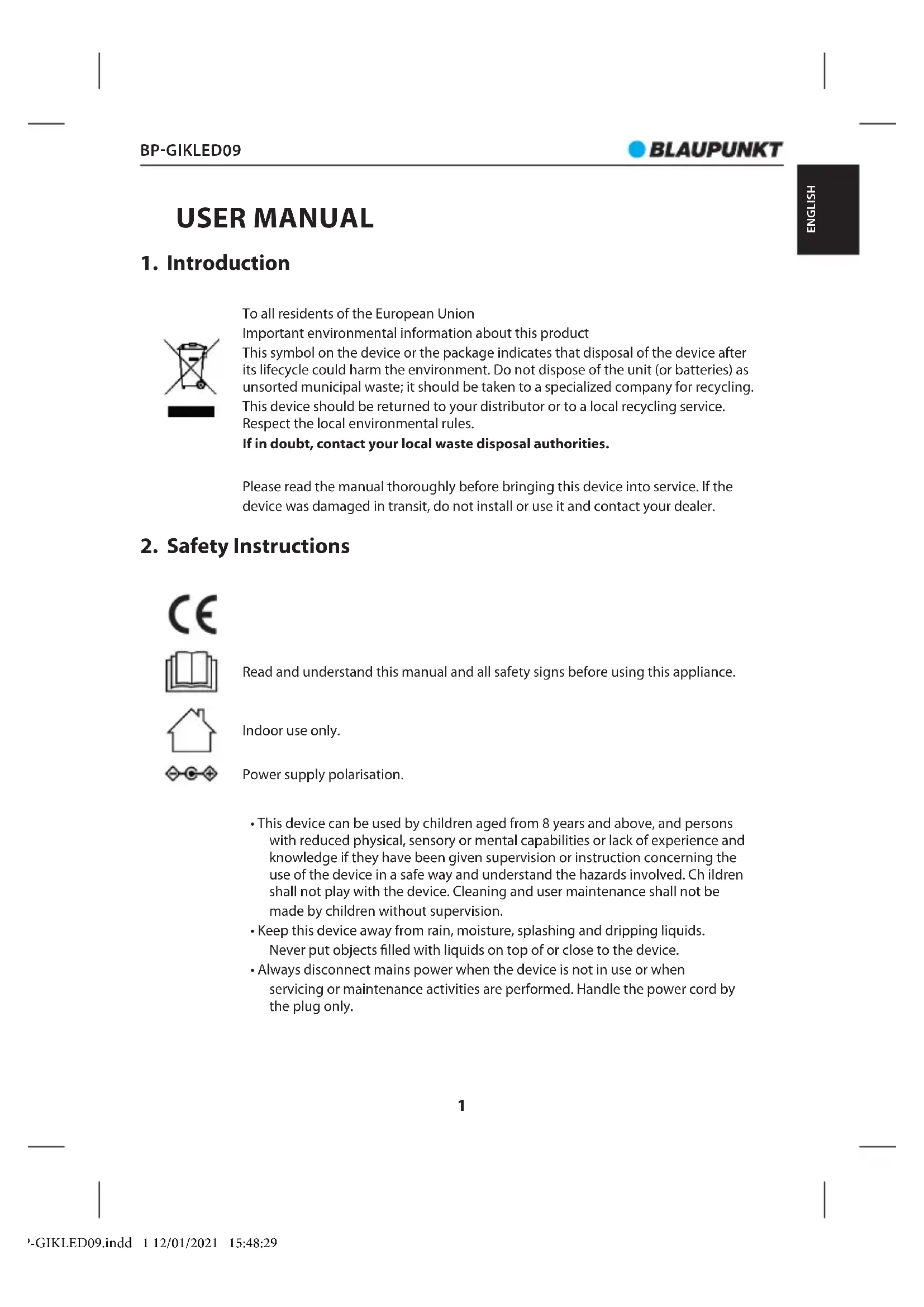

USER MANUAL BPGIKLED09 BLAUPUNKT

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling.

This device should be returned to your distributor or to a local recycling service.

Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

Power supply polarisation.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Keep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquids on top of or close to the device.

• Always disconnect mains power when the device is not in use or when servicing or maintenance activities are performed. Handle the power cord by the plug only.

• All cords and cables should be routed so that they will not be walked on or pinched by items placed upon or against them. Pay particular attention to the point where they exit the unit.

• Remove all flammable materials close to the device before switching on.
• Do not install the device on a flammable surface (linoleum, carpet, wood, paper, cardboard, plastic, etc.).
• Protect this device from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• Do not remove the cover under any conditions. There are no user-serviceable parts inside. Never operate this device when its cover is removed.
• Do not operate a visibly damaged device. Do not attempt to operate this device if the power cord has been frayed or broken.
• Always mount this device in a safe and stable manner. Mount this device in an area that will allow proper ventilation. Allow about 15cm between this device and a wall.
• This device should only be serviced by qualified service personnel.
  Familiarise yourself with the functions of the device before actually using it.
• Always install the device in a well-ventilated location.
• Keep this device away from dust and extreme temperatures. Make sure the ventilation openings are clear at all times. For sufficient air circulation, leave at least 2.5cm in front of the openings.
• Never carry or move the device from the power cord or any other moving part. Always use the bracket.
• In the event of an operating problem, stop using the device immediately.
• Never try to repair the device. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
• This device is not designed for permanent operation: regular operation breaks will prolong its life.

Warnings Regarding Servicing

No user-serviceable parts inside. The light source in this appliance cannot be replaced. Scrap the appliance when the lamps cease to operate.

• Disconnect from the power supply before servicing, cleaning and opening.
• Keep this appliance away from children and unauthorized users.
• The appliance is not to be used in locations where flammable vapour or explosive dust is likely to exist.

Sticky Pads

May be fatal if swallowed and enters airways.

Wear tight-fitting safety goggles.

Wear chemical protective clothing.

Wear protective gloves.

3. General Guidelines

• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman NV nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Overview

1 container 6 fan

2 funnel 7 inlet grid

3 container release button 8 PCB board

4 protection grill 9 cover

5 case 10 silent/strong buttons

5. Operation

5.1. Introduction

This insect killer uses an LED to attract flying insects. The fan will suck these insects into the container and dry them. This insect killer does not produce any noisy electric shocks nor does it emit any toxins, smoke, scent or radiation.

This insect killer is designed to be used indoors (bedroom, living room).

Keep the insect killer working for more than 12 hours at first use. Do not open the container during use. Make sure the insects are dried to death to prevent them from escaping.

Keep the insect killer working for 3 hours before going to sleep. Make sure to keep windows and doors closed.

5.2. How to Use

1. Connect the insect killer to a 5 V power supply. Install the insect killer in a dry location on a stable and non-slippery surface.
2. Select the silent or strong mode. Press the button to start the insect killer.
3. Press the same button to stop the insect killer. Disconnect from the power supply after use.

For best results, turn off other light sources and prevent from installing the appliance in the draught.

5.3.Sticky Pads

1. Switch of the appliance and disconnect from the mains.
2. Remove the protective layer of the sticky pad.
3. Apply it at the bottom of the storage tray. Replace when covered with bugs.
4. Close the tray and reconnect the appliance to the mains.

6. Troubleshooting

Problem Reason Possible solution
Appliance does not start	Power supply not connected well	Reconnect the power supply
	On-off button not pressed	Press the on-off button
Appliance does not light	Power supply not connected well	Reconnect the power supply
	Light is damaged	Light source cannot be replaced; scrap the appliance
	PCB board is damaged	PCB Board cannot be replaced; scrap the appliance
Noisy fan Foreign	objects in the fan Clean the fan

7. Care and Maintenance

Storage

Store the appliance and its accessories in a clean and dry area.

Cleaning

The cleaning frequency depends on the intensity of use. Check the tray of the device at least once a week. Clean more often if necessary.

Before starting any cleaning or maintenance activities, unplug the appliance from its power source and let it cool down.

Wipe all exterior surfaces of the appliance clean with a soft cloth dampened with a soap and water solution. Do not immerse or submerge any part of the appliance in water or any other liquid. Never use solvents or cleaning agents containing petroleum (petrol, kerosene, oil), paint thinner, turpentine, alcohol, or ammonia.

1. Switch off the device and disconnect from the power supply.
2. Press the container button to open and access the container.
3. Slightly turn the funnel to the left and release. Take out the funnel to clean it.
4. Re-assemble by proceeding in reverse order.

Maintenance

All repairs should only be carried out by qualified service personnel. Do not open exterior casing of the appliance. There are no user-serviceable parts inside. Opening or visible attempts to open or repair the appliance may void any guarantee and/or cause damage to the product or personal injury.

8. Technical Specifications

USB charger port. .5 VDC, max. 1000 mA via USB

power consumption. 5W

wavelength. 365-395 nm (+/- 5 nm)

material .PC-ABS-metal

effective area. .50 m2

lamp UVLED

dimensions 130x140x223mm

weight. 460 g

Use this device with original accessories only. The importer cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. The information in this manual is subject to change without prior notice

COPYRIGHT NOTICE

All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
