EDMTW - Doorbells Perel - Free user manual and instructions

Product type	Wireless doorbell
Brand	Perel
Model	EDMTW
Operating frequency	433.95 MHz
Free field range	150 m
Max. RF power	10 mW
Number of melodies	32
Protection rating (transmitter)	IP44
Transmitter power supply	1 CR2032 battery (included)
Receiver power supply	3 AA 1.5V batteries (not included)
Mounting type	Wall-mounted (transmitter and receiver)
Automatic pairing	Yes
LED indicator on button	Yes
Volume adjustment	Yes
Melody selection	Yes (32 melodies)
Indoor/outdoor use	Outdoor transmitter (IP44), indoor receiver
Care and cleaning	Clean with a dry, soft cloth. Do not use abrasive products.
Safety instructions	Keep out of reach of children. Protect from moisture and extreme temperatures. Use appropriate batteries.

Frequently Asked Questions - EDMTW Perel

How to install the battery in the transmitter?

Open the transmitter housing using a flathead screwdriver. Insert a CR2032 battery respecting the indicated polarity, then close the compartment.

How to pair the transmitter and receiver?

Hold down the receiver button for 5 seconds until the transmitter emits a double beep. Then press the transmitter button. The transmitter confirms pairing with a beep. If it fails, the receiver emits a double beep.

What is the range of the doorbell?

The range is 150 meters in open field. Walls, PVC, or metal can reduce the range.

How many melodies are available?

The doorbell offers 32 different melodies, selectable via the selector on the receiver.

How to adjust the volume of the doorbell?

Use the volume control located on the receiver to adjust the sound level.

Can the doorbell be used outdoors?

The transmitter is rated IP44 and can be installed outdoors. The receiver is for indoor use only.

What type of batteries to use for the receiver?

The receiver requires 3 AA 1.5V batteries (not included). Respect polarity during installation.

How to fix the transmitter to the wall?

Use the back plate as a template to mark holes. Drill, insert the provided wall plugs, and screw the plate. Then snap on the front plate.

What to do if the doorbell does not ring?

Check that the batteries are correctly installed and not discharged. Make sure the transmitter and receiver are switched on and paired. Reduce the distance or remove obstacles.

How to clean the doorbell?

Use a dry, soft cloth to clean the surfaces. Do not use chemical or abrasive products. Avoid excessive humidity on the transmitter.

USER MANUAL EDMTW Perel

White rectangular electronic door with circular vent and button, no visible text or symbols

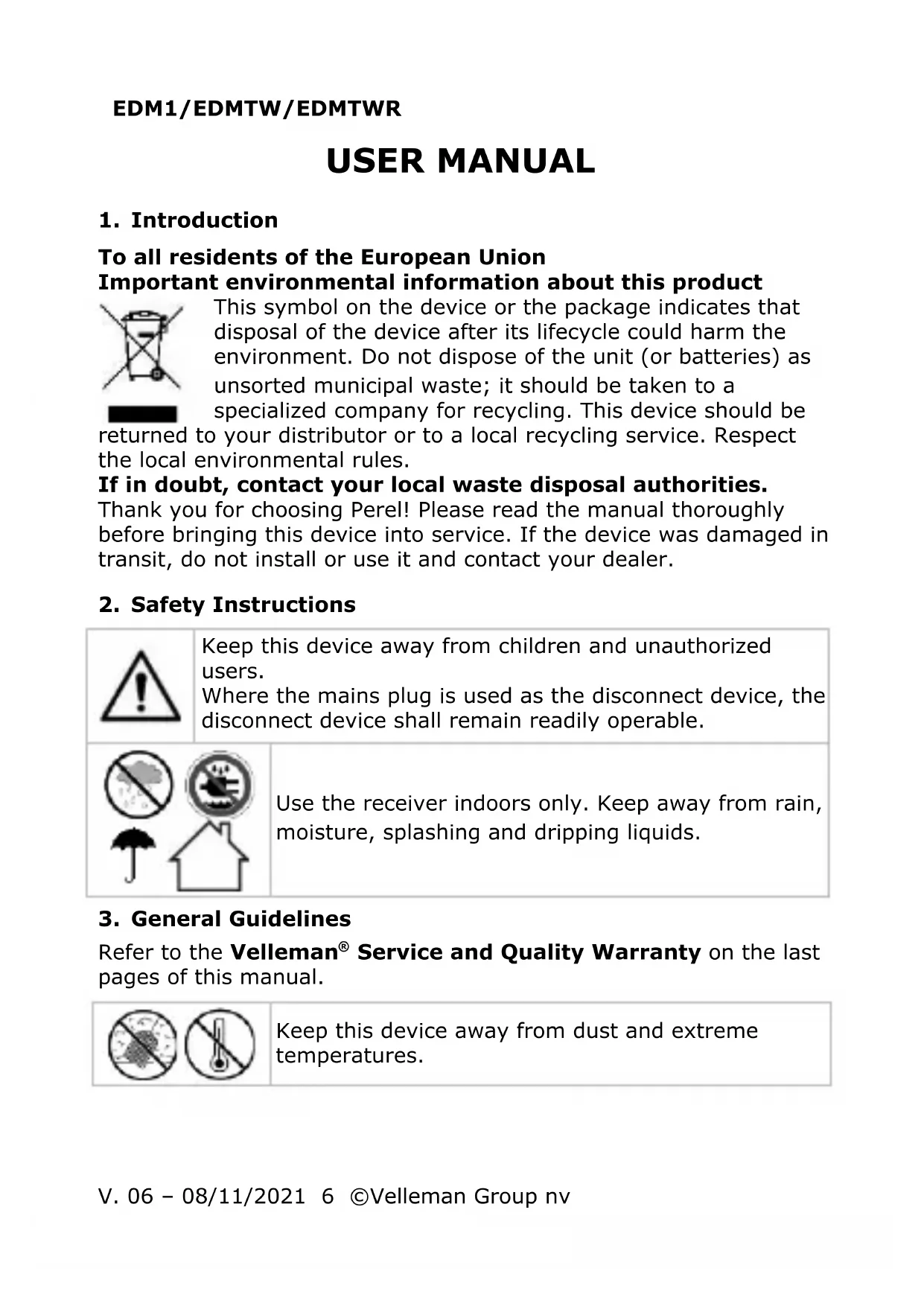

USER MANUAL 6

HANDLEIDING 10

MODE D'EMPLOI 14

MANUAL DEL USUARIO 18

Diagram of a device with labeled parts and an arrow indicating direction, showing a tool interacting with the base panel.

Technical line drawing of a mechanical assembly with a circular component and an arrow indicating direction (no text or symbols)

EDM1/EDMTW/EDMTWR

EDM1/EDMTW/EDMTWR

RED Declaration of Conformity

Hereby, Velleman Group nv declares that the radio equipment type [EDM1] + [EDMTW] + [EDMTWR] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

Simple line icons showing a rain circle, no cloud, umbrella, and house (no text or symbols)

Use the receiver indoors only. Keep away from rain, moisture, splashing and dripping liquids.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Due to constant product improvements, the actual product appearance might differ from the shown images.
• Product images are for illustrative purposes only.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Keep this manual for future reference.

4. Battery

Refer to the illustrations on page 2 of this manual.

Transmitter

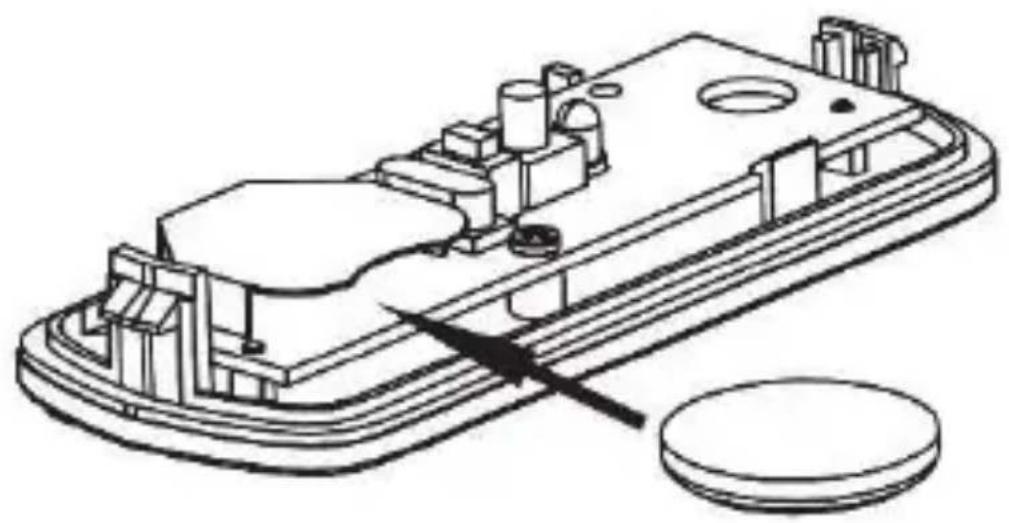

1. Open the transmitter to reveal the battery compartment. Use a flat-head screwdriver.
2. Install the CR2032 battery according to the correct polarity.
3. Close the battery compartment. Proceed with the installation.

Receiver

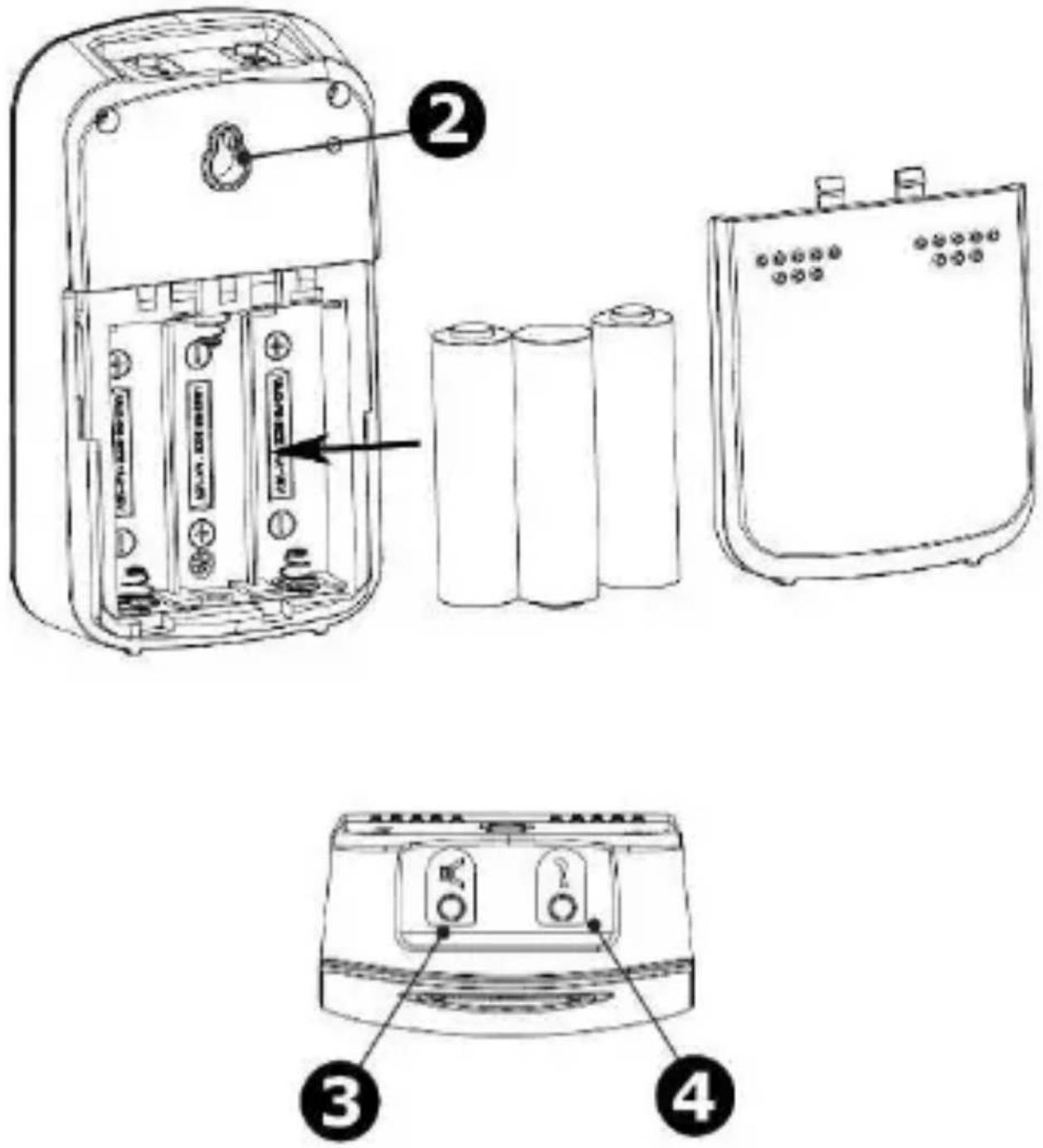

1. Open the receiver to reveal the battery compartment.
2. Install 3 x 1.5 V AA batteries according to the correct polarity.
3. Close the battery compartment. Proceed with the installation.

Remark: Remove the batteries if the transmitter and receiver will not be used for a longer period.

CAUTION:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

5. Installation

Test the operating range between the receiver and the transmitter. The operating range is 150 m in the open air, but may be less due to walls and other obstructions such as PVC or metal frames.

Refer to the illustrations on page 2 of this manual.

Transmitter

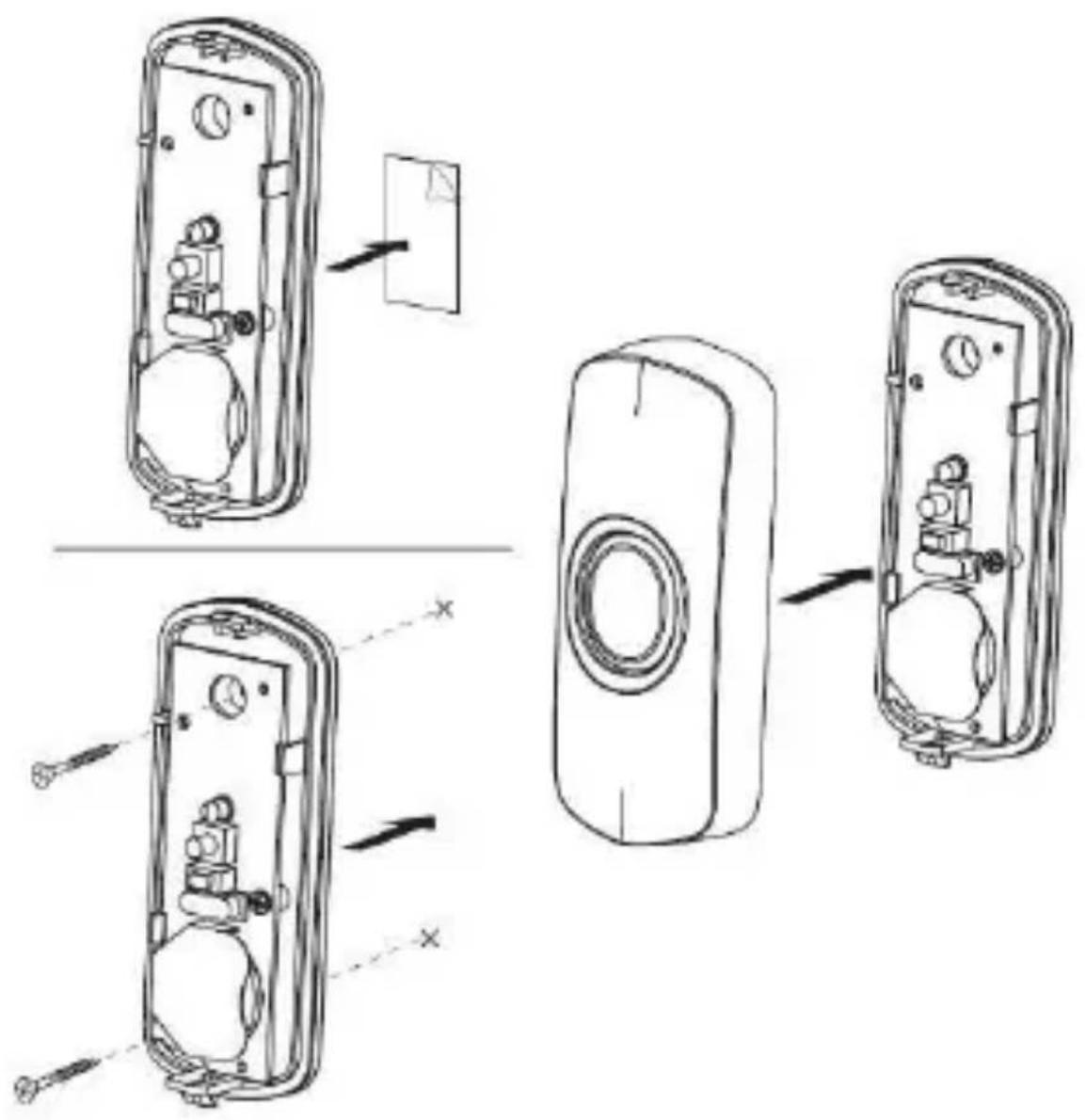

1. Carefully open the housing of the transmitter and use the back plate as a template. Mark the drilling holes at the required height.
2. Drill the holes using a drill and the appropriate drill bit (not included).
3. Insert a nylon plug (included) into each hole.
4. Fix the back plate with the included screws. Click the front plate onto the back plate.
5. Simply plug the receiver into the mains.

Receiver

1. Choose the installation spot for the receiver.
2. The receiver can be fixed to a wall using a hook or nail [2].

Remark: You can also fix the transmitter using double-sided tape.

6. Operation

Refer to the illustrations on page 2 of this manual.

1. Make sure both the receiver and transmitter are powered.

EDM1/EDMTW/EDMTWR

1. The receiver will ring when the button on the transmitter [1] is pressed.

2. Select the melody with the melody selector [4] and adjust the volume with volume control button [3].

7. Pairing

1. On the receiver, hold the button pressed for 5 seconds until you hear a "ding-dong" sound.

2. Now, press the transmitter button. The transmitter emits a "ding" sound to confirm successful pairing. The receiver emits a "ding-dong" sound when it exits the pairing mode.

8. Technical Specifications

frequency ....433.95 MHz max. RF power....10 mW wireless....yes operating range .... 150 m in open area self-learning....yes bell push....with LED indicator number of sounds....32 IP rating (transmitter)....IP44 power supply transmitter .... 1 x CR2032 (incl.) receiver....3 x 1.5 V AA (not incl.)

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

EDM1/EDMTW/EDMTWR

HANDLEIDING

1. Inleiding

Simple line icons showing a rain circle, no cloud, umbrella, and house (no text or symbols)

Simple line icons showing weather symbols: no rain, no smoke, umbrella, and house (no text or labels)

Warning symbol with exclamation mark inside triangle

ATTENTION :

Simple line drawing of a house with a house icon, umbrella, and no text or symbols

Weather and transportation symbols including no rain, umbrella, and house icon

Simple line icons showing weather, no cloud, umbrella, and house (no text or symbols)

Simple line icons showing weather symbols: no rain, no smoke, umbrella, and house (no text or labels)
