EDP1 - Doorbells Perel - Free user manual and instructions

Product type	Wireless doorbell
Brand	Perel
Model	EDP1
Range in open field	150 m
Transmitter power supply	1 CR2032 battery (included)
Receiver power supply	Mains (230 V)
Number of melodies	32
Protection rating (transmitter)	IP44
Button with LED indicator	Yes
Automatic pairing	Yes
Volume adjustment	Yes, by wheel
Melody selection	Yes, by rotary selector
Indoor use (receiver)	Yes
Outdoor use (transmitter)	Yes (IP44)
Package contents	Transmitter, receiver, CR2032 battery, wall plugs and screws, manual
Warranty (consumer)	24 months
Maintenance	Clean with a dry cloth, avoid abrasive products
Safety	Keep out of reach of children, replace battery with identical type, do not expose receiver to moisture
Repairability	No user-serviceable parts, contact customer service

Frequently Asked Questions - EDP1 Perel

How to install the battery in the transmitter?

Open the transmitter housing using a flathead screwdriver. Insert a CR2032 battery respecting polarity. Close the compartment. If the transmitter is not used for a long time, remove the battery.

What is the maximum range of the doorbell?

The range is 150 meters in open field. Walls, PVC or metal may reduce this range.

How to pair the transmitter and receiver?

Press and hold the receiver button for 5 seconds until a double beep. Then press the transmitter button. A beep confirms pairing. A double beep from the receiver indicates failure.

What to do if the doorbell does not work?

Check that the transmitter has a working battery and the receiver is plugged in. Make sure the volume is not at minimum. Perform pairing if necessary.

Can I use the transmitter outdoors?

Yes, the transmitter has a protection rating of IP44, protecting it against water splashes. Avoid immersion.

How to mount the transmitter on the wall?

Use the back plate as a template. Drill holes, insert the provided wall plugs, then fix the plate with screws. Snap the front plate into place. You can also use double-sided tape.

How many melodies are available?

The receiver offers 32 different melodies, selectable via the rotary selector [4].

How to adjust the volume?

Use the volume control [3] on the receiver to adjust the sound level.

What to do in case of water damage?

Unplug the receiver immediately. Do not use it until it is completely dry. The IP44 transmitter is resistant to splashes but not immersion.

What is the battery life?

The CR2032 battery typically lasts several months depending on usage. Remove it if the transmitter is not used for a long time to prevent leaks.

USER MANUAL EDP1 Perel

PORTABLE WIRELESS DOOR CHIME

DRAADLOZE PLUG-IN DEURBEL

SONNETTE SANS FIL ENFICHABLE

JUEGO DE TIMBRE INALÁMBRICO (PLUG-IN)

FUNK-KLINGEL-SET MIT TÜRKLINGEL UND KLINGELTASTER

White rectangular device with circular button and button, no visible text or symbols

USER MANUAL 4

HANDLEIDING 8

MODE D'EMPLOI 12

MANUAL DEL USUARIO 16

Diagram of a printer with labeled parts and an arrow indicating process direction

Diagram of a device with labeled parts, showing a circular component and four numbered parts.

EDP1/EDPTW

Simple line drawing of a smartphone with a finger pressing a circular button (no text or symbols)

Line drawing of a mechanical device with a circular bearing and a magnified inset showing a pin (no text or symbols)

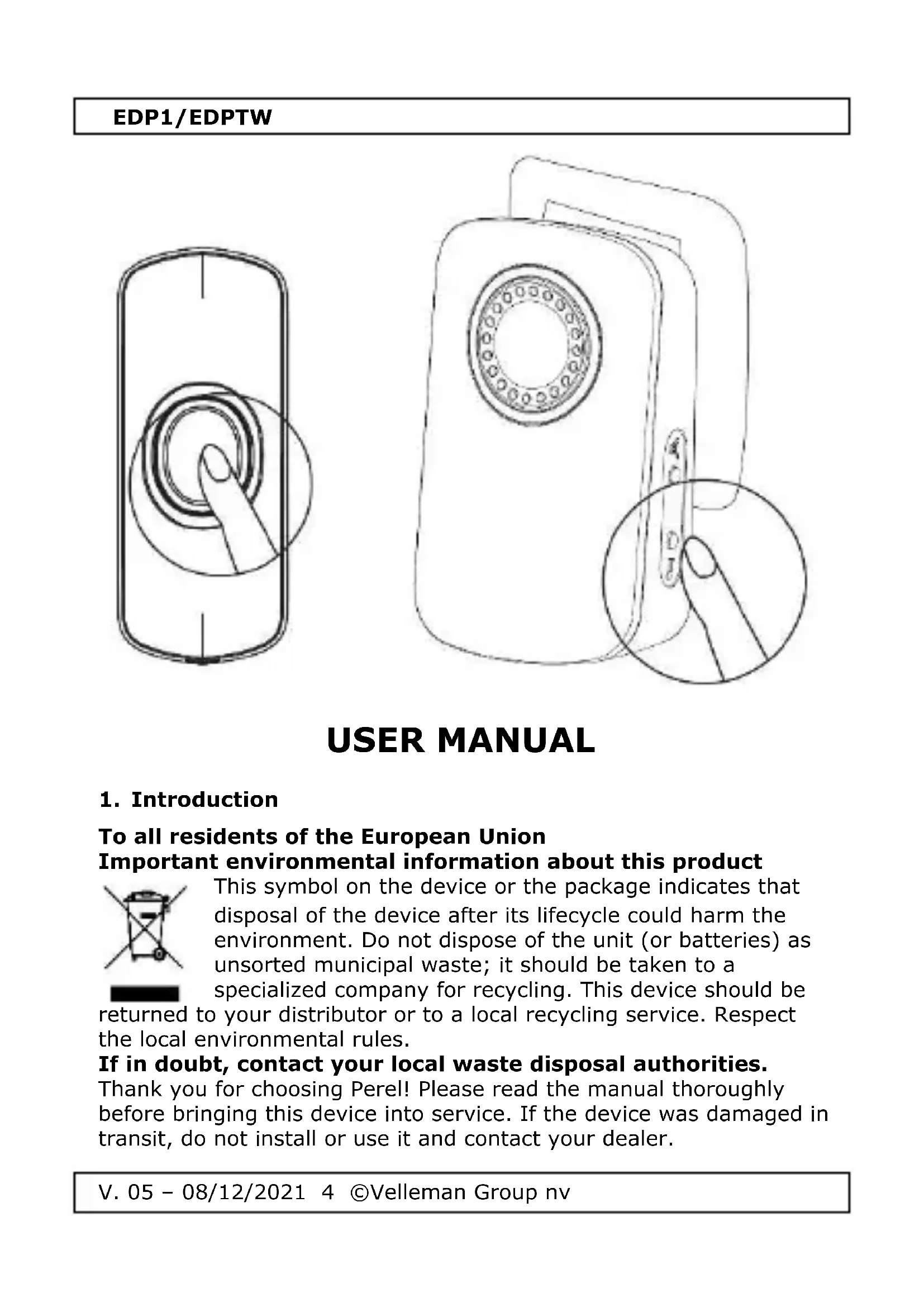

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

EDP1/EDPTW

2. Safety Instructions

Keep this device away from children and unauthorized users.

Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

Weather and transportation symbols including no rain, umbrella, and house icon

Use the receiver indoors only. Keep away from rain, moisture, splashing and dripping liquids.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Due to constant product improvements, the actual product appearance might differ from the shown images.
• Product images are for illustrative purposes only.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Keep this manual for future reference.

EDP1/EDPTW

4. Battery

Refer to the illustrations on page 2 of this manual.

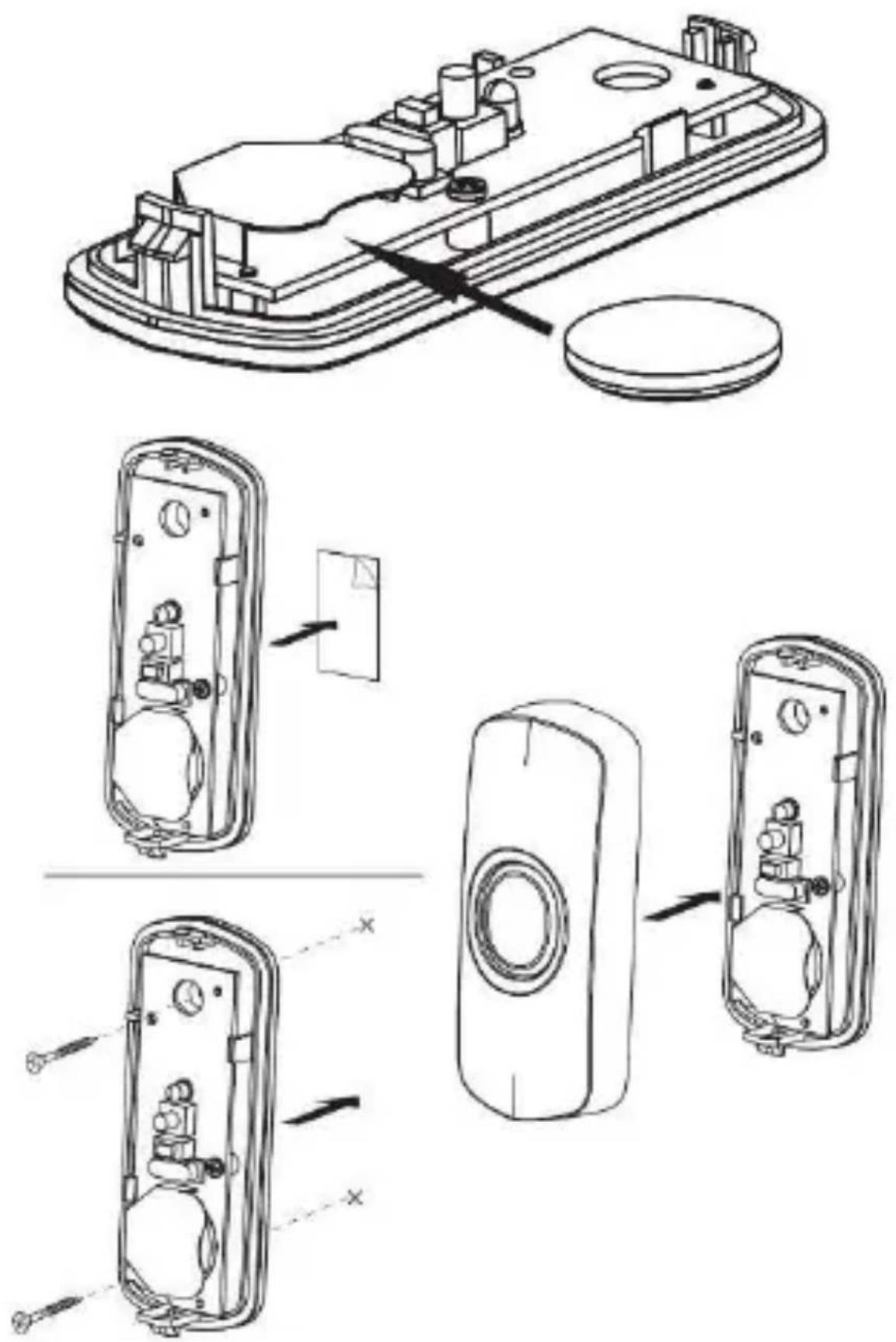

1. Open the transmitter to reveal the battery compartment. Use a flat-head screwdriver.
2. Install the CR2032 battery according to the correct polarity.
3. Close the battery compartment. Proceed with the installation.

Remark: Remove the batteries if the transmitter will not be used for a longer period.

CAUTION:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

5. Installation

Test the operating range between the receiver and the transmitter. The operating range is 150 m in the open air, but may be less due to walls and other obstructions such as PVC or metal frames.

Refer to the illustrations on page 2 of this manual.

1. Carefully open the housing of the transmitter and use the back plate as a template. Mark the drilling holes at the required height.
2. Drill the holes using a drill and the appropriate drill bit (not included).
3. Insert a nylon plug (included) into each hole.
4. Fix the back plate with the included screws. Click the front plate onto the back plate.
5. Simply plug the receiver into the mains.

Remark: You can also fix the transmitter using double-sided tape.

EDP1/EDPTW

6. Operation

Refer to the illustrations on page 2 of this manual.

1. Make sure both the receiver and transmitter are powered.

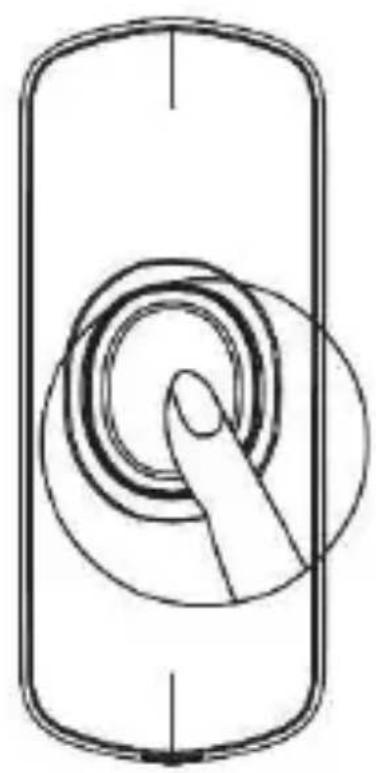

2. The receiver [2] will ring when the button on the transmitter [1] is pressed.

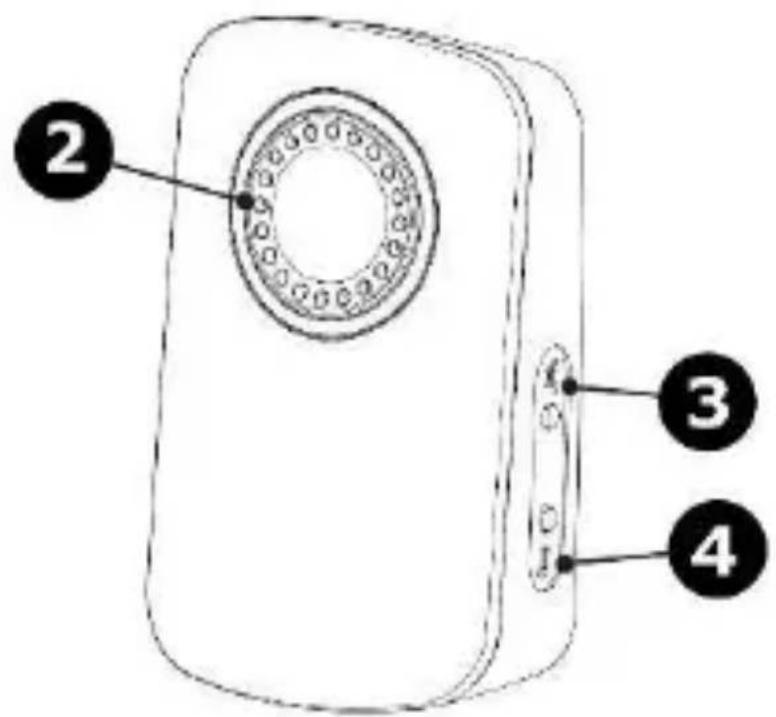

3. Select the melody with the melody selector [4] and adjust the volume with volume control button [3].

7. Pairing

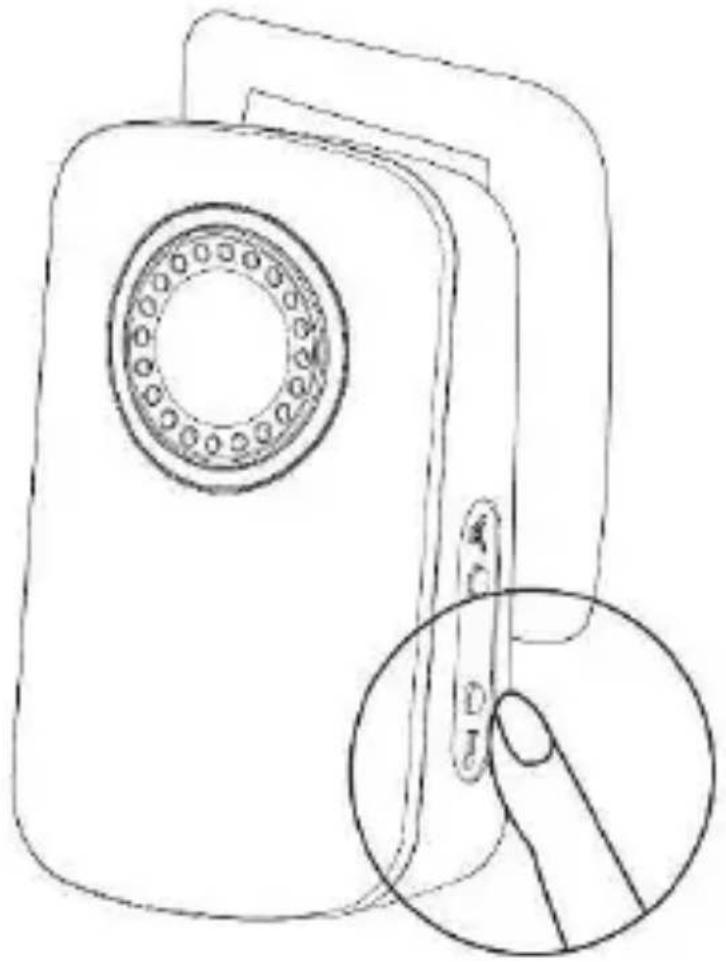

1. On the receiver, hold the button pressed for 5 seconds until you hear a "ding-dong" sound.
2. Now, press the transmitter button. The transmitter emits a "ding" sound to confirm successful pairing. The receiver emits a "ding-dong" sound when it exits the pairing mode.

8. Technical Specifications

wireless.....yes operating range ..... 150 m in open area self-learning.....yes bell push..... with LED indicator number of sounds..... 32 IP rating (transmitter)..... IP44 power supply transmitter ..... 1 x CR2032 (incl.)

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

RED Declaration of Conformity

Hereby, Velleman Group nv declares that the radio equipment type [EDP1] + [EDPTW] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv.

All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
