EDMTWR - Doorbells Perel - Free user manual and instructions

Product type	Wireless doorbell
Brand	Perel
Model	EDMTWR
Frequency	433.95 MHz
RF power	max. 10 mW
Free field range	150 m
Number of melodies	32
IP protection rating (transmitter)	IP44
Transmitter power supply	1 CR2032 battery (included)
Receiver power supply	3 AA 1.5 V batteries (not included)
Functions	Automatic pairing, melody selection, volume adjustment, LED indicator
Installation	Wall mounting with supplied screws and plugs or double-sided adhesive tape
Safety instructions	Keep out of reach of children; protect the receiver from moisture; do not expose batteries to heat
Maintenance	Clean with a dry cloth; do not use solvents
Batteries replaceable	Yes, by the user
Warranty	24 months (according to warranty conditions)
Package contents	Transmitter, receiver, 1 CR2032 battery, screws, plugs, manual

Frequently Asked Questions - EDMTWR Perel

How to install the doorbell transmitter?

Carefully open the transmitter housing and use the back plate as a template. Mark the drilling holes at the desired height, drill the holes, insert the supplied nylon plugs, and fix the back plate with the screws. Snap the front plate onto the back plate. You can also attach the transmitter with double-sided tape.

How to install the battery in the transmitter?

Use a flat-head screwdriver to open the battery compartment of the transmitter. Insert a CR2032 battery respecting the indicated polarity, then close the compartment.

How to install batteries in the receiver?

Open the receiver, insert 3 AA 1.5 V batteries respecting polarity, then close the compartment. Make sure to use new batteries and remove them if the device is not used for an extended period.

What is the maximum range of the doorbell?

The range is 150 m in free field. Walls, PVC, or metal can reduce the range. Test the range before final installation.

How to pair the transmitter and receiver?

Press and hold the receiver button for 5 seconds until the transmitter emits a double beep. Then press the transmitter button. The transmitter beeps to confirm pairing. If the receiver emits a double beep, pairing failed, repeat.

How to change the melody?

Use the selector [4] on the receiver to choose among the 32 available melodies. Also adjust the volume with the [3] control.

Can I use the doorbell outdoors?

The transmitter has an IP44 protection rating and can be used outdoors. The receiver is intended only for indoor use, protected from rain and moisture.

What to do if the receiver does not ring?

Check that the transmitter and receiver are turned on and the batteries are correctly installed and charged. Make sure the range is sufficient and no major obstacles block the signal. If the problem persists, re-pair the two devices.

How to maintain the doorbell?

Clean the transmitter and receiver with a dry cloth. Do not use solvents or abrasive products. Remove the batteries if the device remains unused for a long time.

Is the doorbell compatible with other transmitters?

This model can be paired with other transmitters of the same range, such as models EDM1 and EDMTW, by following the pairing procedure. See the manual for details.

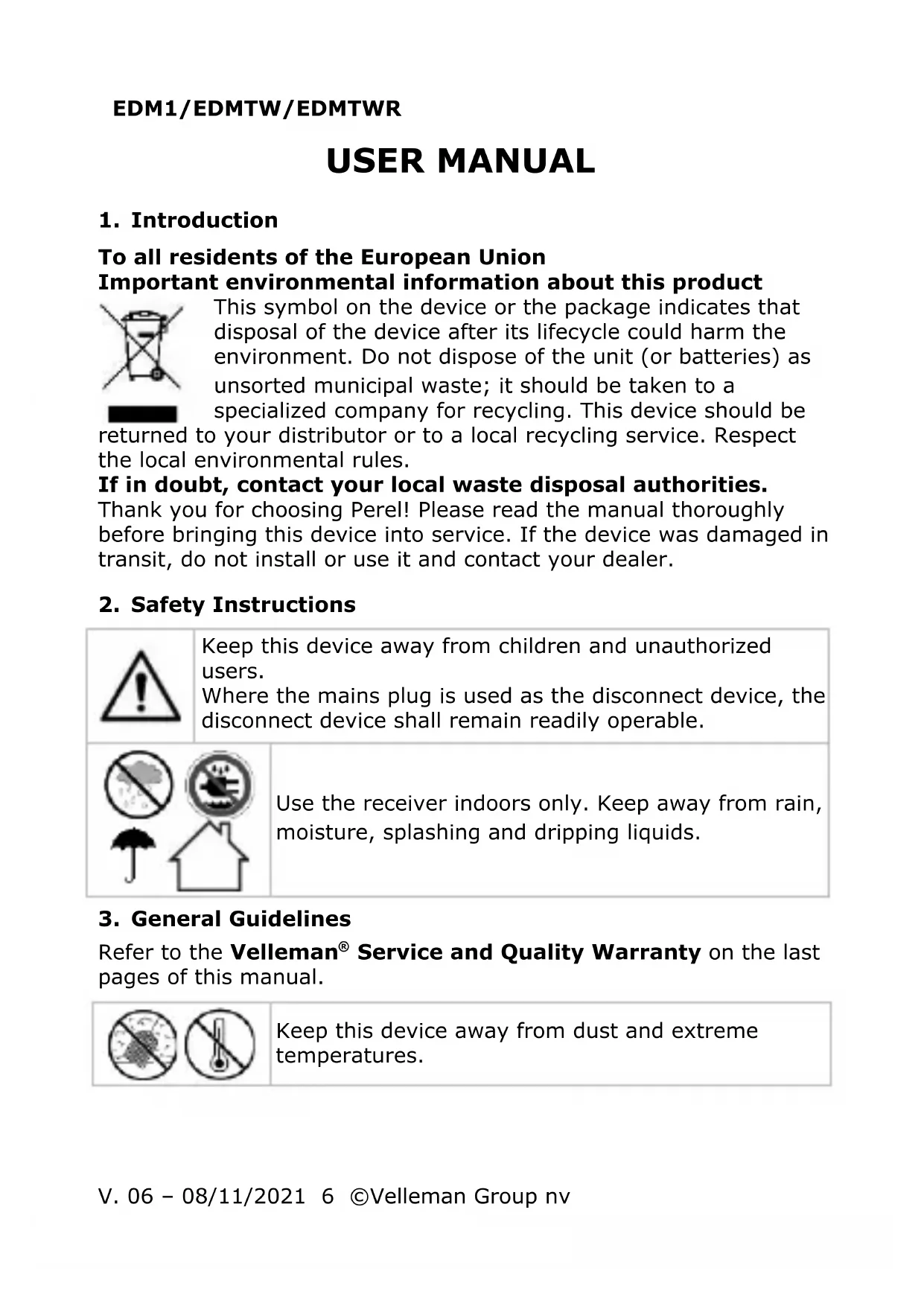

USER MANUAL EDMTWR Perel

White rectangular electronic door with circular vent and button, no visible text or symbols

USER MANUAL 6

HANDLEIDING 10

MODE D'EMPLOI 14

MANUAL DEL USUARIO 18

Diagram of a device with labeled parts and an arrow indicating direction, showing a tool interacting with the base panel.

Technical line drawing of a mechanical assembly with a circular component and an arrow indicating direction (no text or symbols)

EDM1/EDMTW/EDMTWR

EDM1/EDMTW/EDMTWR

RED Declaration of Conformity

Hereby, Velleman Group nv declares that the radio equipment type [EDM1] + [EDMTW] + [EDMTWR] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

Simple line drawing of a house with umbrella, no text or symbols

Use the receiver indoors only. Keep away from rain, moisture, splashing and dripping liquids.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Due to constant product improvements, the actual product appearance might differ from the shown images.
• Product images are for illustrative purposes only.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Keep this manual for future reference.

4. Battery

Refer to the illustrations on page 2 of this manual.

Transmitter

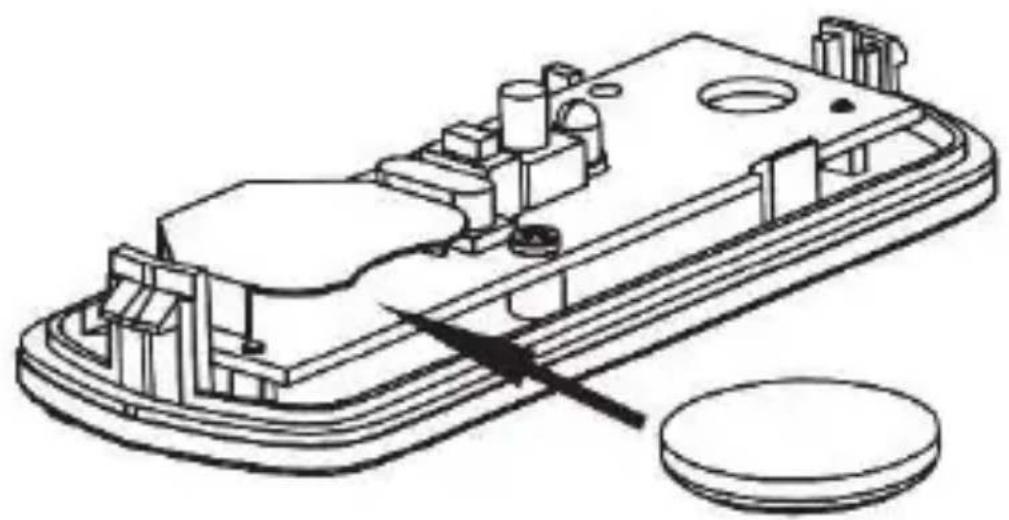

1. Open the transmitter to reveal the battery compartment. Use a flat-head screwdriver.
2. Install the CR2032 battery according to the correct polarity.
3. Close the battery compartment. Proceed with the installation.

Receiver

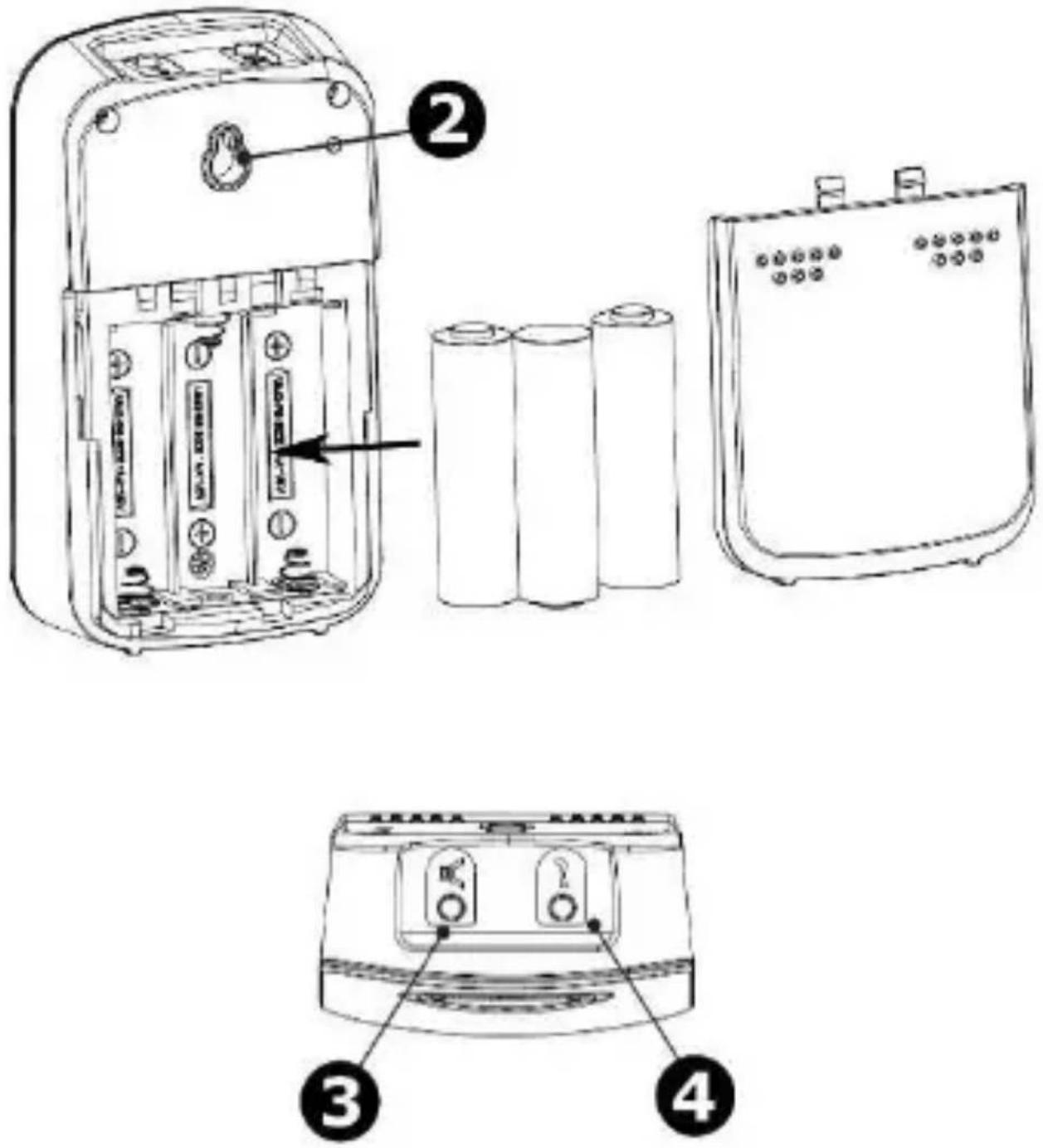

1. Open the receiver to reveal the battery compartment.
2. Install 3 x 1.5 V AA batteries according to the correct polarity.
3. Close the battery compartment. Proceed with the installation.

Remark: Remove the batteries if the transmitter and receiver will not be used for a longer period.

CAUTION:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

5. Installation

Test the operating range between the receiver and the transmitter. The operating range is 150 m in the open air, but may be less due to walls and other obstructions such as PVC or metal frames.

Refer to the illustrations on page 2 of this manual.

Transmitter

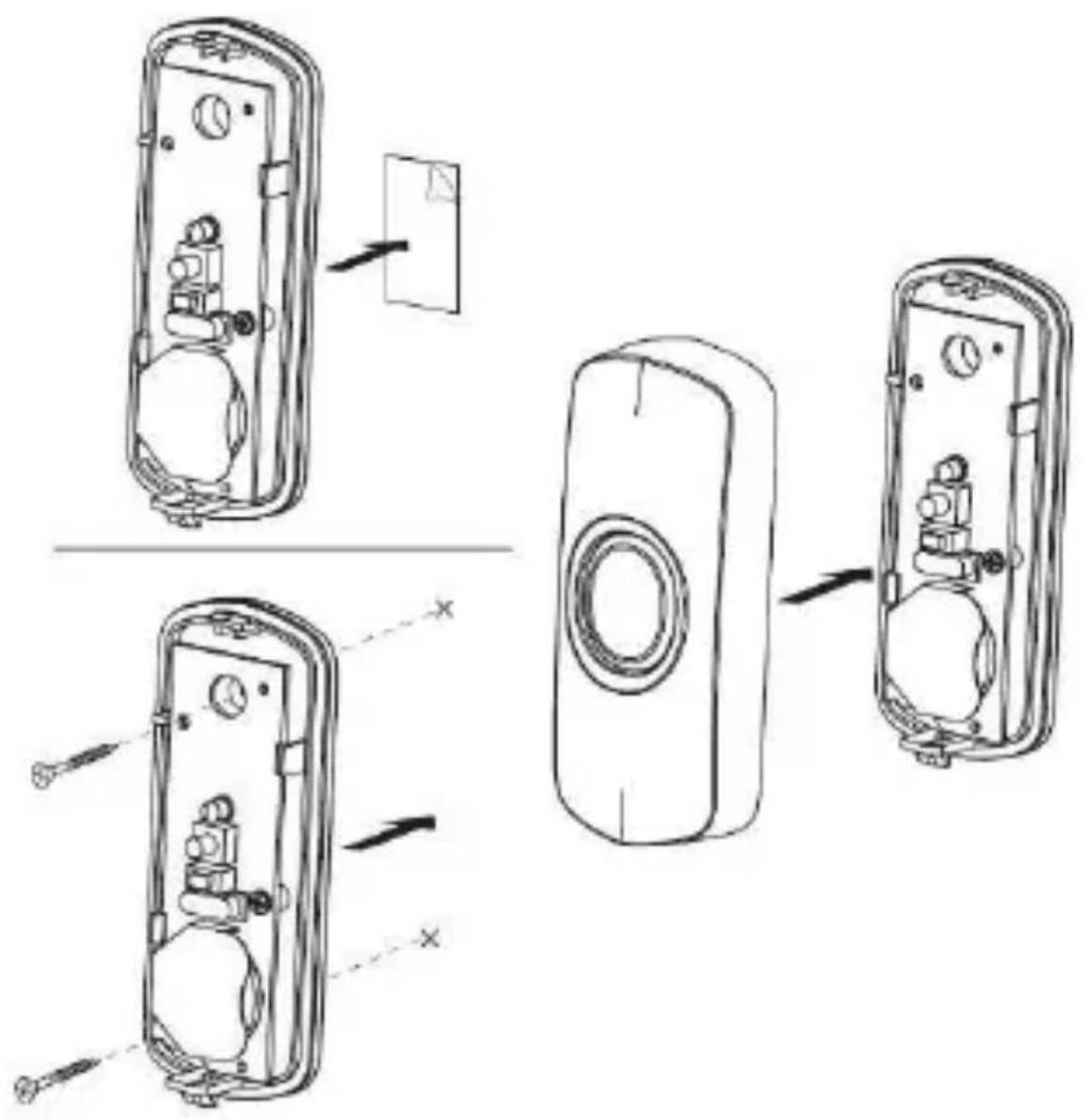

1. Carefully open the housing of the transmitter and use the back plate as a template. Mark the drilling holes at the required height.
2. Drill the holes using a drill and the appropriate drill bit (not included).
3. Insert a nylon plug (included) into each hole.
4. Fix the back plate with the included screws. Click the front plate onto the back plate.
5. Simply plug the receiver into the mains.

Receiver

1. Choose the installation spot for the receiver.
2. The receiver can be fixed to a wall using a hook or nail [2].

Remark: You can also fix the transmitter using double-sided tape.

6. Operation

Refer to the illustrations on page 2 of this manual.

1. Make sure both the receiver and transmitter are powered.

EDM1/EDMTW/EDMTWR

1. The receiver will ring when the button on the transmitter [1] is pressed.

2. Select the melody with the melody selector [4] and adjust the volume with volume control button [3].

7. Pairing

1. On the receiver, hold the button pressed for 5 seconds until you hear a "ding-dong" sound.
2. Now, press the transmitter button. The transmitter emits a "ding" sound to confirm successful pairing. The receiver emits a "ding-dong" sound when it exits the pairing mode.

8. Technical Specifications

frequency 433.95 MHz
max. RF power....10 mW
wireless ....yes
operating range .... 150 m in open area self-learning.....yes
bell push.... with LED indicator number of sounds.... 32 IP rating (transmitter).... IP44
power supply transmitter .... 1 x CR2032 (incl.) receiver.... 3 x 1.5 V AA (not incl.)

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
