EDKM1 - Doorbells Perel - Free user manual and instructions

Product type	Wireless doorbell
Brand	Perel
Model	EDKM1
Receiver power supply	3 AA 1.5V batteries (not included)
Transmitter power supply	Battery-free (wireless)
Maximum range	150 m in open field
Number of melodies	32
Protection rating (transmitter)	IP44
Auto pairing	Yes
Main functions	Wireless chime, melody selection, volume adjustment, auto pairing
Installation	Wall mounting of transmitter (screws or double-sided adhesive tape), receiver placed on a surface or wall-mounted
Usage	Indoor only for receiver, outdoor possible for transmitter (IP44)
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Keep out of reach of children. Protect from moisture and extreme temperatures. Respect battery polarity.
Spare parts and repairability	Batteries replaceable. No spare parts available. Contact customer service in case of defect.
General information	2-year warranty (conditions: manufacturing defect). Follow environmental regulations for recycling.

Frequently Asked Questions - EDKM1 Perel

How to install the EDKM1 transmitter?

Carefully open the transmitter casing. Use the back plate as a template, mark the holes, drill and insert wall plugs. Fix the back plate with the provided screws, then clip on the front plate. You can also use double-sided adhesive tape.

How to install the EDKM1 receiver?

Choose an indoor location (the receiver is not waterproof). You can place it on a flat surface or mount it on the wall using a hook or nail.

What type of batteries to use for the receiver?

The EDKM1 receiver operates with 3 AA 1.5V batteries (not included). Respect the polarity indicated in the battery compartment.

How to pair the transmitter and receiver?

Press and hold the receiver button for 5 seconds until a double beep sounds. Then, press the transmitter button. The transmitter emits a beep to confirm pairing. If the receiver emits a double beep, the pairing failed.

How to change the melody?

Use the melody selector (mark [5] on the receiver) to browse through the 32 available melodies. Press the transmitter button to test the selected melody.

How to adjust the volume?

Turn the volume control (mark [4] on the receiver) to adjust the sound level to your liking.

What is the maximum range and how to optimize it?

The range is 150 m in open field. Walls, metal, or PVC can reduce the range. For best performance, avoid obstacles and place the receiver as high as possible.

Does the transmitter require a battery?

No, the transmitter is battery-free. It is self-powered by the doorbell mechanism.

What to do if the device does not work?

First check that the receiver batteries are correctly installed and charged. Ensure the transmitter and receiver are turned on. Perform a pairing. If the problem persists, consult the full manual.

How to maintain the doorbell?

Clean the transmitter and receiver with a soft, dry cloth. Do not use abrasive products. Protect the receiver from moisture. Remove batteries if the device is not used for a long period.

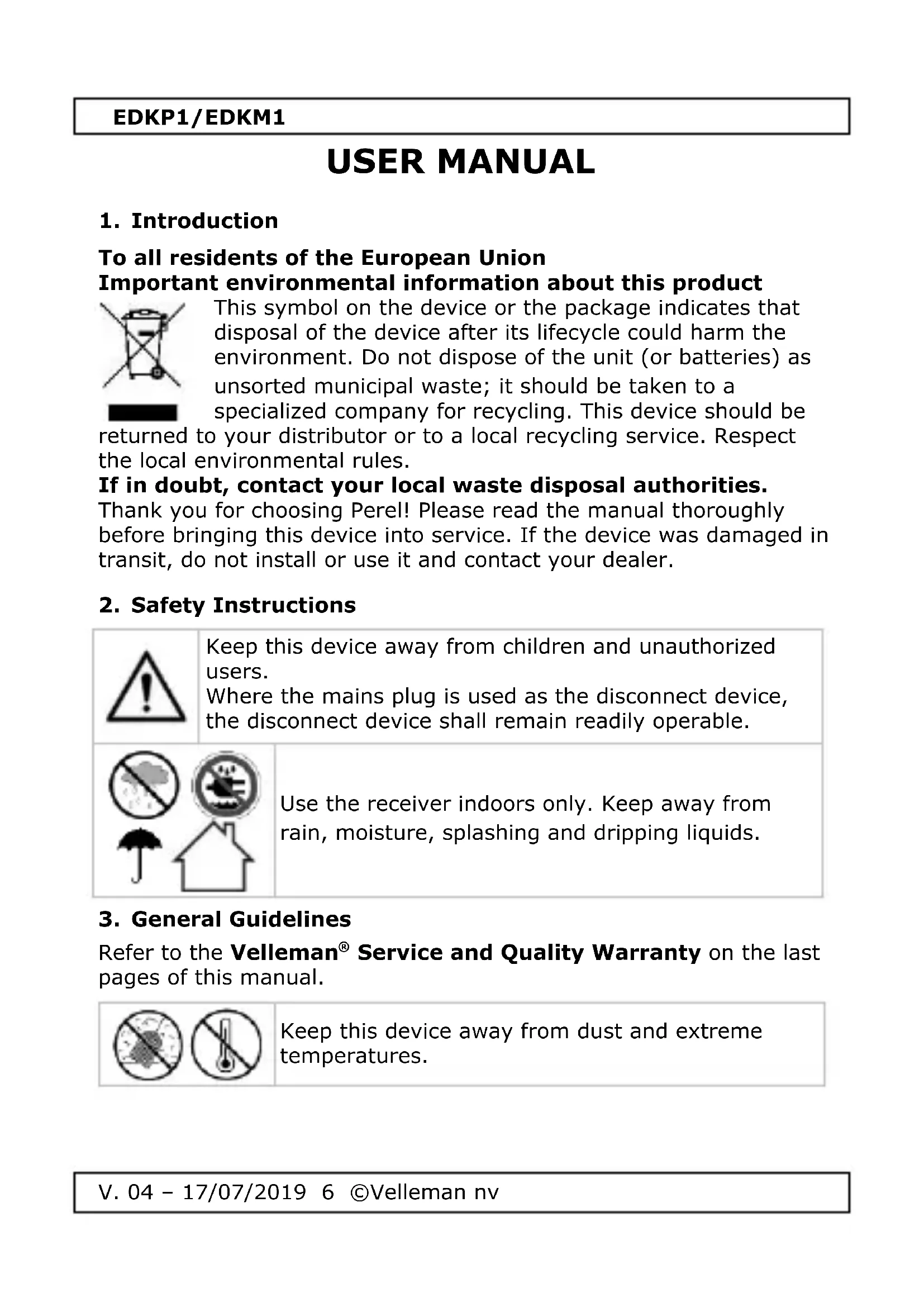

USER MANUAL EDKM1 Perel

Two white rectangular electronic devices, one with a circular button and the other a rectangular device (no text or symbols visible)

USER MANUAL 6

HANDLEIDING 10

MODE D'EMPLOI 14

MANUAL DEL USUARIO 18

Diagram of a door with labeled parts, showing numbered labels 1 and 2 pointing to the door panel.

Technical line drawing of a door panel with a black arrow indicating a cut or direction (no text or symbols)

Simple line drawing of a door with a handle and circular opening, connected to a dashed box (no text or symbols)

B

Diagram showing a device transitioning from a rectangular box with a knob to a rectangular panel with internal components and an arrow indicating rotation (no text or symbols present)

EDKP1/EDKM1

EDKM1

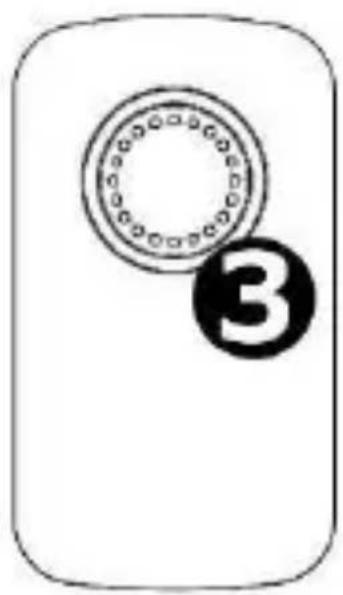

Simple line drawing of a ball bearing with a numbered circle (number 3) and dotted ring, no text or symbols present.

④ ⑤

Technical diagram showing battery pack, battery casing, and rear panel with labeled component 6

EDKP1/EDKM1

EDKP1

③ ④ ⑤

EDKP1/EDKM1

RED Declaration of Conformity

Hereby, Velleman NV declares that the radio equipment type [EDKP1] + [EDKM1] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

Simple line icons showing a rain circle, no text or symbols, an umbrella, and a house outline (no text or labels)

Use the receiver indoors only. Keep away from rain, moisture, splashing and dripping liquids.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures.

EDKP1/EDKM1

Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Due to constant product improvements, the actual product appearance might differ from the shown images.
• Product images are for illustrative purposes only.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Keep this manual for future reference.

4. Battery

Refer to the illustrations on page 2 of this manual.

Receiver EDKM1

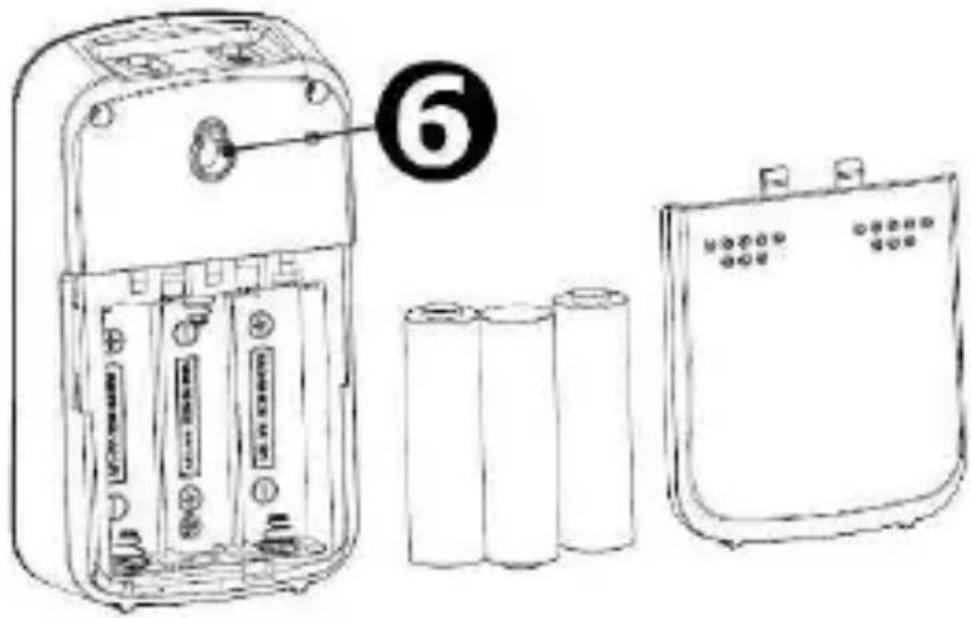

1. Open the receiver to reveal the battery compartment.
2. Install 3 x 1.5 V AA batteries according to the correct polarity.
3. Close the battery compartment. Proceed with the installation.

Remark: Remove the batteries if the transmitter and receiver will not be used for a longer period.

EDKP1/EDKM1

CAUTION:

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

5. Installation

Test the operating range between the receiver and the transmitter. The operating range is 150 m in the open air, but may be less due to walls and other obstructions such as PVC or metal frames.

Refer to the illustrations on page 2 of this manual.

Transmitter

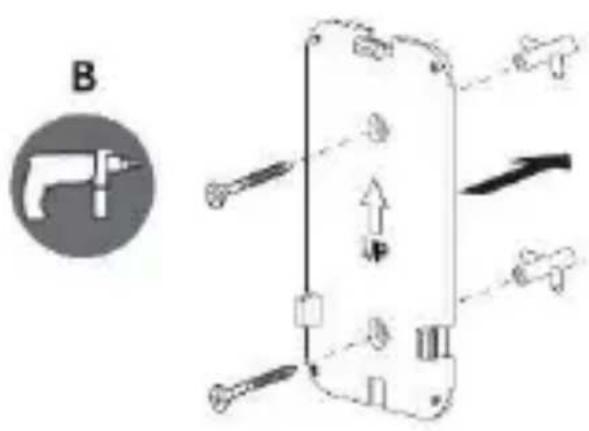

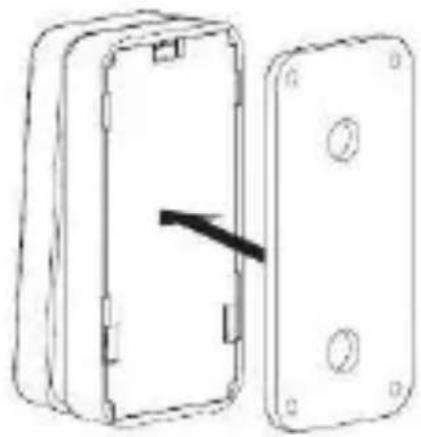

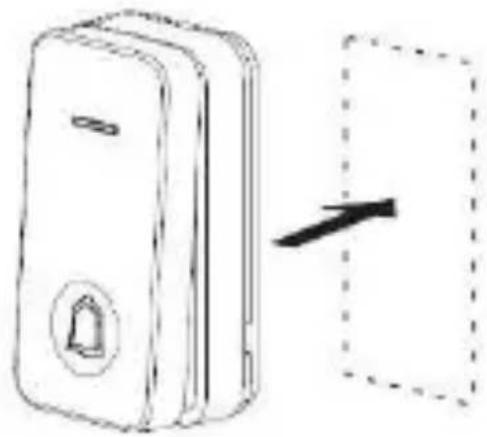

1. Carefully open the housing of the transmitter and use the back plate as a template. Mark the drilling holes at the required height.
2. Drill the holes using a drill and the appropriate drill bit (not included).
3. Insert a nylon plug (included) into each hole.

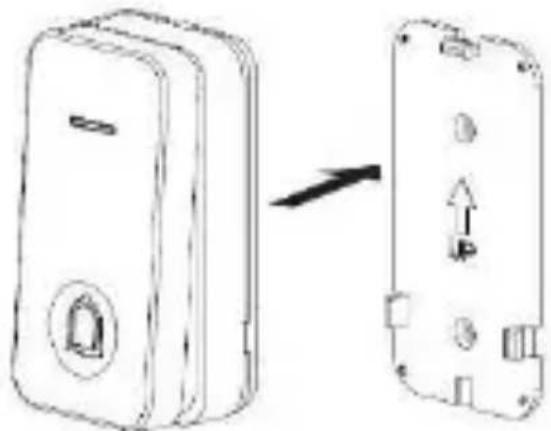

4. Fix the back plate with the included screws. Click the front plate onto the back plate.
5. Apply a name tag [1] if desired.

Remark: You can also fix the transmitter using double-sided tape.

Receiver EDKM1

1. Choose the installation spot for the receiver.
2. The receiver can be fixed to a wall using a hook or nail [6].

Receiver EDKP1

Plug the receiver into the mains.

EDKP1/EDKM1

6. Operation

Refer to the illustrations on page 2 of this manual.

1. Make sure both the receiver and transmitter are powered.
2. The receiver will ring when the button on the transmitter [2] is pressed.

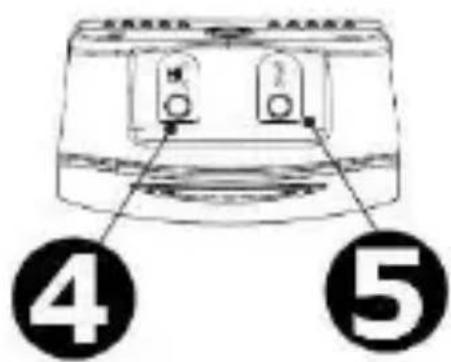

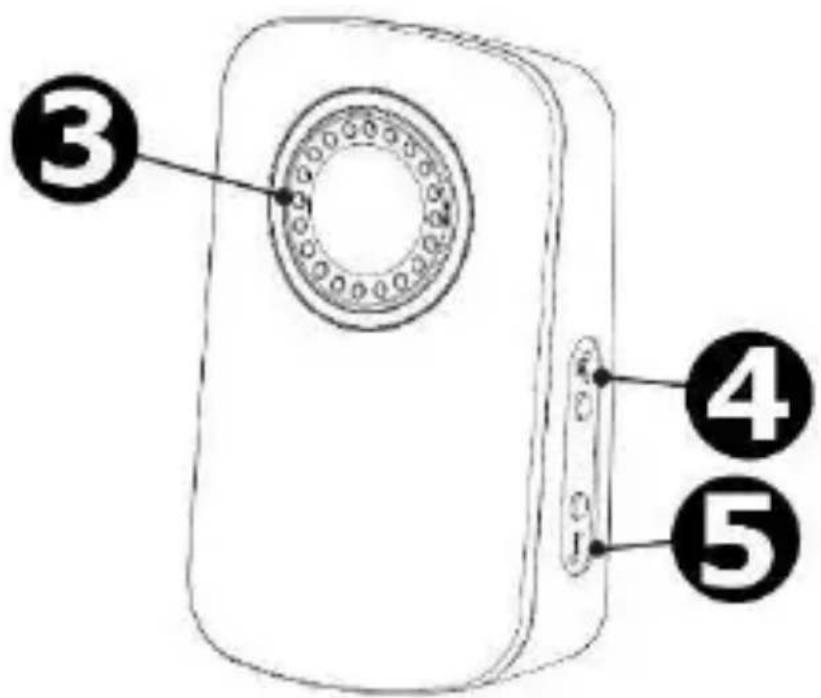

3. Select the melody with the melody selector [5] and adjust the volume with volume control button [4].

7. Pairing

1. On the receiver, hold the button pressed for 5 seconds until you hear a "ding-dong" sound.
2. Now, press the transmitter button. The transmitter emits a "ding" sound to confirm successful pairing. The receiver emits a "ding-dong" sound when it exits the pairing mode.

8. Technical Specifications

wireless.....yes
operating range .... 150 m in open area self-learning.... yes
bell push.... kinetic number of sounds.... 32
IP rating (transmitter) IP44
power supply receiver EDKP1 ...... standard Euro plug
EDKM1 3 x 1.5 V AA (not incl.)

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
