USER MANUAL Synthesis ELICA

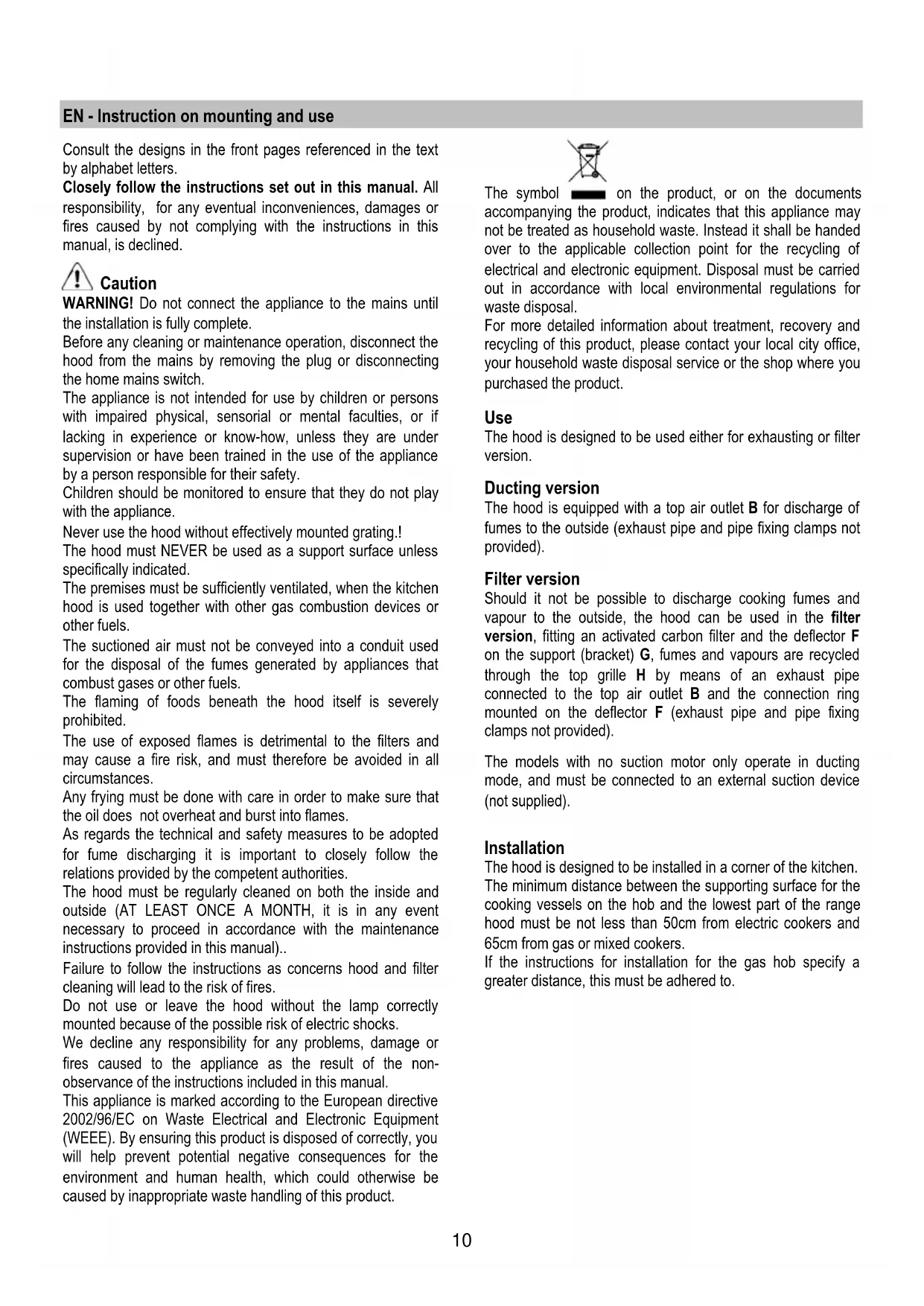

(Schnappverschluss). Sollte die Beleuchtung nicht funktionieren, erst kontrollieren, ob die Lampen einwandfrei eingedreht sind, ehe man sich an den Kundendienst wendet.10 EN - Instruction on mounting and use Consult the designs in the front pages referenced in the text by alphabet letters. Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. Caution WARNING! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the home mains switch. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or know-how, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. Children should be monitored to ensure that they do not play with the appliance. Never use the hood without effectively mounted grating.! The hood must NEVER be used as a support surface unless specifically indicated. The premises must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The suctioned air must not be conveyed into a conduit used for the disposal of the fumes generated by appliances that combust gases or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and burst into flames. As regards the technical and safety measures to be adopted for fume discharging it is important to closely follow the relations provided by the competent authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH, it is in any event necessary to proceed in accordance with the maintenance instructions provided in this manual).. Failure to follow the instructions as concerns hood and filter cleaning will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted because of the possible risk of electric shocks. We decline any responsibility for any problems, damage or fires caused to the appliance as the result of the non- observance of the instructions included in this manual. This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Use The hood is designed to be used either for exhausting or filter version. Ducting version The hood is equipped with a top air outlet B for discharge of fumes to the outside (exhaust pipe and pipe fixing clamps not provided). Filter version Should it not be possible to discharge cooking fumes and vapour to the outside, the hood can be used in the filter version, fitting an activated carbon filter and the deflector F on the support (bracket) G, fumes and vapours are recycled through the top grille H by means of an exhaust pipe connected to the top air outlet B and the connection ring mounted on the deflector F (exhaust pipe and pipe fixing clamps not provided). The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied). Installation The hood is designed to be installed in a corner of the kitchen. The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.11 Electrical connection The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area apply a bi-polar switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over- current category III, in accordance with installation instructions.

Warning: Before re-connecting the hood circuit to the mains

supply and checking the efficient function, always check that the mains cable is correctly assembled. Mounting Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Fig. 5-6-7-8-9-10-11-12-13-14-15 Attention! We advise you to have this hood installed by a qualified technical installer. It is, in fact, necessary to proceed with installation with the maximum expertise. It is necessary to have a professional type of level and a drill with a Ø8 mm point for walls, a Ø3.5 mm point for metal and a screwdriver with a crosshead point for installation. Disconnect the hood, working on the main domestic panel during the phases of connecting the electricity. Remove the fats filter/s and the frame of the carbon filter.

1. Make 2 pairs of PERFECTLY HORIZONTAL lines with a

pencil on the right and left walls in the corner where you want to mount the hood: The first pair is the distance between the cooking top and the hood and will also act as reference for the installation of the corner brackets. Attention! The corner brackets are to be installed if you are not sure that the walls forming the corner are perfectly perpendicular. The second pair, 50mm higher than the first, indicates the positioning of the lower side of the support structure of the hood.

2. Place the support structure on the corner of the wall so

that its right and left sides are equidistant from the corner of the wall (check in addition that the side with the series of horizontal holes is turned upwards), mark and make four external holes, insert 4 wall dowels and fix with 4 screws.

3. Fix the lower support bracket to the support structure with

4. Check that the corner of the kitchen where you want to

mount the hood has perfectly perpendicular right and left walls, otherwise install the corner fairings: Place the corner fairings on the right and left walls. Note: the lower side of the corner fairings must coincide with the lower pair of lines previously traced on the wall - in addition both must coincide with the corner of the wall, possibly forming a single and continuous frame, from the right to the left side. Mark and make 6 holes, insert 6 wall dowels and, with 6 screws and washers, fix the corner brackets to the wall.

5. Put flues support bracket „G“ on the wall, adhering to the

ceiling so that its right and left sides are equidistant from the corner of the wall, use the flues support bracket as a perforating diagram and mark 4 holes with the pencil, make the holes and insert 4 dowels. Suction version/Filtering version: Fix the flues support bracket to the wall with 4 screws. Only filtering version: adjust the extension of deflector F on the basis of the width of flues support bracket G, fix the extensions with 2 screws and fix the deflector to the flues support bracket with 4 screws.

6. Hook the hood onto the lower support bracket.

7. a.-b. Insert the lower part of the hood into the suction

unit. c. Fix the lower part of the hood to the suction unit with 6 screws. Attention! The hood is not yet definitively fixed to the wall, every successive operation must therefore be carried out with caution to avoid the hood unhooking from the support bracket and causing damage to people or things.

8. Carry out the electrical connections between the two

9. Adjust the distance of the hood from the wall and the

horizontal setting of the hood, using two adjustment screws placed on the hooks of the hood. If the corner brackets have been mounted (corner of the kitchen NOT perfectly perpendicular): check that the hood rests perfectly on the corner brackets. If the corner brackets have not been mounted (corner of the kitchen perfectly perpendicular): a. Check that the lower part of the hood is perfectly horizontal (if mounted correctly, this should coincide with or be parallel to the lower horizontal line marked on the wall (see montage operation 1).

Mark the two points (right and left) of definitive fixture with a pencil. c. Unhook the hood and make 2 holes, insert 2 wall dowels, hang the hood up again and fix definitively with 2 screws and washers.

10. Fix the motor unit to the support structure definitively:

make a Ø3.5 mm pilot hole on the support structure with a drill, passing through the lower hole inside the motor housing, after which fix definitively with 1 screw and washer.

11. Carry out the connection of a tube (tube and strips for

fixing not supplied, to be purchased) for the discharge of fumes to the connection ring over the suction motor unit. The other end of the tube must be connected to a device for the expulsion of fumes outside in the case of using the hood in the suction version or to deflector F in the12 case of using the hood in the filtering version.

12. Connect the electricity.

13. Place the flues and fix them above with 2 screws (20a) to

the „G“ (20b) flues support bracket.

14. Slide the lower section of the chimney to cover the

suction unit completely until it inserts into the apposite seat over the hood.

15. Apply the two side covers - embedded fixture - the parts

are not interchangeable. Mount the frame of the carbon filter and the fats filter/s again and check the perfect functioning of the hood. Description of the hood Fig. 1

3. Grease filter release handle

7. Air outlet (used for filter version only)

Operation Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking. Switching on the cooker hood The control ball is a balance wheel switch. Depressing the control ball towards the right repeatedly switches on the cooker hood and all the suction speed selections up to the intensive suction speed, depressing again towards the right the cooker hood switches off. Turning on the light Depress the control ball towards the left: once for diffused lighting, pressing again for full lighting, pressing again switches the light off. Maintenance ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. Cleaning The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend oserving these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations. Grease filter Fig. 2 This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity. To remove the grease filter B, pull the spring release handle. Charcoal filter (filter version only) Fig. 3 It absorbs unpleasant odours caused by cooking. The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65°C (if the dishwasher is used, select the full cycle function and leave dishes out). Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100° C to dry completely. Replace the mattress every 3 years and when the cloth is damaged. Remove the filter holder frame by turning the knobs (g) 90° that affix the chimney to the cooker hood. Insert the pad (i) of activated carbon into the frame (h) and fit the whole back into its housing (j). It is possible to use a traditional carbon filter, neither washable nor regenerable, to be replaced every 3 - 4 months. The filter holder frame of the carbon filter is welded together; the eventual frame supplied with the hood is not, therefore, to be used. Insert it into its housing and fix it turning the 2 plastic knobs.13 Replacing lamps Fig. 4 Disconnect the hood from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down.

1. Using a flat head screwdriver or equivalent tool, carefully

pry loose the light cover.

2. Remove the damaged light and replace with a new 12

Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.

3. Reinstall the light cover. (it will snap shut).
