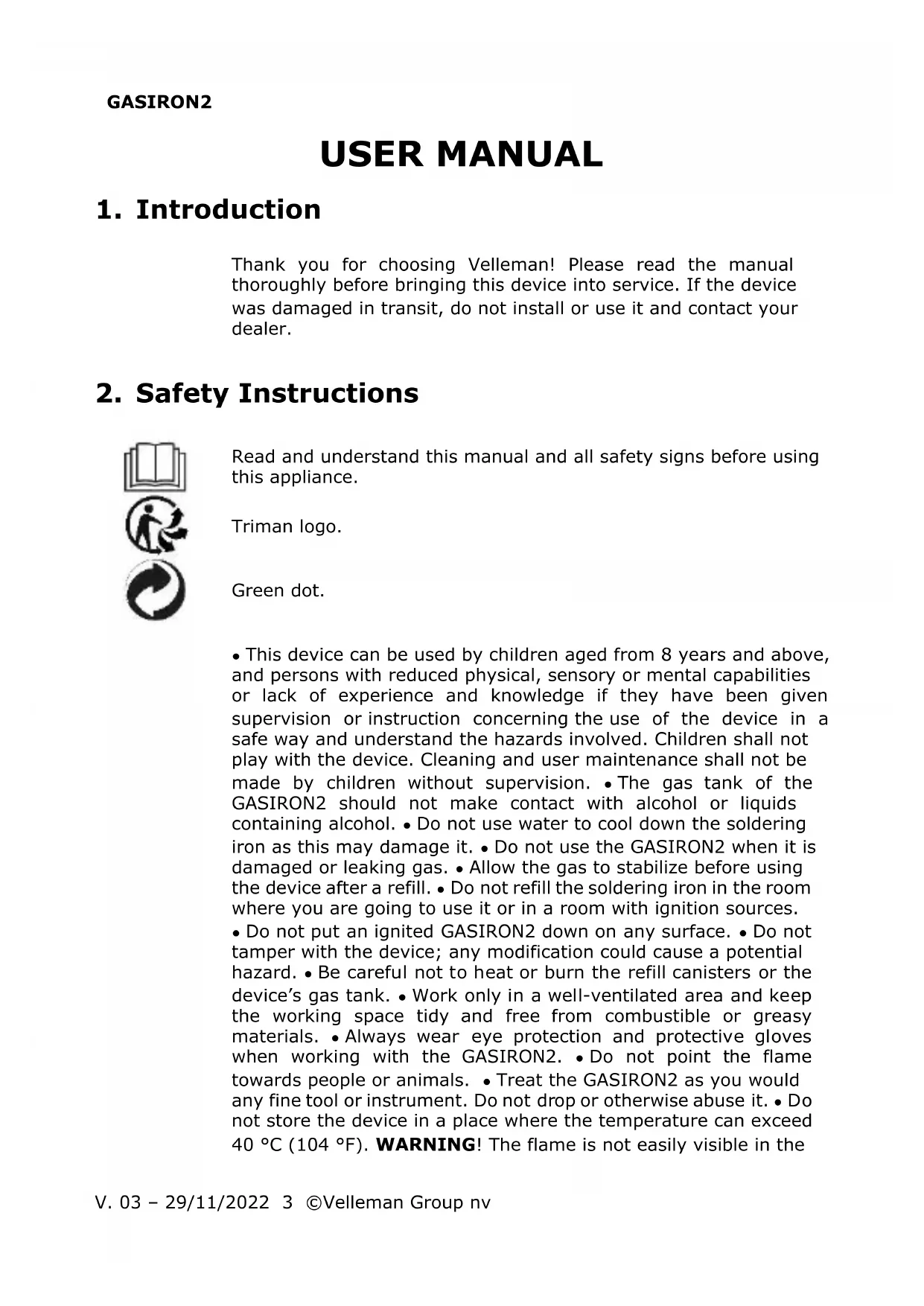

USER MANUAL GASIRON2 VELLEMAN

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

Read and understand this manual and all safety signs before using this appliance.

● This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision. ● The gas tank of the GASIRON2 should not make contact with alcohol or liquids containing alcohol. ● Do not use water to cool down the soldering iron as this may damage it. ● Do not use the GASIRON2 when it is damaged or leaking gas. ● Allow the gas to stabilize before using the device after a refill. ● Do not refill the soldering iron in the room where you are going to use it or in a room with ignition sources. ● Do not put an ignited GASIRON2 down on any surface. ● Do not tamper with the device; any modification could cause a potential hazard. ● Be careful not to heat or burn the refill canisters or the device’s gas tank. ● Work only in a well-ventilated area and keep the working space tidy and free from combustible or greasy materials. ● Always wear eye protection and protective gloves when working with the GASIRON2. ● Do not point the flame towards people or animals. ● Treat the GASIRON2 as you would any fine tool or instrument. Do not drop or otherwise abuse it. ● Do not store the device in a place where the temperature can exceed 40 °C (104 °F). WARNING! The flame is not easily visible in theGASIRON2

V. 03 – 29/11/2022 4 ©Velleman Group nv

sun. WARNING! This tool must be placed on its stand when not in use; do not leave the tool unattended when switched on.

● Refer to the Velleman

Service and Quality Warranty on the last pages of this manual. ● All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty. ● Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty. ● Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems. ● Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product. ● Keep this manual for future reference.

Refer to the illustrations on page 2 of this manual.

WARNING! Always let the GASIRON2 cool down before adding or removing parts. WARNING! Keep a burning or hot GASIRON2 away from flammable materials and other people.

● The soldering head can be screwed off by turning the locking ring counterclockwise. ● When working with the soldering head installed, make sure the locking ring is well fastened and the exhaust vent faces up. If the exhaust vent faces down, it may damage the surface underneath what you are soldering. ● The soldering tip itself can also be removed by screwing it off.GASIRON2

Soldering iron: ● Make sure the exhaust vent faces up. ● Set the on/off switch to the ON position to let the gas flow. ● Pull the soldering head forward until you can see the nozzle through the ignition vent. Then, light the gas by bringing an open flame to the ignition vent. ● Release the soldering head. The flame will disappear inside the head and will generate heat there. ● Set the on-off switch to OFF to extinguish the soldering iron.

Gas torch: ● Remove the soldering head. ● Set the on-off switch to ON to let the gas flow and bring an open flame next to the nozzle. ● Set the on-off switch to OFF to extinguish the soldering iron.

Hot blower: ● Screw the soldering tip off the soldering head by turning it counterclockwise. Ignition and extinguishing are the same as for the soldering iron.

Flame/heat adjustment: ● Adjust the gas flow by means of the gas volume control. Rotate it to the + or the - to increase or decrease the gas flow.

Refilling the gas tank: ● Make sure the on-off switch is set to OFF and the GASIRON2 has cooled down completely. ● Refill the device in a well-ventilated area away from any ignition source and away from other people. Do not smoke while refilling the gas torch. ● Refill with butane gas only. ● Hold the GASIRON2 upside down, insert the nozzle of the butane canister into the gas refill valve and press the canister down to let the gas flow from the canister into the gas tank of the soldering iron. ● When the gas stops flowing, pull the canister out of the refill valve.

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

A Velleman Group nv detém os direitos de autor deste manual do utilizador. Todos os direitos mundiais reservados. Nenhuma parte deste manual pode ser copiada, reproduzida, traduzida ou resumida por qualquer eletrónica, ou de outra forma, sem prévio consentimento por parte da detentora dos direitos de autor.Velleman® Service and Quality Warranty Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions). General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion. You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty: - all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits; - consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list); - flaws resulting from fire, water damage, lightning, accident, natural disaster, etc.…; - flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer’s instructions; - damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally); - damage resulting from an inappropriate packing and shipping of the article; - all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non- defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

• The above conditions are without prejudice to all commercial warranties. The above enumeration is subject to modification according to the article (see article’s manual).
