USER MANUAL VTSS230 VELLEMAN

Black soldering machine with digital display and soldering tool, accompanied by small electronic components (no visible text or symbols)

USER MANUAL 3

HANDLEIDING 10

MODE D'EMPLOI 17

MANUAL DEL USUARIO 24

Simple line drawing of an open book and a partial letter 'CE' (no text or symbols on the book itself)

Labeled diagram of a soldering iron soldering machine with numbered components for identification

USER MANUAL

TWO-IN-ONE SMD HOT AIR REWORK STATION

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

Read and understand this manual and all safety signs before using this appliance.

Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquids on top of or close to the device.

Always disconnect mains power when the device is not in use or when servicing or maintenance activities are performed. Handle the power cord by the plug only.

Caution! After switching off, leave the power cord plugged in for a few minutes. When you switch off the unit, the automatic cooling function blows cooling air through the heater pipe for a short period. This protects the heater from damage and extends its lifetime. Do not disconnect the mains plug during this cooling process.

Do not crimp the power cord and protect it against damage.

Warning! If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid any hazard.

Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.

Plug the power cord into a suitable, earthed mains outlet.

Risk of electroshock when opening the cover. Touching live wires can cause life-threatening electroshocks. Do not disassemble or open the housing yourself. Have the device repaired by qualified personnel.

Do not operate the device with wet hands.

Never use the device on live electronic circuits. Make sure power to the work piece is cut and capacitors are discharged.

Do not use near inflammable products or in explosive atmospheres. Heat can cause fire to inflammable products even when they are not in sight. Only use in properly ventilated rooms.

Incorrect use may cause fire.

Do not touch the shafts, tips, or hot air gun as this can cause serious burns. Keep the tips and hot air away from the body, clothes, or other flammable material. Do not aim the hot air gun at the eyes. Use gloves and/or heat-resistant tools to pick up the PCB assembly to prevent burns. Always return the irons and gun to their stands between uses; always let the device cool down after use and before storage.

Place the device on a level, stable, and fire-resistant working surface.

WARNING! This tool must be placed on its stand when not in use; do not leave the tool unattended when switched on.

Do not inhale solder fumes. The vapours that are released during soldering are harmful. Therefore, you shall only use the soldering station in well-ventilated areas or under an exhaust hood (solder fume extractor). Dispose of fume filters and solder residue in accordance with local regulations.

• Use the soldering iron on a heatproof workbench.
• Place the soldering iron in its holder after use.
• Let a hot soldering iron cool down naturally and do not immerse in water.

A fire may result if the appliance is not used with care. Therefore:

• be careful when using the appliance in places where there are combustible materials;
  • do not apply to the same place for a long time;
  • do not use in presence of an explosive atmosphere;
• be aware that heat may be conducted to combustible materials that are out of sight;
• place the appliance on its stand after use and allow it to cool down before storage;
• do not leave the appliance unattended when it is switched on.

3. General Guidelines

• Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

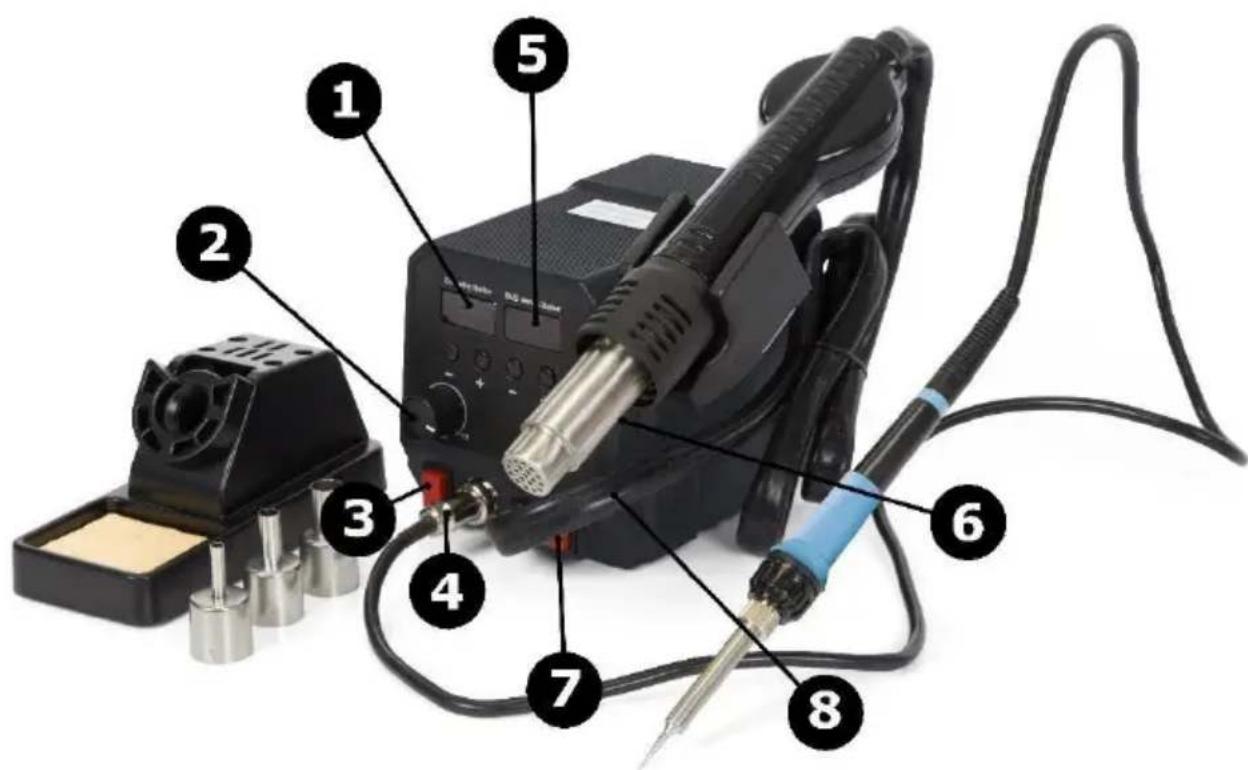

4. Overview

Refer to the illustrations on page 2 of this manual.

1	soldering station display + temperature setting button
2	airflow control
3	soldering station on-off switch
4	soldering station connection

5	rework station display + temperature setting button
6	temperature unit setting
7	rework station on-off switch
8	rework station connection

5. Installation

1. Install the appliance on a flat, stable and fire-resistant surface.
2. Make sure that the power switch at the back of the appliance is in the off position (0).
3. Connect the soldering iron to the appliance.
4. Plug the power cord into a suitable, earthed mains outlet.

6. Operation

6.1 General Operation

1. To switch on the appliance, set the power switch in the on position (I). The device starts heating up, the temperature and airflow values will be displayed.
2. Switch on the soldering or rework station with the respective button.
3. Select the temperature unit with the temperature unit setting switch.
4. Set the temperature and airflow value with the respective + and - buttons and the airflow control knob.
5. After setting, wait for the values to stabilize before starting to solder.

Please refer to chapter How to Solder below for handy tips.

Do not apply to the same place for a long time.

Do not leave the device unattended when switched on.

6.2 Auto Sleep Mode

When the soldering iron is placed in its holder, the switched-on station automatically lowers the iron temperature (sleep mode). As soon as you pick up the iron, the station exits the sleep mode.

6.3 Switching Off the Station

After use, place the iron in its holder and switch off the station.

After switching off, leave the power cord plugged in for a few minutes. When you switch off the unit, the automatic cooling function blows cooling air through the heater pipe for a short period. This protects the heater from damage and extends its lifetime. Do not disconnect the mains plug during this cooling process.

Wait until the cooling process has stopped, then disconnect the power plug. The device uses a small amount of electrical power, even if it is switched off.

7. How to Solder

7.1 Precautions

To extend the life of the heating element in the hot air gun, do not use the device continuously at a low airflow and a high temperature. Allow the heating element to cool after maximum 20 minutes of usage. Place the hot air gun back in its stand when not in use.

Make sure that both heater and nozzle are cold before attaching the nozzle.

High temperatures! Both nozzle and airflow are extremely hot and can cause severe burns. Never touch the nozzle and heater assembly or allow the hot air to blow against your skin. When used for the first time, the hot air gun may emit some white smoke, but this will soon dissipate.

Always let the unit cool down after use. After switching off, leave the power cord plugged in for a few minutes. When you switch off the unit, the automatic cooling function blows cooling air through the heater pipe for a short period. This protects the heater from damage and extends its lifetime. Do not disconnect the mains plug during this cooling process.

7.2 Setup

Do not force the nozzle or pull its edges with pliers.

1. Make sure the appliance is switched off and the iron/air gun is completely cooled down.
2. Select the air nozzle and slide it onto the air gun.
3. Plug in the power cord and switch on the station.
4. Select the temperature and airflow.
5. Wait until the temperature is stable.

8. Cleaning and Maintenance

8.1 General

Only perform the maintenance as described in this user manual. Contact an authorised dealer or service agent for any other maintenance or repair.

If the iron or station becomes faulty or, for some reason does not operate normally, return it to the service department of your authorized dealer or service agent.

Clean the outer cover of the iron and station with a damp cloth and a small amount of liquid detergent. Never submerge the unit in liquid or allow any liquid to enter the case of the station. Never use any solvent to clean the case.

Use only original replacement parts.

8.2 Storing

Store the appliance, its accessories and this user manual in the original packaging.

Always store in a cool and dry place.

9. Technical Specifications

power supply 220-240 V\~, 50 Hz

power

soldering iron.... 24 V, 60 W

hot air pump 300 W

temperature range

soldering iron....50 \~ 480 °C (122 \~ 896 °F)

hot air pump 100 \~ 500 °C (212 \~ 932 °F)

dimensions 113 x 125 x 175 mm

weight 2 kg

option

soldering iron....VTSS220/SP1 (not included)

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

2-in-1 SMD-HETELUCHTSTATION

1. Inleiding

soldeerbout 24 V, 60 W

heteluchtpomp 300 W

temperatuurbereik

soldeerbout 50 \~ 480 °C (122 \~ 896 °F)

heteluchtpomp.... 100 \~ 500 °C (212 \~ 932 °F)

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
