Product type	Pedestal fan
Brand	Bimar
Model	VT455
Color	White (typical)
Main material	ABS plastic
Blade material	Metal
Number of speeds	4 (low, medium, high, silent)
Oscillation	Yes, button-activated
Tilt	Yes, manually adjustable
Power consumption	40-60 W (estimated)
Supply voltage	220-240 V ~ 50 Hz
Weight	Approximately 3.5 kg
Total height	Approximately 120 cm
Blade diameter	40 cm (estimated)
Control type	Illuminated rotary knob
Silent function	Yes, silent speed
Aroma diffuser	Yes, removable grille
Electrical class	Class II
Cord length	Approximately 1.5 m
Included accessories	Base, front/rear grilles, blade, screws, retaining ring
Maintenance and cleaning	Slightly damp soft cloth, do not immerse
Storage	Protected from dust and moisture, original packaging recommended

Frequently Asked Questions - VT455 Bimar

How to assemble the Bimar VT455 fan?

Follow the steps in the manual: insert the cord into the base, fix the base with screws, insert the rear grille, the blade, then the front grille, securing them with the plastic ring and screw. Make sure everything is tightened.

How to use the oscillation function?

Press the button (2) on the motor body to activate left-right oscillation. To stop oscillation, lift the button. The fan will then remain in a fixed position.

How to adjust the fan speed?

Turn the rotary knob to the desired position among: 0 (off), - (low), - (medium), - (high), - (silent). The knob is illuminated when the appliance is on.

How to use the aroma diffuser?

Pour a few drops of essential oil or fragrance onto the diffuser pad (not included), without overdoing it to avoid damaging the paint. Hang the diffuser on the front or rear grille (always on the outside) using the hooks.

What to do if the fan does not work?

First check that the plug is properly connected and that the power outlet works. Make sure the knob is not set to position 0. If the problem persists, contact a qualified technician; do not attempt to repair it yourself.

How to clean the fan?

Unplug the appliance. Use a slightly damp soft cloth to clean the surfaces. Do not use abrasive or corrosive products. Do not immerse any part in water. Ensure that the motor ventilation holes are free of dust.

Is the fan suitable for children?

This product can be used by children aged 8 and above under supervision. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children under 8 without supervision.

Where to install the fan?

Place it on a stable, horizontal, and smooth surface. Keep it away from heat sources, liquid containers (minimum distance of 2 meters), and fabrics or volatile materials that could obstruct the grilles.

How to maintain the fan motor?

Ensure that the motor ventilation holes remain free of dust and textile particles. Clean them periodically with a dry cloth. Do not use a vacuum cleaner unless careful.

What to do in case of breakdown or malfunction?

Turn off the appliance and unplug it. Have it checked by a qualified professional. Repairs by unqualified personnel can be dangerous and void the warranty.

USER MANUAL VT455 Bimar

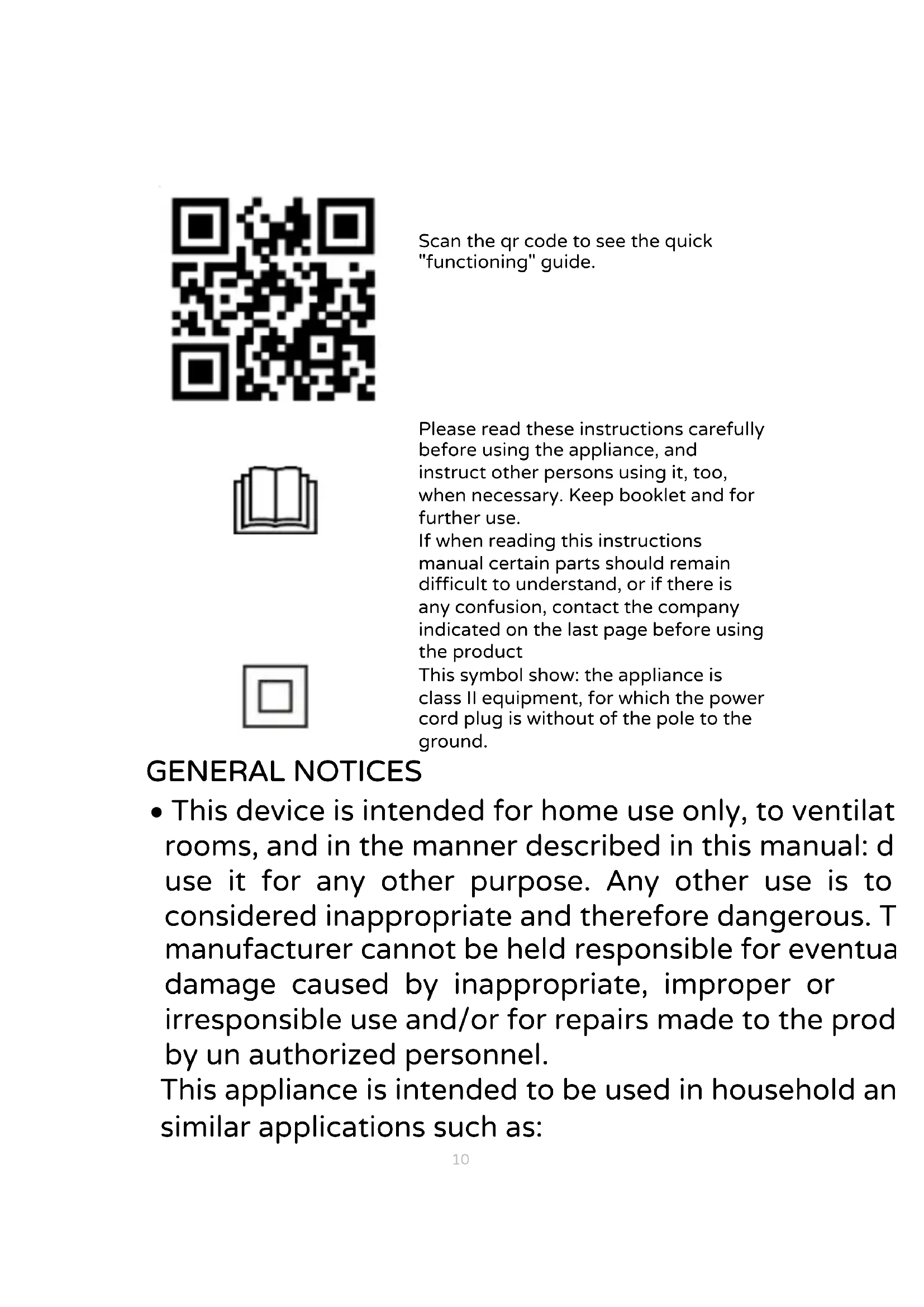

Scan the qr code to see the quick "functioning" guide.

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary. Keep booklet and for further use.

If when reading this instructions manual certain parts should remain difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product

This symbol show: the appliance is class II equipment, for which the power cord plug is without of the pole to the ground.

GENERALNOTICES

• This device is intended for home use only, to ventilat rooms, and in the manner described in this manual: d use it for any other purpose. Any other use is to considered inappropriate and therefore dangerous. T manufacturer cannot be held responsible for eventua damage caused by inappropriate, improper or irresponsible use and/or for repairs made to the prod by un authorized personnel.

This appliance is intended to be used in household an. similar applications such as:

• staff kitchen in shops, offices and other working environments;
• farm houses
• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

• Do not touch the appliance with wet hands or feet.

• Do not insert any tool, or your fingers, into the g protecting the blades.
• This appliance can be used by children aged from 8 y and above and persons with reduced physical, sensor mental capabilities or lack of experience and knowle they have been given supervision or instruction concerning use of the appliance in a safe way and if t understand the hazards involved. Children shall not p with the appliance. Cleaning and user maintenance sh not be made by children without supervision.
• This appliance can be used by children aged 8 and old and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are properly supervised or if they have received instructions regarding the safe use of the appliance and have understood the related dangers. Children should play with the appliance. Cleaning and maintenance should not be performed by children unless they are older than 8 years of age and are supervised.

• The appliance must be kept out of children's reach.

• Attention: when using electric appliances, the basic precautions must always be observed to avoid risks of electric shocks and physical injury.

• Do not use the appliance if it is not operating correct seems damaged; if in doubt, contact professionall qualified personnel.
• Make sure that the appliance is working correctly: if not, turn the appliance off and have it checked by professionally qualified personnel.
• Do not move the appliance when it is operating.
• Unplug the appliance when not in use.
• Do not use the device at room temperatures above 4
• Do not move the appliance when it is in function.
• Do not leave the device exposed to the weather (sun etc.).
• Do not pull on the cord to disconnect the plug from the socket.
• Do not allow children, or irresponsible persons, to use device without supervision.
• If the electric cord is damaged, it has to be replaced by supplier or an authorized service center or a professional qualified, to avoid any risks.
• Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a

fire risk exists if the appliance is covered or positioned incorrectly.

• Ensure that the fan is switched off from the supply m before removing the guard.

INSTALLATION

• After removing the packing materials, check the integrity of the heater; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger. Attention: any stickers or advertising material applied to the grid removed before using the appliance. The manufacturer declines all responsibility in case this is not safe working practices will be respected.
• Before connecting the appliance, check that the voltage values shown on the data plate correspond to those of the electricity supply network. In the event of incompatibility between the electric outlet and the plug of the appliance, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the appliance. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less than the maximum of the heater.
• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
• Do not place the fan on a shelf and/or near sinks or other container of liquids (minimum distance of 2 meters) to avoid the risk of it falling in.
• Keep the fan far away from fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).
• Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance.
• Stand the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could upset).
• Do not place the appliance near an open flame, cooking or other heating appliance.
• In the event of a breakdown or poor operation, turn the fan heater off and ask for professionally qualified help.

ASSEMBLY

Note: before assembling the fan, ensure that it is not plugged into the mains.

The appliance can only be used if all parts are completely and properly assembled, i.e. complete with base, protective grids, rotor.

Proceed as follows, referring to the figures.

1. Insert the power cord through the larger hole in the base, ensuring that it does not get pinched.

2. Attach the base, aligning the bigger hole with the base stand: check that they match up correctly and secure the parts with the screws, tightening them with a normal manual force (excessive tightening with cause the screw to continue turning, whereas the parts will not remain secured if not tightened enough).

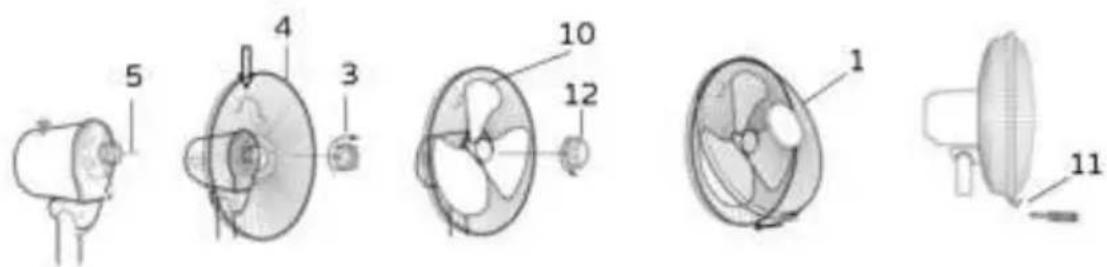

1. Unscrew the ring nuts (12) and (3) from the motor head.
2. Insert the rear grid (4) onto the motor head so that the handle is at the back and lock it with the special ring nut (3).
3. Place the fan (10) on the motor shaft (5) and secure with the ring nut (12) provided screwing it counter-clockwise so as to tighten it.
4. To secure the front grid, place the main unit on a smooth and even surface. Line up the front grid (1) with the rear grid (4), locking them with a plastic ring, (it is best to keep the screw at the bottom) and tighten the screw (11). Thereafter, check that the protective grids are firmly secured to the motor.

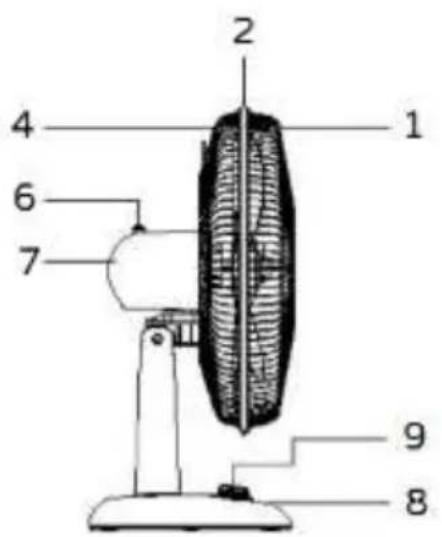

1) Front grid/protective screen
2) Plastic outer ring
3) Grid ring nut
4) Back grid
5) Motor shaft
6) Swing function button
7) Motor head
8) Base
9) Selector switch
10) Fan
11) Screw with nut for securing grids
12) Fan ring nut

USE

Warning: the fan can only be used if completely and properly assembled. The fan has the following adjustment and control devices:

• Tilting (high-low) of the main unit: turn the motor head up or down to adjust the angle

• Running the fan: selecting speed ( @: 0- : min - : med - : max - : silent) turn the knob to the required position; the knob is backlit when the appliance is running. To stop the motor, press the "0" button.
  Horizontal swing (right-left): controlled with knob (2) on the motor head. To keep the fan in a fixed position, pull the knob up. To start the fan, plug it into the mains and choose the required speed. To turn the fan off, turn the switch to "0" and thereafter remove the plug from the mains.

CLEANING AND MAINTENANCE

Attention: before normal cleaning, remove the plug from the socket.

• Ensure that the fan is switched off from the supply mains before removing the guard.
• Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
• Do not immerse any part of the fan in water or other liquid: if this should happen, do not put your hand in the liquid, but first remove the plug from the socket. Carefully dry the appliance and make sure that all the electrical parts are dry: in the case of doubt, ask for professionally qualified help.
• It is essential that the motor's air holes be kept from dust and lint.
• If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging.
• Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them (such as the blade).

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
