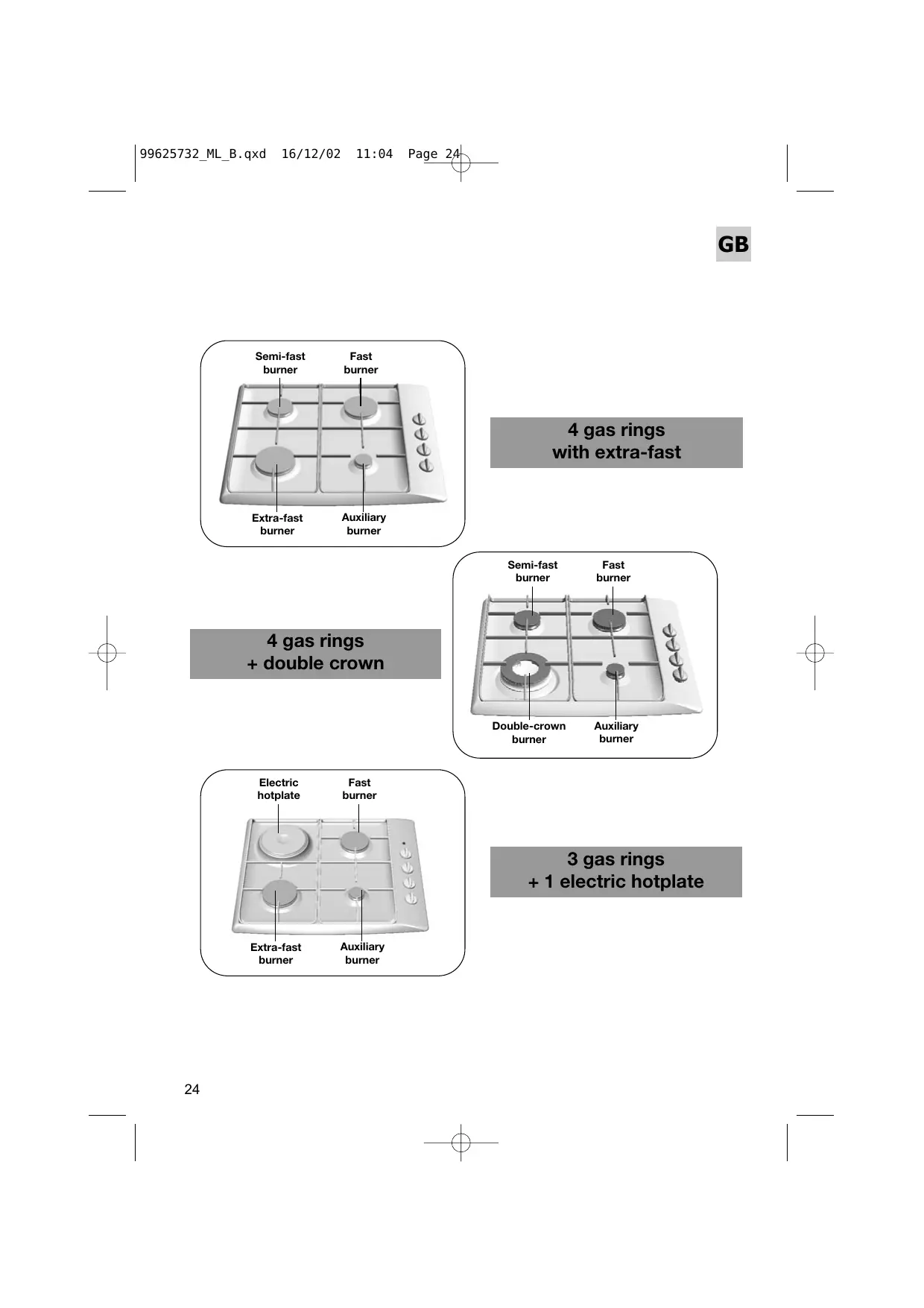

Semi-fast burner Fast burner 4 gas rings with extra-fast Extra-fast burner Auxiliary burner Semi-fast burner Fast burner 4 gas rings + double crown Double-crown burner Electric hotplate Auxiliary burner Fast burner 3 gas rings + 1 electric hotplate Extra-fast burner

Auxiliary burner 99625732_ML_B.qxd 16/12/02 11:04 Page 25 Contents Using your hob in complete safety

What your hob looks like?

Installing your hob in all simplicity

Fitting recommendations Electrical connections Gas connections Changing the type of gas supply Using your hob in all simplicity 35-31 33-34 35-39

How to use your gas burners? Which pans are best adapted for use on the gas burner How to use the electric hotplate? Which pans are best adapted for use on the electric hotplate? 42 How to look after your hob?

99625732_ML_B.qxd 16/12/02 11:04 Page 26 Editorial Dear Customer, Thank you for buying a BRANDT hob. Our design staff have produced a new generation of kitchen equipment, to make everyday cooking a pleasure. You will find that the clean lines and modern look of your Brandt hob blends in perfectly with your kitchen décor. It is easy to use and performs to a high standard. Brandt also makes a range of products that will enhance your kitchen such as hobs, extractor hoods, built-in dishwashers and refrigerators. There are models to complement your new Brandt hob. Of course, we make every effort to ensure that our products meet all your requirements, and our Customer Service department is at your disposal, to answer all your questions and to listen to all your suggestions (details enclosed). Brandt has always been a leader in the development of new products, thus enhancing the quality of everyday life by providing increasingly efficient products, that are easy to use, respect the environment, and are attractive and reliable. The BRANDT name.

99625732_ML_B.qxd 16/12/02 11:04 Page 27 Your hob in complete safety Using your hob in complete safety - We have designed your hob for private domestic use. - With a view to the constant improvement of our products, we reserve the right to make any changes in their technical, functional or aesthetic characteristics as a result of technical evolution. - These hobs are designed exclusively for the cooking of drinks and foodstuffs. These products do not contain any a s b e s t o s - b a s e d component parts. - Using a gas-powered hob produces both heat and humidity in the room where it is used. Make sure your kitchen is well ventilated: Keep all natural air-vents open or have a mechanical ventilation system installed (a mechanically ventilated hood) with a minimum airflow of 2m3/hr. - Prolonged and intensive use of the hob may require extra ventilation; by opening a window for example; or producing more efficient ventilation by increasing the power of the existing mechanical ventilation. - Disconnect your hob from both electrical and gas supplies before carrying out any maintenance operations. - If you plug in any electrical appliance near the hob, make sure that its power cable is not in contact with any source of heat. - For safety reasons, do not forget to close the main gas valve for built in gas lines or the valve on the top of your butane/propane gas cylinder. - If a knob is difficult to turn, Call up your installer. - You must always keep an eye on your cooking. CE IT. - Read the instructions before installing and using the apparatus. - The EC mark of conformity can be found on all these hobs.

- Never leave any CLEANING or INFLAMMABLE products in the cupboard beneath your hob (aerosols or other pressurised cans, papers, recipe books, etc.). - If you use a drawer under your hob, we advise you not to keep any objects in it that are liable to suffer from heat (plastic, paper, aerosols, etc.). YOUR HOB IS DELIVERED PRE-SET FOR USE WITH NATURAL TOWN GAS.

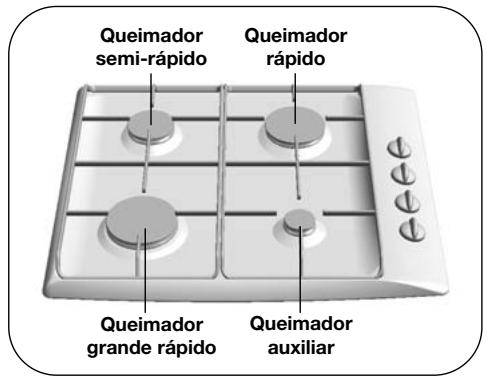

99625732_ML_B.qxd 16/12/02 11:04 Page 28 What your hob looks like? Semi-fast Fast

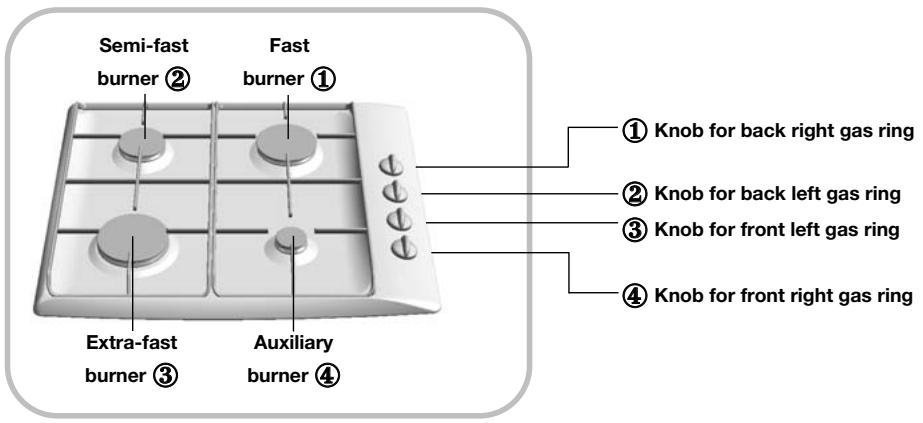

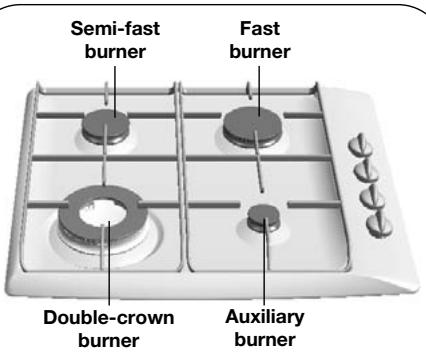

① Knob for back right gas ring ② Knob for back left gas ring ③ Knob for front left gas ring ④ Knob for front right gas ring Extra-fast burner Auxiliary

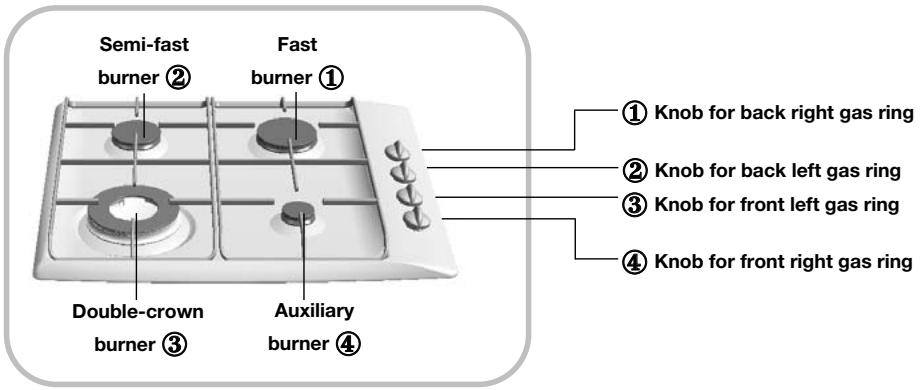

① Knob for back right gas ring ② Knob for back left gas ring ③ Knob for front left gas ring ④ Knob for front right gas ring Double-crown burner

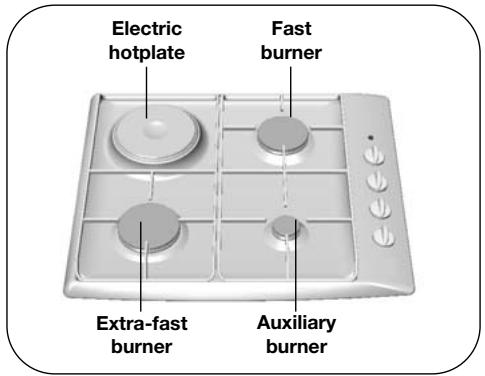

Electric hotplate Auxiliary burner

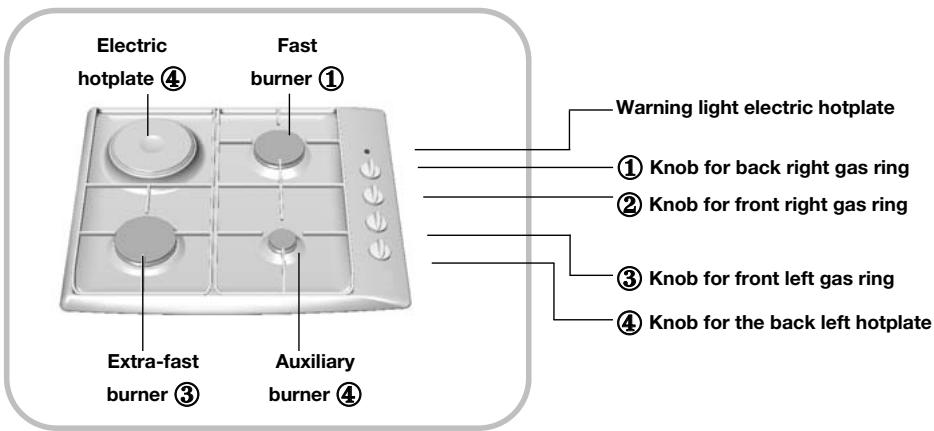

Warning light electric hotplate ① Knob for back right gas ring ② Knob for front right gas ring ③ Knob for front left gas ring ④ Knob for the back left hotplate Extra-fast burner

99625732_ML_B.qxd 16/12/02 11:04 Page 29 Installing your hob in all simplicity Fitting recommendations Width Depth Height Standard cutout 56 cm 49 cm Depending on the unit Outside dimensions above the work surface 60 cm 53 cm 5,8 cm Outside dimensions below the work surface. 55 cm 47,5 cm 3,4 cm Model This appliance should be installed by a qualified technician / installer. Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment conditions of the appliance are compatible. These hobs are designed to be used by private individuals in their homes. The adjustment conditions are stated on a label in the wallet and also on the packaging. This appliance must be installed and connected in compliance with the regulations in force, and used only in a well-ventilated area. Consult the instructions before installing and using this appliance. Since this appliance is not connected to a combustion products evacuation device. Particular attention should be given to the relevant requirements regarding ventilation. On this subject, combustion can take place only if oxygen from the air is present, so this air must be constantly renewed and the combustion products must be evacuated (a minimum air input of 2 m3/hour per kw of gas energy is required). These hobs have type X protection (in accordance with standard EN 60.335.2.6) against overheating of cupboards and Class 3 for installation itself (in accordance with standard EN 30.1.1). Carefully look after these instructions, with the information label affixed to the final page, and keep them near your appliance.

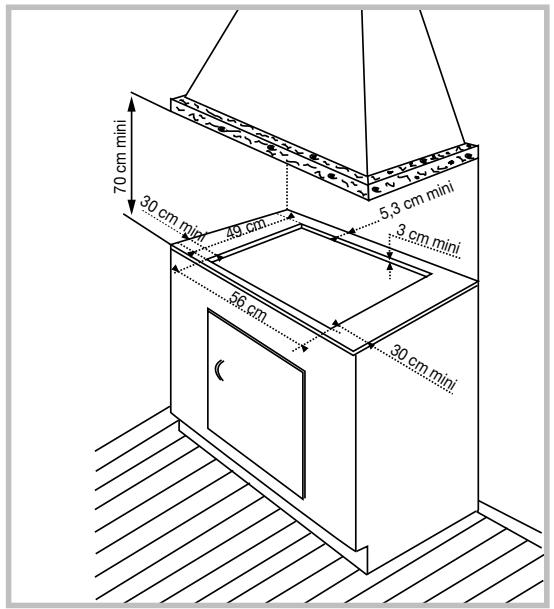

99625732_ML_B.qxd 16/12/02 11:04 Page 30 Installing your hob in all simplicity Fitting recommendations (cont'd) 70 cm mini The hob must be built into the worktop of a support cupboard. This worktop must be at least 3 cm thick and heat-resistant or else coated with a heat resistant material. A side-clearance of at least 30 cm should be left to the right and left of the hob. A tall cupboard or partition too close to the hob would hinder free movement of kitchen utensils. If a horizontal partition is put under the hob, it must be placed between 10 and 15 cm from the bottom of the work top. In any case, do not keep any sprays or pressurized containers in the compartment which could be just under the hob.

1- Remove the pan support grates, the

burner caps and heads after checking their position.

4- Put the hob back the right way up

and place the burners, caps and pan grates back in position.

To ensure the seal between the hob and the worktop, affix the joint provided in the folder before installing the hob:

2- Turn the hob over and place it gently

over the opening in the worktop paying attention not to damage the control knobs and lighters.

3- Stick the foam seal around the outside of the hob.

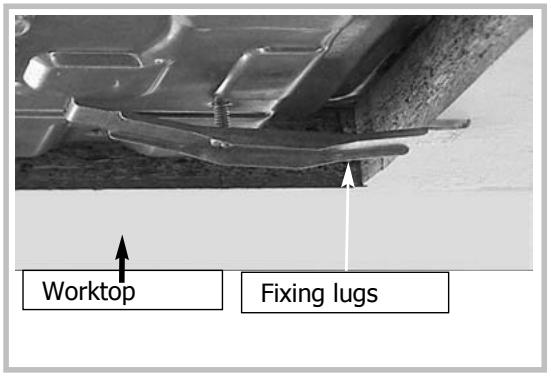

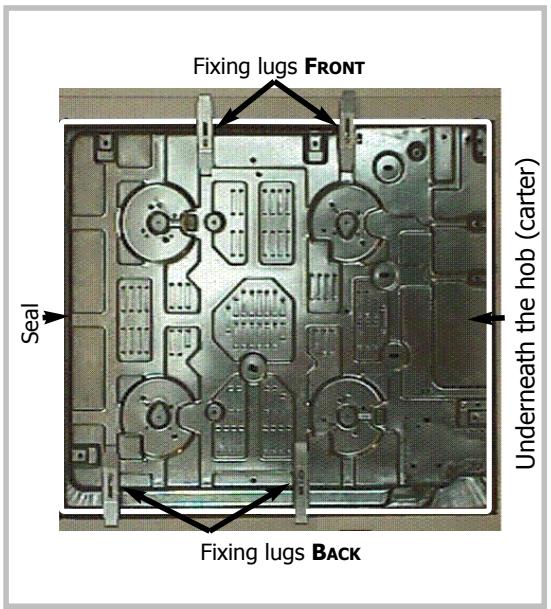

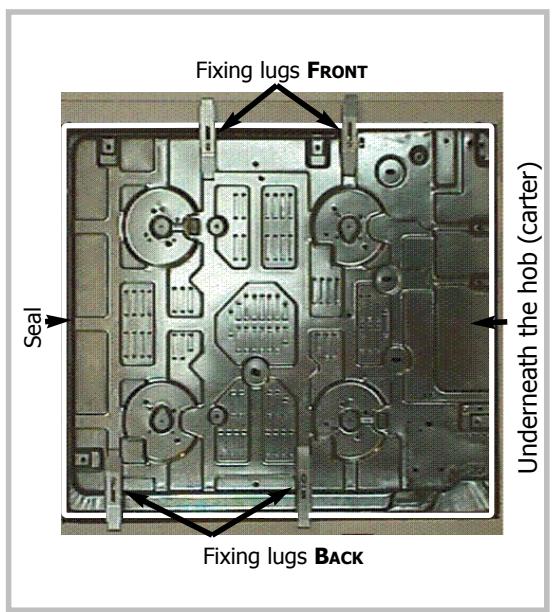

5,3 3 cm Fixing lugs BACK 99625732_ML_B.qxd 16/12/02 11:05 Page 31 Installing your hob in all simplicity Fitting recommendations (cont'd) - Place the hob in position in the cutout on the worktop, pulling it forward as far as possible. - Put the burners, caps and pan grates in place. Underneath the hob (carter) Fixing lugs FRONT - Connect to the gas (see "How to connect the hob to mains gas" or "How to connect the hob to butane / propane gas". Seal - Connect the hob power supply cable to the electrical installation of the kitchen. (See "Electrical connections" ). If you want, you can fix the hob in position on its four corners, using the four lugs and screws provided (See diagram). Only use the holes provided. Fixing lugs BACK Stop screwing when the lug starts to bend. Do not use a power screwdriver. Worktop Fixing lugs

99625732_ML_B.qxd 16/12/02 11:05 Page 32 Installing your hob in all simplicity Electrical connections ● Mixed and all-gas hobs Hobs are delivered with a threeconductor (phase + ground + neutral) H05VVF- T105 or H05V2V2F - T90 1mm section cable, ref. SAV : 77X3767 (6470.1516) and must be connected to a 220/240 V single phase mains supply by the intermediary of a two phase + earth + CEI 60083 standardised neutral plug, or a single pole cut-off device with a contact opening by at least 3mm. The mains plug must be accessible after installation. CROSS SECTION OF THE CABLE TO USE 220/240V~-50/60Hz All-gas and mixed Cable H05VVF - T105 or H05V2V2F - T90 3 conductors of which 1 is to be earthed Cross section of conductors in mm2 Fuse 10 A The protective conductor (green/yellow) is connected to the earth connection on the hob and therefore must also be connected to an external earth connection Use a 10 A fuse. If the power supply cable is damaged, it must be replaced with a cable or a special unit available from the manufacturer or his After Sales Service.

99625732_ML_B.qxd 16/12/02 11:05 Page 33 Installing your hob in all simplicity Gas connections ● Preliminary remarks If the hob is to be installed above an oven

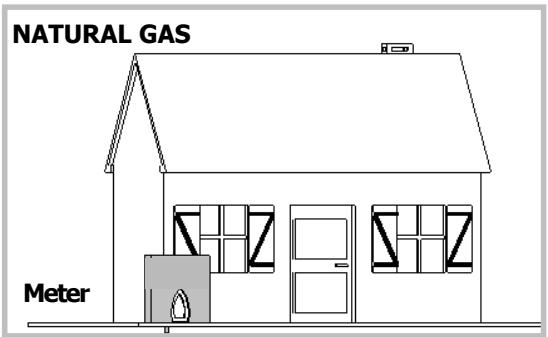

other nearby heating appliances risk heating and damaging the gas hose then it is essential that a rigid pipe installed instead. If a flexible hose is used (in the case of butane gas) then it must not be installed in a place where it may be in contact with a moving part of the kitchen unit or a place likely to get cluttered. NATURAL GAS Meter ● Possible connections TOWN GAS (NATURAL GAS). Choose the connection exclusively according to: - connection with a rigid pipe (gas standard G1/2). The connection should be made at the end of the elbow seal on the appliance, using the conical connection with the sealing washer provided in the folder. Note : Screw on the connector with a torque not exceeding 2.5 m/daN (m/kgF). fig.1 Gas proof washer (supplied) Conical connection (supplied) Whatever means of connections is chosen, make sure that it is gas sound after installation by using soapy-water.

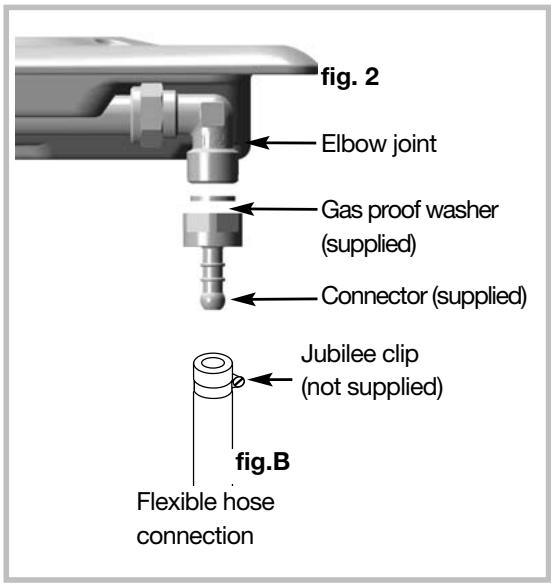

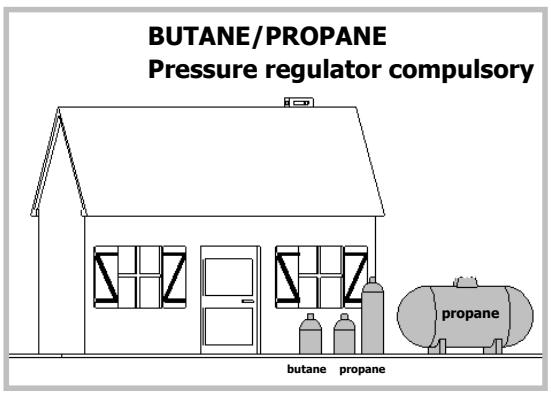

(BUTANE/PRO- For the user's safety, we advise the connection to be made with a rigid pipe if this is possible. For an existing installation, where it is not possible to fit a reinforced, braided, flexible gas hose, the connection can be made with a flexible gas hose (maximum length 2 metres), with two jubilee clips: one on the connector (fig. B), and the other on the pressure regulator, and a gas proof washer should be fitted between the connector and the elbow seal on the hob. You will find the sealing washer and the adaptor in the wallet delivered with the unit. BUTANE/PROPANE Pressure regulator compulsory propane propane butanenepropane fig. 2 Elbow joint Gas proof washer (supplied) Connector (supplied) Jubilee clip (not supplied) fig.B Flexible hose connection Temperatures above 30°C would cause overheating of the gas hose. To avoid this, check that there are no heat-producing devices nearby. Screw on the connector with a torque not exceeding 2.5 m/daN (m/kgF).

99625732_ML_B.qxd 16/12/02 11:05 Page 35 Installing your hob in all simplicity Changing the type of gas supply ● Preliminary remarks Your hob is delivered regulated for natural gas. The injectors for adapting the hob for use with butane or propane are in the wallet containing the instructions, together with the adaptor and the sealing washer. Please see the corresponding paragraph on "Gas Connections". Every time you change your gas supply, mark the square on the label in the wallet that corresponds to the new type of gas (See "Gas Rating" in this chapter).

99625732_ML_B.qxd 16/12/02 11:05 Page 36 Installing your hob in all simplicity Changing the type of gas supply (cont'd) When carrying out this operation, you should successively: ➊ Adapt the gas connection ❷ Change the injectors ❸ Adjust the retarder on the taps Grill ➊ ADAPT THE HOB CONNECTION to the new gas adjustment. Refer to the paragraph “Gas connections”. ❷ CHANGE THE INJECTORS in the following way:

• Remove the supports, and all the burner caps and heads.

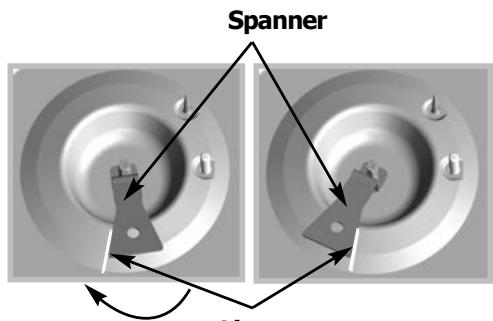

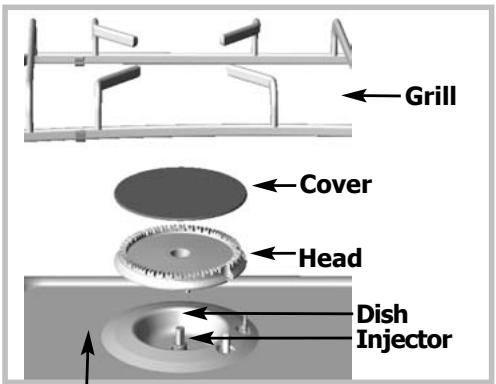

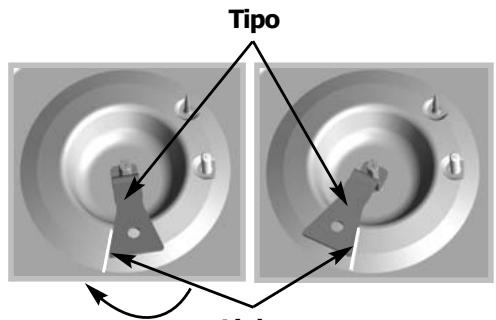

• Using the spanner supplied, unscrew the injectors at the bottom of each dish and remove them (fig 1). - Replace these with the injectors supplied in the wallet, in accordance with the gas rating table at the end of the chapter; to do this: ➪ Screw in the injectors by hand until they are tight. ➪ Put the spanner well onto the injector. ➪ With a pencil draw a line on the hearth plate as indicated (fig. 2). ➪ Turn the spanner clockwise until the line appears on the other side (fig. 3). Warning! Do not go beyond this limit as you are liable to cause damage. ➪ Put the burner heads, covers and pan supports back in position.

Cover Head Dish Injector Upper side of the hob Fig. 1 Spanner Fig. 2 Line Fig. 3 99625732_ML_B.qxd 16/12/02 11:05 Page 37 Installing your hob in all simplicity Changing the type of gas supply (cont'd)

❸ ADJUST THE RETARDER ON THE TAPS

located under the knobs. Proceed as follows:

• Work on one tap at a time.

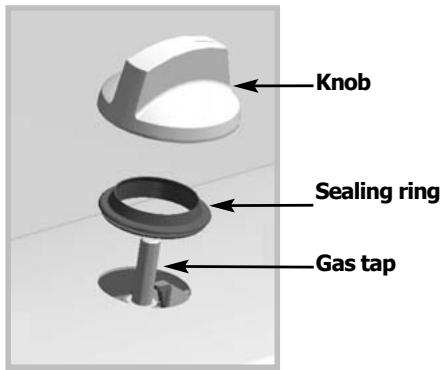

• Pull off all knobs and sealing rings. Knob Sealing ring Gas tap

CHANGING FROM NATURAL GAS TO

- Using a small screwdriver screw fully the brass, adjustment screw (yellow) (For your model see Fig. 4) clockwise. - Check the position of the sealing rings and knobs before putting them back in place. Make sure the knobs are pushed down as far as possible.

CHANGING FROM BUTANE / PROPANE

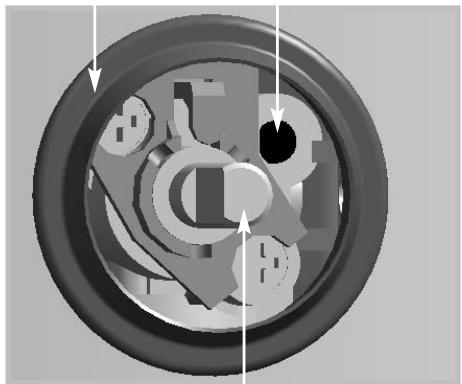

GAS TO NATURAL GAS OR TO BUTANE / PROPANE AIR - Using the small screwdriver, unscrew the brass, adjustment screw (yellow) ( Fig. 4) depending on model, anti-clockwise. - Push the control knob back in position, light the burner and turn to maximum power. Then turn the knob back to its low flame position. - Remove the knob again then turn the adjustment screw clockwise as low as possible without extinguishing the flames. - Put back the sealing ring and control knob then turn it several times from maximum position to minimum position : the flame must not be extinguished. Otherwise, re-adjust it by slightly screwing or unscrewing the adjustment screw so that a stable flame is obtained when the knob is turned from maximum to minimum position. - Put the burner heads, covers and pan supports back in position. Sealing ring Adjustment screw Tap axis Fig. 4

Indicator marked on injector

Nominal heat rating (kW) 3,50 3,50 Low heat rating (with / without security device) (kW) 1,450 Hourly output (g/h)

Indicator marked on injector

Indicator marked on injector

Indicator marked on injector

Indicator marked on injector

Appliance designed for installation: LPG

Indicator marked on injector Nominal heat rating (kW) 0,750

99625732_ML_B.qxd 16/12/02 11:05 Page 39 Installing your hob in all simplicity Changing the type of gas supply (cont'd) ● Gas rating (cont’d)

MARK ON THE INJECTORS

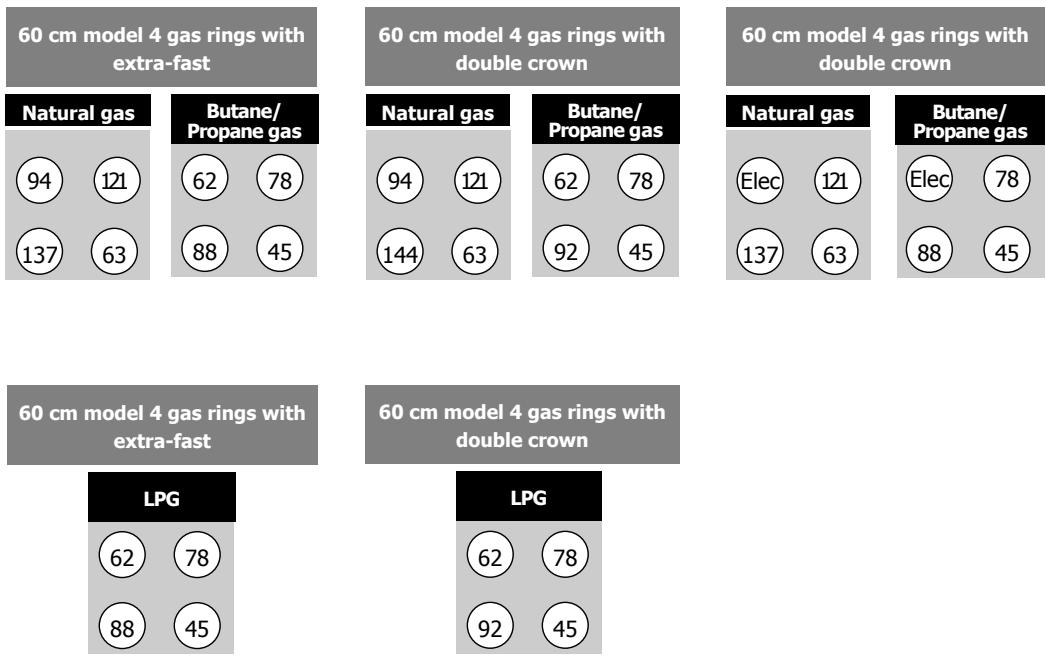

This table shows the position of the injectors on your hob depending on the type of gas you use. The number is marked on each injector. 60 cm model 4 gas rings with extra-fast 60 cm model 4 gas rings with double crown Natural gas Butane/ Propane gas

60 cm model 4 gas rings with extra-fast 60 cm model 4 gas rings with double crown Butane/ Propane gas Natural gas Butane/ Propane gas

Natural gas 60 cm model 4 gas rings with double crown LPG LPG

99625732_ML_B.qxd 16/12/02 11:05 Page 40 Using your hob in all simplicity How to use your gas burners? ● Lighting a hob NOT FITTED WITH SAFETY DEVICE (depending on model)

• Each burner has its own gas tap which is opened by pressing down on the control knob and then turning it anti-clockwise. The gas tap is closed when the control knob is in position “●
• Choose the gas burner you need using the symbols at the side of each control knob; (E.g. back right-hand burner

• Your hob is equipped with an automatic lighting system integrated into each control knob.
• To ignite a burner, press down and turn the knob anti-clockwise until it is pointing to the maximum position Keep the knob pressed down. This will trigger off a series of sparks that will light up the burner.
• Adjust the flame to the height your require by turning the control knob between the and symbols.

● Lighting a hob fitted WITH DEVICE (depending on model) A SAFETY

• The safety system for the burners is a metal rod next to the flame.
• Choose the gas burner you need using the symbols at the side of each control knob; (E.g. back right-hand burner

• Each burner is controlled by a tap fitted with a safety system, which cuts the gas off automatically if ever the flame goes out by accident (overflowing, drafts, etc.).
• Your hob is equipped with an automatic lighting system integrated into each control knob.
• To ignite a burner, press down and turn the knob anti-clockwise juntil it is pointing to the maximum position

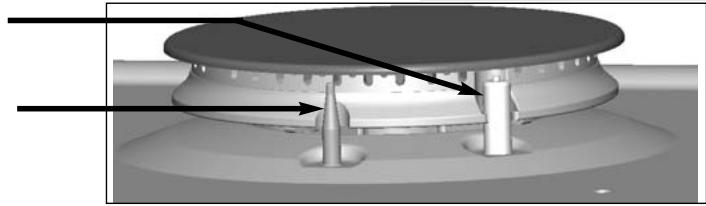

• Adjust the flame to the height your require by turning the control knob between the and symbols. To set off the safety system, keep the knob pressed completely down for a few seconds after the flame has lit up. Sparker Gas safety device (depending on model) - If ever your flame goes out, relight it as per normal procedure. - The flames on the burner are smaller near the grate supports to avoid any damage being done to the enamel. - The noise made by certain burners is related to their power and burning gas; this does not harm the quality of cooking in any way.

99625732_ML_B.qxd 16/12/02 11:05 Page 41 Using your hob in all simplicity Which pans are best adapted for use on the gas burner ?

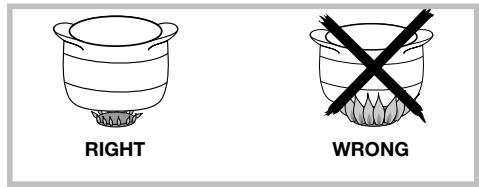

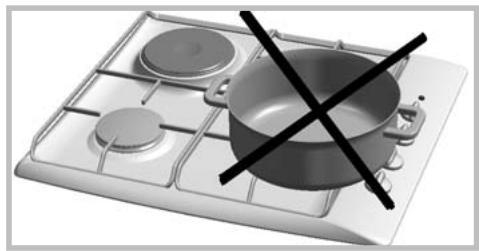

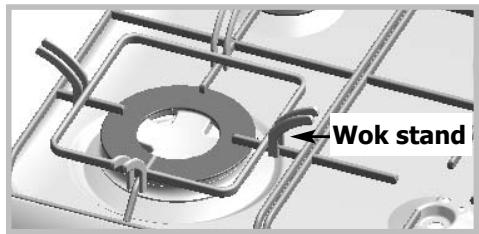

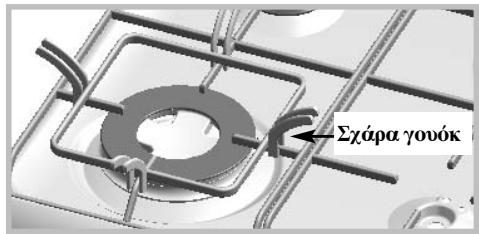

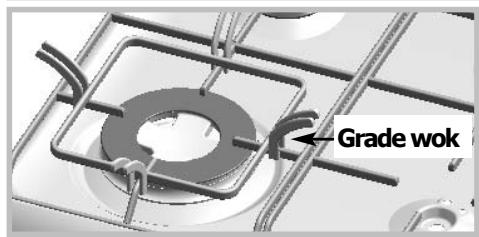

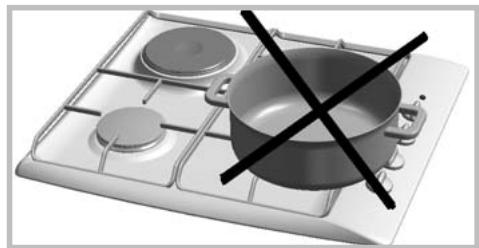

• Recommended pan sizes: Extra burner Extra burner Medium burner Small burner double-crown Extra-fast fast semi-fast auxiliary 20 to 30 cm 18 to 28 cm 16 to 26 cm 14 to 22 cm 12 to 16 cm Adjust the flames so that they do not lick up the side of your pan. RIGHT WRONG CONVEX CONCAVE Do not use a pan with a convex or concave bottom. Do not leave the gas on beneath an empty pan. Do not use pans whose bases or handles may partially cover control knobs. Some hobs are equipped with a specific "WOK" type support stand, to be used only on the central "Double Crown" ring. This "WOK" type stand allows you to use receptacles with a concave base. Used with the "Double Crown" ring, it allows better heat distribution around large receptacles such as woks and large diameter paella pans. Wok stand Keep all natural air-vents open or have a mechanical ventilation system installed (a mechanically ventilated hood). - Prolonged, intensive use of the hob may require extra ventilation; by opening a window for example or producing more efficient ventilation by increasing the power of the existing mechanical ventilation (a minimum air input of 2m3/hour per kW of gas energy is required.) E.g. : for a 60 cm hob with 4 gas-rings Total power: 0,85 + 1,5 + 2,35 + 3,2 = 7,9 kW. 7,9 kW x 2 = 15,8 m3/h per hour minimum flow-rate.

99625732_ML_B.qxd 16/12/02 11:05 Page 42 Using your hob in all simplicity How to use the electric hotplate?

• To heat it up Turn the knob to the point that corresponds to the cooking you want to do (See cooking table at the end of the instruction booklet). The electric hotplate 'on' light comes on. The first time you use the electric hotplate, leave it on for 3 minutes at maximum temperature without using a pan to harden the surface coating. E.g., position 3 Which pans are best adapted for use on the electric hotplate?

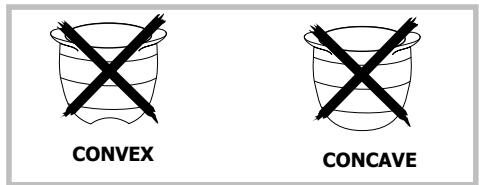

• Which pans are to be used on the electric hotplate? Use pans with flat bottoms that are in complete contact with the electric hotplate surface: - Stainless steel with a thick trimetal or "sandwich" base, - Aluminium with a thick (smooth) base, - Enamelled steel. Always use a pan of suitable size: the diameter of the pan must be larger than the diameter of the electric hotplate. Finish off your cooking with the knob turned to (o). This lets you take advantage of the heat that has accumulated in the electric hotplate.

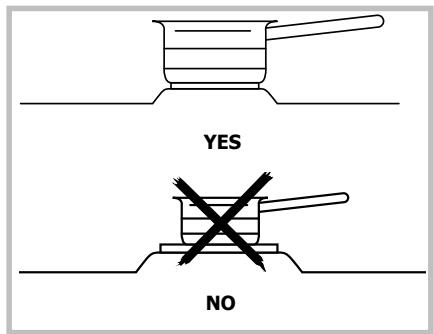

• Whenever possible use a cover on your pans to avoid losing any heat by evaporation. YES

- Never leave a electric hotplate turned on without a pan or with an empty pan. - The electric hotplate stays hot for a certain time after it has been switched off in the “O” position.

99625732_ML_B.qxd 16/12/02 11:05 Page 43 How to look after your hob? Keeping your hob in good condition is easy if you clean it before it is completely cold. Even so, never clean it when it is in use. Put all the electric and gas control knobs at zero.

ACCESSORIES TO BE USED Looking after sparkers and injectors - If ever the sparkers get dirty, clean them Injector with a stiff nonmetallic brush. Nut - The gas injectors are Sparker in the centre of each - Small hard-bristled burner in the form of brush. a "pot". Make sure not thermocouple - Safety pin to block them up partially when cleaning the hob, as this will considerably reduce the performance of your gas-rings. Looking after the grills and burners - Use a non-abrasive cream for removing any persistent stains. Then rinse with clean water. Dry each burner element carefully before re-lighting your hob. Looking after the electric hotplate - The electric hotplate is protected by a black surface coating. Therefore, avoid using any abrasive products. After use, wipe it clean - Renovating product with an oily cloth. available in the shops. - If ever a electric hotplate starts to rust, remove the rust with (with emery paper or similar) and re-coat the electric hotplate with a high-temperature renovating product to be found at your local distributor. Looking after enamel or stainless steel. - Use polishing cream for cleaning the enamel on the hob. Polish with a dry clean cloth. - Never allow any acid liquids such as lemon juice, vinegar, etc. to remain in contact with the enamel. - Use a sponge and soapy water or a standard stainless steel cleaner for cleaning the stainless steel parts on your hob. - Non-abrasive cream. - Household sponge. - Soft polishing cream. - Standard stainless steel cleaning product - It is better to clean the elements of your hob by hand, do not put any parts in the dishwasher. - Never use scouring pads for cleaning your hob.

99625732_ML_B.qxd 16/12/02 11:05 Page 44 Minor troubleshooting You have doubts about whether your hob is working correctly .... ...... this does not necessarily mean there is a breakdown. Nevertheless, check the following points

Lighting the burners: WHAT SHOULD YOU DO? There is no sparking when the control knobs or buttons are pressed down. - Check the electrical connections on the hob. - Check that the sparkers are clean. - Check that the burners are clean and in position. - If the hob is fixed to the worktop, make sure that the fixing clamps have not been twisted. - Check that the sealing rings have not come out of place. When you only press down one control knob all the burners spark. This is normal. The lighter system is centralised, and all the burners spark at the same time. Sparking takes place but the burners do not light up. - Check that the gas inlet pipe has not been squashed. - Check that the gas inlet pipe tube is less than 2m long. - Check that the main gas tap is open. - If you use gas tanks or cylinders check that they are not empty. - If you have just installed your hob or changed a gas cylinder, keep the control knob wide open for a few seconds so that the gas can get through. - Make sure the injector is not blocked up. if this is the case, clear it with a safety pin. - Light up your gas-ring before putting a pan on it. If your table is fitted with a gas safety system and the flames go out as soon as you release the control knob. - Push the control knob down completely and keep it under pressure for a few seconds after the burner has lit. - Check that the burner parts are in place. - Check that the sealing rings under the control knobs have not come out of place. - Avoid any severe drafts in the room. - Light the burner before putting your pan on it. In the low position the flames go out or are too high. - Avoid any severe drafts in the room. - Check that the gas you are using corresponds to the injectors that have been installed (See injector identification in the "Gas Rating" chapter). Remember that gas hobs are delivered preset for use with natural gas. Check the adjustment of the low power screw (See paragraph "Changing the type of gas supply"). Flames are irregular. - Check that the burners and injectors are clean and assembled correctly. - Check you have enough gas in your gas cylinders. The knobs get hot during cooking. Use small pans on the burners next to the control knobs. Large pans are to be put on the large burners furthest away from the knobs. Put the pan in place with the burner in the middle. The pan should not be above the control knobs. For any information on our products please contact us at : BRANDT UK Ltd Intect 4 - Wade Road - Basingstoke - RG24 8NE Tél : 01256 308000 - Fax : 01256 346377
